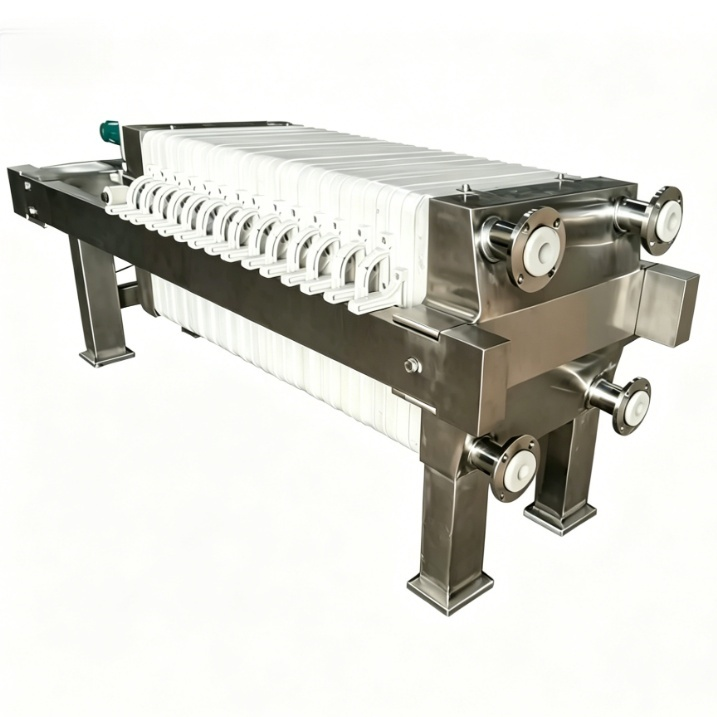

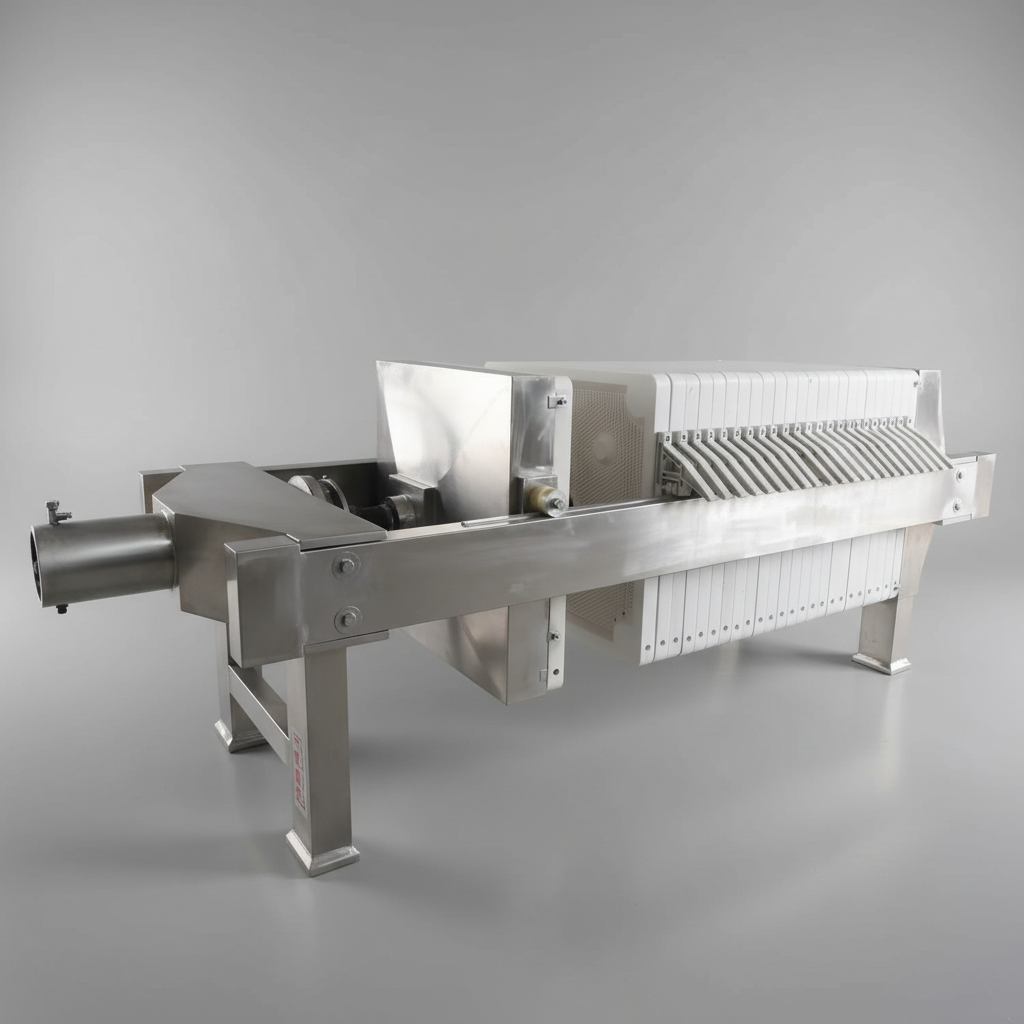

New Grape Seed Oil Purification Dehydration Automatic Chamber Filter Press Polypropylene Plates for Wastewater Sludge Treatment

Video Introduction

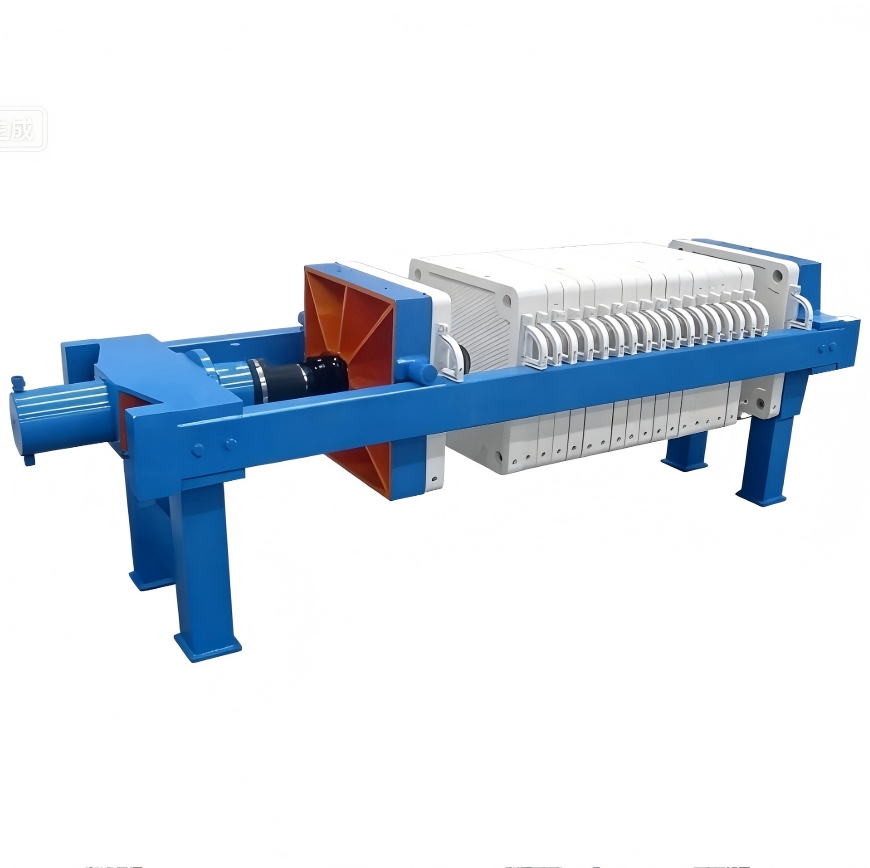

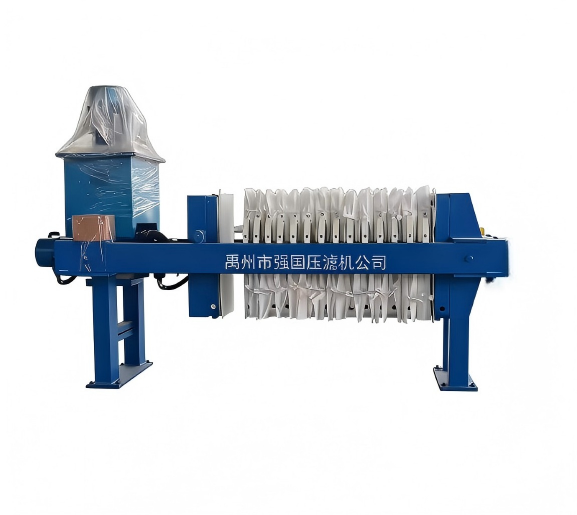

Product Display

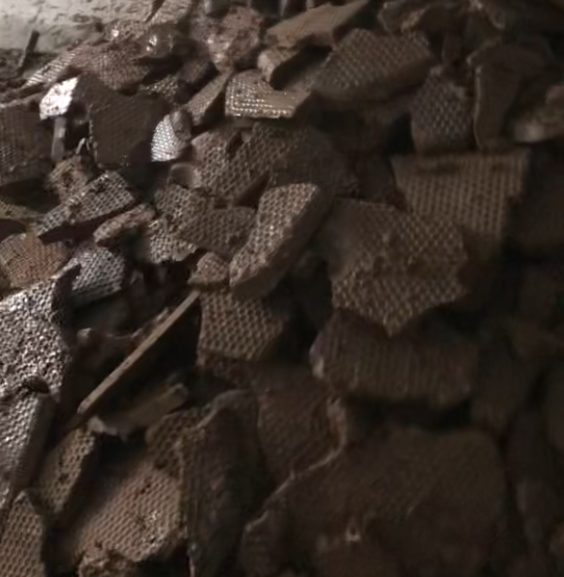

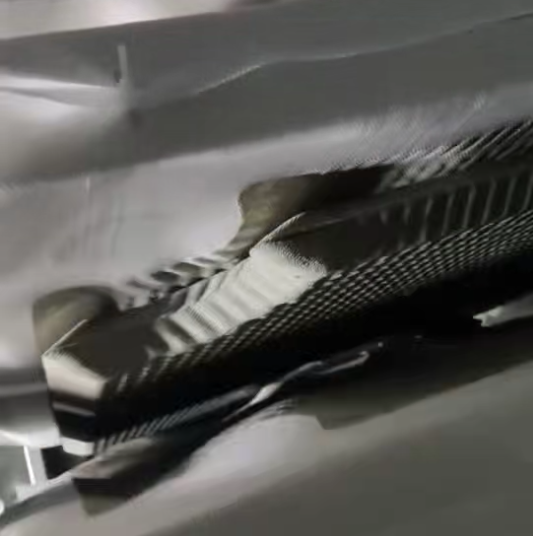

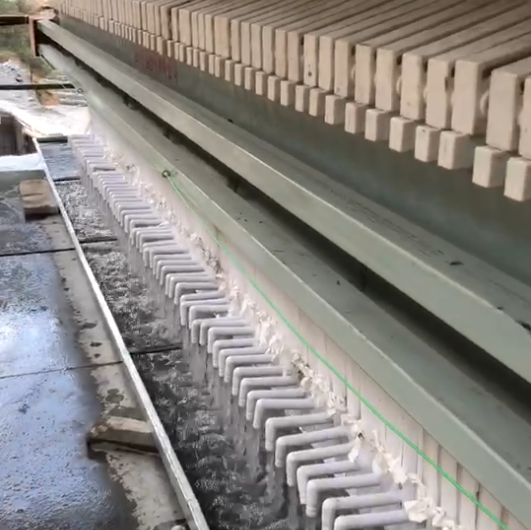

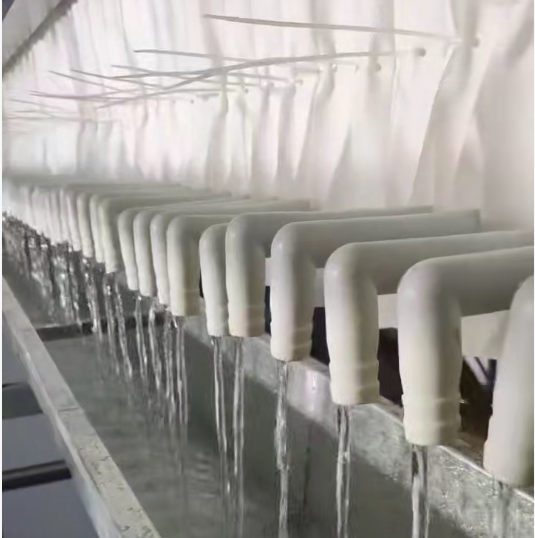

Effect of filter press treatment

Introduction to Filter Press with Different Functions

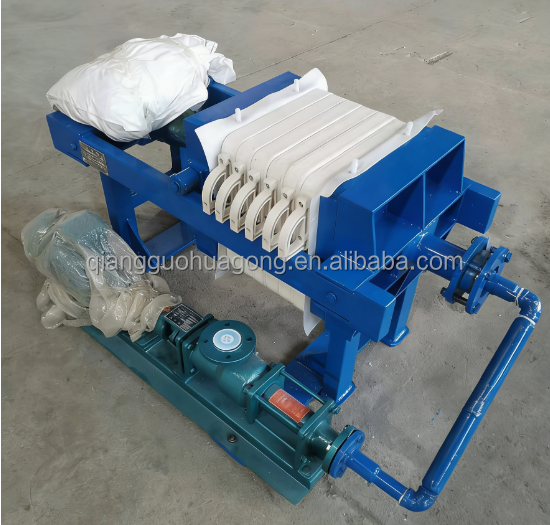

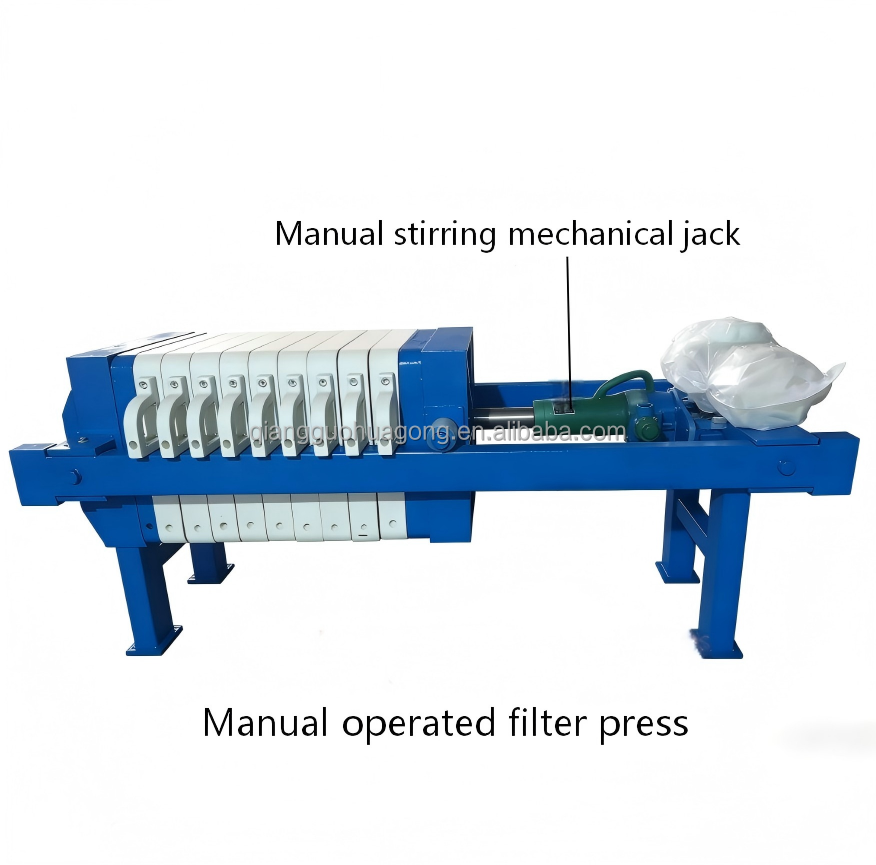

Manual jack compression filter press

This device uses mechanical/hydraulic jacks as power to push the moving filter plate of the filter press, squeeze and tighten the filter plate and filter cloth, forming a sealed filtering space. This device relies on manual mixing with a jack, which is easy to operate, has a low failure rate, and has low operating costs. The way to release the filter plate of this device is to manually push it open. Generally suitable for small filter presses, such as 380/500 type, with a filtration area of 1m² - 16m².

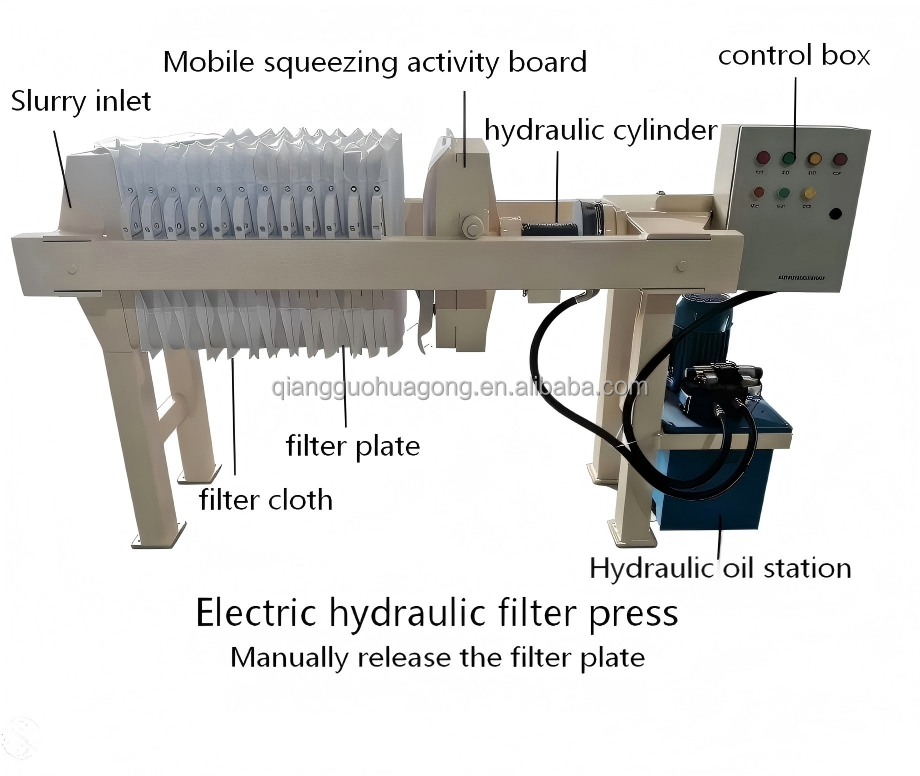

Electric hydraulic compression filter press

The electric hydraulic filter press consists of a filter press mainframe, hydraulic cylinder, hydraulic oil station, electrical control box, pressure gauge, and hydraulic oil pipe. Its working principle is to use the driving force of a hydraulic cylinder to press the moving filter plate and filter cloth tightly, forming a sealed filter chamber. The release method of the filter plate of this device is manual pushing, usually requiring two people to operate. The commonly used filtration area range is 4m² to 250m².

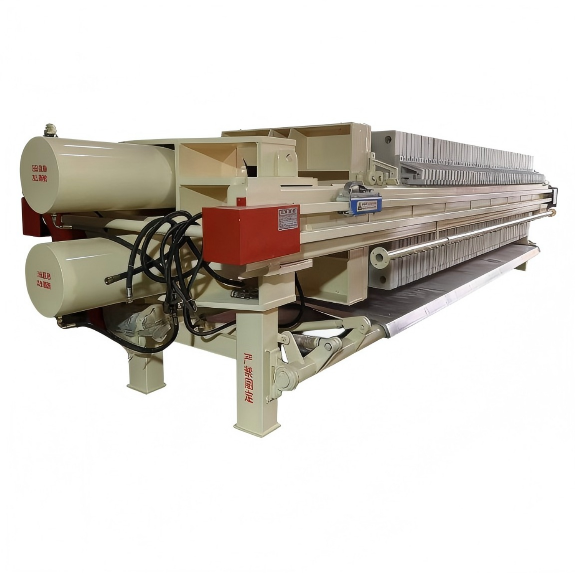

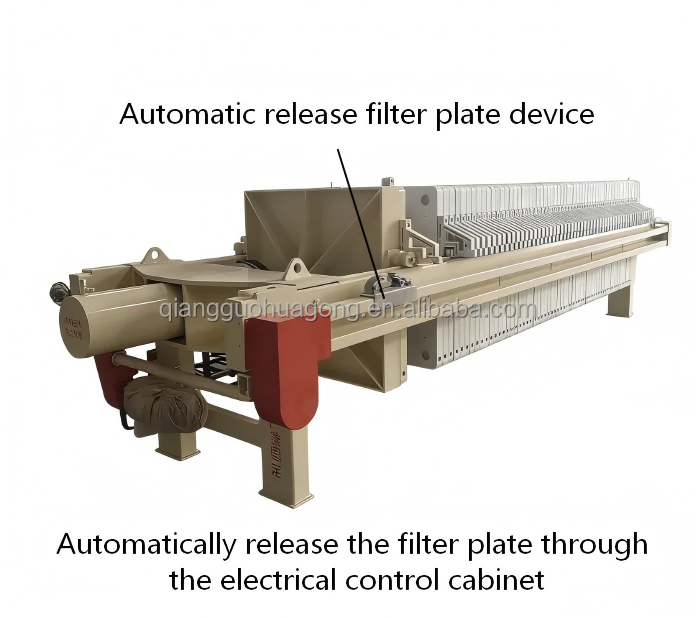

Automatic release of discharge filter press

The equipment adopts a hydraulic system to press the filter plate, equipped with a frequency converter and PLC control system. Through the linkage operation of the frequency converter pull plate motor, filter plate chain, and pull plate mechanical arm, the filter plate is driven to release one by one, achieving automatic detachment of the filter cake. One person can operate the plate and frame filter press through the electrical control box.

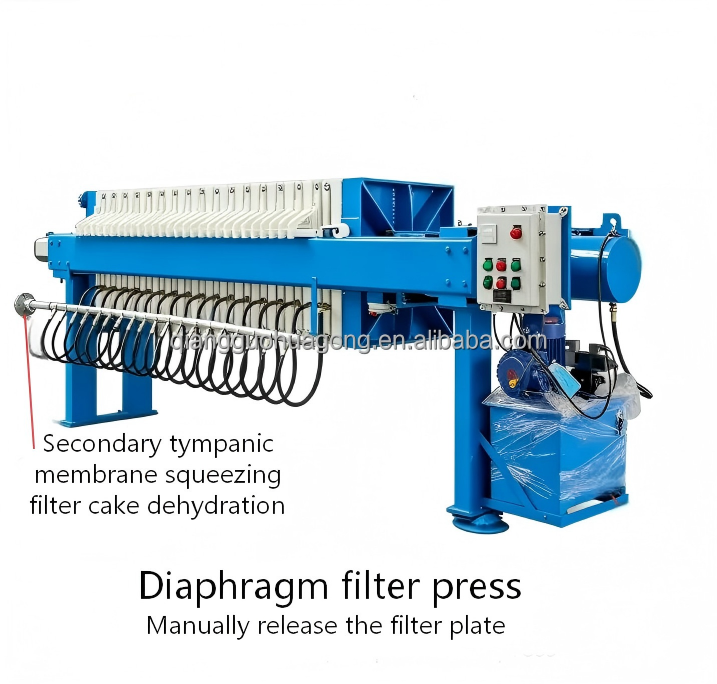

Secondary tympanic membrane dehydration filter press

This filter press is an improvement on the plate and frame filter press, which replaces some of the filter plates with deformable hollow diaphragm plates. Gas/water can be used through a squeezing pipeline device to cause the hollow diaphragm plate to bulge and squeeze the filter cake inside the filtering chamber, enabling further dehydration and reducing the liquid content of the filter cake.

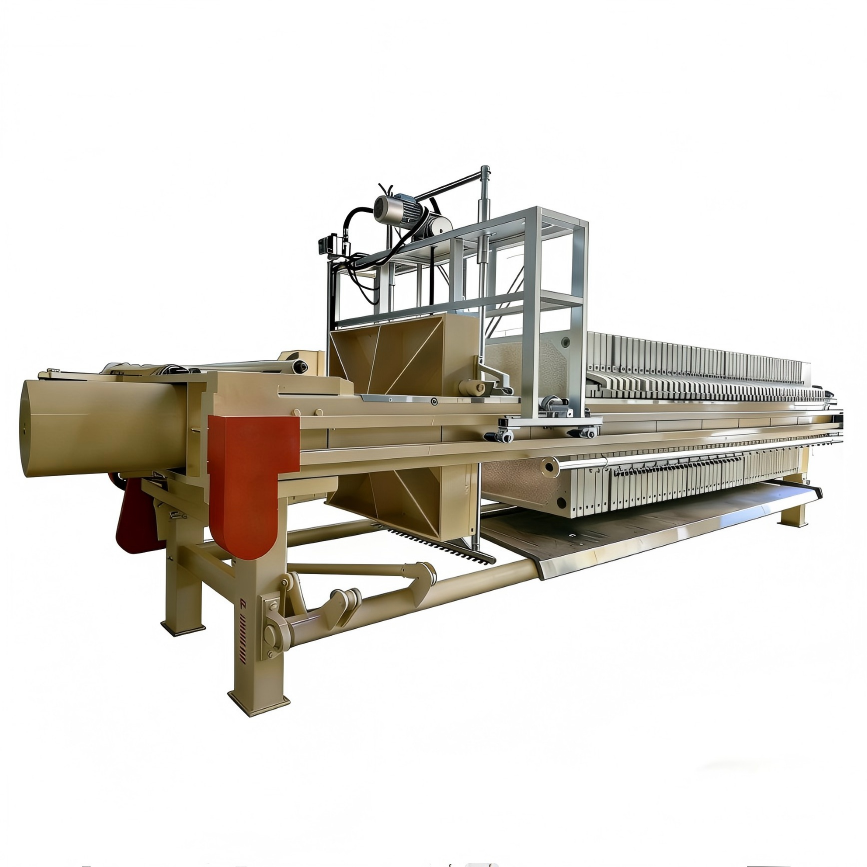

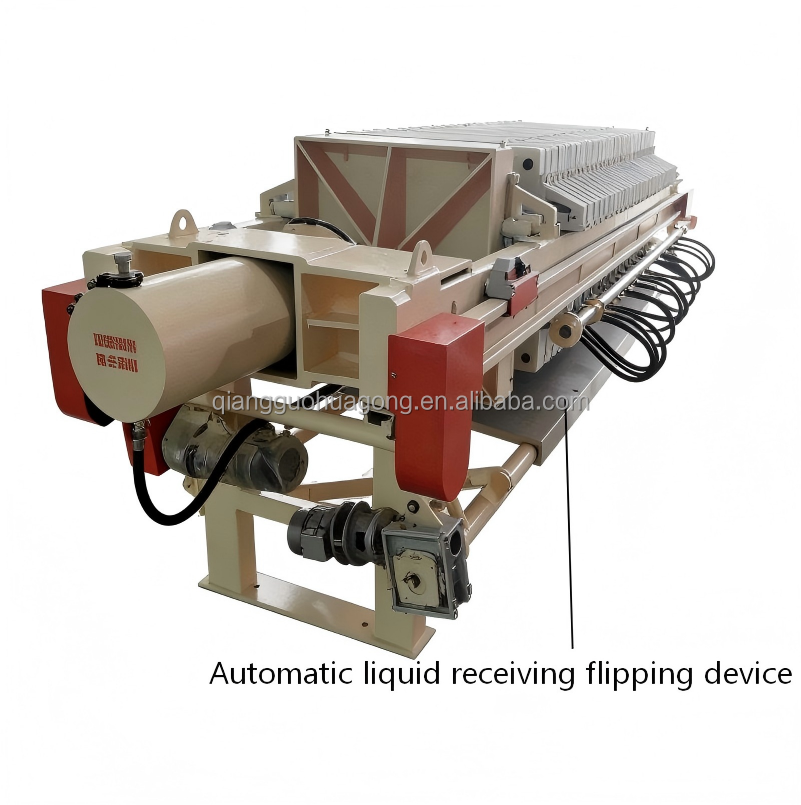

Liquid receiving flip plate filter press

This device is an added feature of the plate and frame filter press after use. When the plate and frame filter press is working, the device is in a closed state and can receive the liquid leaking from the lower part of the filter plate, and guide it to the water receiving tanks on both sides of the machine to maintain the dryness of the bottom of the machine. When it is necessary to clean the filtered filter cake, the device switches to the open state and can be used as a mudguard. The filter cake can fall from the middle of the two mudguards.

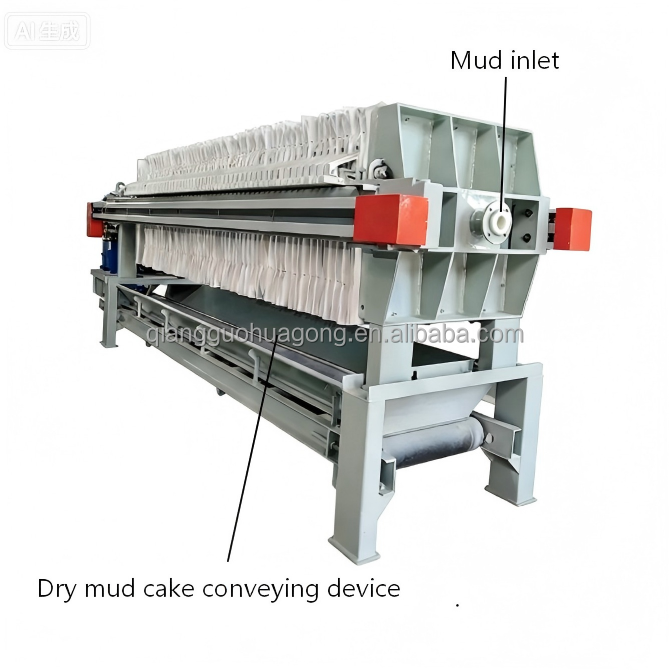

Filter cake conveying device

This device is an optional configuration for the plate and frame filter press. Its main function is to use a motor to connect the rotation of the rubber belt, and transport the dry filter cake that falls on the rubber belt to the outside of the equipment, where it is stacked in an open area for centralized loading and collection.

Introduction to different filters

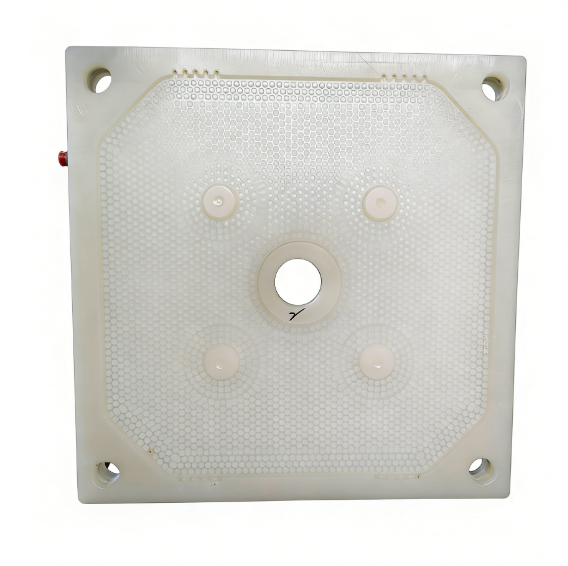

Secondary diaphragm pressing filter plate

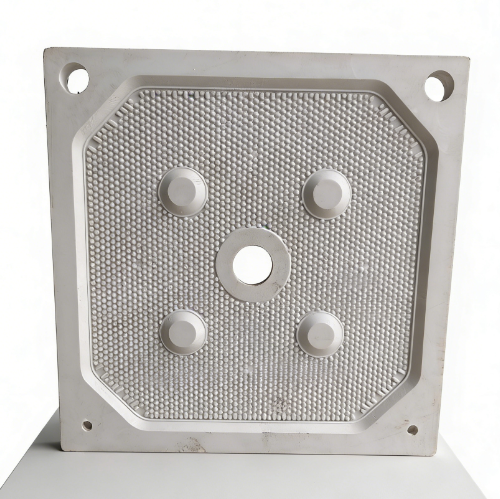

Box type filter plate

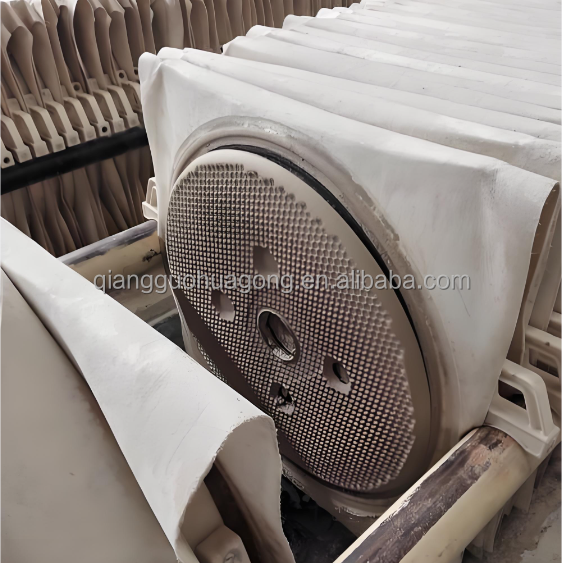

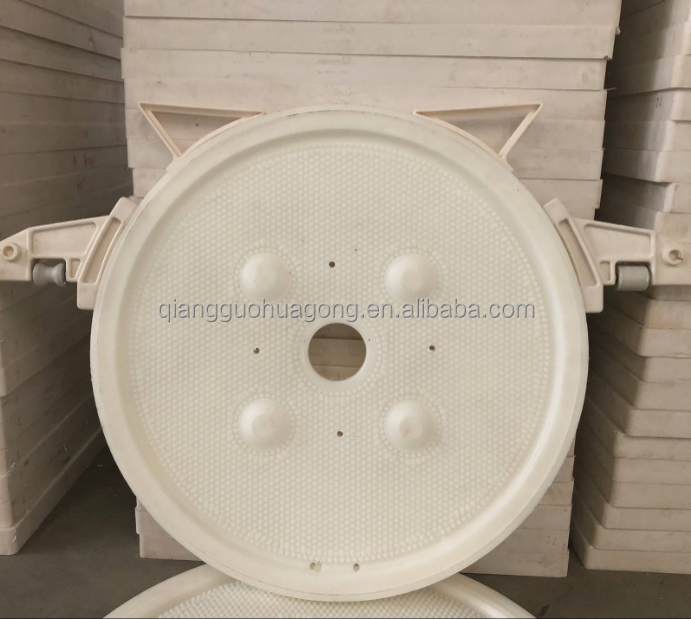

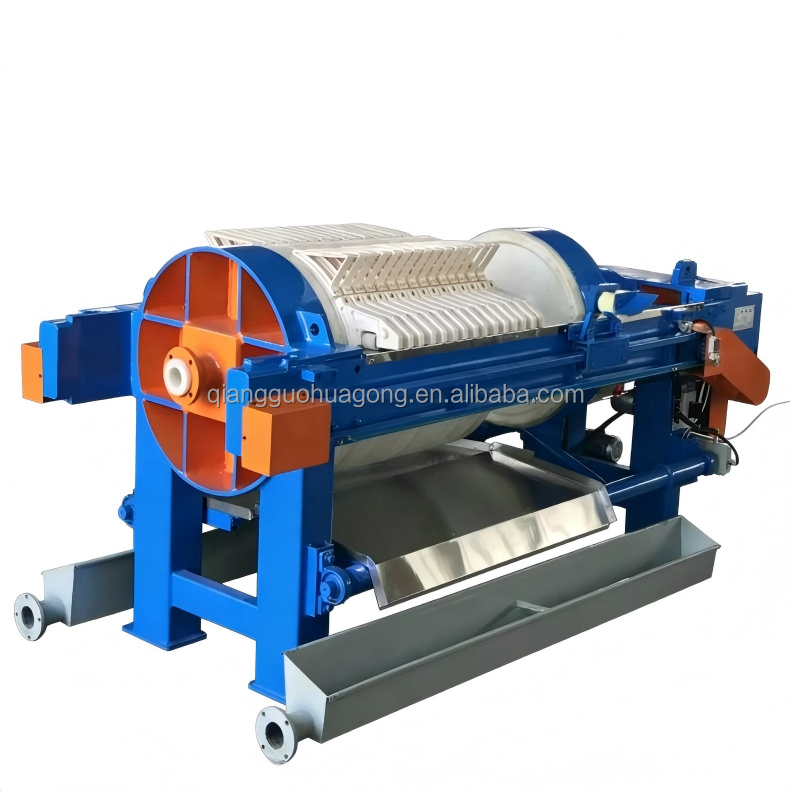

Circular filter plate

One board, one frame filter plate

Common specifications and models of filter presses

Equipment parameters
Specification Model	Filtration Area	Filter Chamber Volume	Number of filter plates
XMQ1/380-30U	1m²	15L	4 pieces
XMQ2/380-30U	2m²	30L	9 pieces
XMQ3/380-30U	3m²	45L	14 pieces
XMY4/450-30U	4m²	60L	9 pieces
XMY8/450-30U	8m²	120L	19 pieces
XMY10/450-30U	10m²	150L	24 pieces
XMY20/700-30U	20m²	300L	24 pieces
XMY30/700-30U	30m²	450L	37 pieces
XMY40/700-30U	40m²	600L	49 pieces
XMY50/870-30U	50m²	750L	38 pieces
XMY60/870-30U	60m²	900L	46 pieces
XMY100/1000-30U	100m²	1500L	57 pieces
XMY200/1250-30U	200m²	3000L	72 pieces
Support customization of different configurations and specifications

Product Description

Filter Press

A plate and frame filter press is an efficient filtration device that, in conjunction with a feed pump, relies on filter plates and filter cloth to separate suspended liquid into transparent filtrate and dry filter cake.

Filter press has two methods: manual compression and electric compression. It has the advantages of large filtration area, high degree of automation, fast filtration speed, and easy operation. It is suitable for solid-liquid separation in mineral processing, coal washing, fine chemicals, food, metallurgy, environmental wastewater, and pharmaceutical industries.

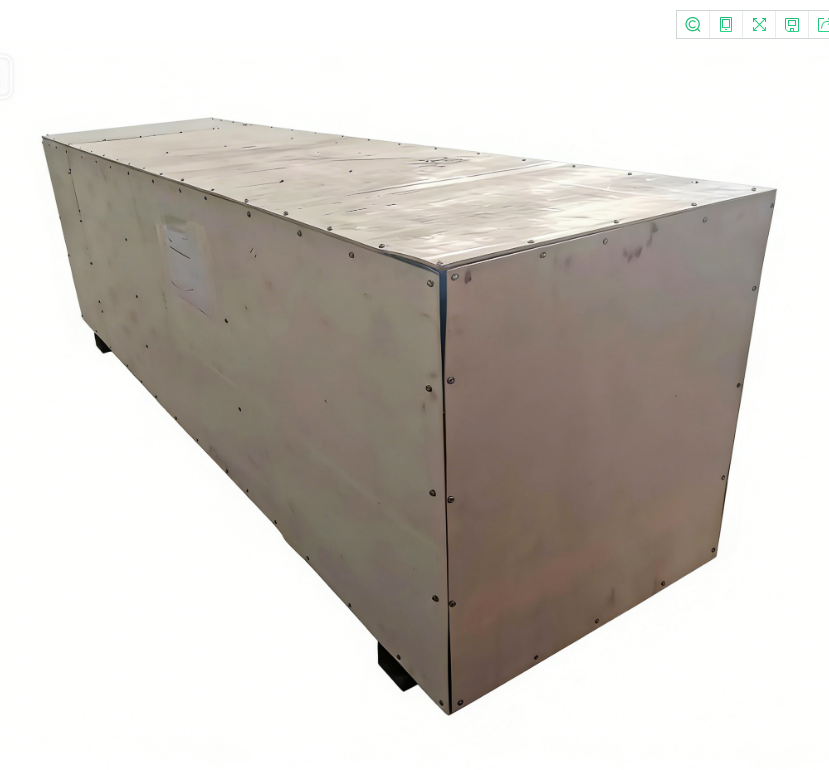

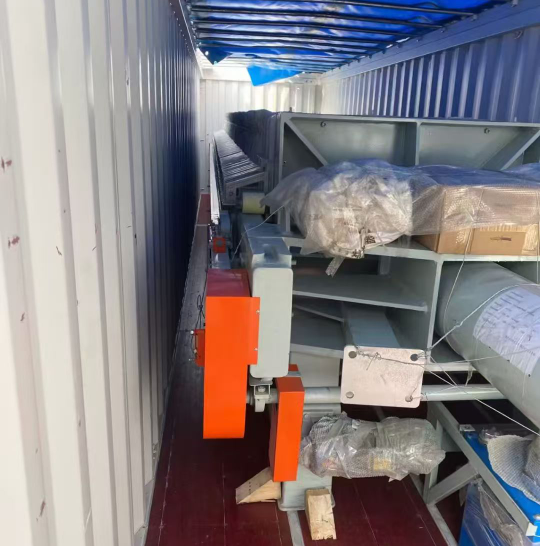

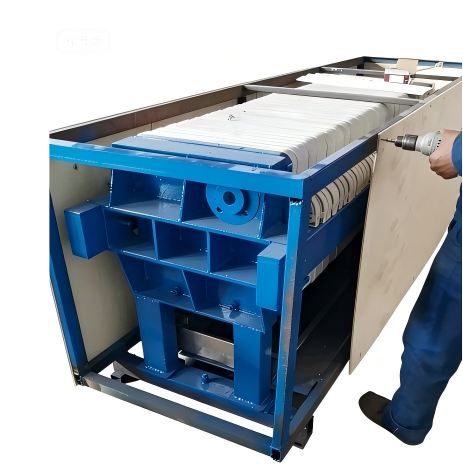

Equipment packaging and shipping

Frequently Asked Questions

Are you manufacturer?

Yes. We are a professional manufacturer of filtration equipment.

What products you provide?

We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.

How to select the type you needed?

We will ask you some information: solid liquid kind,usage, flow rate, solid content percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.

Is it easy to operate for the new user?

Yes. we will provide you with detailed operation manuals and videos, as well as video guidance for equipment installation. If there are any problems with the device's filtering during use, we will arrange experienced engineers to provide you with answers.

Do you accept OEM and what's the MOQ?

Yes, we accept OEM. Our MOQ is 1 PCS.

What is the Payment Terms & Quality Warranty?

Payment Terms: T/T, Western Union, L/C, Alibaba trade order or others. Generally 50% in advance, 50% before shipping.
Quality Warranty: 12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
