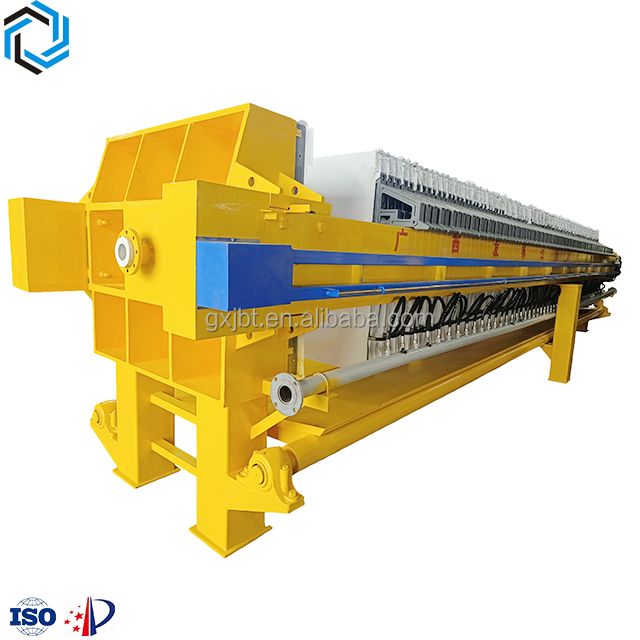

High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
1 / 5
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System
High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System

High-Efficiency Plate And Frame Filter Press With Automatic Plate Flipping Discharge System

Send Inquiry

Product Description

Product Overview

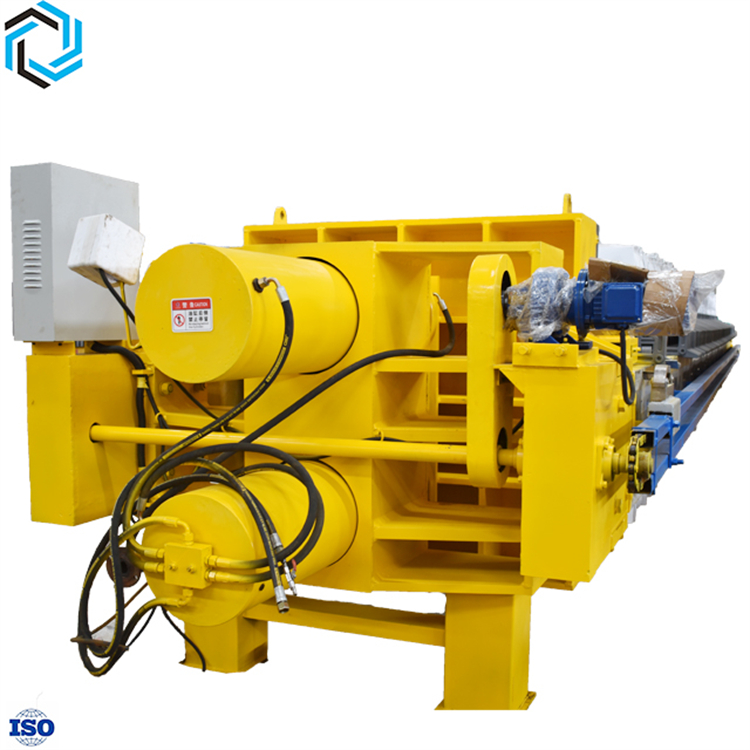

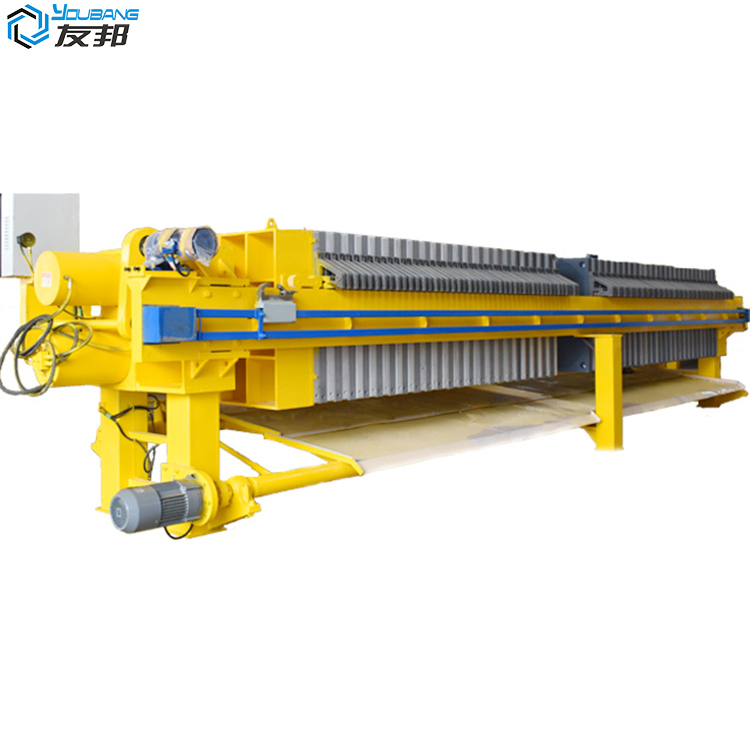

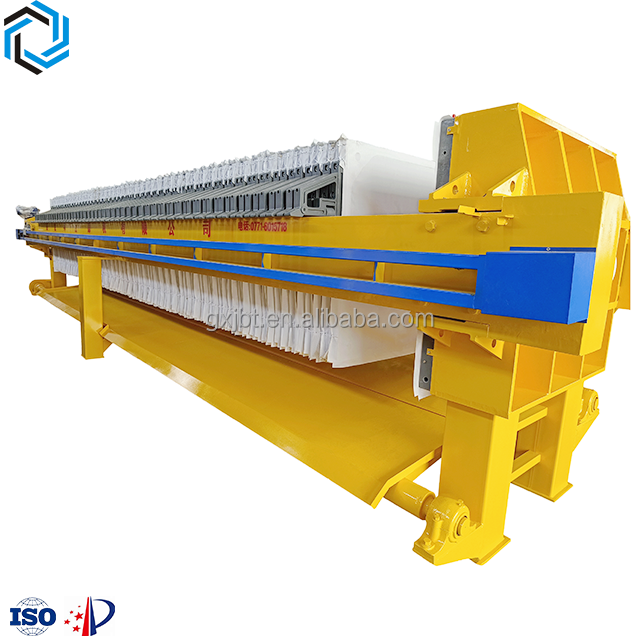

XMZGF250/1250-UK Membrane Filter Press
It works with more higher efficiency. The Membrane filter press has second process to reduce the water content.
Features at a Glance
Higher efficiency
Automatic
Less water content

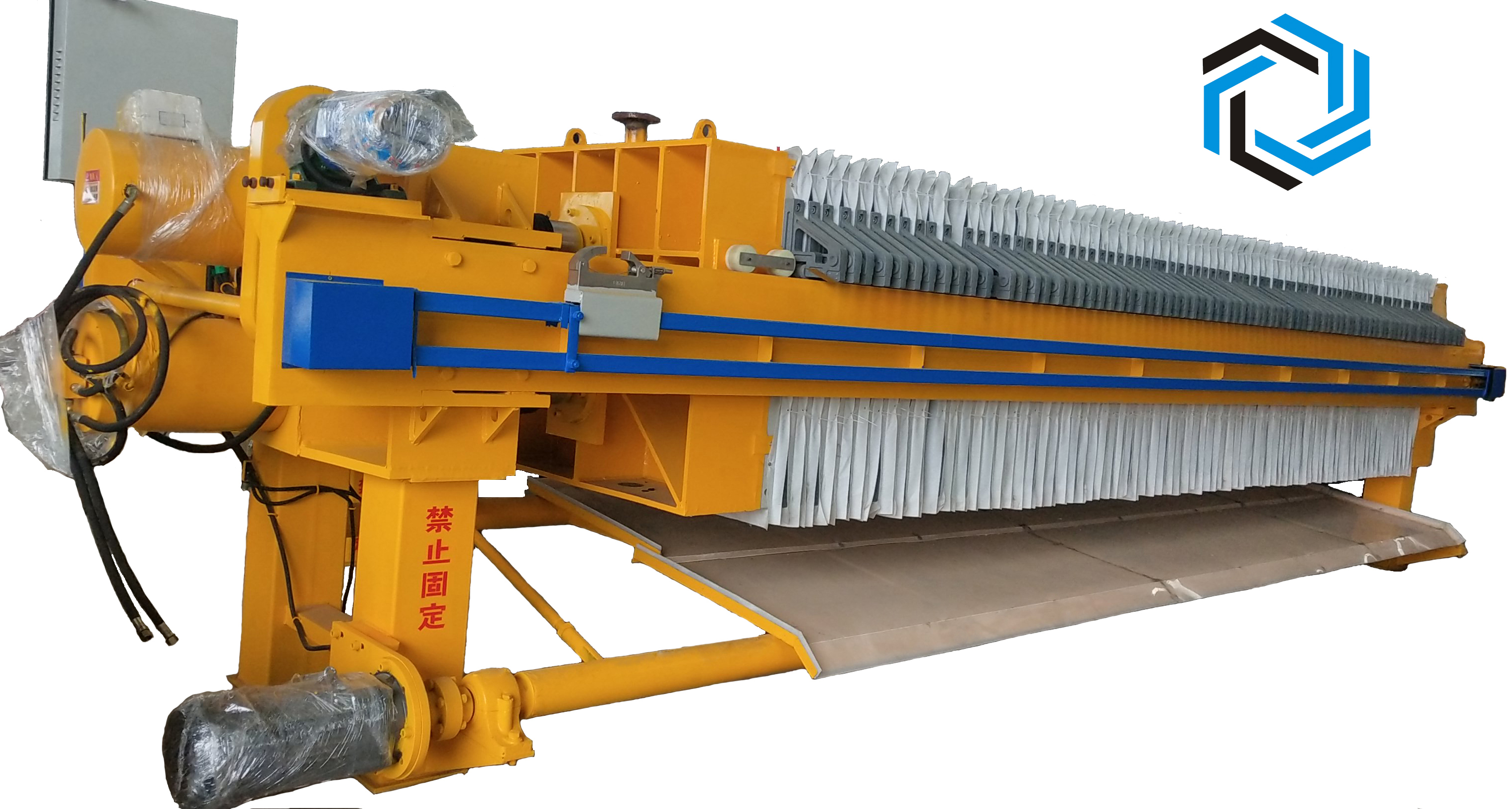

Features Image

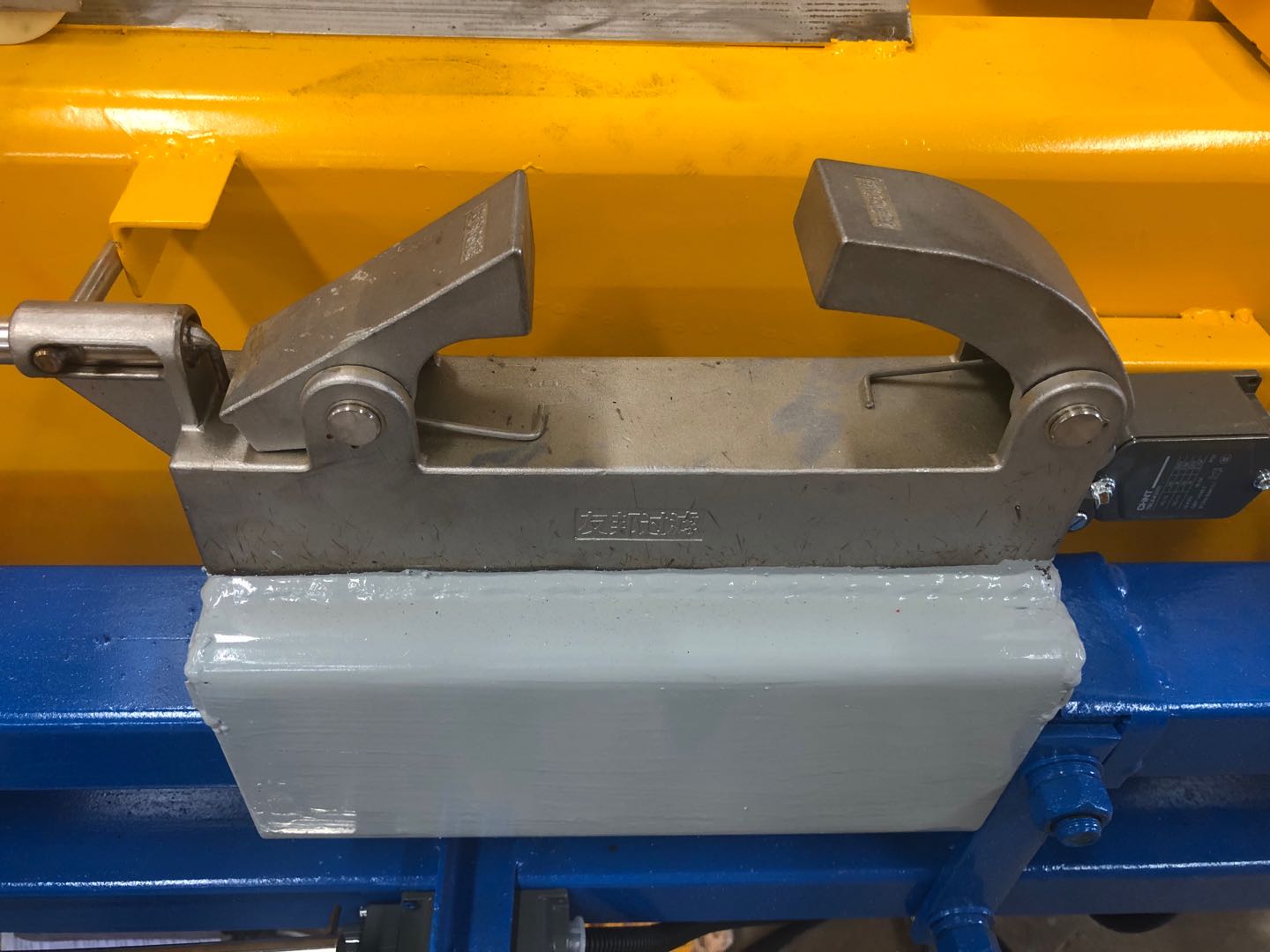

Right elevation
Right elevation

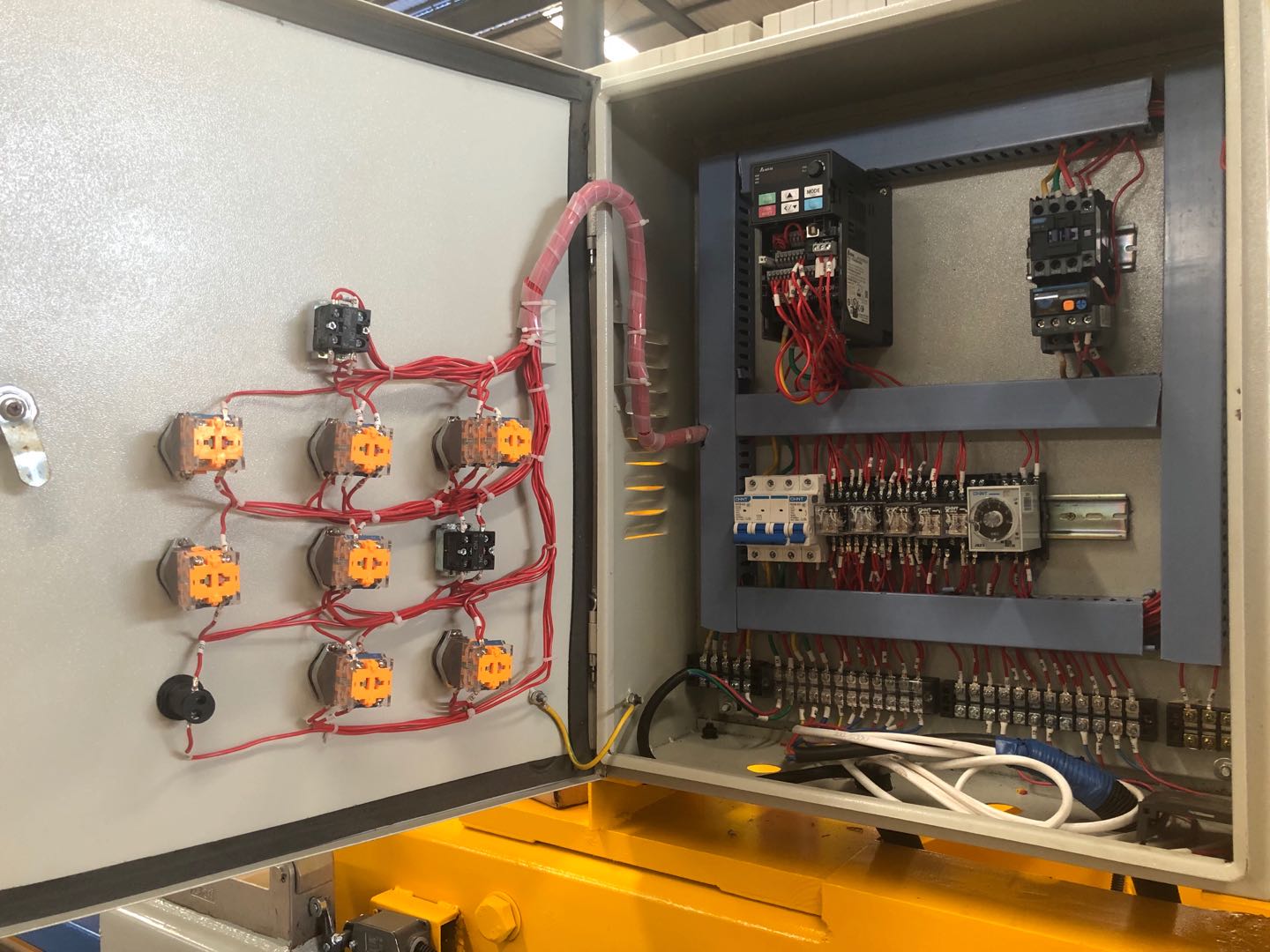

Left elevation
Left elevation

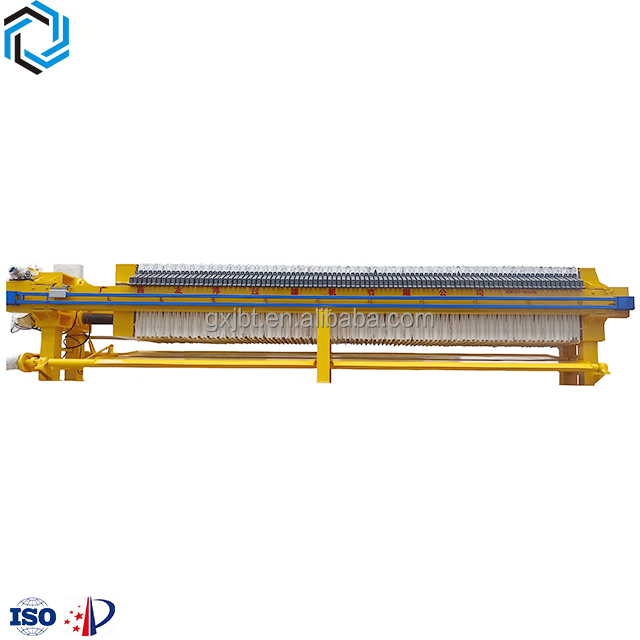

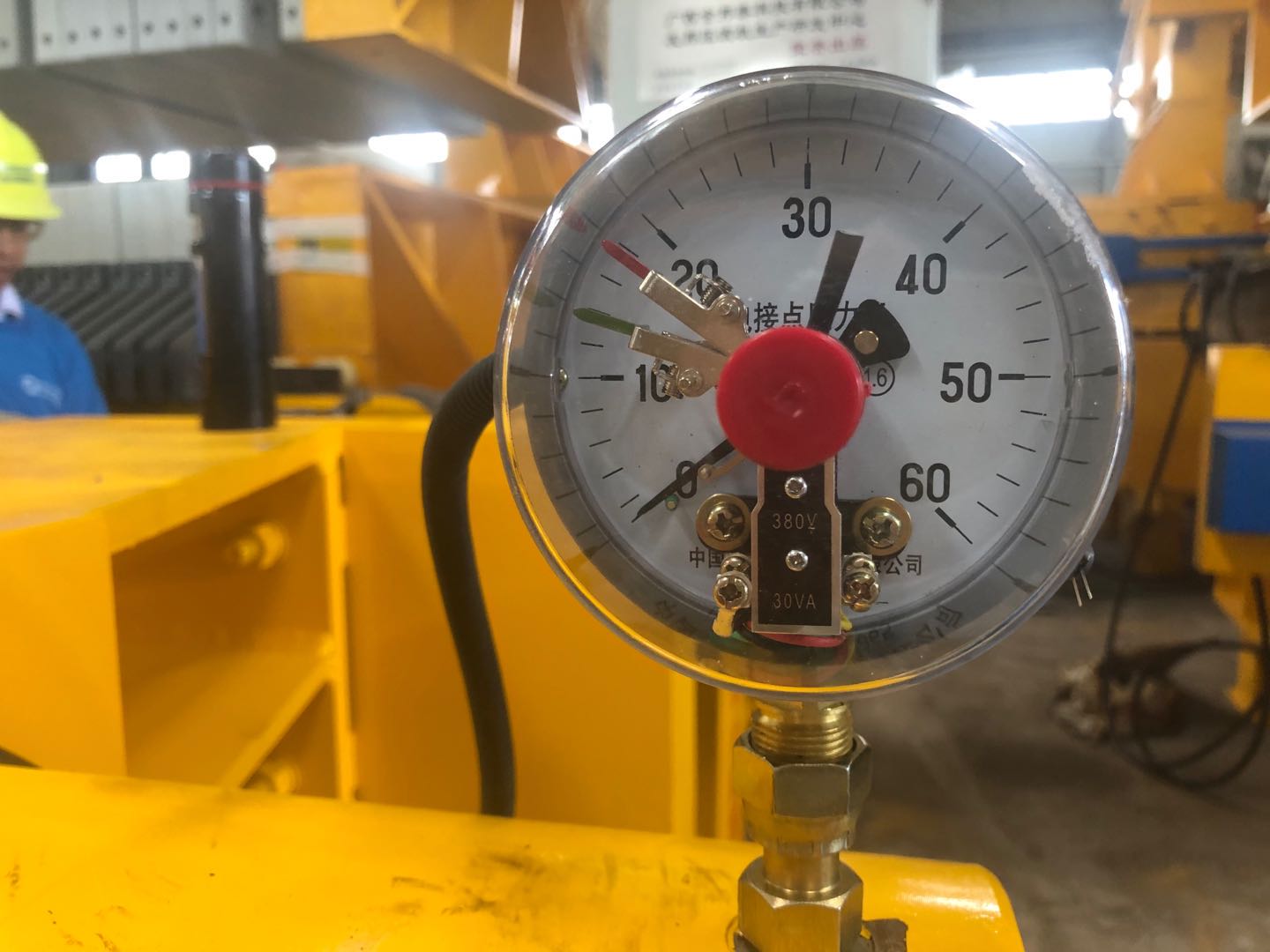

Front elevation
Front elevation
Product Specifications
No Item Parameter
1 Plate Pulling Automatically Pulling
2 Size of plate (mm) 1250x1250
3 Feed Pressure(MPa) ≤0.8MPa
4 Squeeze pressure(MPa) ≤1.2MPa
5 Power of Hydraulic station motor (kw) 7.5
6 Power of pulling plate motor (kw) 1.5
7 Power of drip tray motor(kw) 2.2
8 Number of filter chamber (pcs) 96
Sales and Service Network

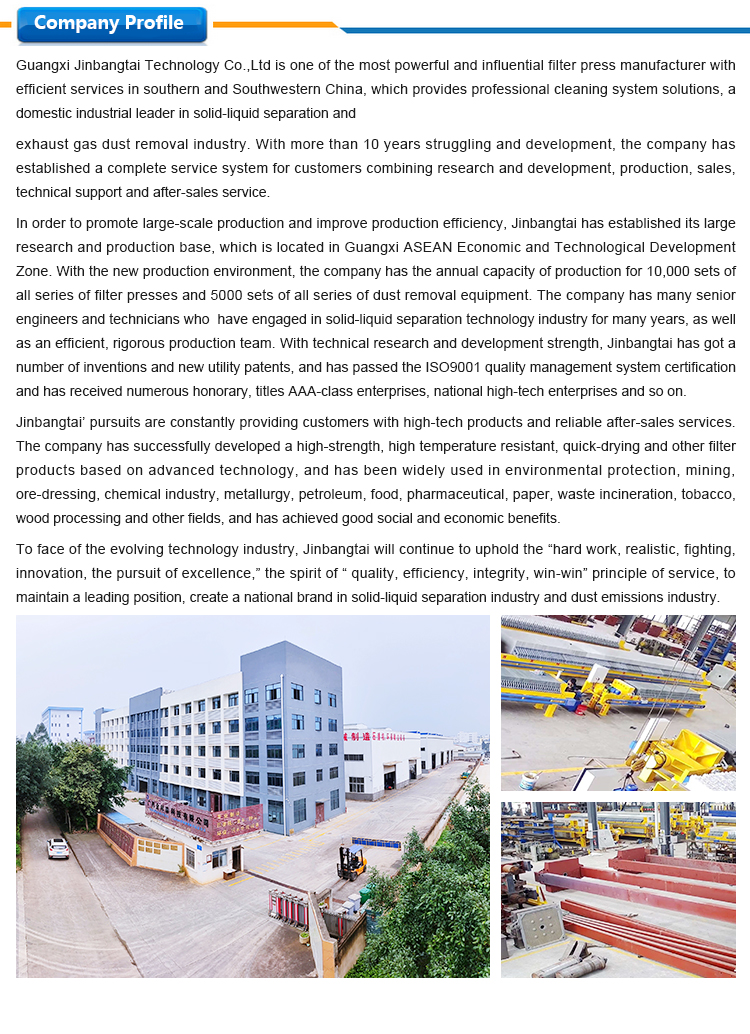

Sales and Service Network Map
Successful Project

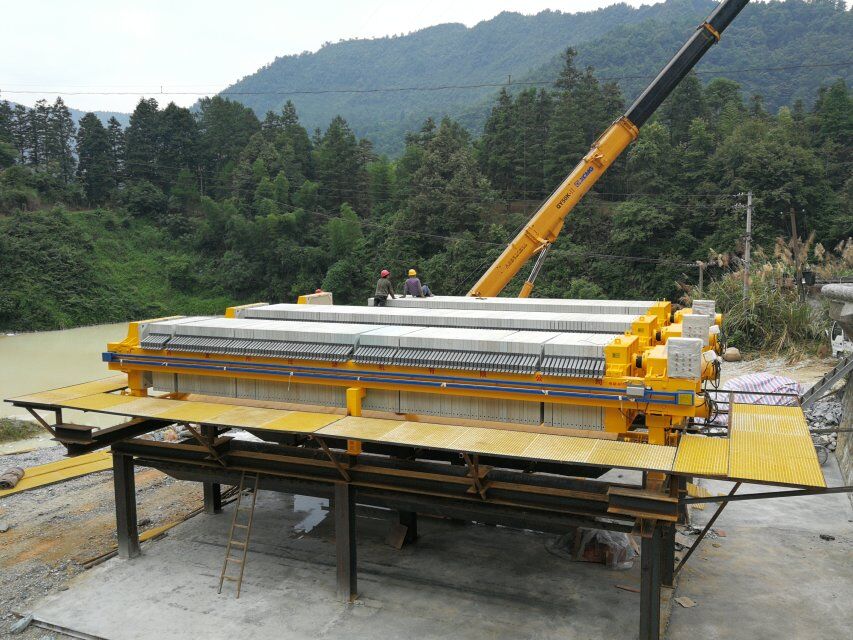

Project in domestic
Project in domestic

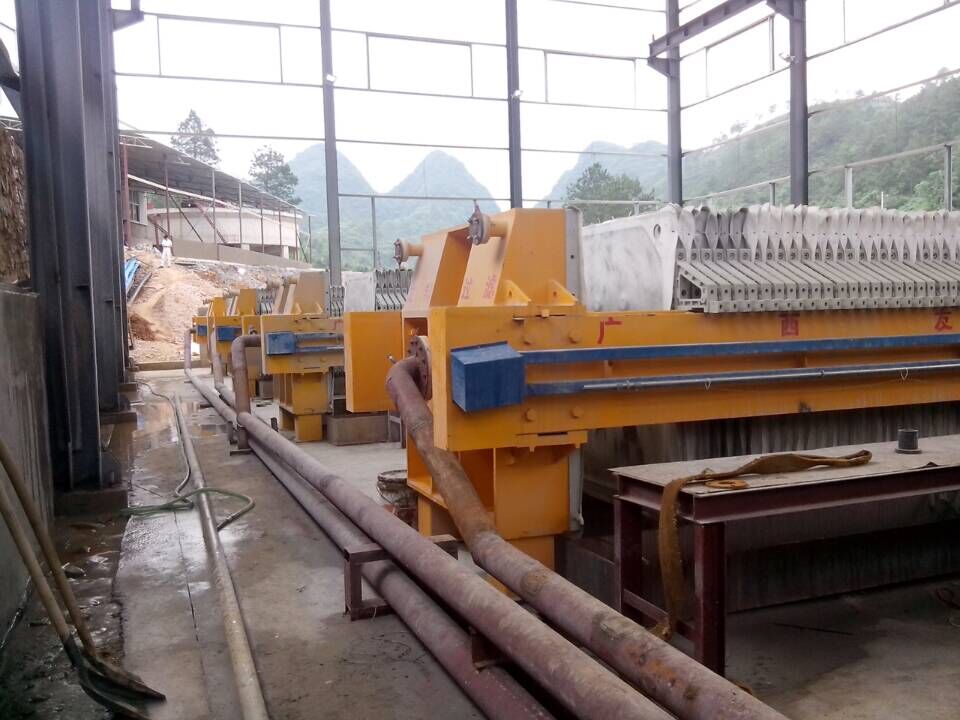

Project in mine
Project in mine

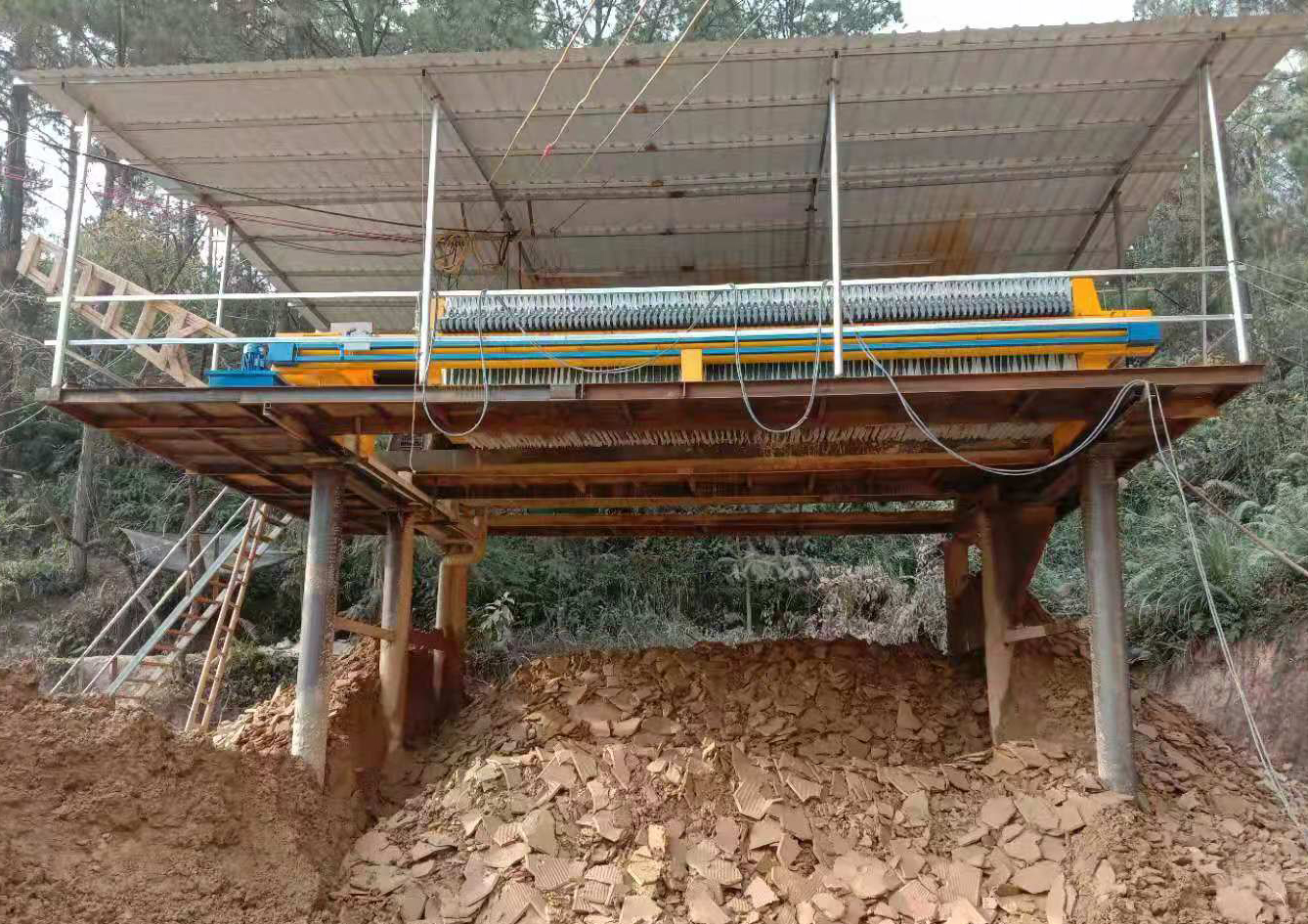

Project in quarry
Project in quarry
Similar Products

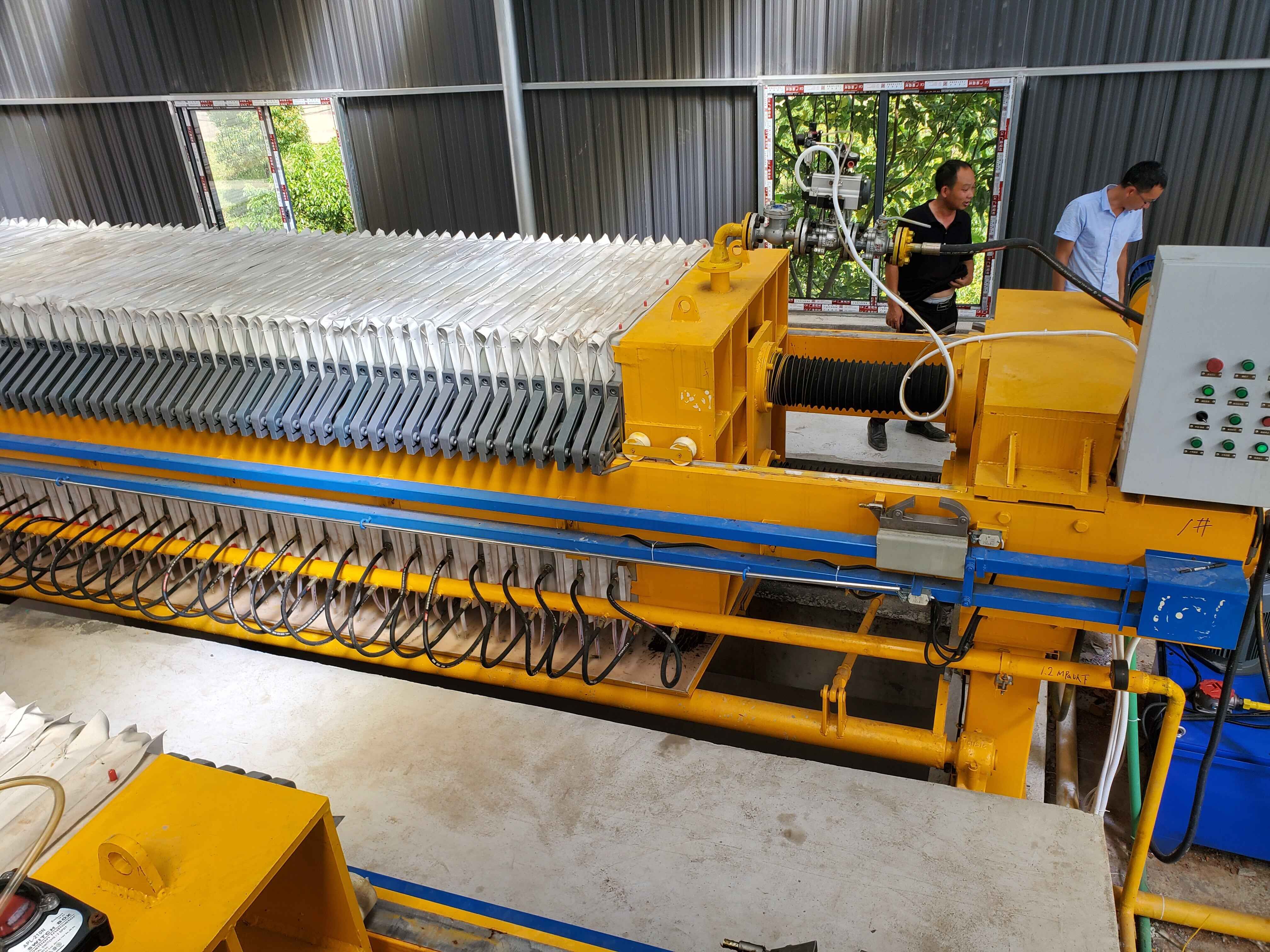

Similar Product 1

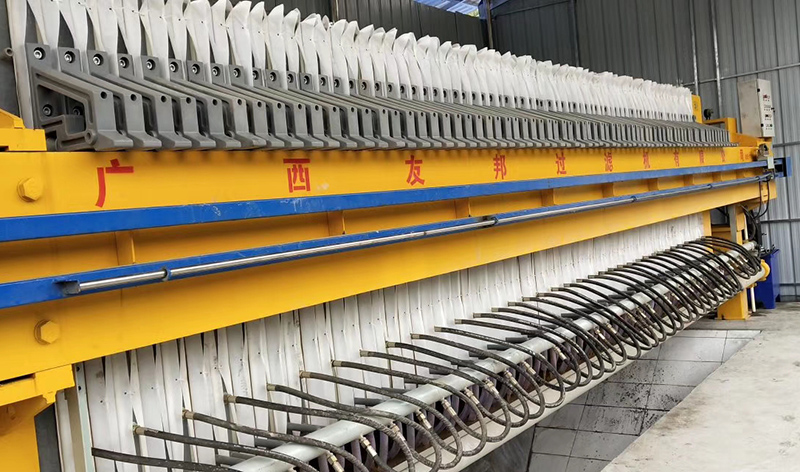

Similar Product 2

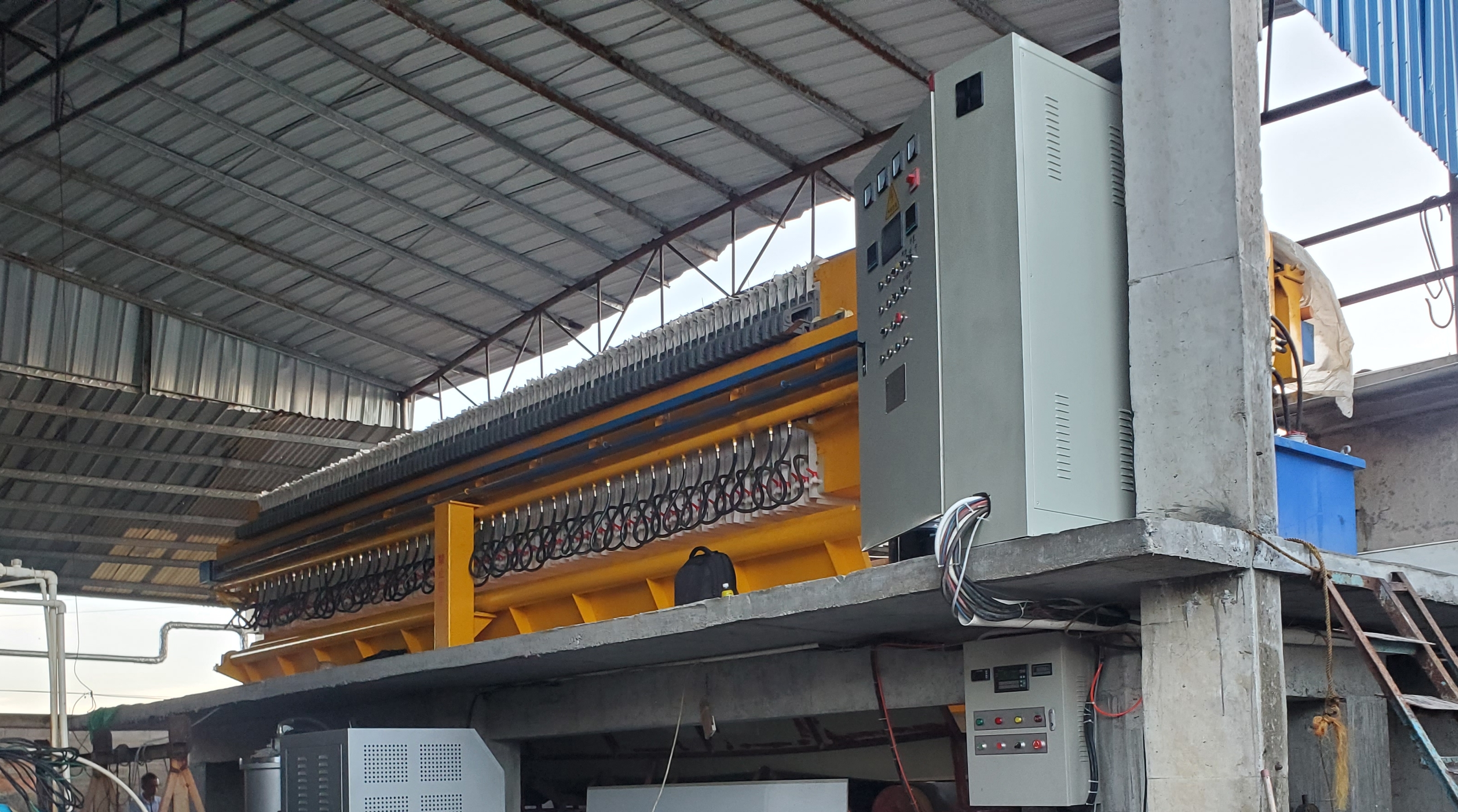

Similar Product 3
Product Diagram 1
Product Diagram 2
Frequently Asked Questions
What is the main advantage of the XMZGF250/1250-UK Membrane Filter Press?
The primary advantage is its secondary squeeze membrane system, which exerts up to 1.2MPa of squeeze pressure on the filter cake, significantly reducing the residual water content and maximizing filtration efficiency.
How does the automatic plate pulling system operate?
The filter press is equipped with an automatic plate pulling motor (1.5 kw) that automatically separates the filter plates sequentially to release the dried filter cakes, reducing labor costs and cycle times.
What are the feed and squeeze pressure specifications for this model?
The maximum feed pressure is ≤0.8 MPa during the initial slurry feeding stage, and the maximum squeeze pressure is ≤1.2 MPa during the secondary membrane squeezing stage.
What plate size and chamber capacity does this model feature?
This model uses 1250mm x 1250mm sized membrane filter plates and has a total of 96 filter chambers, making it ideal for high-capacity industrial applications.
In which industries is this membrane filter press typically used?
It is widely deployed in mining operations, quarries, industrial wastewater treatment facilities, chemical processing plants, and other solid-liquid separation applications where low filter cake moisture is critical.
