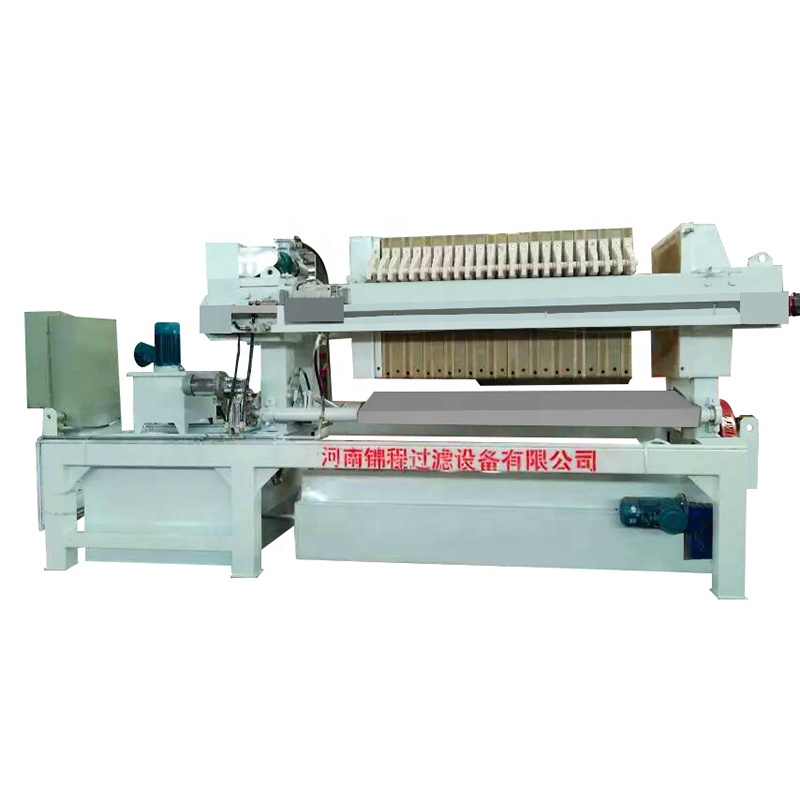

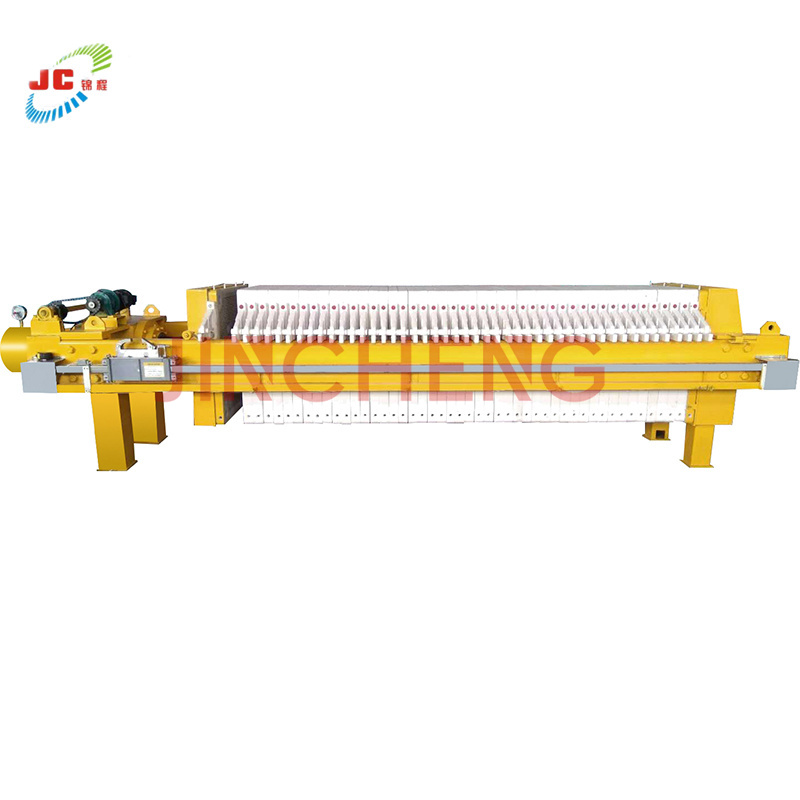

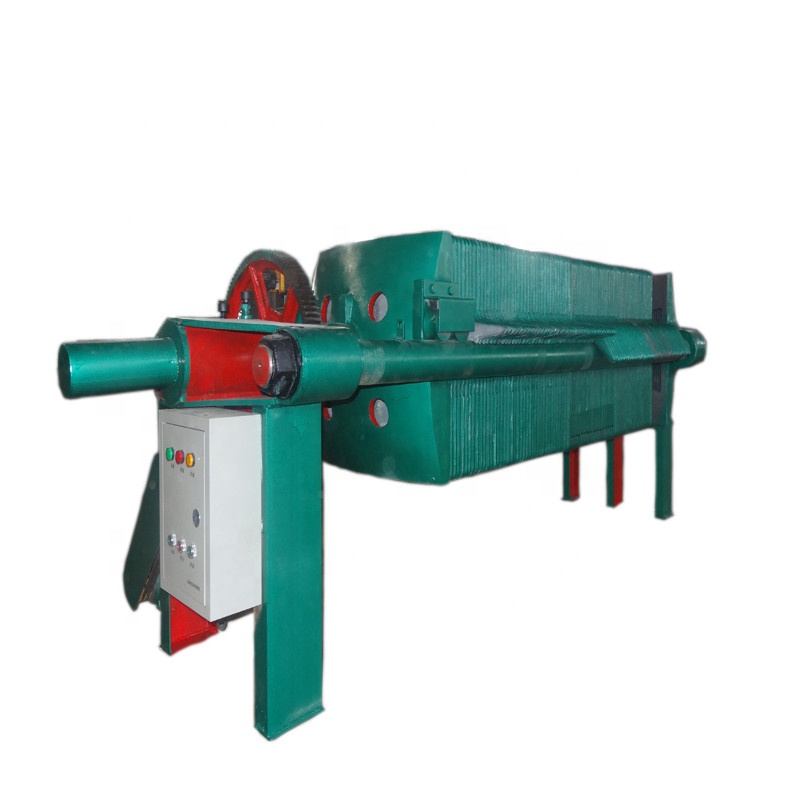

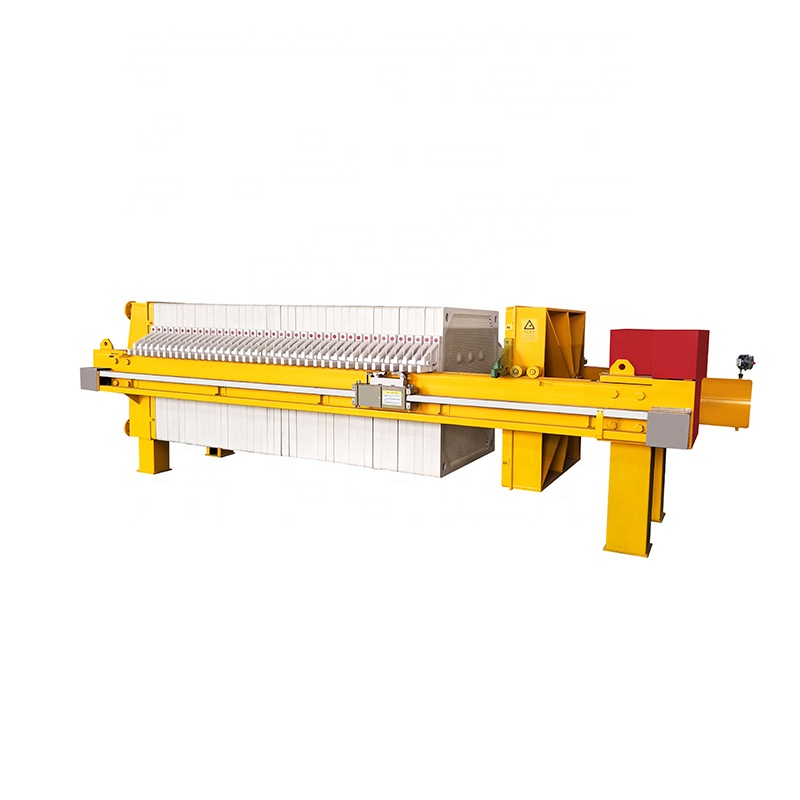

Sludge Dewatering Machine Filter Press For Mining Industry Urban Sewage Treatment
1. Product Description

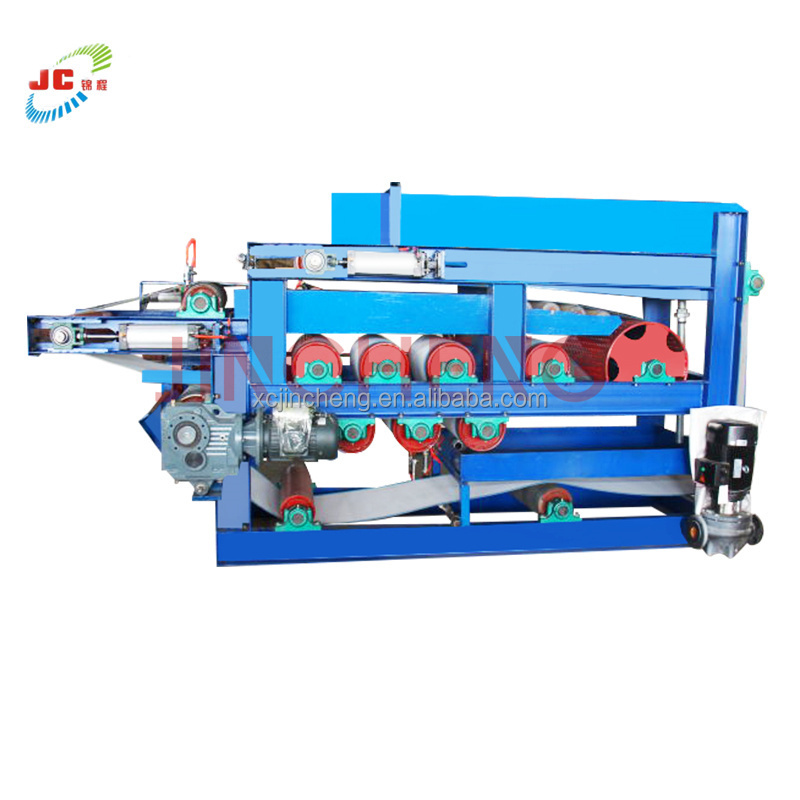

We are a professional manufacturer of filtering equipments, specializing in manufacturing filter press. Our products range covers series of plate and frame filter press, chamber filter press, belt vacuum filter press, membrane filter press, centrifuge, shale shaker, industrial pumps, deep cone thickener, flotation column, etc.
The filter press is a kind of intermittent operation of the pressurized filtration equipment which is suitable for the solid-liquid separation.
2. Usage of the Filter Press Machine
It is widely used in coal washing, Oil, chemicals, dyes, metallurgy, medicine, food, alcohol and other fields, but also for textile, printing and dyeing, pharmaceutical, paper, leather and other industrial waste water and urban sewage treatment and other areas that need to be solid-liquid separation.

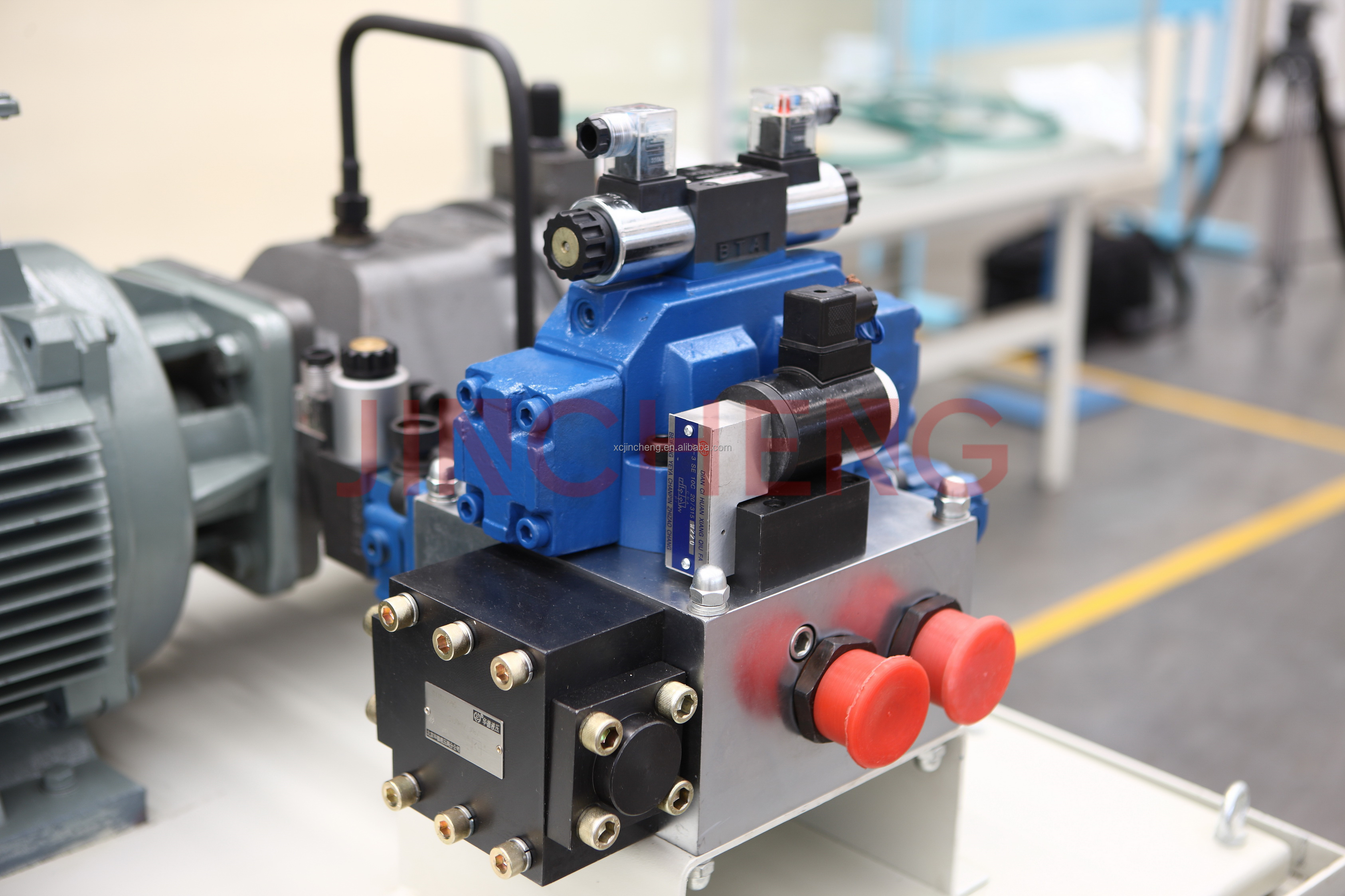

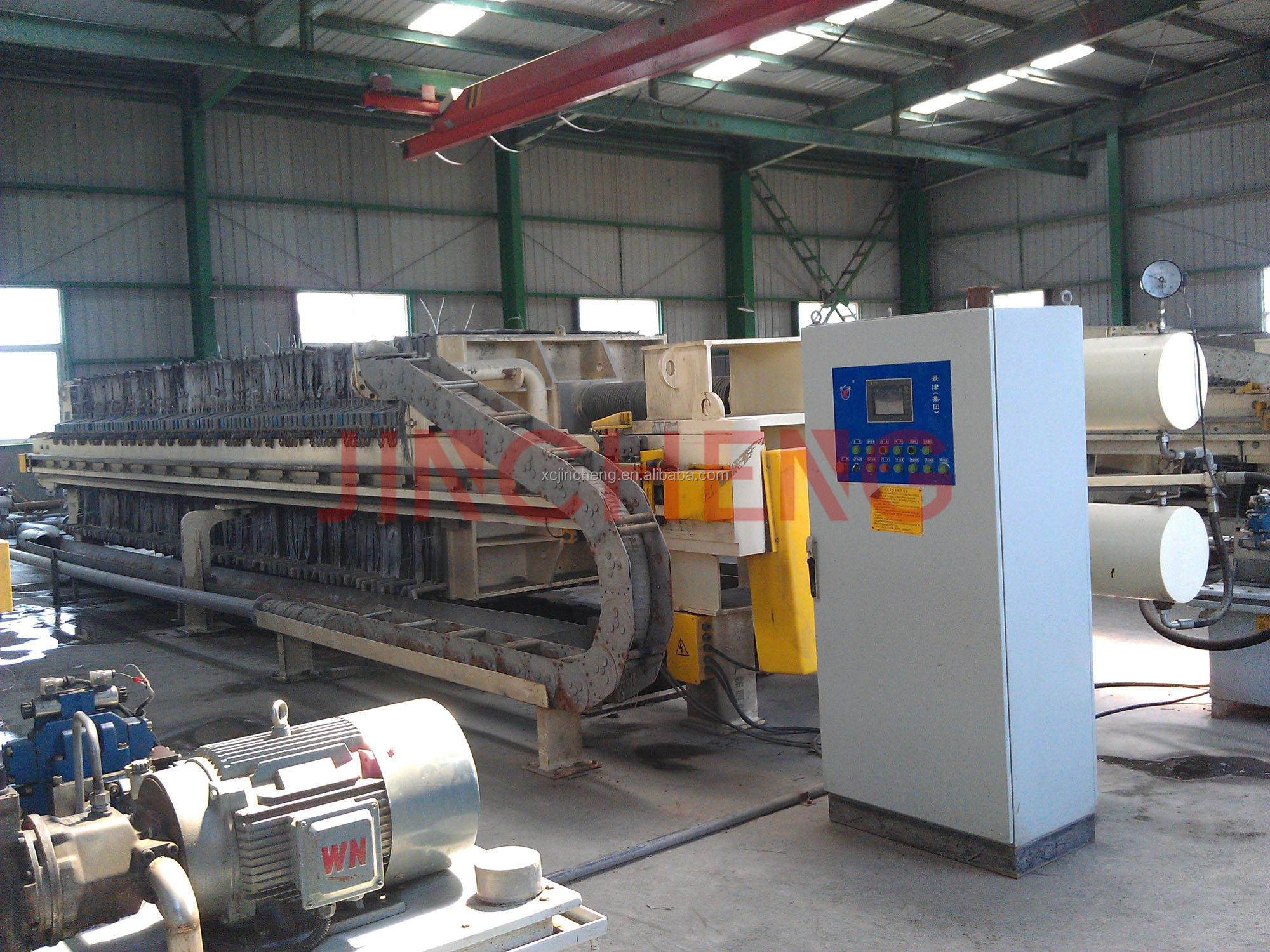

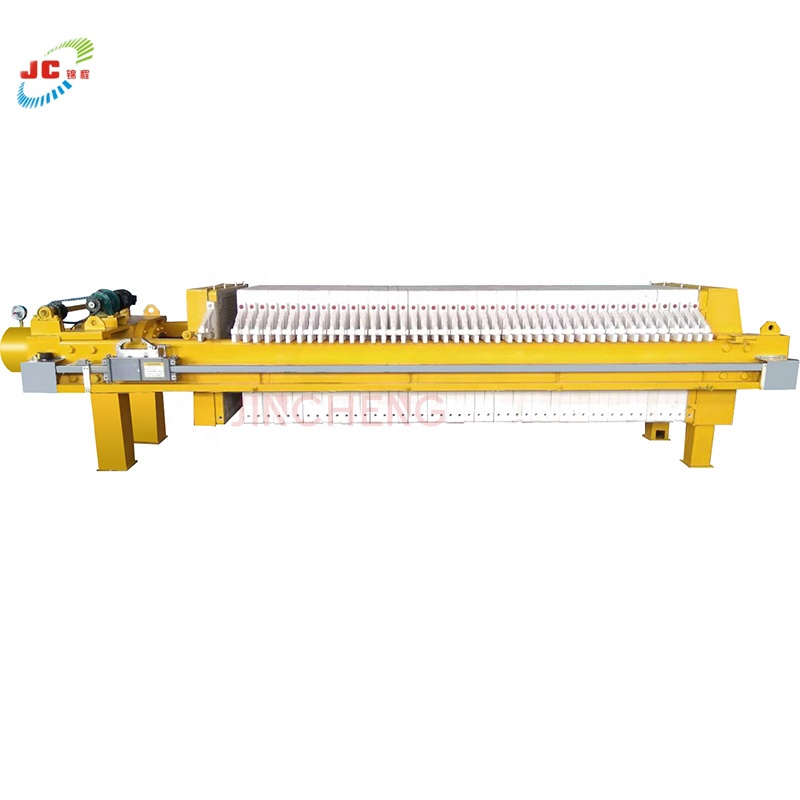

3. Details of the Filter Press Machine

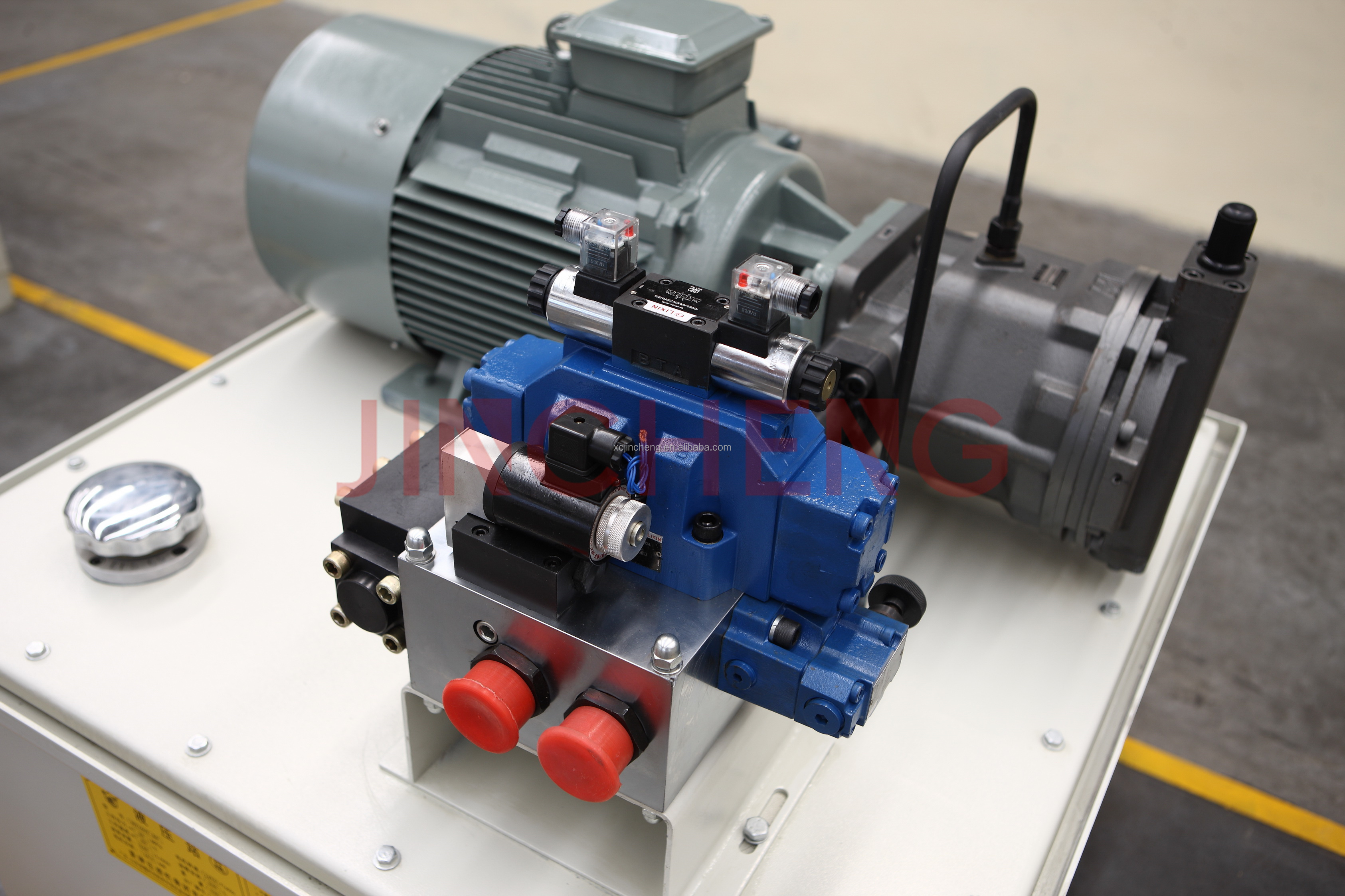

4. Functions of Filter Press Machine

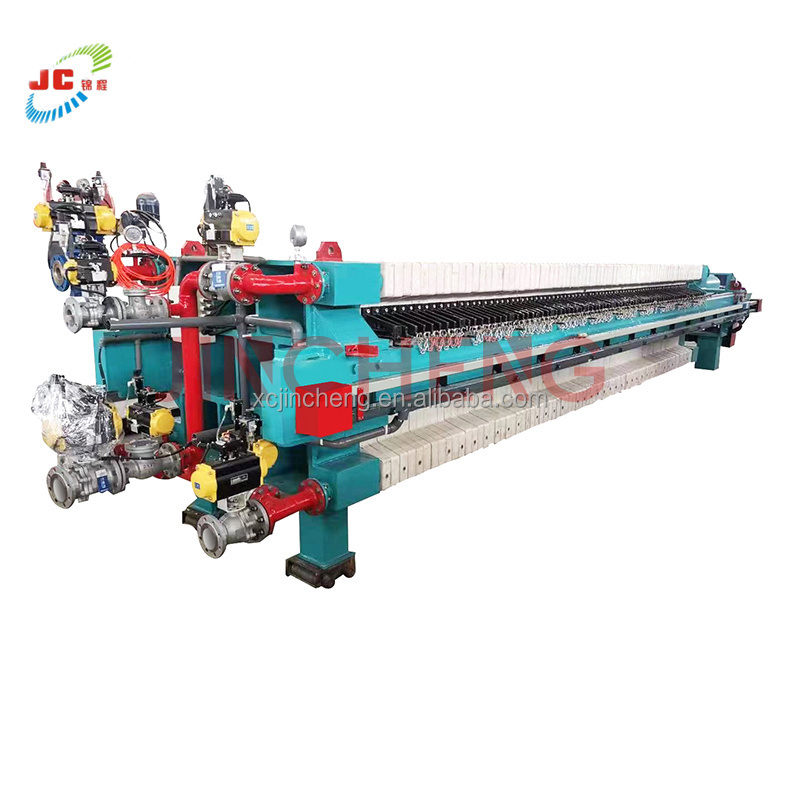

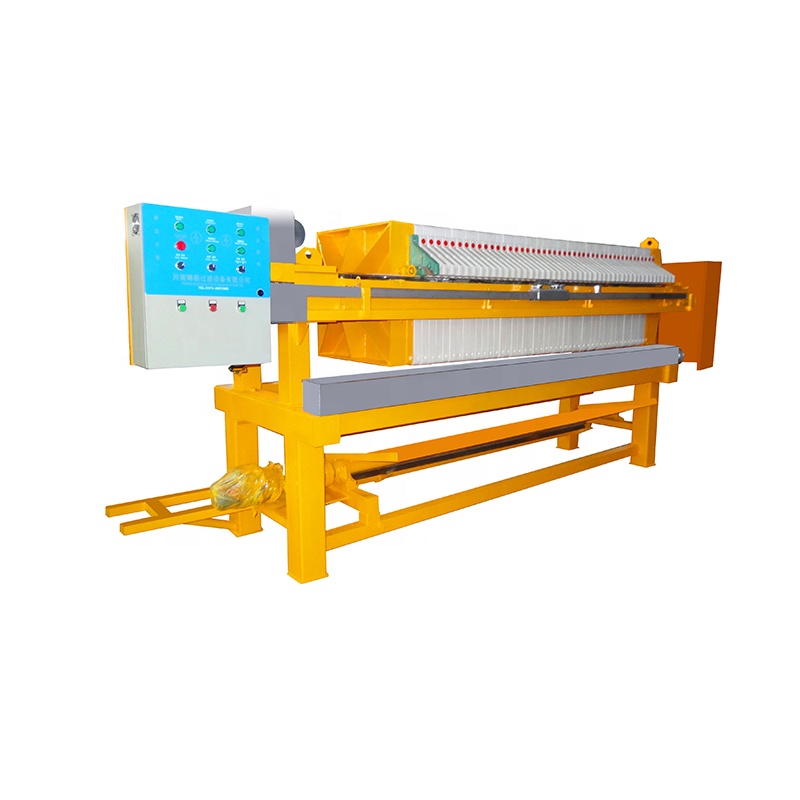

You can choose different systems based on your requirements, for example, free-flow or under flow, manual or automatic, washing or with belt conveyor.
Belt conveyor under machine for dry cake transport

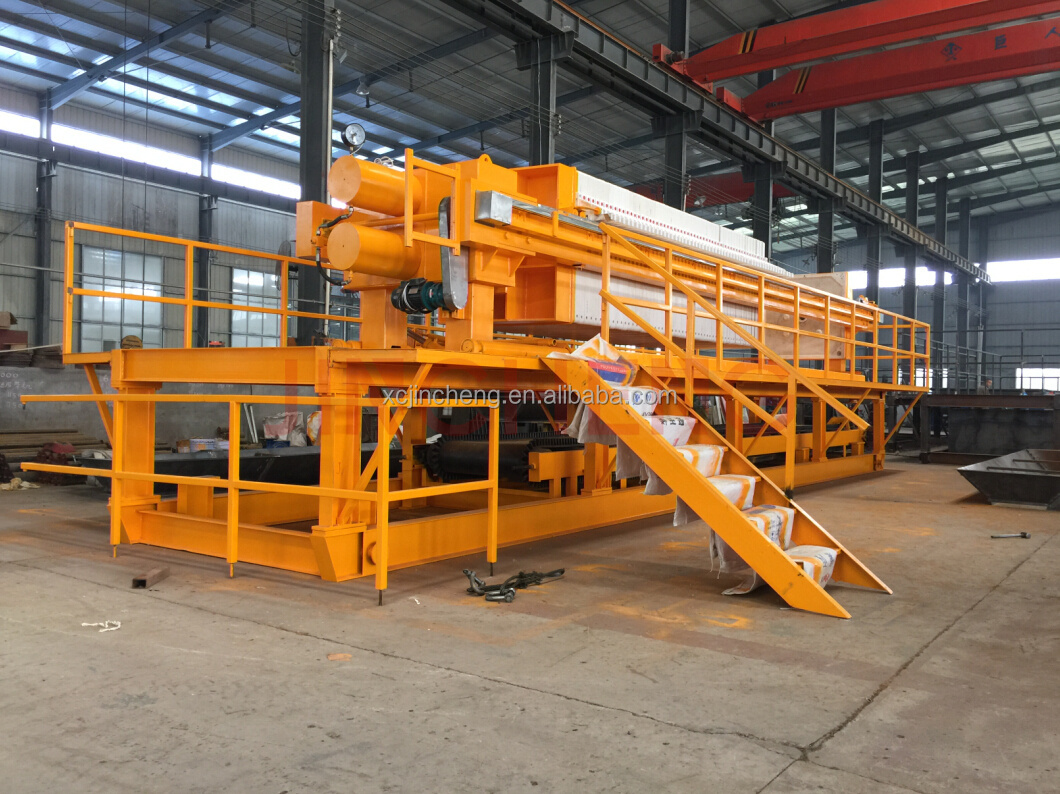

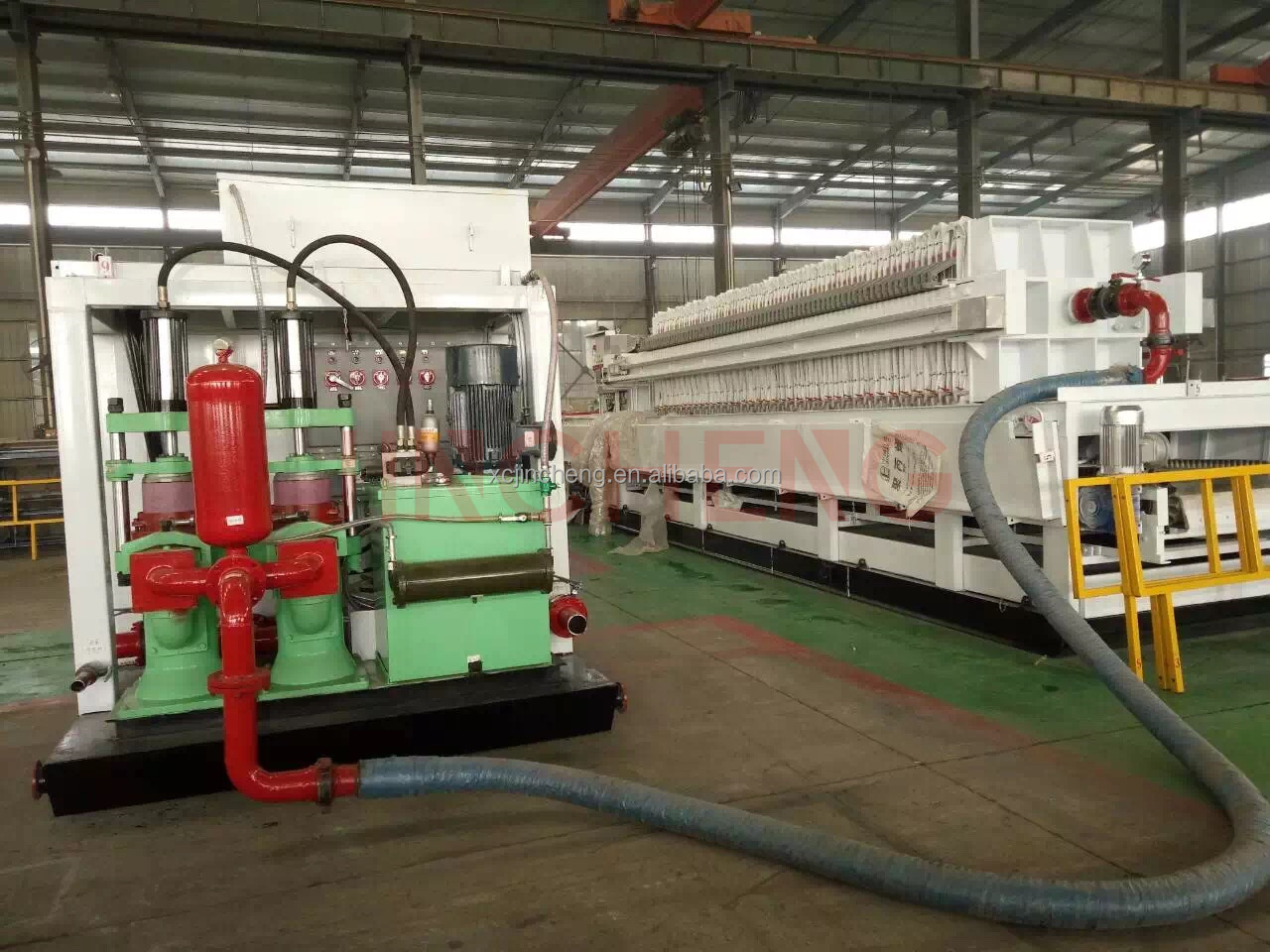

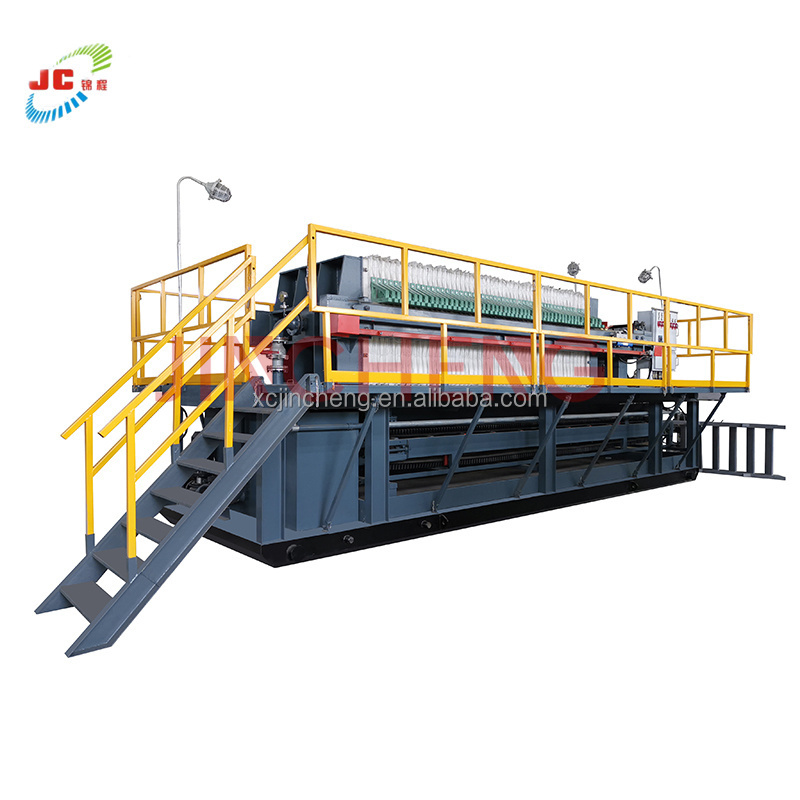

Skid-mounted filter press with platform and pump

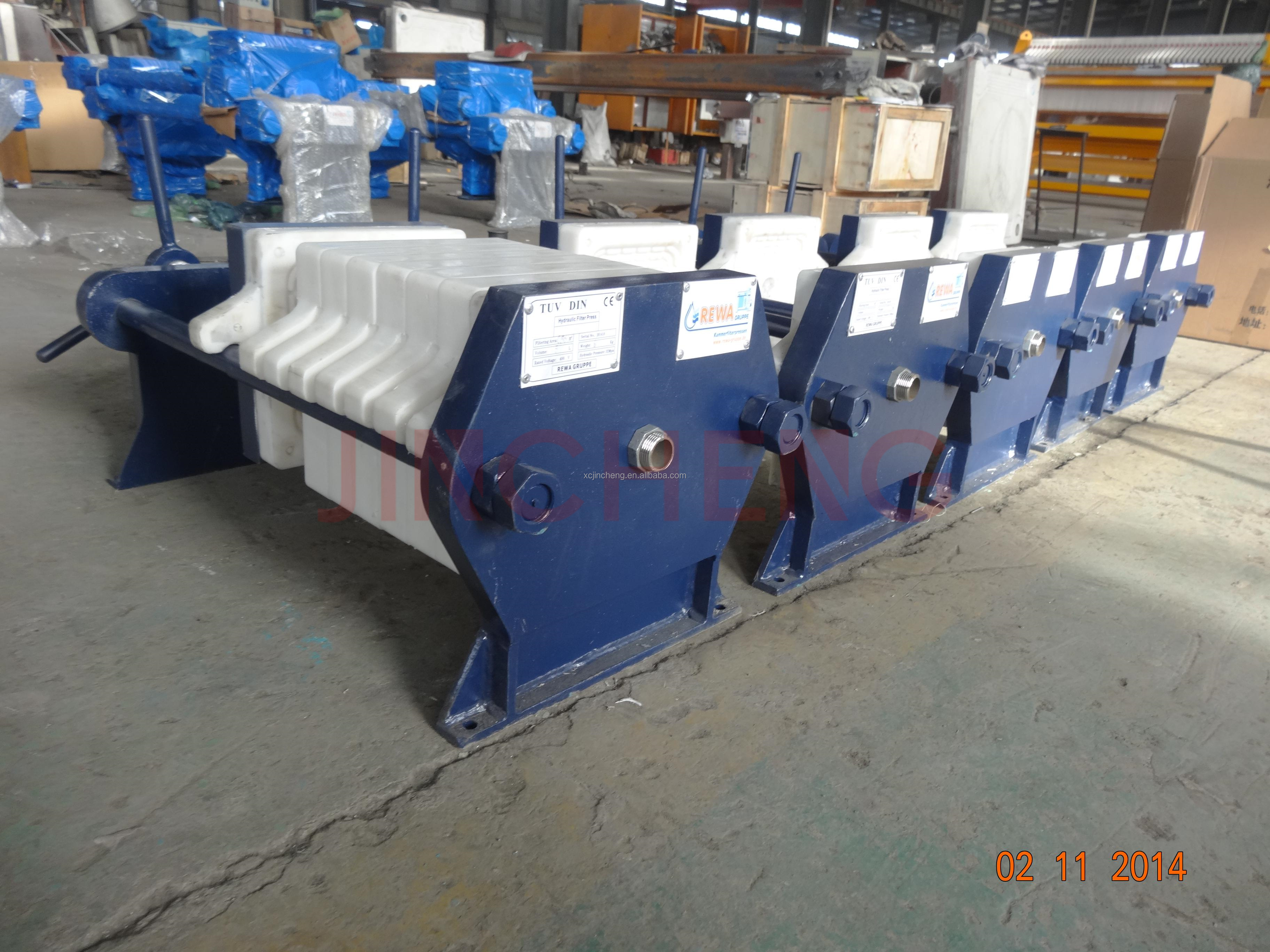

Small test machine, easy handle and long service life

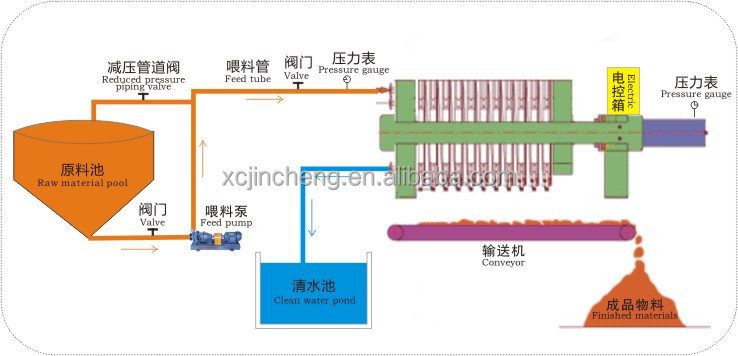

5. Working Principle
When the recessed filter press works, all the filter plates are pressed between the movable head plate and the fixed tail plate, so that the adjacent filter plate is formed with a sealed filtering chamber around. After all the filter chambers are filled with pulp, the pressure filtration process begins, and the slurry is separated from the pulp by the feed pump. The solid particles are left in the filter chamber due to the barrier of the filter cloth, and the filtrate is discharged through the filter cloth along the drainage channel on the filter plate. Once the filtrate is no longer discharged, the dewatering process is completed. At this point, the material can be stopped and the head plate is returned to the original position.
6. Specification
| Model |
Filter plate No. |
Volume |
| XMY80/1000-30U |
46 |
1200L |
| XMY90/1000-30U |
52 |
1360L |
| XMY100/1000-30U |
58 |
1510L |
| XMY120/1250-30U |
44 |
1830L |
| XMY140/1250-30U |
52 |
2150L |
| XMY150/1250-30U |
56 |
2310L |
| XMY160/1250-30U |
59 |
2430L |

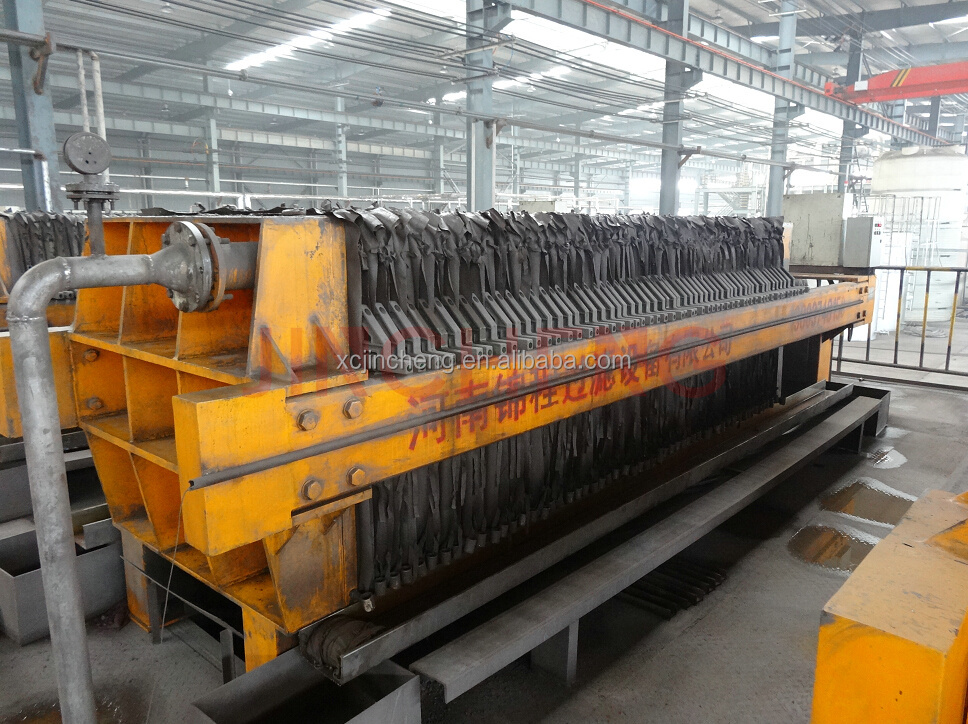

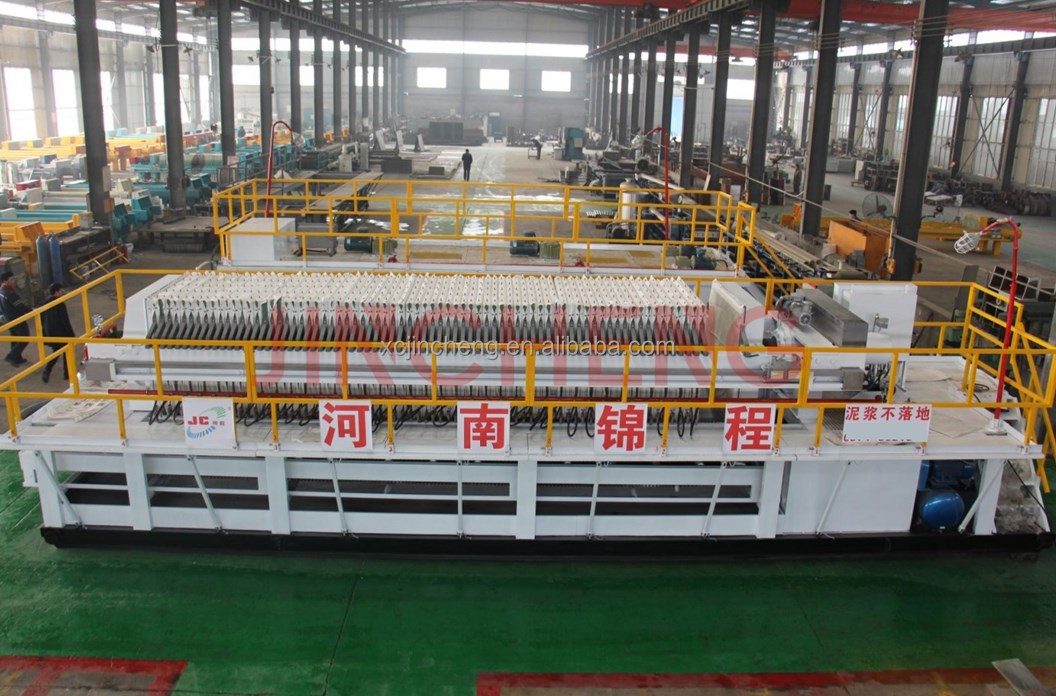

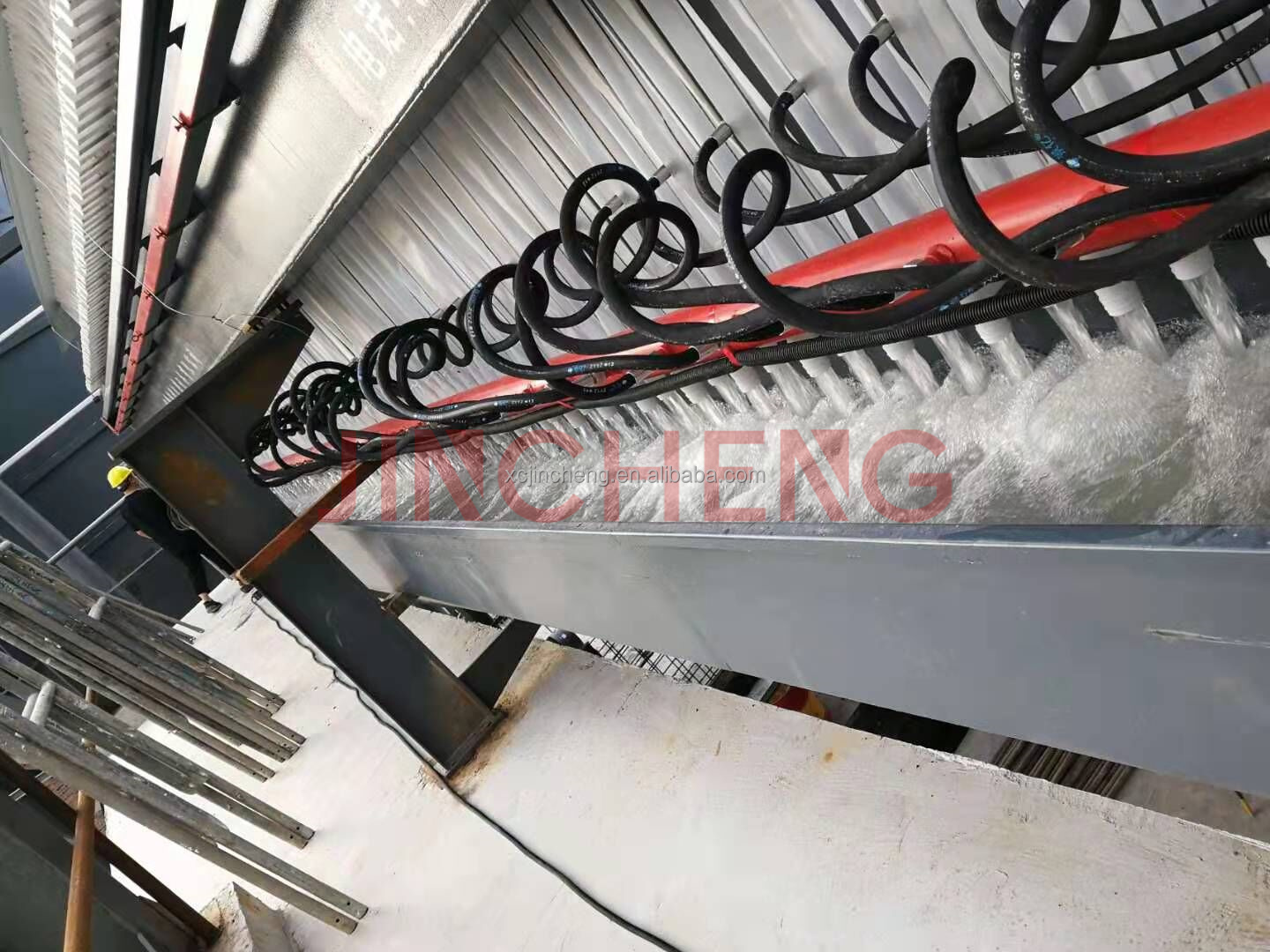

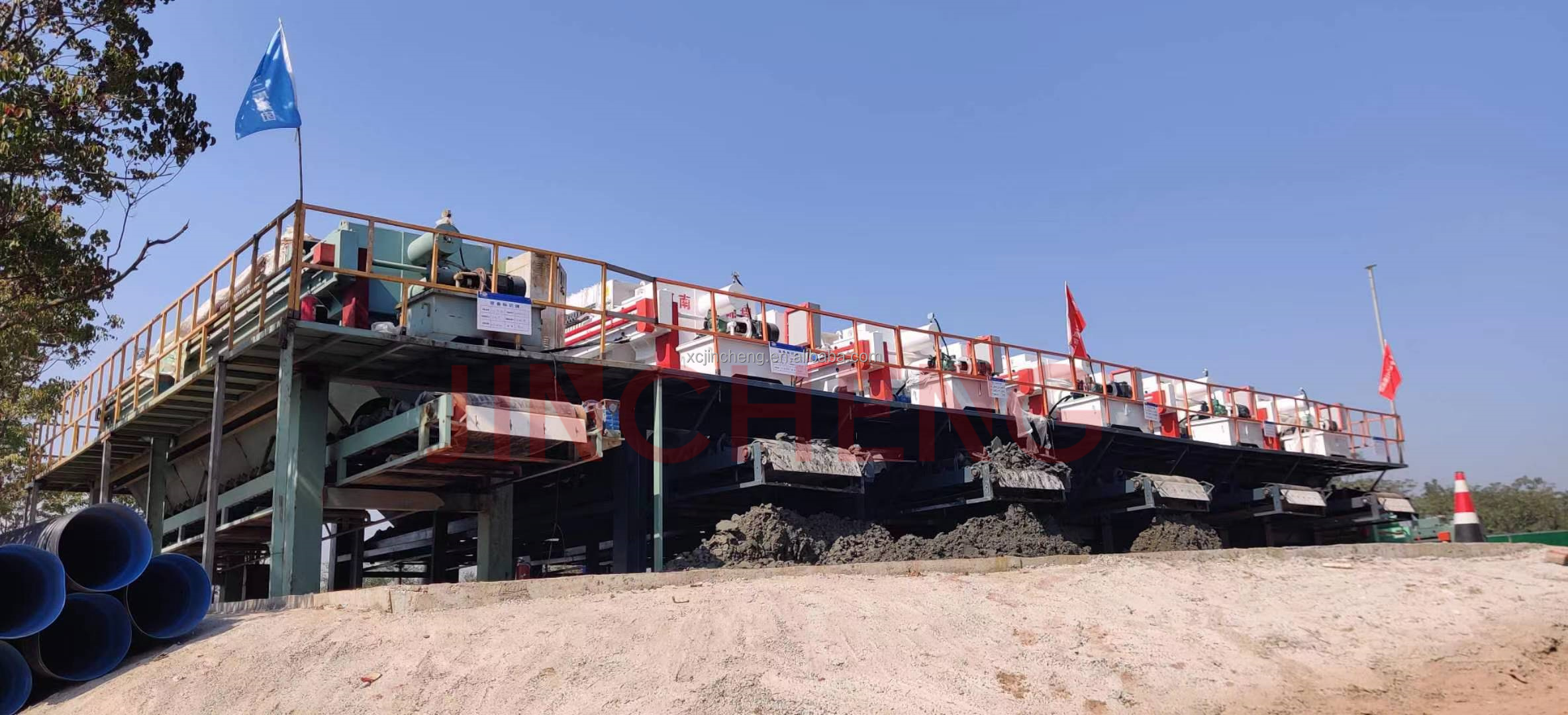

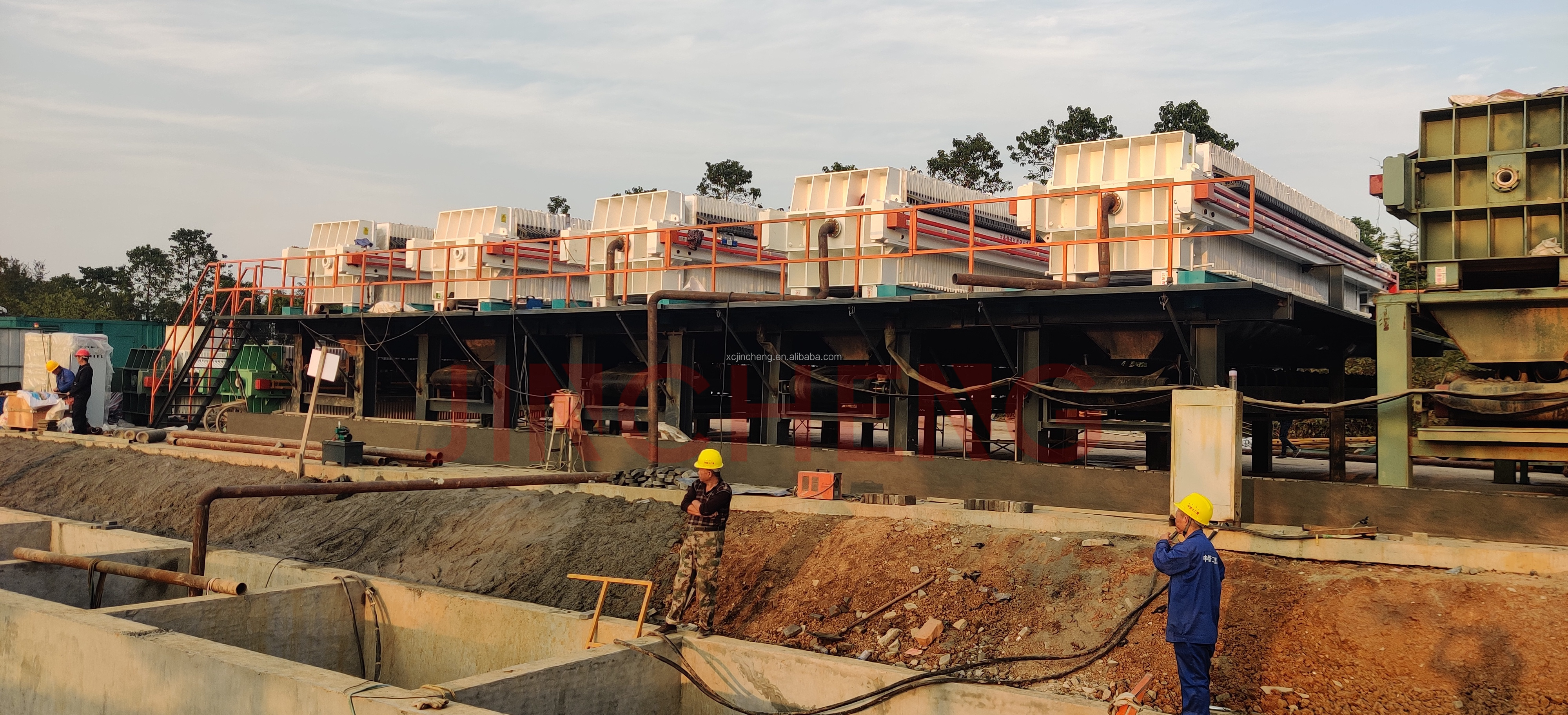

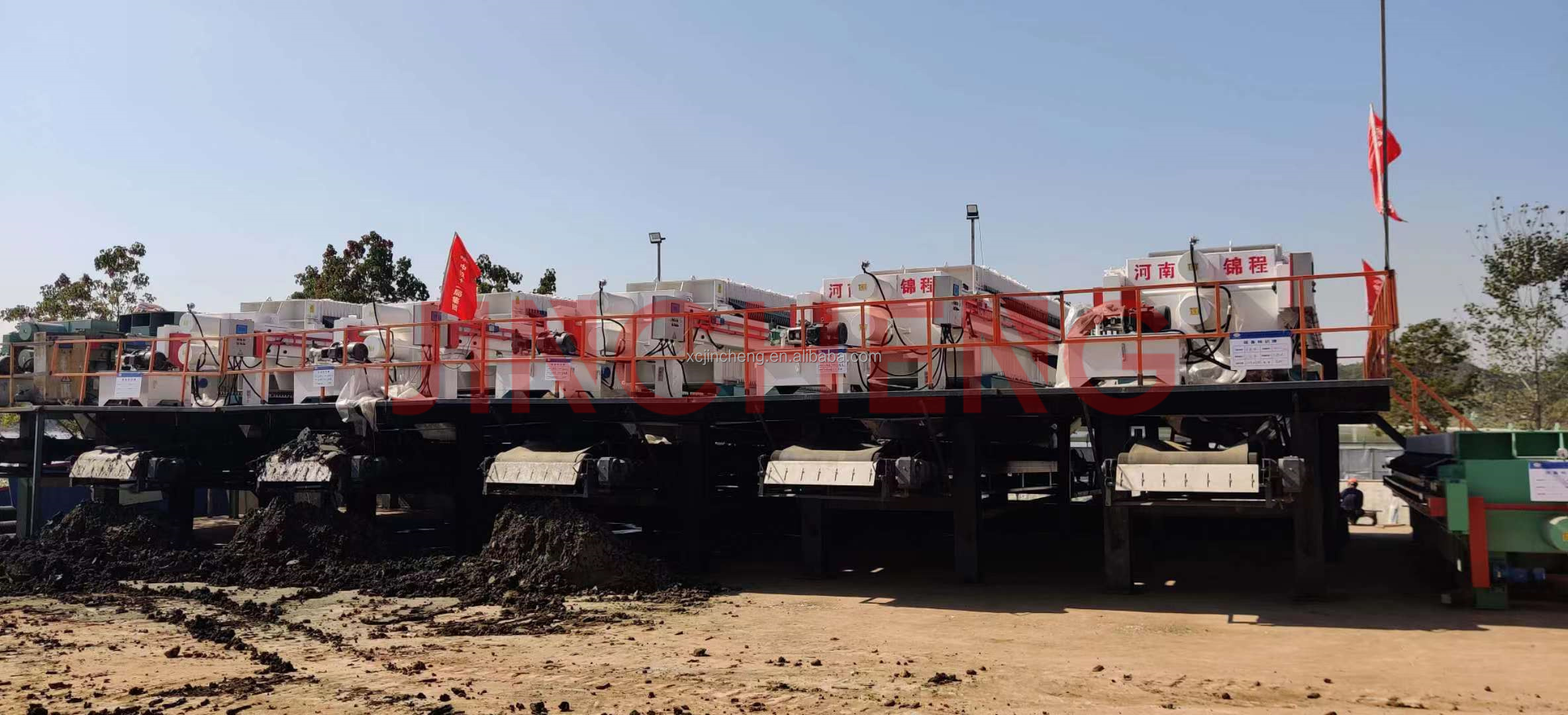

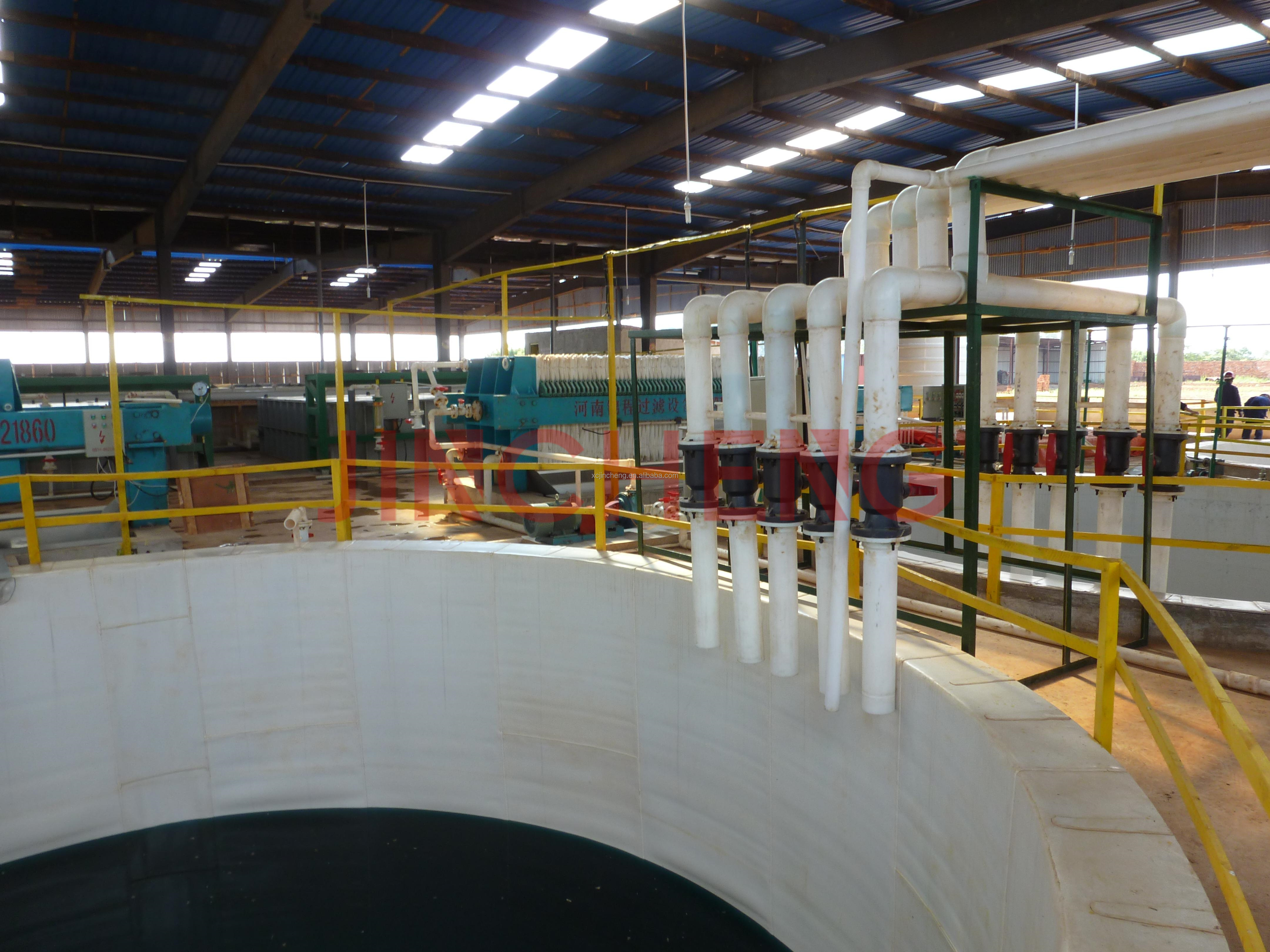

7. Filtering Effect and Factory Cases

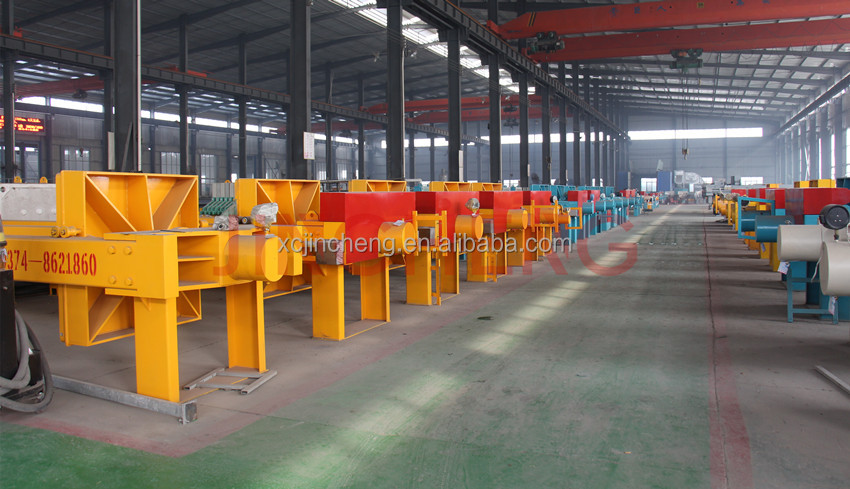

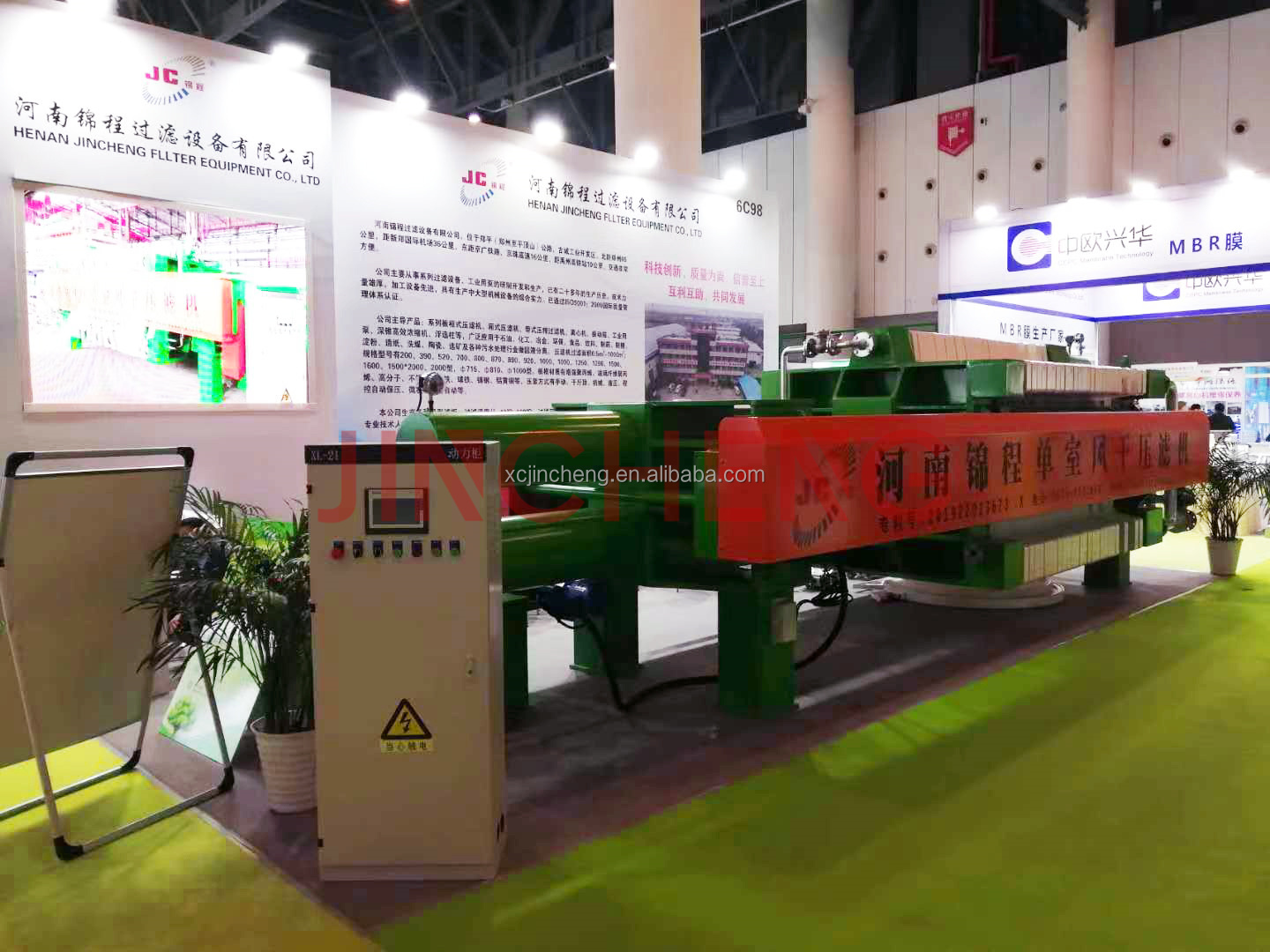

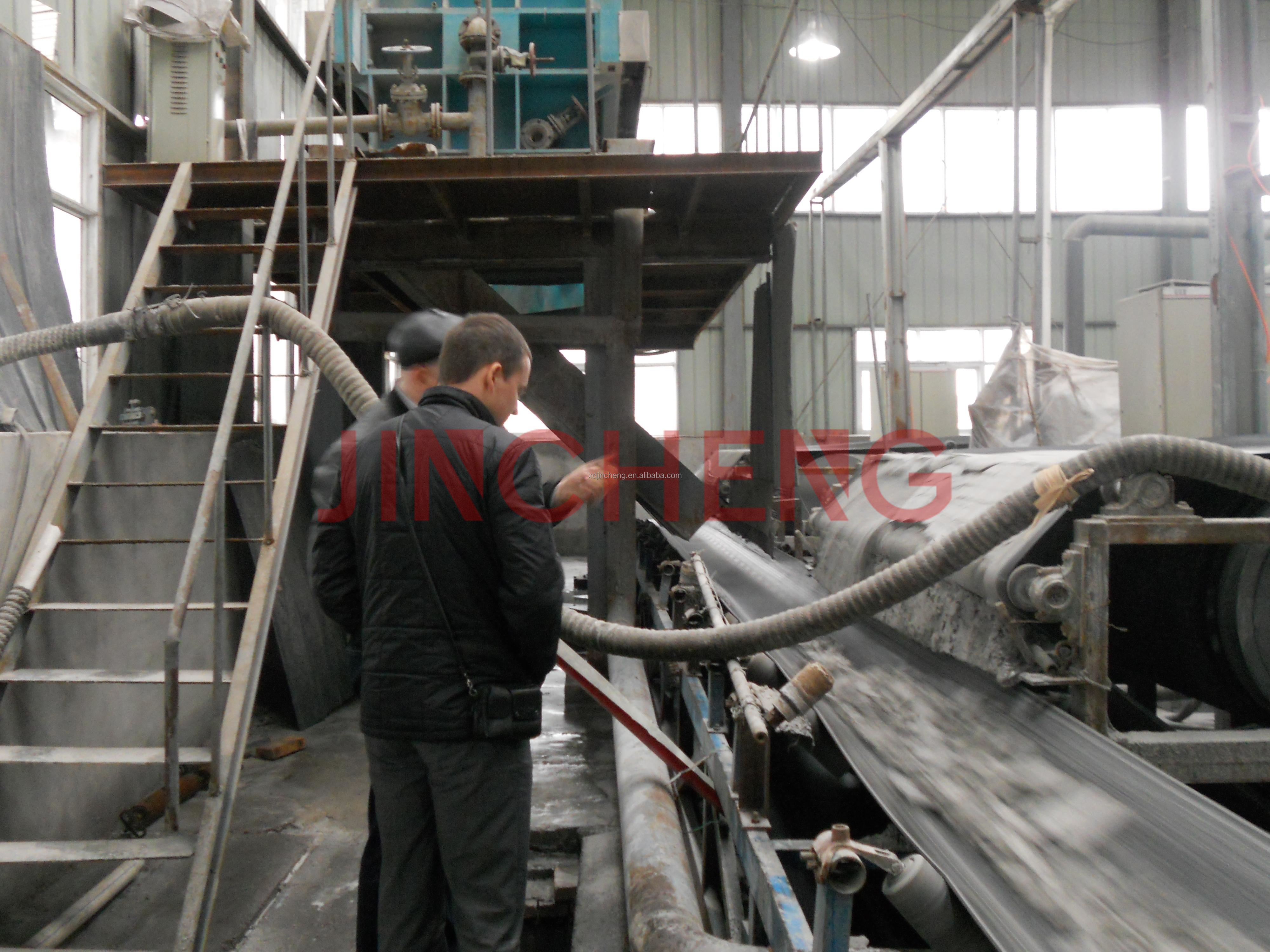

8. Customer Visiting and Exhibitions
We have exported to lots of countries around the world, for example, USA, Russia, South Africa, India, Iraq, Germany, Brazil, Sri Lanka, and so on.

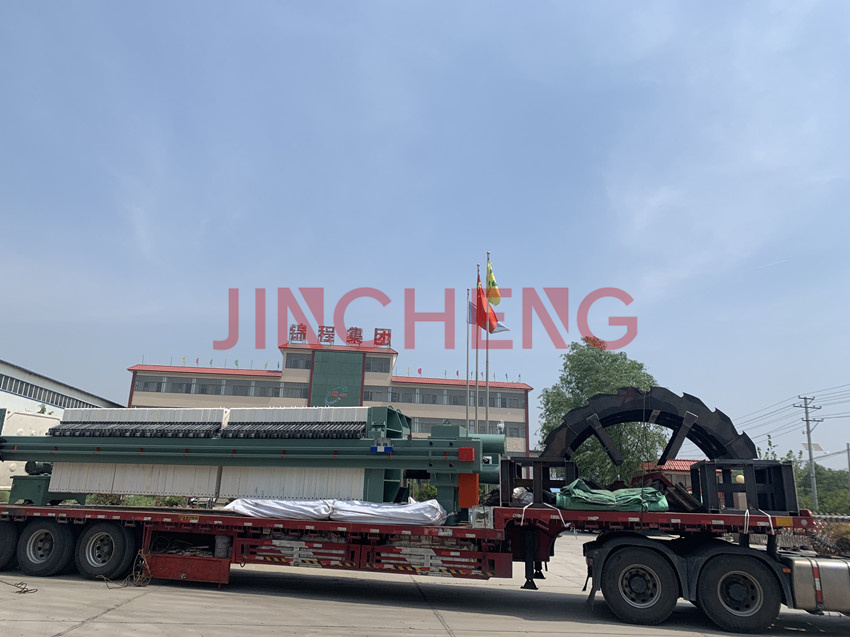

10. Package and Transport
12. Guarantee & Service
1. We have a professional technical team to offer advice before ordering.
2. Technical support service is available online.
3. We offer video or instructions to help install the machine.
4. If necessary, engineers can be available for door-to-door debugging.
5. Electrical elements have a 1-year warranty (except quick-wear parts).
6. The frame has a 5-year warranty.
Frequently Asked Questions (FAQ)
Q1: What is your primary business range for water treatment?
A: We manufacture water quality analysis instruments and provide dosing pumps, diaphragm pumps, water pumps, pressure instruments, flow meters, level meters, and complete dosing systems.
Q2: Why should I choose your equipment for industrial sewage treatment?
A: We have more than 20 years of industry experience in water treatment, providing high-quality products at competitive prices, along with professional technical support and selection assistance.
Q3: What kind of after-sales support and warranties do you provide?
A: We provide a 1-year warranty for electrical elements and a 5-year warranty for the machine frame. Technical support is available online, and we provide video instructions or engineer visits for debugging.
Q4: Can the filter press be customized for different operational needs?
A: Yes, you can choose various systems based on your requirements, including manual or automatic operation, free-flow or underflow drainage, and optional features like washing systems or belt conveyors.
Q5: How does the solid-liquid separation process work in your machine?
A: Slurry is pumped into sealed chambers formed by pressed filter plates. Solid particles are trapped by filter cloths, while the liquid is discharged through drainage channels until the dewatering process is complete.
Q6: What industries can benefit from using this filter press?
A: It is ideal for coal washing, oil, chemicals, dyes, metallurgy, pharmaceuticals, food processing, urban sewage treatment, and various industrial waste water applications.
