🎬 Video Presentation

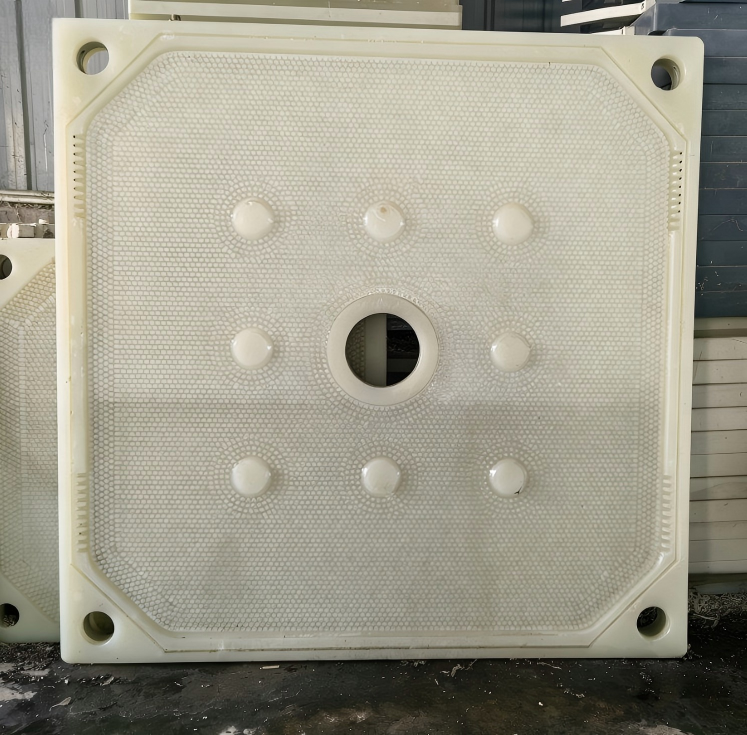

Diaphragm hollow membrane plate

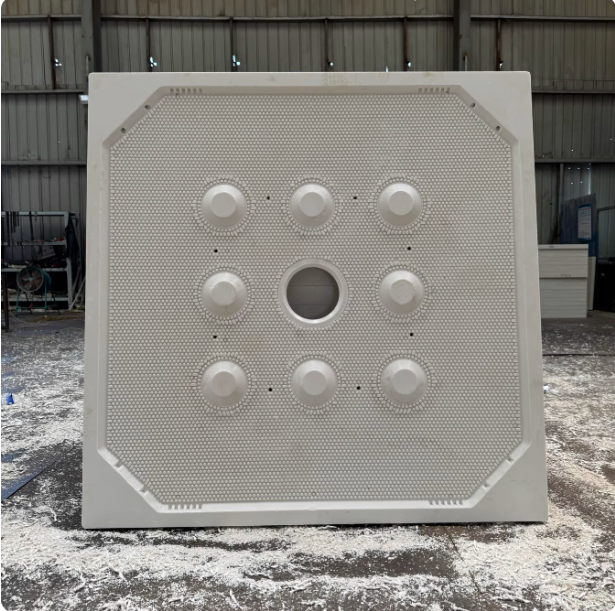

Diaphragm solid box board

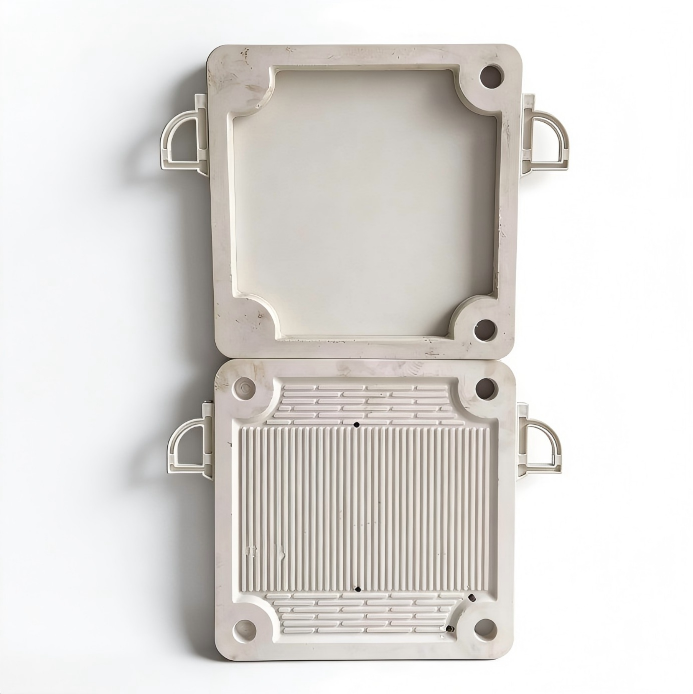

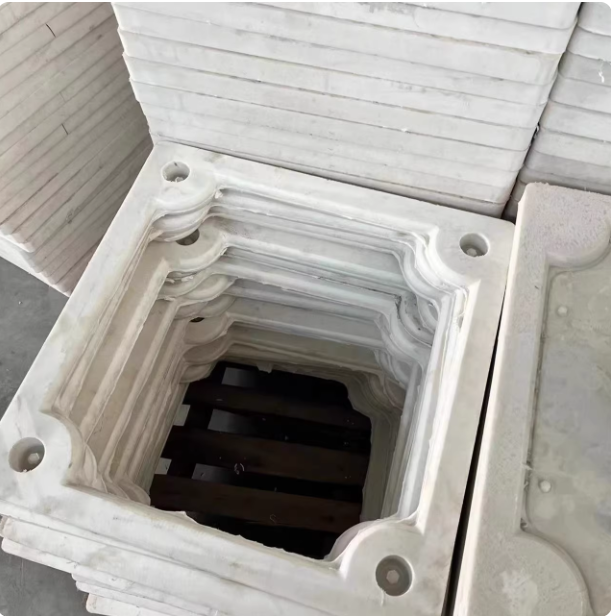

One board/one frame filter plate

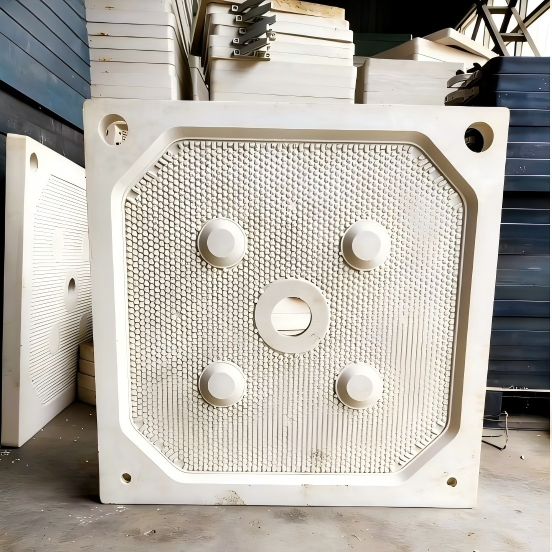

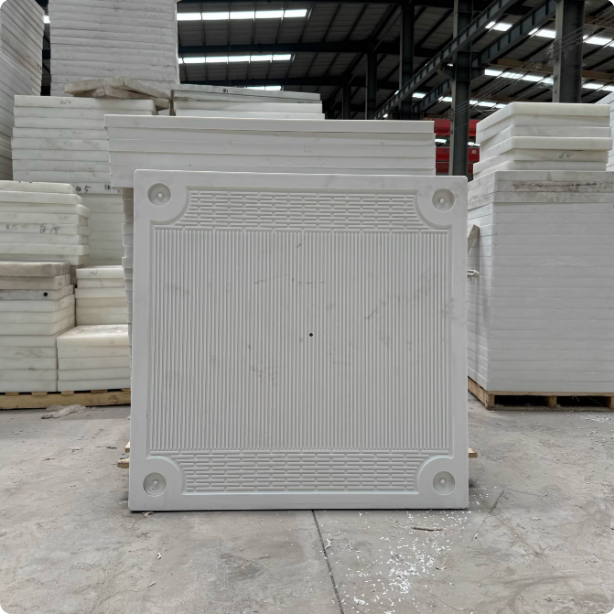

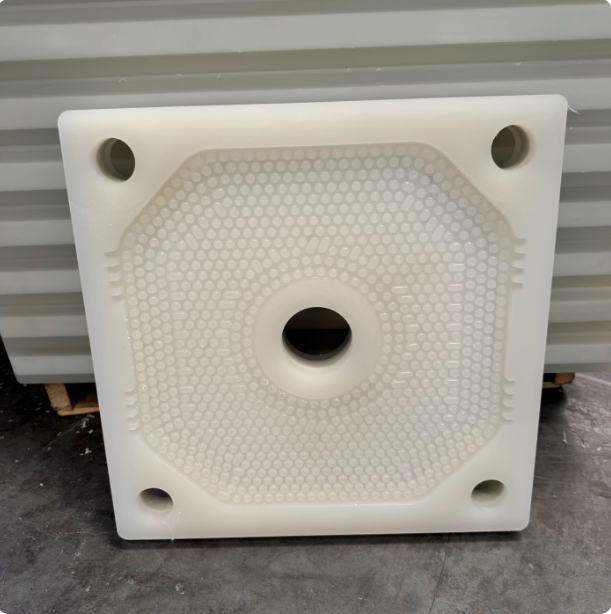

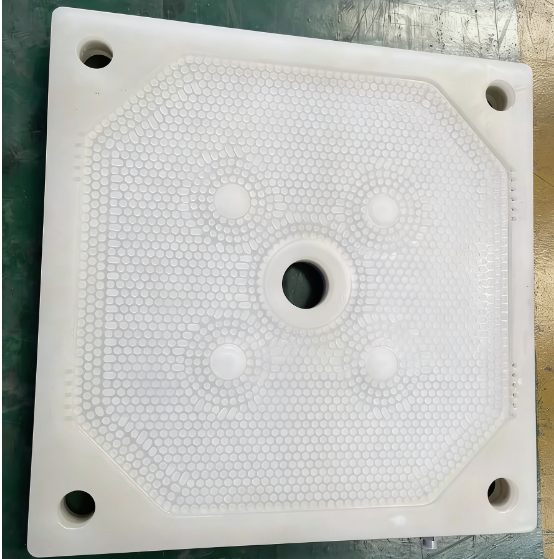

Box type filter plate

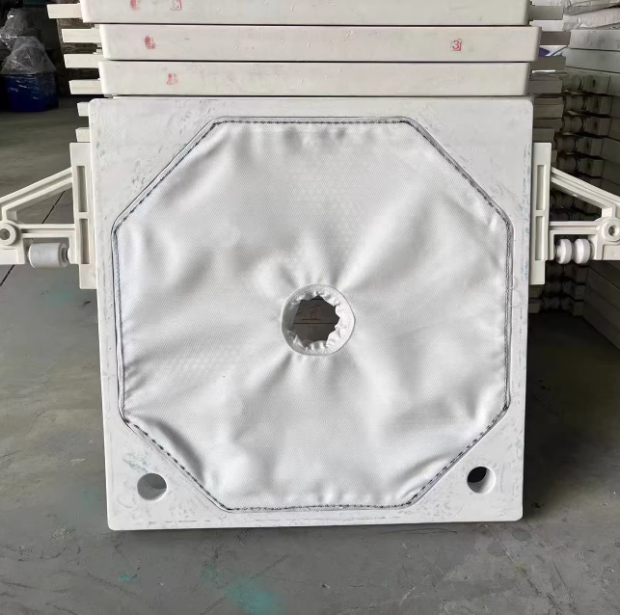

Sealed filter plate with sealing strip

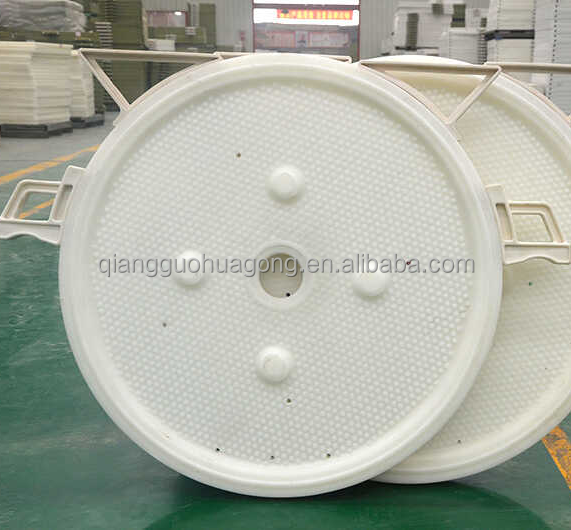

Circular filter plate
📄 Introduction to Filter Plate
The filter plate is the core component of the filter press, which can be divided into box type filter plate, plate frame filter plate, high-pressure diaphragm filter plate, and high-pressure circular filter plate according to appearance. Its main material is made of high-strength polypropylene (PP), which has the characteristics of corrosion resistance, high pressure resistance, and wear resistance.
✅
High Strength: Can withstand working pressures from 0 to 2.5 MPa, ensuring long-term stable operation.
✅
Corrosion Resistance: Suitable for corrosive media such as acid, alkali, salt, and organic solvents.
✅
Optimized Efficiency: Unique channel design improves filtration speed and reduces cake moisture content.
✅
Easy Maintenance: Smooth surface allows for easy cake removal and reduces cleaning time.
⚙️ Production and Processing

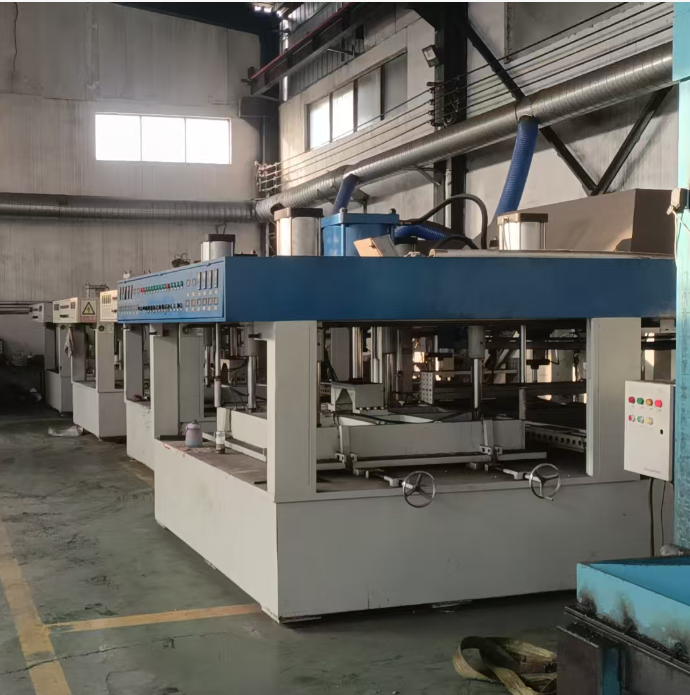

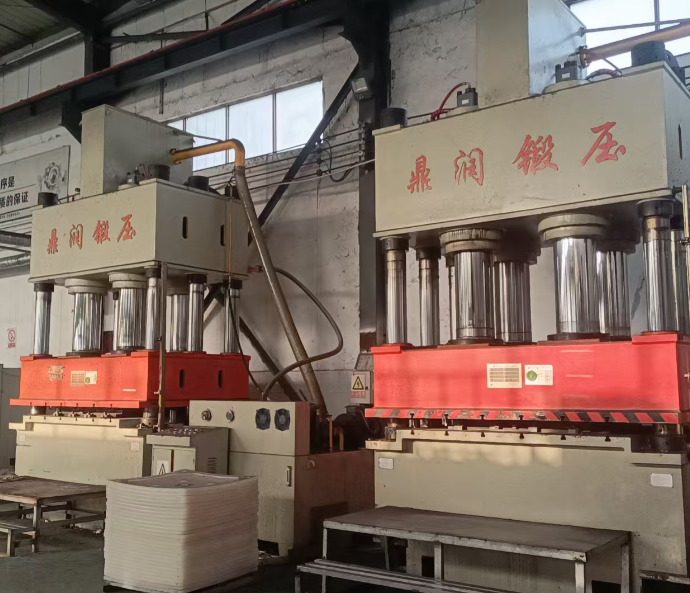

Filter plate pressing equipment
Diaphragm board bonding equipment

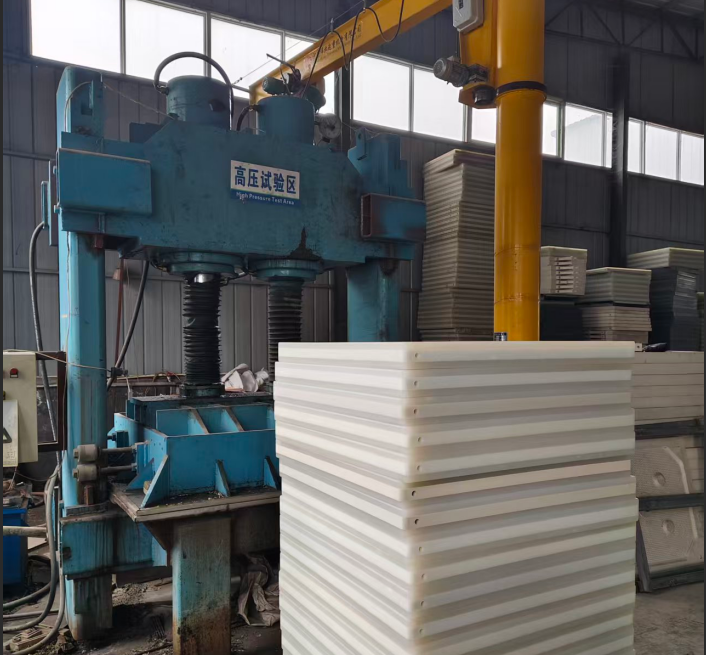

Diaphragm pressure measuring equipment

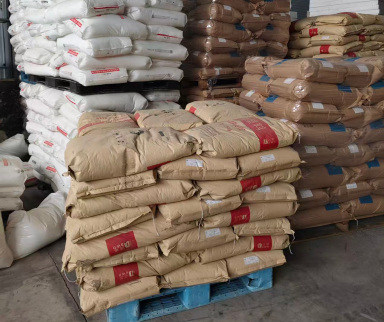

Filter plate raw materials

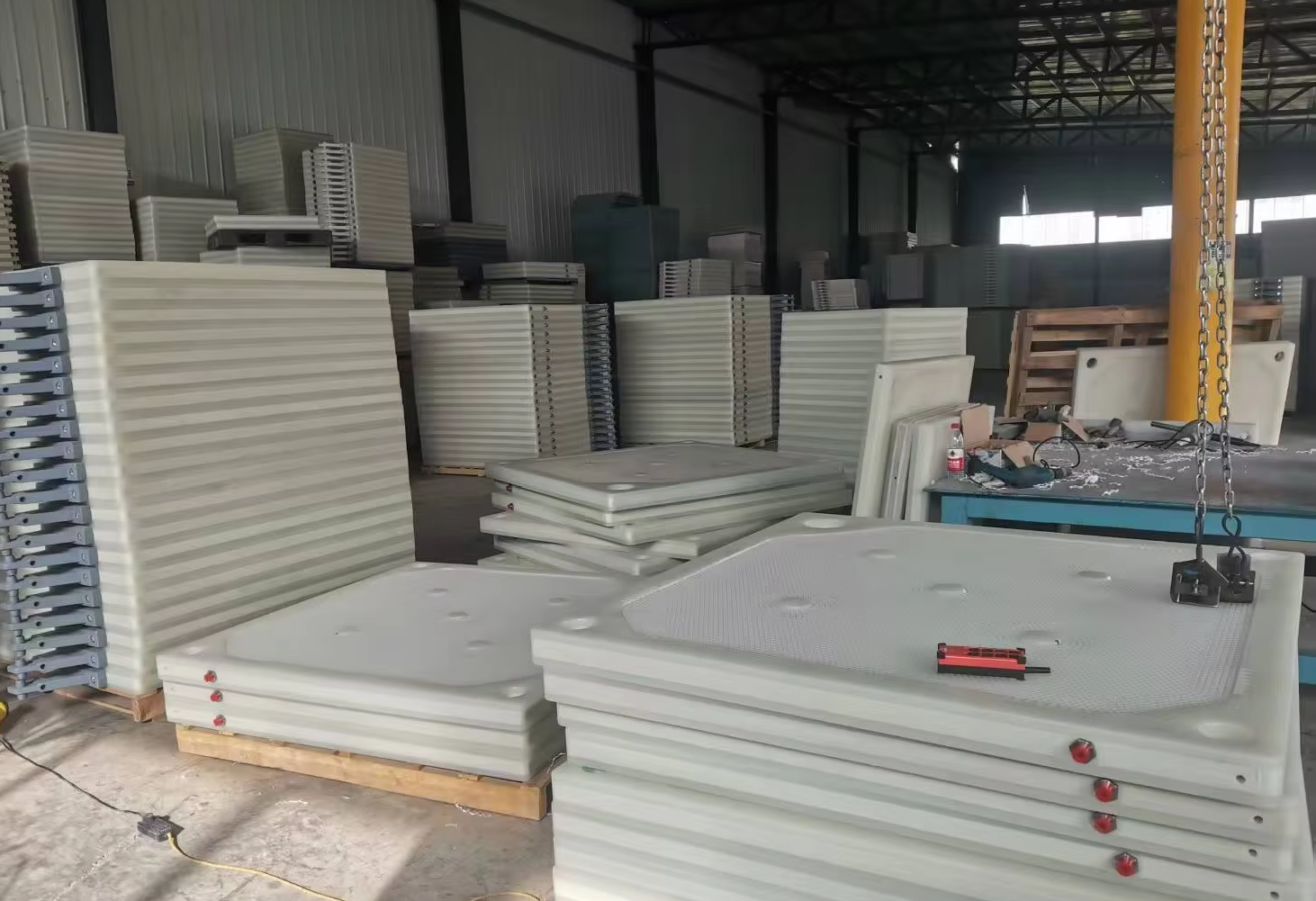

Filter Plate Workshop
Filter Plate Workshop

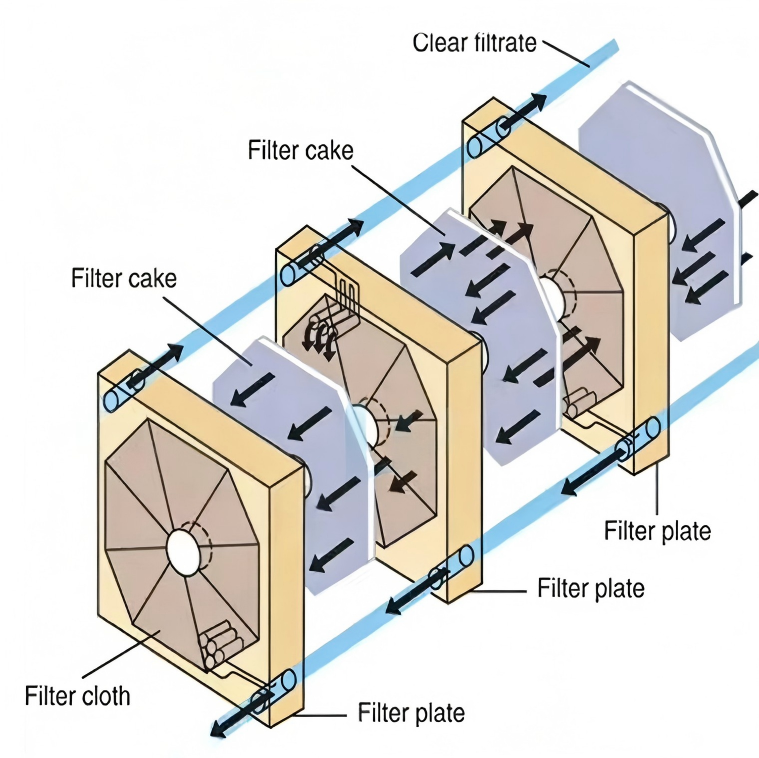

📊 Schematic Diagram of Filter Plate Operation
📐 Filter Plate Size Table
| Filter Plate Size |
Box Board Thickness |
Plate/Frame Thickness |
Diaphragm Plate Thickness |
Circular Board Thickness |
| 380*380 mm | 50 mm | 35/35 mm | - | - |
| 500*500 mm | 50 mm | 35/35 mm | 65/60 mm | - |
| 630*630 mm | 50 mm | - | 65/60 mm | - |
| 700*700 mm | 50 mm | 35/35 mm | 65/60 mm | - |
| 800*800 mm | 55 mm | - | 65/60 mm | 55 mm |
| 870*870 mm | 55 mm | 35/35 mm | 70/65 mm | - |
| 1000*1000 mm | 60 mm | 35/35 mm | 72/70 mm | 60 mm |
| 1250*1250 mm | 65 mm | - | 78/72 mm | 65 mm |
| 1500*1500 mm | 70 mm | - | 85/80 mm | - |
❓ Frequently Asked Questions
Q: Are you a manufacturer of these filter plates?
A: Yes, we are a professional manufacturer specializing in high-quality filtration equipment and components, producing more than 200 different models.
Q: What specific filter products do you provide?
A: Our main range includes Press Filters, Bag Filter Housings, Automatic Self-cleaning Filters, Candle Filters, and various Filter Plates/Cloth/Cartridges.
Q: How do I select the right filter plate for my needs?
A: Our technical team helps you choose based on your solid-liquid kind, flow rate, solid content, working temperature, and pressure requirements.
Q: Is the equipment easy for new users to operate?
A: Yes. We provide detailed operation manuals, videos, and professional engineering guidance to ensure smooth installation and usage.
Q: What is the quality warranty period?
A: We offer a quality warranty of 12 months after installation and commissioning, or 18 months after delivery.
Q: What payment terms do you accept?
A: We accept T/T, Western Union, L/C, and Alibaba Trade Assurance. Generally, it is 50% in advance and 50% before shipping.
