| Model | Filter Area (m²) | Filter Plate Size (mm) | Filter Cake Thickness (mm) | Filter Chamber Volume (L) | Filter Plate Quantity (Pcs) | Filtering Pressure (Mpa) | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| XY8/450-30U | 8 | 450*450 | 30 | 99 | 19 | 0.6-0.8 | 840 | 2380*900*850 |
| XY12/450-30U | 12 | 149 | 29 | 980 | 2895*900*850 | |||
| XY10/630-30U | 10 | 630*630 | 30 | 110 | 13 | 0.6-0.8 | 950 | 2410*1120*1010 |
| XY15/630-30U | 15 | 180 | 19 | 1060 | 2745*1120*1010 | |||
| XY20/630-30U | 20 | 297 | 25 | 1230 | 3080*1120*1010 | |||
| XY30/630-30U | 30 | 450 | 37 | 1585 | 3750*1120*1010 | |||
| XY40/630-30U | 40 | 595 | 49 | 1697 | 4425*1120*1010 | |||

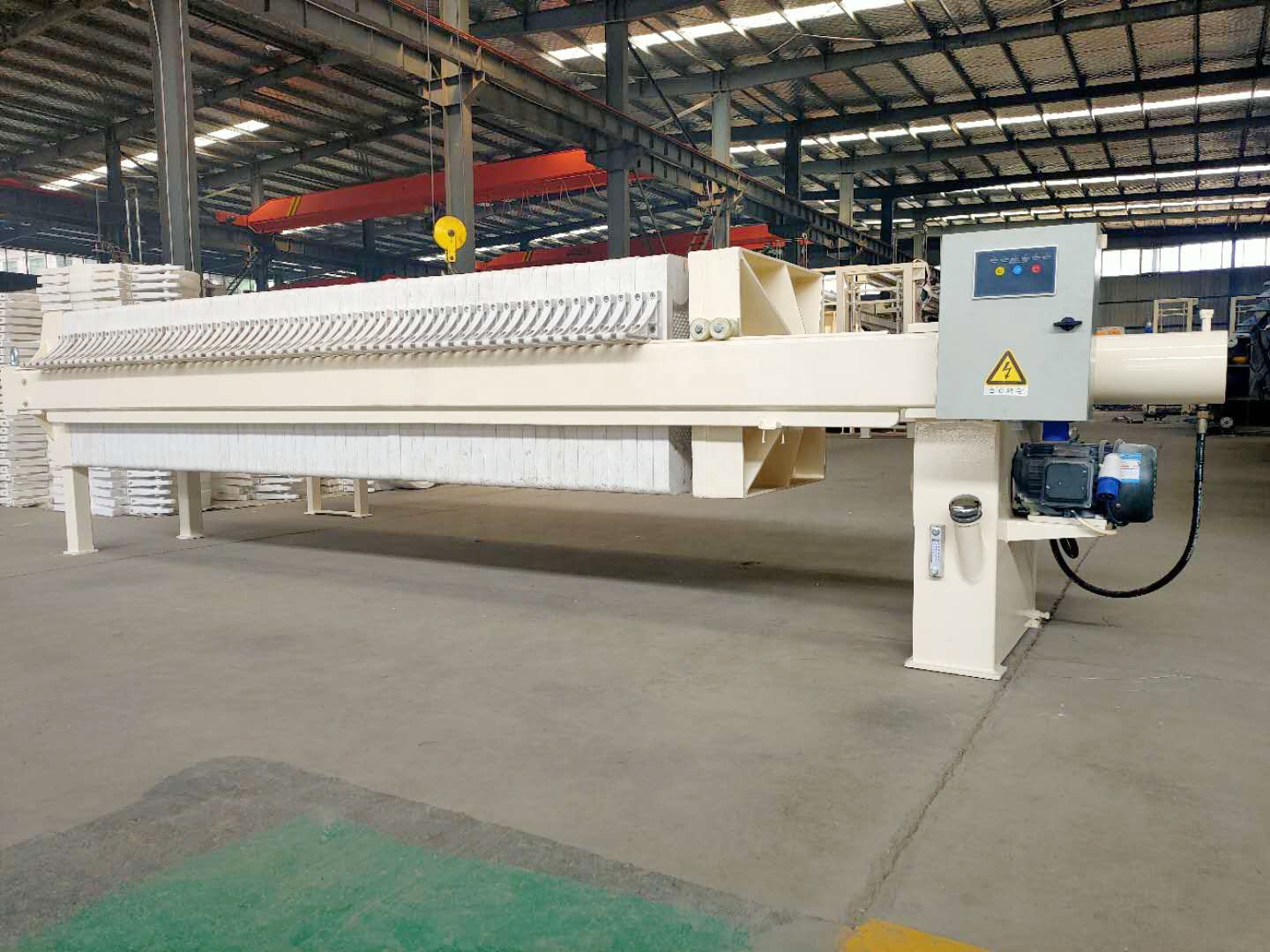

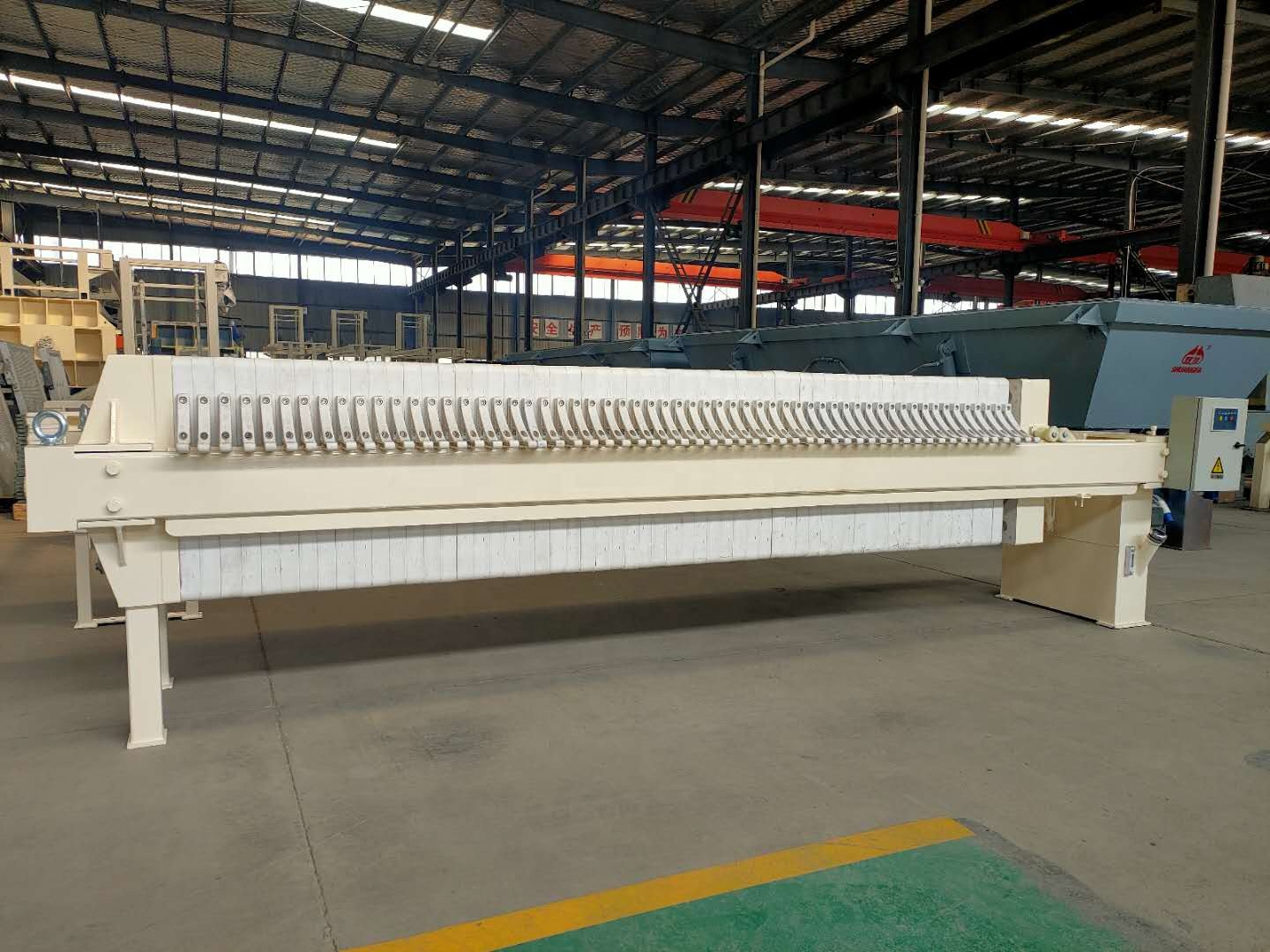

| XY30/870-30U | 30 | 870*870 | 30 | 460 | 23 | 0.6-0.8 | 2350 | 3180*1350*1010 |
| XY40/870-30U | 40 | 590 | 31 | 2925 | 3750*1350*1180 | |||
| XY50/870-30U | 50 | 740 | 39 | 3431 | 4160*1350*1180 | |||
| XY60/870-30U | 60 | 860 | 45 | 3800 | 4525*1350*1180 | |||
| XY70/870-30U | 70 | 1040 | 53 | 4250 | 5010*1350*1180 | |||
| XY80/870-30U | 80 | 1190 | 61 | 4660 | 5500*1350*1180 |
Coating, paint, silica, caustic soda, soda ash, alkali, titanium dioxide, white carbon black, dyes, pigments, fluorine chemical, lithium chemical, nickel cobalt chemical, salt mud (aluminum, aluminum polymerization acetylacetonate, gypsum, phosphor, lithopone) etc.
Zirconia, graphene, magnetic materials, nanomaterials, polylactic acid, and new polymer materials, lithium battery, etc.
Starch, sugar, alcohol, oil, fruit juice pectin, plant protein, soy sauce, and food additives, etc.
Pharmaceutical intermediates, traditional Chinese medicine, hyaluronic acid, antibiotics, vitamins, etc.
Sand washing wastewater, coal washing wastewater, printing and dyeing wastewater, smelting wastewater, leather wastewater, pharmaceutical wastewater, brewing wastewater, electroplating wastewater, chemical electrolysis wastewater, municipal sludge, rural sludge, tap water sludge, industrial wastewater sludge, river and lake sludge, etc.
Bentonite, ceramic clay, kaolin clay, activated soil, china clay, limestone, granite, etc.
Solid-liquid separation and dewatering of rare earth, gold, silver, copper, iron, zinc and other ores.
Various solid-liquid filtration & separation industrial applications.

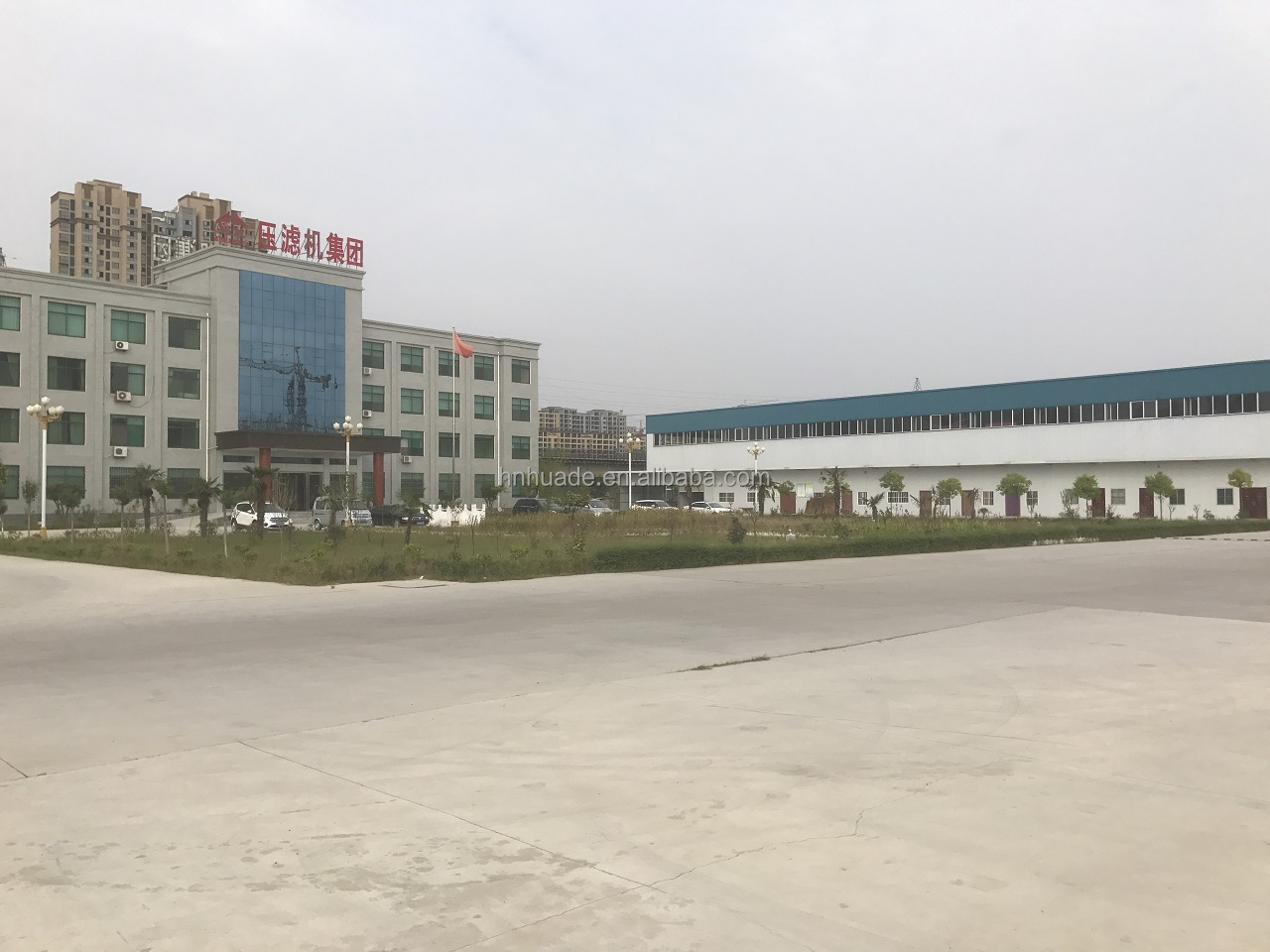

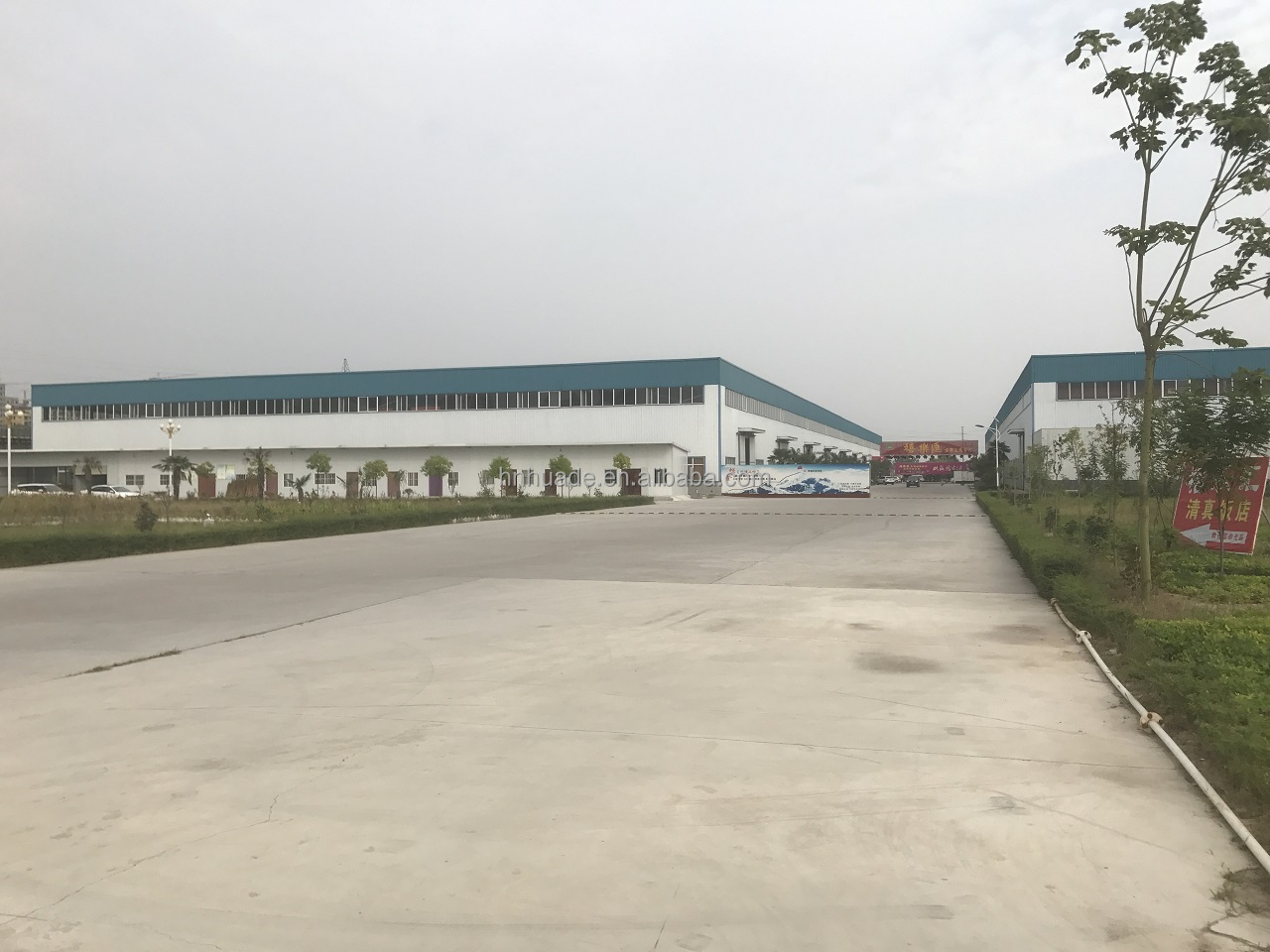

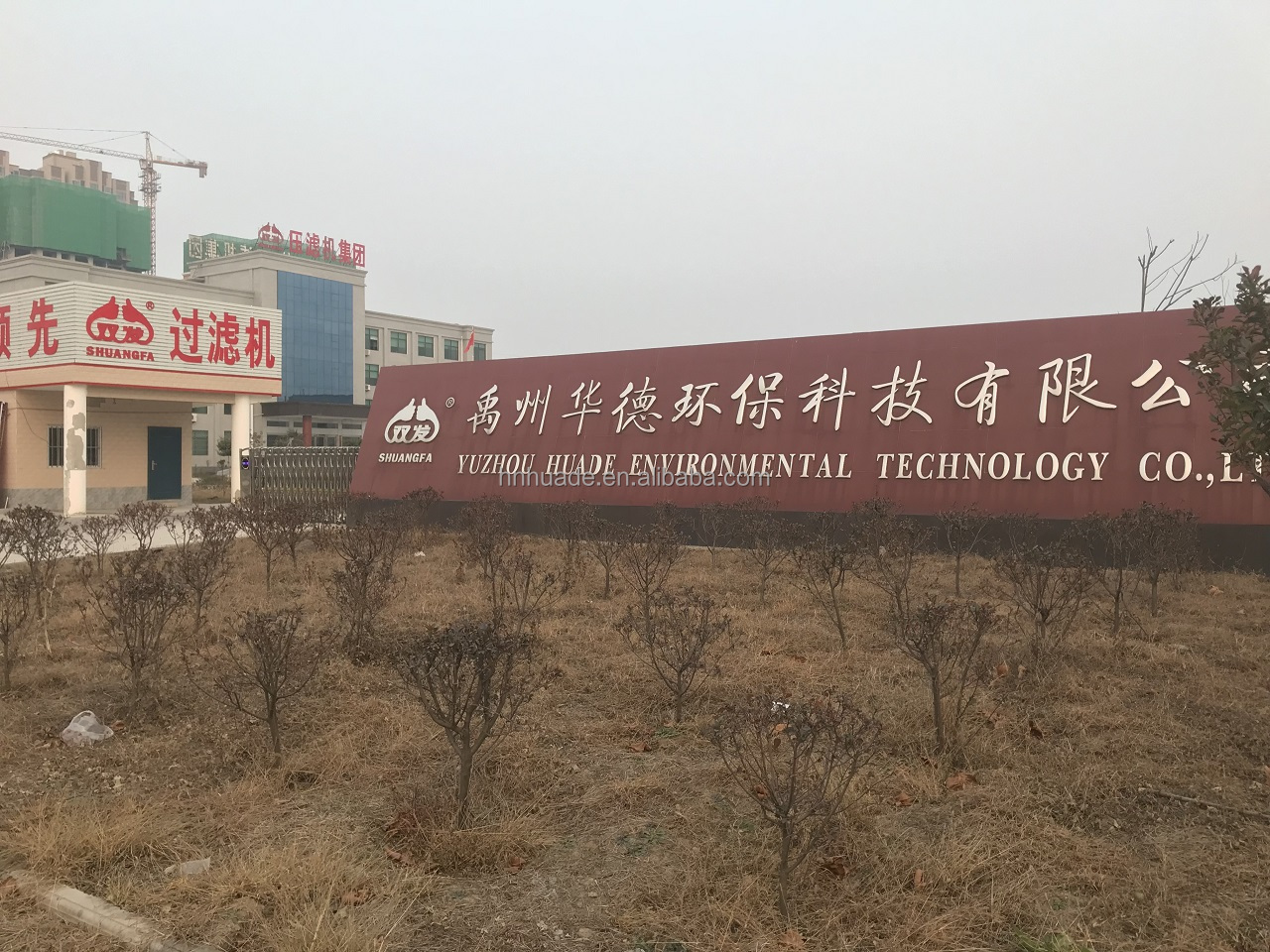

We are a professional manufacturer of filtration & separation equipment. Our founder has been engaged in the filtration & separation industry since the 1980s. Boasting an 80,000 square meters production base, we own complete modernized metal cutting equipment, equipped with advanced Solidworks 3D mechanical design and a Computerized Simulation Test System. We have cultivated a professional technology and after-sales service team, successfully achieving ISO9001:2015 Quality Management Certificate, EU/CE Certificate, AAA Level Certificate, and many Invention Patents.
We have a whole production chain with main products: series pressure filter, filter plates and cloth, pumps, centrifuges, and conveyors. Our products are widely used in chemical industry, food, environmental protection, mining, metallurgy, petroleum, pharmaceutical, papermaking, coal washing, and other industries.
Our products have been exported to more than 130 countries and are widely used in a variety of industries. Being innovative and perfect is our incessant pursuit, and also our vigor source of energy and harmony.
Yes, we are a manufacturer. Our team has been deeply engaged in the filtration and separation industry for over 35 years.
Of course, we warmly welcome you to visit our factory. We provide excellent services including airport pickup, hotel bookings, and guided tours.
Yes. You can send your material samples to us for thorough testing and laboratory analysis to find the optimal filtration configurations.
Yes. When we make the shipment of the equipment, we will supply standard free spare parts along with the shipment.
Yes, we have. We also hold ISO certificates, AAA level certificates, and multiple patented utility designs.
