Food Process Filtration 50 Micron PP Filter Press Cloth for Juice Making

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.	6689
Type	Woven Filter
Hole Shape	Round
Manufacturing Method	Manufacturing Cloth
Paper Type	Qualitative
Product Name	PP Press Filter Cloth
Application	Mining , Iron Ore Concentrate , Zinc ,Lead
Application 2	Chemical , White Carbon Black
Application 3	Food , Bear , Sugar , Beverage , Juice
Machine Type	Filter Press Machine , Belt Filter Machine

Machine Type 2	Leaf Filter , Rotary Drum , Kelly Filter
Filter Cloth	Polyester / Polypropylene / Nylon / PA
Filter Micron Rating	10-150 Micron
Warranty	12 Months
Transport Package	in Roll / Pallet
Specification	30 Micron, 100cm
Origin	China
HS Code	5914000
Production Capacity	50000 PCS/ Month

Product Description

Chemical and Mining Concentrate Sludge Plant Filter Press Filter Fabrics

Designed for sludge dewatering and sludge dry processing.

We supply filter fabrics and filter cloth to various processes at concentrating plants in the mining and chemical industries. Our filter fabrics are developed to withstand high process temperatures, complex chemical environments, and a wide variety of sludges. From plate press filters to belt and horizontal vacuum belt filters, we offer complete high-level filtration solutions for all applications in the mining and chemical industries.

We offer high-quality press filter fabrics for vertical plate pressure filters for filtration of metal concentrates, industrial minerals and tailings, and for filter press machines for bulk mining. A computer-controlled laser cutting filter cloth with coded dimensions ensures a perfect fit and absolute size and filtration precision in even the most demanding applications.

Belt filter press filter fabrics for horizontal vacuum belt filters, belt press filters, linear screens, and conveyor belt applications improve dryness, enable faster speeds, and reduce energy consumption.

Our strong belt filter fabric is a heavy monofilament fabric for the filtration needs of the chemical and mining industries. Its heavyweight fabric made of special yarns prevents blinding and extends belt lifetime, making it ideal for belt press filters. It allows rapid draining and good filter cake release.

Detailed Photos

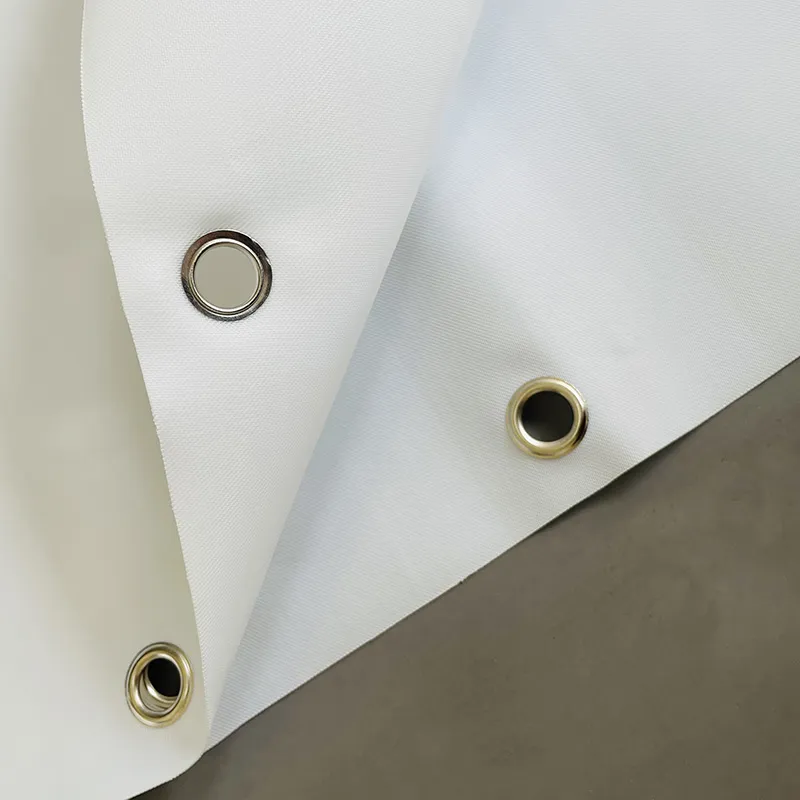

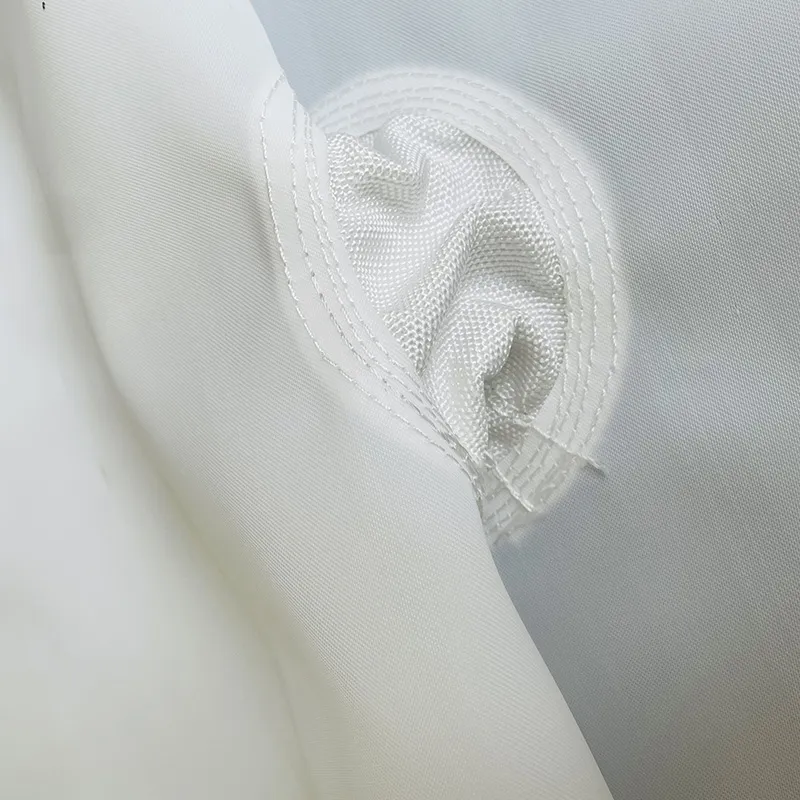

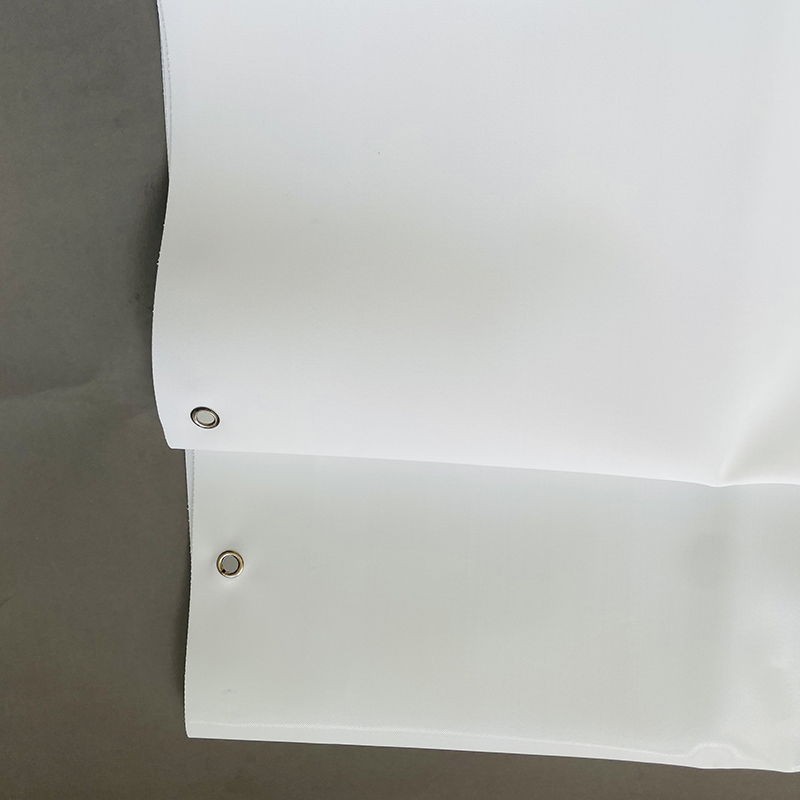

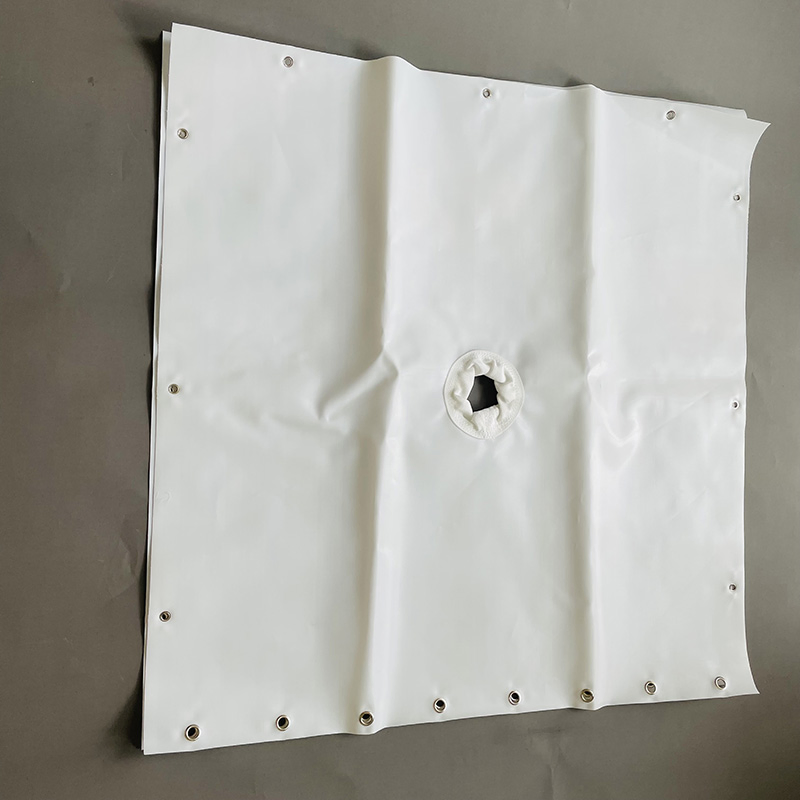

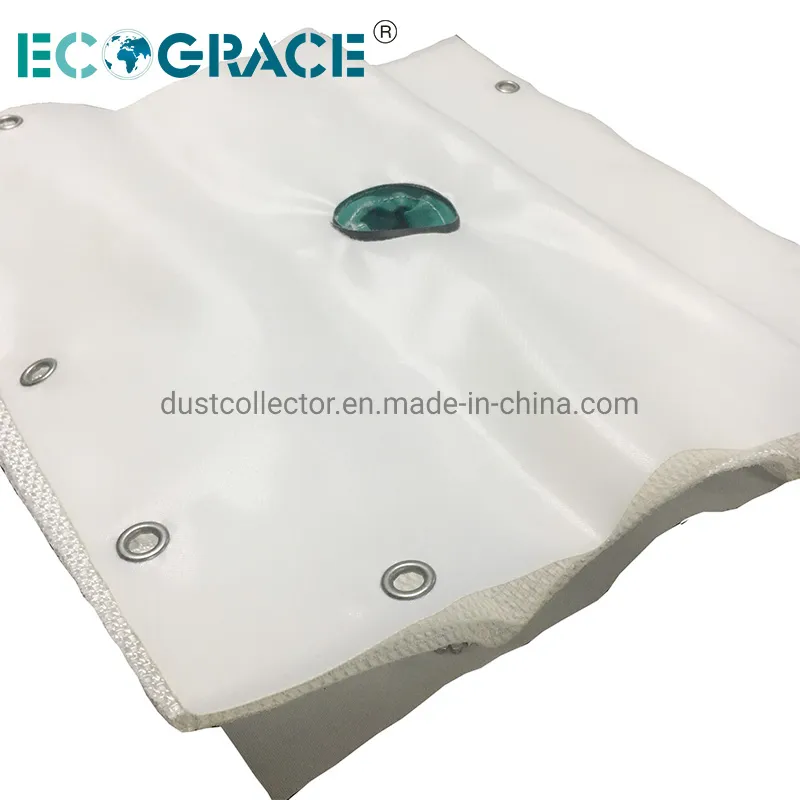

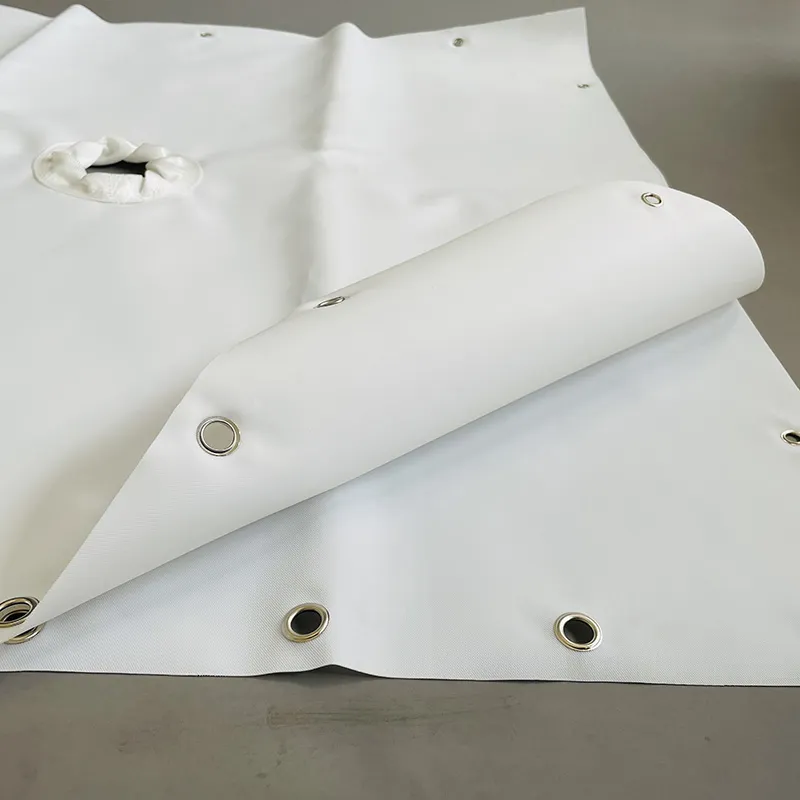

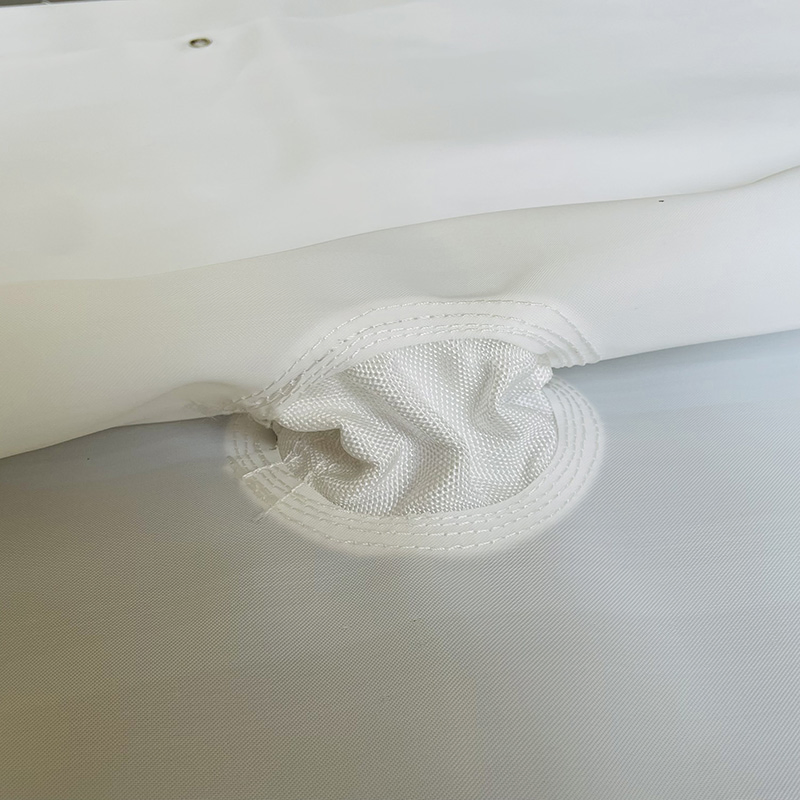

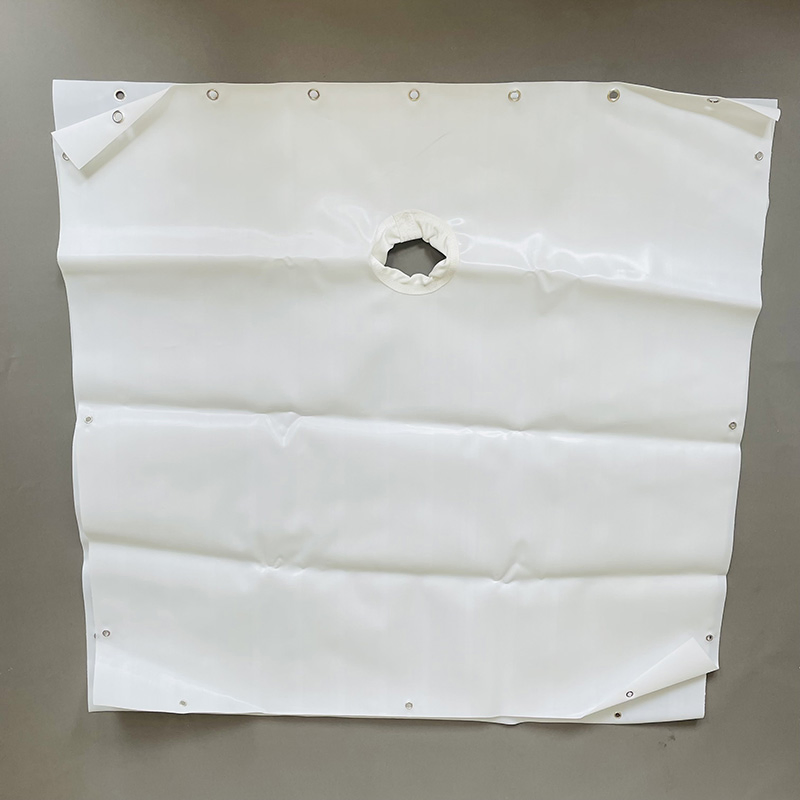

Plate Filter Press Filter Cloth

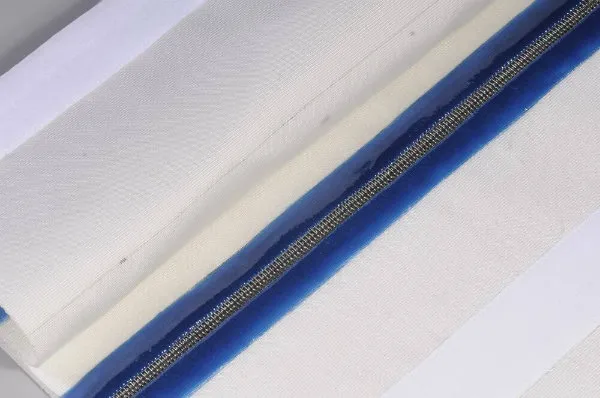

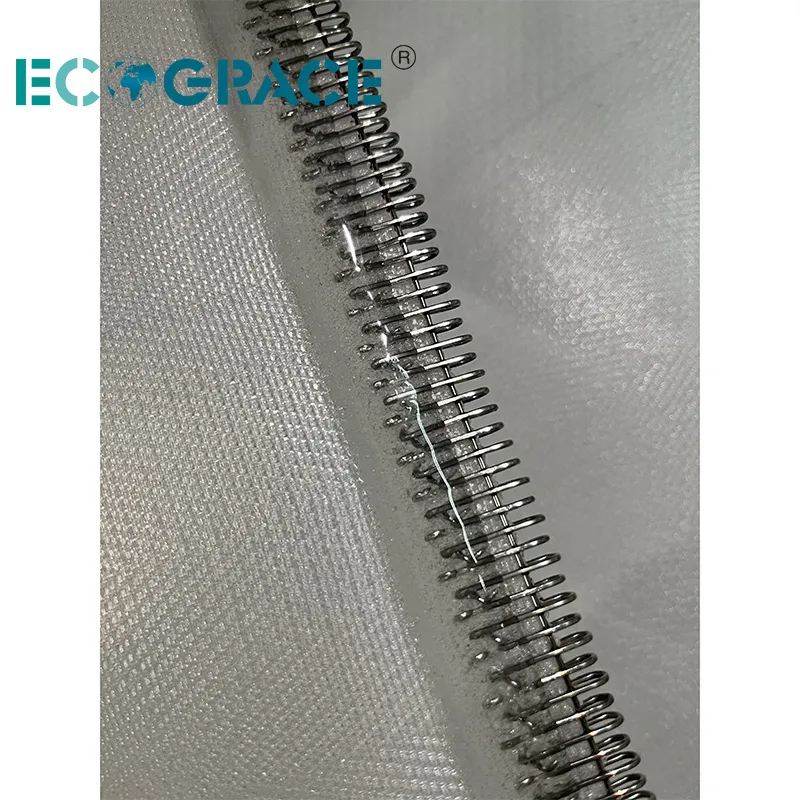

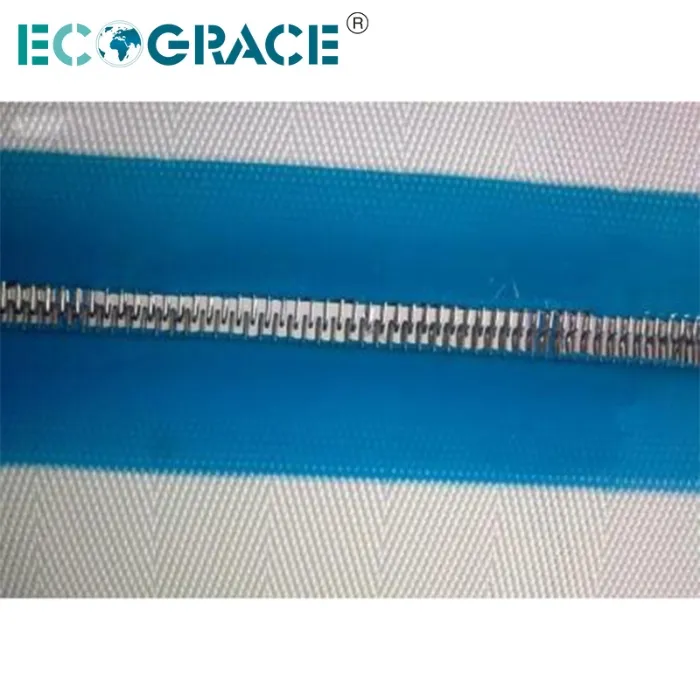

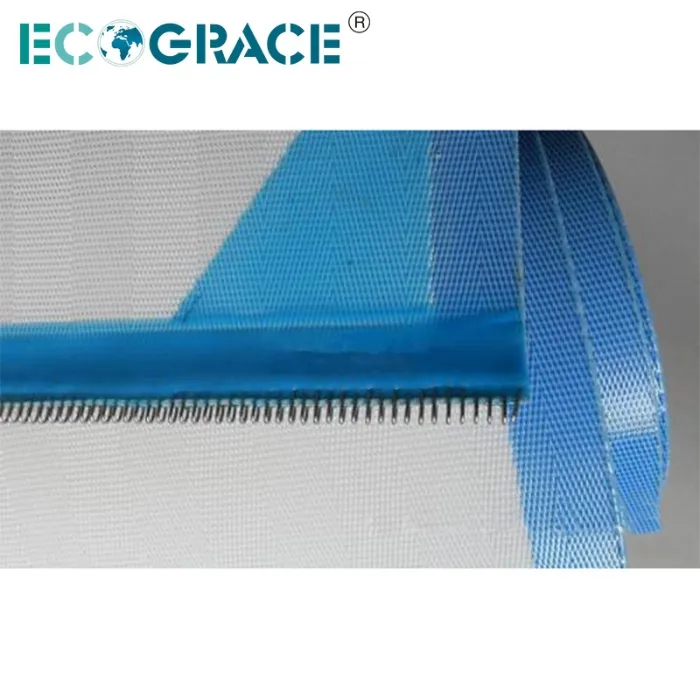

Belt Press Filter , Filter Fabric Belt

Product Parameters

Model No.	Filament diameter (mm)		Density (root/cm)		Tensile strength (N/cm)		Weight	Thickness	Air permeability	Water permeability
Model No.	Warp	Weft	Warp	Weft	Surface	Joint	kg/m²	mm	m³/m²h	S/5L
2570	0.5	0.7	24	9	2000	900	1.23	1.9	6130	56.4
26808	0.5	0.8	27	8.5	2100	900	1.54	2.2	5120	60.3
29708	0.5	0.7	28	8.5	2200	900	1.53	2.1	4120	63
24903	0.5	0.9	23	5.5	2000	900	1.4	1.9	6800	48
18803	0.7	0.8	16.3	5.9	3200	1200	1.45	1.976	5500	70
16908	0.7	0.9	17	4.5	2200	900	1.7	2	7920	38.6
16905-1	0.7	0.9	16.3	5.5	3200	1200	1.52	2.263	6500	50
122103	0.9	1.1	12.5	3.8	3600	900	1.6	2.6	8610	32.4
141105	0.9	1.1	16	6.3	4500	1200	2.45	2.843	3800	90

Products	Application	Feature
Sludge Dewatering Fabrics	1. Sludge dewatering system, squeeze juice 2. Iron and steel industry sludge dewatering 3. Living water dewatering 4. Chemical sludge dewatering 5. Paper drying, paper sludge dewatering 6. Pulp Washing 7. Industrial sludge dewatering 8. Building materials industry	Smooth surface Good stripping High stability, not easy deformation Network with herringbone design High filtration efficiency, not easy jam Durable, long service life Heat resistance Strong steel clip seam

Application Fields

Industry Classification

✓
Chemical: Catalyst, cobalt carbonate, zinc oxide, zirconium carbonate, activated carbon, cobalt carbonate, borate, dyes and intermediates, iron oxide, nickel, salt, aluminum oxide, titanium dioxide, additives, glycerol, pesticides, white carbon black, zinc, calcium carbonate, etc.
✓
Mining: Red mud, tailings gold, potash fertilizer, vanadium ore, the end of coal, clean coal, clay, kaolin clay, etc.
✓
Metallurgical: Gold, molybdenum, lead, vanadium, nickel, zinc, copper, tungsten, carbide slag, etc.
✓
Food Industry: Fruit juice, sugar, starch, sweetener, beer, etc.
✓
Environmental Protection: Sewage treatment, sludge dewatering, flue gas desulphurization, salt mud, fly ash, etc.

Main Application Industry Summary:

Mining tailings concentration, slurry clay dewatering, chemical material filtration, lime slurry dewatering, quarry treatment, wastewater treatment. Sludge Dewatering Belts are widely applied in urban sewage plants, paper mills, printing and dyeing plants, chemical plants, electroplating plants, pharmaceutical plants, food industry, ceramic factories, mining, and other industries.

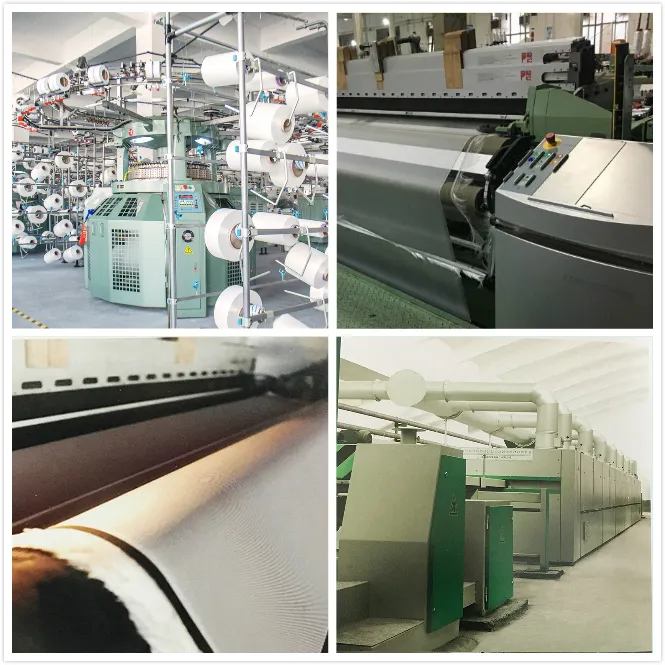

Factory Tour

Frequently Asked Questions

Q1: What material options are available for these filter press cloths?

Our filter press cloths are available in multiple high-quality materials including Polyester, Polypropylene (PP), Nylon, and PA. Polypropylene is highly recommended for its excellent chemical resistance and durability in acid and alkaline environments.

Q2: What is the range of filter micron ratings you support?

We support a wide range of filter micron ratings, generally spanning from 10 microns up to 150 microns. This ensures optimal filtration accuracy for both fine concentrates and coarser industrial slurry.

Q3: How do these filter fabrics perform under extreme industrial conditions?

Our filter fabrics are specifically developed to withstand high process temperatures, complex chemical environments, and high-tensile operations. The heavy-duty monofilament structures help prevent blinding and extend overall service life.

Q4: What are the typical applications of sludge dewatering fabrics?

They are widely used in urban sewage plants, paper mills, chemical processing, metallurgy, mining tailings concentration, clay dewatering, and food processing industries like juice or sugar refining.

Q5: Can these filter cloths be customized to fit specific machines?

Yes, our filter cloths are cut using computer-controlled laser technology to ensure precise sizing and absolute fit for plate filter presses, belt filters, rotary drum filters, Kelly filters, and other custom equipment designs.

Q6: What is the warranty period for the filter press cloth products?

We provide a 12-month warranty for our filter press cloths and sludge dewatering belts, ensuring reliability, proper structural stability, and filtration performance under standard operating conditions.
