Industrial PE/PP/PA/Vinylon Filter Cloth for Liquid/Solid Separation

Basic Info & Specifications

Model NO. Vinylon Filter Cloth

Type PVA Filter Cloth

Hole Shape Round

Manufacturing Method Woven Cloth

Paper Type Qualitative

Model Vinylon Filter Cloth

Key Word Filter Cloth

Air Permeability 30-50 L/M².S

Warp Breaking Strength 100-240 N/Cm

Weft Breaking Strength 70-180 N/Cm

Weave Plain, Twill, Satin

Application Refine Sugar, Pharmaceutical

Advantage Alkaliproof, Abrasion Resistance

Weight 250-600G/M²

Thickness 0.5-2.0mm

Transport Package Carton, Plastic or Customized

Specification Air permeability 30-50L/m² . s

HS Code 5911400000

Production Capacity 100,000 Square Meter / Month

Package Size 105.00cm * 20.00cm * 20.00cm

Package Gross Weight 20.000kg

Product Description

Vinylon (PVA) Filter Cloth

Main Material: PVA

Product Features:

Strong-Alkaliproof, poor-Acidproof, Good abrasion resistance, bad resilience, high strength
Temperature: < 100ºC
Breaking elongation: 12-25%

Product Application (Solid-Liquid Filtration):

Refine sugar, pharmaceutical, chemical industry, mineral industry, ceramic industry, rubber etc.

Technical Data

Model	Material	Weight (g/m²)	Thickness (mm)	Air Permeability (l/m².s)	Weave
295-1A	PVA	555.8	1.56	43.7	Plain
295-102	PVA	331.3	0.77	27	Plain
295-104	PVA	246.9	0.58	40.5	Plain
295-1	PVA	502.9	0.9	20.7	Plain

Material	Abrasion	Weak Acids	Strong Acids	Weak Alkali	Strong Alkali	Solvents	Temperature (ºC)
PET	Good	Very Good	Good	Good	Poor	Good	< 120
PP	Good	Good	Poor	Excellent	Excellent	General	< 80
PA (Nylon)	Excellent	General	Poor	Excellent	Excellent	Good	70-80
PVA	Very Good	General	Poor	Excellent	Excellent	General	< 100

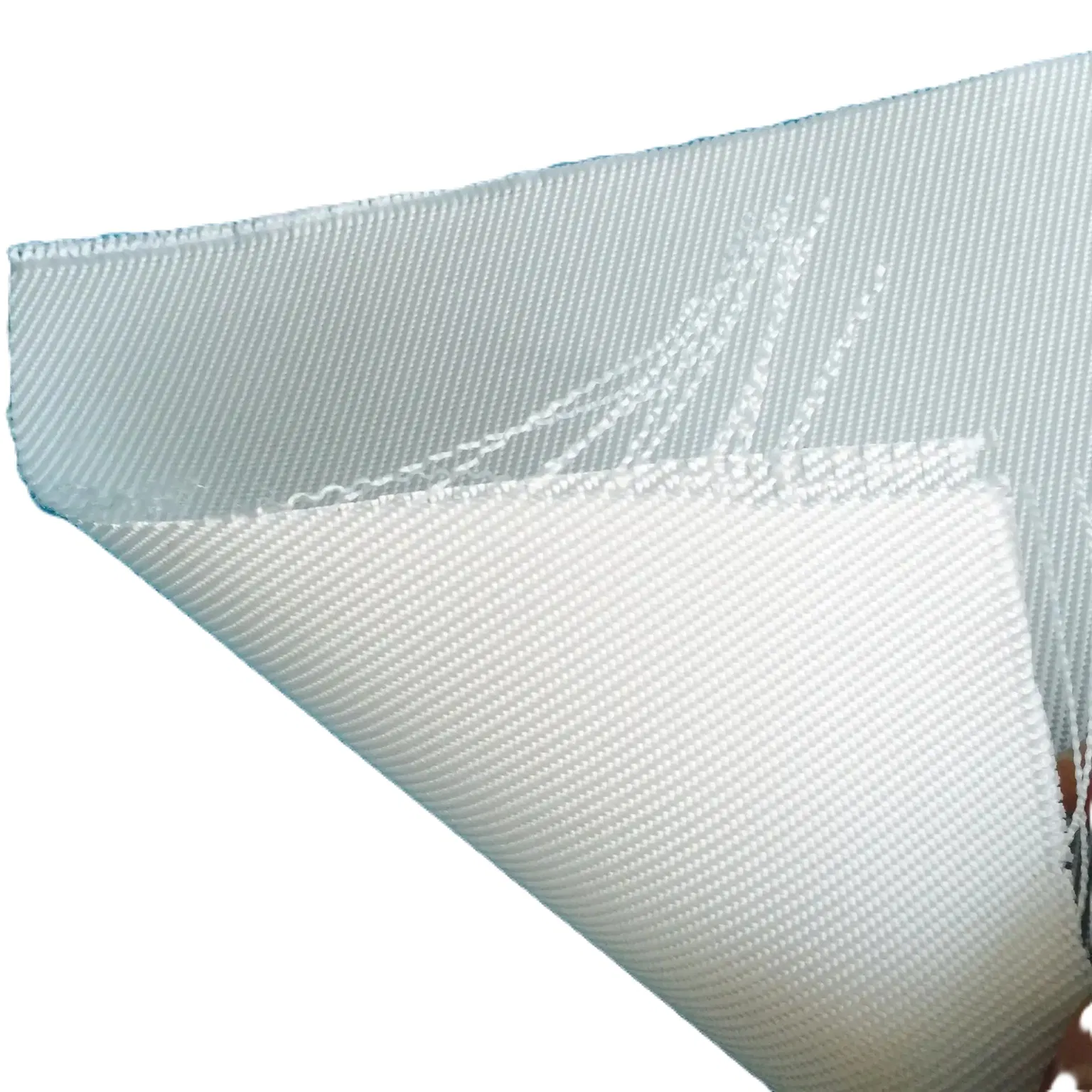

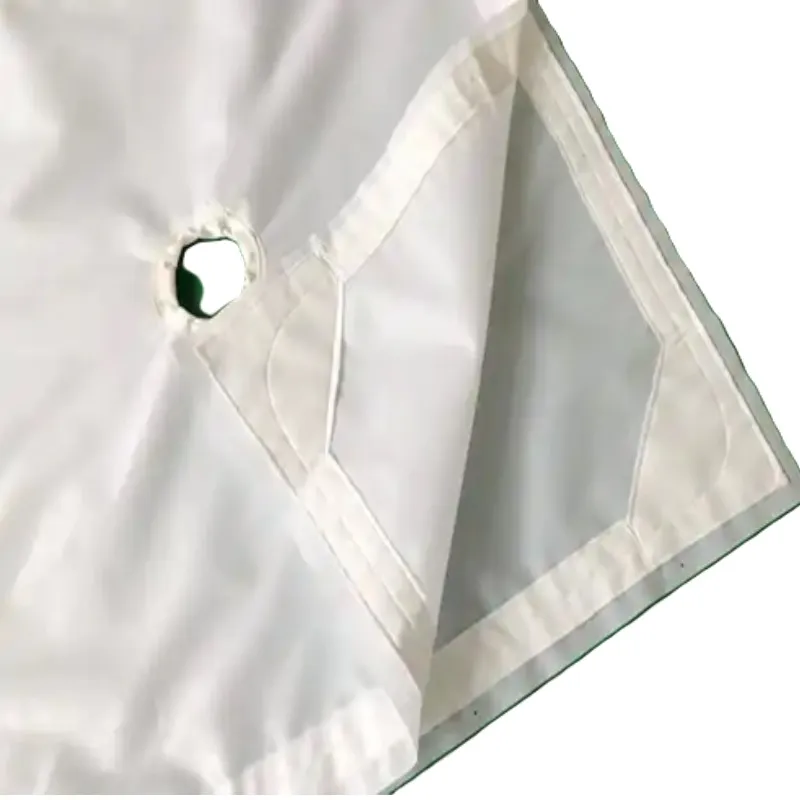

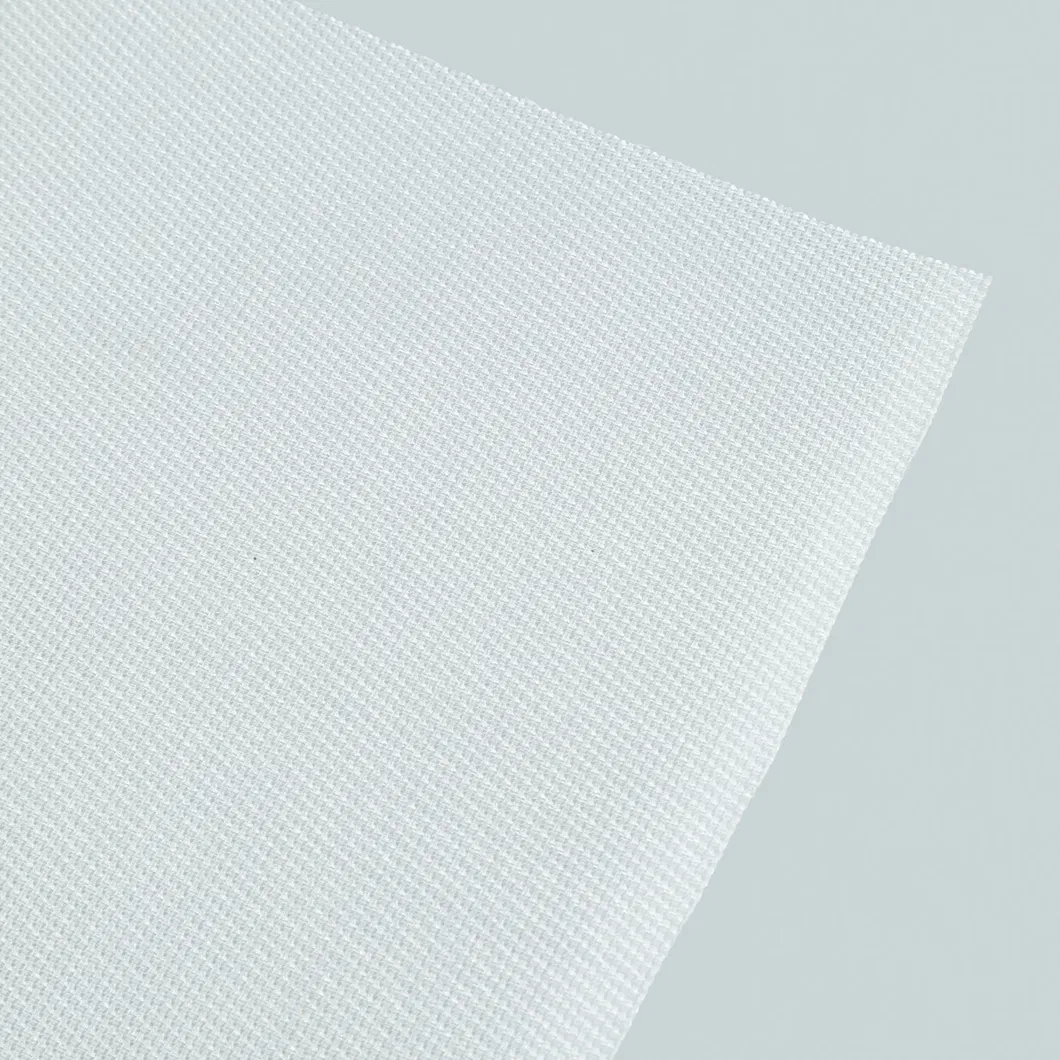

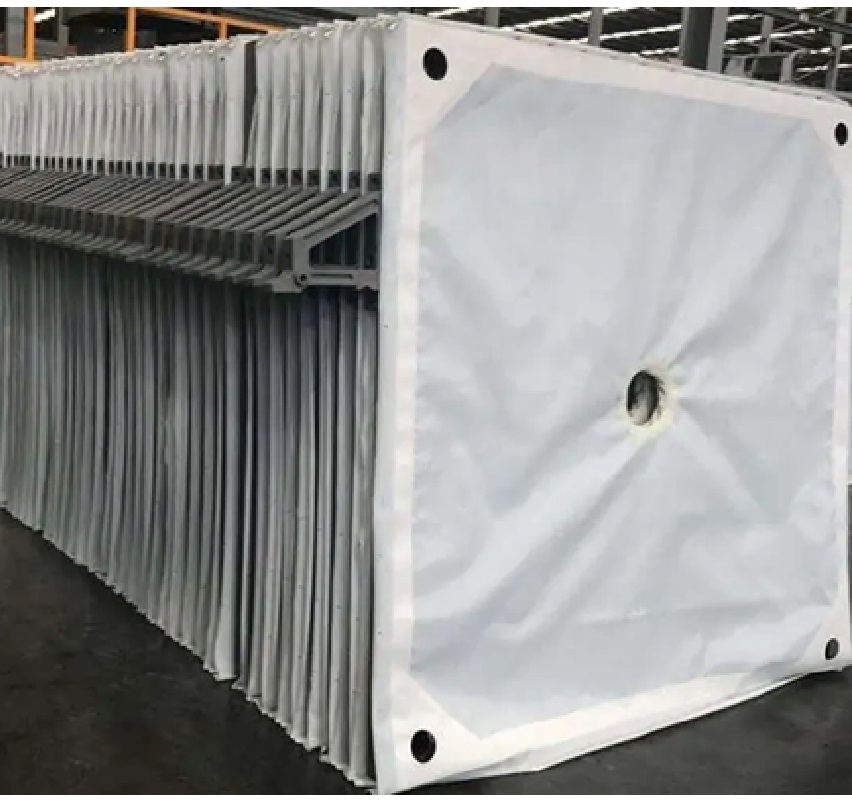

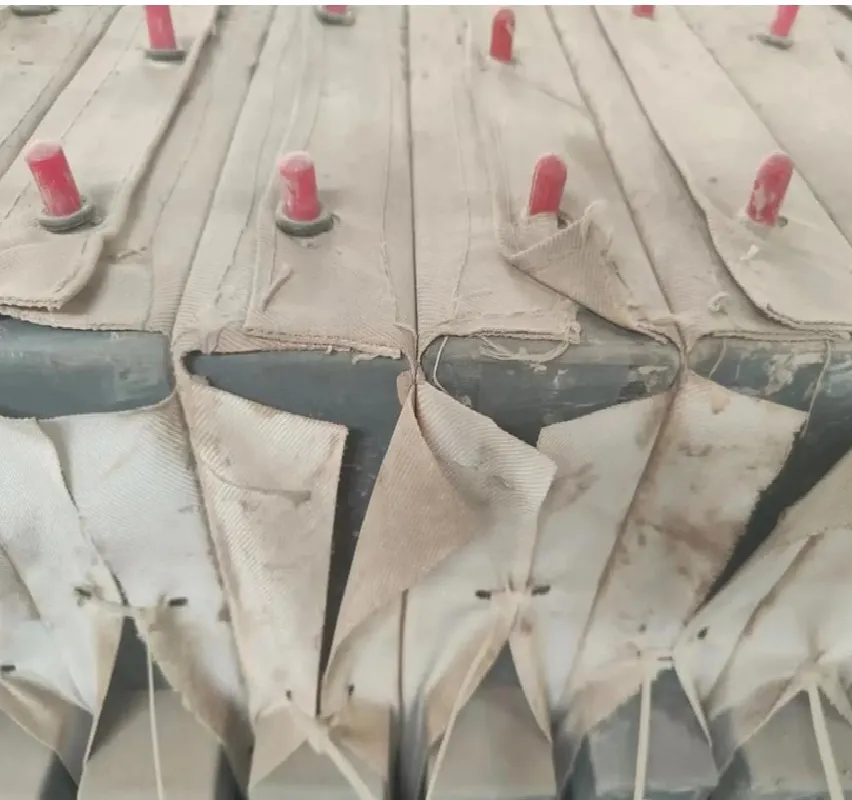

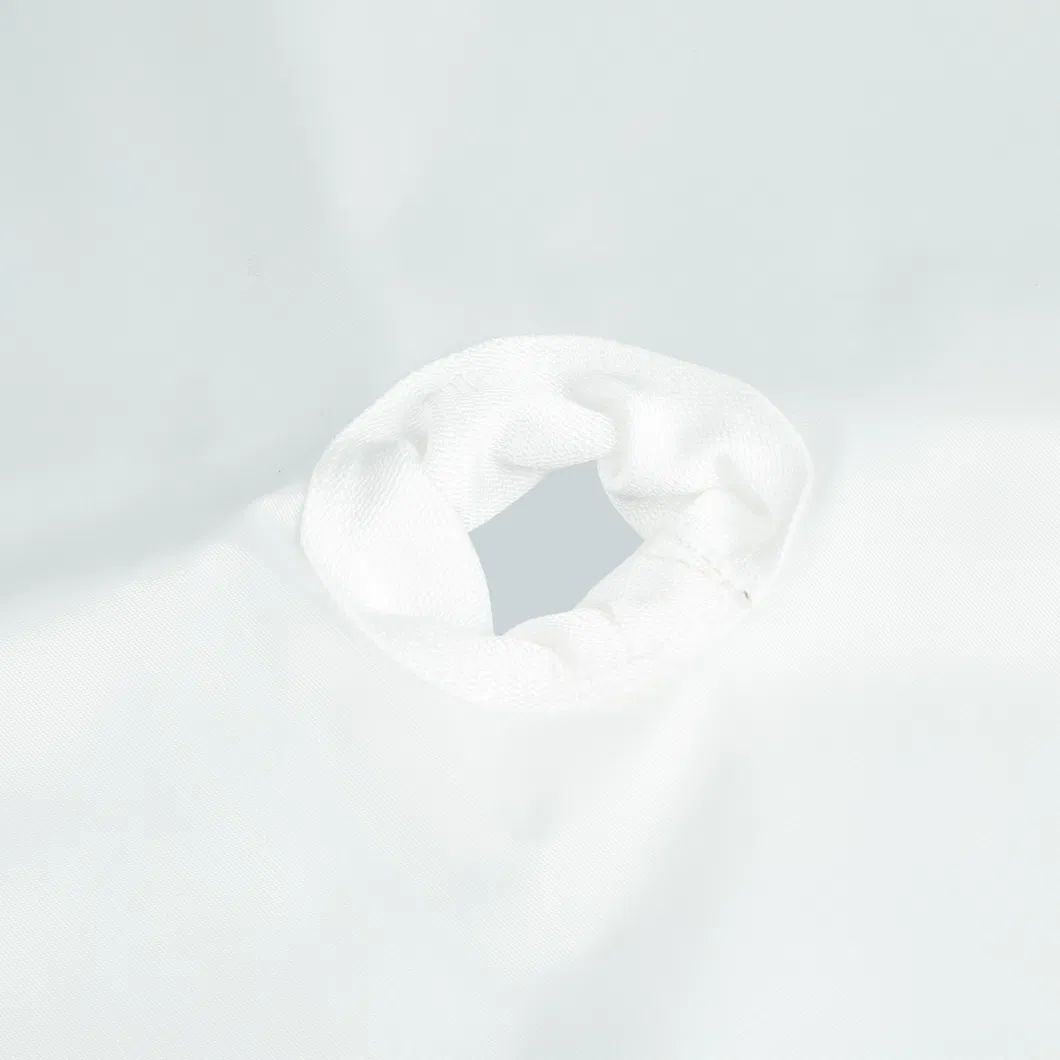

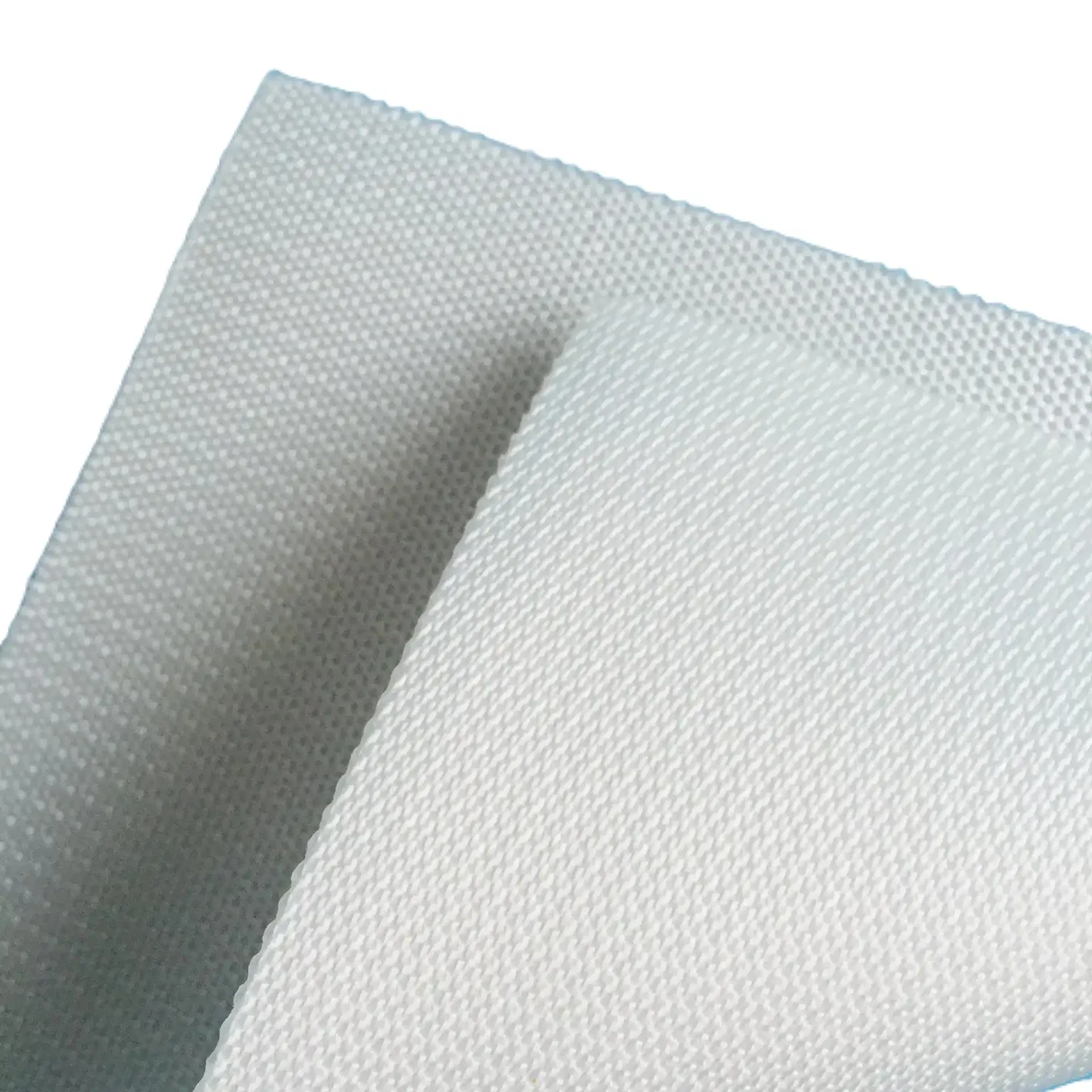

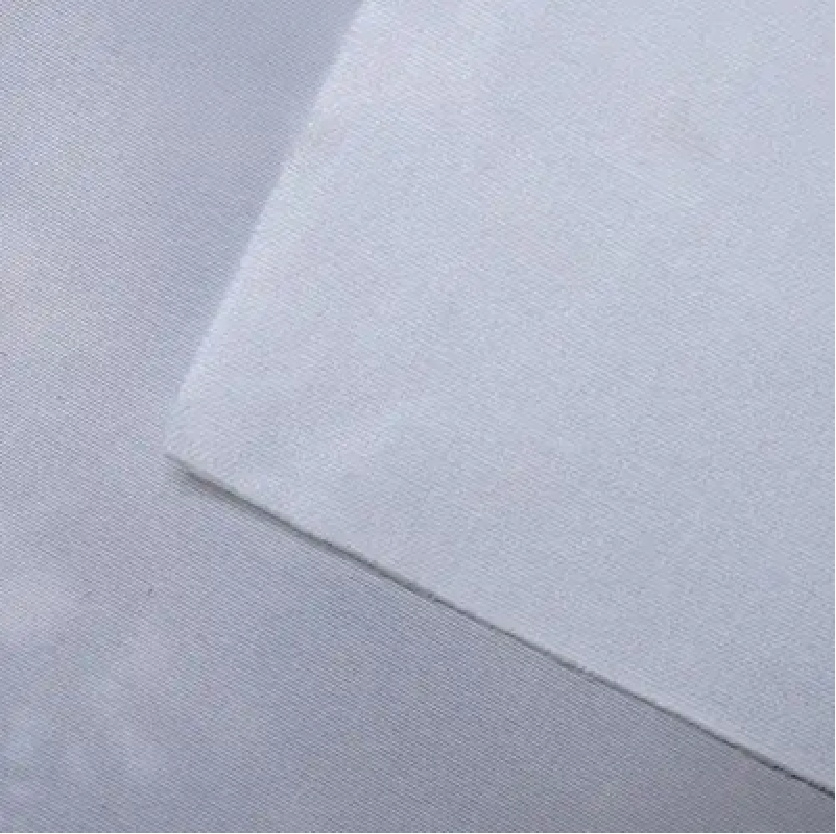

Product Gallery

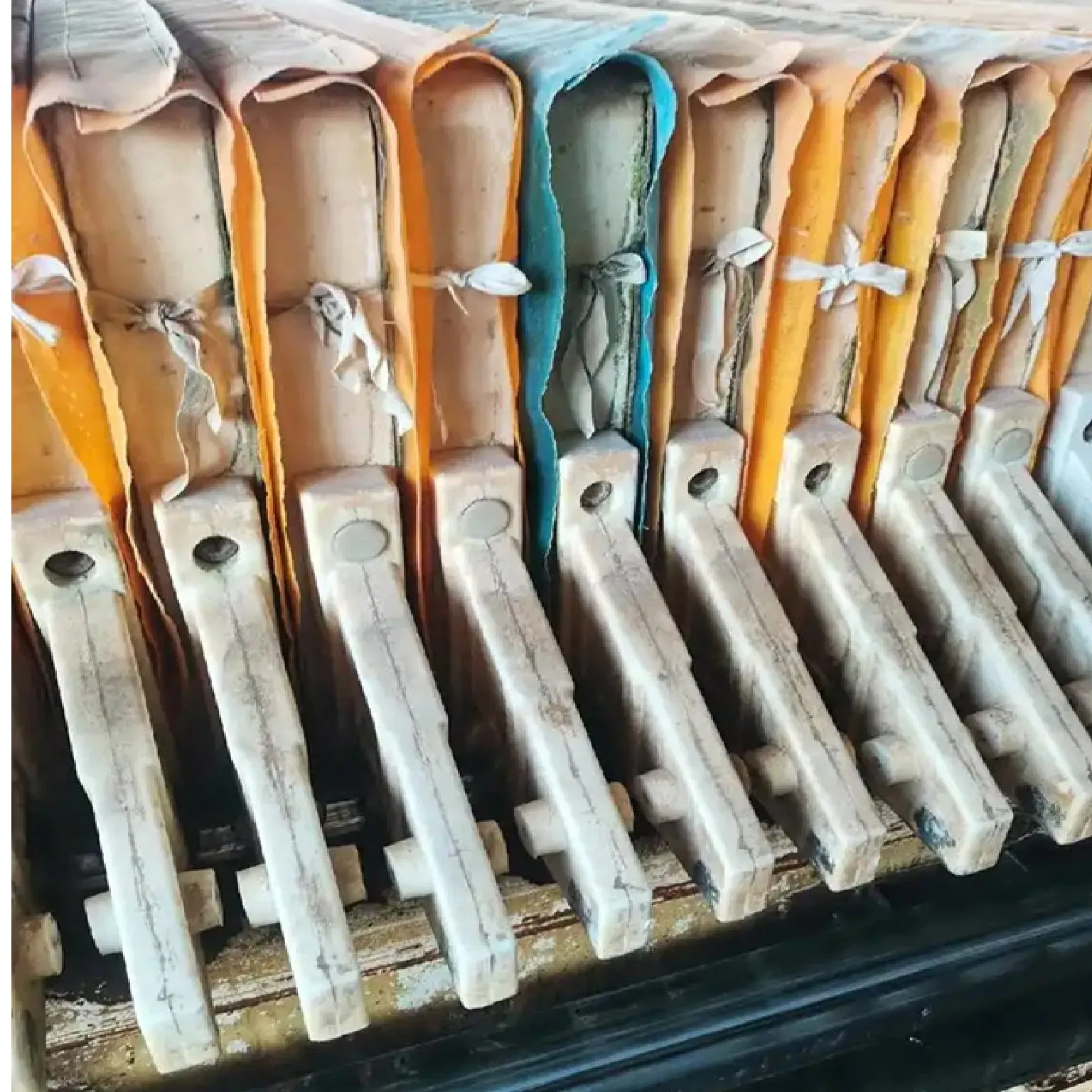

Industrial PE/PP/PA/Vinylon Filter Cloth for Liquid/Solid Separation

Frequently Asked Questions

What are the key chemical resistance properties of Vinylon (PVA) filter cloth?

Vinylon (PVA) filter cloth displays excellent resistance to both weak and strong alkalis. However, it has general resistance to weak acids and poor resistance to strong acids.

What is the maximum operating temperature for PVA filter cloth?

The recommended operating temperature limit for Vinylon (PVA) filter cloth is below 100ºC.

In which industries is this filter cloth most commonly applied?

It is widely used for solid-liquid filtration processes in sugar refining, pharmaceuticals, chemical manufacturing, mineral processing, ceramics, and rubber production.

What are the physical advantages of choosing a Vinylon filter cloth?

Vinylon offers very good abrasion resistance, high overall strength, and strong alkaline resistance, making it durable for demanding industrial environments.

What weaves are typically available for Vinylon filter cloths?

The standard manufacturing weaves for Vinylon filter cloth are Plain, Twill, and Satin, depending on the specific model and filtration density required.
