Sugar Factory Filter Press Polypropylene PP Filter Cloth Media Filter Fabrics

1 / 5

Sugar Factory Filter Press Polypropylene PP Filter Cloth Media Filter Fabrics

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Type	Woven Filter	Hole Shape	Round
Manufacturing Method	Manufacturing Cloth	Paper Type	Qualitative
Weight	420G/M2	Thickness	0.7mm
Filter Rate	1-50 micron	Air Permeability	5~50L/M2/S
Transport Package	Woven Bag/Carton/Pallet	Specification	630mm*630mm
Origin	China	HS Code	5911400000

Filter Press Clothes

We have extensive experience in many applications and offer ready-made filter elements adapted to fit customer's requirements, such as cake moisture, particle retention, etc.

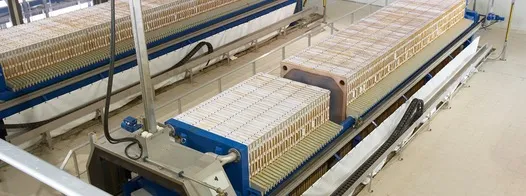

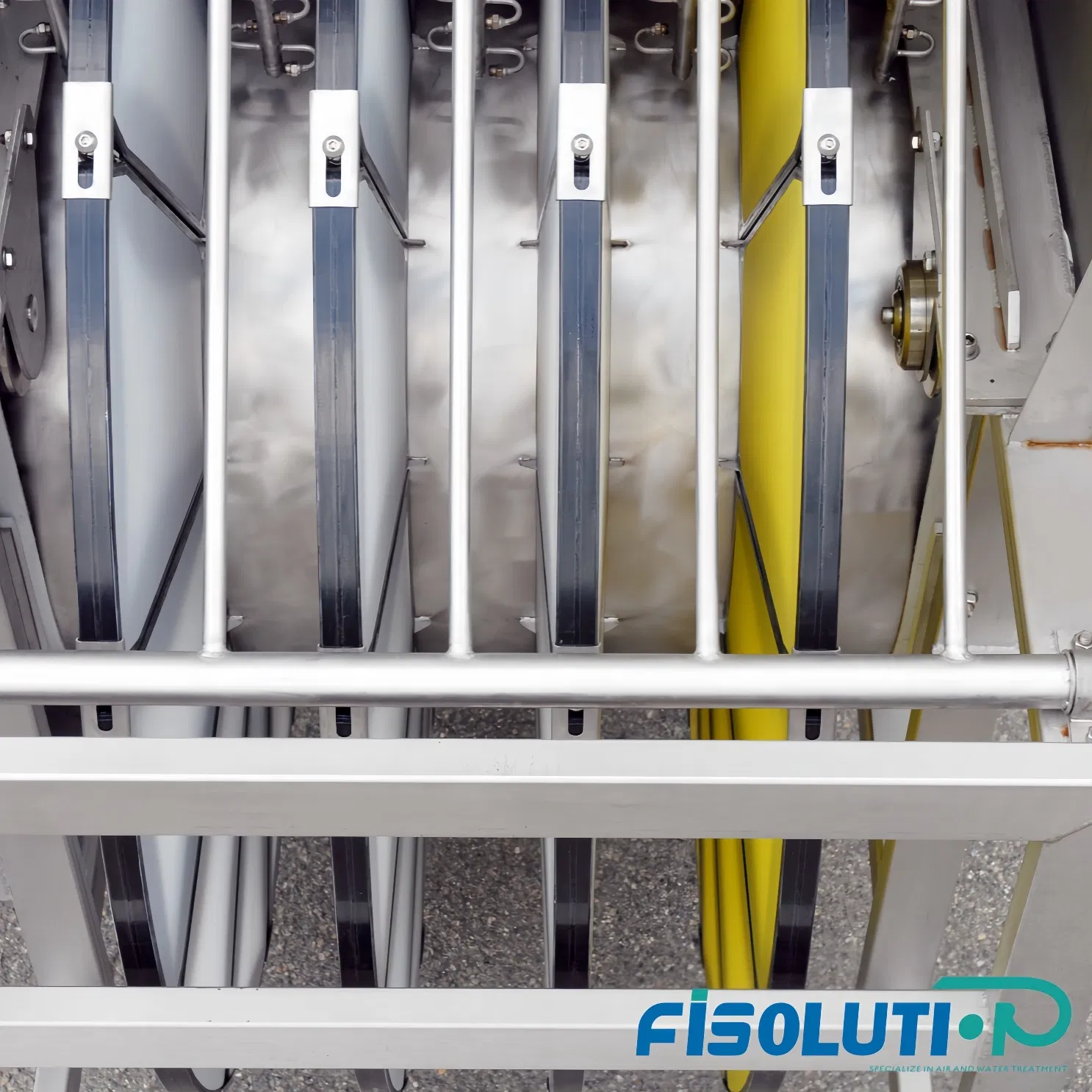

Filter Press Polypropylene PP Filter Cloth

Industry Solutions for Filter Press Equipment

We are a leader in the design, production, and sales of chamber and membrane cloths for filter press machines, also called horizontal, mix pack or vertical plate pressure filters. With 30 years of experience worldwide, we focus on providing personal technical support and assistance to each customer addressing the particular needs of their application.

Key Performance Features

Chemical, mechanical and abrasive resistance.
Dimensional stability.
Food compliance: FDA.
Resistance against clogging, blinding or scaling with high regeneration capacity.
High strength resistance against tearing.

Technical Knowledge & Efficiency

Our approach focuses on reproducing filtration and the customer's process through specialized laboratory studies. Key factors we optimize include:

• Cake moisture (dryness, moisture content)
• Cake thickness
• Filtration efficiency (filtrate clarity, particle retention)
• Cake release (discharge)
• Cake washing efficiency

Fabrication Solutions

We propose solutions for all plate designs with ready-made adapted cloths (single, double, or overhang). Options include:

Metallic or US Eyelets (food grade and corrosion-resistant).
Waterproof barrel and rubbernecks for chemical or abrasion environments.
Edge sealing with food-grade certified coatings to avoid leakage.
Support or backing cloth to increase drainage and lifetime.

Metallic eyelets

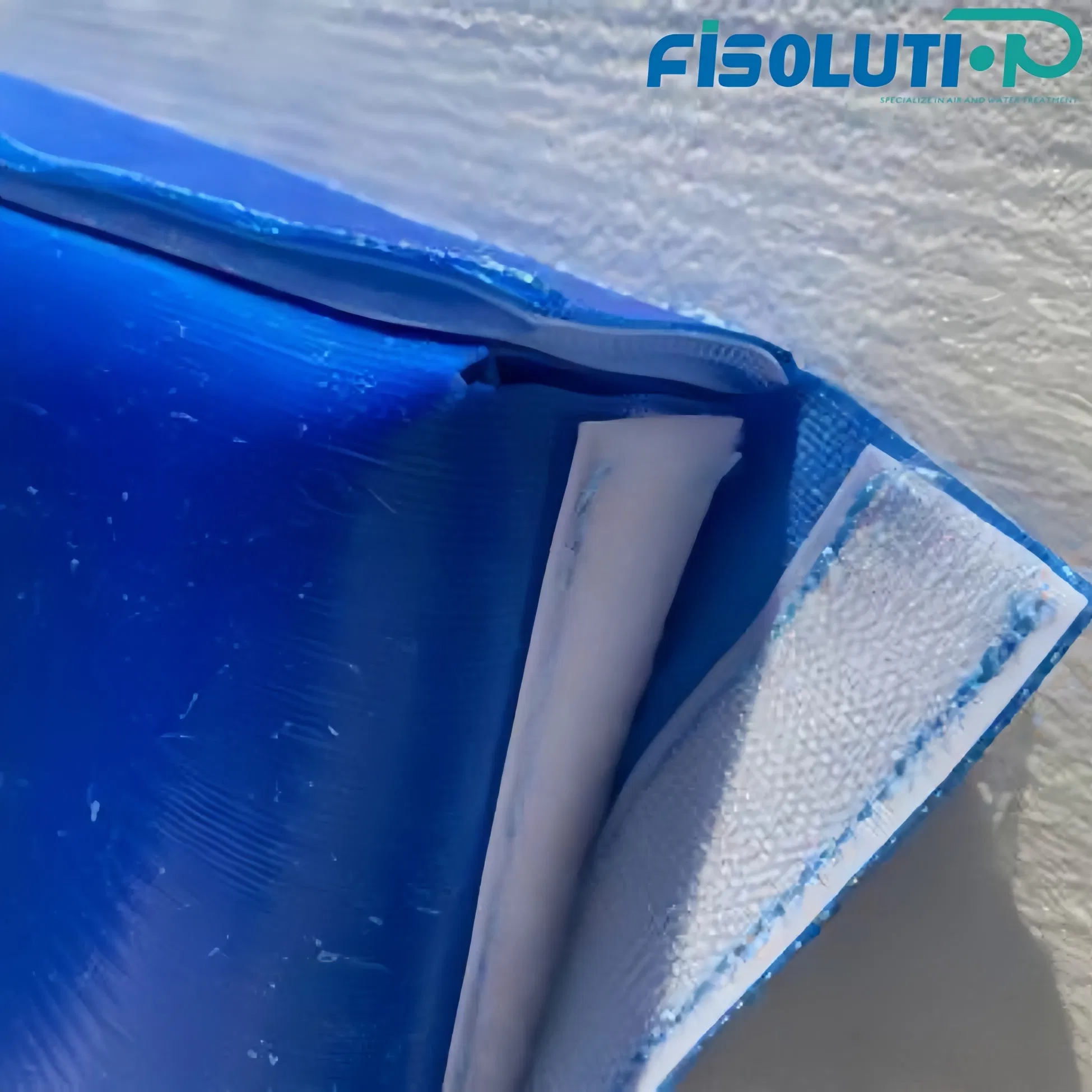

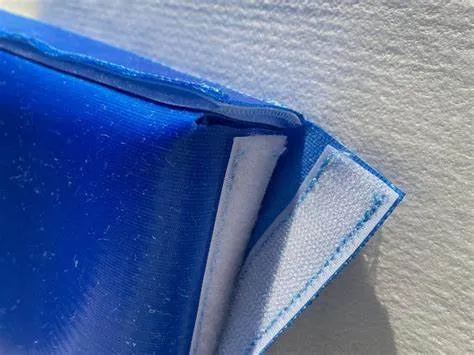

Velcro fastener

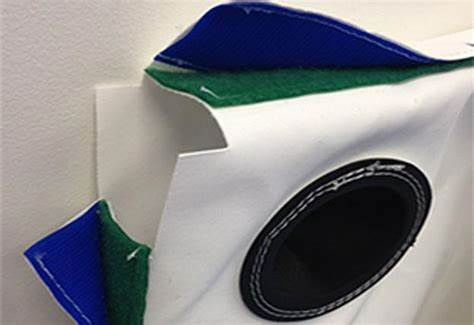

Barrel neck

Filter Media Technology

A complete range of fabrics: Monofilament, Multifilament, Mixed mono-multifilament, and Staple fibres. Materials include: Polypropylene (PP), Polyamide (PA, Nylon, Rilsan), Polyester (PET), or PBT.

Monofilament Fabric

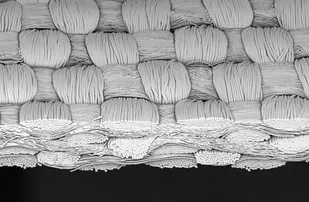

Multifilament Fabric

Item Code	Material	Weight	Thickness	Air Permeability	Breaking Strength	Weave	Finishing
FIS-750B	Polypropylene	450g/m2	0.8mm	5-100L/m2/s	4400N/5cm	Plain	Calendered

Industrial Applications

Environment: Potable Water, Urban Waste Water, Industrial Waste Water, Galvanic Treatment, Metallic residue.

Chemical: Polymers, Resin, Naphtalenesulfonate, Precipited Silicate, Pigments, Fertilizers.

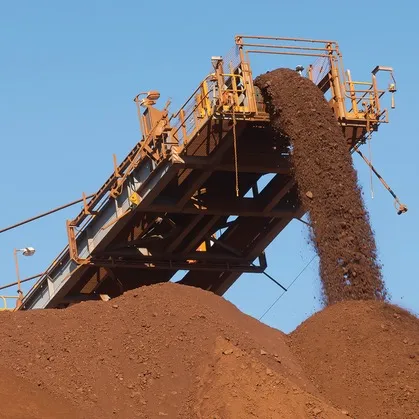

Mineral: Alumina, Cement, Coal, Concentrates & tailings (Copper, Gold, Iron), Lithium, Rare earths.

Frequently Asked Questions

1. What materials are used in the filter cloths? We utilize a variety of high-performance polymers including Polypropylene (PP), Polyamide (Nylon), Polyester (PET), and PBT to meet specific chemical requirements.

2. Are these filter cloths suitable for food-grade applications? Yes, we provide media that are FDA food compliance certified, along with food-grade certified coatings for edge sealing.

3. How do I ensure dimensional stability for my filter cloth? All our media are properly thermo-fixed during production to ensure high dimensional stability and reliability during operation.

4. Can you help with cake release issues? Our fabrics are calendered to provide a smooth surface, which is essential for ensuring excellent cake discharge performance.

5. What is the filter rate range available? Our filter press cloths support a filter rate ranging from 1 to 50 microns, depending on the specific fabric weave and material selected.

6. How are leakages prevented in plate designs? We offer edge sealing through special coating or reinforcement and provide various barrel and rubberneck options to ensure a waterproof environment.
