| Model NO. | FC-56 |
| Type | Non-woven Filter |
| Hole Shape | Customized |
| Manufacturing Method | Composite Fabric |
| Paper Type | Carbon Fiber Fabric |
| Colour | White/Green/ |
| Dust Holding | 350g/Sqm; T500G/M2 |
| Pore Size | Max. 150um Min. 130um |
| Tear Strength ISO 13937 | MD 130n; CD 130n |
| Heat Strength | >120℃ |
| Width | 50-100 Cm |
| Roll Length | 50-1000 M |
| Application | HEPA Cabin Filters / HVAC Filters / Air Cleaner |
| Transport Package | Roll Package |
| Specification | 56mm roll diameter |
| Origin | China |
| HS Code | 5603129000 |
| Production Capacity | 1000 Tons / Year |

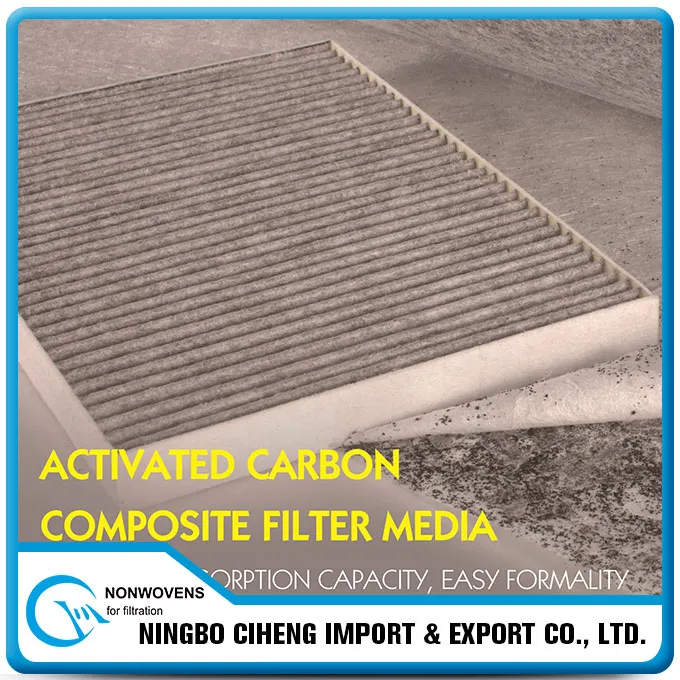

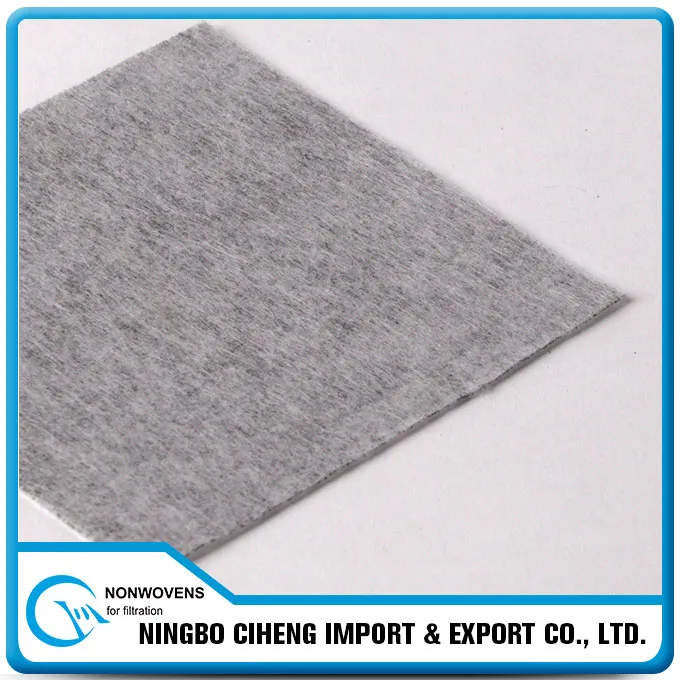

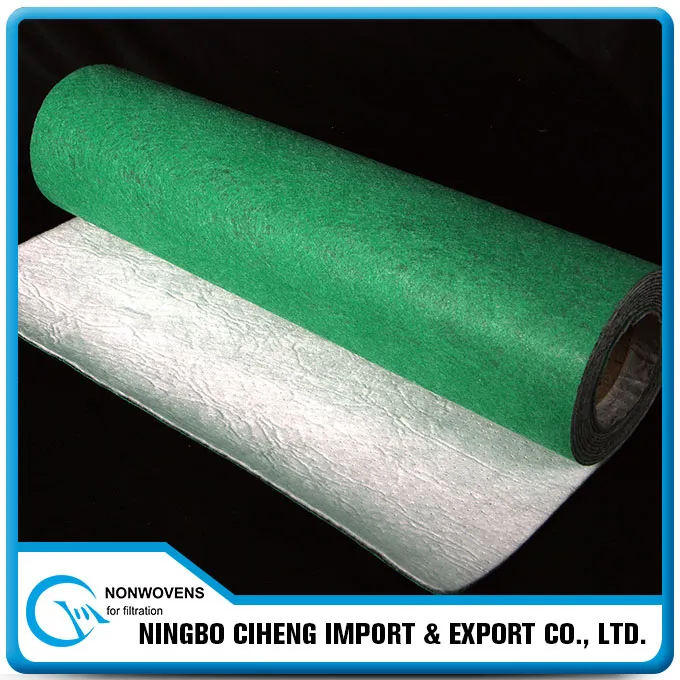

The composite activated carbon cloth is set up to form by hot pressing technology with high frequency vibration equipment which spread coconut shell activated carbon evenly on the surface of non-woven base material. It's a kind of high efficiency filtration material which can effectively adsorb various industrial waste gases in the air with lower resistance of wind. It has the physical properties of cloth (strong, flexibility and durability), meanwhile with the adsorption feature and microporous filter performance of activated carbon.
| Material composition | filament + melt-blown + activated carbon 0075 | Filament + active carbon + static fabric 016G | Filament + active carbon + static fabric 011 |
|---|---|---|---|
| Colour | white | Green | White |
| Weight | 390+0.1mm | 500±25 g/m² | 300±25 g/m² |
| Thickness | - | 1.8±0.15 mm | - |
| Filter Efficiency | ≥98% | 2.5μm≥90% @ 10Pa | 0.3μm≥97% @ 18Pa |
| Ventilation Property | 1500+300L/sqm.S (ENISO9237) | 700±100L/m².S | 500±100L/m².S |
| Dust Holding | 350g/sqm | 500g/m² | 500g/m² |
| Pore Size | Max. 150um Min. 130um | - | - |
| Tensile Strength (ISO 9073-3) | md 250 N/5cm cd 235N/5cm |
md 240 N/5cm cd 240N/5cm |
md 240 N/5cm cd 240N/5cm |
| Tear Strength (ISO 13937) | md 130N; cd 130N | md 130N; cd 130N | md 130N; cd 130N |
| Heat Strength | >130ºC | >120ºC | >120ºC |
| Width | 50-100 cm | 50-100 cm | 50-100 cm |
| Roll Length | 50-1000 m | 50-1000 m | 50-1000 m |
| Application | HEPA Cabin Filters / HVAC Filters / Air Cleaner / Vacuum Filter | - | - |
| Characteristics | Uniform Fibre distribution; Equal physical values in all directions; High air permeability for sufficient filtering request; Environmental protection and efficient good permeability low resistance filter material. | ||
| MARKS: This fabric is composited in order with multi-layers of different efficiency rate of nonwoven material and carbonized in the middle layer. The nonwoven can be optional with spun-bond nonwovens, spun-lace nonwovens and needle punch nonwovens. | |||
This product is widely used in the central air-conditioning filter, auto cabinet air filter, protective clothing, deodorant shoes material and other fields. Especial after pleating process into finished filter products it can be used as the perfect air filtration media for home and auto air purification, either be used for industrial and domestic water purification.

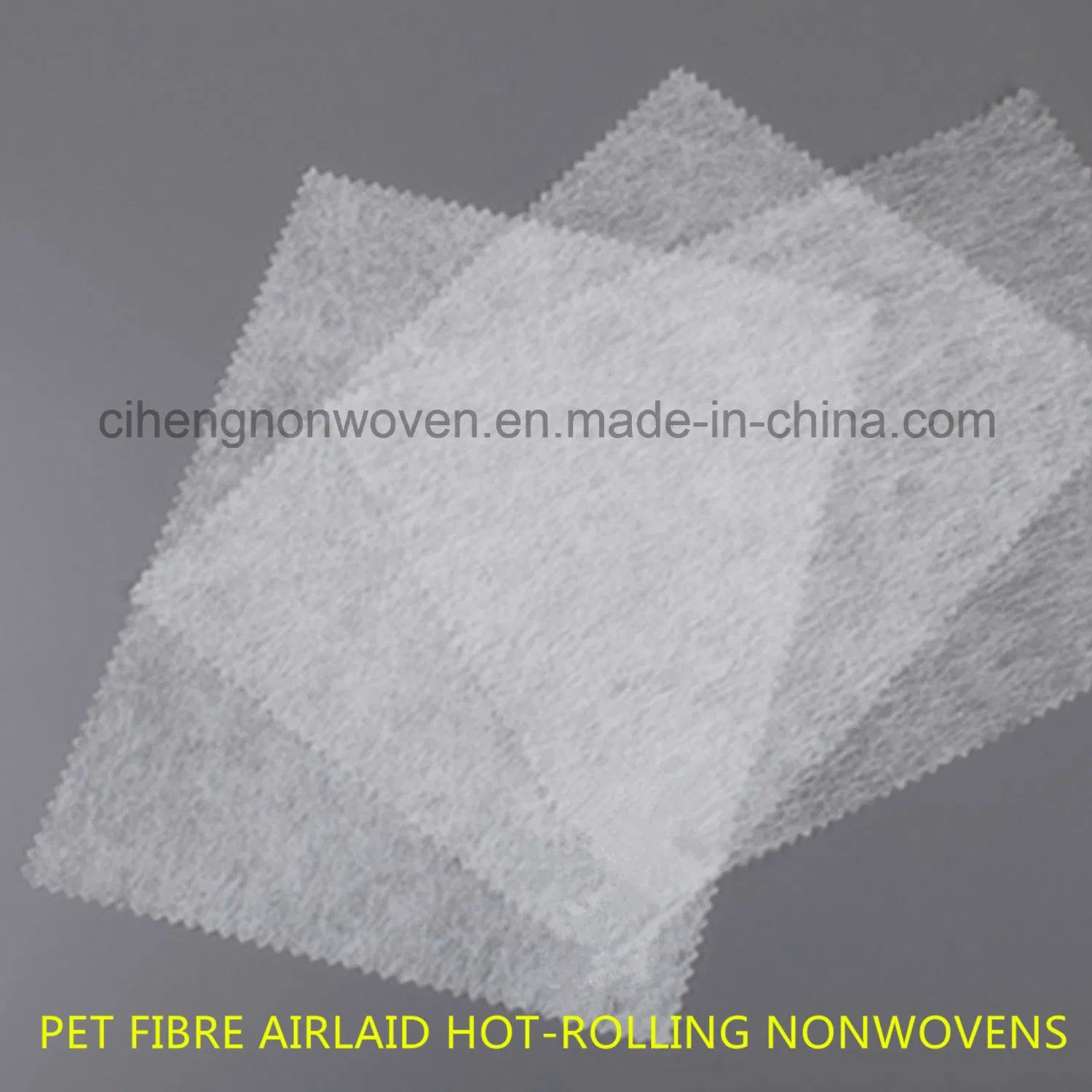

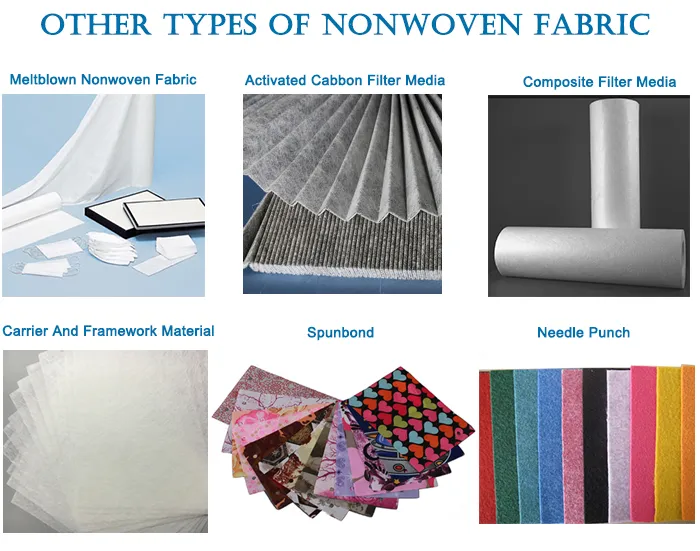

We supply the various of types of nonwoven fabric used as the filter media in the field of air and liquid filtration. Our product categories include PP melt-blown nonwovens, PP spun-bonded nonwovens, PET fibre hot-rolling nonwovens, PET fibre spun-bonded nonwovens, PET filament thermos-bonded nonwovens, Needle punched nonwovens, Activated cabbon filter media, Ultrasonic composite nonwovens, etc.
1. Quality Tracking: We provide laboratory test result for each roll products for quality tracking.
2. Accessories Supply: We offer other accessories needed for respirators production.
3. Test Equipment: Specialized test equipment for Meltblown filters.
4. Technical Solutions: Comprehensive technical solutions for filter production.
5. Customization: We can customize filter media specification to reduce the material loss.
6. Flexible Shipping: We can arrange to ship the goods by various means of transportation, via air, sea, truck, rail or combined.
We produce melt-blown nonwovens which is mainly used as filter media in the production of respirators. We are specialized in melt-blown technology and have more than 12 years of experience in melt-blown nonwovens production. We developed our own electret charging equipment and electret master batch, adopting unique formula, to help with our nonwovens reach higher filtration efficiency and lower air penetration pressure.
Q1: What are the main applications of this composite activated carbon cloth?
A1: It is widely utilized in central air-conditioning filters, auto cabin air filters, protective clothing, deodorant shoe materials, as well as domestic and industrial water and air purification systems.
Q2: How is the composite activated carbon cloth manufactured?
A2: The material is created through hot pressing technology with high-frequency vibration equipment, which distributes coconut shell activated carbon evenly onto a non-woven base layer, offering low wind resistance and high efficiency.
Q3: What types of gases can this filter media effectively adsorb?
A3: It exhibits an excellent adsorption capacity for industrial waste gases and common pollutants, including benzene, formaldehyde, sulfur dioxide, ammonia, and various hydrogen compounds.
Q4: Can the specifications of the filter media rolls be customized?
A4: Yes. We can customize the width, roll length, weight, and composition structure to match your specific production requirements and minimize material waste.
Q5: How do you guarantee the quality of each production run?
A5: We conduct laboratory tests on every roll produced and provide detailed test results with the shipment to ensure complete quality tracking and assurance.
Q6: What other nonwoven filtration fabrics do you supply?
A6: Our product portfolio includes PP melt-blown, PP spun-bonded, PET hot-rolling, PET spun-bonded, PET filament thermo-bonded, needle punched, activated carbon media, and ultrasonic composite nonwoven fabrics.
