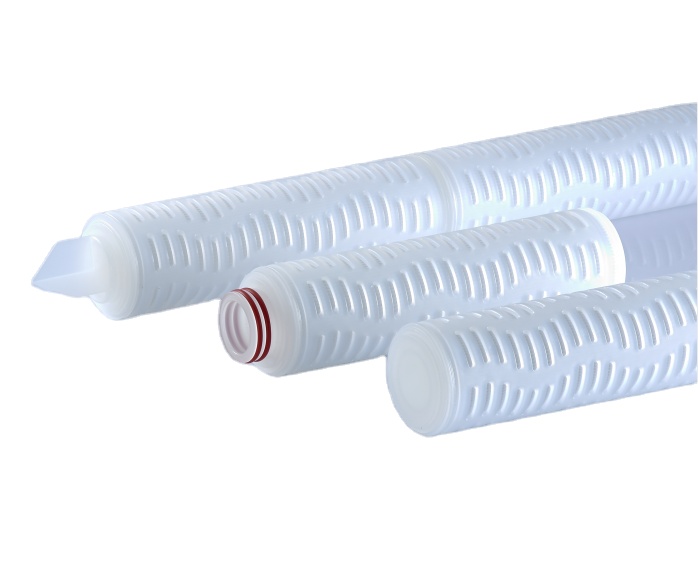

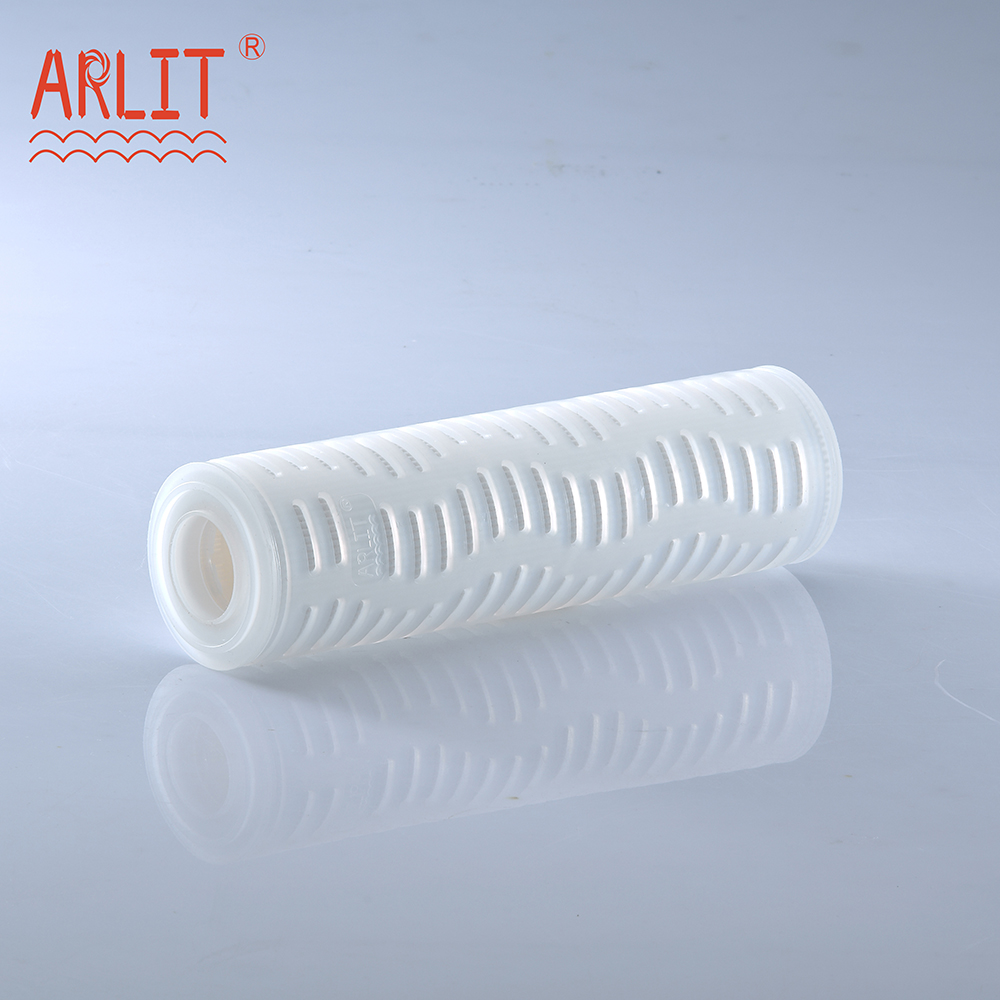

High precision sterilization 0.1um 10 inch PES membrane filter cartridge for micro electronic industry
Specification
| Filter medium |
PES Fibre Membrane |
| Support layer |
Polypropylene (PP) |
| Filter cage |
Polypropylene (PP) |
| Pore size |
0.1, 0.2, 0.45, 0.65, 1 µm |
| Length |
5 / 10 / 20 / 30 / 40 inches |
| OD/ID |
69 mm - 34 mm |

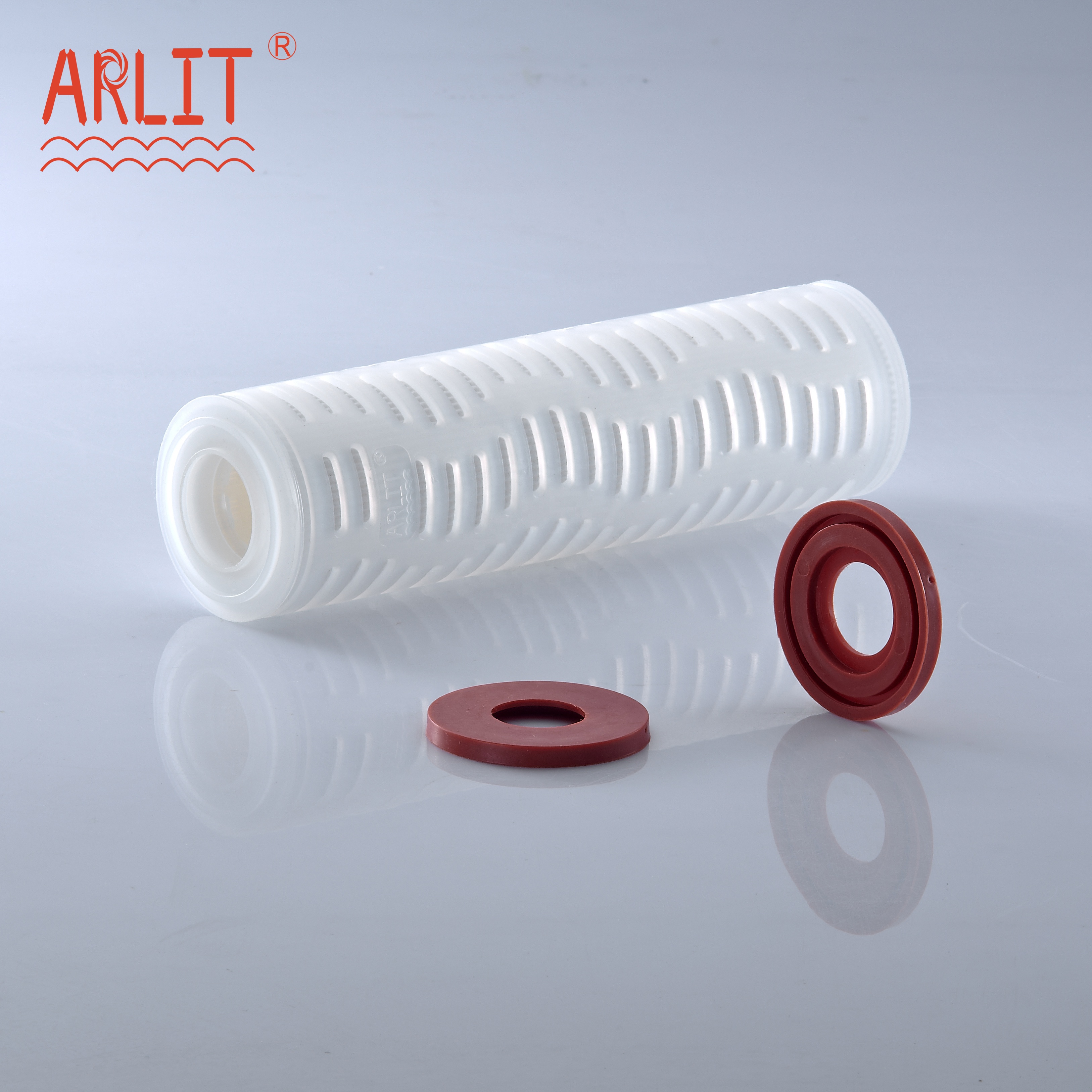

| Gasket / O - rings |
Silicone, NBR, EPDM, Viton |
| Interface |
DOE, 215, 222, 226 flat/fins |

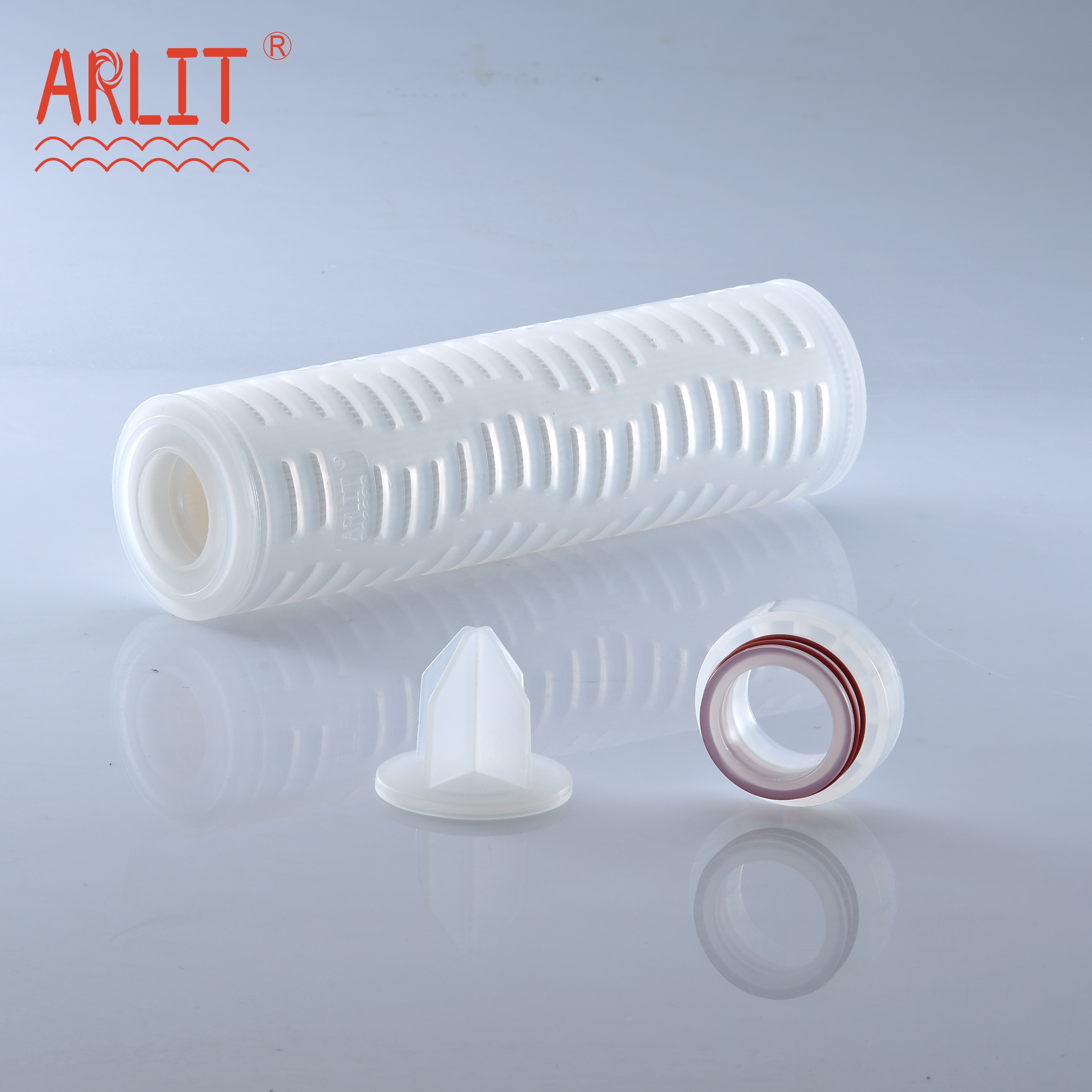

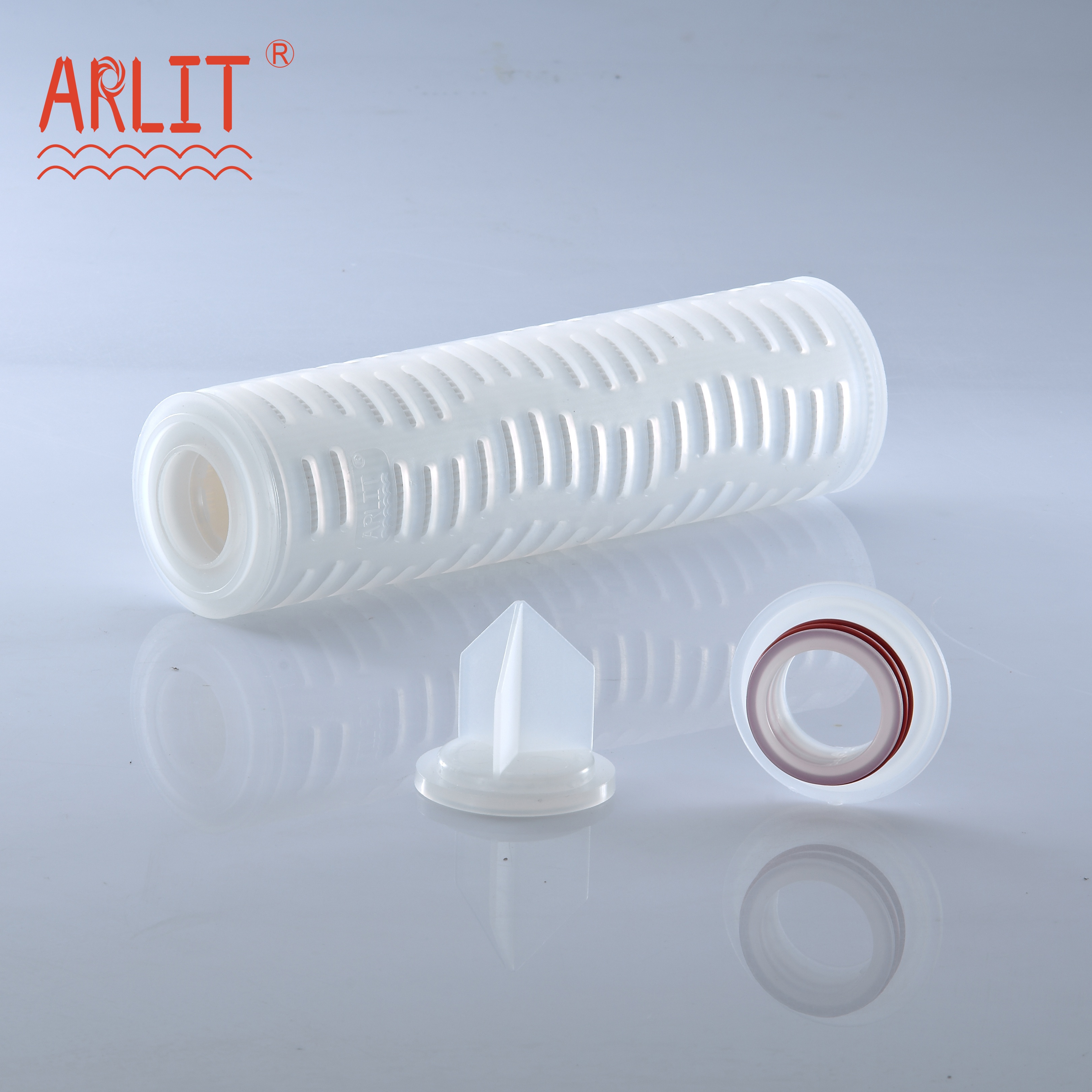

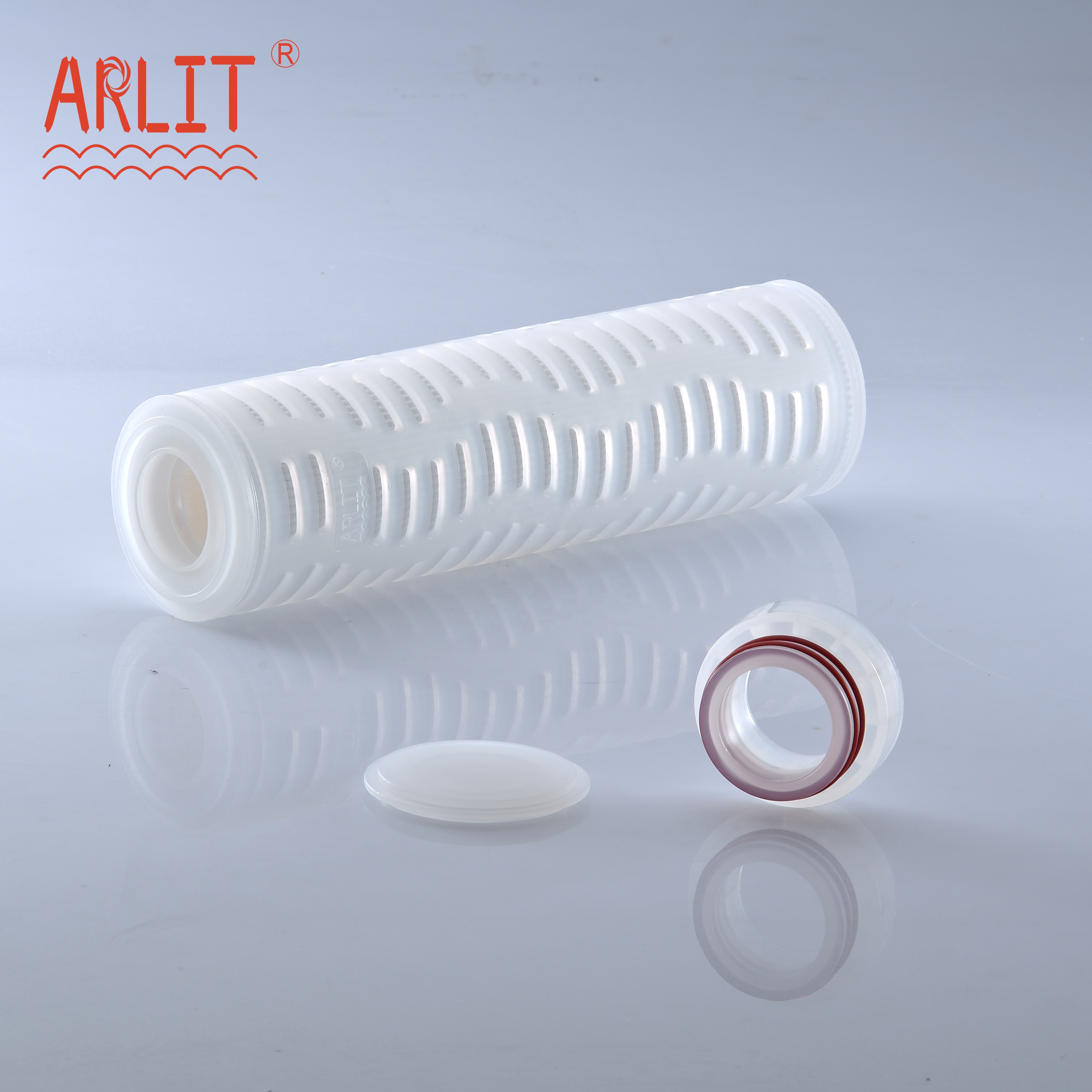

| End caps |
DOE, 0050, 0050A, 0050B |
| Sealing method |
Thermal bonding technique |
| Effective filtration area |
0.6 m² / 10" |
| Max. operating temperature |
140°C, 0.28 Mpa |
| Max. forwarder differential pressure |
0.42 Mpa (25°C) |
| Max. reverse differential pressure |
0.21 Mpa (25°C) |
| Sterilizing temperature |
121°C, 30min |
Typical Applications
- Pharmacy industry: Final filtration of injectables, eye drops, non-high temperature sterilization products, biologicals, vaccines, and serum.
- Food industry: Filtration of wines, mineral water, drinking water, and beverages.
- Electronic industry: Final filtration of high purity water and chemical raw materials.
Pure water flow rate reference table: The initial value of 10" cartridge L/min (ΔP=0.01MPa, 1cP, 25°C)
| Micro rating (µm) |
0.1 |
0.2 |
0.45 |
0.65 |
1 |
| Flow rate (L/min) |
11 |
21 |
27 |
33 |
40 |
Company Profile
Established in 2005, the manufacturer specializes in liquid and air filtration equipment. The facility has introduced advanced production equipment, quality control instruments, and manufacturing technology for micropore filter cartridges since its founding.
Our services
-
1
We are a manufacturer, which allows us to offer highly competitive pricing.
-
2
Our series of filter cartridges and filter bags have been widely applied in the fields of medicine, vaccines, electronics, chemistry, electroplating, petroleum, food, brewing, drinking water, environmental protection, and water treatment.
-
3
We feature high monthly production volumes, enabling a large output capacity to guarantee short delivery times.
-
4
Our facility includes a fully sealed asepsis production workshop. Both manual and automatic processes ensure that all products are 100% inspected before shipment.
-
5
We maintain large inventories of standard items to further minimize lead times.
Frequently Asked Questions (FAQ)
Q:
What is the primary filtration medium of the 10-inch cartridge?
The cartridge uses a high-precision PES (polyether sulfone) membrane filtration medium supported by a Polypropylene (PP) cage and support layer.
Q:
What pore sizes are available for this PES membrane filter cartridge?
We offer various pore sizes to suit different precision needs, including 0.1μm, 0.2μm, 0.45μm, 0.65μm, and 1μm.
Q:
What is the maximum operating temperature of the cartridge?
The filter cartridge can operate at a maximum temperature of 140°C under a pressure of 0.28 MPa.
Q:
Can this filter cartridge be sterilized?
Yes, it supports thermal sterilization at a sterilizing temperature of 121°C for 30 minutes.
Q:
What is the effective filtration area of a standard 10-inch cartridge?
The effective filtration area is 0.6 m² per 10-inch cartridge length.
Q:
What applications are best suited for this high precision filter?
It is ideal for high-purity water filtration in the microelectronics industry, sterile filtration in the pharmaceutical sector (vaccines, injectables, eye drops), and clarification in the food & beverage industry.
