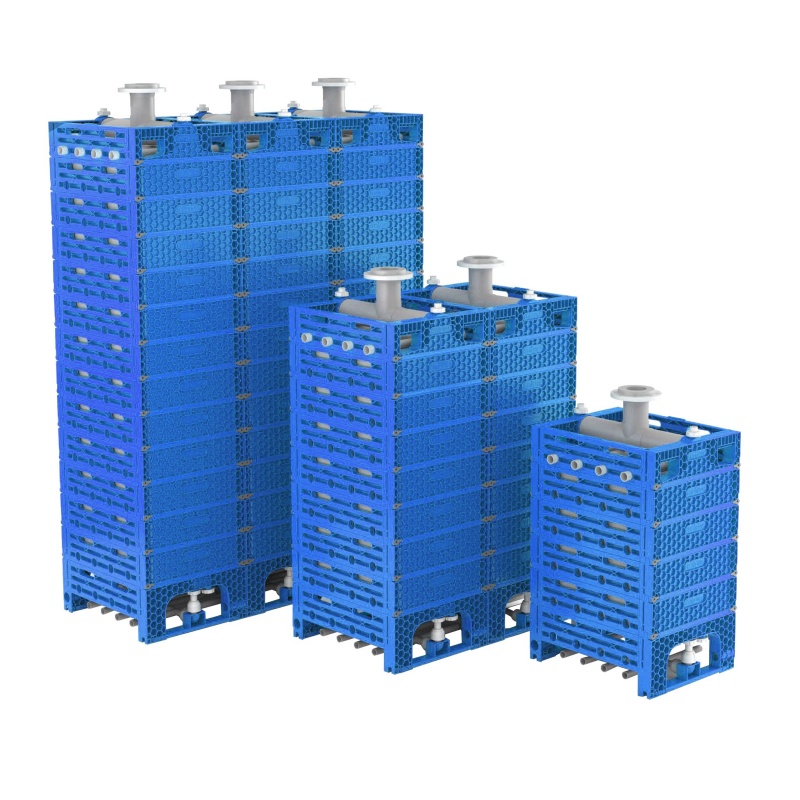

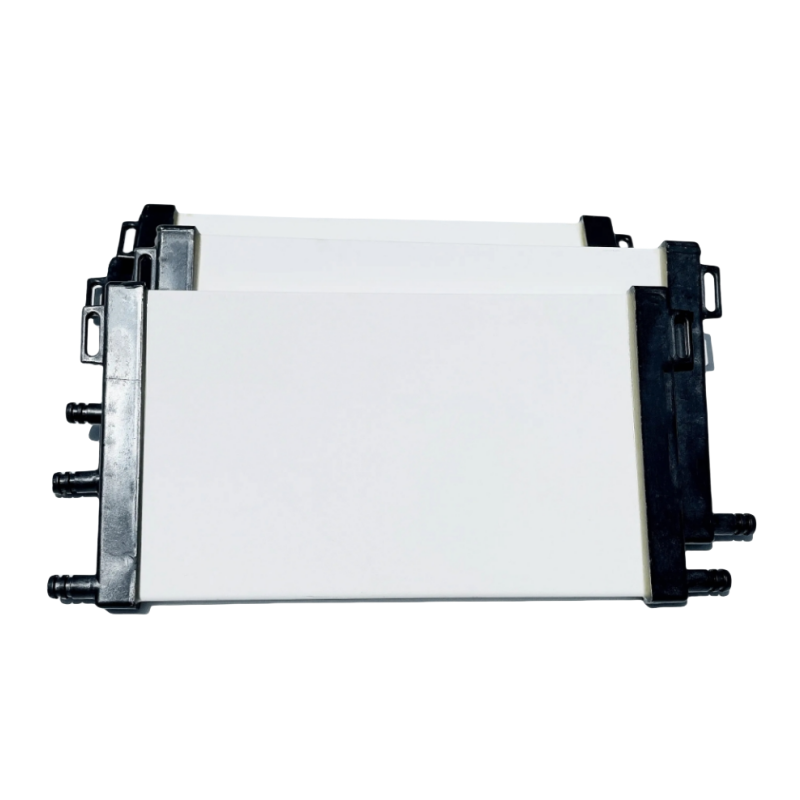

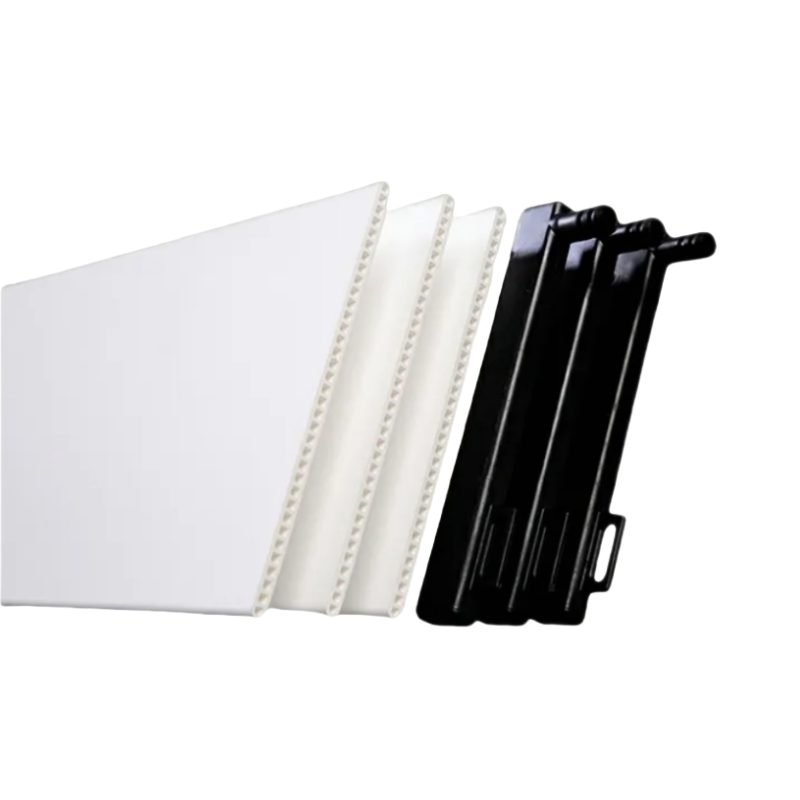

Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
1 / 5
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment

Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment

Send Inquiry

Product Description

Product Description
Silicon Carbide Ceramic Plate Membrane

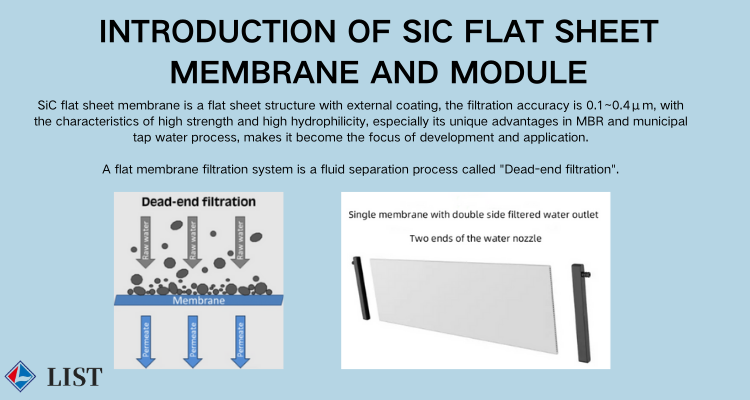

Silicon Carbide Ceramic Membrane Detail

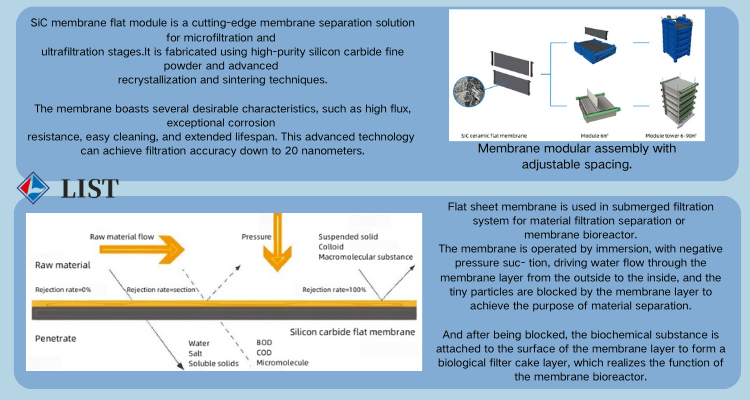

Silicon Carbide Ceramic Membrane Application

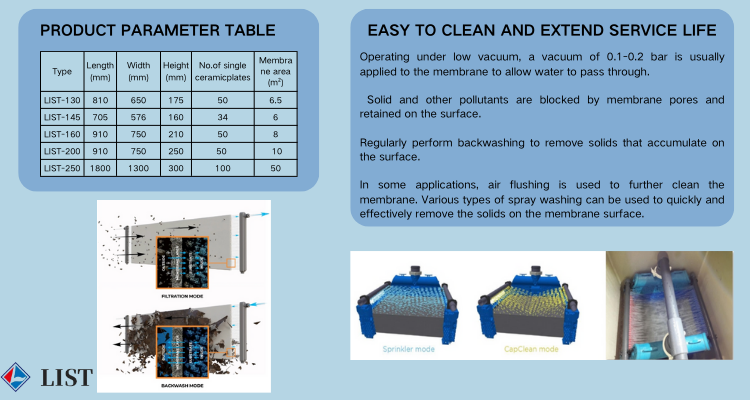

Ceramic Plate Membrane Filtration

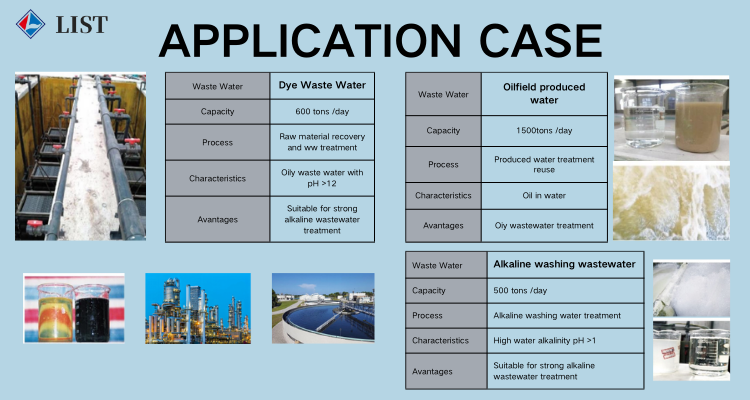

Membrane Structure

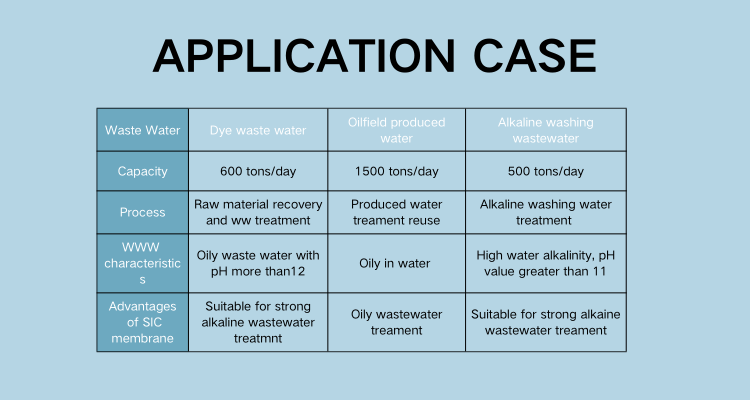

Industrial Ceramic Membrane

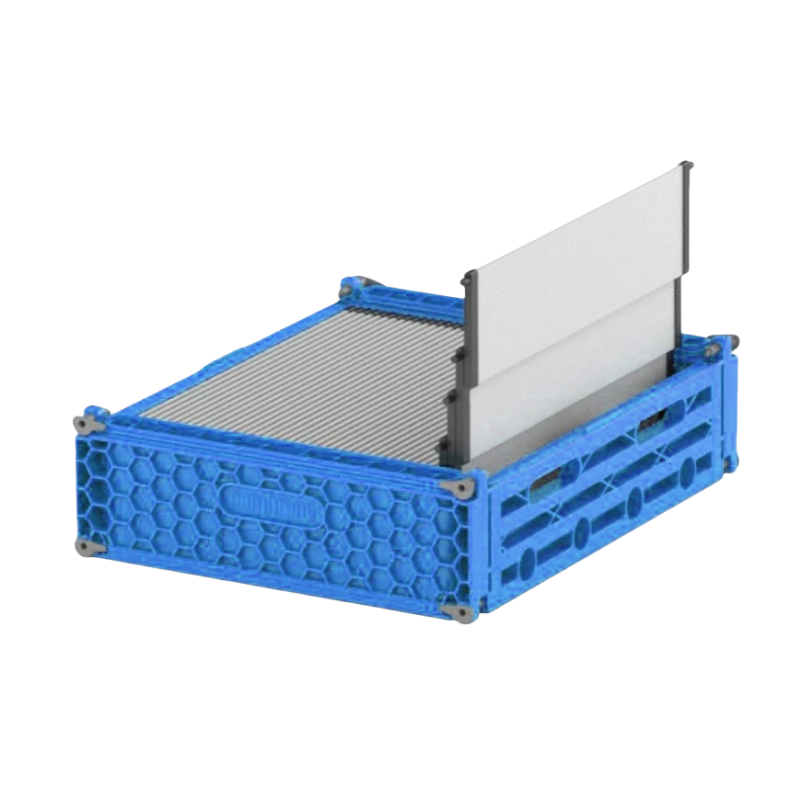

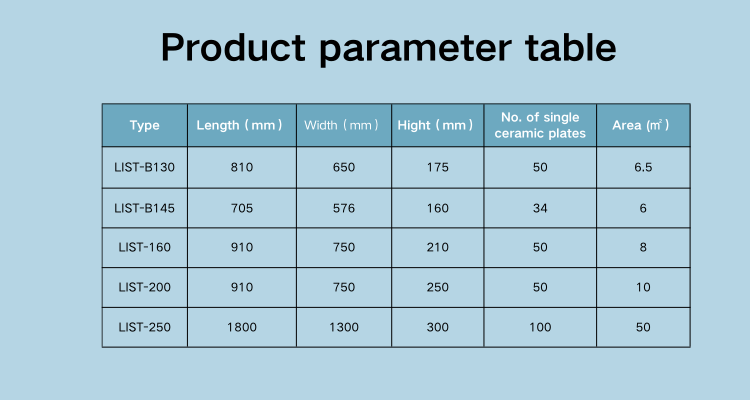

Ceramic Membrane Module
Silicon Carbide Plate

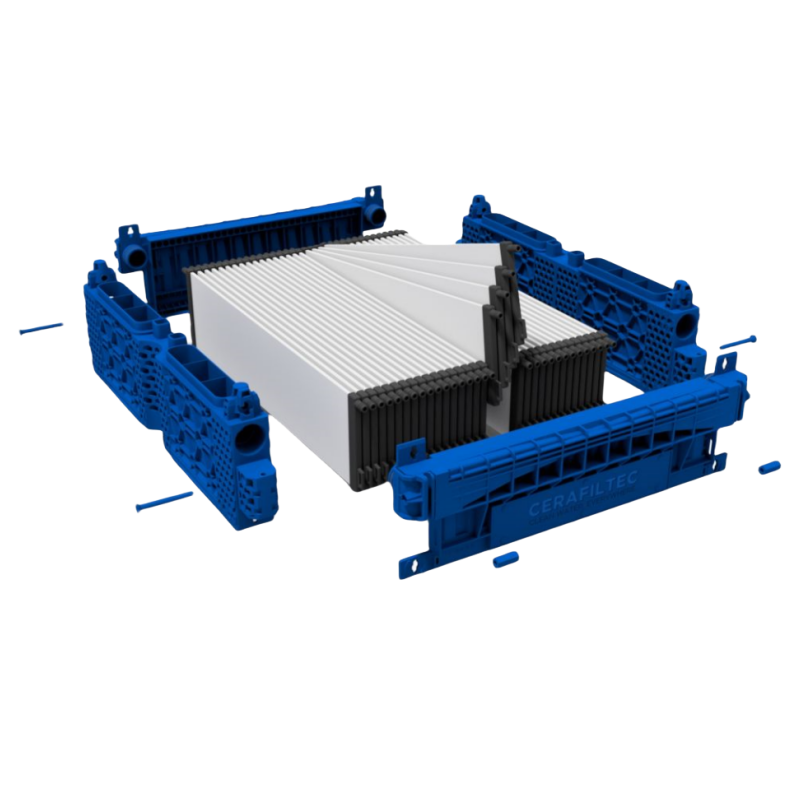

Ceramic Filter Element

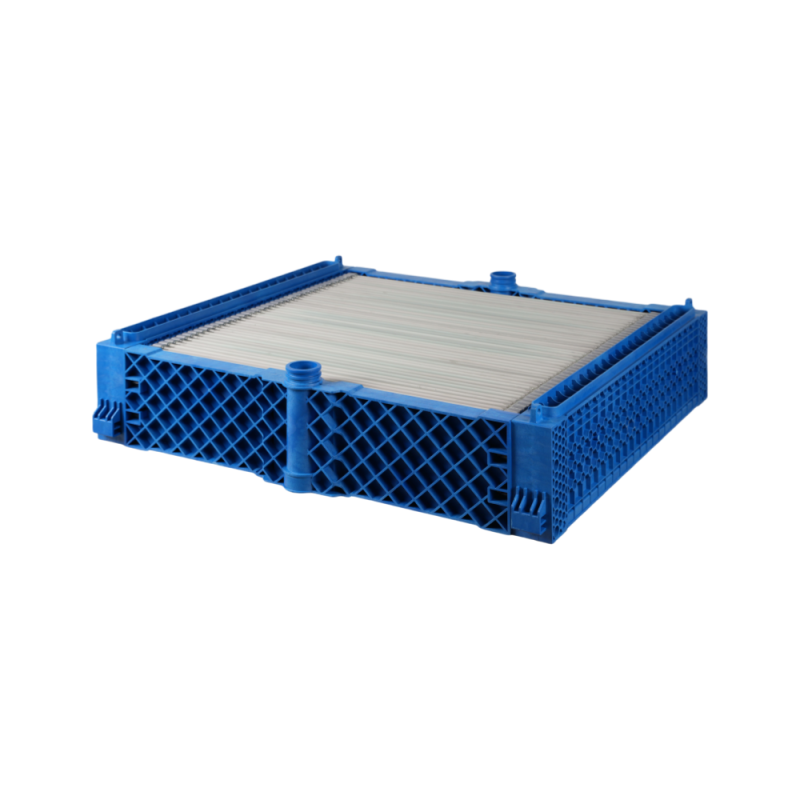

Filtration Membrane System

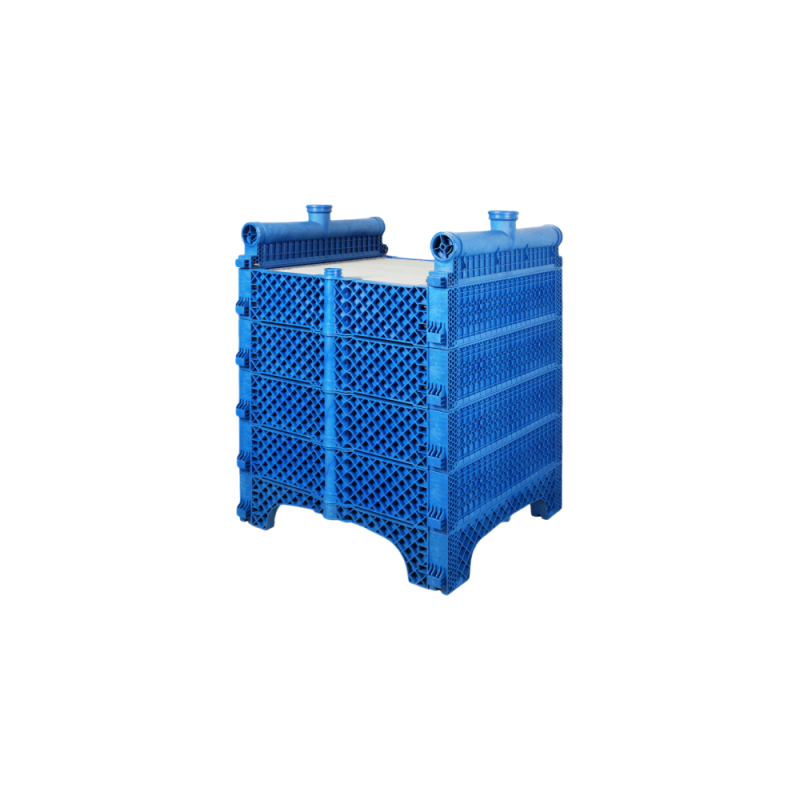

SiC Ceramic Membrane Product

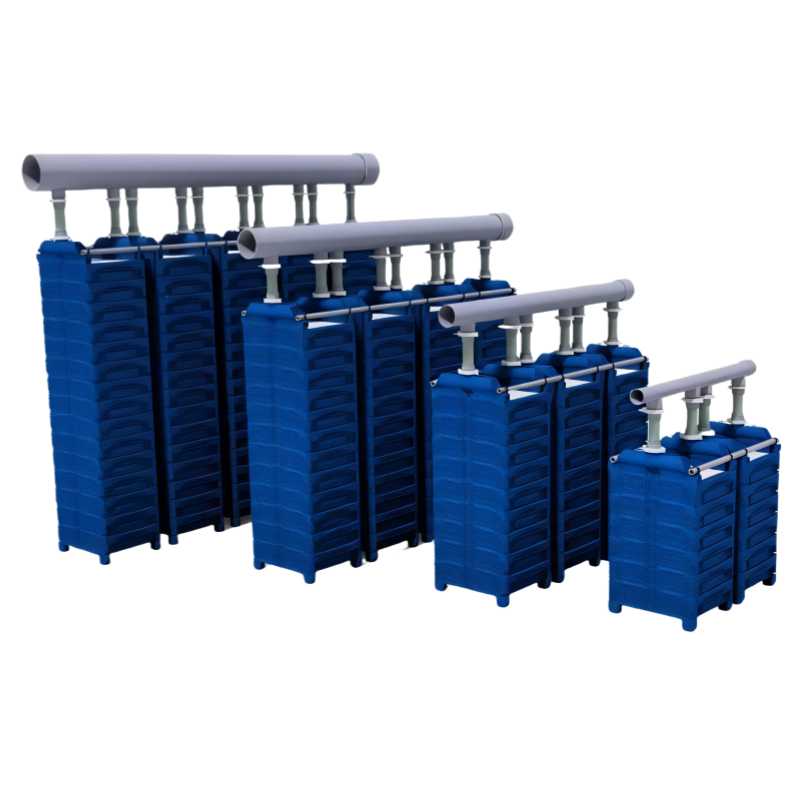

Silicon Carbide Ceramic Module
Product Name Silicon carbide ceramic plate membrane Material 99.99 % SiC
Average pore size MF: 100-3000nm
UF: 2-50nm		 Structure Asymmetric
Porosity > 45% Hardness 2930+-80 (Vickers Hardness kg/mm2)
Temperature resistance 800 C (Atmospheric temperature) PH range 0-14
Solvent resistance Completely stable Oxidant resistance Arbitrary concentration
Maximum positive TPD 3 bar Maximum negative TPD 10 bar
Maximum chlorine content Unlimited Custom length support

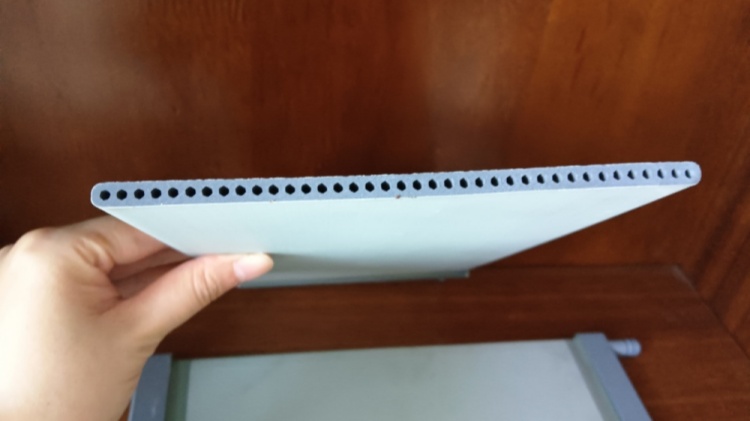

Ceramic Membrane Testing

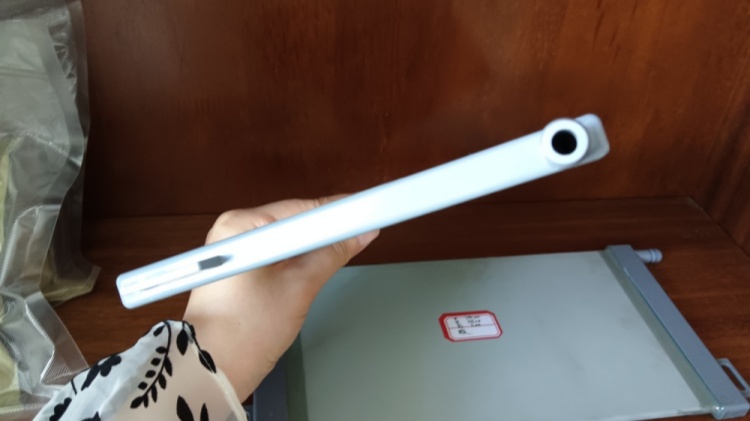

Membrane Manufacture

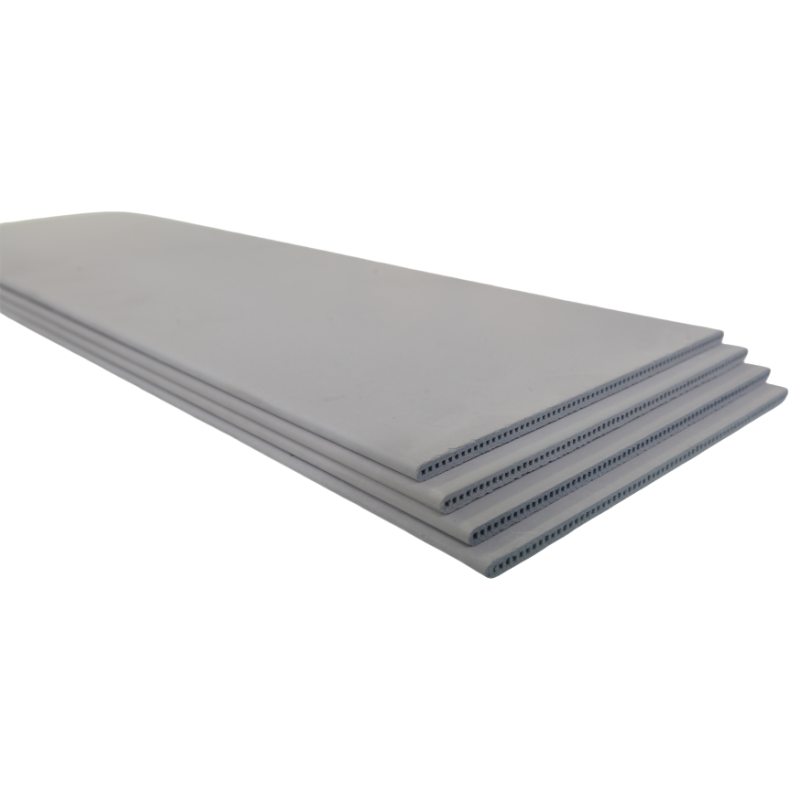

Ceramic Plates Pack

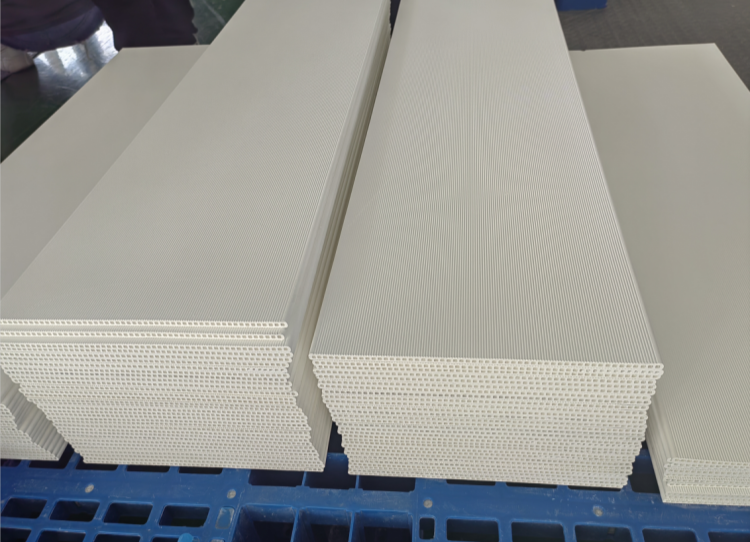

Membrane Pore Structures

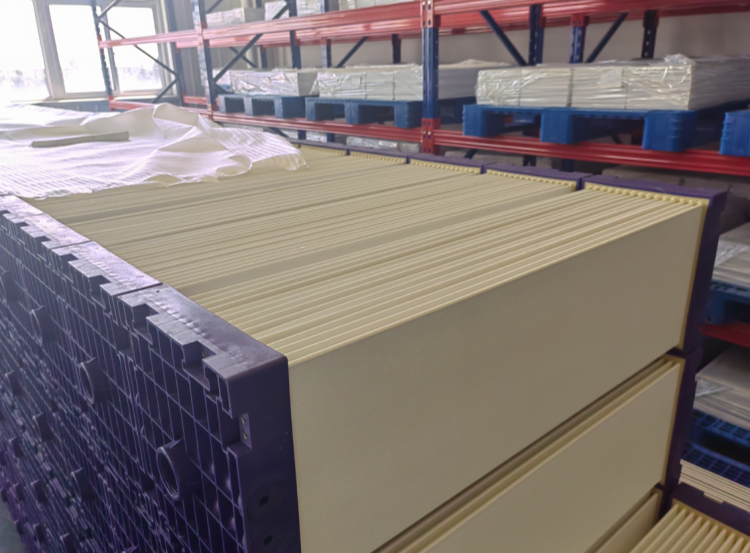

SiC Filter Elements
Detailed Images

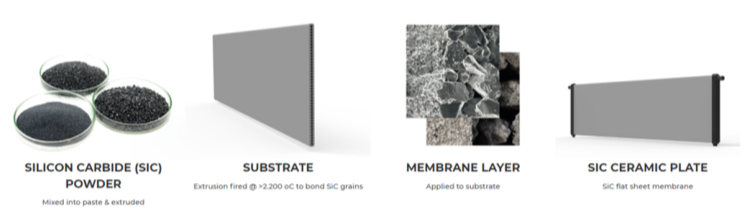

Detailed Ceramic Membrane

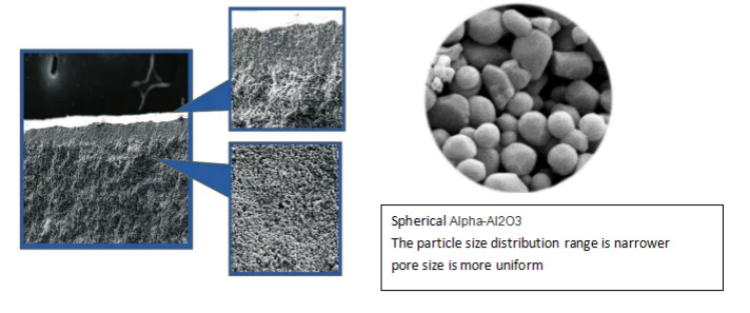

Detailed Ceramic Structure
Ceramic Filter Detail

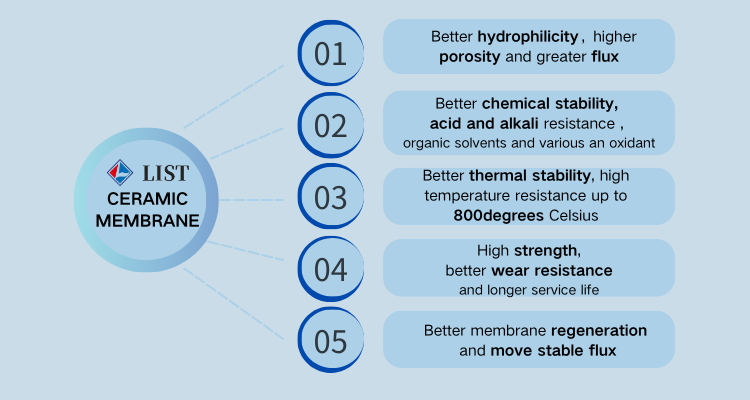

Characteristics of Silicon Carbide Ceramic Membrane
■ 1. Strong chemical stability
Does not react with any chemical reagent. Suitable for solid liquid separation under strong acid, strong alkali, and strong corrosion conditions. Can be cleaned with any organic solvent for easy cleaning. The initial flux of the membrane can be recovered under any conditions.
■ 2. Good thermal stability & shock resistance
Ensures stable operation at high temperatures.
■ 3. High porosity & high flux
Compared with the conventional tubular membrane under the same conditions, this equipment offers high integration, small floor area, low energy consumption, and small investment.
■ 4. High bonding strength & wear resistance
Excellent durability and long-term wear resistance.
■ 5. Strong hydrophilicity & oleophobicity
Provides excellent oil-water separation effects.
Typical Applications
1 Catalyst recovery in petrochemical industry
2 Oil water separation in oil field
3 Purification and recovery of acid and alkali in fine chemical industry
4 Refining of chlor alkali chemical brine
5 Oil water separation in coal chemical industry
6 Separation, purification, impurity removal and recovery of ultrafine powder of polycrystalline silicon, lithium ferric sulfate, nonferrous metals and nano materials (wet chemical method)
7 Fermentation broth clarification in biopharmaceutical industry
8 Cutting fluid recovery and concentration
9 Environmental applications: water and waste water treatment, oily water separation
10 Vegetable oil clarification, wine clarification, beer clarification, fruit juice clarification; food ingredients and additives
11 Other fields: Reclamation of nano powders, filtration of acid/alkali containing liquids

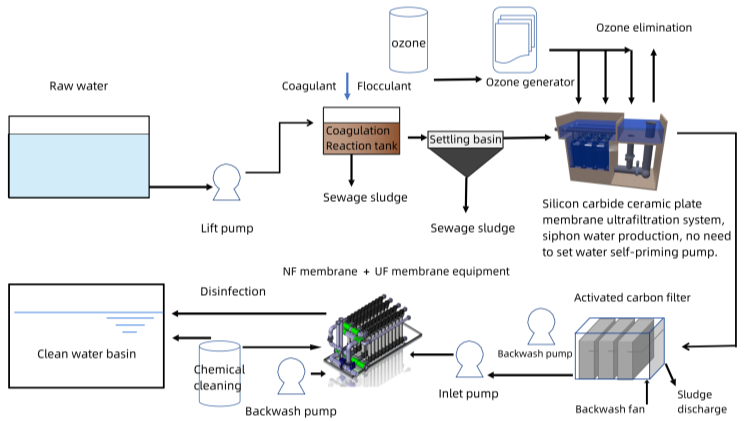

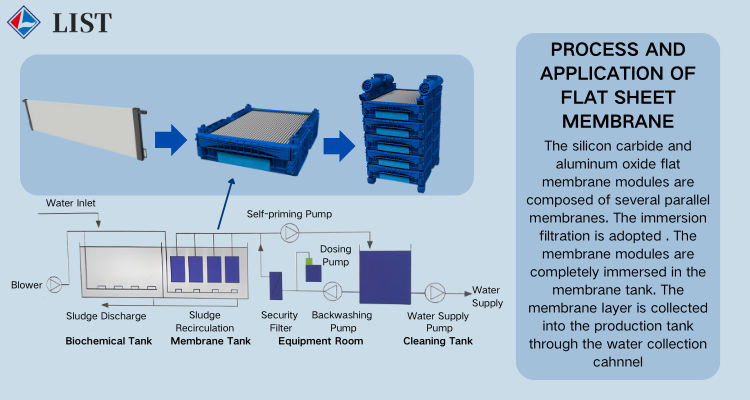

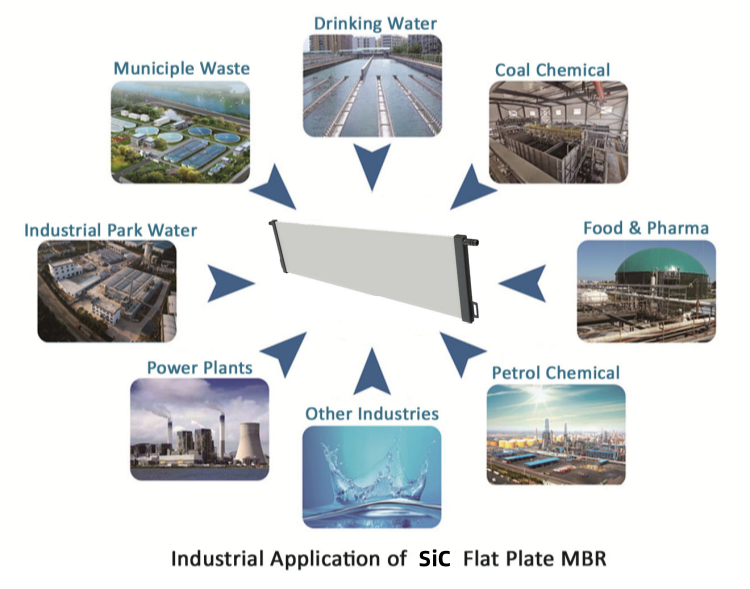

Application Process Flow
Application Device System
Packing & Shipping

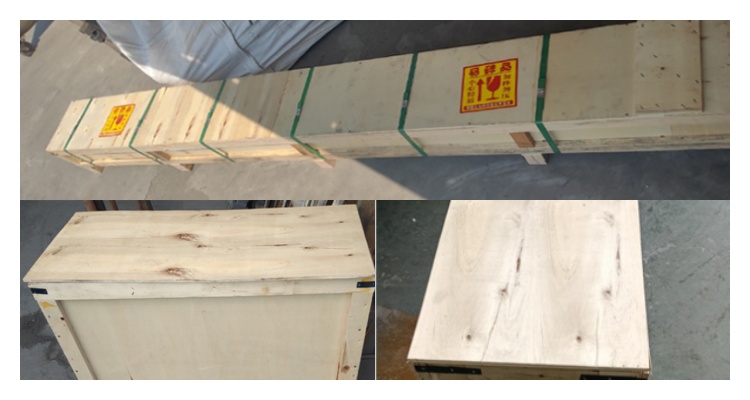

Product Packing and Shipping
Production Portfolio
Production of all kinds of silicon carbide ceramic membrane, flat membrane, tubular membrane, column membrane and so on. Used for filtration, water treatment, purification, concentration, etc.
Silicon Carbide Ceramic Membrane Production
Flat Membrane Fabrication
Tubular Ceramic Membrane
Column Membrane Products
Frequently Asked Questions
Can I have the ceramic membranes made to order?
Yes, customization is supported. Membranes can be manufactured to any length you require.
Is it possible to request a product sample?
Yes, sample evaluations are welcome.
Can the packaging for shipping be customized?
Yes, we can design and adjust the packaging according to the customer's specific requests.
What is the minimum order quantity (MOQ)?
For samples, 1 unit is acceptable. For larger industrial applications, the total quantity should be calculated according to the specific water quality and processing requirements of your project.
How long is the expected service life of these membranes?
Due to its high temperature resistance, corrosion resistance, acid and alkali resistance, high hardness, and high thermal conductivity, silicon carbide material regularly delivers a service life of 5 to 10 years.
What is the maximum operating temperature of the membrane?
The silicon carbide ceramic membrane can withstand atmospheric temperatures up to 800°C.
