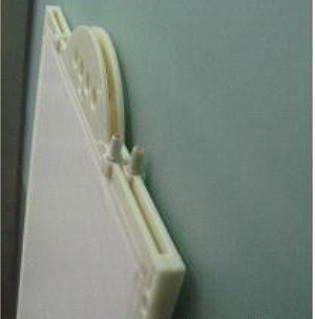

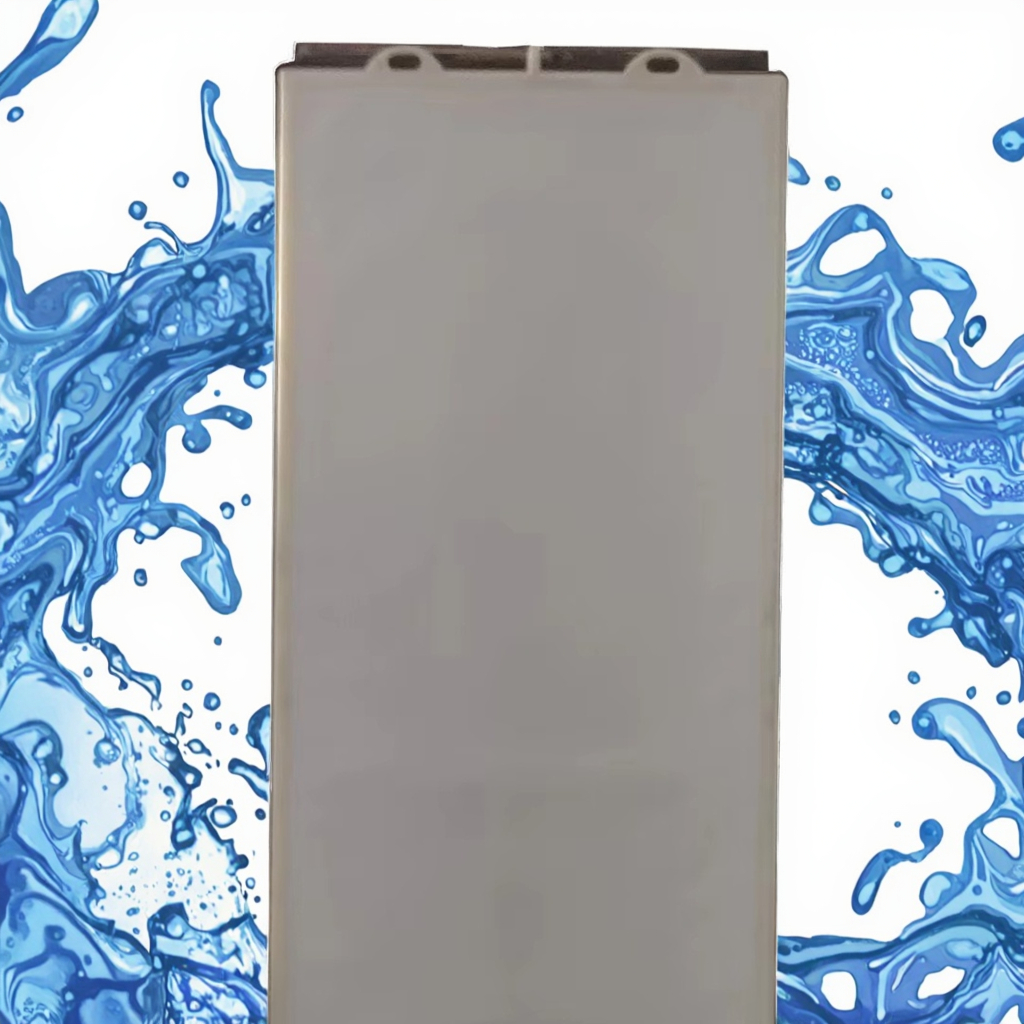

JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
1 / 5
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery
JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery

JHM MBR Flat Sheet Membrane Module 1m2/1.5m2/2m2 Submerged Filter Plate for Water Filtration Made Water Treatment Machinery

Send Inquiry

Product Description

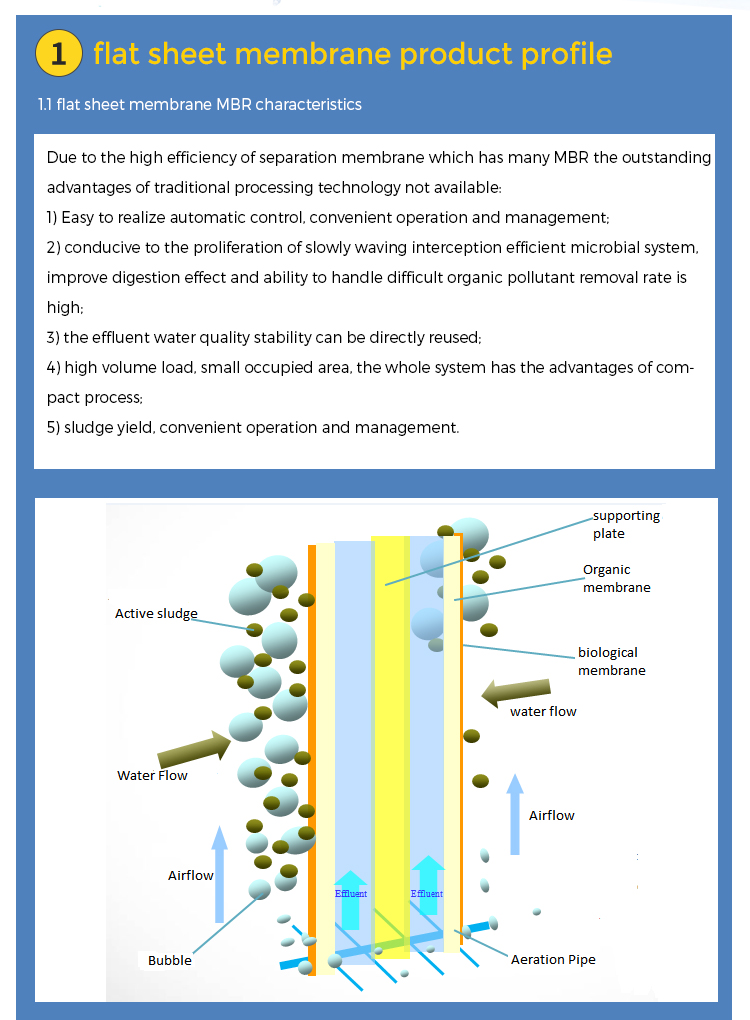

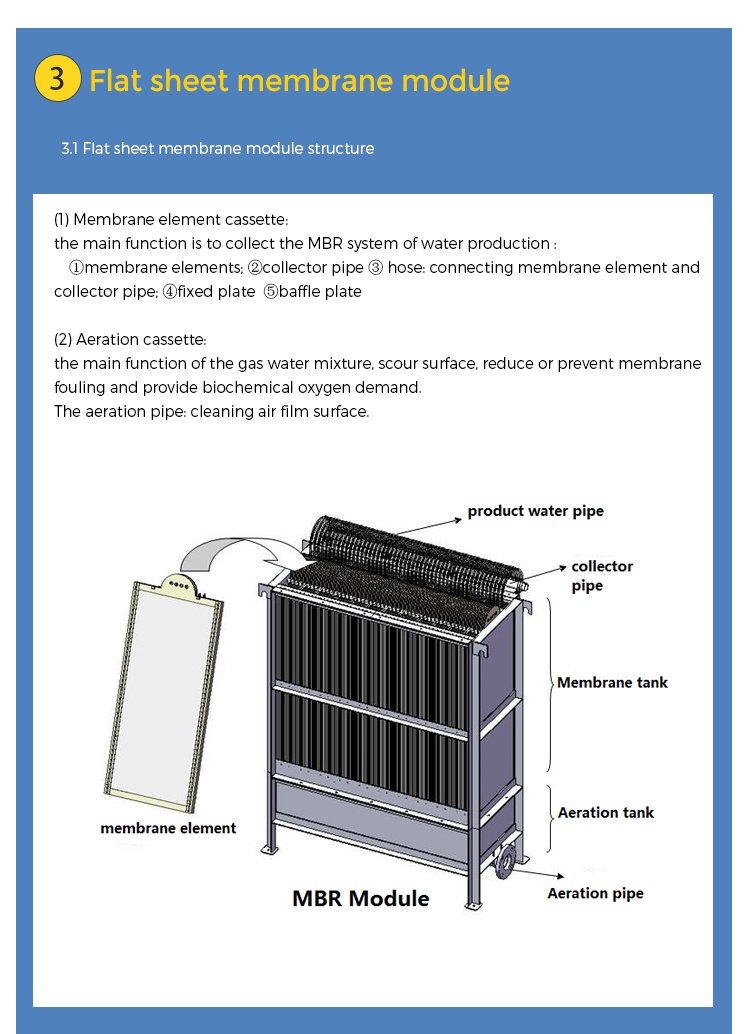

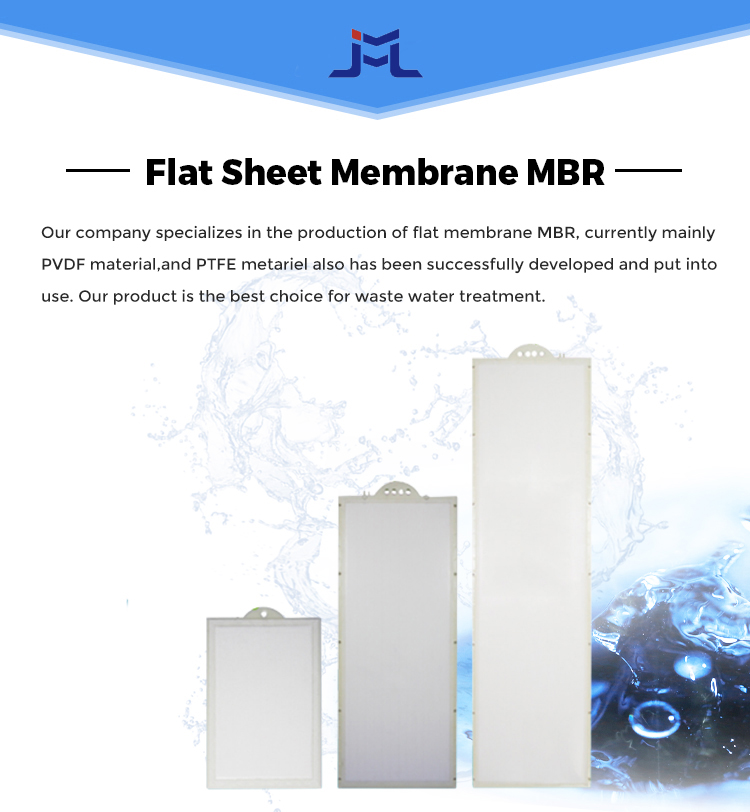

Flat Sheet Membrane MBR
Product Introduction

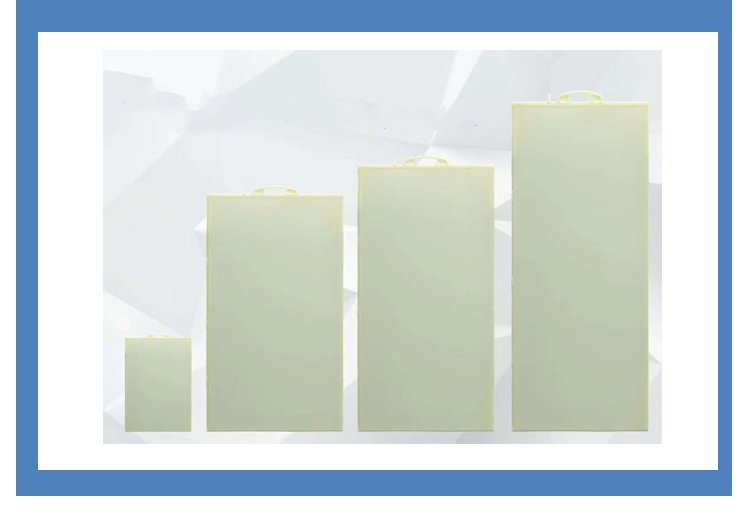

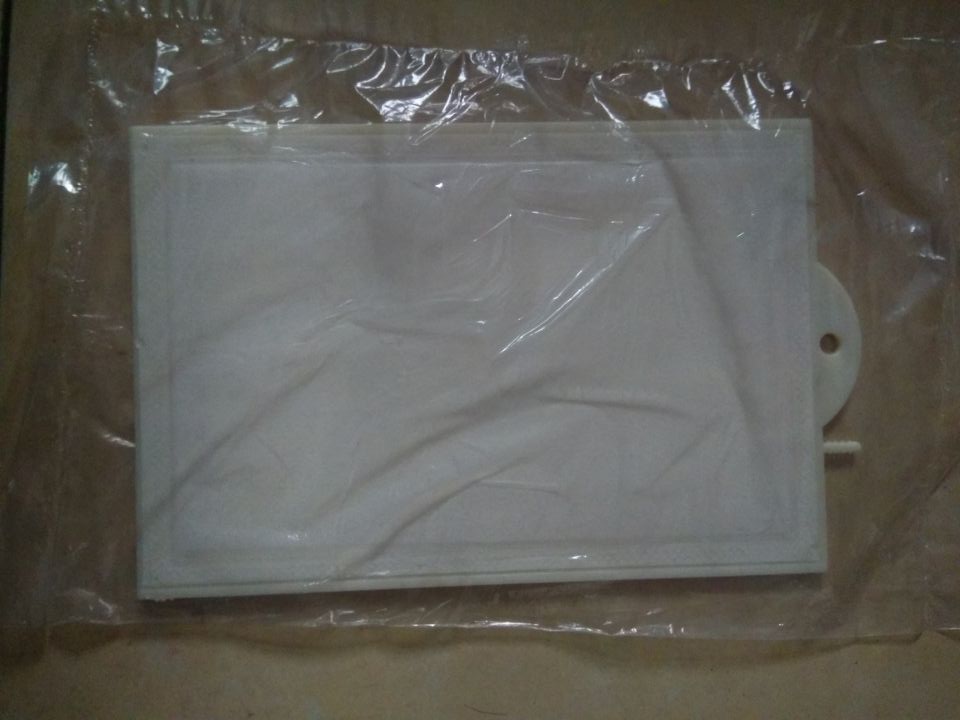

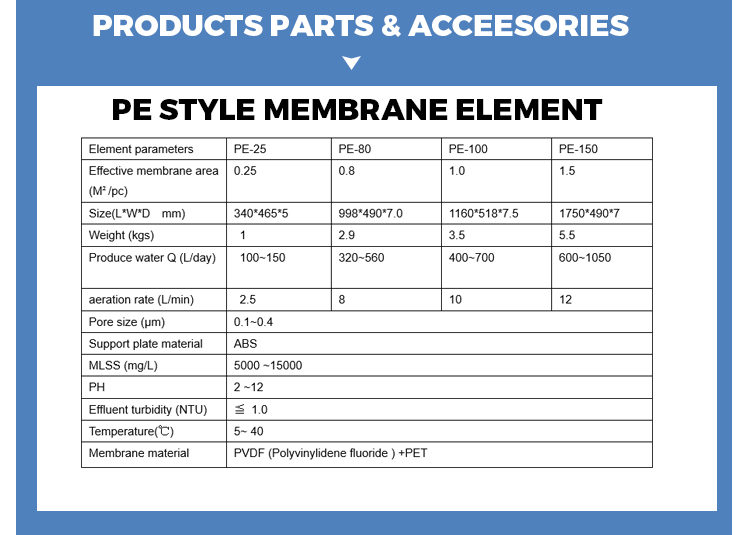

PE Style Membrane Element Parameters
Element parameters PE-25 PE-80 PE-100 PE-150
Effective membrane area (M²/pc) 0.25 0.8 1.0 1.5
Size(L*W*D mm) 340*465*5 998*490*7.0 1160*518*7.5 1750*490*7
Weight (kgs) 1 2.9 3.5 5.5
Produce water Q (L/day) 100~150 320~560 400~700 600~1050
Aeration rate (L/min) 2.5 8 10 12
Pore size (µm) 0.1~0.4
Support plate material ABS
MLSS (mg/L) 5000 ~15000
PH 2 ~12
Effluent turbidity (NTU) ≤ 1.0
Temperature(℃) 5~ 40
Membrane material PVDF (Polyvinylidene fluoride ) +PET
PE150 Series Membrane Module
Model PE150-50 PE150-100 PE150-150 PE150-200
Produced capacity (m³/d) Sewage 30 60 90 120
Industrial waste water 18.5 38 56 75
Element quantity (piece) 50 100 150 200
Effective membrane area(m²) 75 150 225 300
Size( L*W*H mm) 850*700*2450 1700*700*2450 2550*700*2450 3400*700*2450
Support frame SUS304
Transmembrane pressure(TMP) ≤-30KPa
PE100 Series Membrane Module
Model PE100-50 PE100-100 PE100-150 PE100-200
Produced capacity (m³/d) Sewage 20 40 60 80
Industrial waste water 12.5 25 37.5 50
Element quantity (piece) 50 100 150 200
Effective membrane area(m²) 50 100 150 200
Water Treatment Requirements
Water treatment requirement Treatment process
Removal of organic matter Aerobic tank
Removal of organic matter +Nitrogen removal Aerobic pool + Anoxic tank
Removal of organic matter +Phosphorus removal Chemical Phosphorus removal + Aerobic tank
High concentration of organic compounds Anaerobic tank + MBR

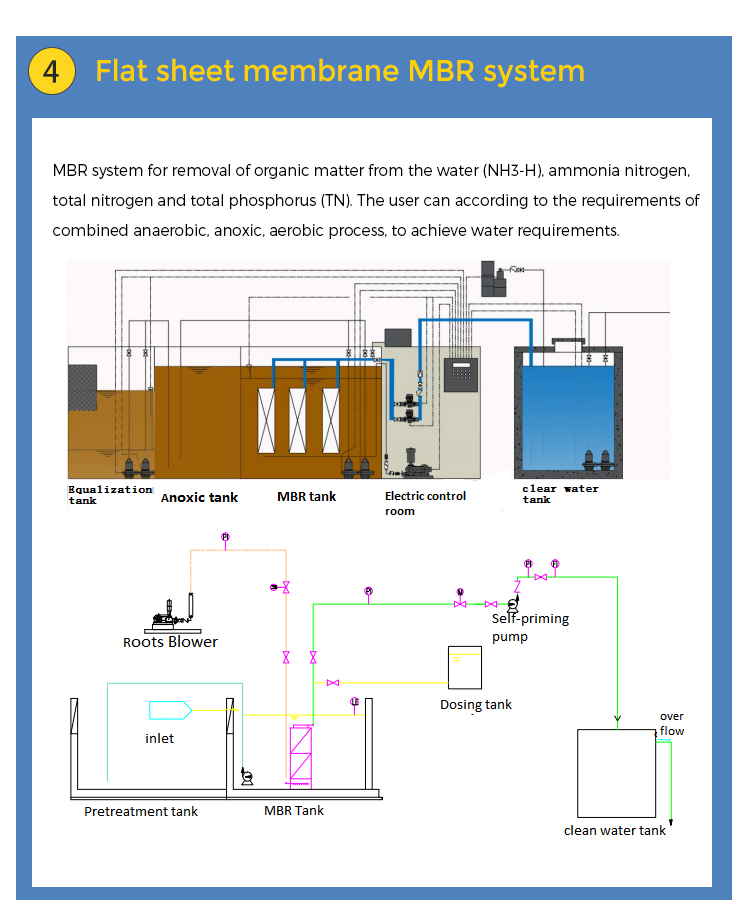

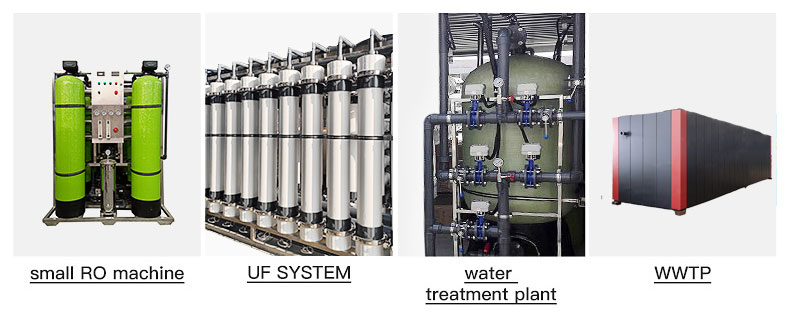

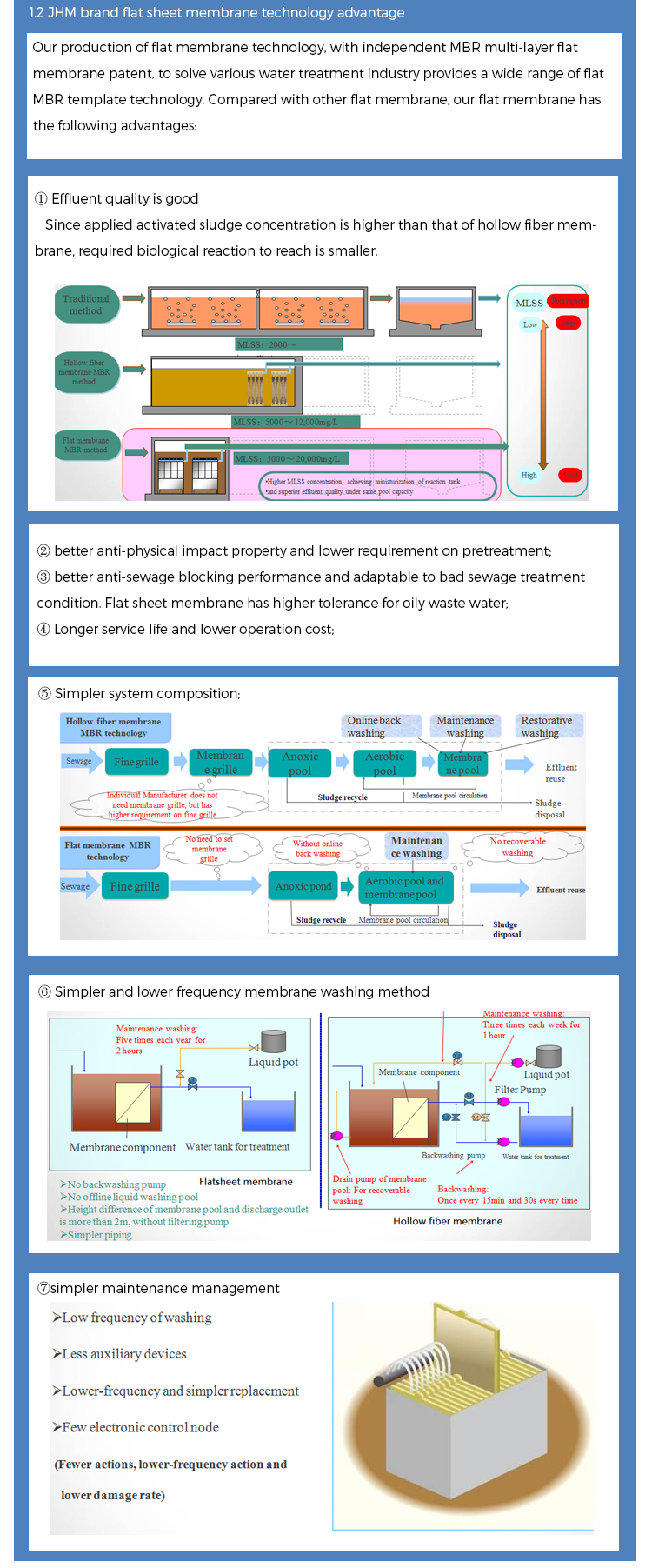

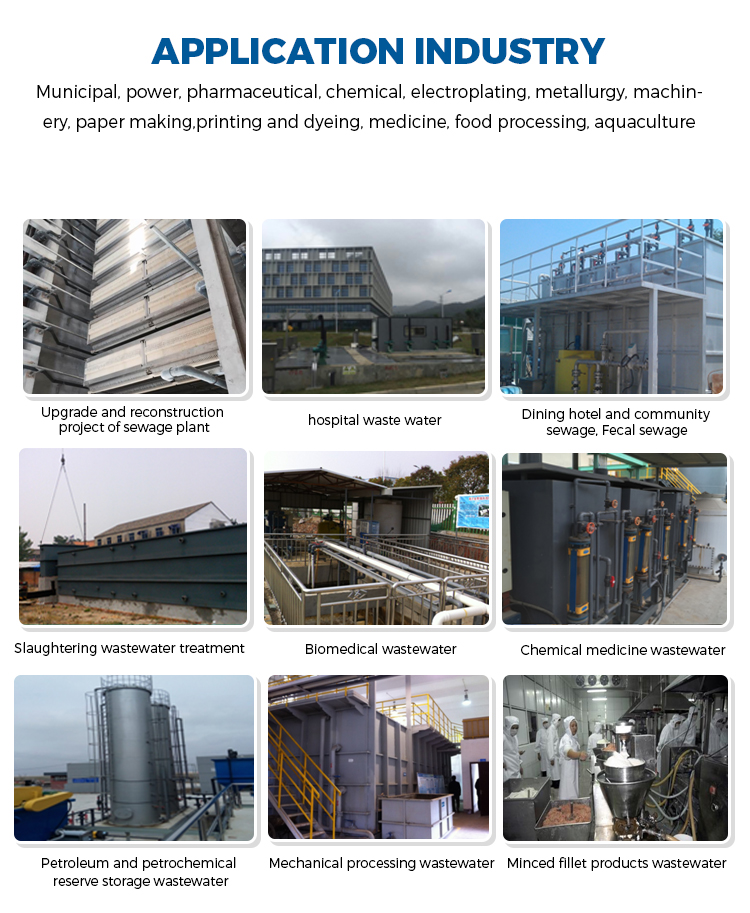

Product Overview & Systems

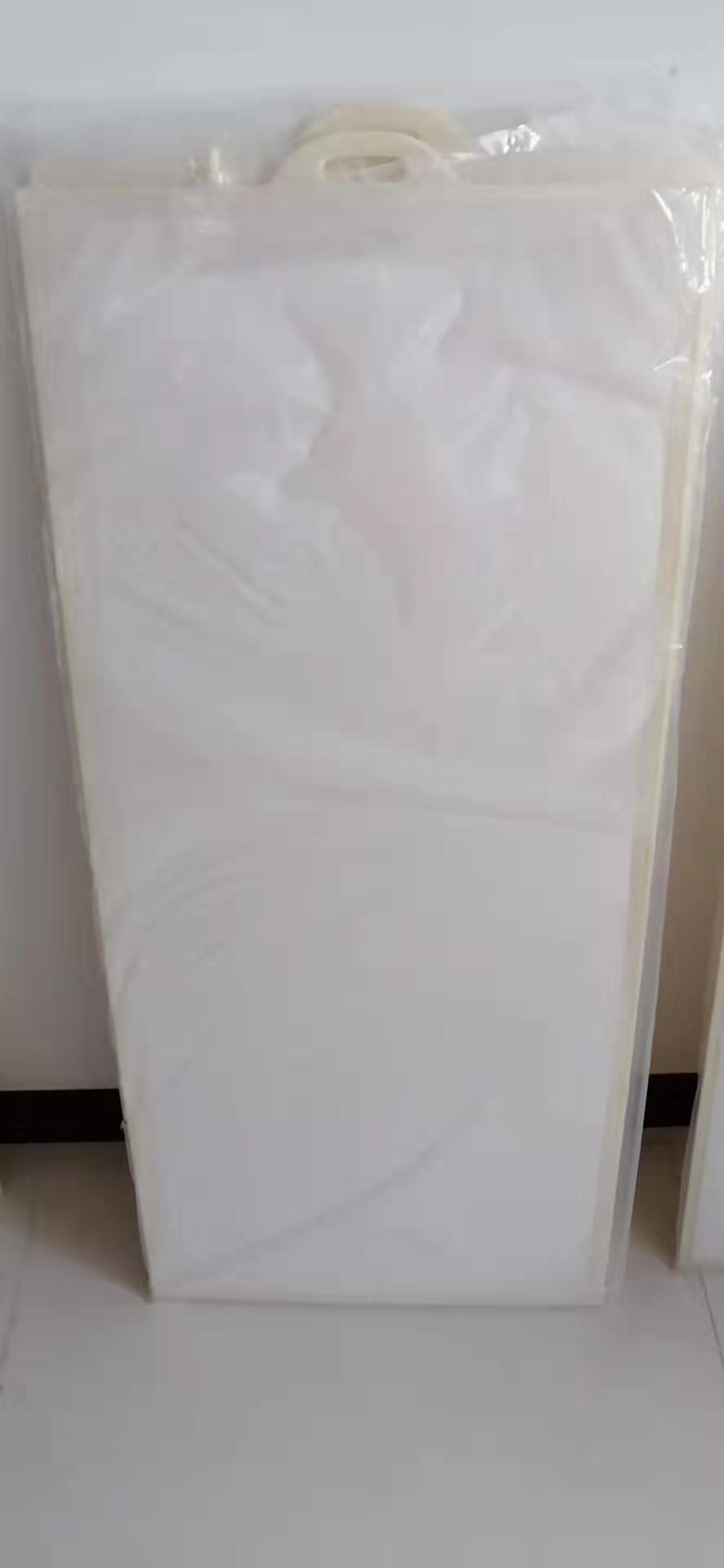

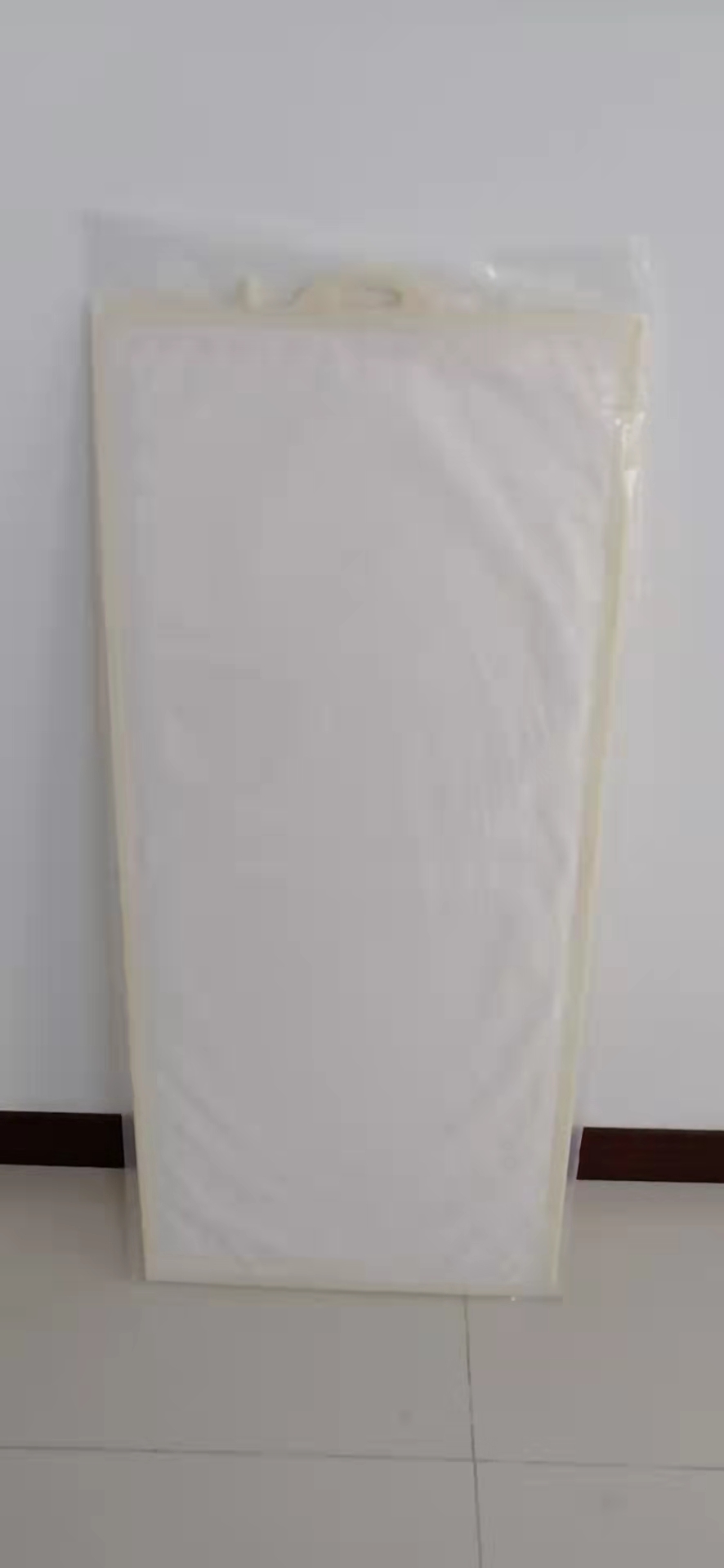

Quality & Packaging
Frequently Asked Questions
1. Are you a manufacturer or a trading company? We are a professional factory specializing in membrane technology and water treatment equipment.
2. What is the typical delivery time for an order? Generally, it takes about 5 days. However, the specific delivery time depends on your specific order volume and requirements.
3. Can I customize the products with our own logo and design? Yes, customized service is available. We provide OEM and ODM services based on the customer's logo and design specifications.
4. Do you provide samples before a mass order? Yes, we accept sample orders and can provide customized samples for your evaluation before placing a large-scale order.
5. What is your Minimum Order Quantity (MOQ)? We are flexible with quantities and do not dictate strict MOQ terms, allowing us to offer the quantity you specifically require.
6. What materials are used for the MBR flat sheet membranes? The membranes are primarily made of PVDF (Polyvinylidene fluoride) with a PET support, while the support plates are made of durable ABS material.

Related Products

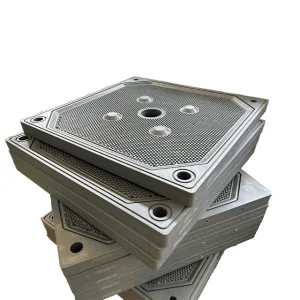

One-Stop Rubber/Cast Iron/PP Membrane Filter Plates Supply | Filter Press Intermediate Plates | Sintered Porous Structure

One-Stop Rubber/Cast Iron/PP Membrane Filter Plates Supply | Filter Press Intermediate Plates | Sintered Porous Structure

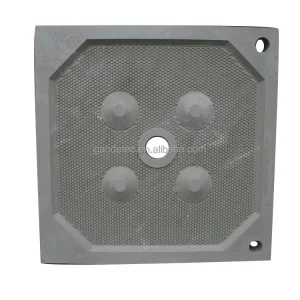

High Pressure Membrane Filter Plate Enhanced PP Chamber Filter Plate for Sale

High Pressure Membrane Filter Plate Enhanced PP Chamber Filter Plate for Sale
Chamber and Membrane Filter Plate for Automatic Filter Press, Special Size PP Material Filter Plate

Chamber and Membrane Filter Plate for Automatic Filter Press, Special Size PP Material Filter Plate
New Condition PTFE Hollow Fiber Membrane Filter Element Assembly With Core Gearbox Unavailable Warranty

New Condition PTFE Hollow Fiber Membrane Filter Element Assembly With Core Gearbox Unavailable Warranty
Membrane Filter Plate Diaphragm Filter Hot Plate PP Material High Temperature Welding Sealing Machine Equipment

Membrane Filter Plate Diaphragm Filter Hot Plate PP Material High Temperature Welding Sealing Machine Equipment
Advanced Silicon Carbide Ceramic Membrane Flat Membrane Plate Membrane Tower for Water Filtration and Soli-LIquid Separation

Advanced Silicon Carbide Ceramic Membrane Flat Membrane Plate Membrane Tower for Water Filtration and Soli-LIquid Separation

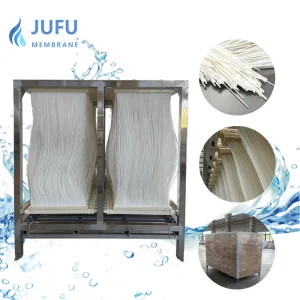

Hollow Fibre Micro Filtration Submerged Membrane Anaerobic MBR Membrane Filter Apparatus Bioreactors For Wastewater Treatment

Hollow Fibre Micro Filtration Submerged Membrane Anaerobic MBR Membrane Filter Apparatus Bioreactors For Wastewater Treatment
Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment

Ultra-long Life Acid and Alkali Resistance Silicon Carbide Ceramic Plate Membrane Filter for Drinking Water Treatment

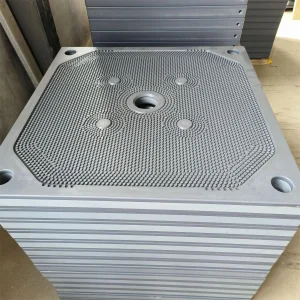

New BOYAN Filter Press Plate HIGH PERFORMANCE MEMBRANE CHAMBER PLATE For SQUEEZING PRESSURE 6,0 MPa FILTERPRESSES 1 Year
