2024 Manual Hydraulic Chamber Coconut Oil Filter Press

Customization:	Available
After-sales Service:	Provide Technical Support
Warranty:	1 Year

Send Inquiry

Product Description

Overview
Product Description
Working Principle
Detailed Photos
Our Advantages
Applications
Related Products
Packaging & Shipping
Customer Visits

Basic Info

Model NO.

XMY 50/870 Chamber Filter Press

Type

Sludge Dewatering Machine

Method

Physical Treatment

Usage

Industrial, Home, Agriculture, Hospital

Plate Type

Chamber Filter Press

Plate Material

PP Filter Press

Plate Size

870mm Filter Press or Other Customized

Closing Method

Hydraulic Filter Press

Feed Pressure

0.6-0.8MPa or Customized Filter Press

Cake Discharging

Manual Filter Press

Filtrate Discharging

Open Flow or Closed Flow

Color

Blue Filter Press

Voltage

380V or Customized Filter Press

Application 1

Filter Press for Sludge Dewatering

Application 2

Filter Press for Wastewater Treatment

Application 3

Filter Press for Chemicals

Application 4

Filter Press for Mineral Slurry

Certifications

SGS CE ISO

Transport Package

Seaworthy Packing

Specification

XMY 50/870 Filter Press

HS Code

8421291090

Production Capacity

2000 Sets Per Year

Product Description

2024 Manual Hydraulic Chamber Coconut Oil Filter Press

The manual hydraulic filter press adopts a manual hydraulic pump for pressing, which is widely used in industrial and mining with small output.

Working Principle

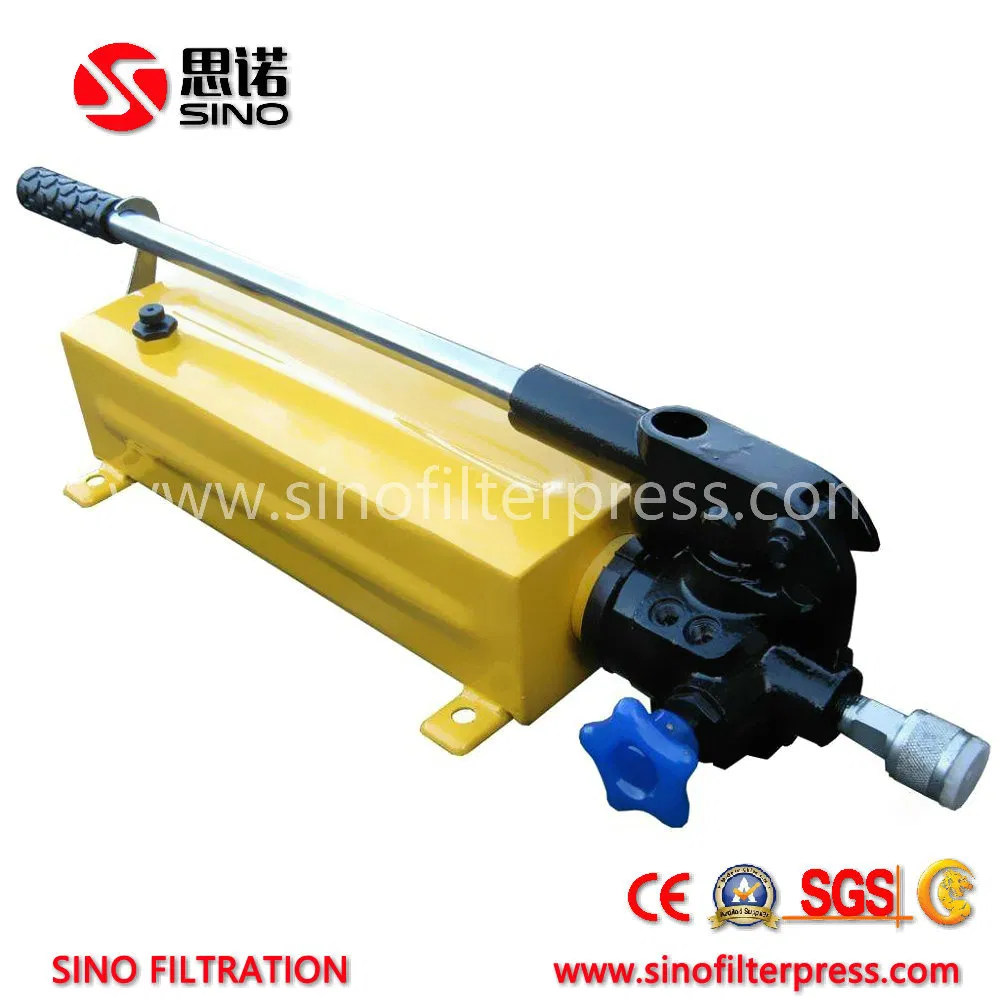

The hydraulic pressing mechanism of the filter press consists of a hydraulic pump and a piston. Installing the filter plate and filter cloth in sequence, turn the one-way valve clockwise, press the handle up and down, and the piston rod presses the filter plate until the pointer of the pressure gauge reaches the maximum. The material enters the filter plate, the one-way valve is turned counterclockwise, the pressure becomes smaller, the piston rod returns, and the filter plate is pulled to discharging the cake.

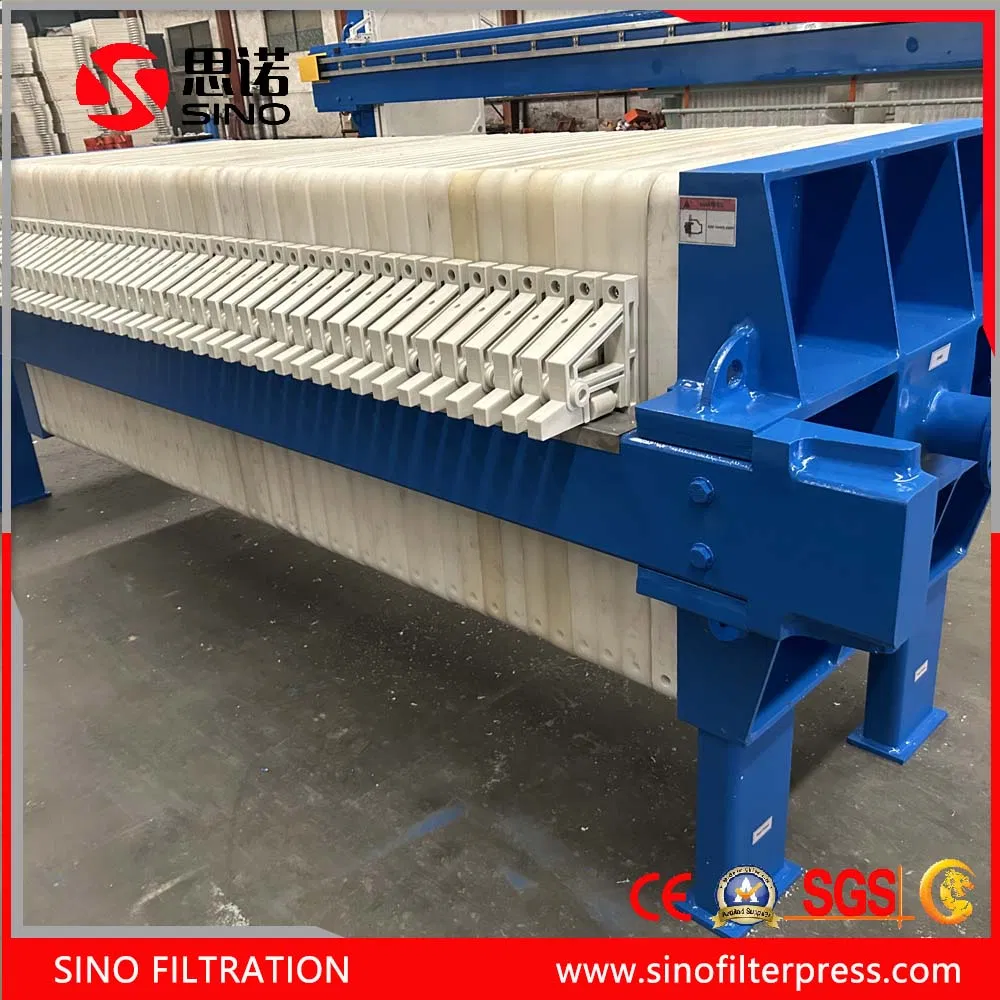

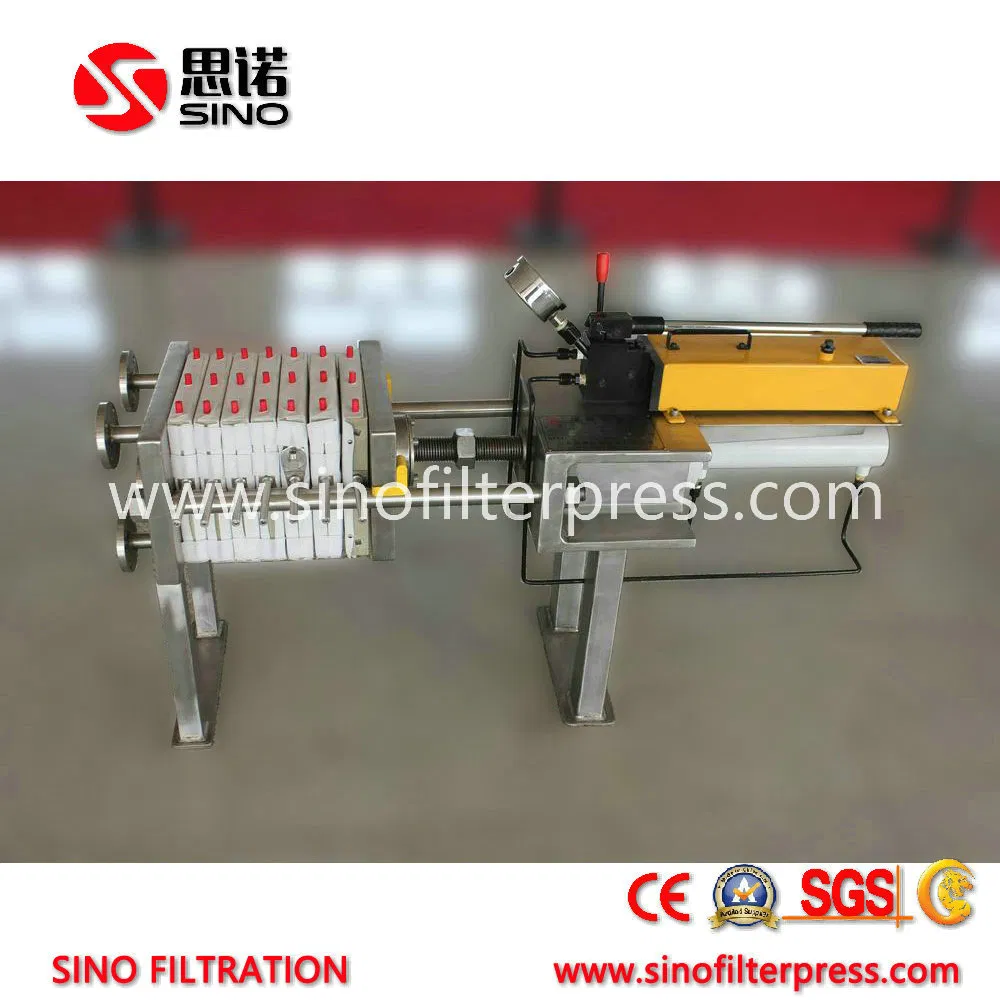

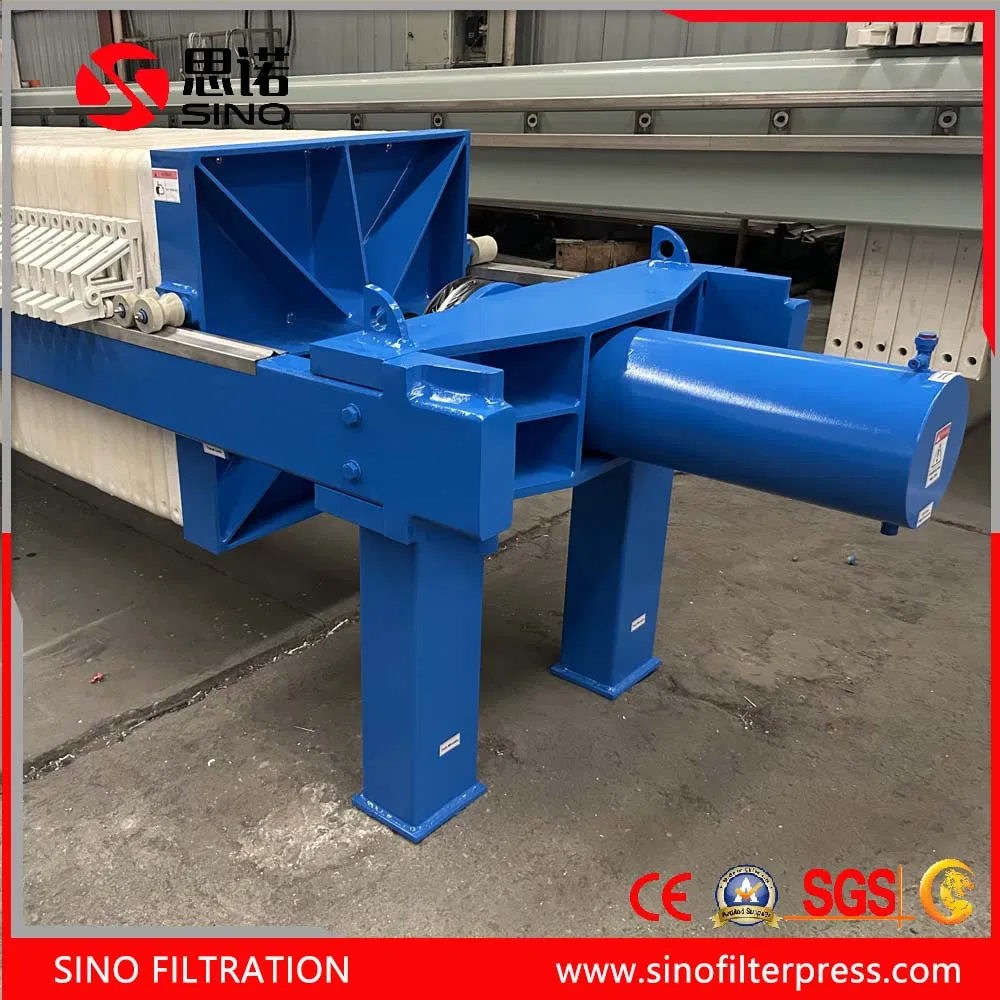

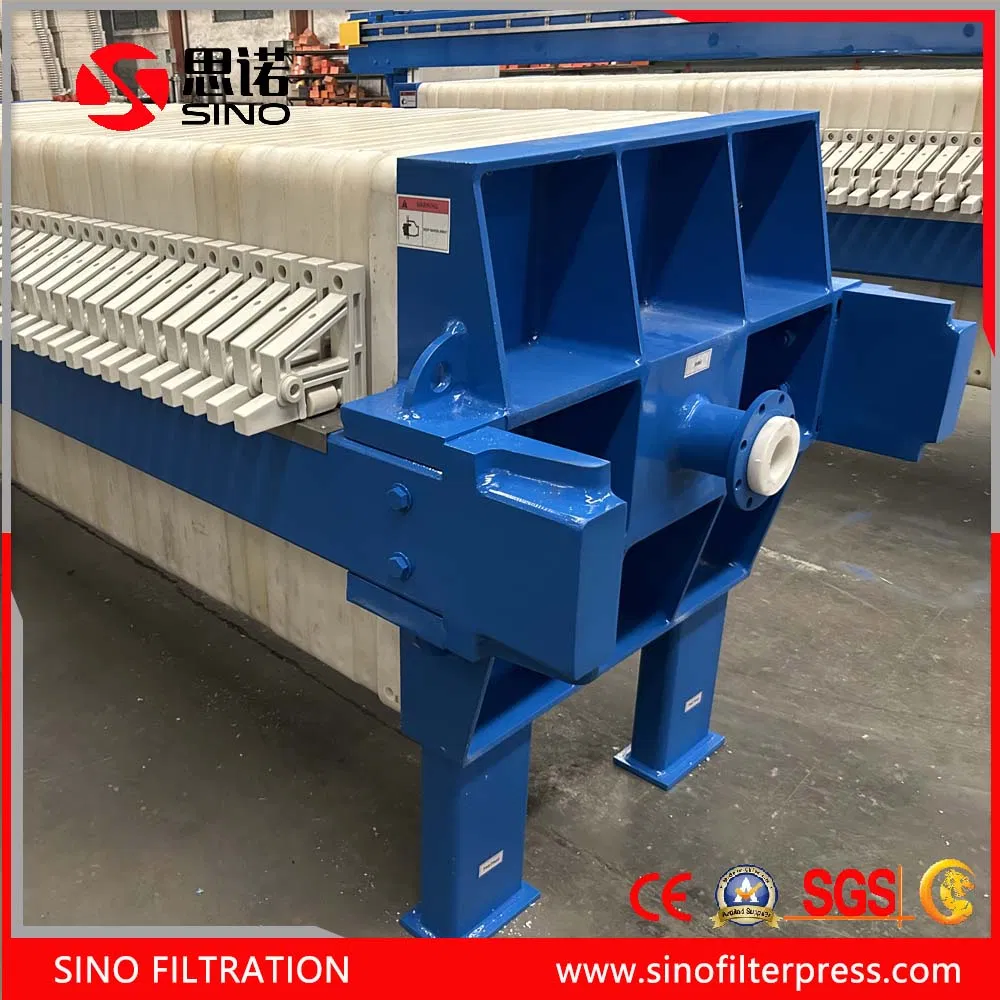

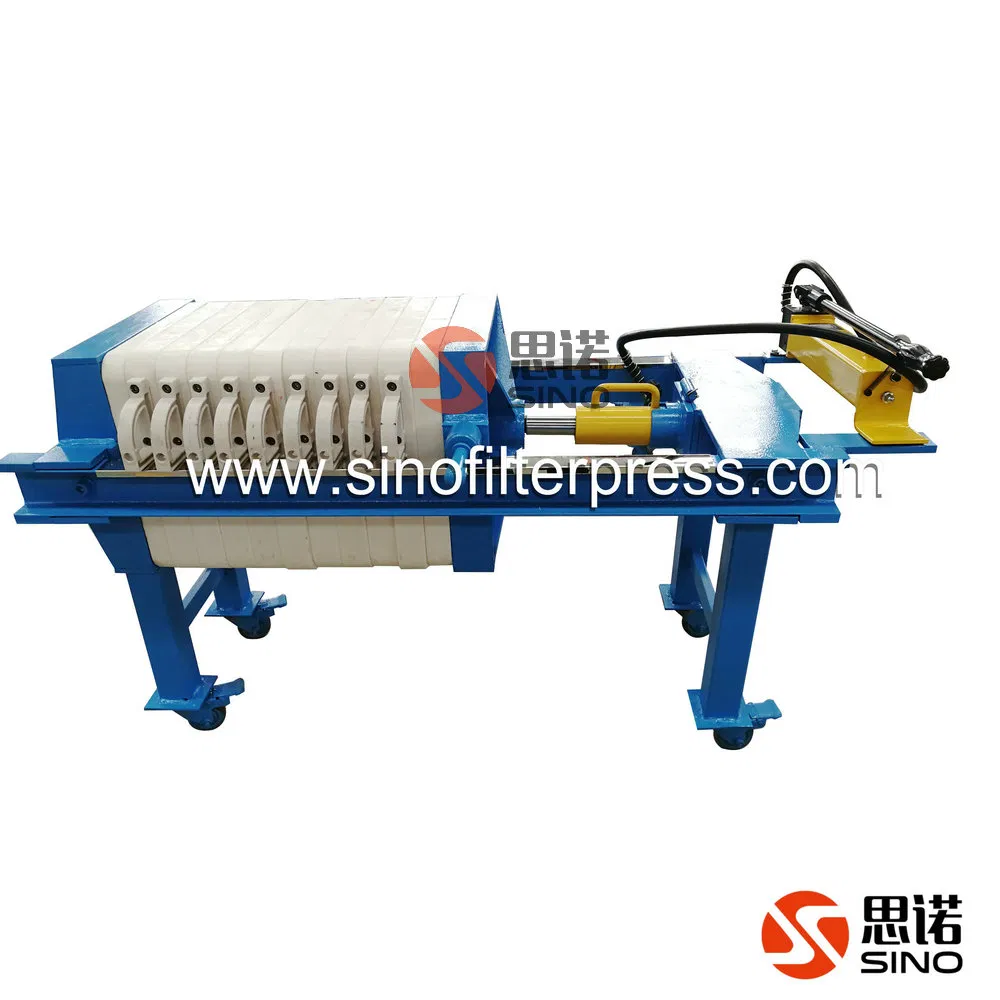

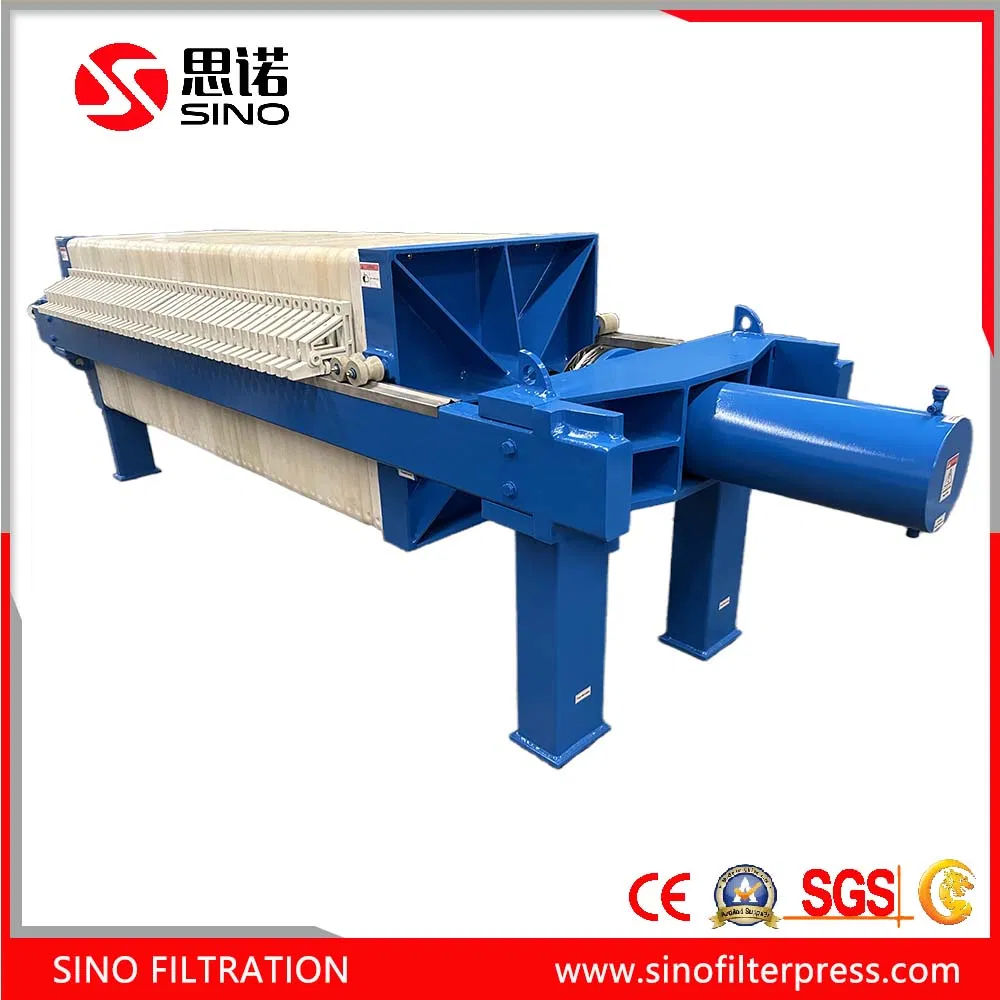

Detailed Photos

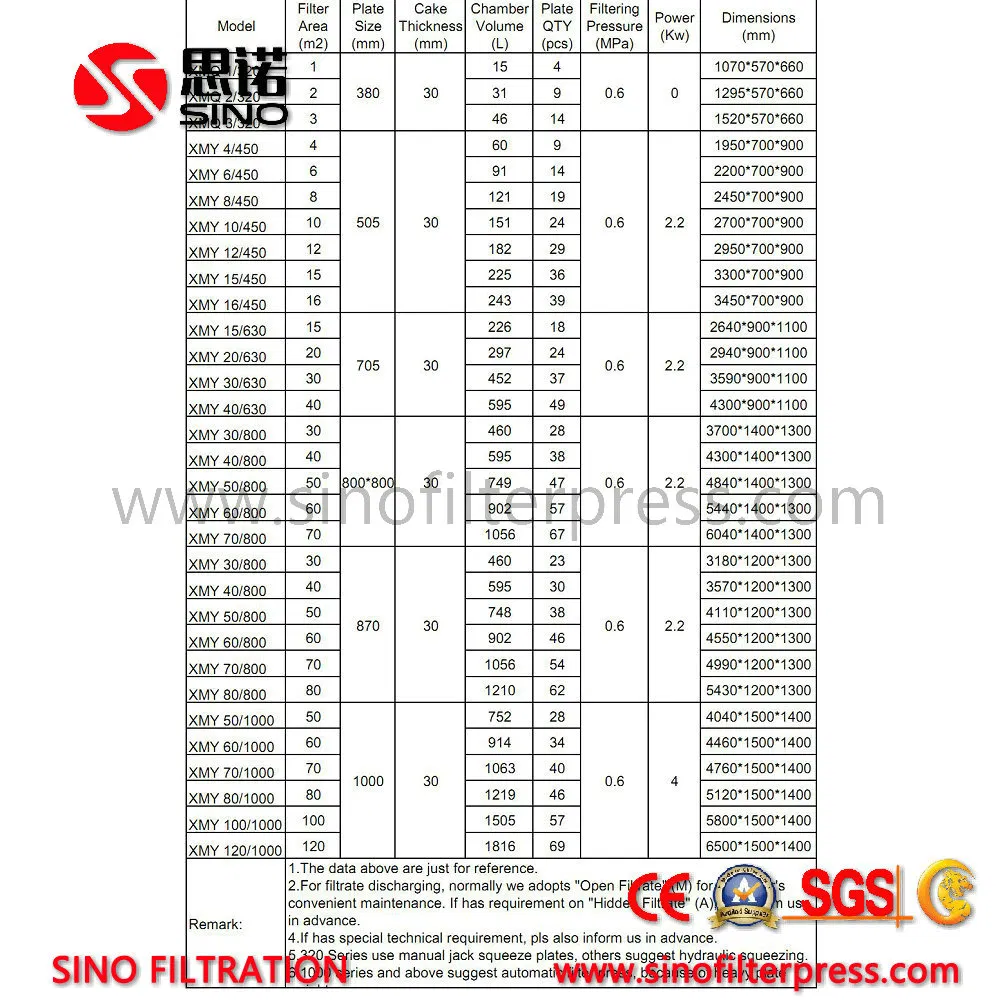

Manual Hydraulic Filter Press Specification:

Our Advantages

The manual hydraulic pressure is stronger than the manual jack, and the tightness is good after pressing.
It can stand higher pressure, and the filter cake has low water filtration.
The manual hydraulic filter press does not need a motor, and the operating cost is almost zero.
Small structure, simple operation, and easy maintenance.
Easy to move.

Applications

Oil Industry	Chemical Manufacturing	Sludge Treatment
Municipal Sewage	Circuit board sludge	Metallurgy Industry
Food Industry	Paper Making Industry	Glass Industry

Related Products

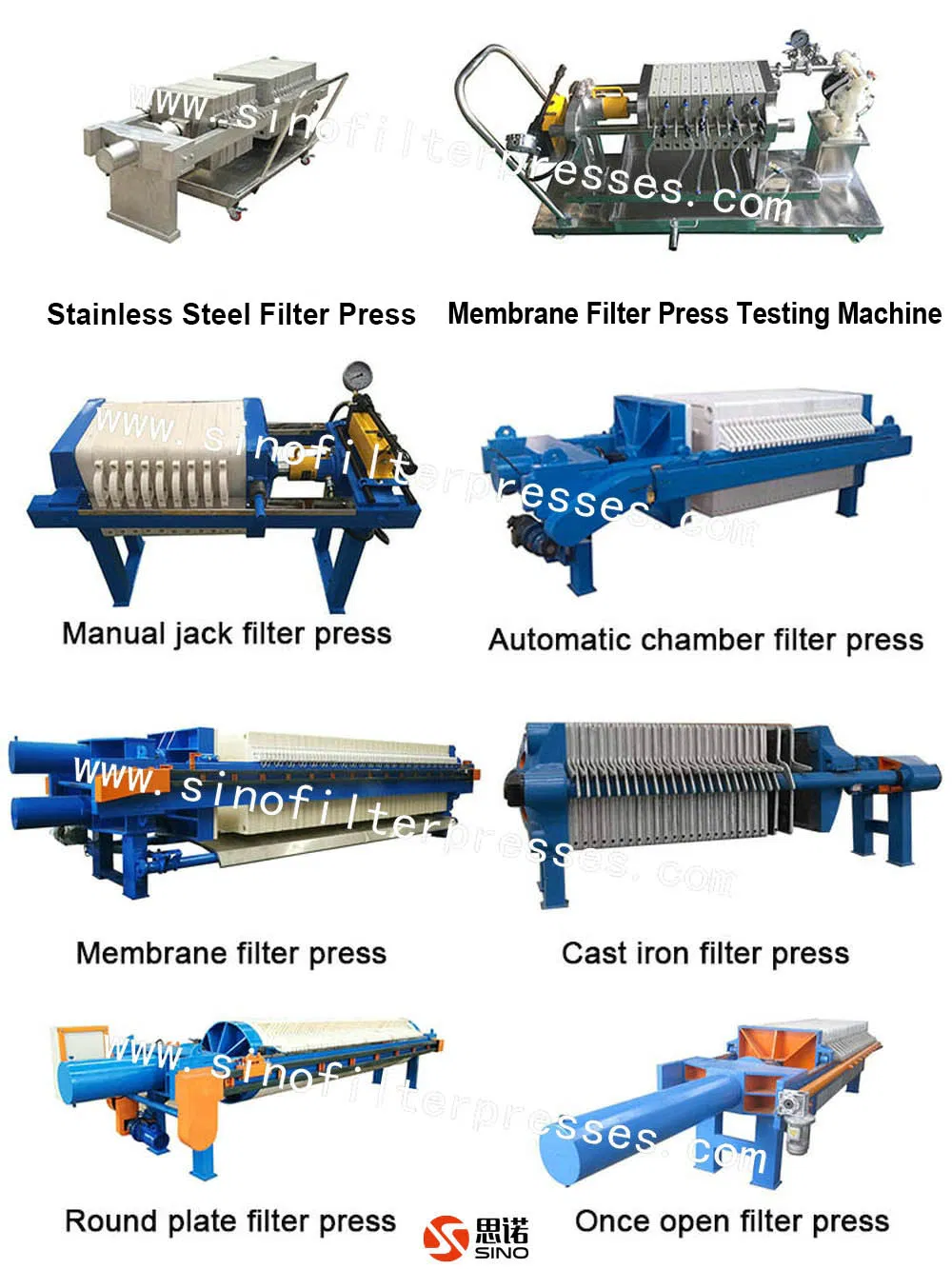

We have all kinds of filter presses for your option: membrane filter press, chamber filter press, cast iron filter press, round plate filter press, stainless steel filter press, etc. If you are interested in our filter press machine, please contact us.

Do not hesitate, to click below!!!

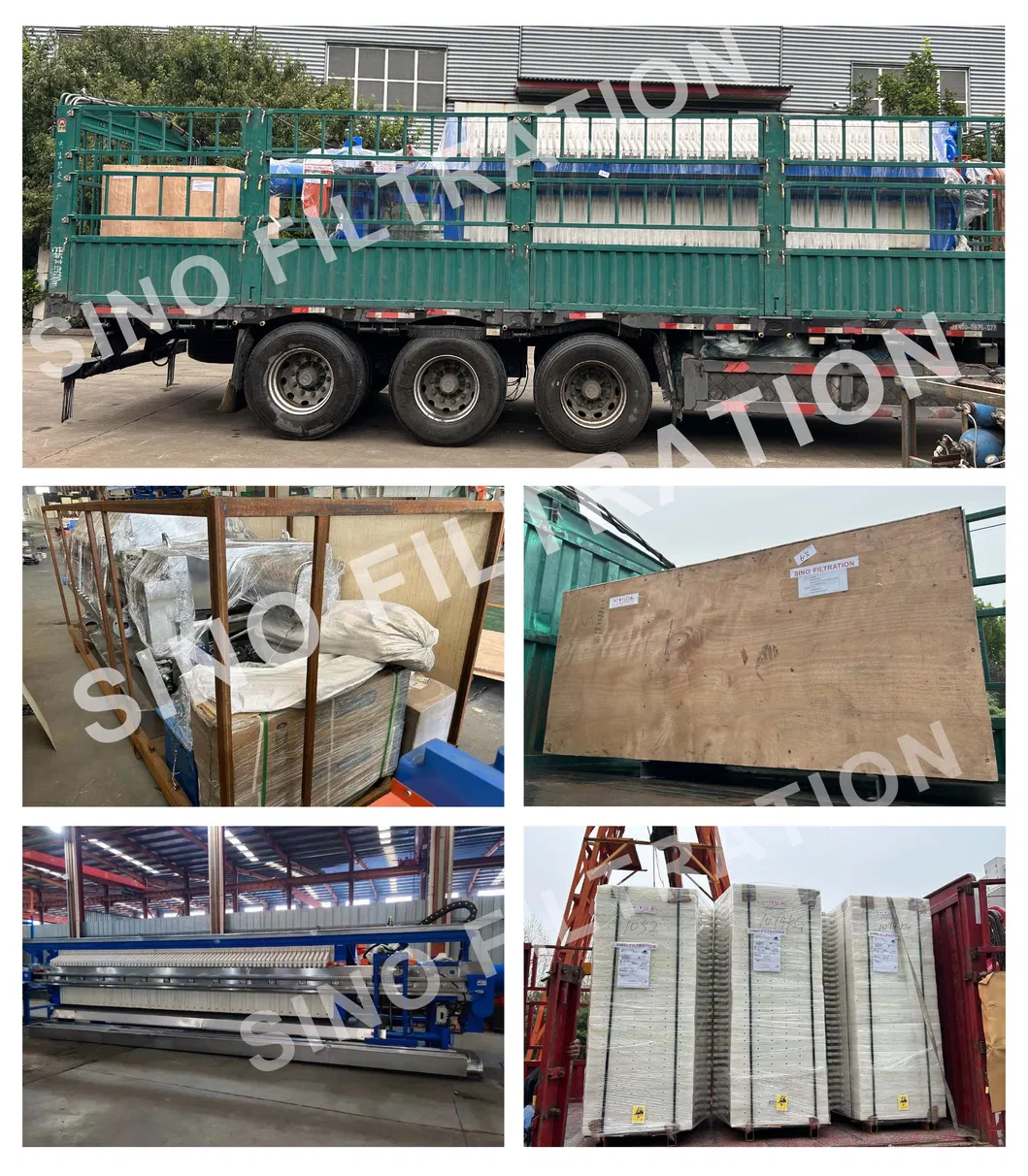

Packaging & Shipping

For the small filter press and delivery by LCL, we will use wooden cases; for a big model, the electrical parts will be in wooden cases, others by seaworthy packing.

Customer Visits

FAQ

What is a Manual Hydraulic Filter Press?

The manual hydraulic filter press adopts a manual hydraulic pump for pressing, which is widely used in industrial and mining facilities with small output.

What is the difference between a Manual Hydraulic Filter Press and a normal Filter Press?

As the name implies, the manual hydraulic filter press utilizes a hand-driven pump, whereas an electro-hydraulic filter press comes with an automated, electric-powered hydraulic closing mechanism.

What is a Manual Hydraulic Filter Press used for?

It is highly suitable for metallurgy, coal gas, paper making, coking, pharmaceutical, food, brewing, fine chemical, and other industries, especially for materials with high viscosity.

How to pay?

L/C or T/T is acceptable. Usually, 30% payment is requested in advance, and 70% payment is completed before delivery.

What is the delivery time?

It depends entirely on order quantities. Generally speaking, the standard delivery time will be within 1 month.

How long is the warranty for the filter press?

The validity of the warranty period is 12 months after successful installation.
