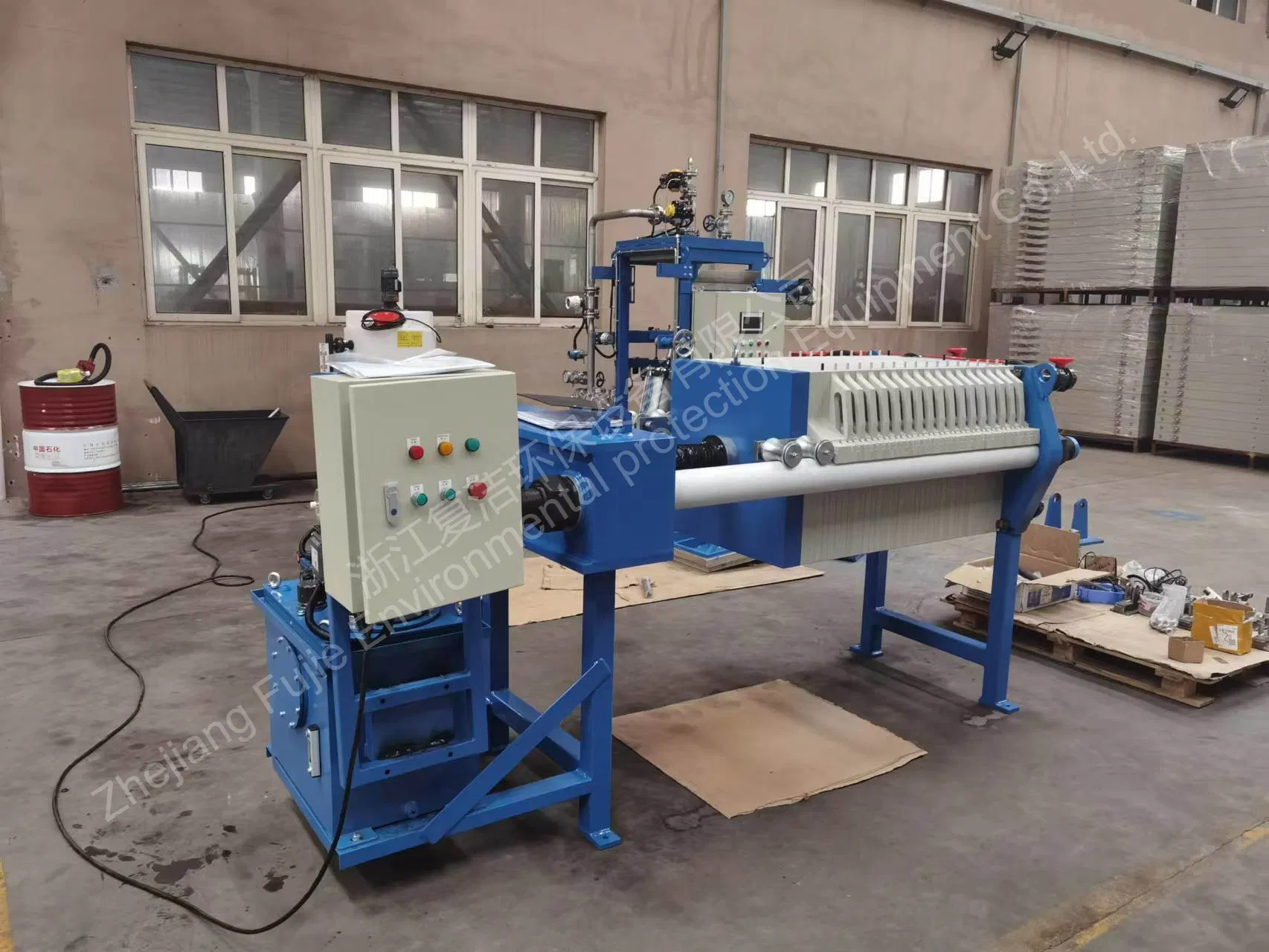

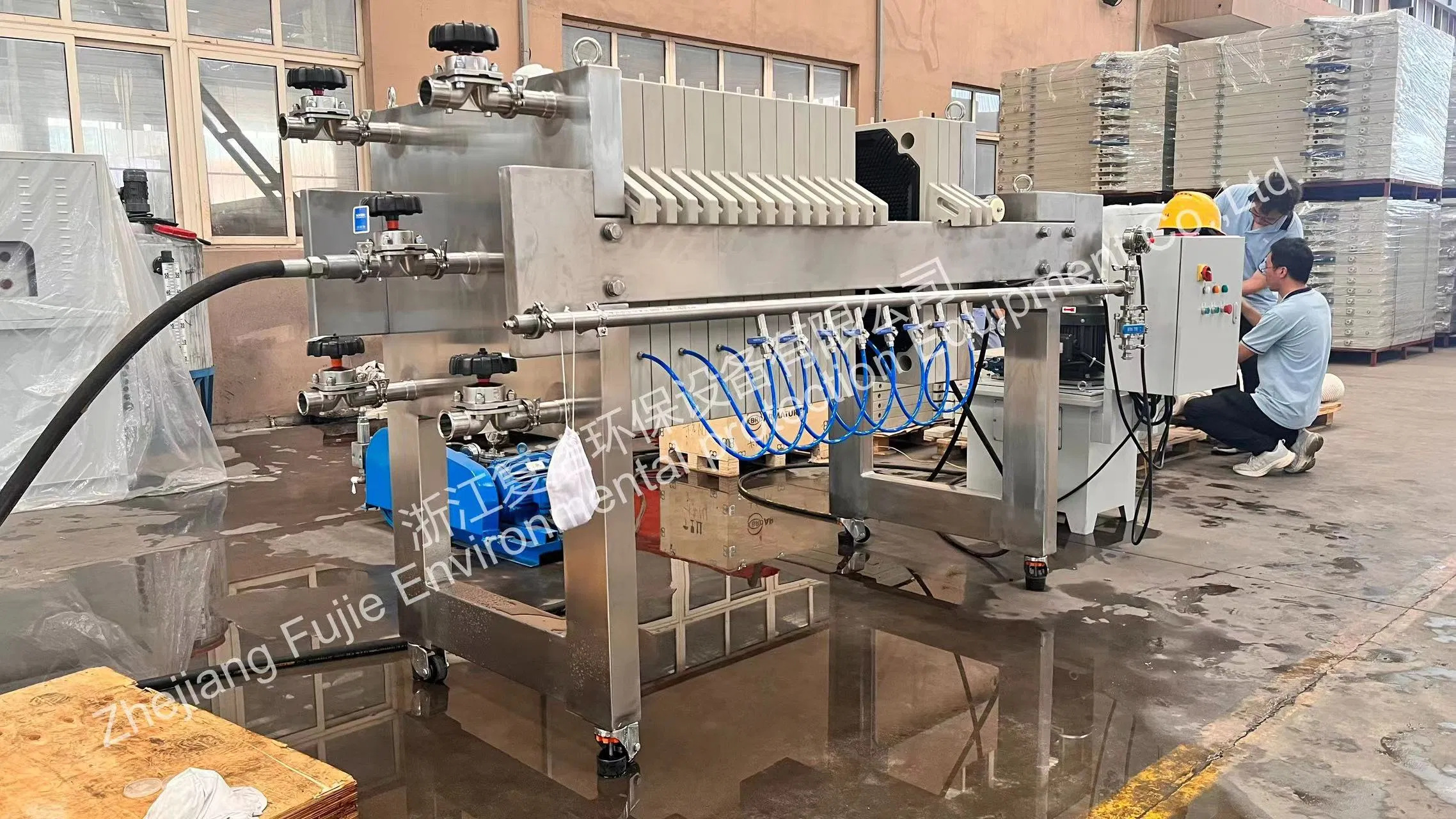

Fully/Semi Automatic Manual Plate Pulling Filter Press for Wastewater Treatment

Customization:	Available
Structure:	Cantilever Beam Type
Filter Material:	PP

Basic Info

Pressure

Auto Hydraulic

Type

Diaphragm Filter Press

Feature 1

Wholly Automatic

Feature 4

Membrane Expression

Cake Thickness

30\35\40

Feed

Feeding From Both Ends

Filtration Area

200-1000m²

Chamber Volume

3.5-20m³

Filter Pressure

0.5-1.6MPa

Expression Pressure

0.6-2.0MPa

Motor Power

15-26kw

Expression Medium

High Pressure Air

Plate Qty

51-147

Filtrate Delivery

Open\Close

Transport Package

Wooden Case/ Bubble Warp Inside

Specification

800-2000

Product Description

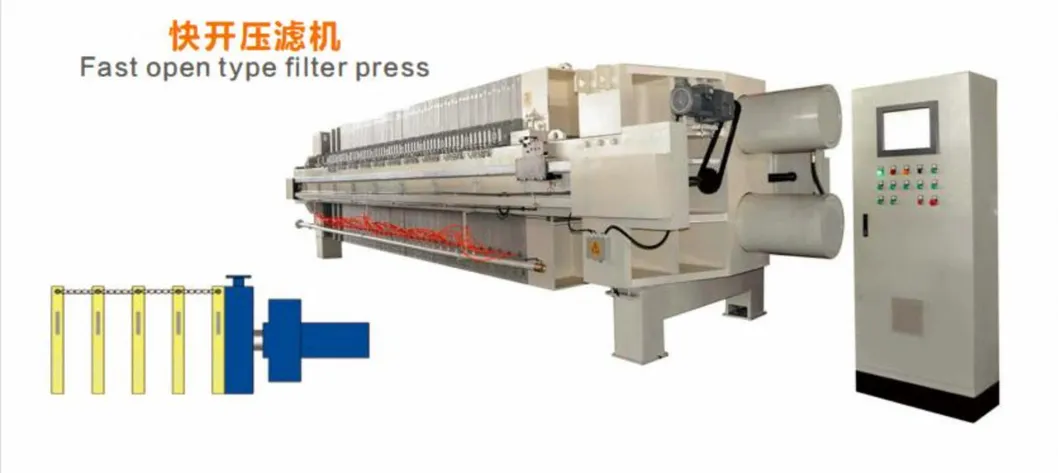

Fast open type filter press configured with wholly automatic system and fast plate-pulling equipment which can automatically pull all the plates at one time. It can greatly shorten the time every cycle takes.

Fully/Semi Automatic Manual Plate Pulling Filter Press for Wastewater Treatment

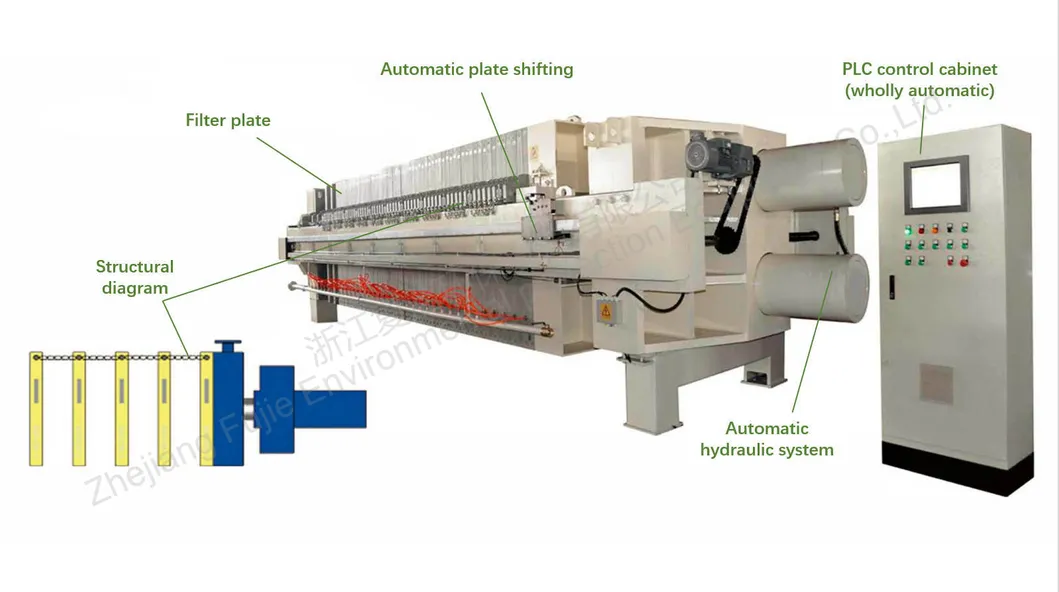

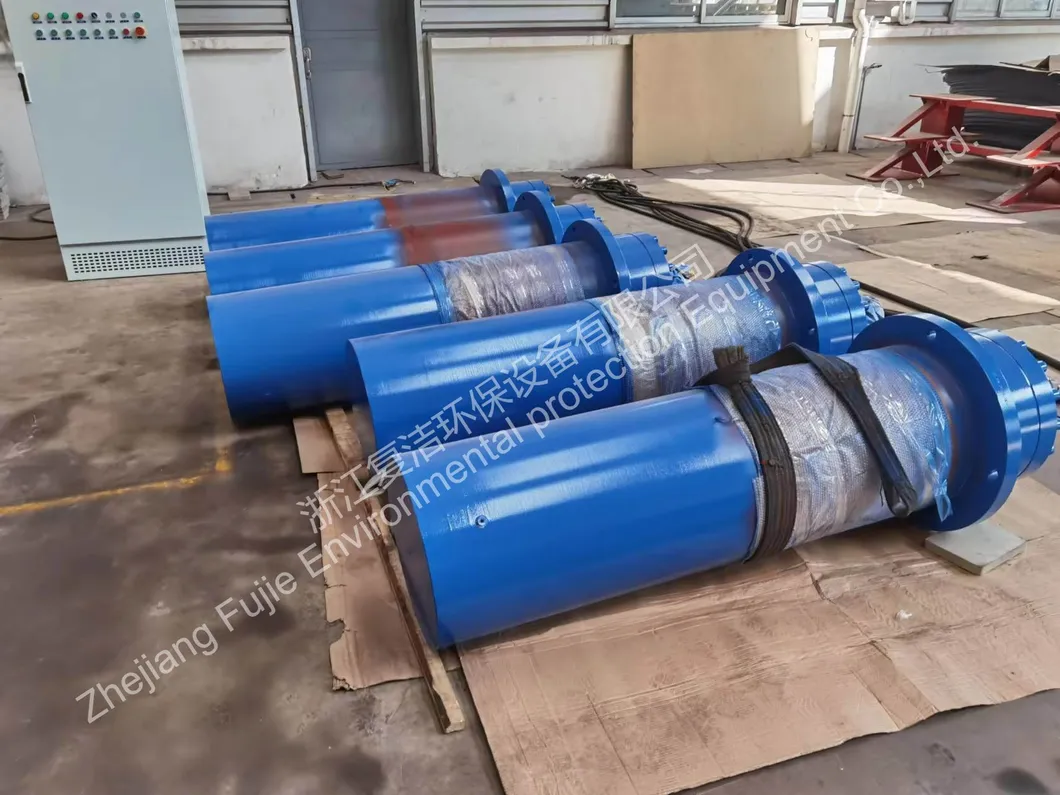

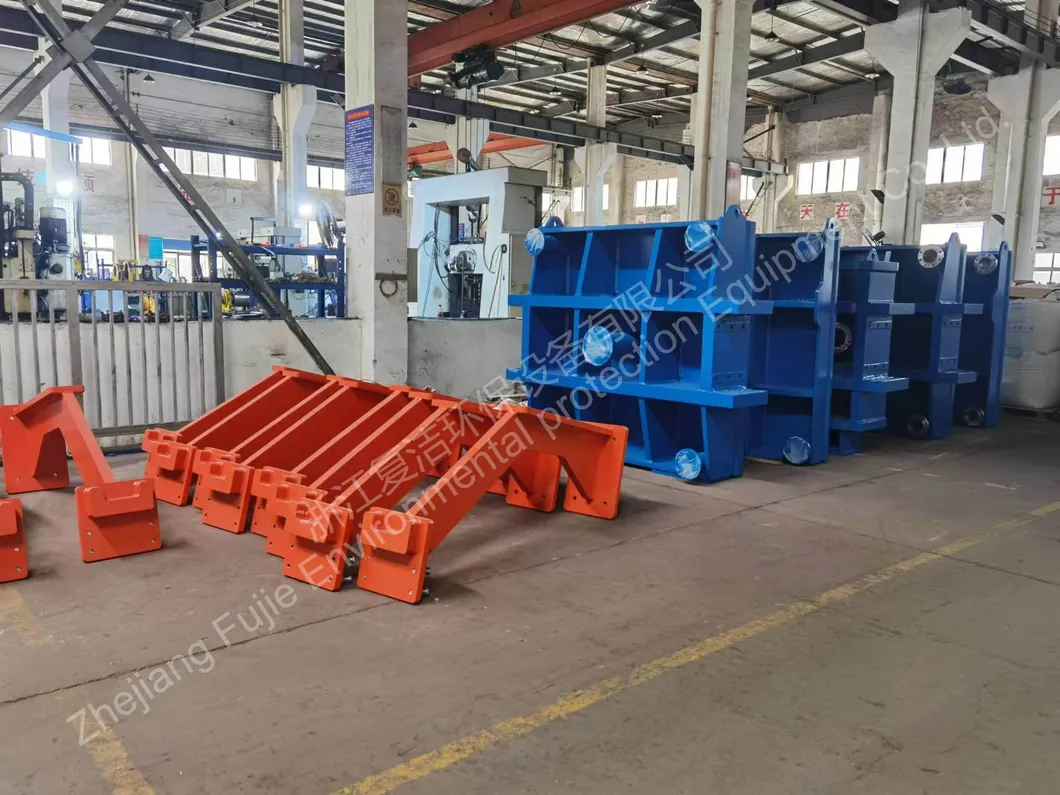

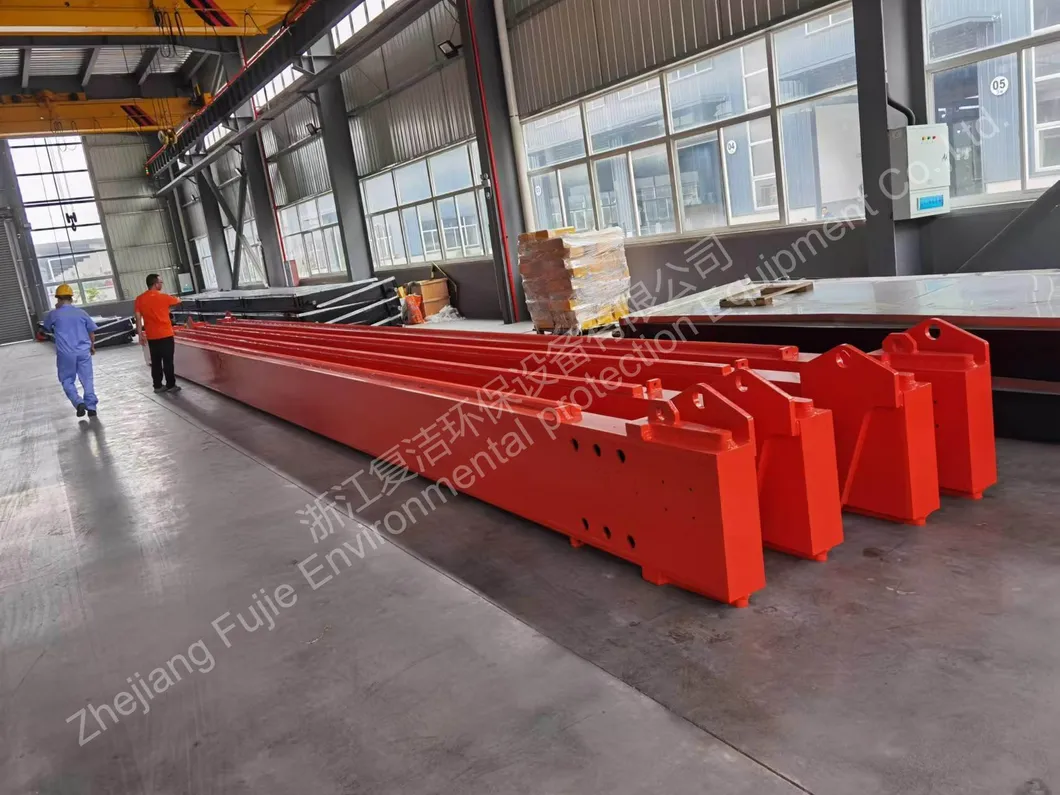

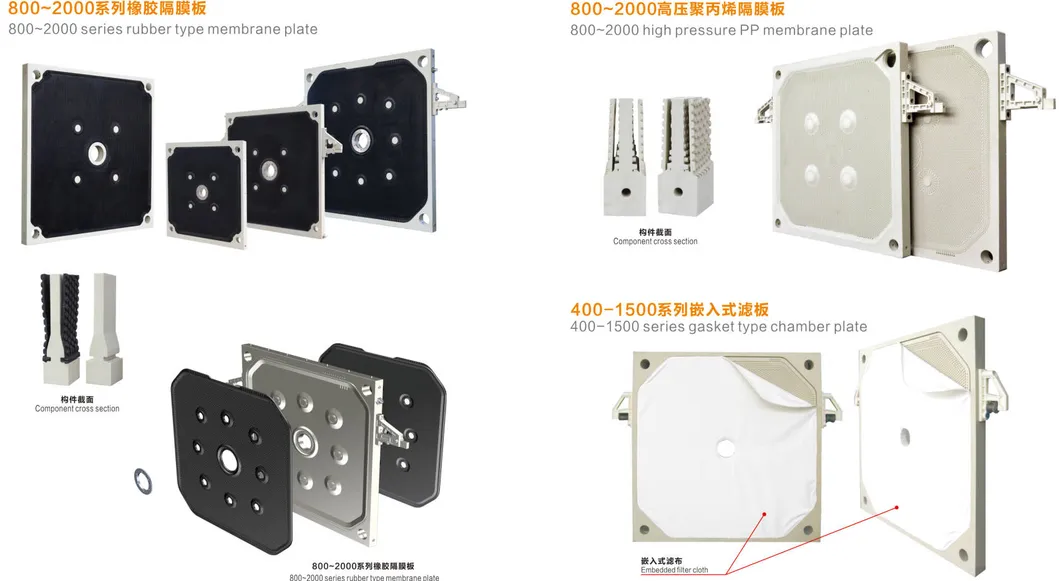

Parts & Assemblings

Features

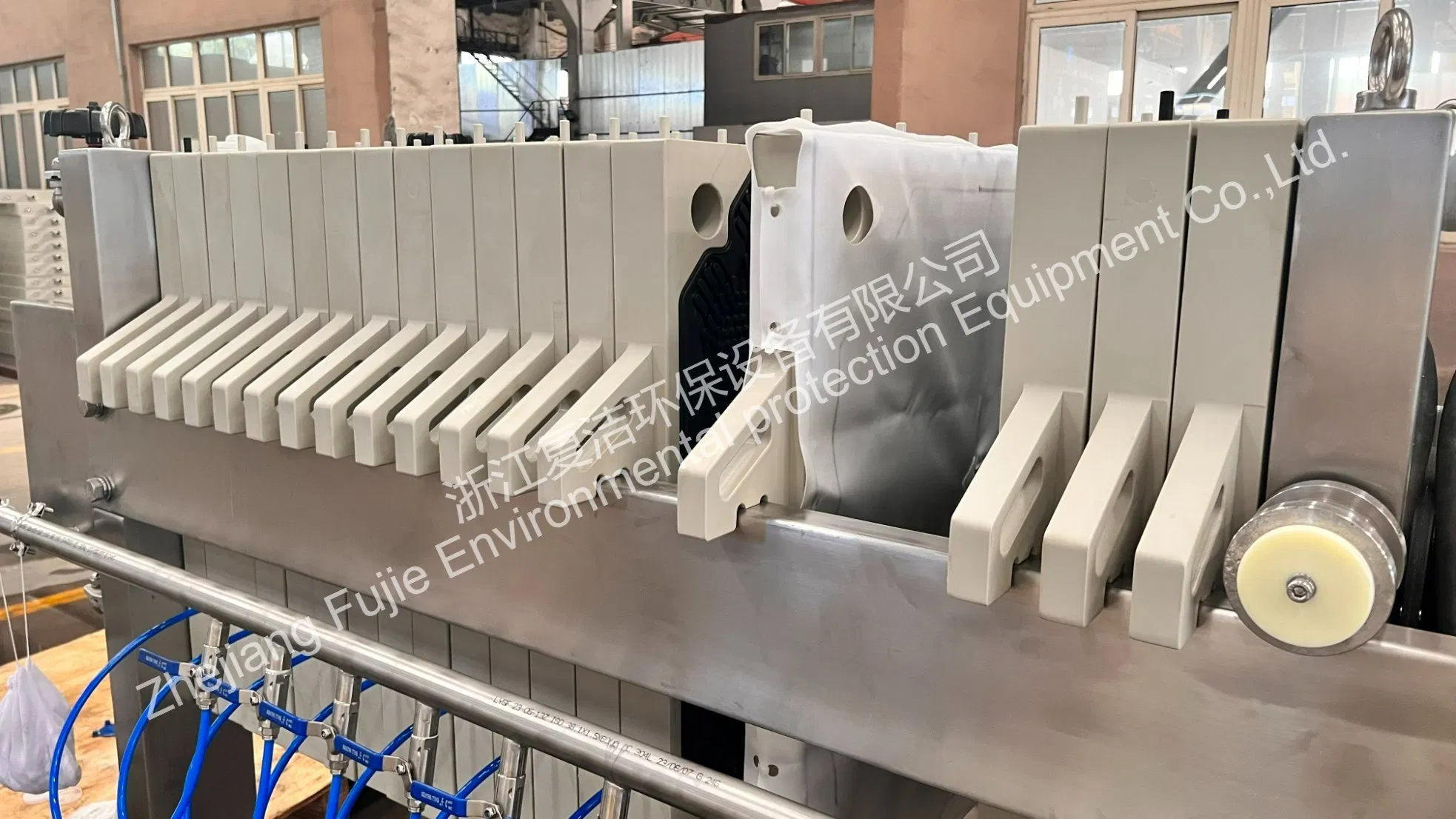

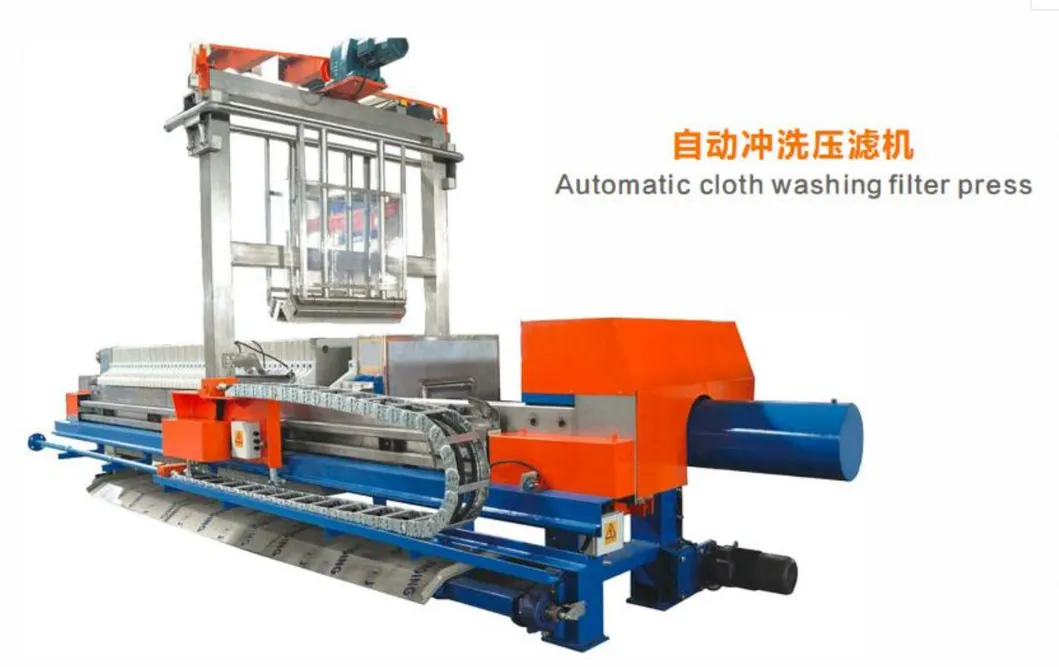

Filter plate automatically pulled in one step, faster discharge. Fully automatic filter cloth washing at one time. "Feed-discharge-wash" cycle only takes 30 mins, much less than other regular filter press.

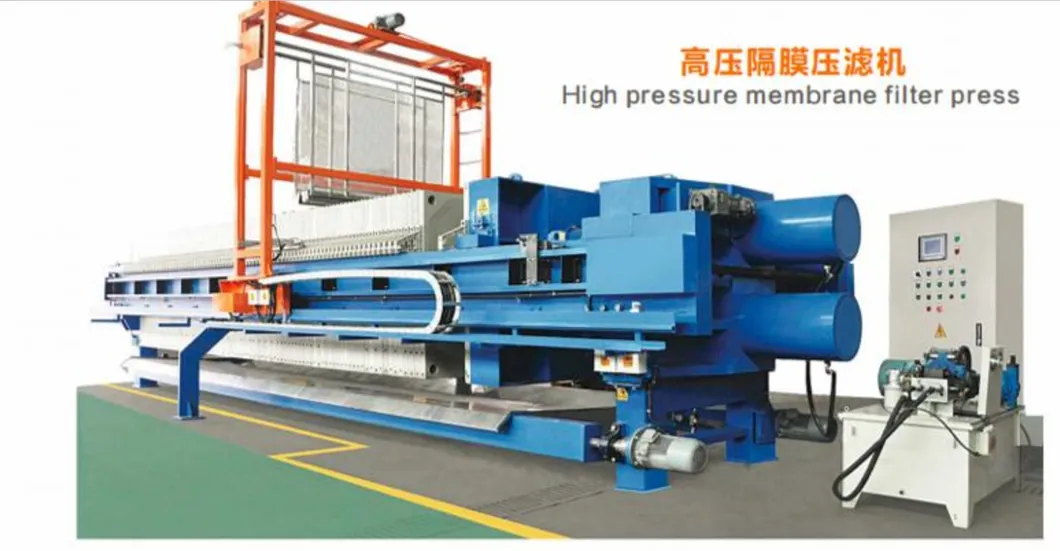

Can be equipped with membrane expression system, the express medium is high pressure air which provides significant sealing, leading to lower residual cake moisture.
Modular structure, easy disassembling and assembling.
Adopts Mechatronics-hydraulics-integrated modeling design uses the advanced design of mechanical and electrical integration of liquid separation machinery and equipment, according to the filter plate number, consisting of different filter area and volume.
Main components of PLC control system are selected from internationally renowned brands such as "Schneider", Siemens, ABB, etc.
Automatic system can perform: on/off of feeding pump, automatic press, feed, pressurize, express, cake blow, pull, pause, cake discharge and on/off of belt conveyor (can be modified as you wish).
Support on-site input of pressure filtration process parameters, easy to adjust and control the process. Manual and auto mode switch easily.
Non-standard customization available.
We offer customized solutions and integrated production to meet the requirement for you.

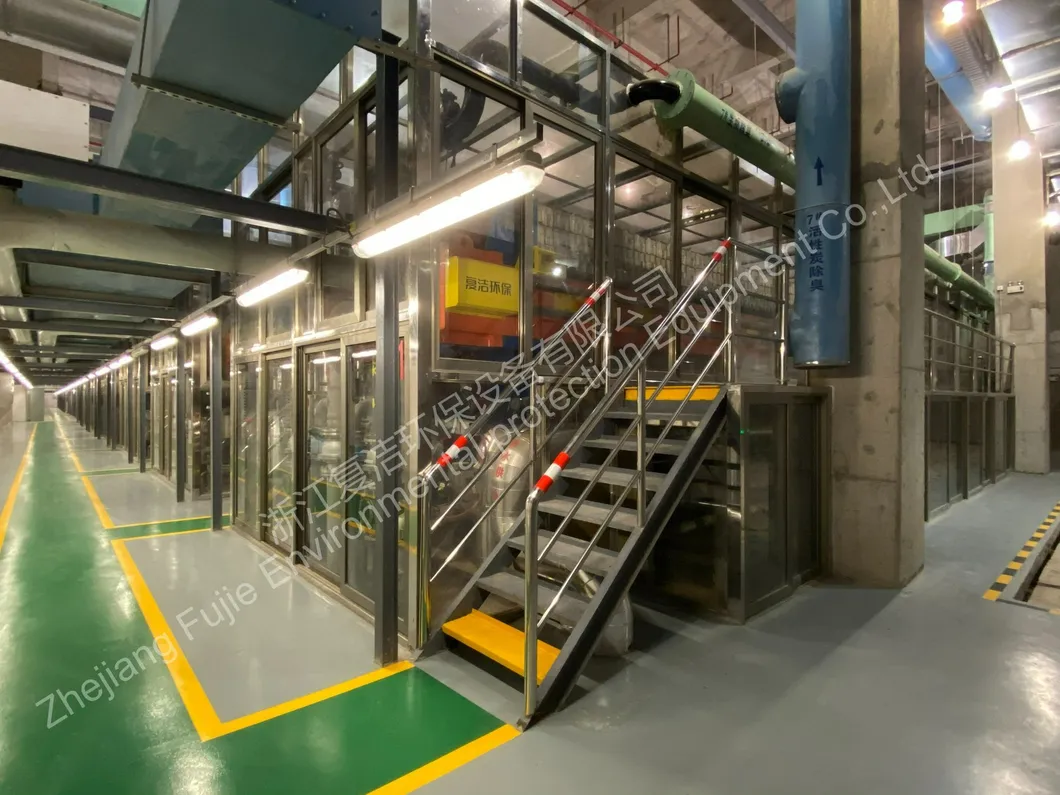

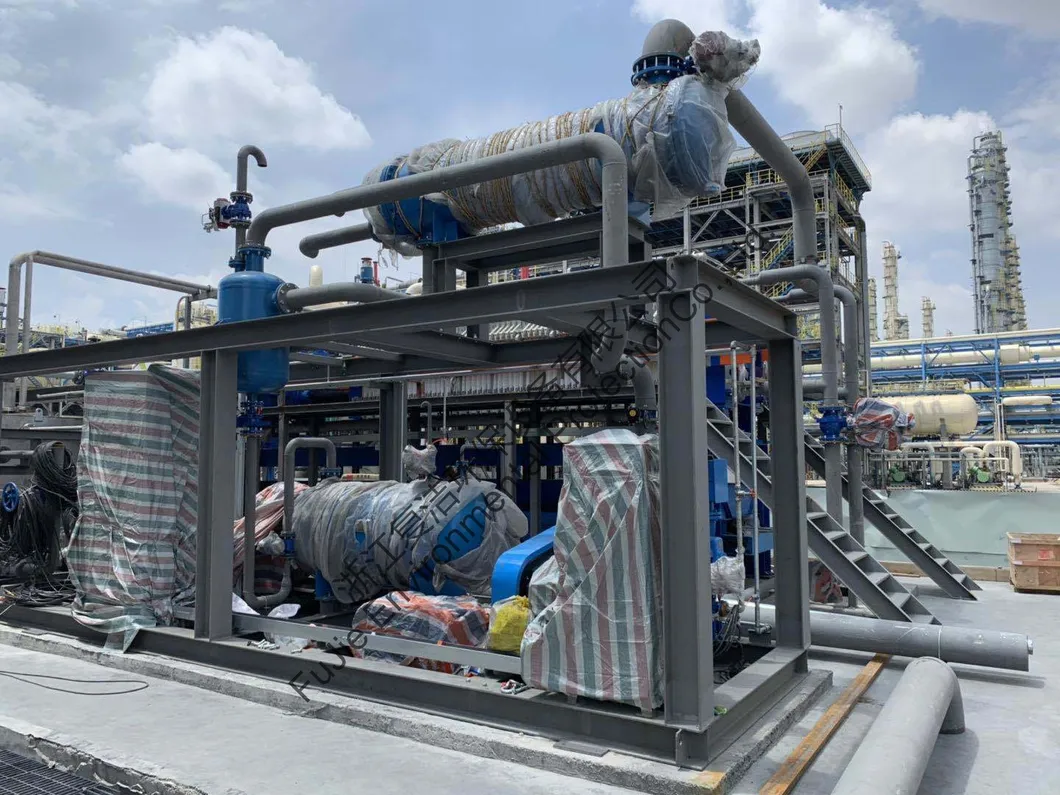

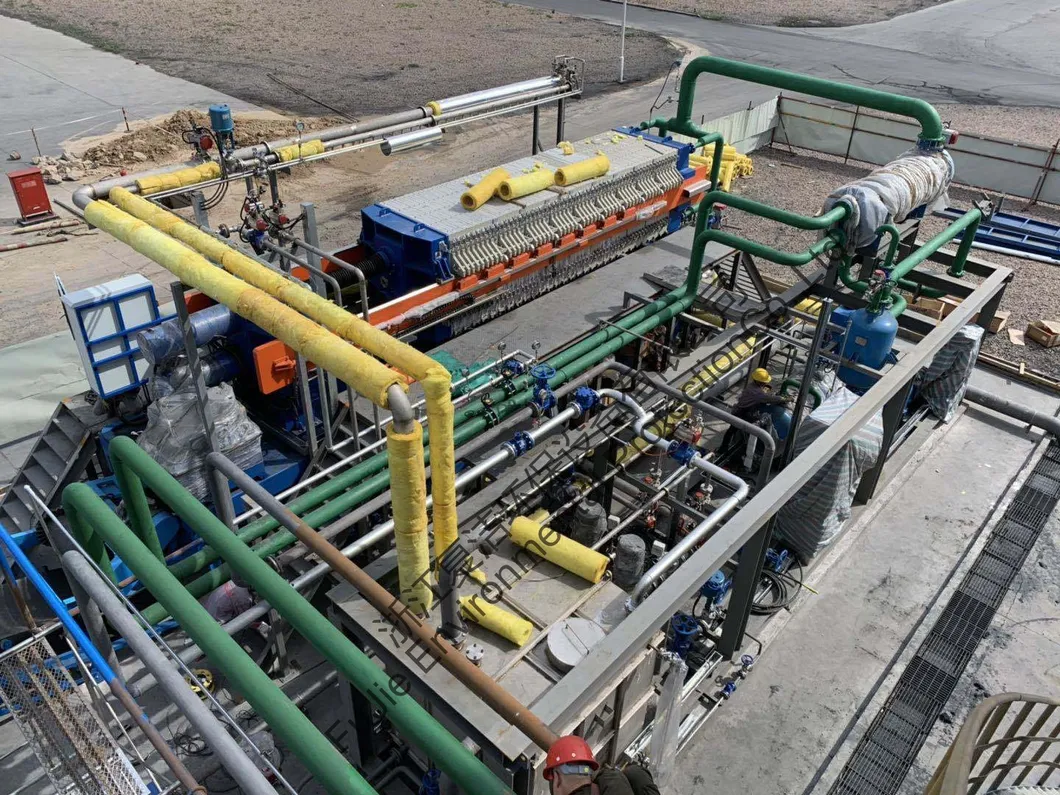

Cases

Covers over 2000 m²

Specification

Model	Pressure (Mpa)	Filter area (m²)	Plate size (mm)	Feeding	Cake thickness (mm)	Chamber volume (m³)	Cylinder diameter (mm)	Cylinder stroke (mm)	Plate QTY	Motor power (KW)	Dimensions (mm) LWH
K1500	0.5-1.6 (Filtration) 0.6-2.0 (Expression)	200-500	1500X1500	Feeding from both ends	≤35	3.5-8.1	380	1500	51-125	15	(9000-15000) X2500X2500
K1600		200-500	1600X1600		≤40	3.7-9.5	380	1500	45-117	15	(9000-15000) X2500X2800
K2000		400-1000	2000X2000		≤40	7.7-20	380X2	1800	57-147	26	(11000-18000) X3000X3000

1. The sheet above only includes our main products, we are pleased to offer you smaller scale or customized model.
2. Please contact us for any further information.

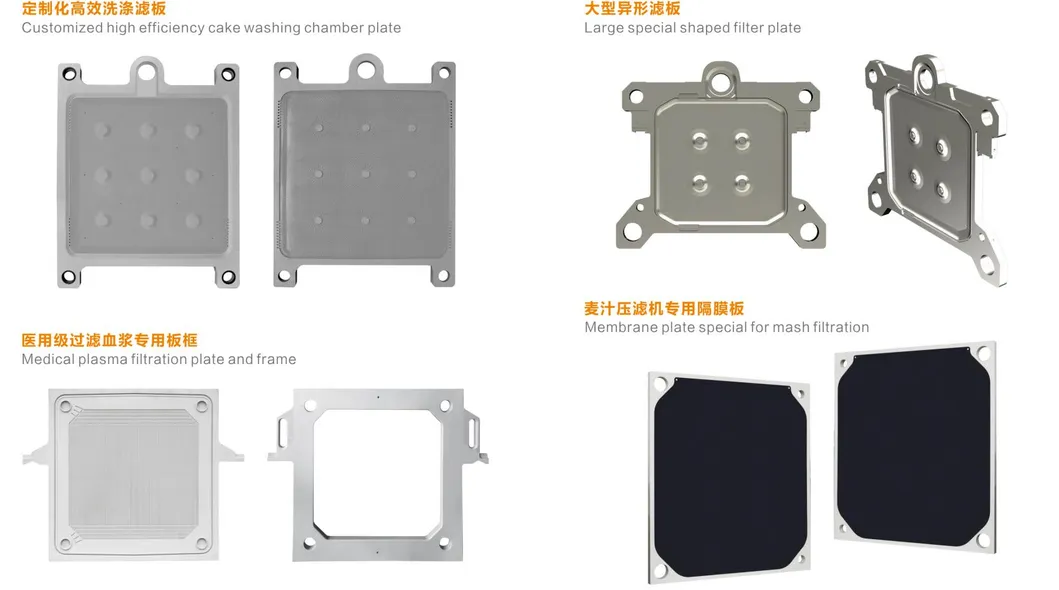

Related Products

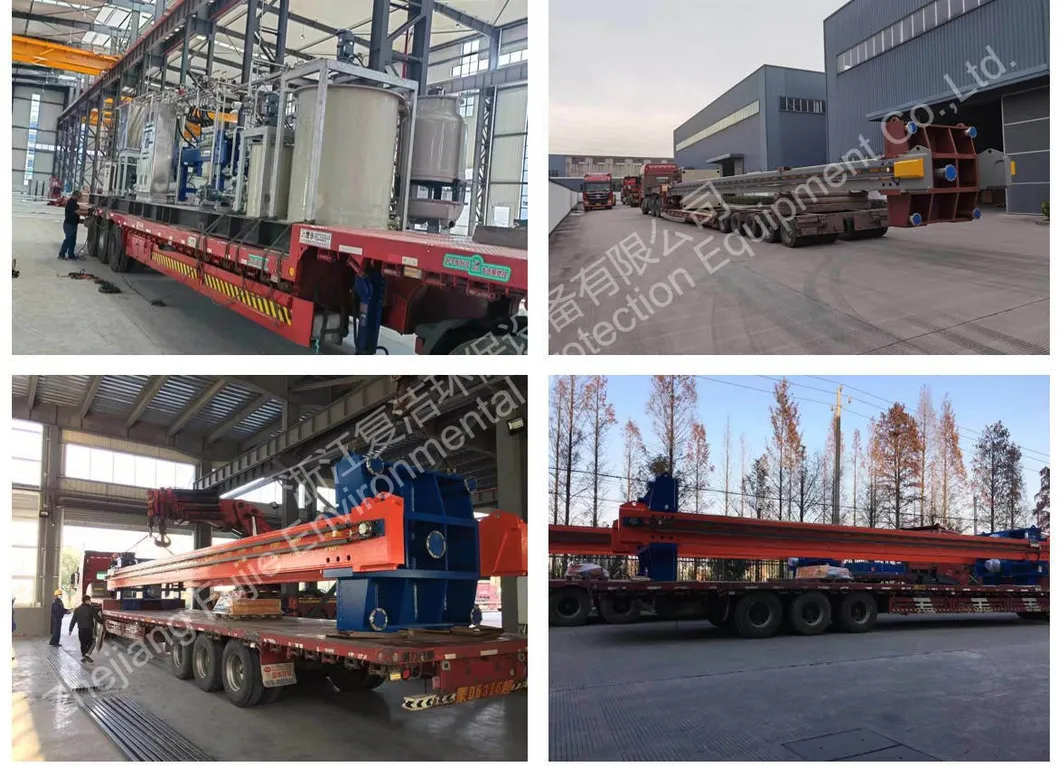

Packing & Shipping

Service

Pre-sale service:

Your inquiry will be replied within 12 hours.
Help you to select suitable model.
Design totally according to your requirements.

After-sale service:

Provide 12 months warranty period and you will have our technology support forever.
Engineering available to offer the service to your machinery overseas.

About Us

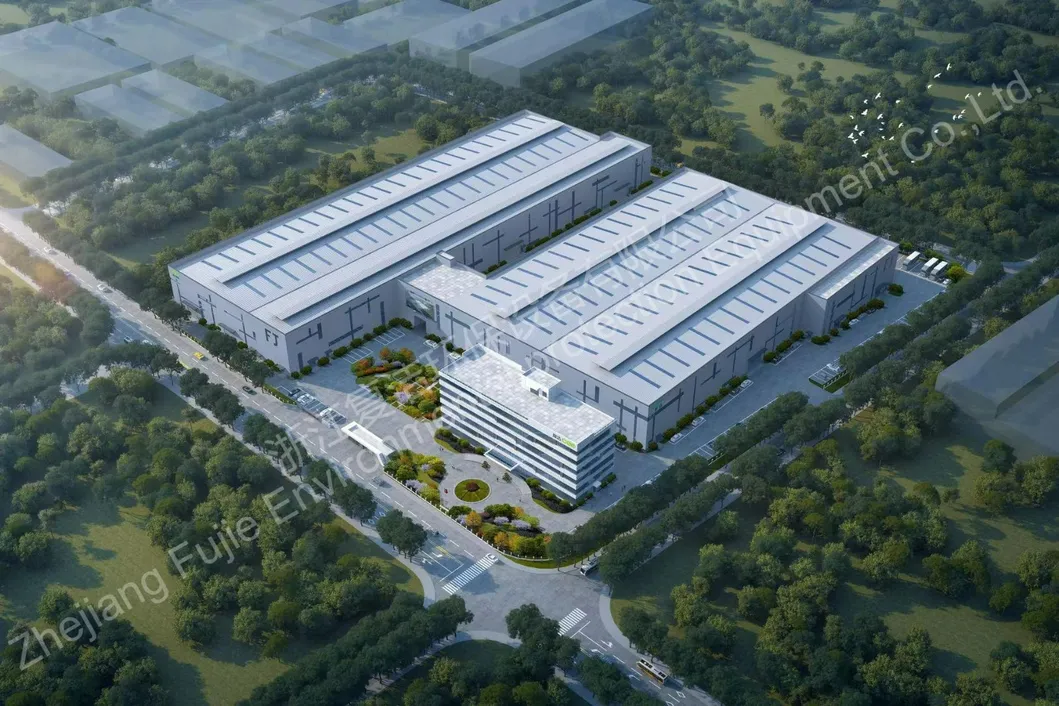

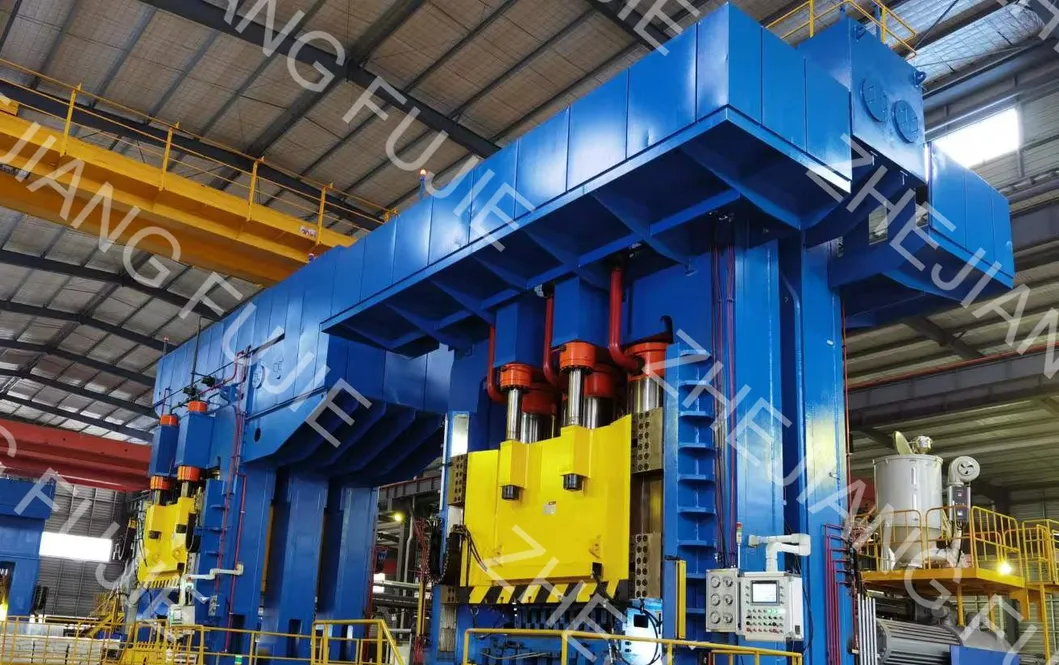

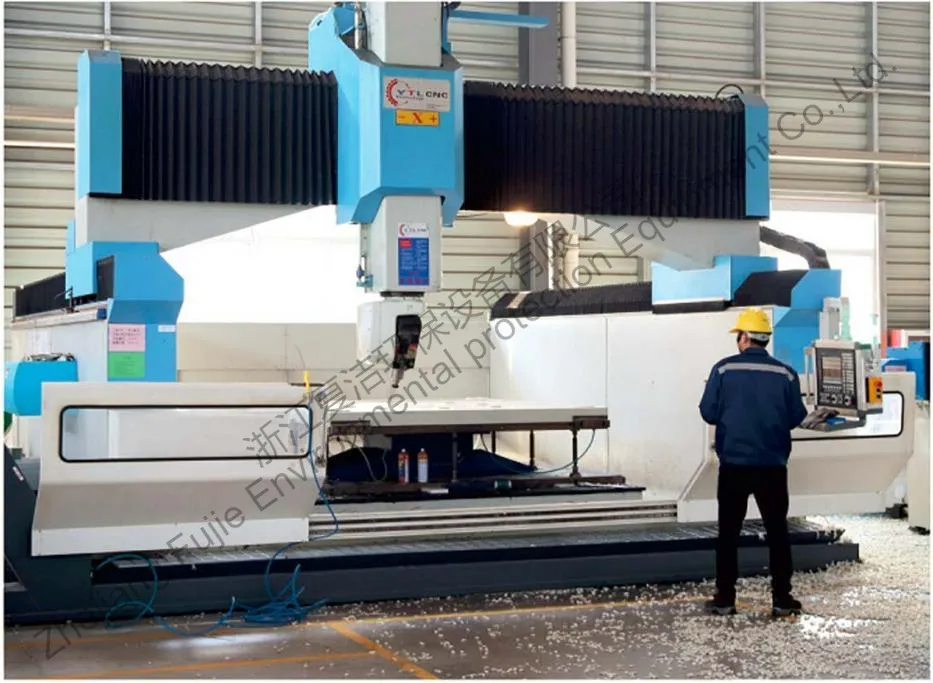

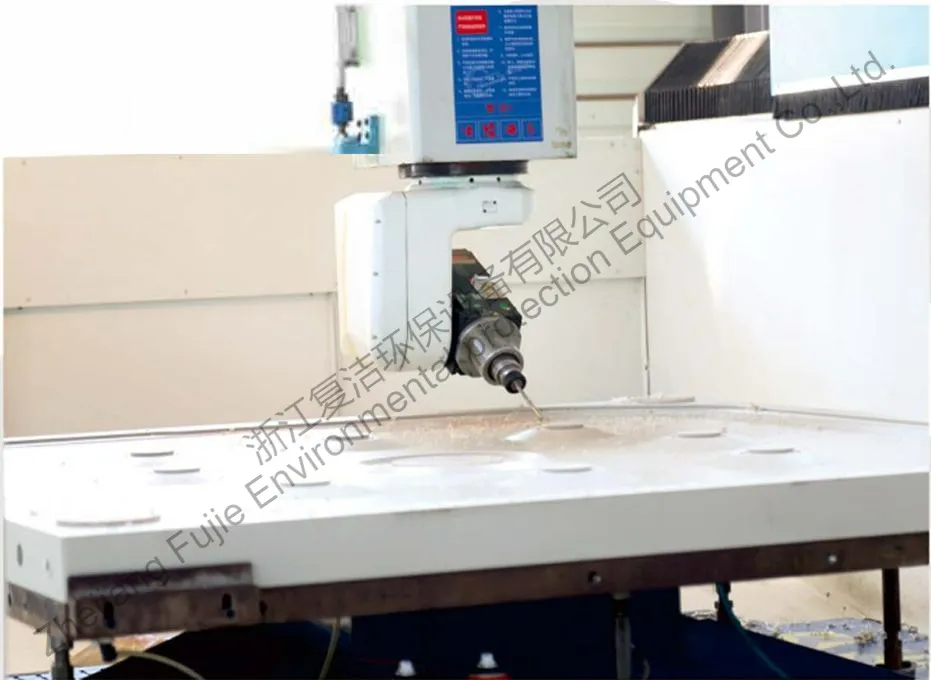

Established in June 2016, our manufacturing facility is equipped with advanced production technology. The company has 60000KN, 80000KN, and 120000KN ultra large injection and pressure equipment, with the largest tonnage of oil pressure machines in the industry and multiple three axis machining centers and several five axis machining centers, making it the first enterprise in the industry to use five axis machining.

The unique raw materials and formulas for filter plate manufacturing ensure various performance indicators and mechanical strength, and the material is uniform and dense. The company has passed three major management system certifications: ISO9001, ISO14000, and OHSA45001.

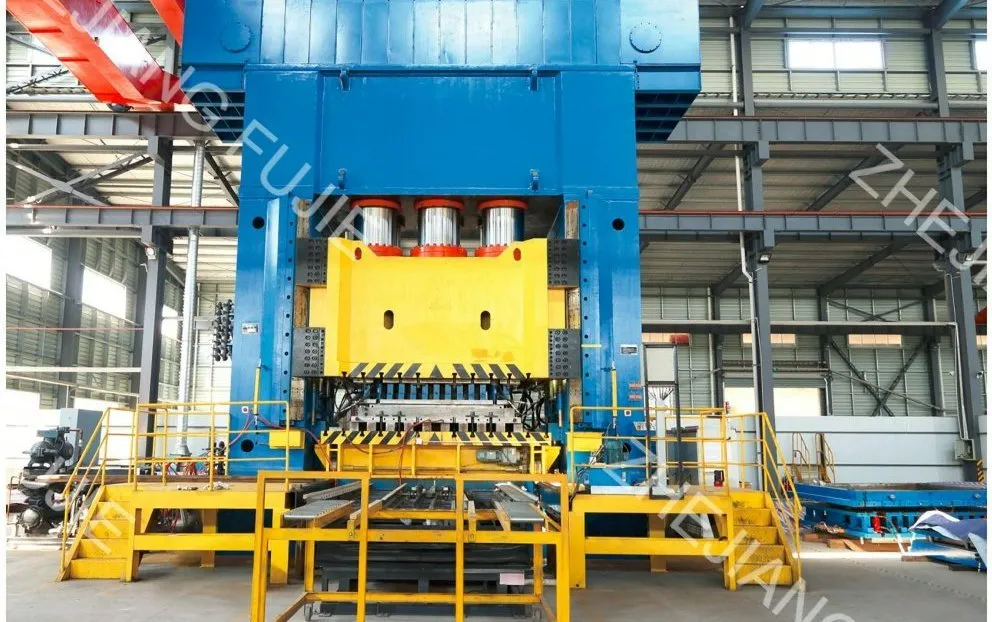

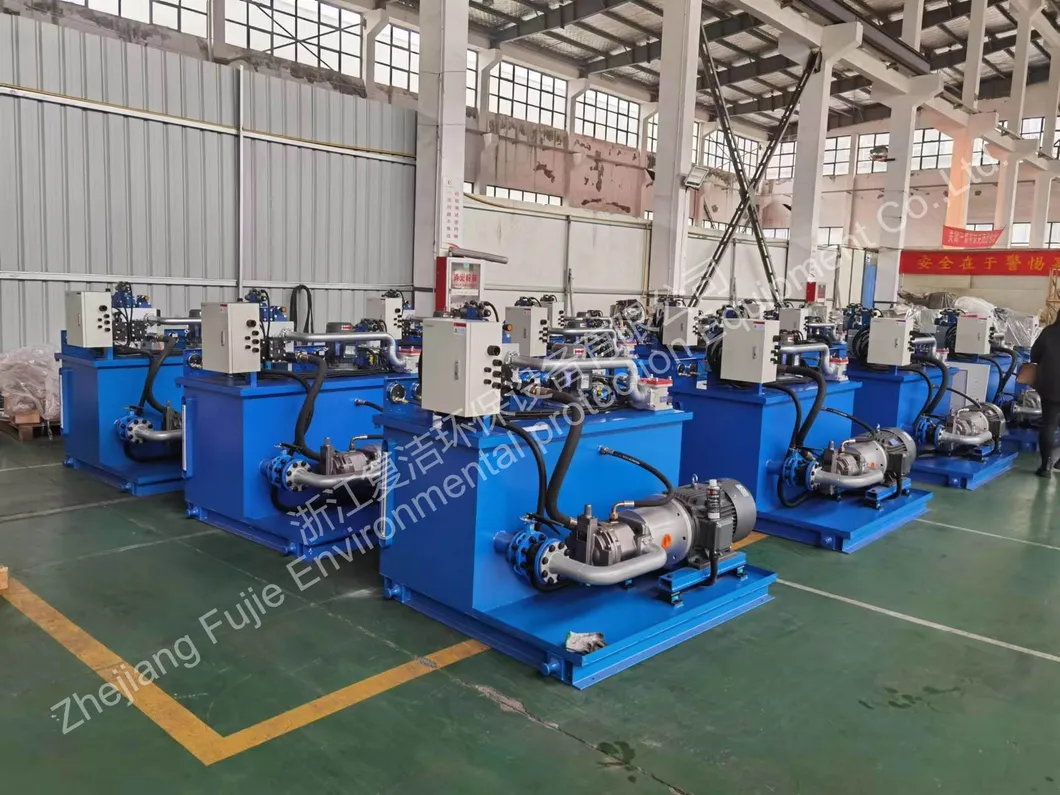

Largest tonnage of oil pressure machines in the industry
