Hydraulic Manual Chamber Filter Press for Concrete Beton Washing Wastewater

Customization:	Available
Structure:	Side Beam Chamber Filter Press
Filter Material:	FRPP

Basic Information

Model NO. XMY Chamber filter press

Pressure Hydraulic Pressure

Type Chamber Filter Press

Max Feeding Pressure High Pressure Chamber Filter Press

Cake Discharging Manual Chamber Filter Press

Plate Material PP Chamber Filter Press

Plate Type Chamber Filter Press

Control Siemens PLC

Electrical Elements Schneider

Electricity Customized

Cabinet Elements Schneider

Application 1 Filter Press for Concrete Wastewater

Application 2 Filter Press for Beton Wastewater

Transport Package Seaworthy Chamber Filter Press

Specification 630/800/870/1000/1250/1500/2000

Trademark Chamber Filter Press

Origin Chamber Filter Press

HS Code 84212910

Production Capacity 2000 Sets Chamber Filter Press Per Year

Hydraulic Manual Chamber Filter Press for Concrete Beton Washing Wastewater

Applications

⚙️ Application of Wastewater Sludge Filter Press

Municipal waste water.
Various industry of wastewater treatment: printing and dyeing wastewater, sewage sludge, smelting wastewater, leather wastewater, pharmacy sewage water, brew wastewater, electroplating sewage and waste, chemical electrolysis wastewater, municipal waste water, dredging sludge, desulfurization waste water, FGD, slurry of waterworks, slurry of sea water desalination, tannery sewage, waste water of papermaking, waste water of iron steel industry, electroplating wastewater, denitrification of wastewater, chemical slurry, biological wastewater, smelting waste water, slurry of food industry, pharmacy sewage water, mining wastewater, metallurgical wastewater, textile wastewater, laundry waste water, medicine waste water, washery wastewater etc...

Product Description

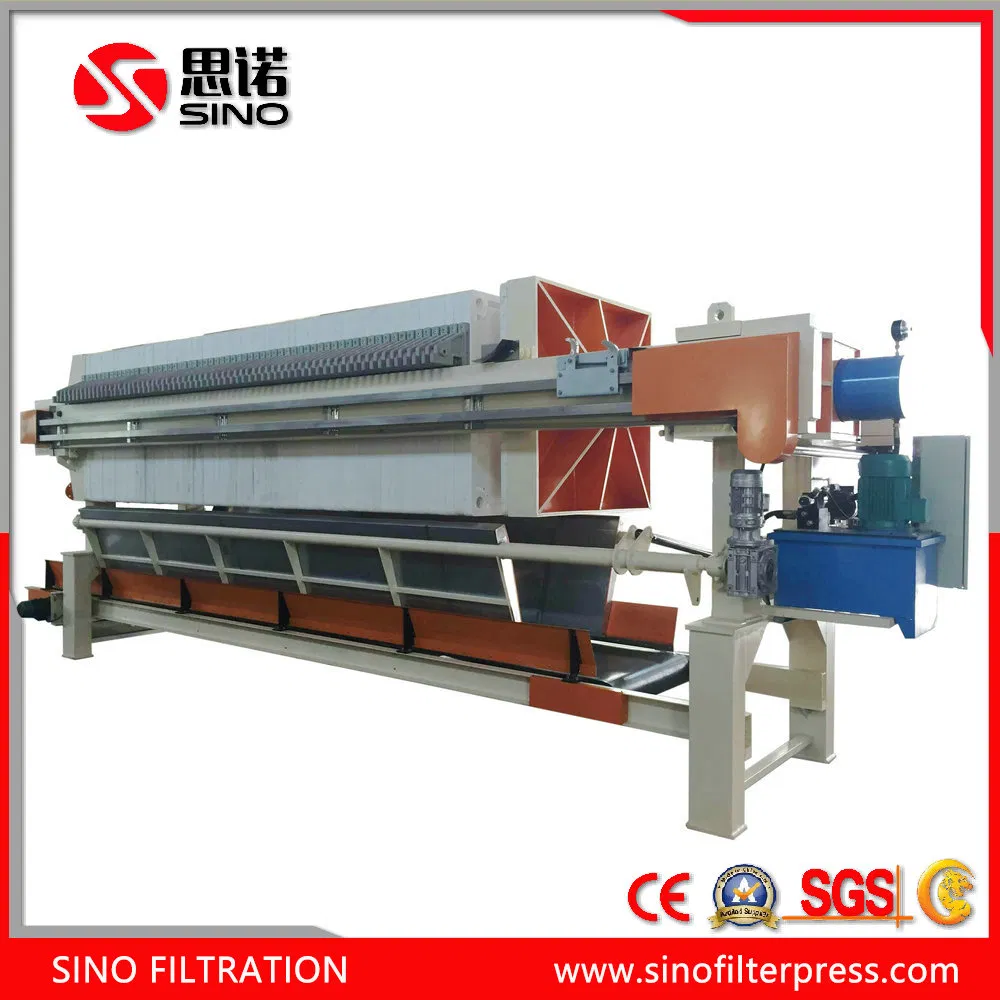

What is a Filter Press Machine?

A recessed filter press is very effect tool intended to separate solids and liquids using pressure driven by feed pumps. The filter presses consist of the framework, the filter pack, cabinet and driven system. The base framework is composed of a fixed head, a moving head, a closure system, sidebars (or overhead beam). The filter pack consists of the filter plates stacked in order that create a hollowed chamber for solids collection. The major difference in the type of filter press is the style of plates used in the filter pack.

Features of Filter Press:

Short working cycle and high efficiency.
Big capacity. Unique plate design makes filtrate discharge more smoothly to make higher processing capacity.
Good filtering performance. Our filter press can endure higher feeding pressure, so that get lowest cake moisture.
Low running cost. According to CE standard, our filter press has remarkable performance to decrease the running cost.

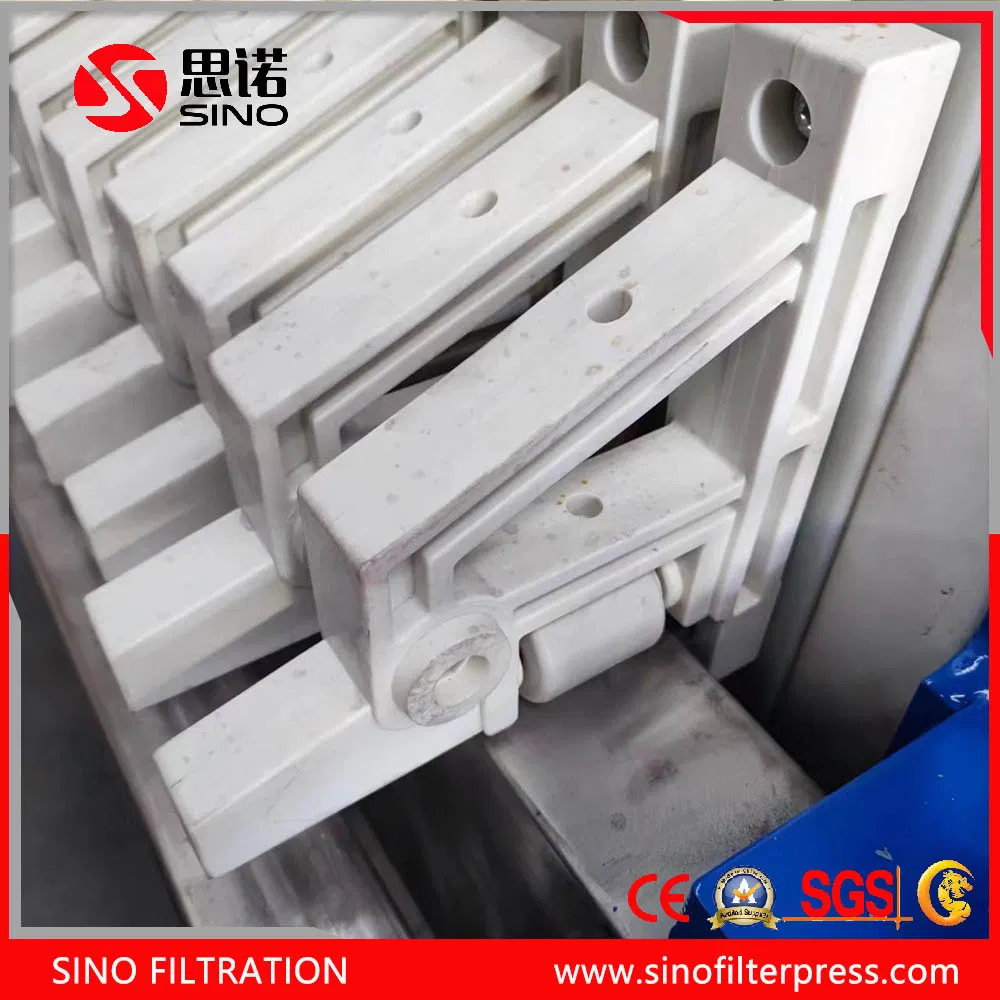

Filter plate are made of reinforced polypropylene with features of high strength, corrosion resistance, nontoxic and odorless.
According to your material we will recommend special filter cloth, which can improving the filtering accuracy and efficiency.
Main beam material is Q235B/Q345B, with sand blasting processing.
Hydraulic station adopt ABB motor ensure stable performance.
Hydraulic squeezing ensures no leakage to avoid secondary pollution.
Cabinet elements adopts international famous brands: Siemens Schneider etc.

Specifications of Filter Press Machine:

Model	Filter Area (m²)	Plate Size (mm)	Cake Thickness (mm)	Volume (L)	Plate QTY (pcs)	Pressure (MPa)	Dimensions (mm)
Model	Filter Area (m²)	Plate Size (mm)	Cake Thickness (mm)	Volume (L)	Plate QTY (pcs)	Pressure (MPa)	Dimensions (mm)
XMGZ 30/870	30	870*870	≤30	427	23	Feeding: ≤1 MPa, Squeezing: ≤1.5 MPa	388012501300
XMGZ 40/870	40			534	29		427012501300
XMGZ 50/870	50			676	37		479012501300
XMGZ 60/870	60			818	45		531012501300
XMGZ 70/870	70			960	53		583012501300
XMGZ 80/870	80			1103	61		635012501300
XMGZ 50/1000	50	1000*1000		665	27		427015001400
XMGZ 60/1000	60			808	33		470015001400
XMGZ 70/1000	70			950	39		513015001400
XMGZ 80/1000	80			1093	45		556015001400
XMGZ 100/1000	100			1378	57		641015001400
XMGZ 120/1000	120			1663	69		726015001400
XMGZ 80/1250	80	1250*1250	≤35	1364	29		483018001600
XMGZ 100/1250	100			1680	37		544018001600
XMGZ 120/1250	120			2092	45		606018001600
XMGZ 140/1250	150			2547	55		682018001600
XMGZ 160/1250	160			2729	59		713018001600
XMGZ 180/1250	200			3457	73		820018001600
XMGZ 200/1250	240			4093	89		942018001600
XMGZ 250/1250	250			4276	91		957018001600
XMGZ 200/1500	200	1500*1500		3866	49		714022001820
XMGZ 250/1500	250			4399	61		773022001820
XMGZ 300/1500	300			5199	73		872022001820
XMGZ 350/1500	350			6132	85		1011022001820
XMGZ 400/1500	400			6932	99		1126022001820
XMGZ 450/1500	450			7731	111		1225022001820
XMGZ 500/1500	500			8665	123		1324022001820
XMGZ 500/1999	500	2000*2000	≤40	9686	69		1031028502400
XMGZ 600/2000	600			11900	85		1158028502400
XMGZ 700/2000	700			13838	99		1274028502400
XMGZ 800/2000	800			15775	113		1410028502400
XMGZ 900/2000	900			17851	128		1536528502400
XMGZ 1000/2000	1000			19788	142		1662528502400

Packaging & Delivery

Delivery: around 3 weeks.

Packing: The packing is seaworthy packing: The filter press will be packed by the plastic film to avoid water. The hydraulic station and cabinet will be packed in wooden case. If need full wooden case please inform in advance.

After-sales Service

Documents supplied: Foundation/Circuit Diagram/Filter Cloth (or Filter Plate).
Site commissioning, installation and training service are valid.
Warranty: 13 months after B/L data.

Frequently Asked Questions (FAQ)

What is a recessed chamber filter press machine?

A recessed chamber filter press is an efficient dewatering tool designed to separate solids and liquids. It operates using pressure driven by feed pumps, capturing solids within the chamber pack while discharging the liquid filtrate.

What wastewater industries can benefit from this filter press?

This filter press is highly versatile, ideal for municipal wastewater and diverse industrial applications such as printing and dyeing, sewage sludge, smelting, leather, pharmaceutical, brewery, chemical electrolysis, mining, and concrete washing wastewater.

What materials are used for the filter plates and main beam?

The filter plates are manufactured using reinforced polypropylene (PP), which offers high strength, corrosion resistance, non-toxicity, and odorless properties. The main beam is constructed of Q235B/Q345B grade steel and treated with sandblasting for extra durability.

How long is the delivery time and how is the machine packaged?

The typical delivery timeline is around 3 weeks. Packing is seaworthy, utilizing protective plastic film for the filter press body and robust wooden cases for the hydraulic station and control cabinet. Custom full-wooden casing is available upon request.

What after-sales service and warranty terms do you provide?

We supply necessary engineering documentation (foundation and circuit diagrams). We also offer valid site commissioning, installation support, and training services. All units come with a 13-month warranty post-B/L date.
