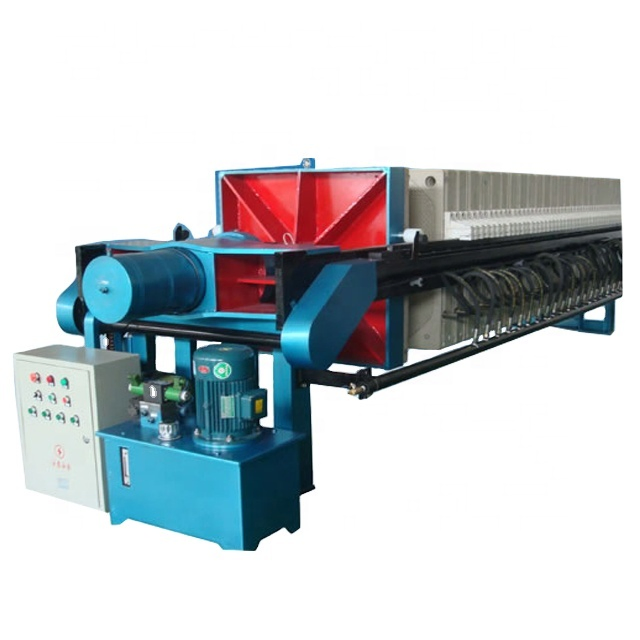

304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
1 / 5
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine

304ss 500 Micron PP Manual Oil Filter Cloth Press Machine

Customization: Available
Structure: Cantilever Beam Type
Filter Material: Cast Iron
Send Inquiry

Product Description

Basic Info
Model NO.
BK
Pressure
Hydraulic Pressure
Type
Plate Filter Press
Features
High Temperature Plate Frame Filter Press
Transport Package
Seaworthy Plate Frame Filter Press
Specification
XMZ Plate Frame Filter Press
Trademark
Plate Frame Filter Press
Origin
China Plate Frame Filter Press
HS Code
8421291090
Production Capacity
50000 pieces/Year
Product Description
What is a filter press?

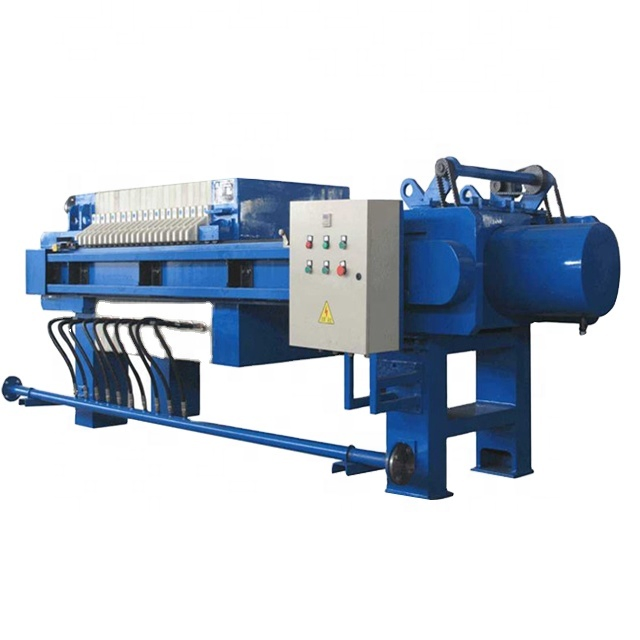

The filter press is an intermittent pressure filtration equipment for solid-liquid separation. It consists of a frame, filter plate pack, filter medium (filter cloth or filter paper), pressing system, and electric control cabinet. While operating, the pushing device drives the head plate to press the filter plates and filter cloths between the head plate and end plate. Then the filter chambers are formed among filter plates. Materials pressurized by the pump enter the filter chambers through the feeding port in the end plate. Solid particles are blocked in the filter chamber and form filter cakes, while liquid is discharged out of the machine through filter cloths.
Model Filter Area (m²) Volume (L) Plate QTY (pcs) Pressure (MPa) Power (Kw) Weight (kg) Dimensions (mm)
XMZ 30/870 30 460 23 0.6 2.2 2680 3180*1400*1230
XMZ 40/870 40 595 30 3050 3570*1400*1230
XMZ 50/870 50 748 38 3456 4110*1400*1230
XMZ 60/870 60 902 46 4003 4550*1400*1230
XMZ 70/870 70 1056 54 4584 4990*1400*1230
XMZ 80/870 80 1210 62 5082 5430*1400*1230
XMZ 50/1000 50 736 28 0.6 4 4128 4040*1500*1400
XMZ 60/1000 60 889 34 4636 4460*1500*1400
XMZ 70/1000 70 1041 40 5143 4760*1500*1400
XMZ 80/1000 80 1193 46 5651 5120*1500*1400
XMZ 100/1000 100 1475 57 6628 5780*1500*1400
XMZ 120/1000 120 1777 69 7644 6500*1500*1400
XMZ 100/1250 100 1468 36 0.6 4 8307 5020*1800*1600
XMZ 120/1250 120 1746 43 9308 5470*1800*1600
XMZ 140/1250 140 2063 51 10455 5990*1800*1600
XMZ 160/1250 160 2341 58 11492 6450*1800*1600
XMZ 180/1250 180 2619 65 12494 6905*1800*1600
XMZ 200/1250 200 2896 72 13504 7360*1800*1600
XMZ 220/1250 220 3214 80 14652 7880*1800*1600
XMZ 250/1250 250 3650 91 16227 8600*1800*1600
XMZ 200/1500 200 2998 49 0.6 11 20030 6400*2200*1900
XMZ 250/1500 250 3594 61 22978 7225*2200*1900
XMZ 300/1500 300 4347 74 26026 8130*2200*1900
XMZ 350/1500 350 5043 86 29220 8950*2200*1900
XMZ 400/1500 400 5796 99 32574 9880*2200*1900
XMZ 450/1500 450 6492 111 35586 10690*2200*1900
XMZ 500/1500 500 7187 123 38606 11560*2200*1900
XMZ 500/2000 500 9686 69 0.6 15 34840 9965*2850*2400
XMZ 600/2000 600 11900 85 38223 11155*2850*2400
XMZ 700/2000 700 13838 99 41641 12345*2850*2400
XMZ 800/2000 800 15775 113 45060 13535*2850*2400
XMZ 900/2000 900 17851 128 48479 14725*2850*2400
XMZ 1000/2000 1000 19788 142 51898 15915*2850*2400

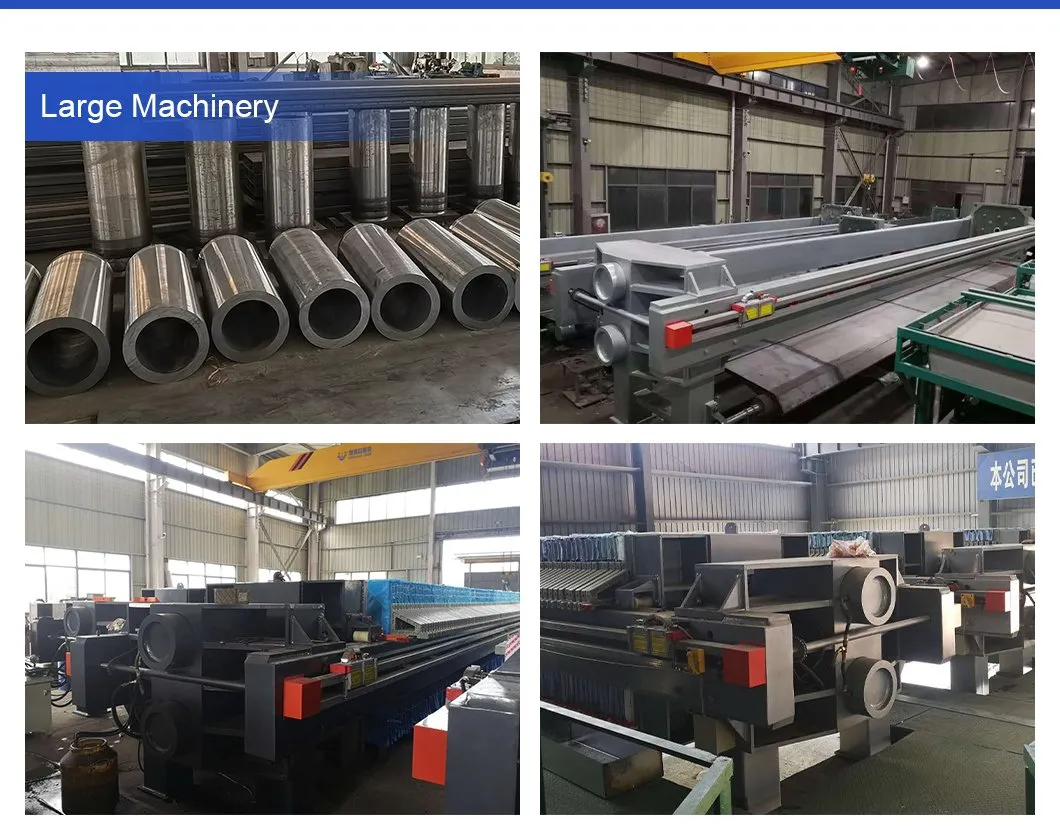

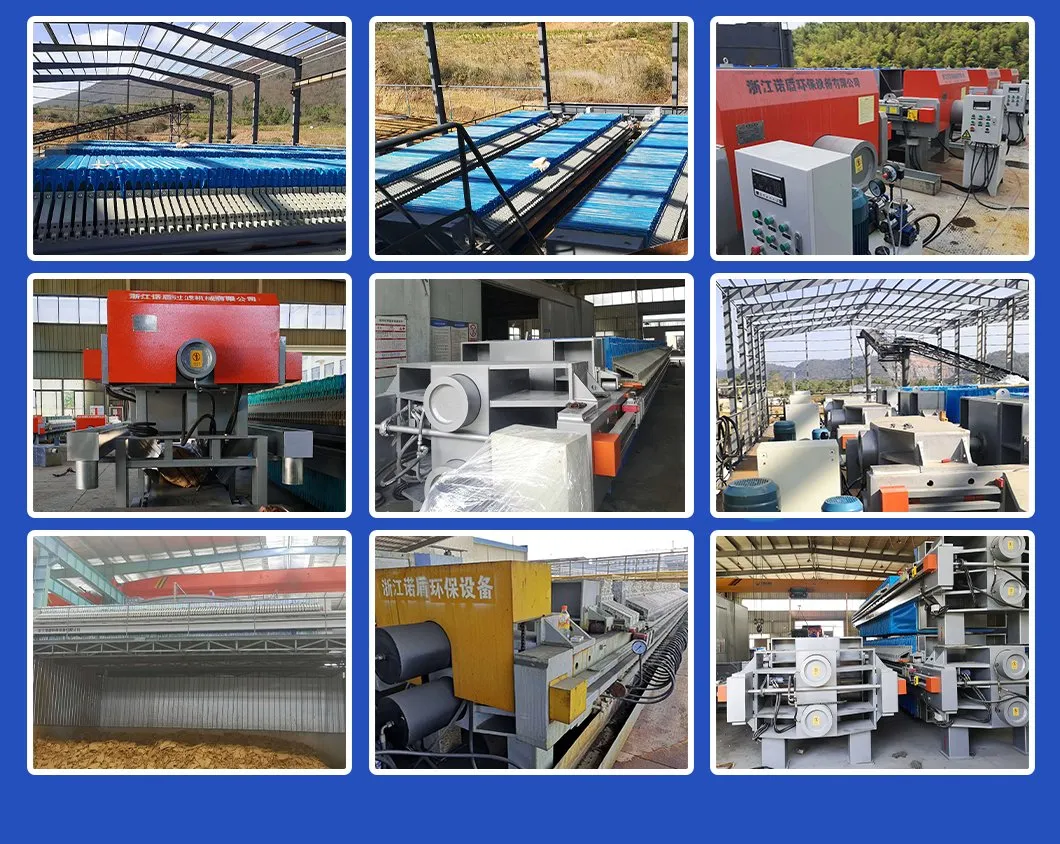

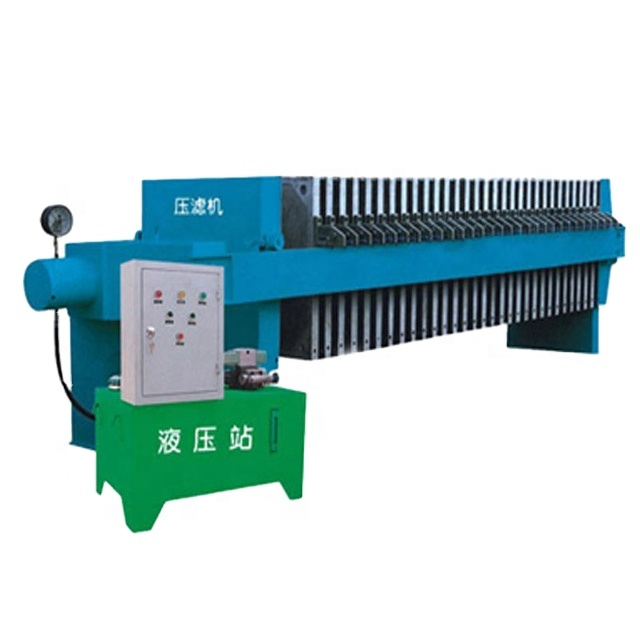

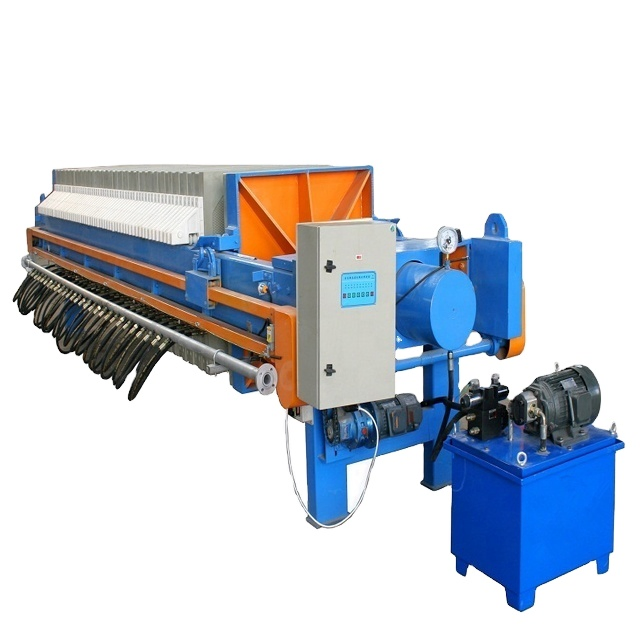

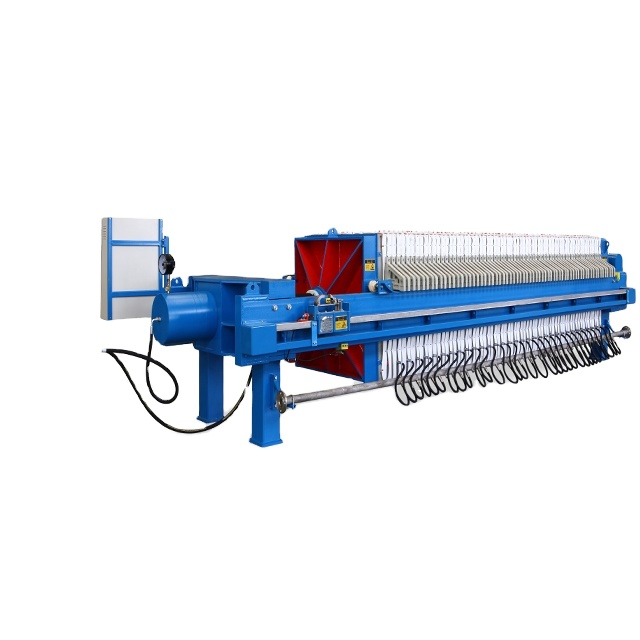

Product Image Gallery
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
304ss 500 Micron PP Manual Oil Filter Cloth Press Machine
Frequently Asked Questions
What is a filter press and how does it work?
A filter press is an intermittent pressure filtration system used for highly efficient solid-liquid separation. It operates by utilizing a pushing device to compress a series of filter plates and cloths, forming closed filter chambers. A pump then feeds pressurized material into these chambers; solids are trapped inside to form filter cakes, while the liquid passes through the filter medium and is safely discharged.
What components make up this plate filter press system?
The filter press system is comprehensively built with five main essential components: a heavy-duty structural frame, a filter plate pack, a high-quality filter medium (filter cloth or filter paper), a reliable mechanical/hydraulic pressing system, and an integrated electric control cabinet for automated or manual operation.
Is this model compatible with high-temperature operations?
Yes, this specific unit is engineered and categorized as a "High Temperature Plate Frame Filter Press." Its structural integrity and component materials are specifically built to withstand high operating temperatures during aggressive filtration cycles.
What is the production and supply capacity for this filter press?
We maintain an exceptionally high production capacity of up to 50,000 pieces per year, allowing us to seamlessly accommodate large-scale industrial projects and wholesale commercial orders with prompt delivery times.
How do I choose the correct model based on technical specifications?
When selecting the ideal model, you must evaluate critical parameters from our specifications sheet, including the required Filtration Area (ranging from 30m² up to 1000m²), Chamber Volume (L), Plate Quantity (pcs), Operating Pressure (typically 0.6 MPa), overall Motor Power (Kw), and physical dimensional restrictions.
How is the equipment packaged and shipped?
To guarantee zero damage during transit, all equipment is shipped using premium standard "Seaworthy Plate Frame Filter Press" packaging. This heavy-duty packaging is specifically designed to resist moisture, corrosion, and physical vibrations during long-distance international maritime freight.
