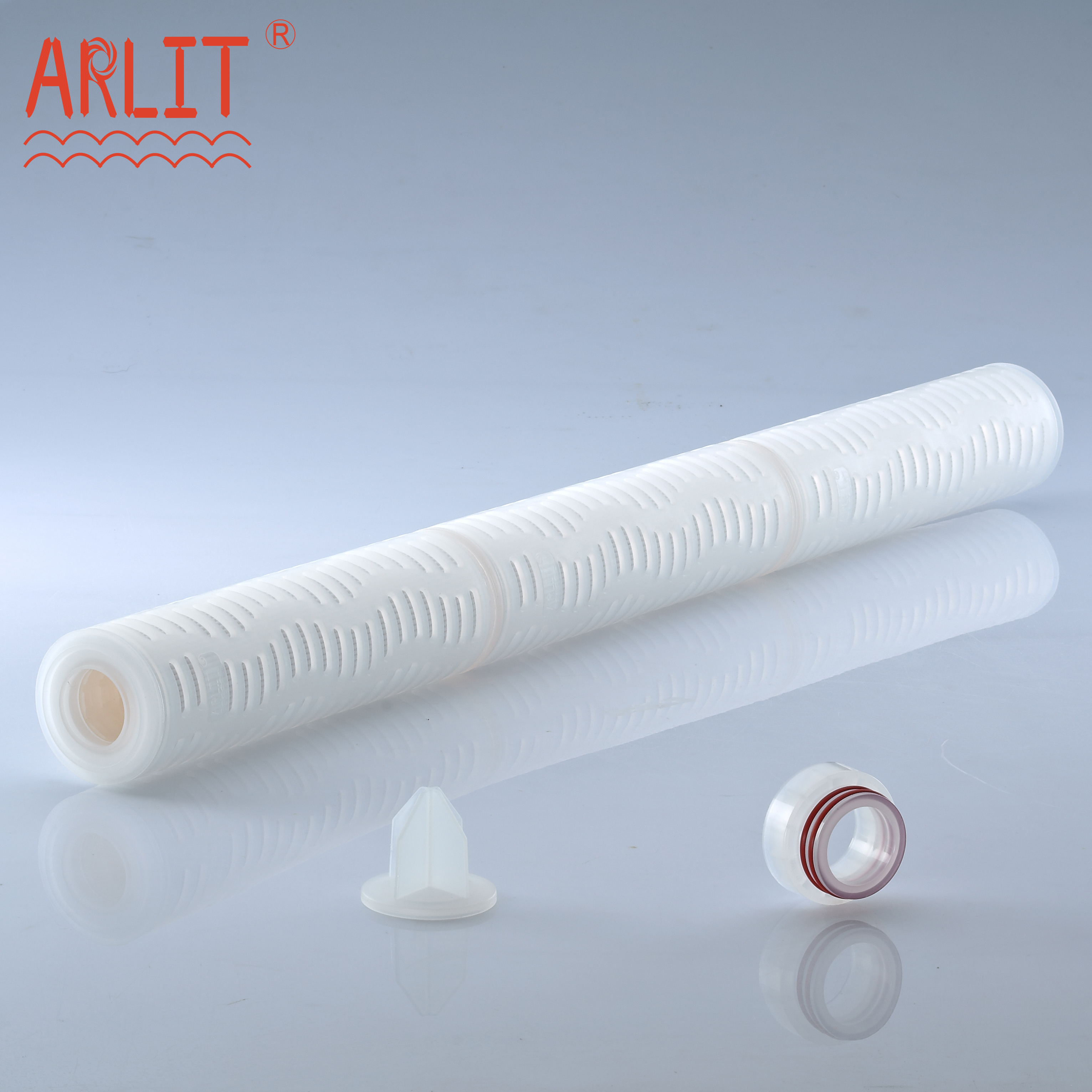

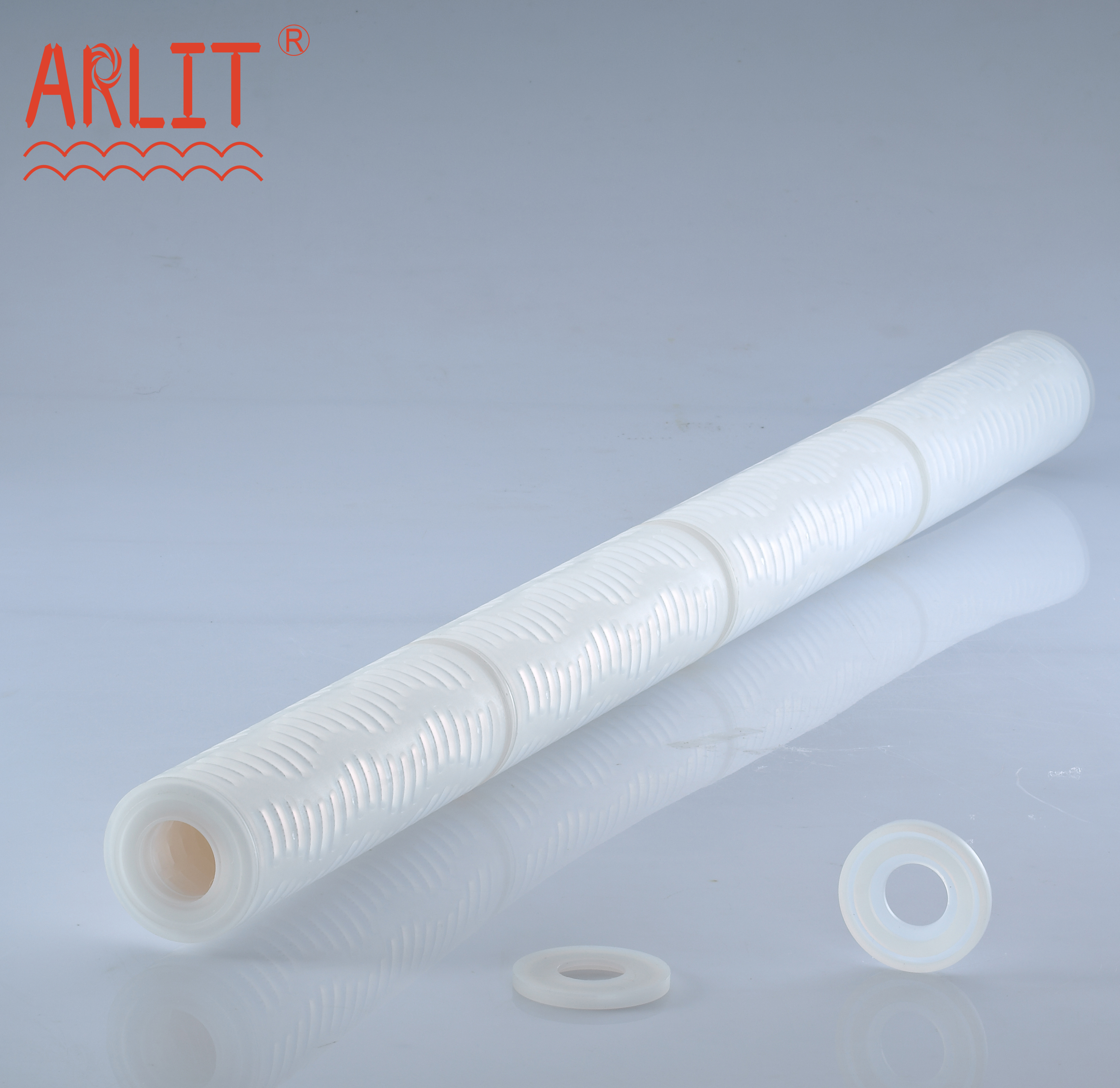

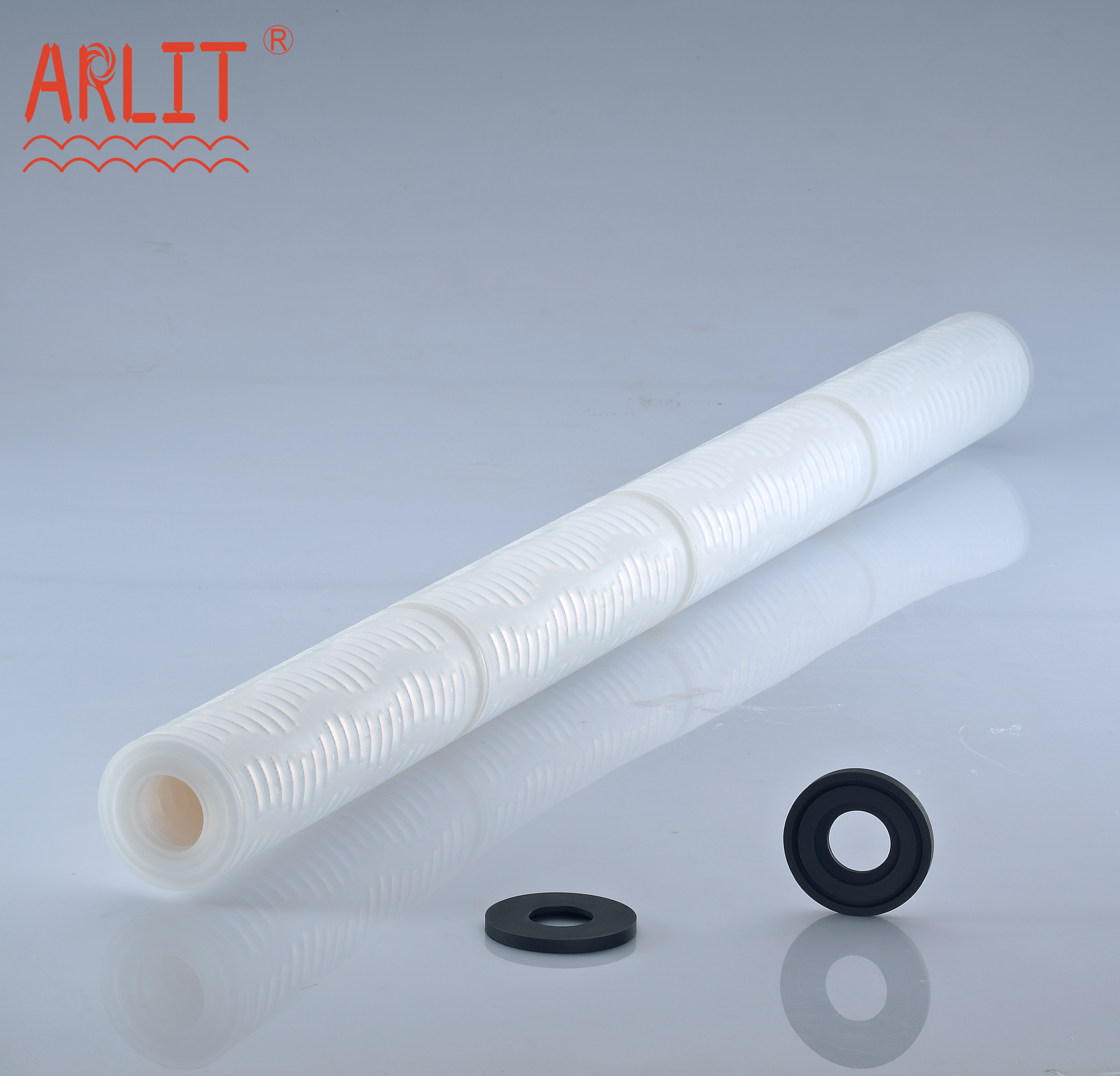

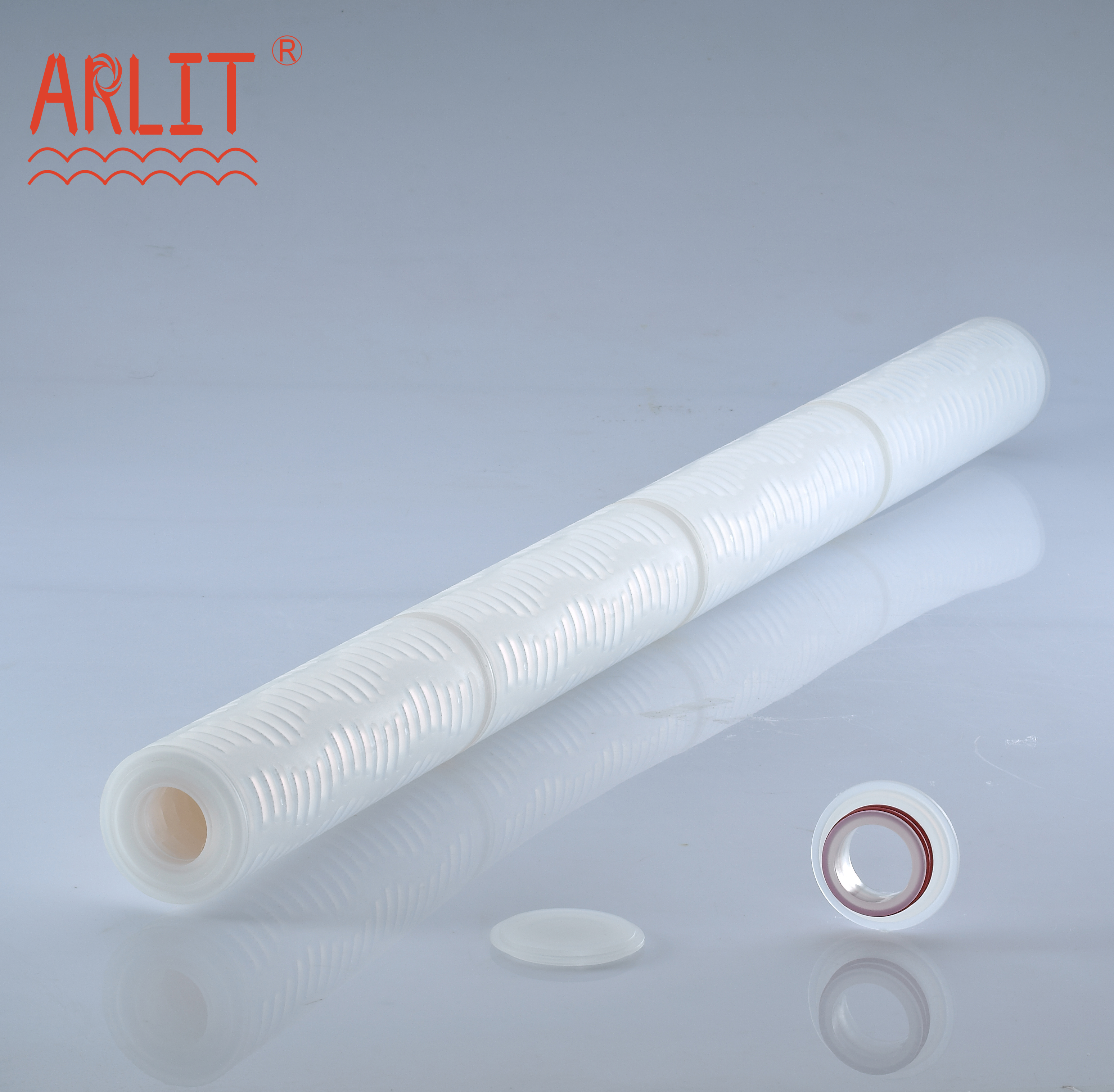

ARLIT 0.2 Micron 30 Inch PES Membrane Pleated Water Filter Cartridge For Liquid Filtration

The filtration media of PES membrane filter cartridge is PES membrane. High porosity (about≥80%) and geometrically unique pores of the PES cartridge contribute to high throughputs for difficult-to-filter solutions. It is constructed of two materials PES and PP to meet high standards of chemical and pharmaceutical industry.

Benefit Summary

Unique hydrophilic, no including surfactant and lubricant, providing wide filtration pore size and high flow rate. Features a wide range of Ph values, lower adsorption capacity of protein and valuable biological agents, high retention rate, super chemical tolerance, thermal stability, good strength, and ability to withstand shocks and back pressures. All products have passed 100% integrity testing.

Specification

Filter medium	Hydrophilic PES Membrane
Support layer	Polypropylene (PP)
Filter cage	Polypropylene (PP)
Pore size	0.1, 0.2, 0.45, 0.65, 1µm
Length	5, 10, 20, 30, 40 inches

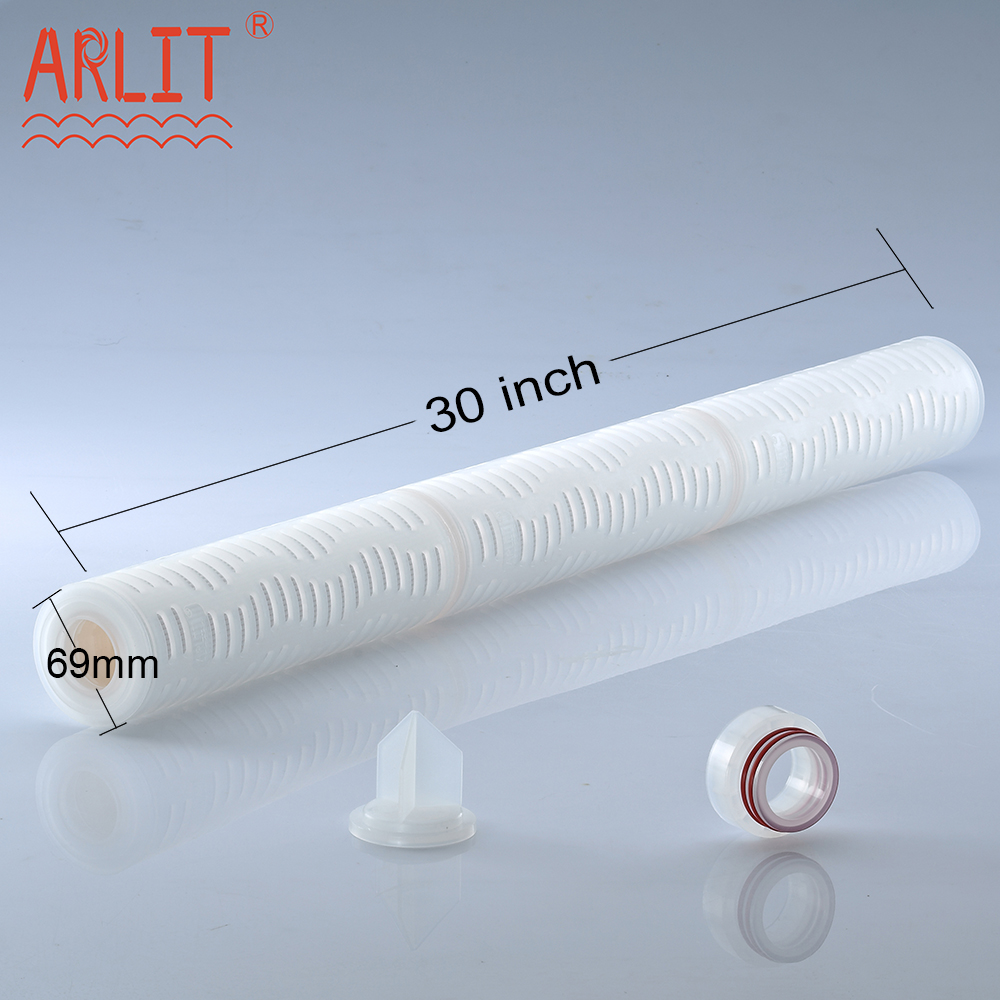

OD/ID	69 mm / 34 mm
Gasket / O - rings	Silicone, NBR, EPDM, Viton
Interface	DOE, 215, 222, 226 flat/fins
End caps	DOE, 0050, 0050A, 0050B
Sealing method	Thermal bonding technique
Effective filtration area	0.6 m² / 10"
Max. operating temperature	140℃, 0.28 Mpa
Max. forwarder differential pressure	0.42 Mpa (25℃)
Max. reverse differential pressure	0.21 Mpa (25℃)
Sterilizing temperature	121℃, 30min

Typical Applications

Pharmacy Industry

Final filtration of injecta, eye drops, non-high temperature sterilization products, biologicals, vaccine, and serum.

Food Industry

Wines, mineral water, drinking water, and beverage filtration.

Electronic Industry

Final filtration of high purity water and chemical raw materials.

Pure water flow rate reference table (initial value of 10" cartridge L/min, ΔP=0.01MPa, 1cP, 25℃):

Micro rating (μm)	0.1	0.2	0.45	0.65	1
Flow rate (L/min)	11	21	27	33	40

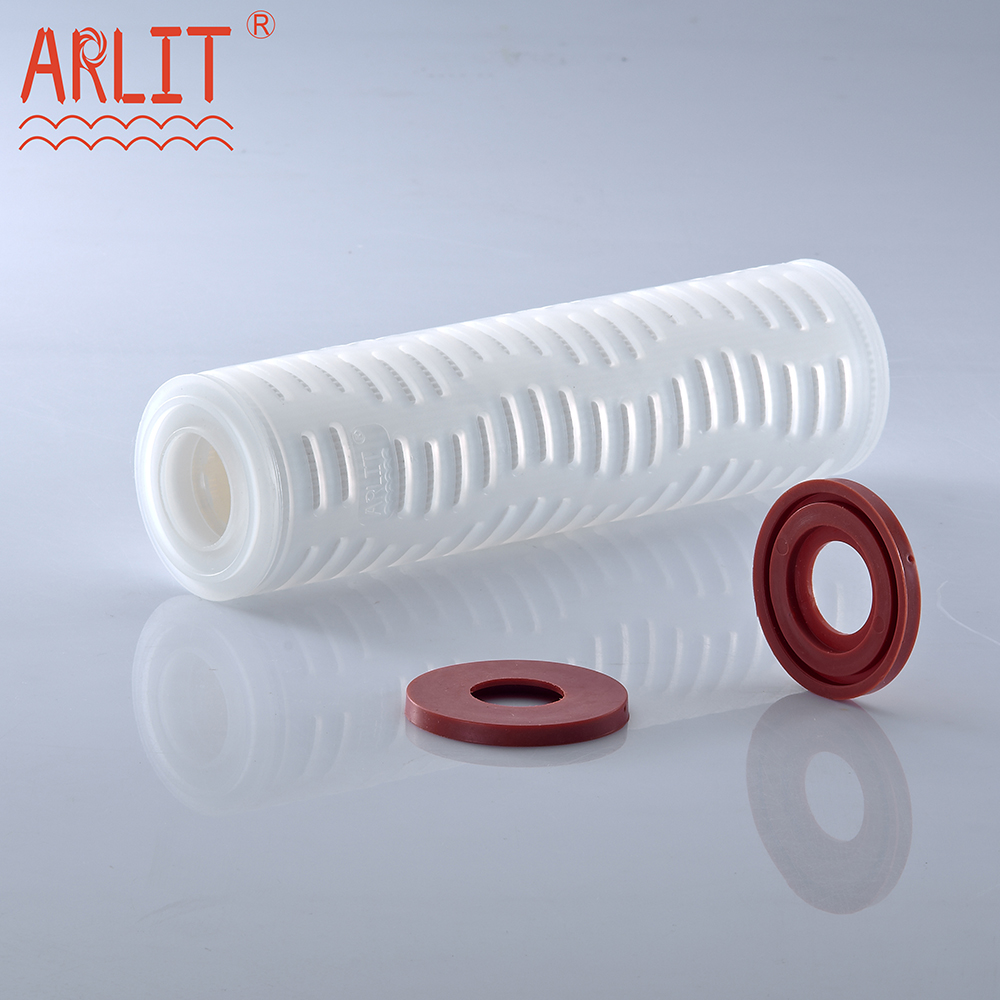

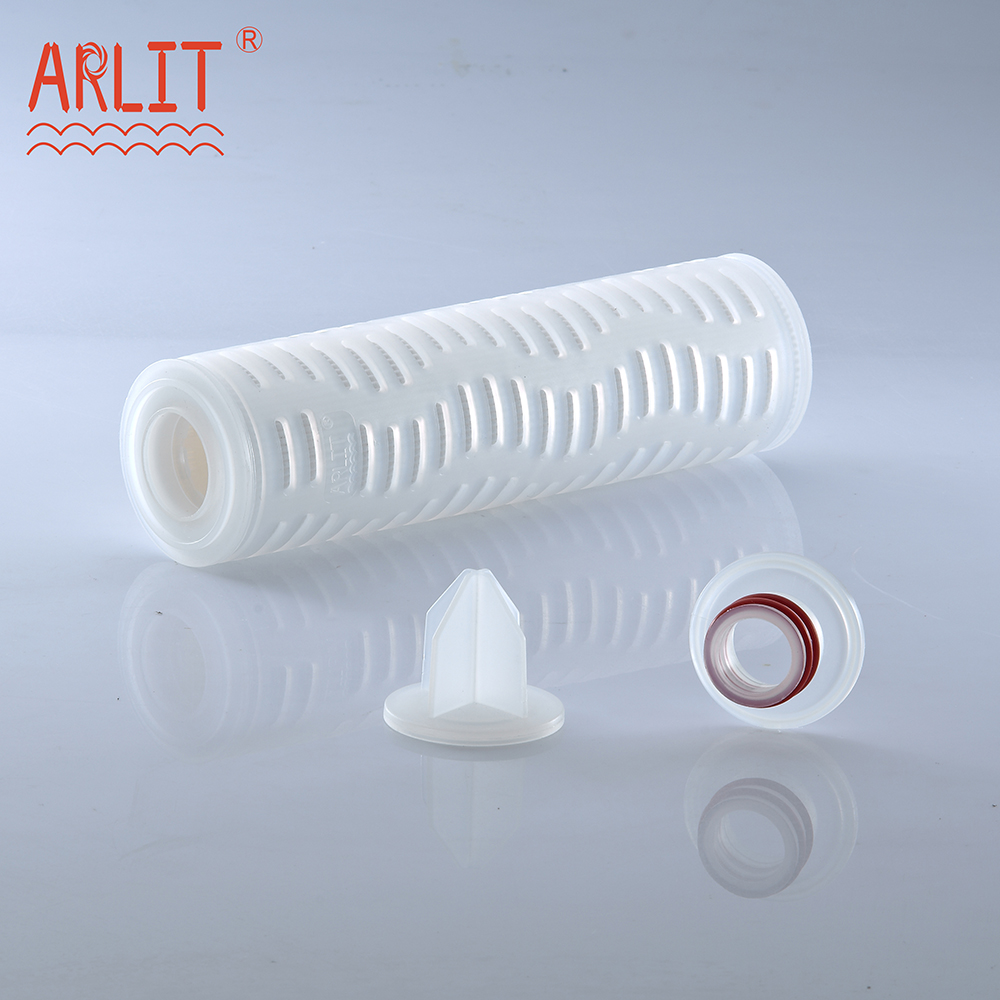

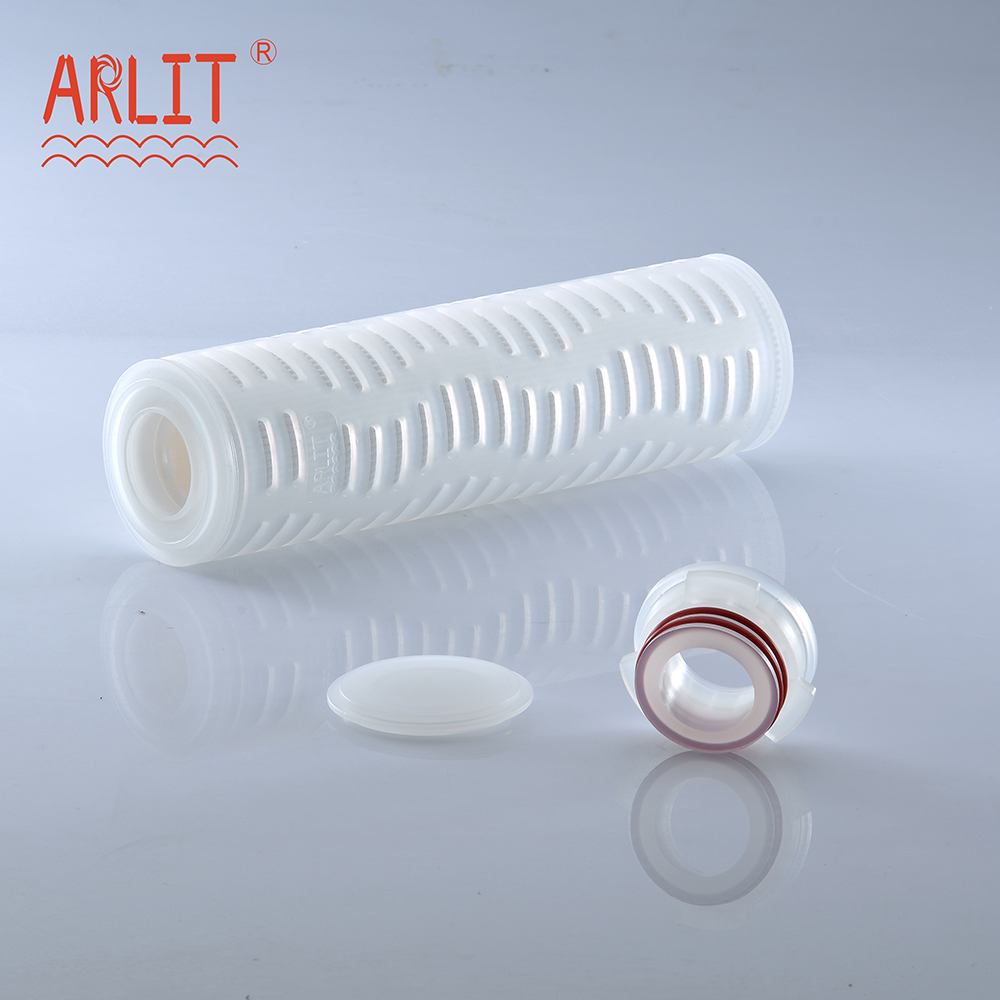

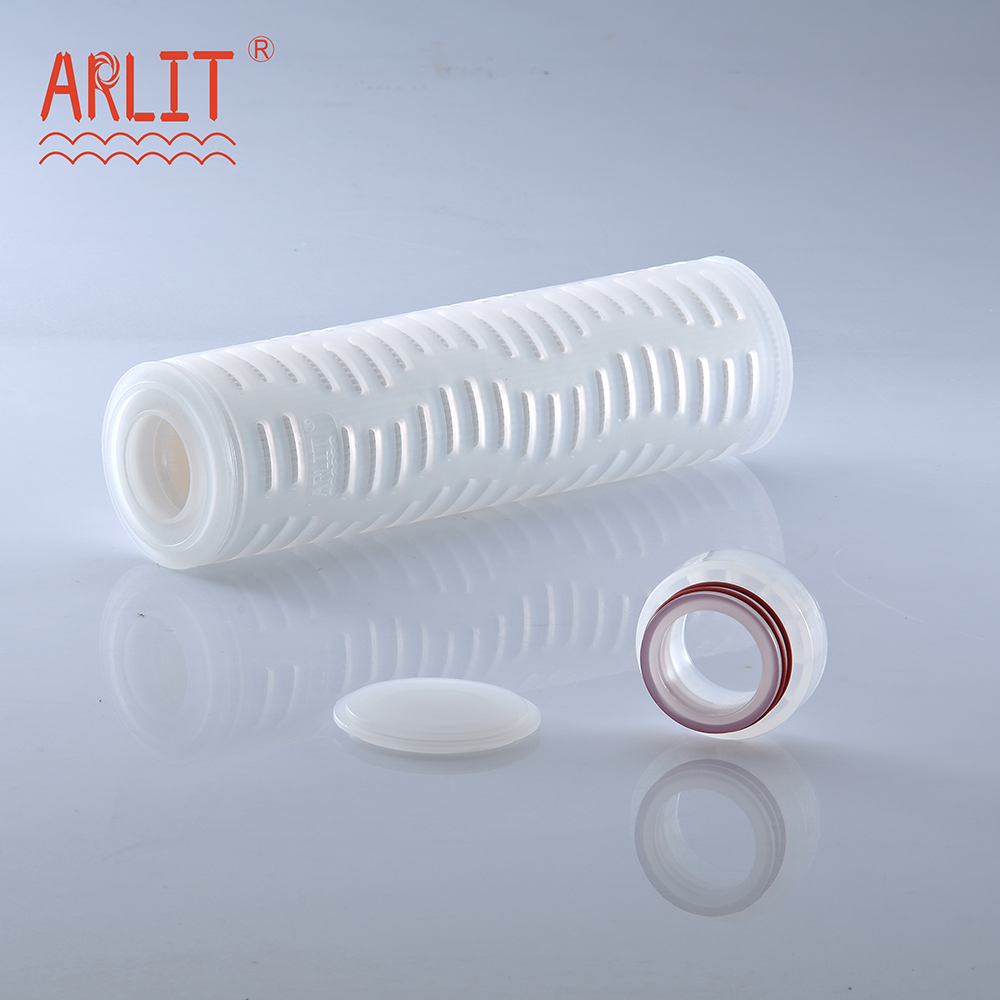

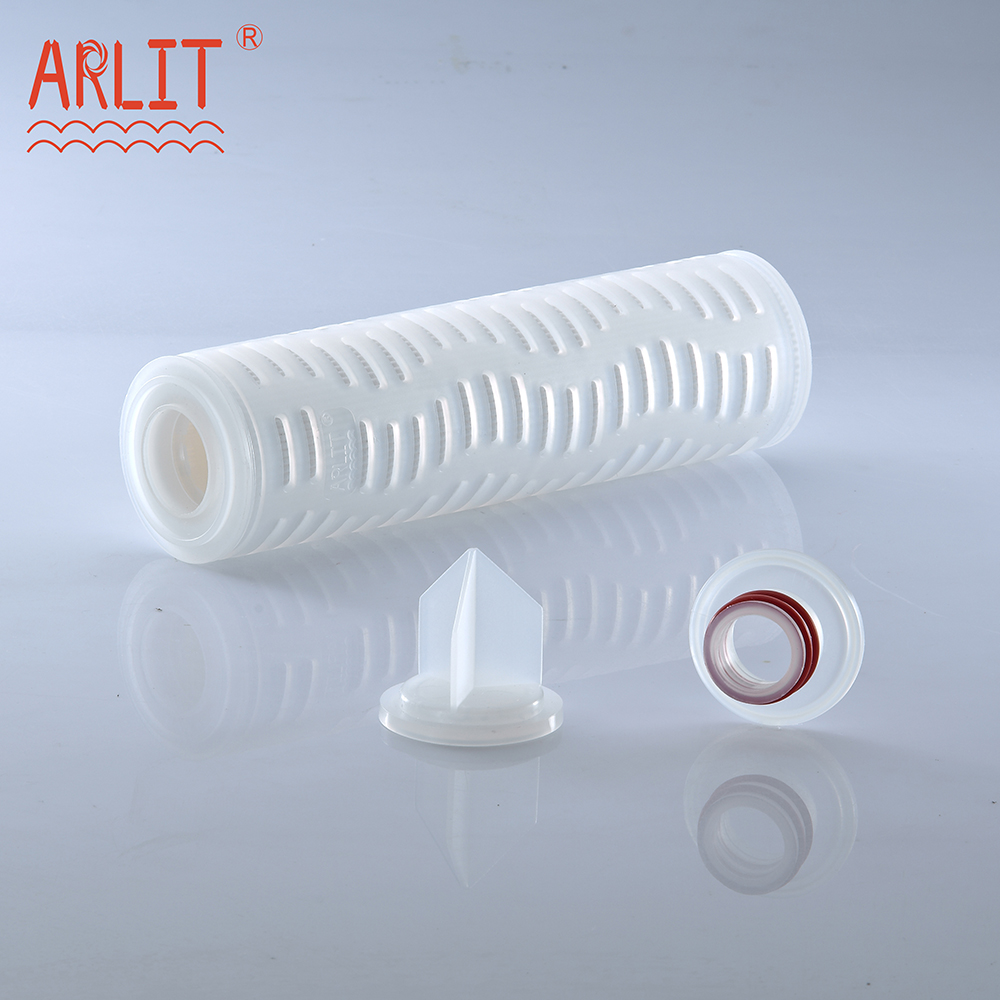

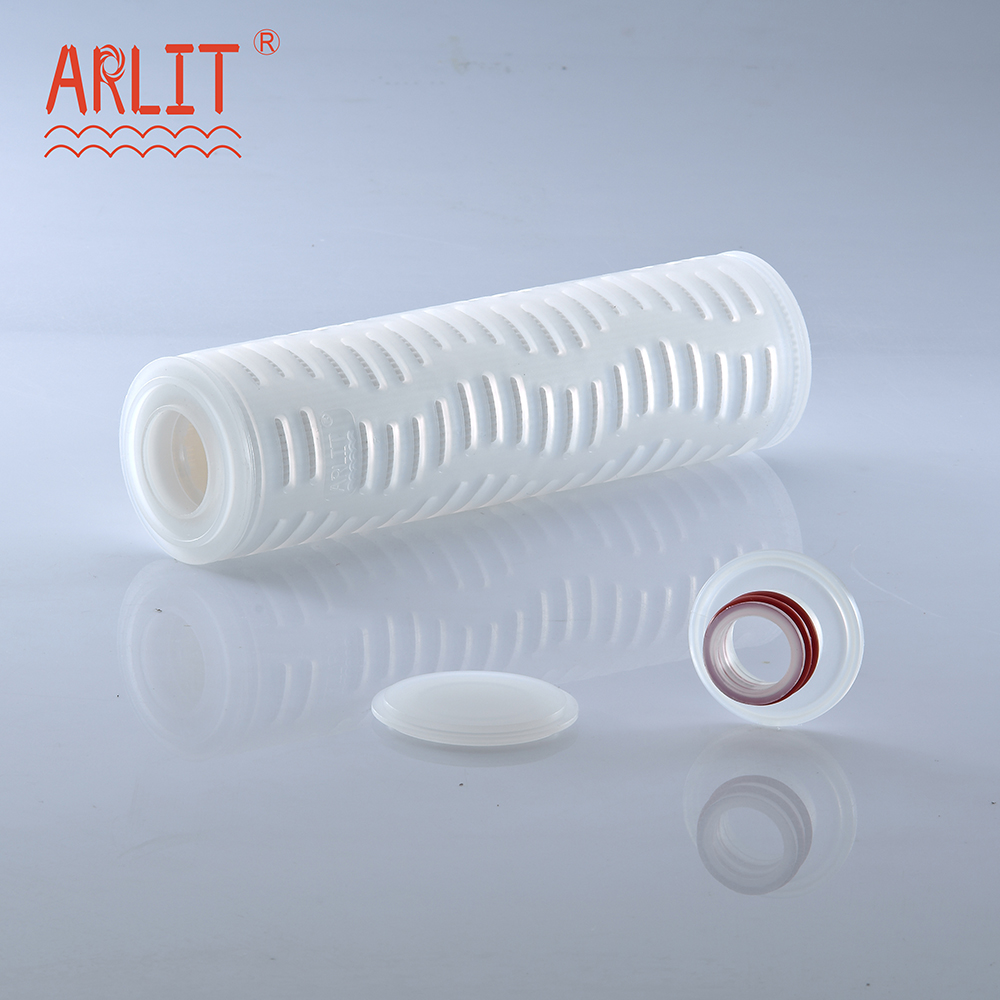

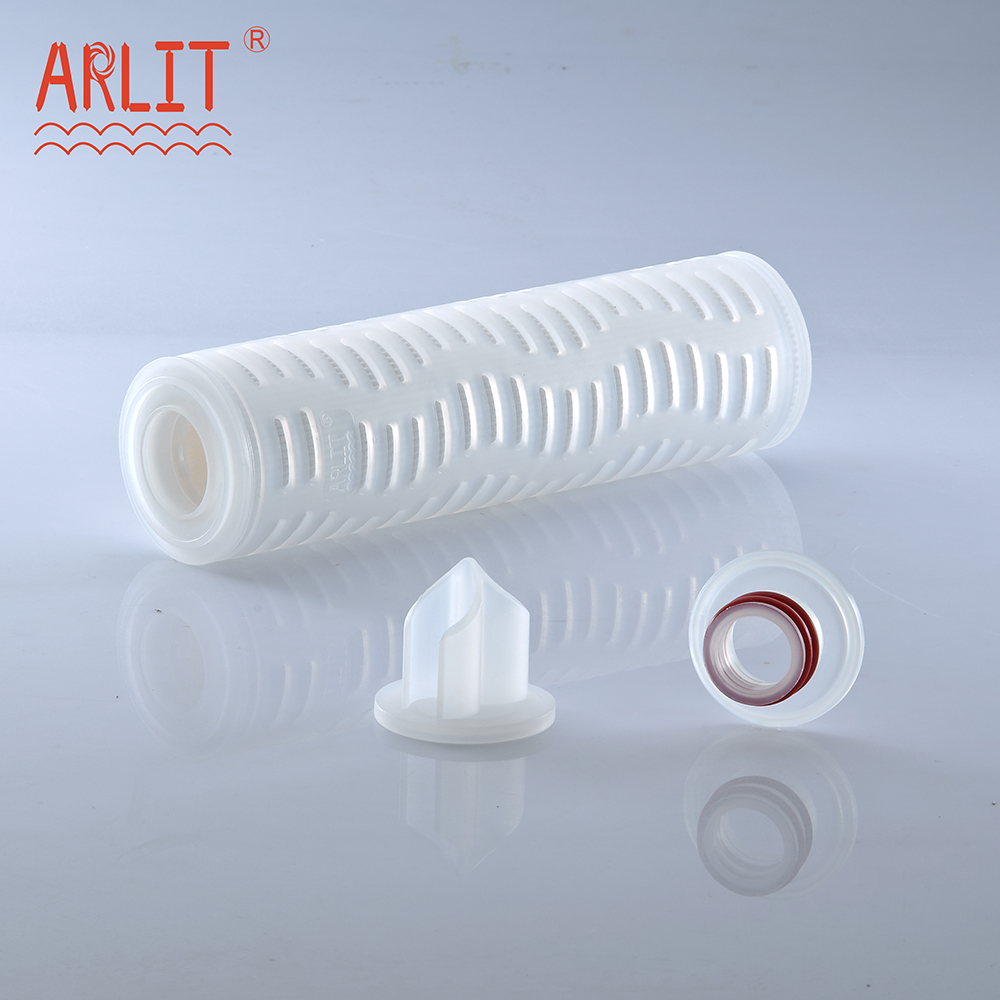

Details Images

Our Services

We are a manufacture, can offer competitive prices.
ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine, bacterin, electronics, chemistry, electroplate, petroleum, foods, brewage, drinking water, environmental protection and water treatment.
We have monthly production volume, with large output capacity, we can promise short delivery time.

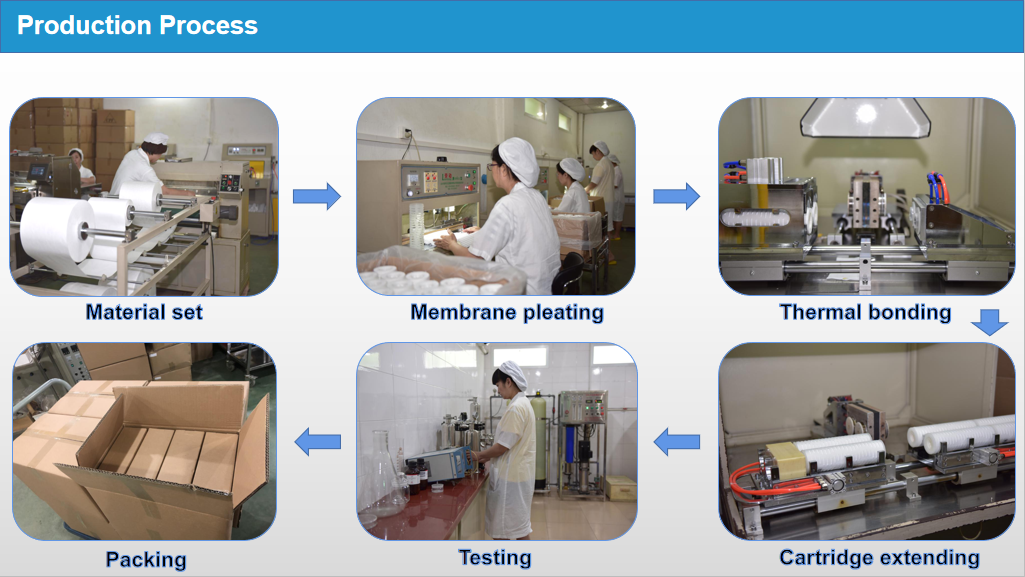

We have entire seal asepsis production workshop, manual production and automatic production can promise all products are inspected 100% inspected before shipment.
We have large inventories for common items which also contribute to shorten delivery time.

Frequently Asked Questions (FAQ)

Q1: What are the construction materials of the filter cartridge?

A1: It is constructed of two high-quality materials: Polyethersulfone (PES) membrane for the filtration medium, and Polypropylene (PP) for the support layer, filter cage, and end caps to meet the standards of chemical and pharmaceutical industries.

Q2: What typical industries and applications is this cartridge used for?

A2: It is widely applied in medicine, bacterin, electronics, chemistry, electroplate, petroleum, food, brewage, drinking water, environmental protection, and water treatment. Key applications include final filtration of injecta, eye drops, vaccine, biologicals, wines, mineral water, and high purity water.

Q3: What pore sizes and length specifications are available?

A3: The filter cartridge is available in pore sizes of 0.1, 0.2, 0.45, 0.65, and 1µm, and comes in lengths of 5, 10, 20, 30, and 40 inches.

Q4: What are the thermal and pressure limitations of this filter cartridge?

A4: The max operating temperature is 140℃ at 0.28 Mpa. The max forwarder differential pressure is 0.42 Mpa (at 25℃), the max reverse differential pressure is 0.21 Mpa (at 25℃), and the sterilizing temperature limit is 121℃ for 30 minutes.

Q5: How do you guarantee the quality and integrity of the filter cartridges?

A5: We utilize an entire seal asepsis production workshop combining manual and automatic processes, promising that all products are 100% inspected and pass integrity testing before shipment.
