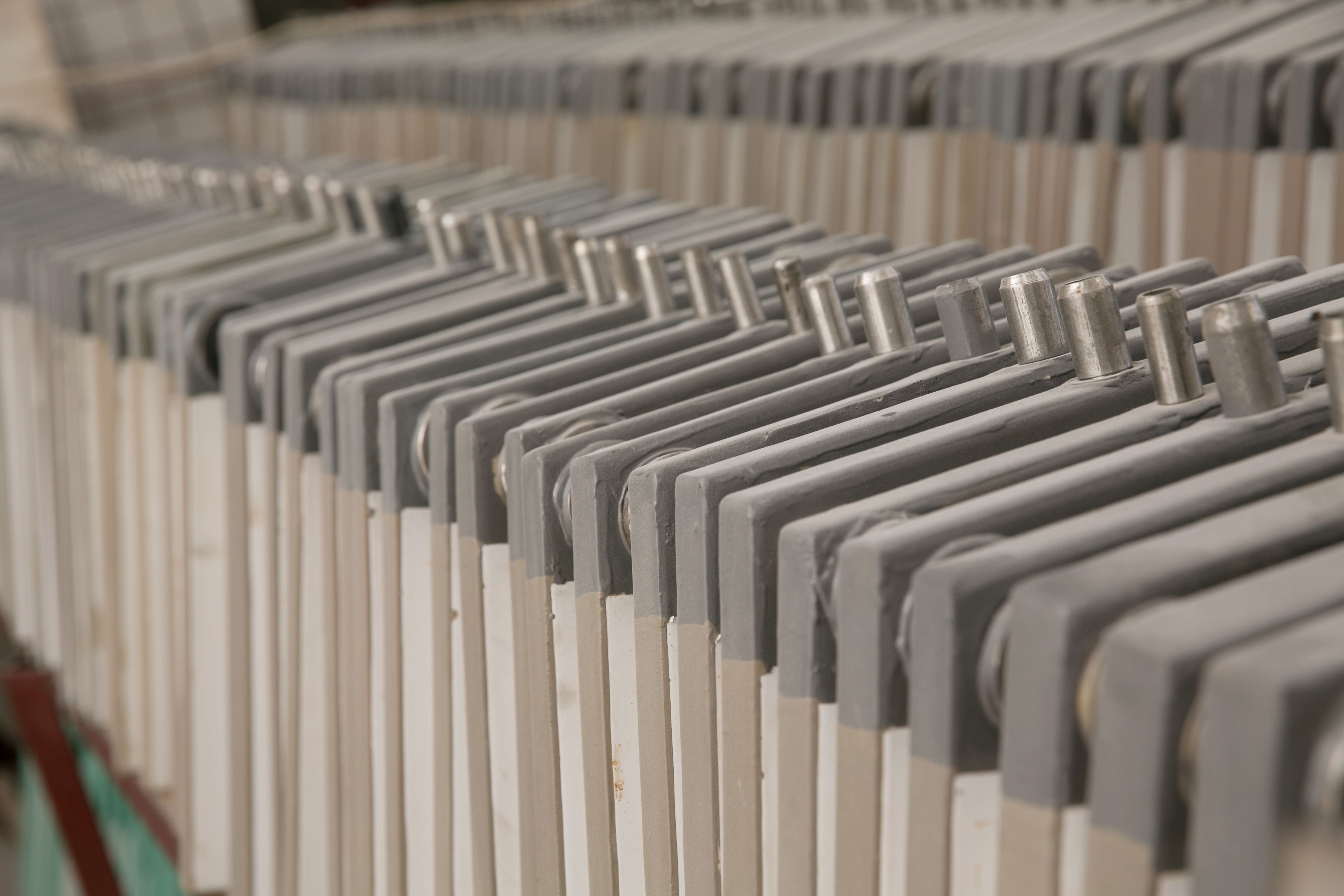

Our ceramic filter plate is a kind of large porous ceramic disc which is fired by inorganic membrane making technology. It has following characteristics: large filter area, high intensity and even aperture. Besides, the aperture size can be adjusted according to actual demands. The basic material is alumina, it has good resistance to acid and alkali. After a period of application, the ceramic filter plate can be cleaned by cycle reverse cleaning, ultrasonic and chemical cleaning agent and so on, to let the plates work with high efficiency.

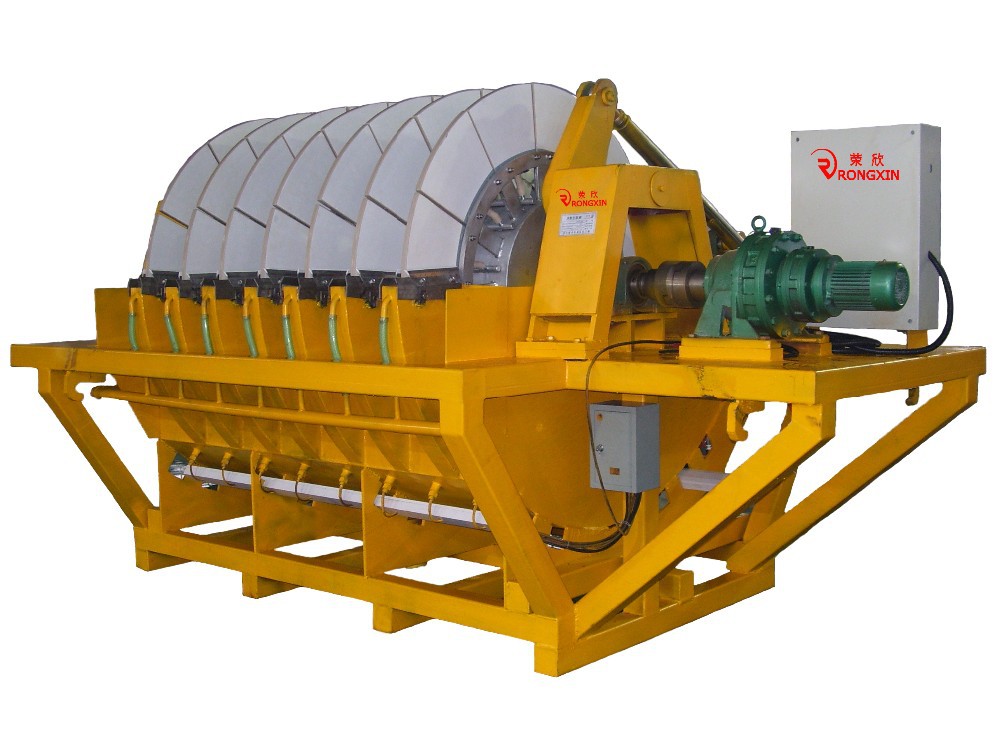

Technical Data of Separator Machine
Filter Flux
1200-1800kg/h.m² (at water pressure 0.1Mpa)
Recoil Atmospheric Pressure
Minimum 0.6Mpa (in damp environment)
Back Wash Pressure
Maximum 0.3Mpa
Combined Cleaning Pressure
Maximum 0.2Mpa (ultrasonic and chemical agent)
Pore Diameter Range
1.0μm - 15μm on membrane surface
Dry Weight of Processed Materials
0.6-1.6t/h.m²
Specifications and Dimensions of RX Series
| Specification |
Exterior Dimension |
RX30-10 |
RX60-15 |
RX80-16 |
RX144-12 |
RX240-20 |
|
Unit |
L1 |
L2 |
L3 |
B |
C |
| 2m²/12 |
|
mm |
225 |
165 |
380 |
320 |
25 |
/ |
/ |
/ |
/ |
/ |
| 3m²/12 |
|
mm |
295 |
239 |
485 |
395 |
25-30 |
/ |
/ |
/ |
/ |
/ |
| 4m²/12 |
|
mm |
338 |
276 |
555 |
441 |
30 |
/ |
/ |
/ |
/ |
/ |
| 5m²/12 |
|
mm |
300 |
240 |
568 |
550 |
35 |
/ |
/ |
/ |
/ |
/ |
| 6m²/12 |
|
mm |
294 |
235 |
603 |
619 |
32 |
/ |
/ |
/ |
/ |
/ |
| 12m²/15 |
|
mm |
/ |
430 |
777.3 |
822 |
36 |
/ |
/ |
/ |
/ |
/ |

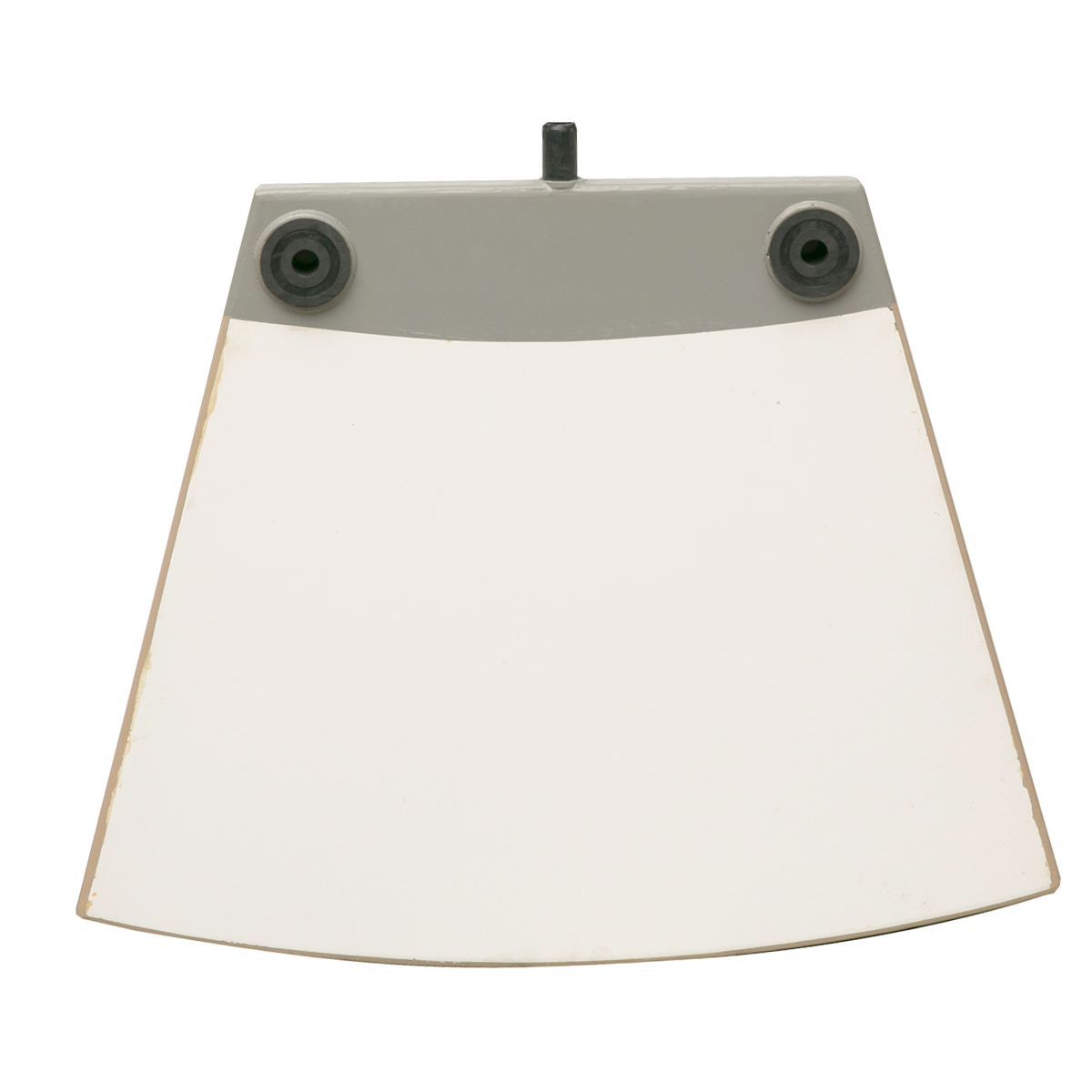

Note:
L1 = Bottom width of sector plate;
L2 = Space between two installation holes' center;
L3 = Top width of sector plate;
B = Total height of sector plate;
C = Thickness of sector plate.
Moreover we can provide products in all kinds of models and dimensions as customers' demands.
Why Choose Our Ceramic Filtration Solutions
- We are among the few suppliers offering 144m², 204m² and 240m² ceramic filters and 12m² ceramic filter plates.
- Established in 2003, we have 13 years' experience in ceramic filters and plates. We can manufacture ceramic filters from the smallest RX-1 (filtration area 1m²) to world's largest RX-240 (240m²).
- We can produce ceramic filter plates of all models available in the market. We can also produce customized models. We can provide all integrated solutions for customers' material dewatering operations.
- With advanced technology and rich experience, our annual capacity is up to 150,000 units.
- With our independently developed one-module pouring technology and the new membrane surface, our products have much better performance and longer service life. These core technologies are our solely owned intelligence properties and patents.
Frequently Asked Questions
Are you trading company or manufacturer ?
We are manufacturer.
How long is your delivery time?
For ceramic filter, the production time is around 35 days;
For ceramic filter plate, the production time is around 15 days. Generally, we have the ceramic filter plates in stock.
Do you provide samples ? is it free or extra ?
For ceramic filter, we don't supply the free sample.
For ceramic filter plate, yes, we could offer the sample for free charge but do not pay the cost of freight.
What is your terms of payment ?
Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shipment.
What materials are the ceramic filter plates made of?
The basic material is alumina, which provides excellent resistance to both acid and alkali chemical environments.
How can the ceramic filter plates be cleaned for efficiency?
After a period of application, the ceramic filter plates can be cleaned using cycle reverse cleaning, ultrasonic cleaning, and chemical cleaning agents to restore high working efficiency.
