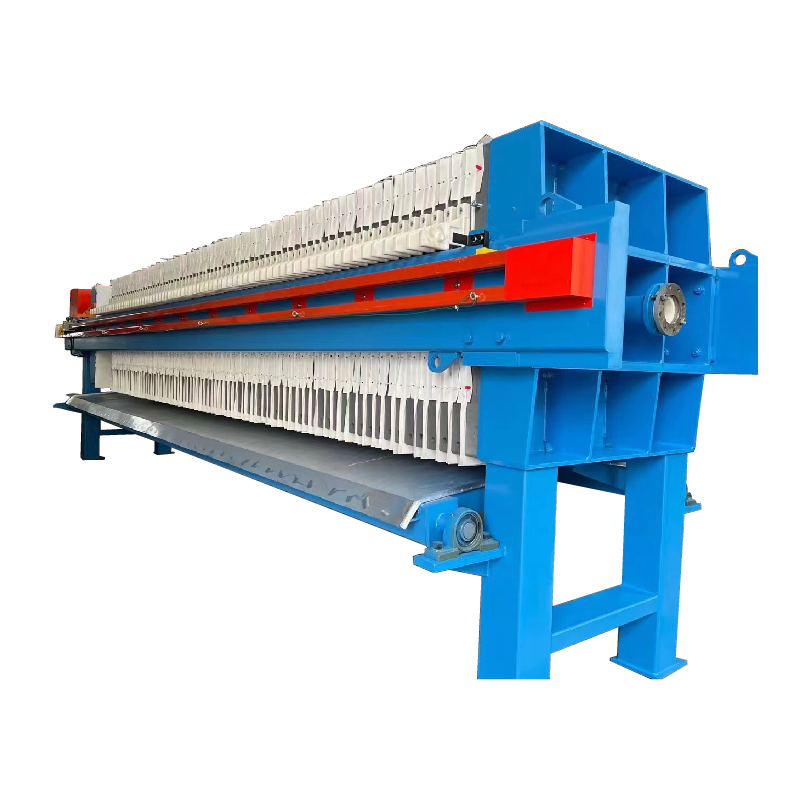

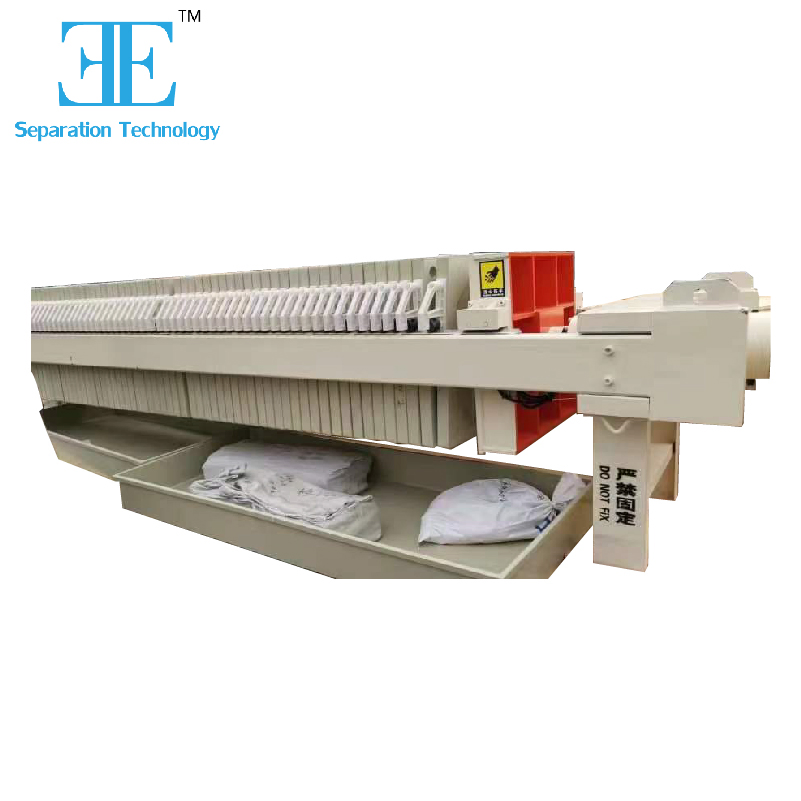

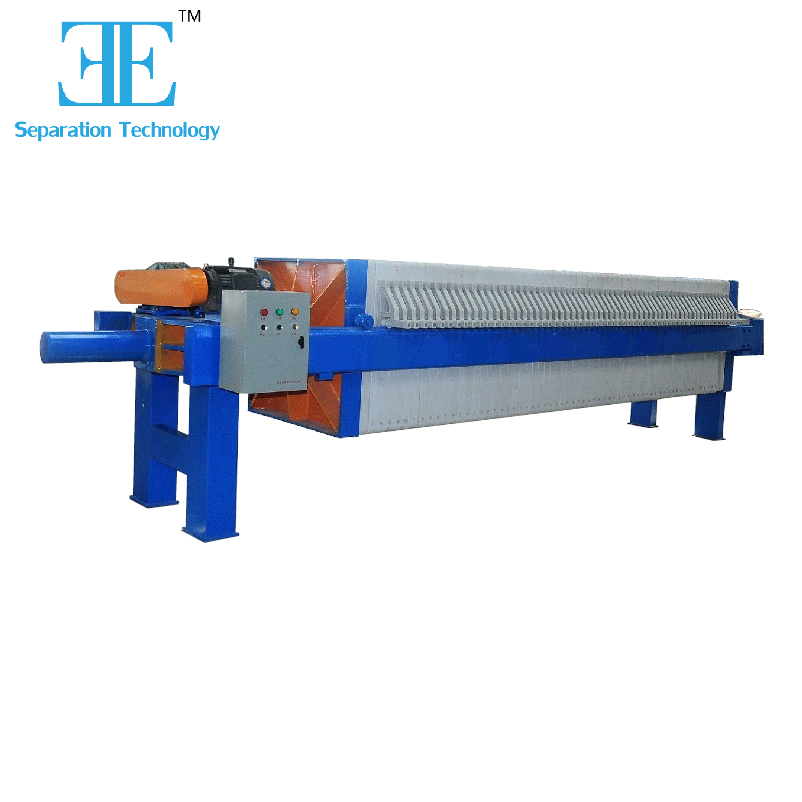

Filter press consist of frame, filter plate, pressing system and electric control cabinet. Frame consist of base, push plate and girder and supports the pressing device and filter plate. Filter plates are installed on girder between tail plate and push plate, with filter cloth sandwiched in them. In operation, the pressing device drives the push plate to press the filter plates and filter cloth between push plate and tail plate. The function of electric control cabinet is to control the process of the sludge dewatering, such as set the dewatering time, the pump pressure, the treating capacity, and so on.

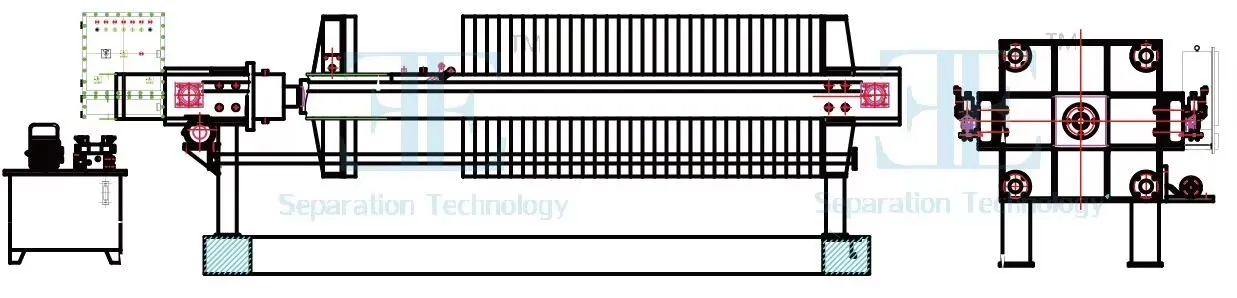

Filter Press Technical Drawing

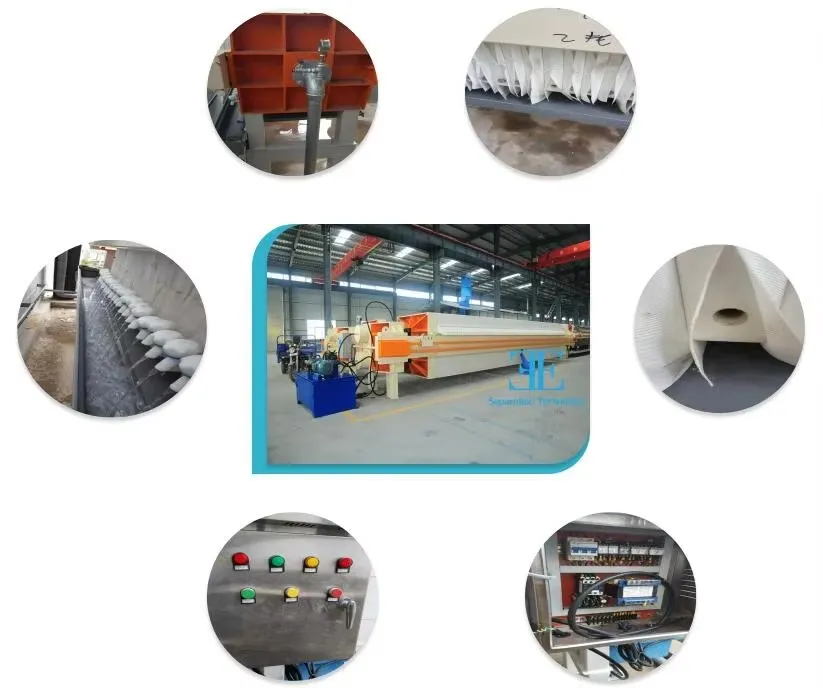

Application of Filter Press
Municipal Sewage
Slaughter House
Metallurgical Industry Wastewater
Spraying Sewage
Printing & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage

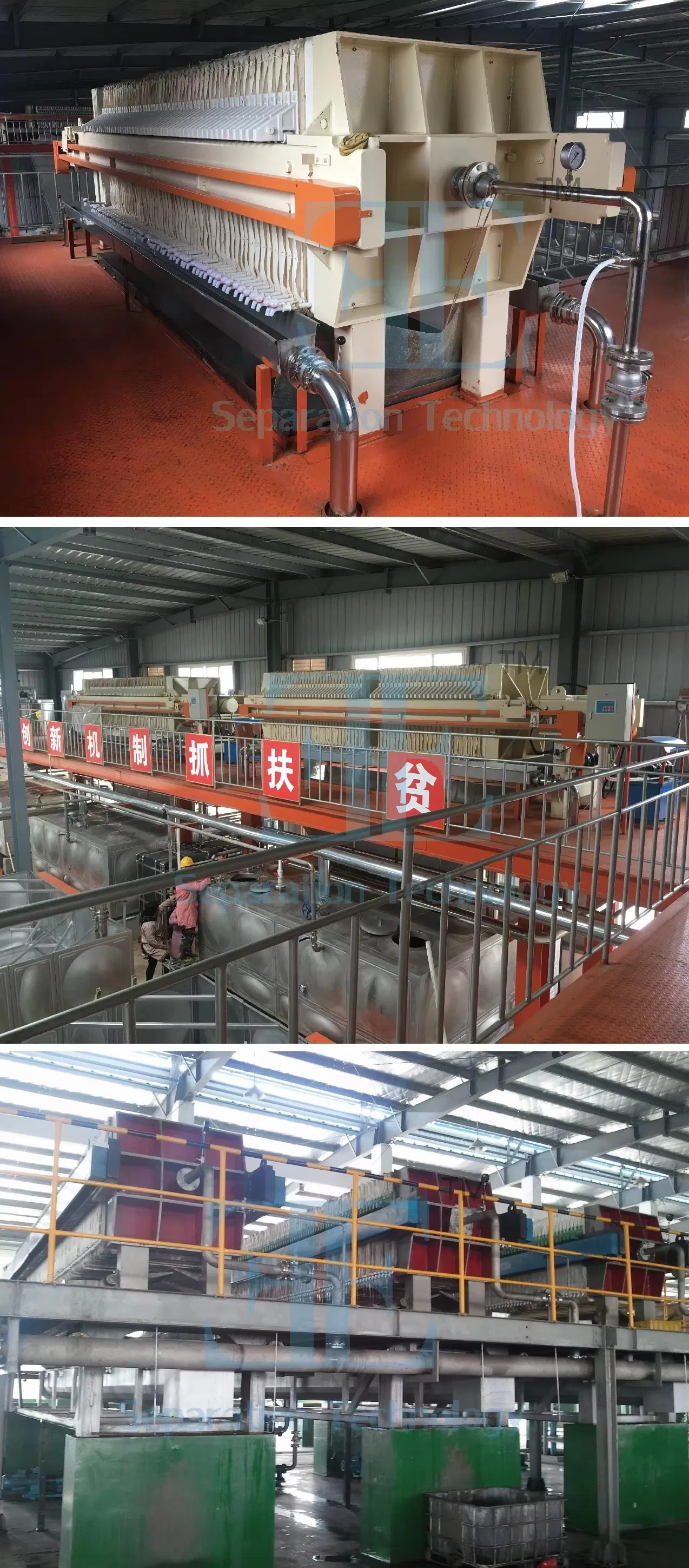

Production Overview
Frequently Asked Questions
QWhat is the primary function of this filter press?
This filter press is designed for highly efficient solid-liquid separation, primarily utilized in industrial and municipal sludge dewatering systems to optimize waste management processes.
QHow does the pressing system operate to achieve dewatering?
The pressing device systematically drives the push plate, pressing the filter plates and the filter cloth together between the push plate and the tail plate. This mechanism applies stable pressure to squeeze out liquid from the sludge mixture.
QCan the filter press parameters and dimensions be customized?
Yes, our filter press specifications are fully customizable. Dimensions, plate sizes, and technical features can be adjusted depending on the specific requirements of your factory setup.
QWhat types of wastewater are suitable for this equipment?
This equipment is ideal for treating municipal sewage, slaughterhouse waste, metallurgical industry wastewater, printing and dyeing sewage, spraying sewage, metal-processing sewage, mining stone wastewater, and electronic industry sewage.
QHow is the sludge dewatering process managed?
The system features an electric control cabinet that automates the operation. Operators can set key parameters, including dewatering time, pump pressure, and overall treating capacity, to ensure precise control.
QWhat is the maximum filter pressure supported?
This industrial sludge dewatering machine supports high-pressure filtration at levels exceeding 0.6MPa, ensuring optimal moisture removal and robust operational efficiency.
