We are a professional manufacturer of filtering equipments. We specialize in manufacturing filter presses. Our product range covers series of plate and frame filter presses, chamber filter presses, belt vacuum filter presses, membrane filter presses, centrifuges, shale shakers, industrial pumps, deep cone thickeners, flotation columns, etc.
The small laboratory filter press is a kind of intermittent operation of pressurized filtration equipment which is suitable for small-scale testing.
Usage of the Small Test Filter Press Machine
Widely used in coal washing, oil, chemicals, dyes, metallurgy, medicine, food, alcohol and other fields, but also for textile, printing and dyeing, pharmaceutical, paper, leather and other industrial waste water and urban sewage treatment and other areas that need solid-liquid separation.

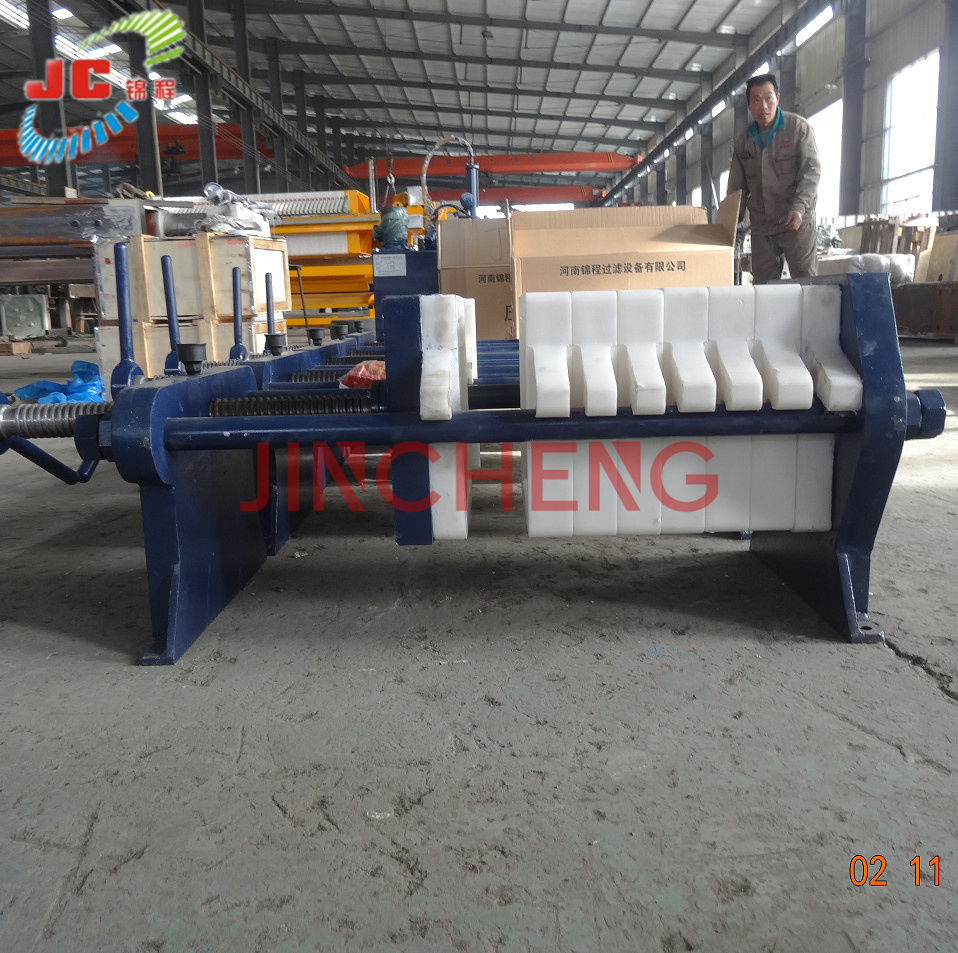

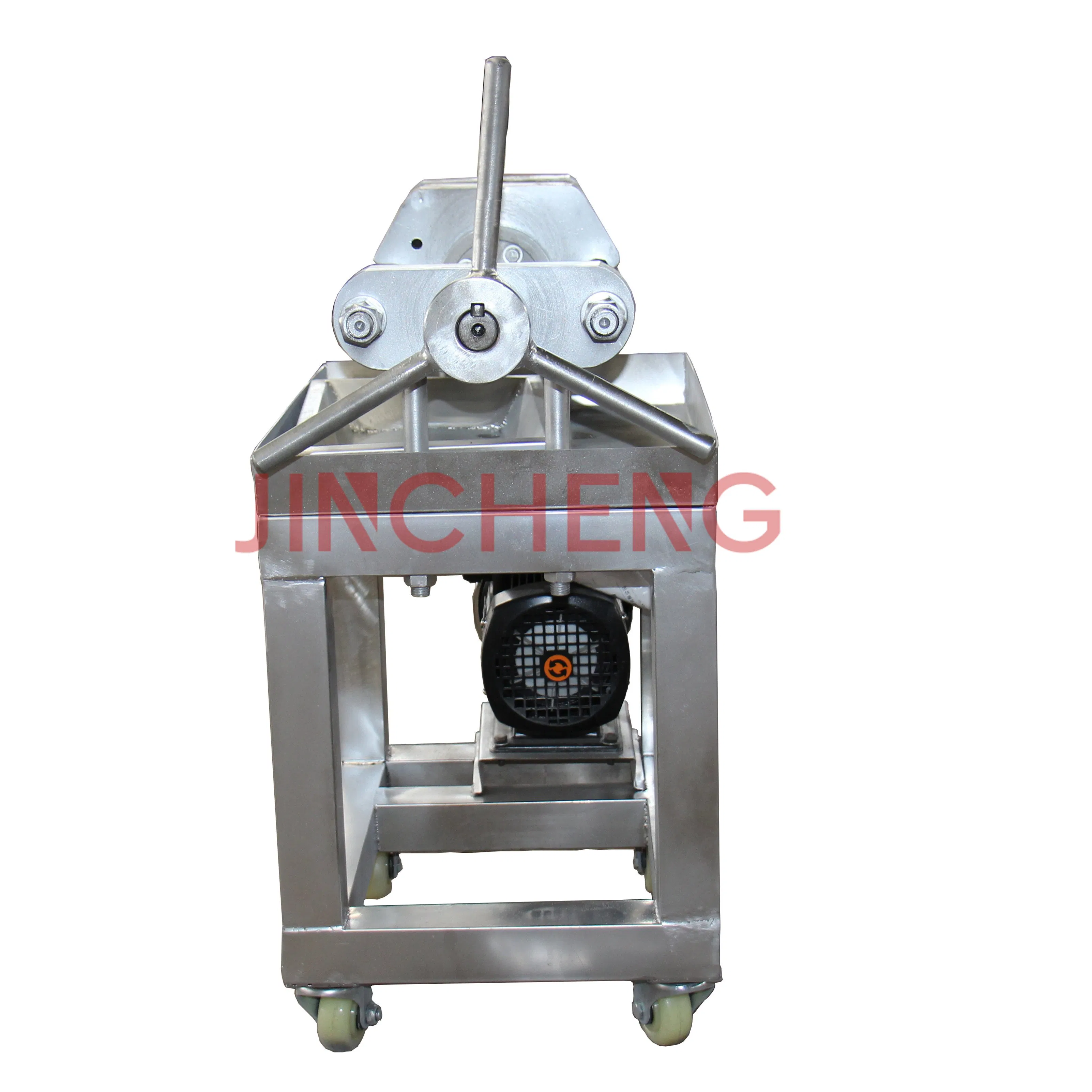

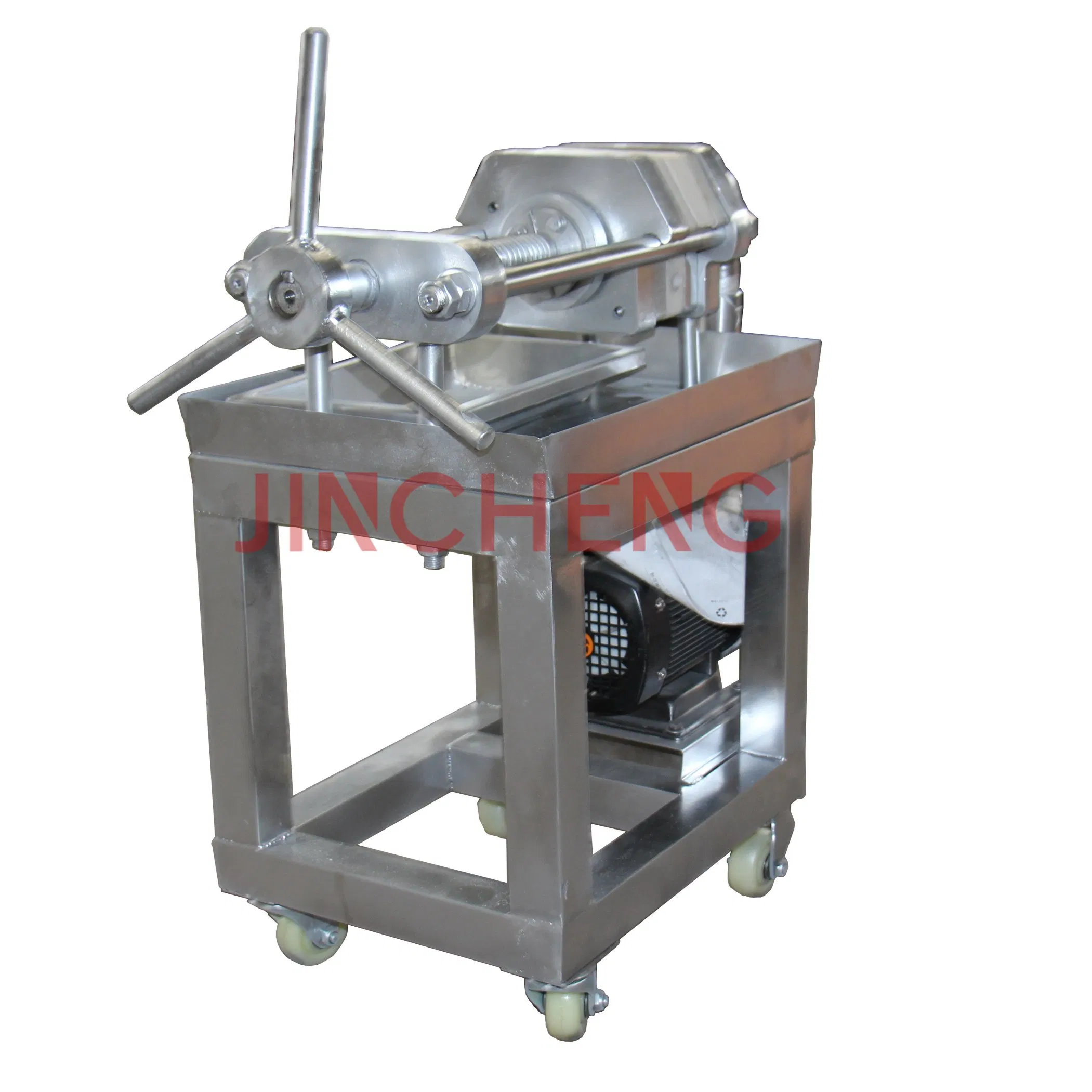

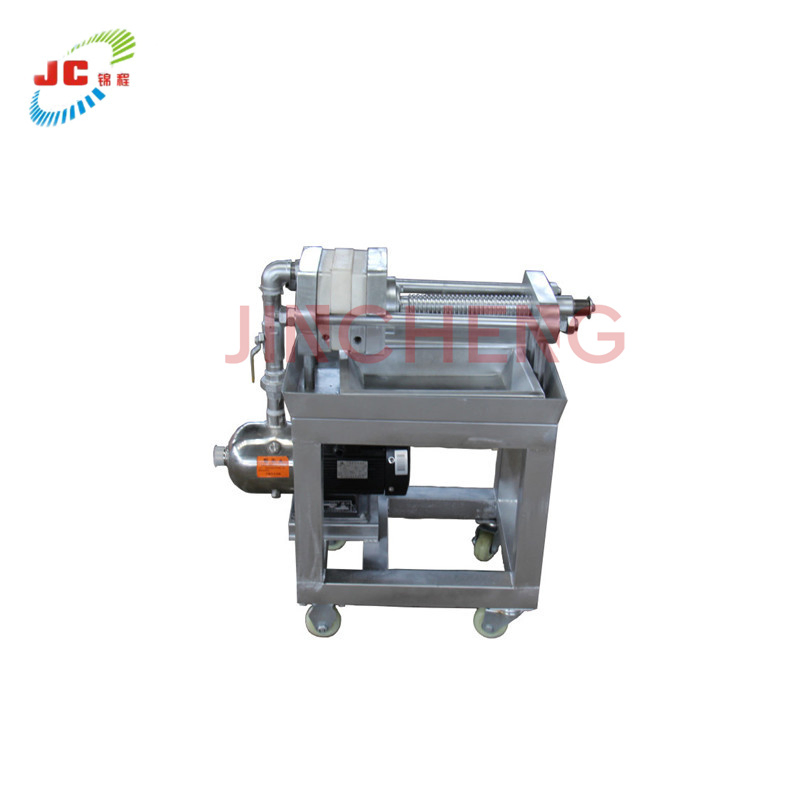

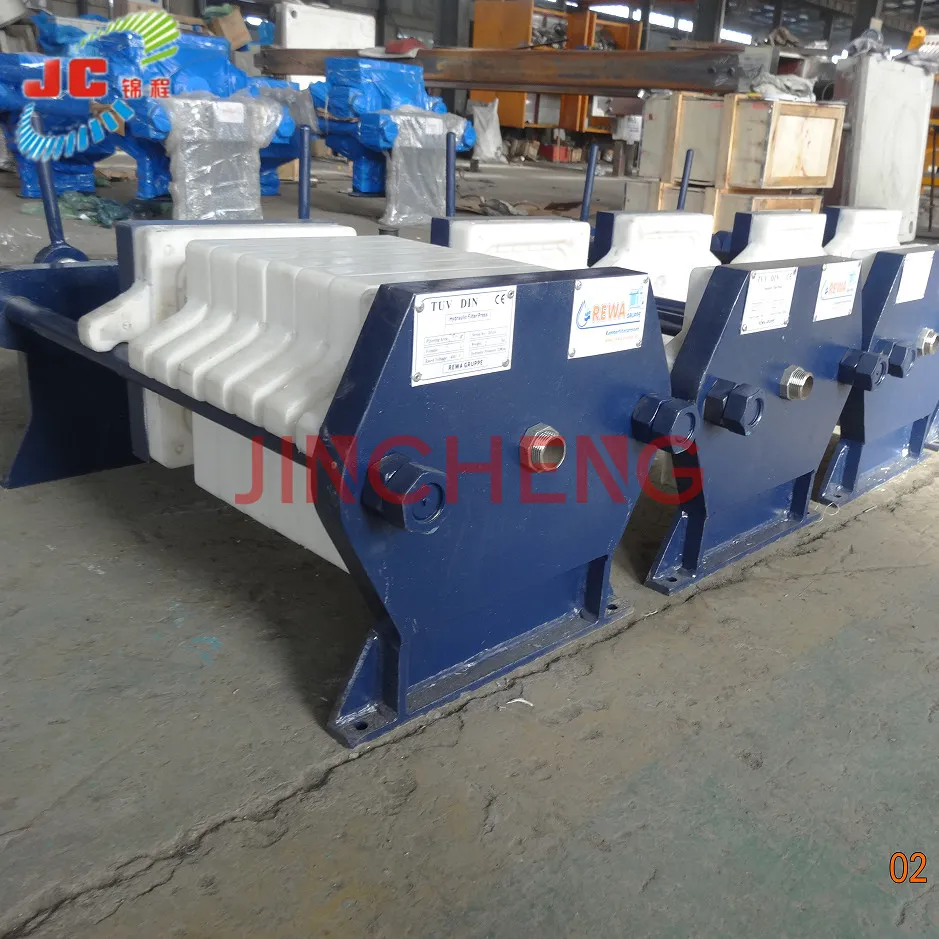

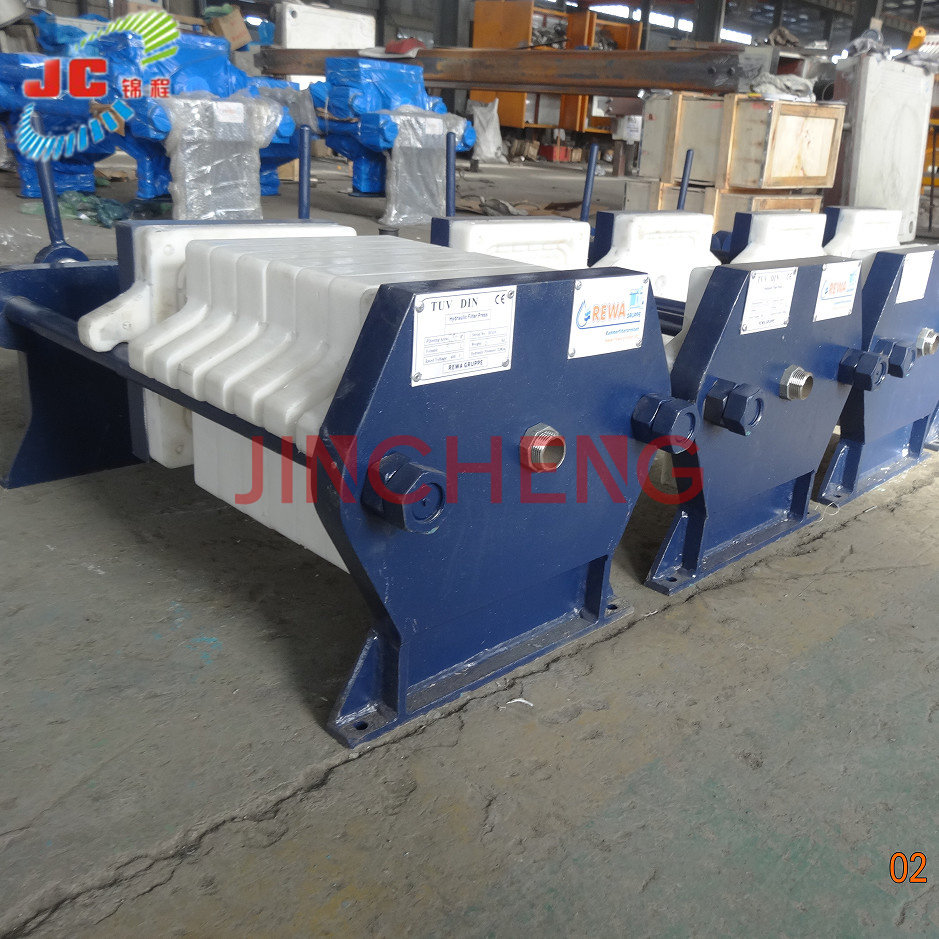

Details of the Small Filter Press Machine
Functions of Filter Press Machine
You can choose different systems based on your requirements, for example, free-flow or under flow, manual or automatic, washing or with belt conveyor:

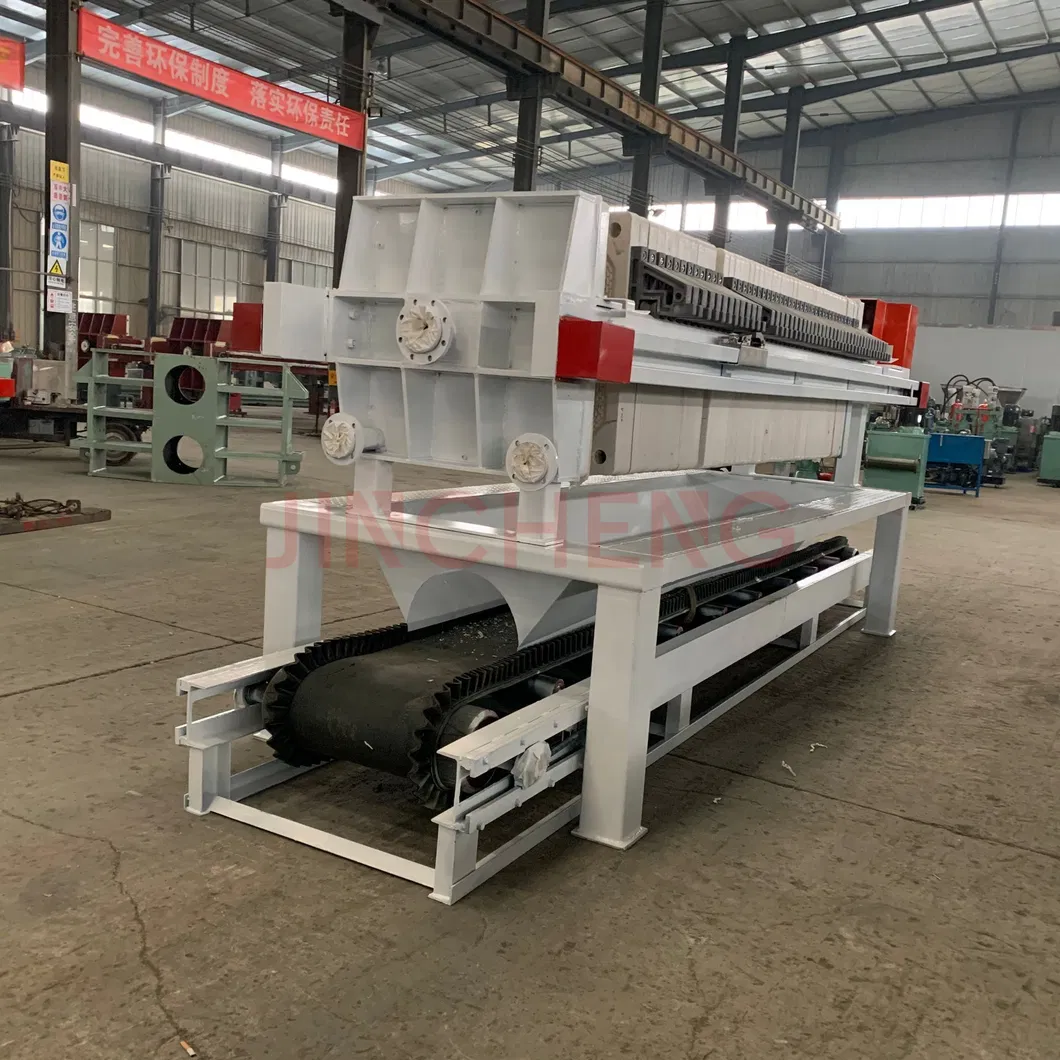

- Belt conveyor under machine which can transport the dry cake out.

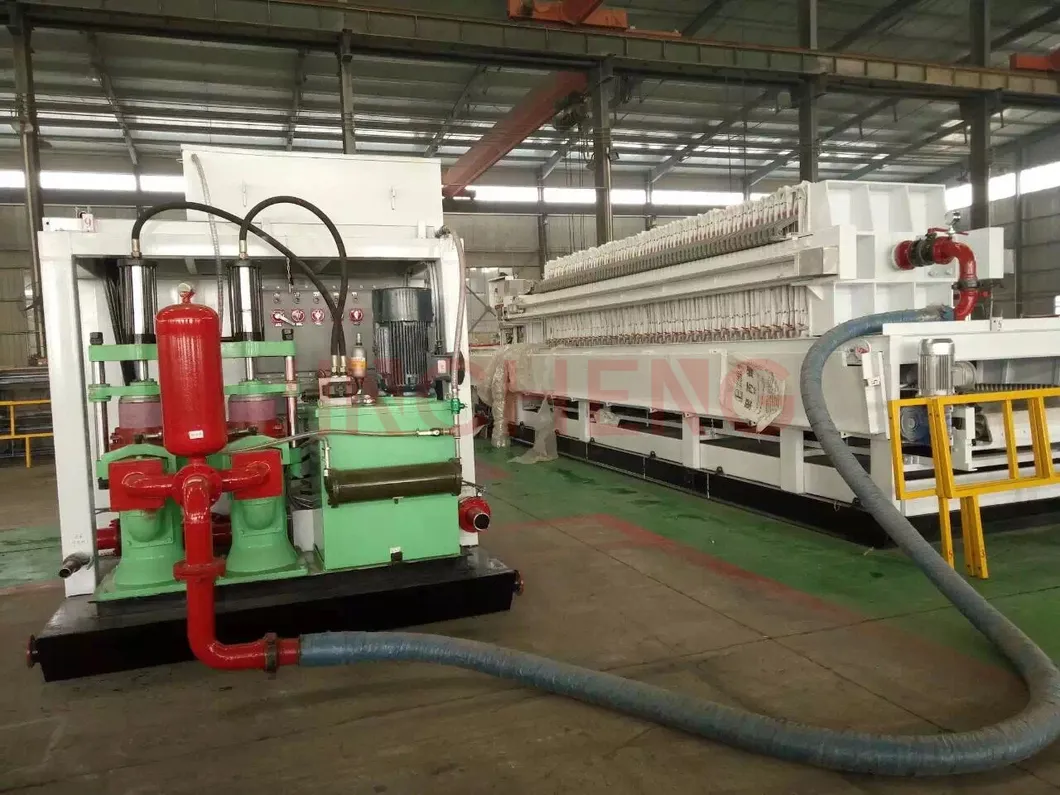

- Skid-mounted filter press with working platform, buffering tank, and feeding pump integrated.

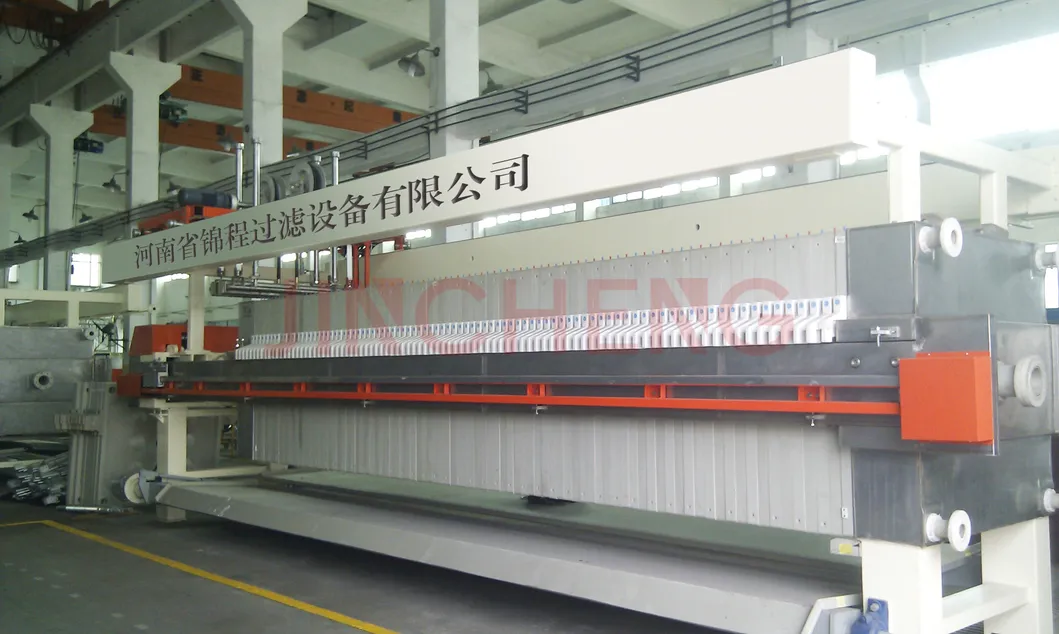

- Drip tray under the machine can help collect dropped water.

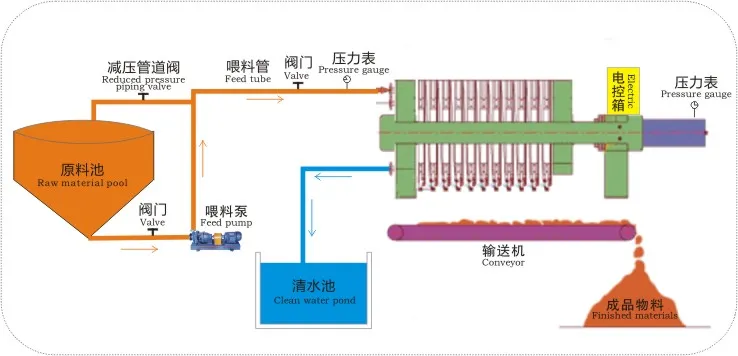

Working Principle
When the sludge filter press works, all the filter plates are pressed between the movable head plate and the fixed tail plate, so that the adjacent filter plate is formed with a sealed filtering chamber around. After all the filter chambers are filled with pulp, the pressure filtration process begins, and the slurry is separated from the pulp by the feed pump.
The solid particles are left in the filter chamber due to the barrier of the filter cloth, and the filtrate is discharged through the filter cloth along the drainage channel on the filter plate. When the filtrate is no longer discharged, the dewatering process is completed. At this point, the material feed can be stopped and the head plate is returned to the original position.

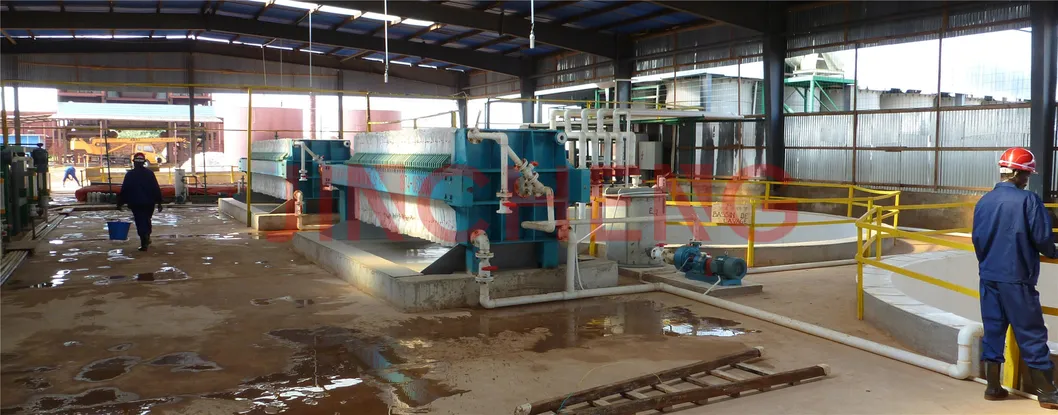

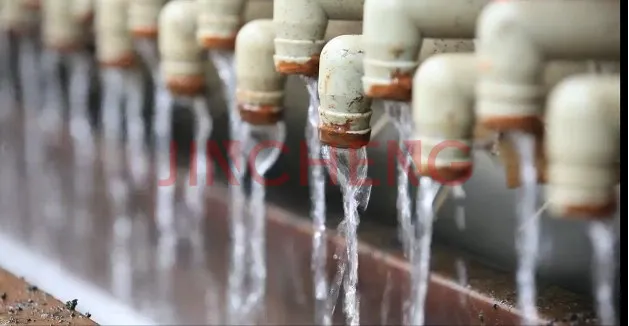

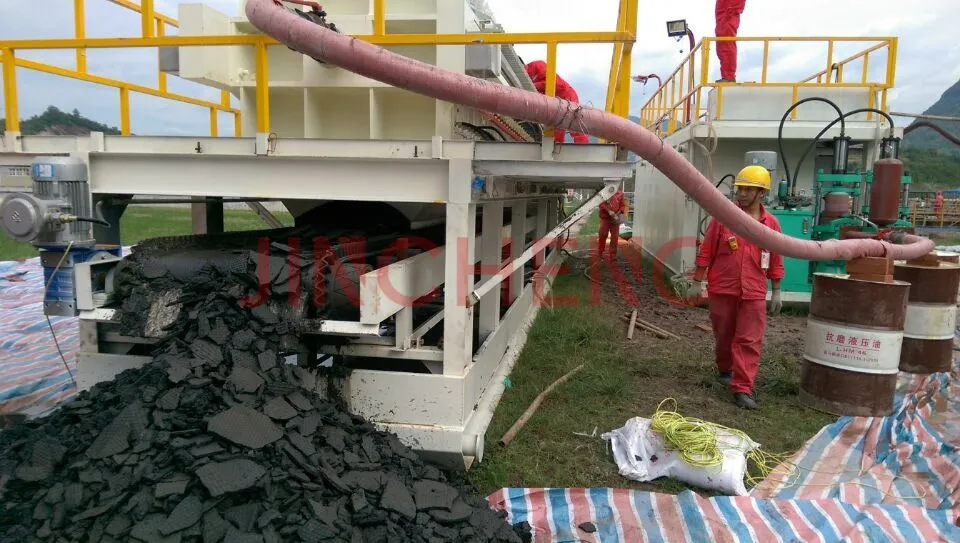

Filtering Effect and Factory Cases
Customer Visiting and Exhibitions
We have exported to a lot of countries around the world, for example, USA, Russia, South Africa, India, Iraq, Germany, Brazil, Sri Lanka and so on.

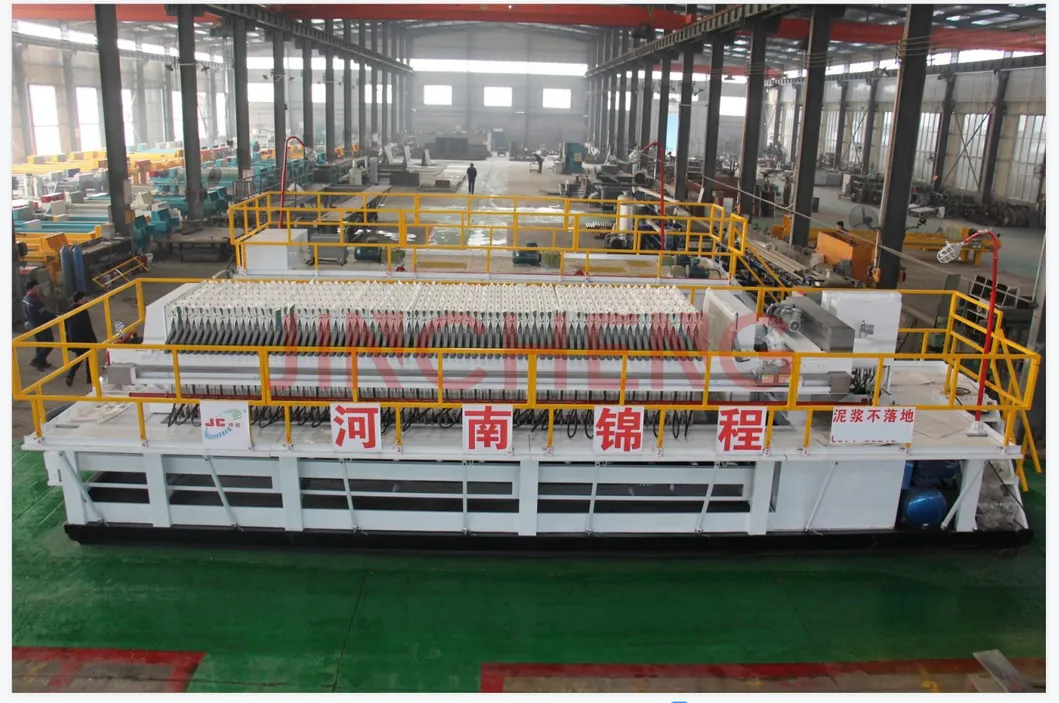

Our Workshop

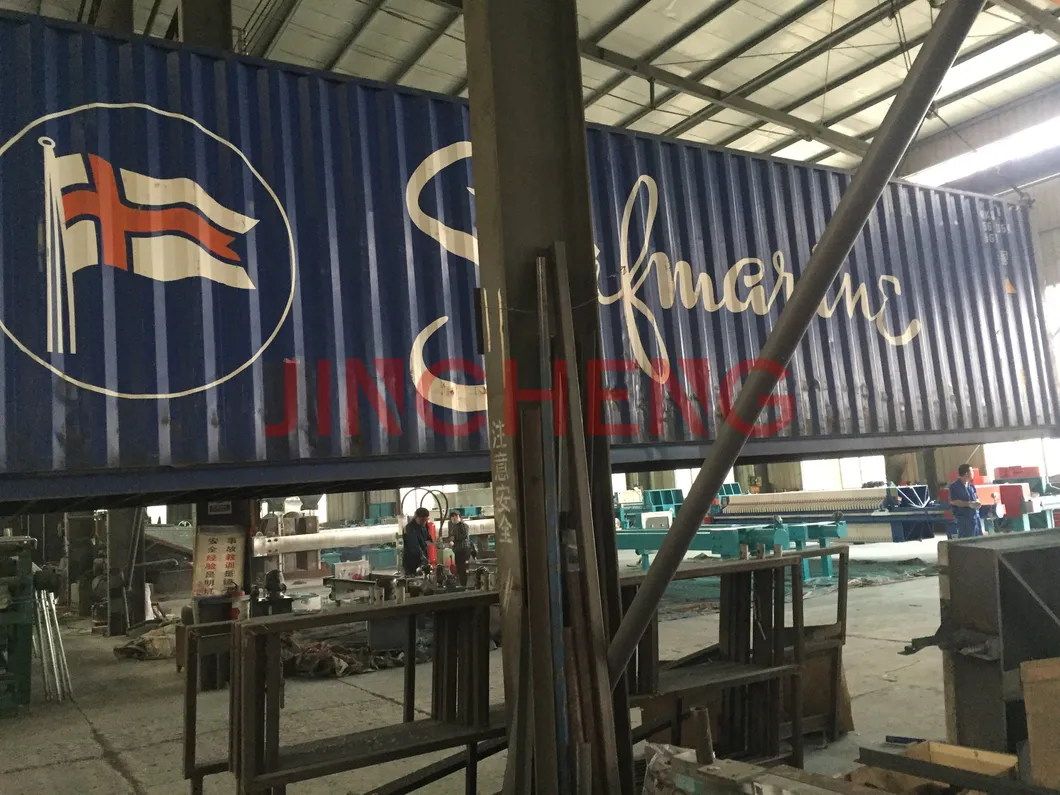

Package and Transport
Certificates
Guarantee & Service
Professional technical team to offer advice before ordering.
Online technical support service.
Video or instructions to assist with machine installation.
On-site engineering support for debugging when necessary.
1-year warranty on electrical elements (except quick-wear parts).
5-year warranty on the main frame.
Frequently Asked Questions (FAQ)
Q1: What is your business scope regarding equipment manufacturing?
We manufacture solid-liquid separation and water treatment equipment, including water quality analysis instruments, dosing pumps, diaphragm pumps, water pumps, pressure instruments, flow meters, level meters, and dosing systems.
Q2: What advantages do you offer for factory cooperation?
We have more than 20 years of industry experience in water treatment, offering high-quality products, competitive pricing, and dedicated engineering assistance for product selection and technical support.
Q3: What applications is the small test filter press machine used for?
It is ideal for solid-liquid separation across fields like coal washing, oil, chemicals, dyes, metallurgy, medicine, food, alcohol, printing and dyeing, papermaking, leather processing, and industrial or urban wastewater treatment.
Q4: Can the filter press machine be customized with optional accessories?
Yes, you can customize the configuration to suit your needs, selecting options such as free-flow or underflow, manual or automatic control, cake washing, belt conveyors, drip trays, or a complete skid-mounted system.
Q5: How does the dewatering process work in the filter press?
Filter plates are pressed together to form sealed chambers. A feed pump injects slurry into the chambers; solid particles are caught by the filter cloth while filtrate passes through the drainage channels. Feeding stops once filtrate flow ceases.
Q6: What is the warranty coverage for your filter presses?
We provide a 5-year warranty on the structural frame of the machine and a 1-year warranty on all electrical components (excluding consumable quick-wear parts).
