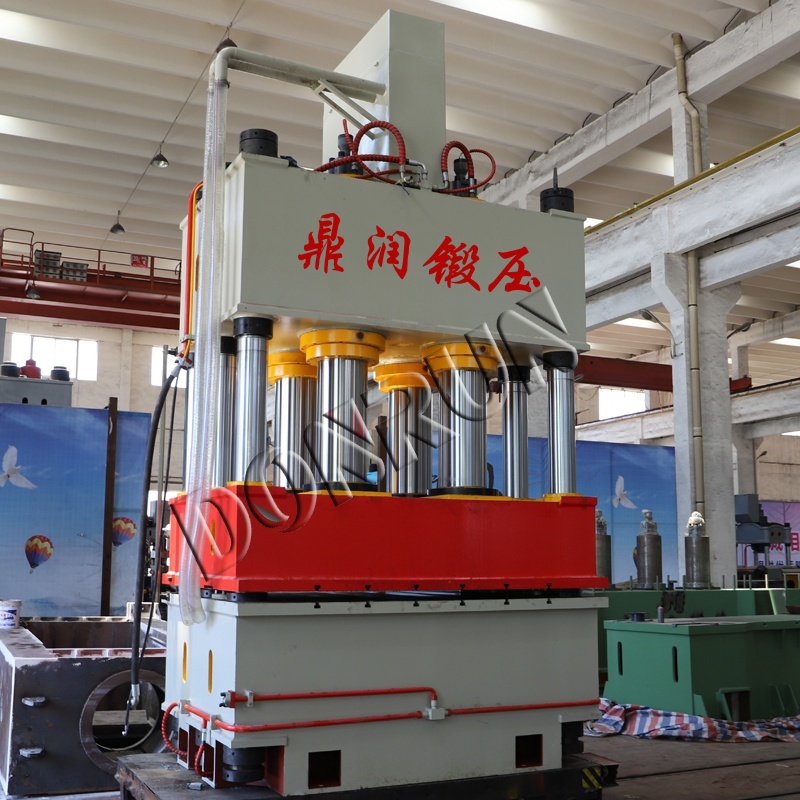

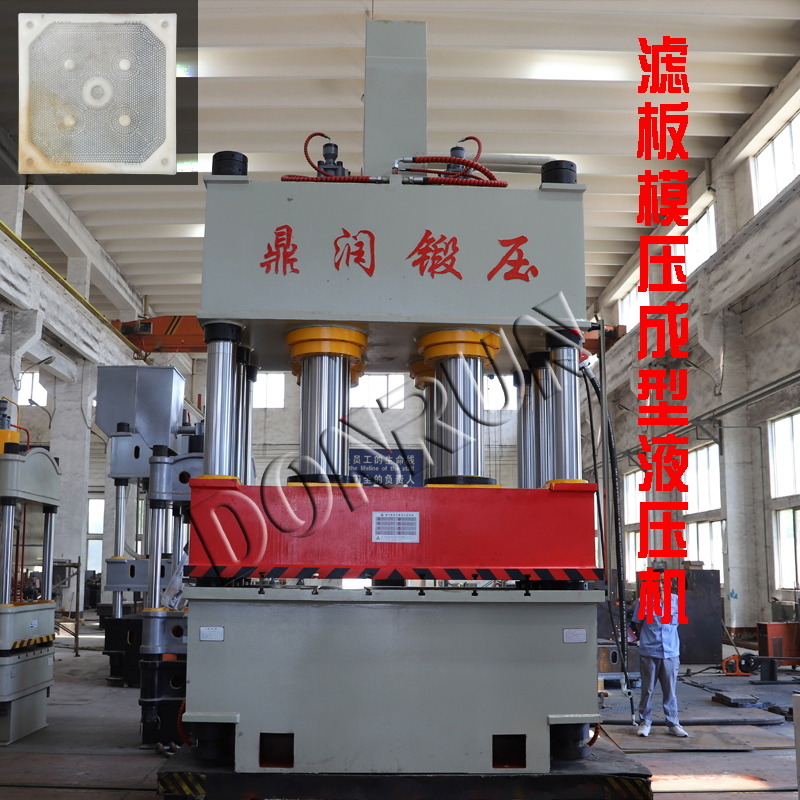

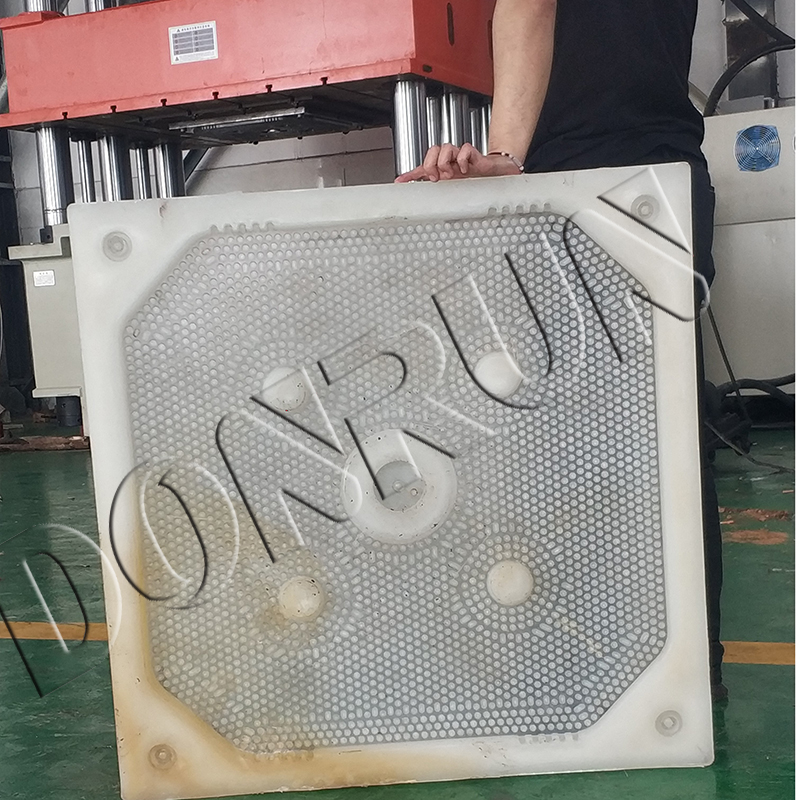

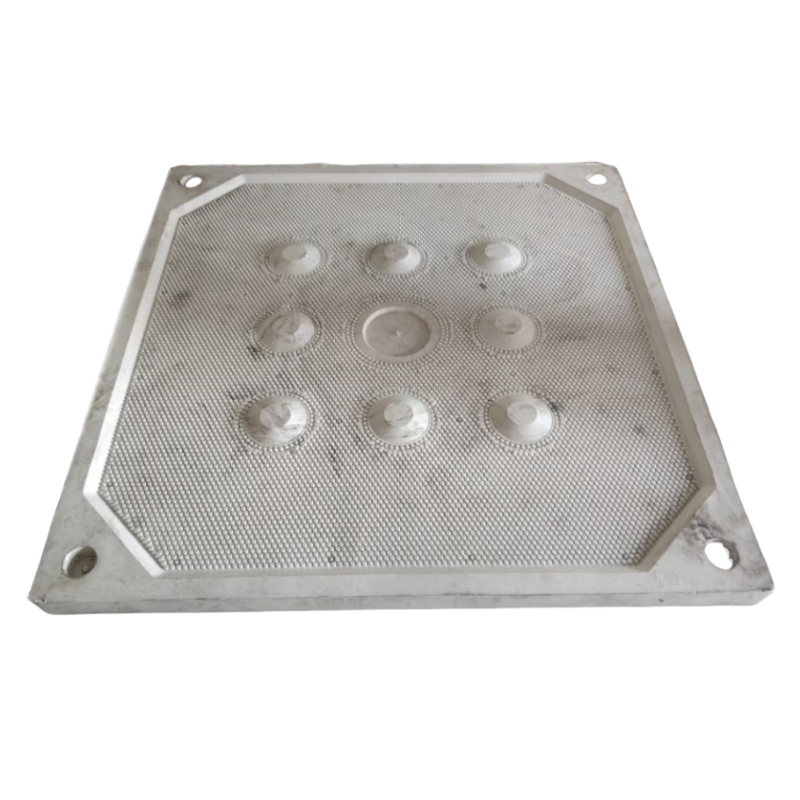

This series of hydraulic press machinery is specifically designed for manufacturing polypropylene composite filter press plates. The machine provides high precision and stability for heavy-duty industrial forming applications.

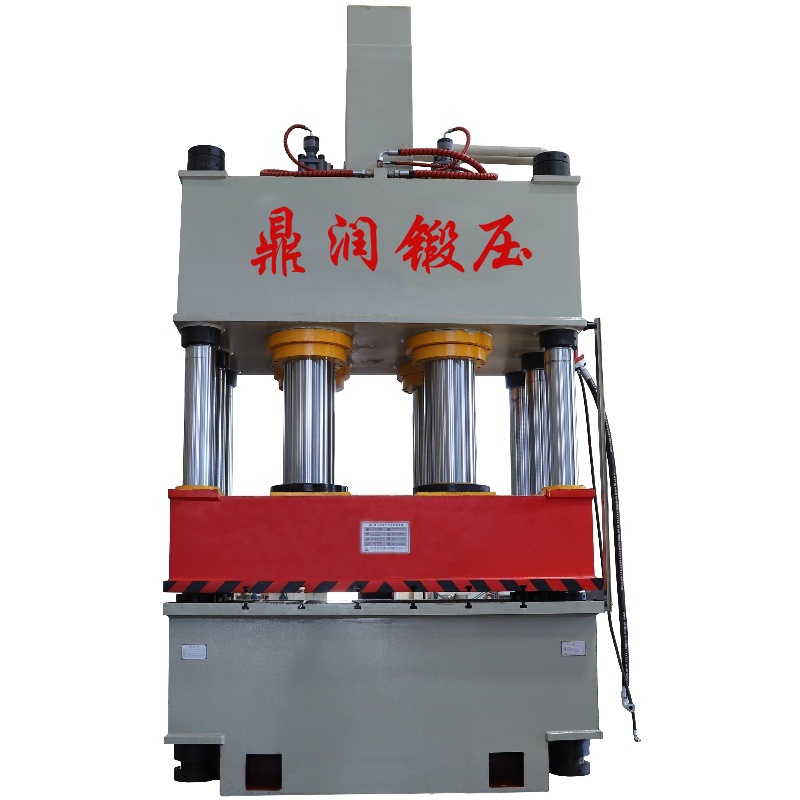

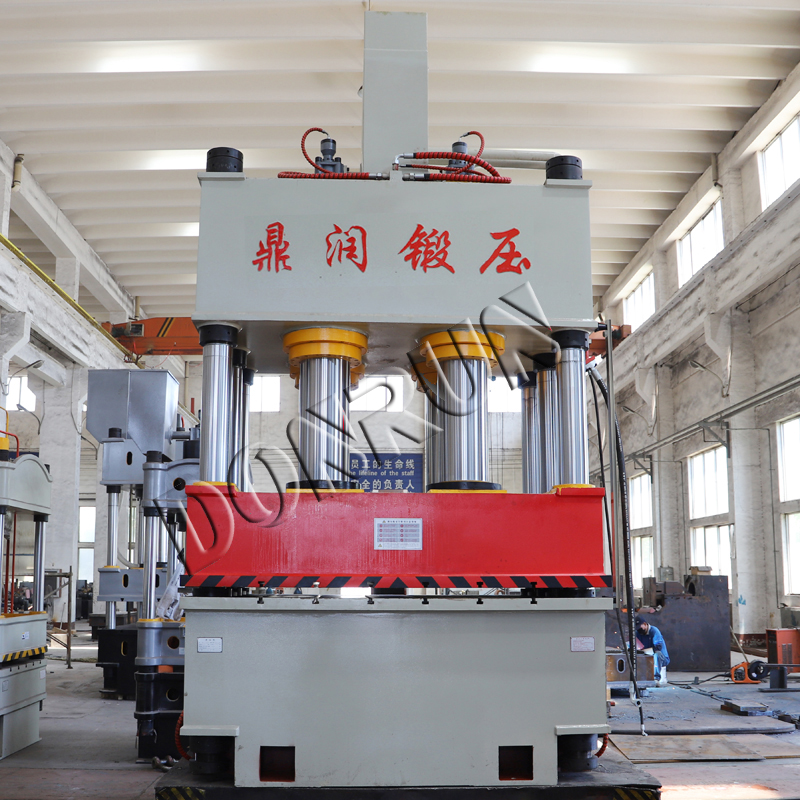

The main unit adopts a three-beam four-column structure. The hydraulic system utilizes a cartridge valve oil circuit, while the electrical system is managed via relay or PLC control circuits for high reliability.
Operation is flexible with adjustment and semi-automatic modes. The design is simple, compact, and economical, ensuring a long service life with minimal hydraulic impact force and leakage risks.
Working pressure, pressing speed, and stroke range are fully adjustable according to process requirements, supporting both constant pressure and fixed stroke methods.
Suitable for the pressing process of various plastic materials, including:
1. Inclined design for easy observation.
2. Double control systems for enhanced safety and precision.
3. Sinking design for efficient space utilization and performance.

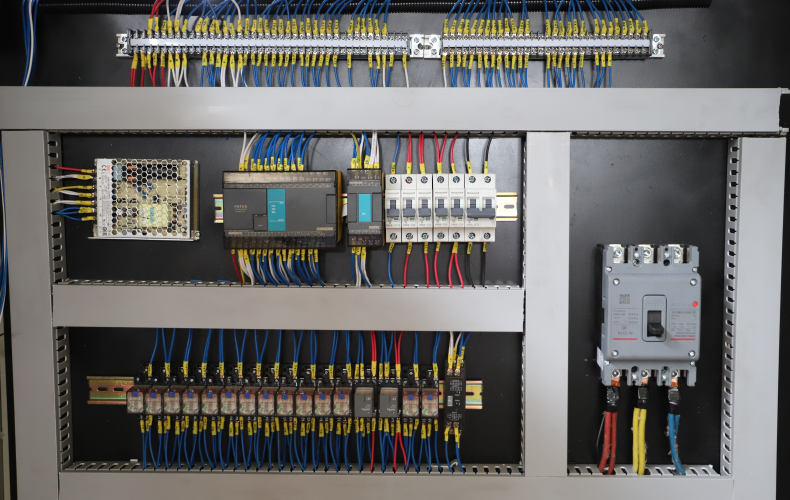

Core electrical components are sourced from internationally renowned brands. This includes high-performance switches and reliable relays to ensure the stability of the long-term production cycle.

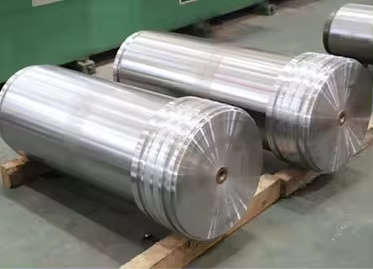

(1) 45# steel with medium-frequency hardening (2-3mm depth), achieving a surface hardness of 55 to protect seal rings from injury.
(2) Post-quenching lathe processing followed by cylindrical grinding ensures maximum accuracy and repairs any minor deformations.

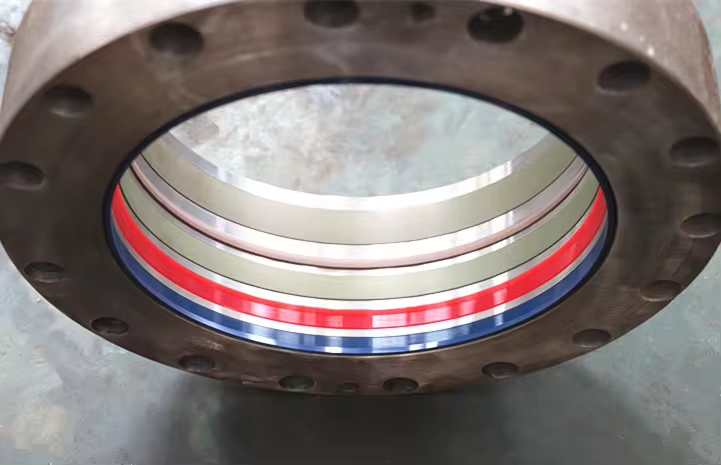

Processed via CNC lathes for a smooth α angle. This ensures uniform quality and a tight seal that effectively prevents leakage even under high-pressure operation.
| Project | Unit | 1000T |
|---|---|---|
| Max liquid working pressure | MPA | 25 |
| Slide stroke | MM | 900 |
| Max opening height | MM | 1500 |
| Worktable size | MM | 1500*1500 |
| Descent speed | MM/S | 120 |
| Working speed | MM/S | 6-15 |
| Return speed | MM/S | 110 |
| Motor power | KW | 30*2 |
A1: It is highly suitable for various plastic and composite materials, including polypropylene filter plates, rubber products, powder products, and metal parts for stamping or stretching.
A2: Yes, the working pressure, pressing speed, and stroke range can be adjusted within specified ranges to meet various process requirements.
A3: During constant pressure molding, the machine features a pressure-holding delay and an automatic return function after the pressing cycle is complete.
A4: The three-beam four-column structure provides excellent rigidity, ensuring uniform pressure distribution and high precision during the forming process.
A5: The machine uses internationally recognized brands such as Schneider and Delixi to ensure reliability and minimize downtime.
A6: By using high-precision CNC-machined seal rings and a cartridge valve oil circuit system, the machine significantly reduces connection pipelines and the risk of hydraulic leakage.
