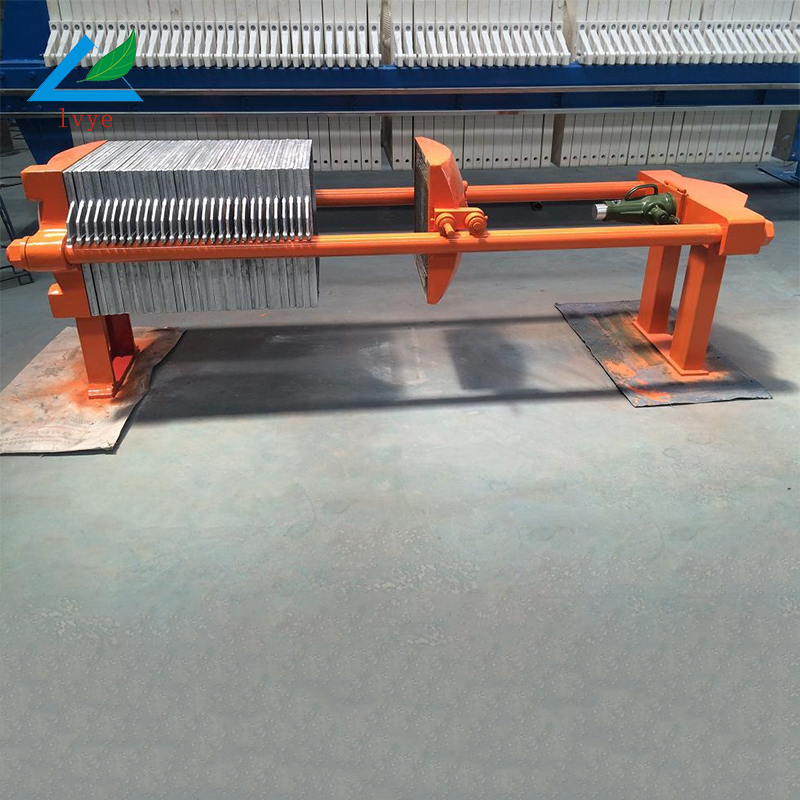

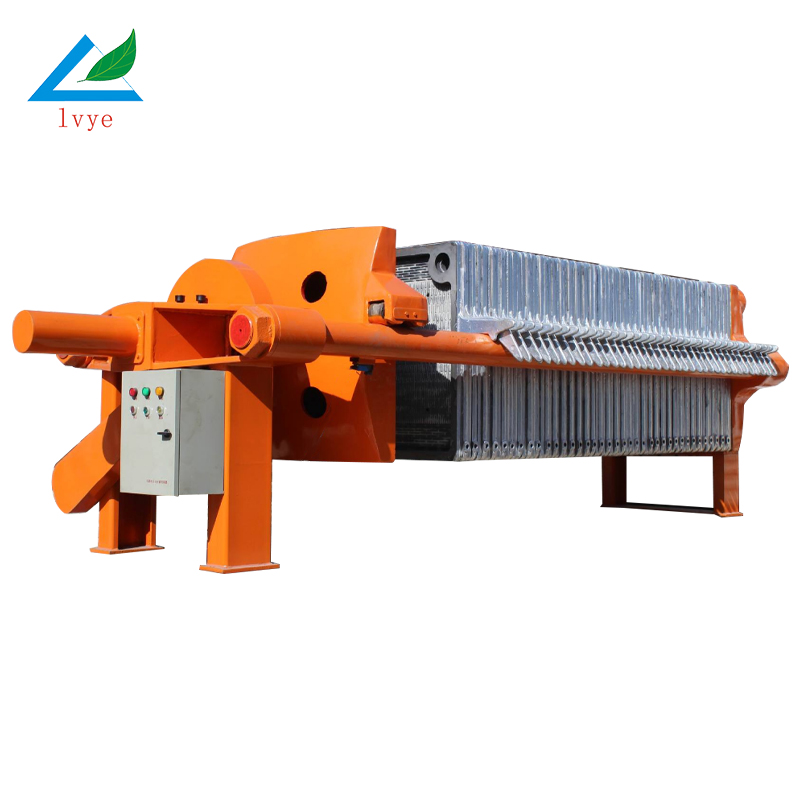

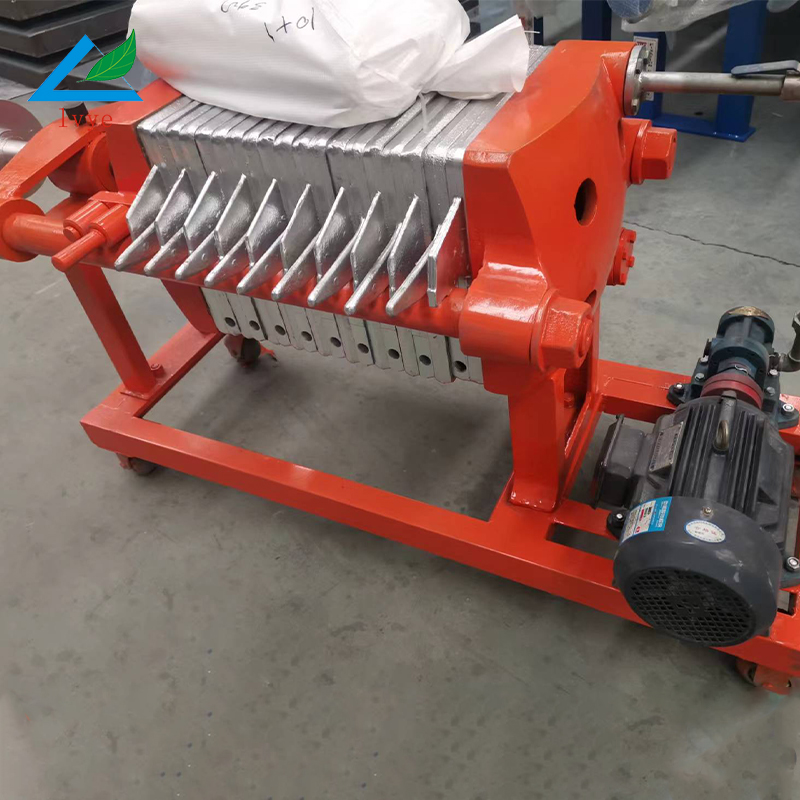

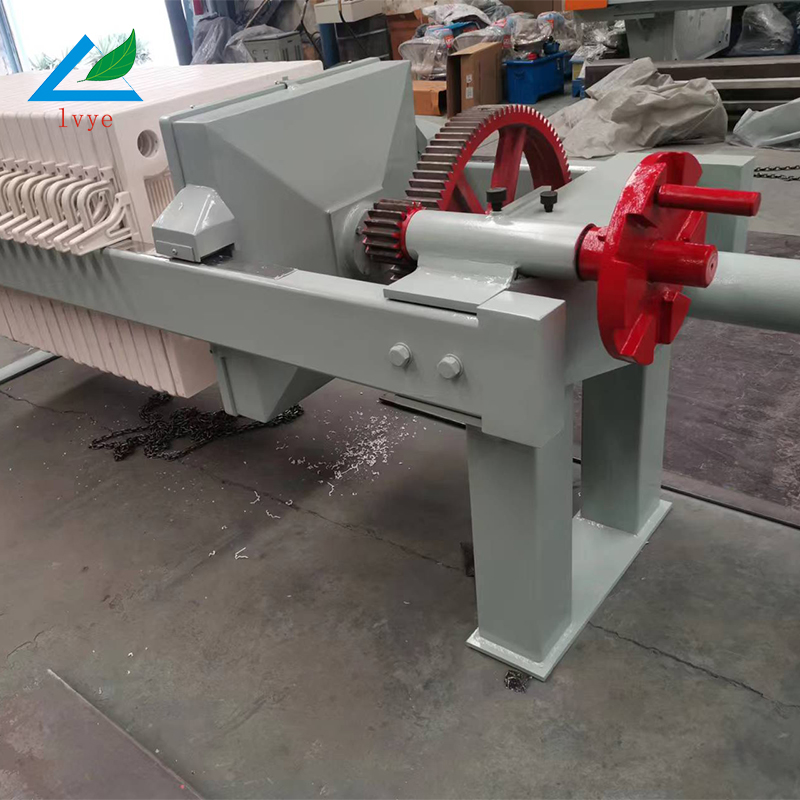

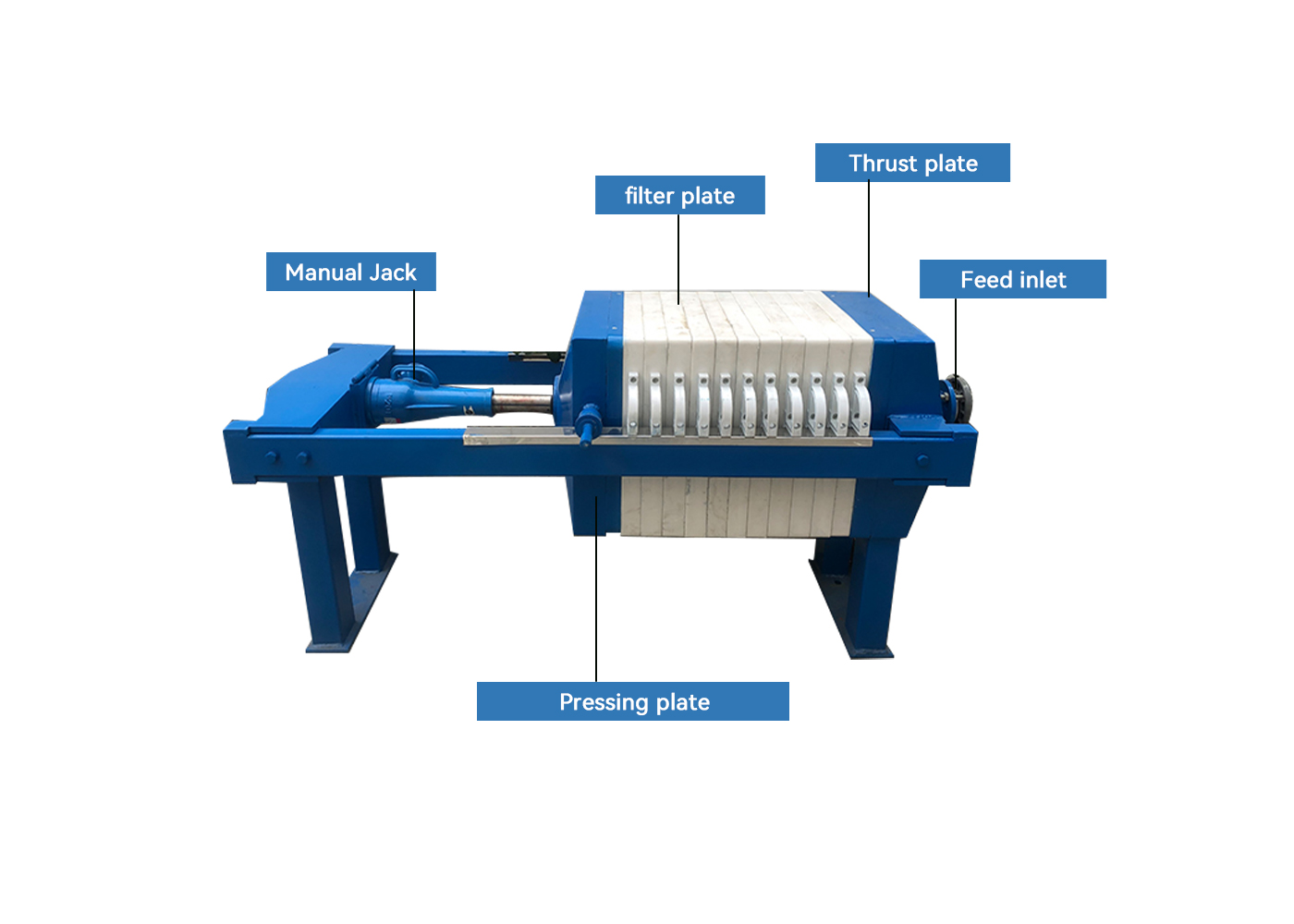

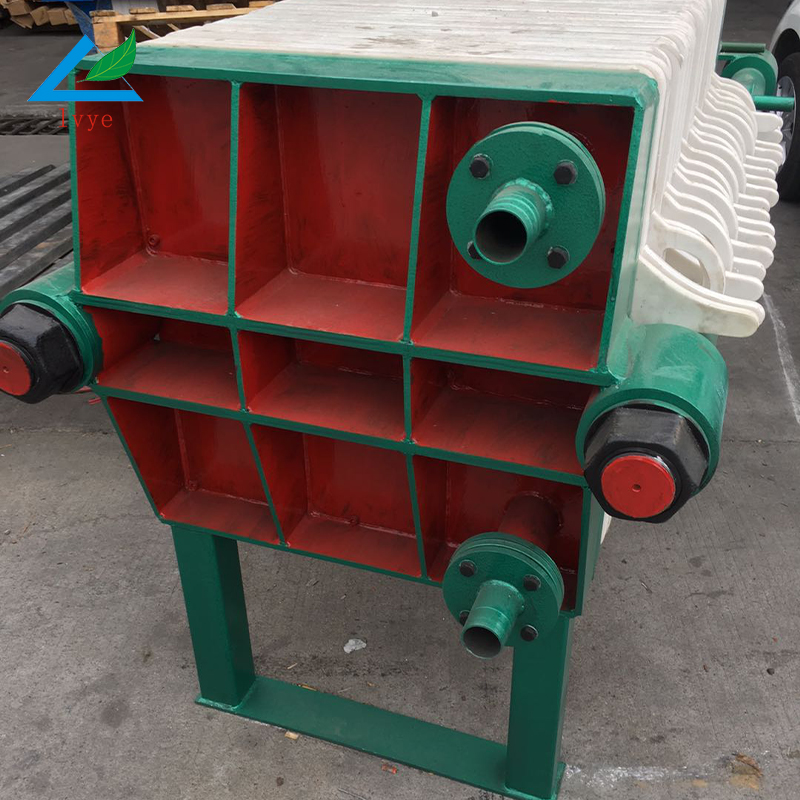

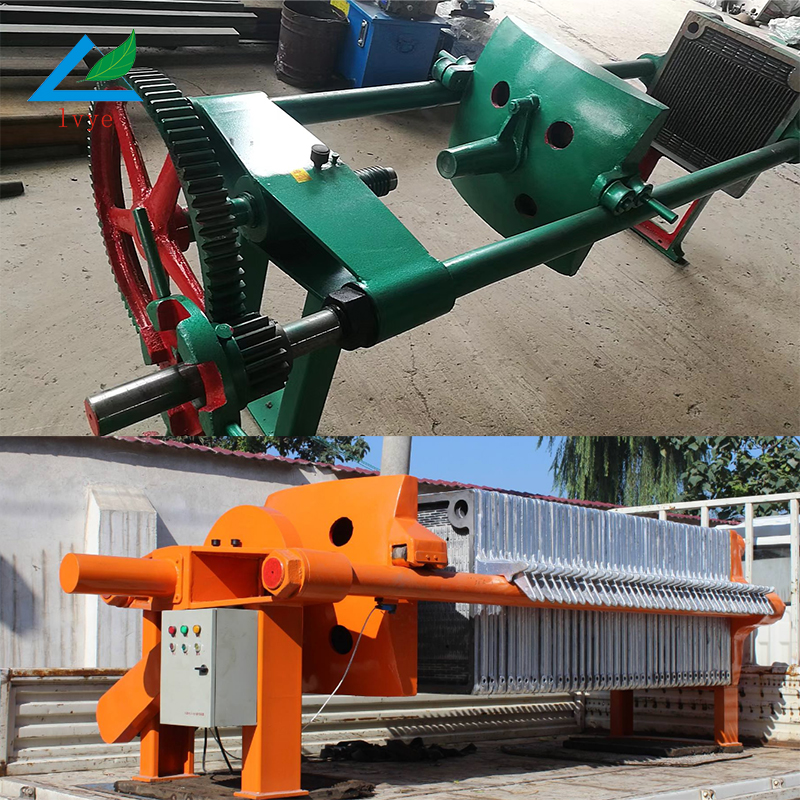

The Plate and Frame Filter Press is a device designed to separate solids from liquids under pressure, utilizing filtering media within a filter chamber composed of filter frames and plates. Manufactured using advanced patented molding technology, the filter plates and frames are made from reinforced polypropylene, ensuring high strength, lightweight, corrosion resistance, acid and alkali tolerance, and a non-toxic, odorless composition.
Simple structure with reliable performance and ease of use.
Reinforced polypropylene for acid and alkali tolerance.

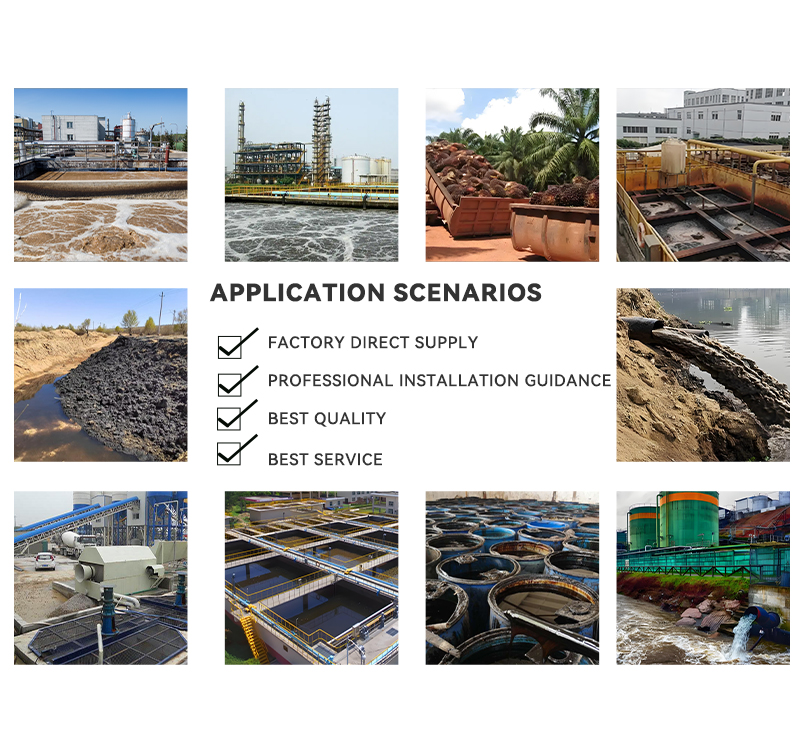

Ideal for chemical, petroleum, metallurgy, and food sectors.
| Model | Filter area(m³) | Plate size(mm) | Number of filter plates | Chamber volume(L) | Cylinder pressure(Mpa) | Overall dimensions(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| XMAS-1/390-25U | 1 | 390*390 | 4 | 15 | 0 | 1100*760*650 | 160 |
| XMAS-3/390-25U | 3 | 390*390 | 14 | 46 | 0 | 1650*700*660 | 185 |
| XMAS-5/500-SS | 5 | 500*500 | 11 | 75 | 0 | 1650*700*860 | 310 |
| XMAY-5/500-30U | 5 | 500*500 | 11 | 75 | 15-18 | 2150*700*860 | 360 |
| XMAY-10/500-D | 10 | 500*500 | 24 | 150 | 15-18 | 2740*700*860 | 680 |
| XMAY-20/700-30U | 20 | 700*700 | 24 | 300 | 20-22 | 3200*1100*1120 | 1200 |
| XMAY-40/700-30U | 40 | 700*700 | 49 | 600 | 20-22 | 4300*1100*1120 | 2200 |
| XMAY-50/870-30U | 50 | 870*870 | 38 | 750 | 20-22 | 4100*1300*1260 | 3020 |
| XMAZ-80/870-30U | 80 | 870*870 | 62 | 1200 | 20-22 | 5650*1300*1260 | 4150 |
| XMAZ-100/1000-30U | 100 | 1000*1000 | 57 | 1500 | 20-22 | 5820*1500*1360 | 5500 |
| XMAZ-200/1250-30U | 200 | 1250*1250 | 72 | 3400 | 18-20 | 8250*1800*1680 | 7300 |
| XMAZ-500/1500-30U | 500 | 1500*1500 | 127 | 7550 | 20-22 | 11700*2130*1900 | 24500 |

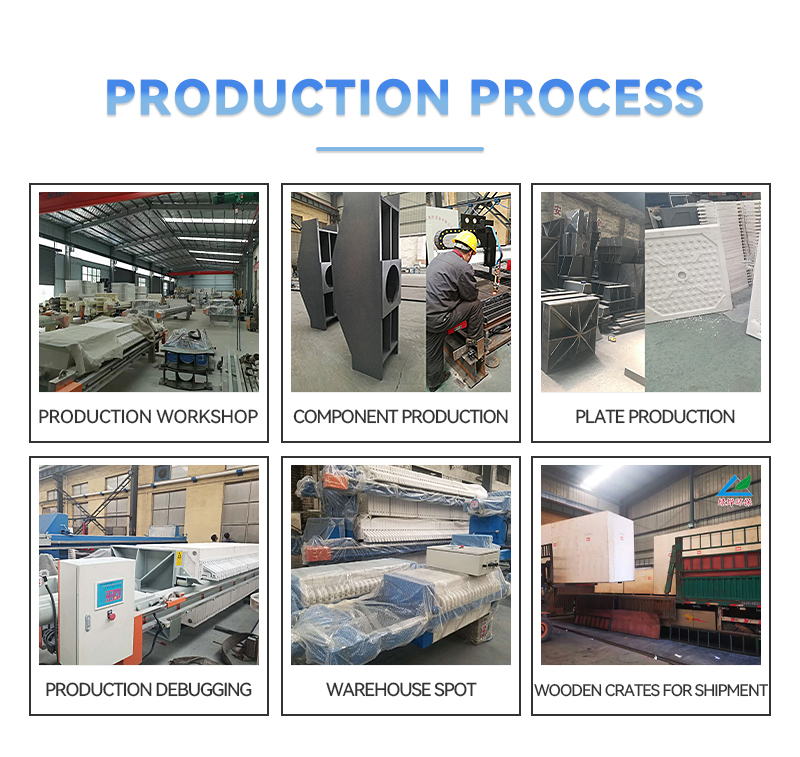

Before logistics transportation, we conduct multiple inspection and packaging processes to ensure every product is delivered with premium quality.
