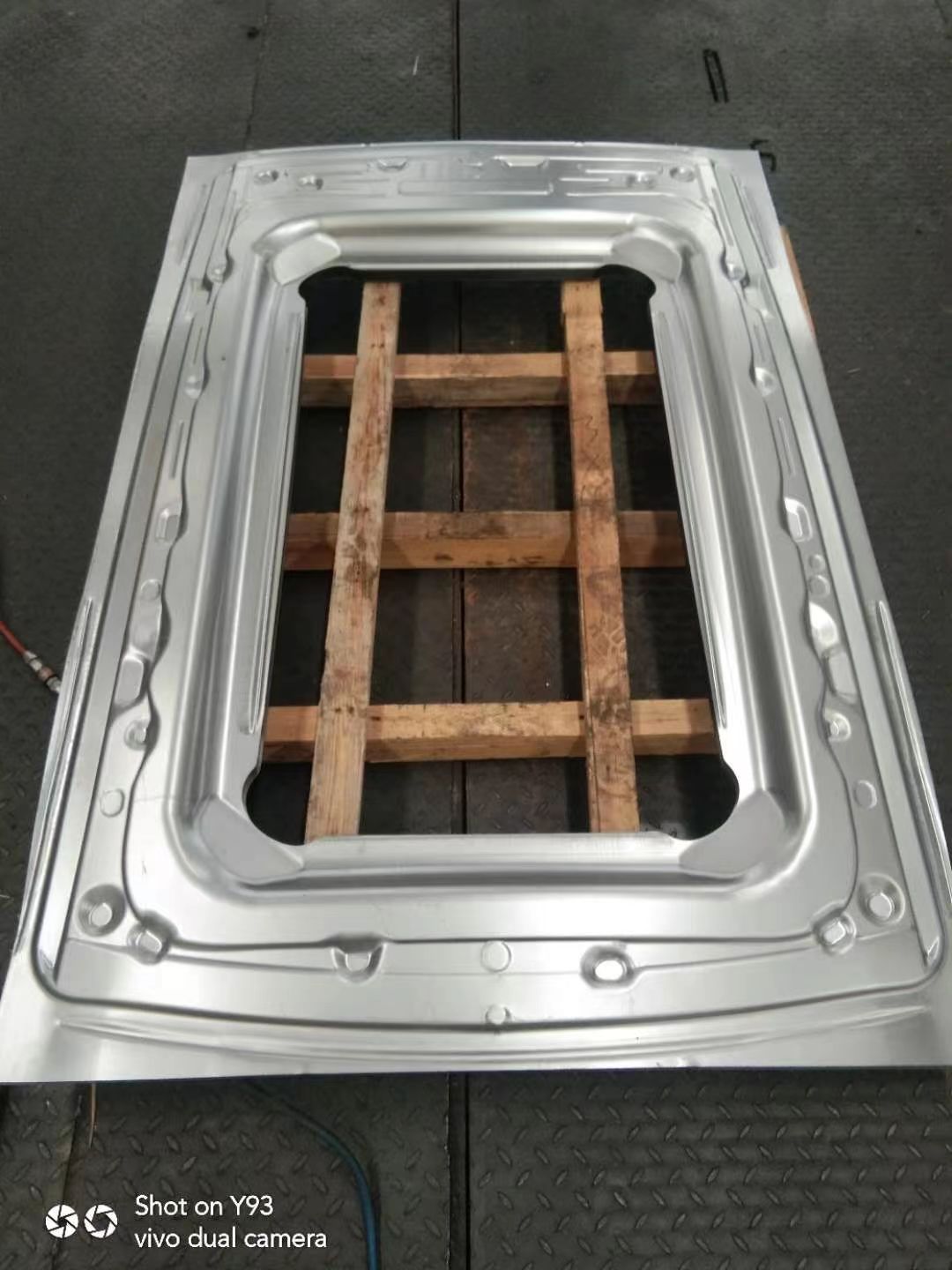

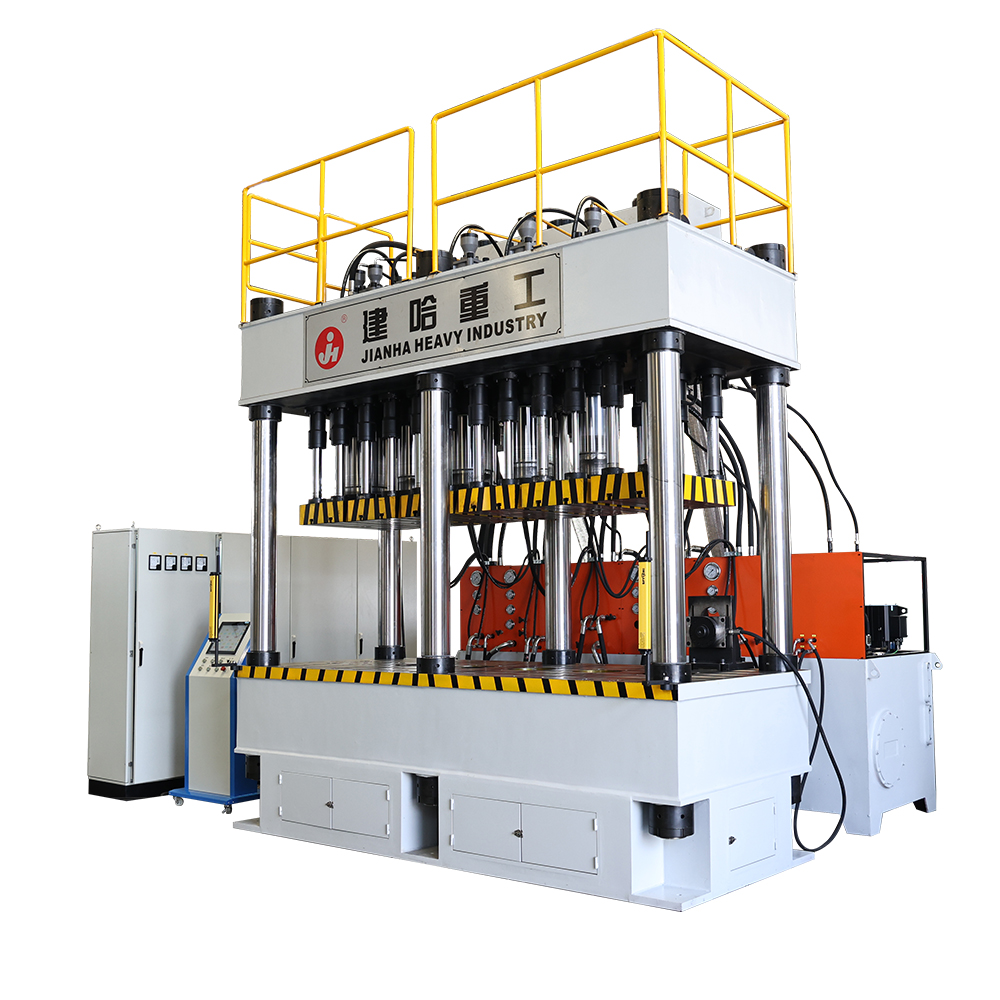

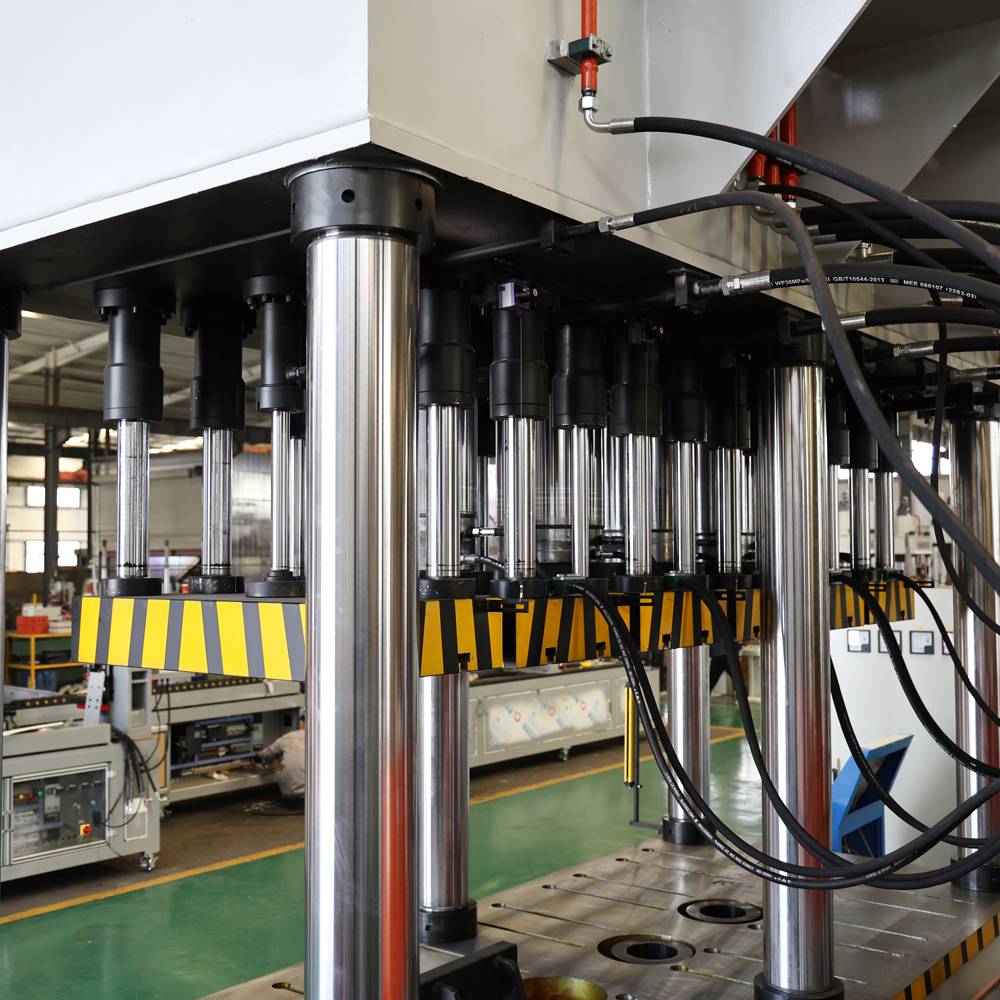

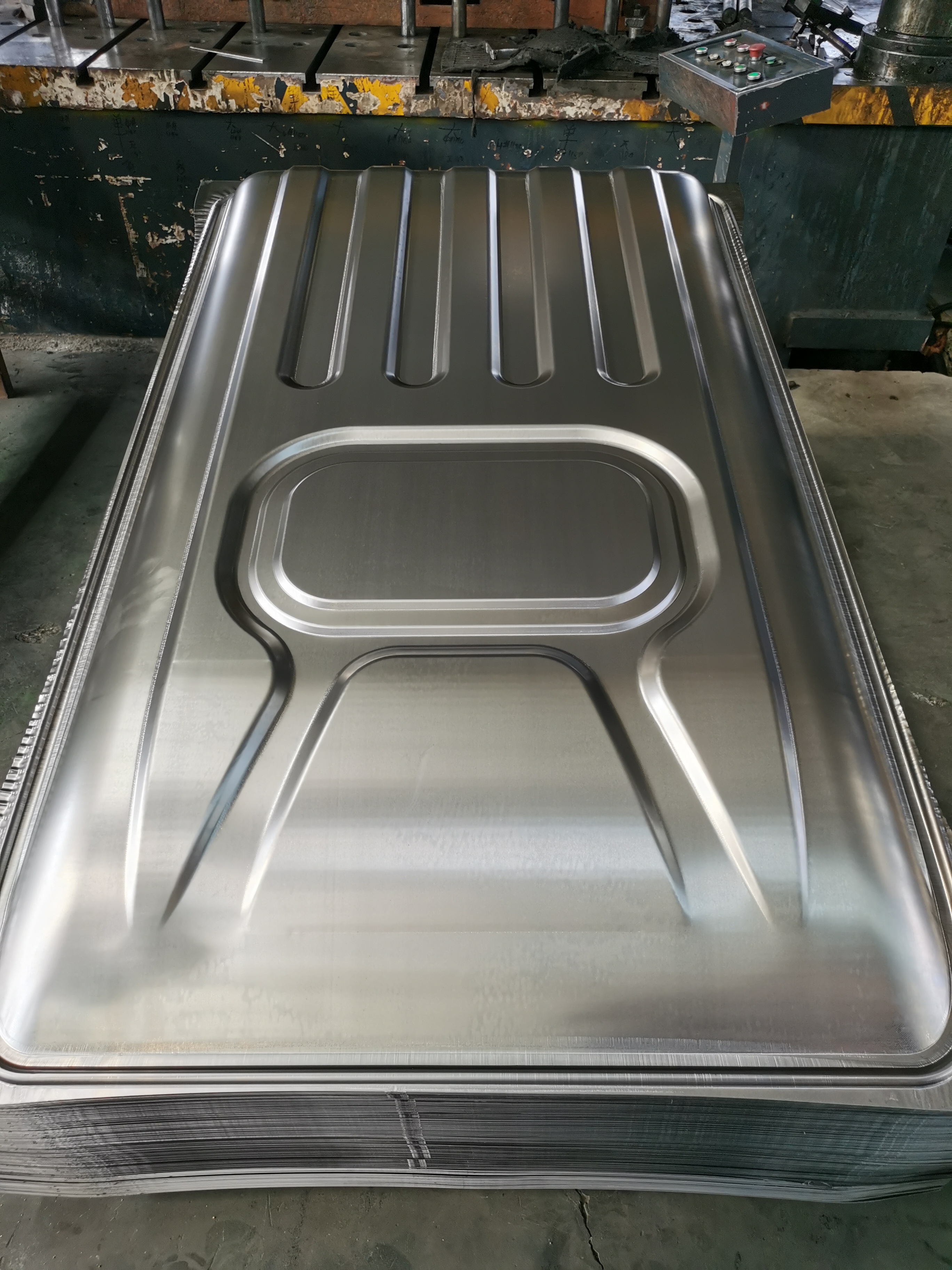

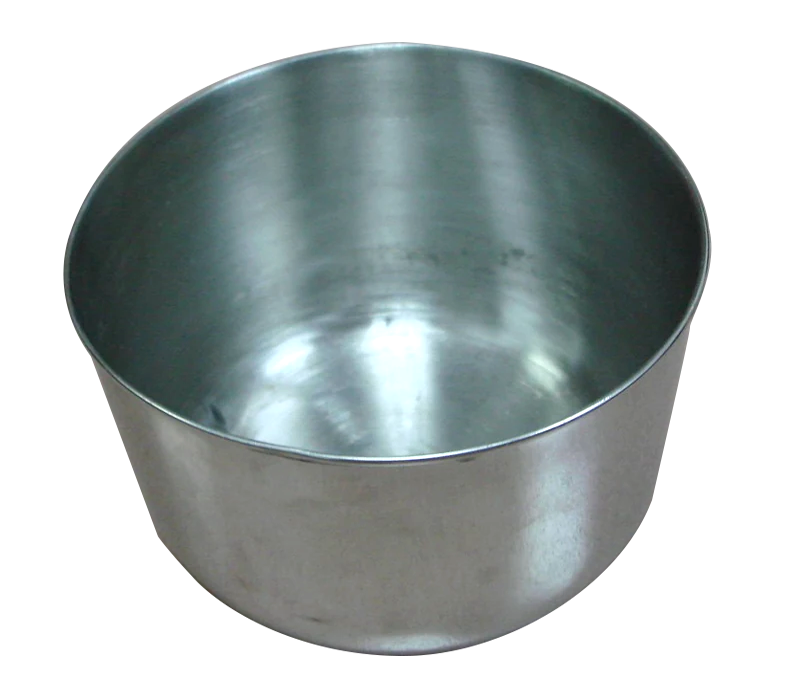

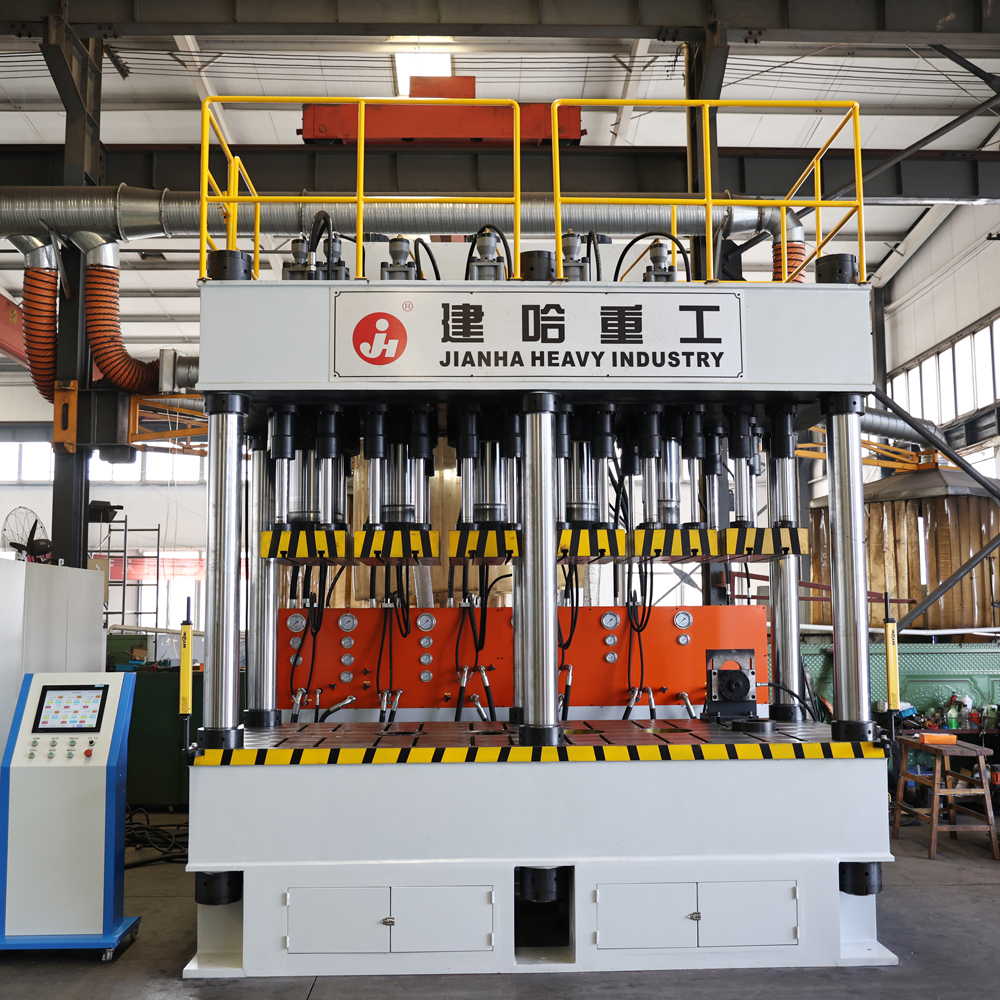

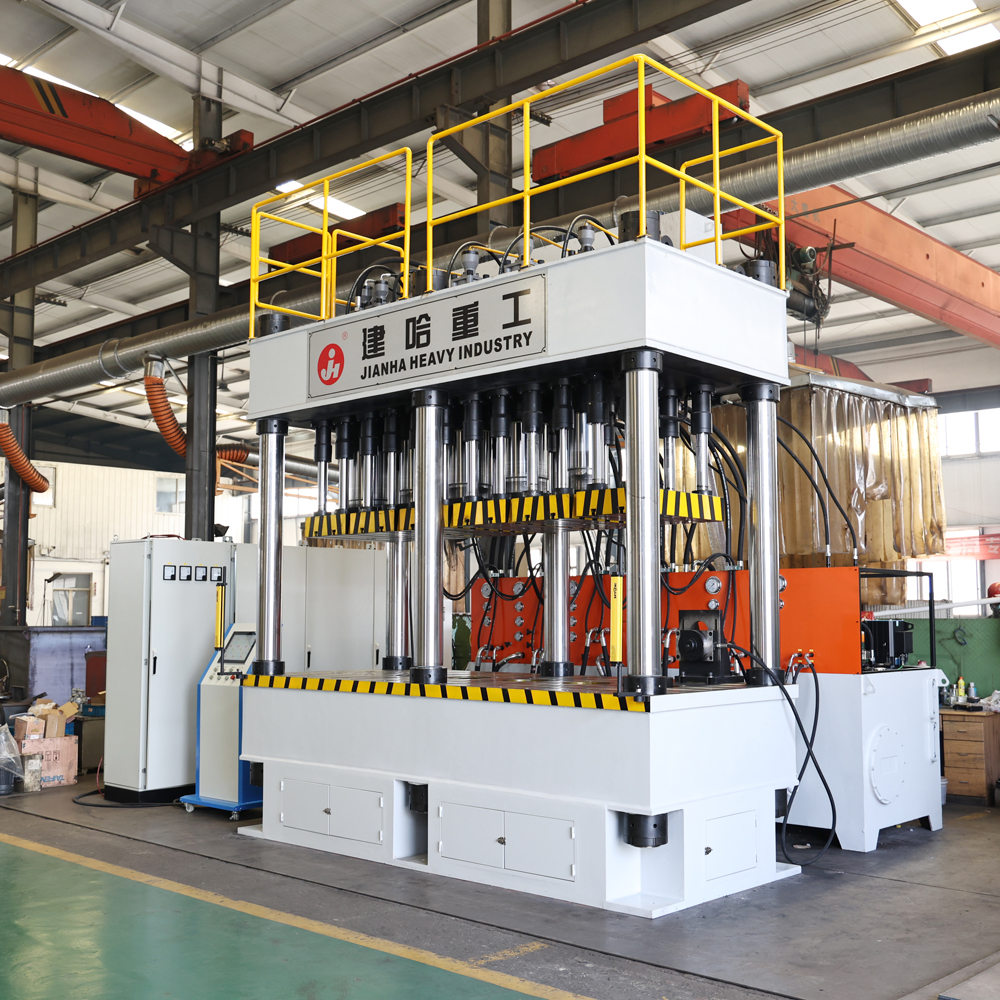

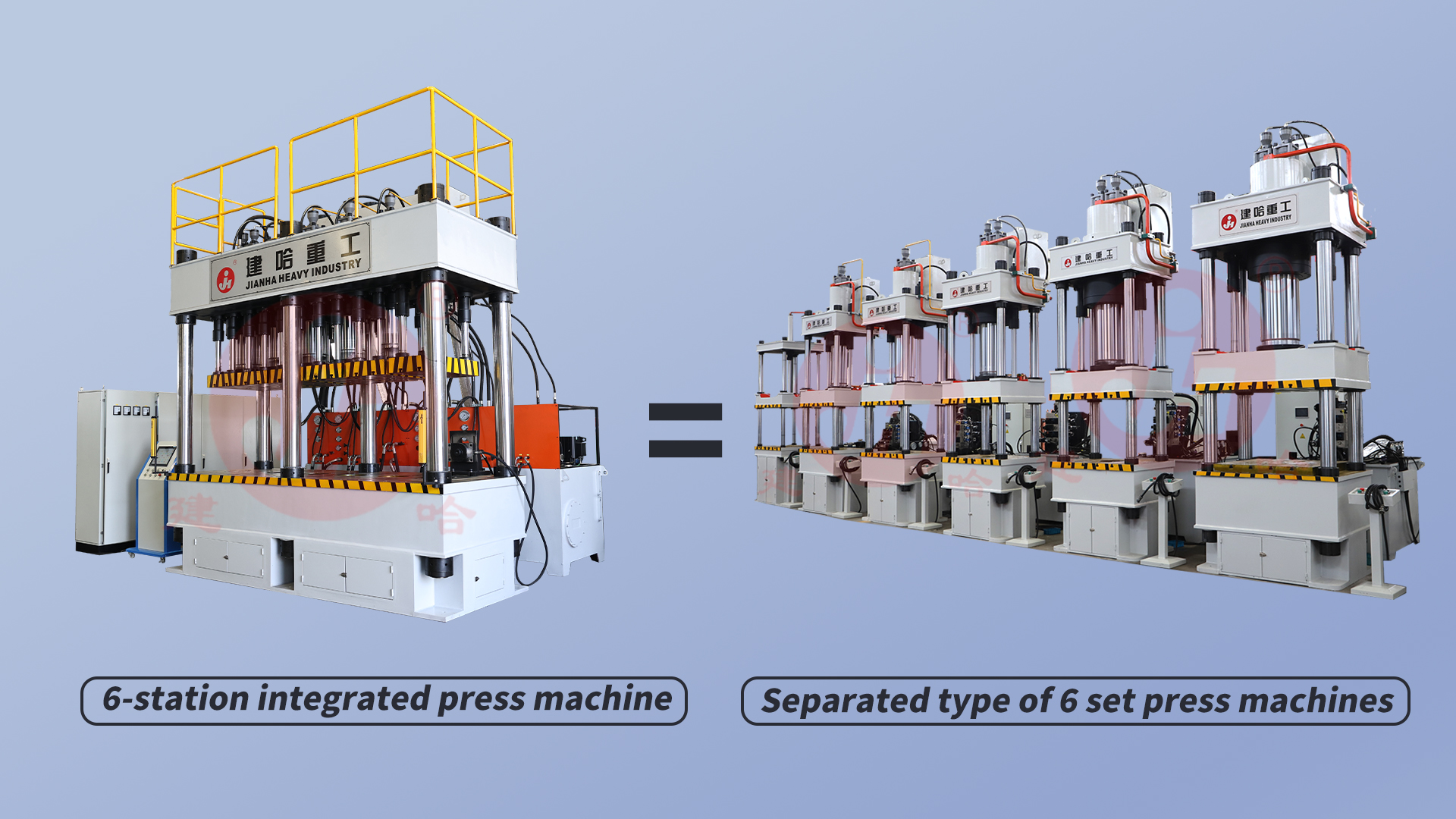

This multi-functional hydraulic press is expertly designed for a wide range of industrial processes. It is highly suitable for metal stretching, blanking, punching, and cutting, meeting the diverse requirements for product stretching and forming across various sectors.

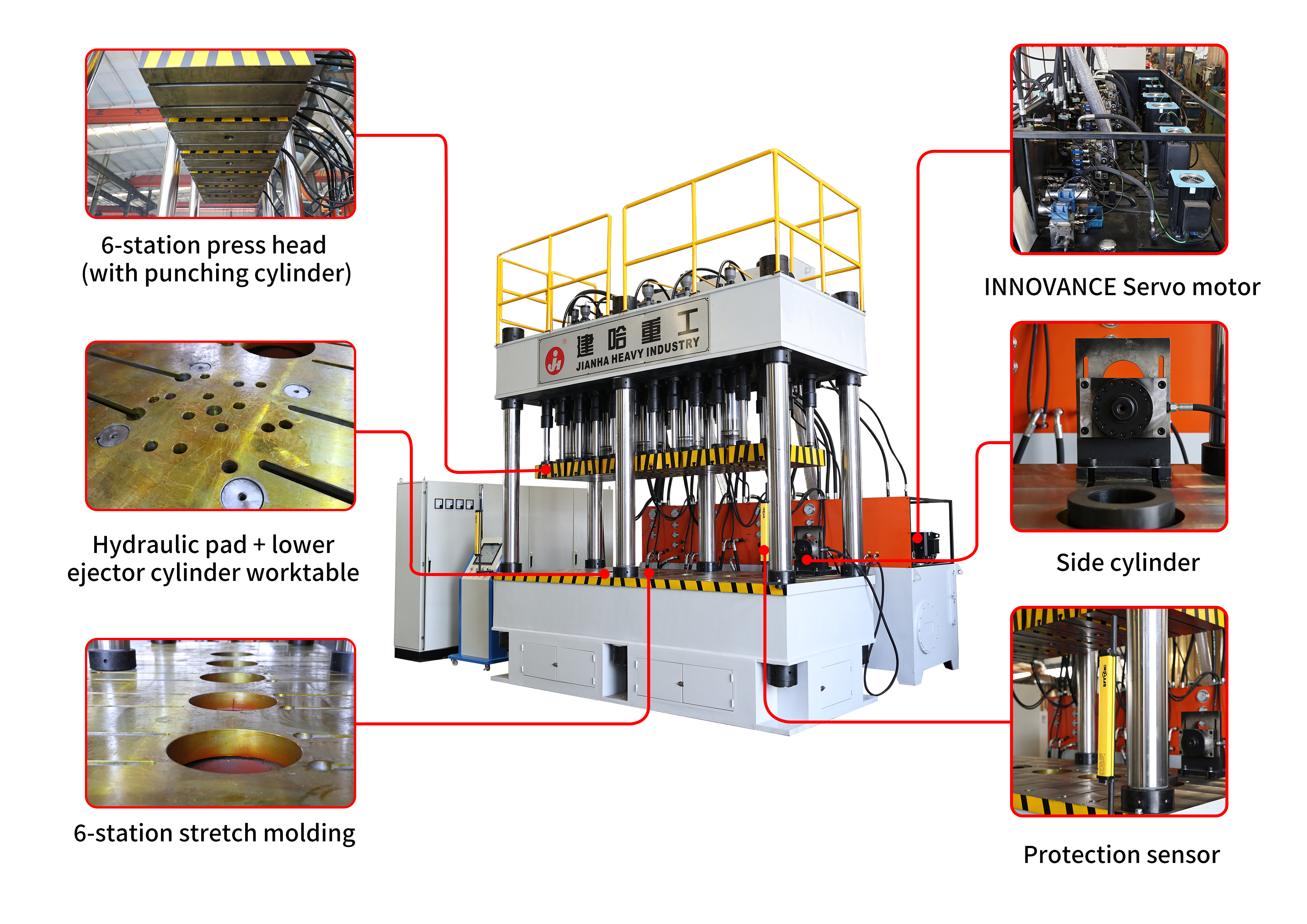

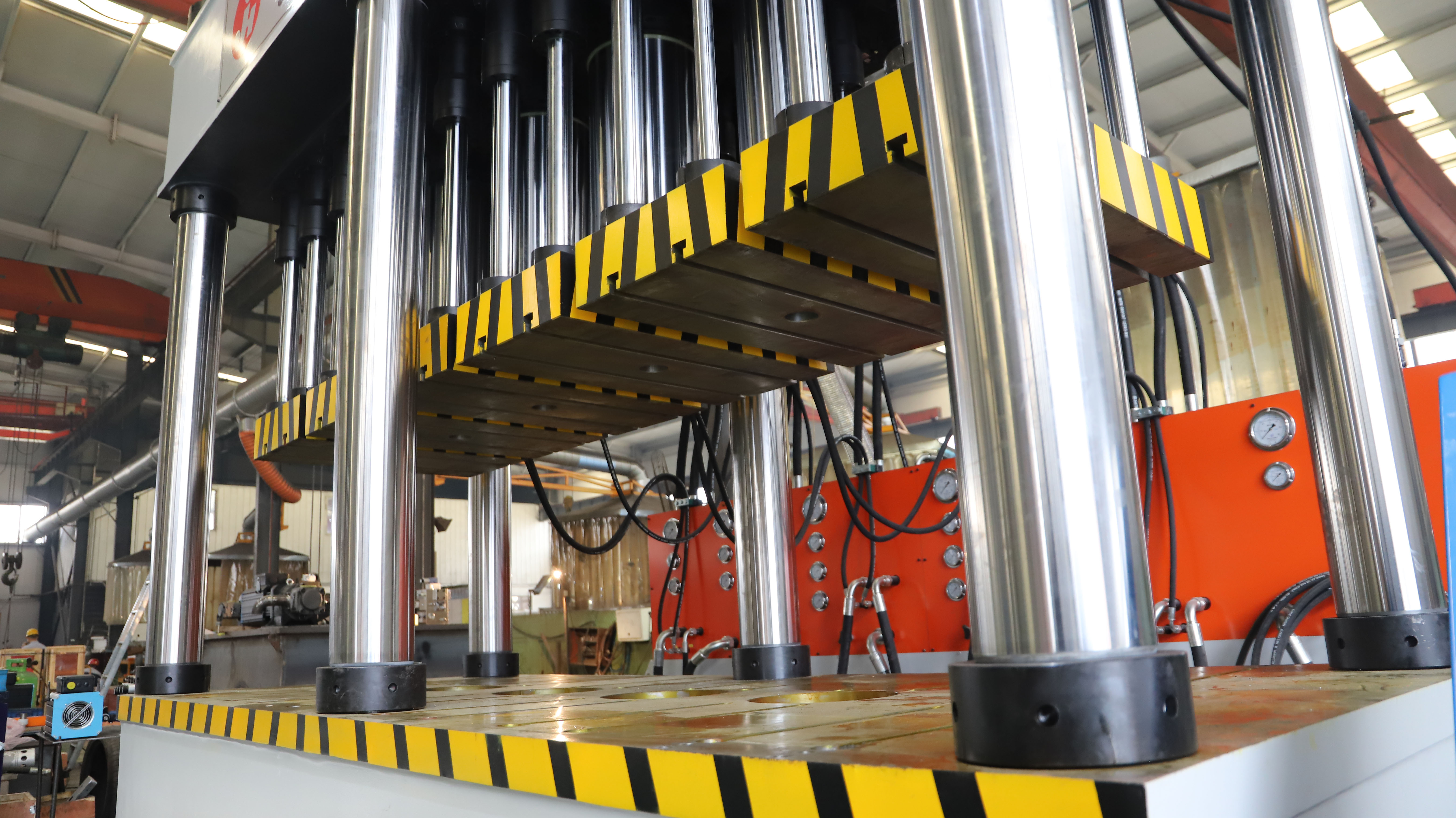

▶ Equipped with a high-performance hydraulic pad for enhanced precision.
The hydraulic pad is a sophisticated multi-bar ejector device used to prevent product wrinkling during the drawing process. This design offers:
| Parameters | 150T Model | 120T Model A | 120T Model B |
|---|---|---|---|
| Nominal pressure (kN) | 1500 | 1200 | 1200 |
| System pressure (Mpa) | 25 | 25 | 25 |
| Maximum slider opening (mm) | 1900 | 1900 | 1900 |
| Effective stroke of slider (mm) | 1450 | 1450 | 1450 |
| Table size (L-R) (mm) | 2000 | 3200 | 3200 |
| Table size (F-B) (mm) | 1600 | 2200 | 2200 |
| Fast speed (mm/s) | 200 | 100-300 | 100-300 |
| Feeding speed (mm/s) | 5-24 | 4-20 | 3-18 |
| Hydraulic pad power (T) | 160T | 200T | 260T |
| Motor power (KW) | 48*2 (Servo) | 48*2 (Servo) | 48*2 (Servo) |

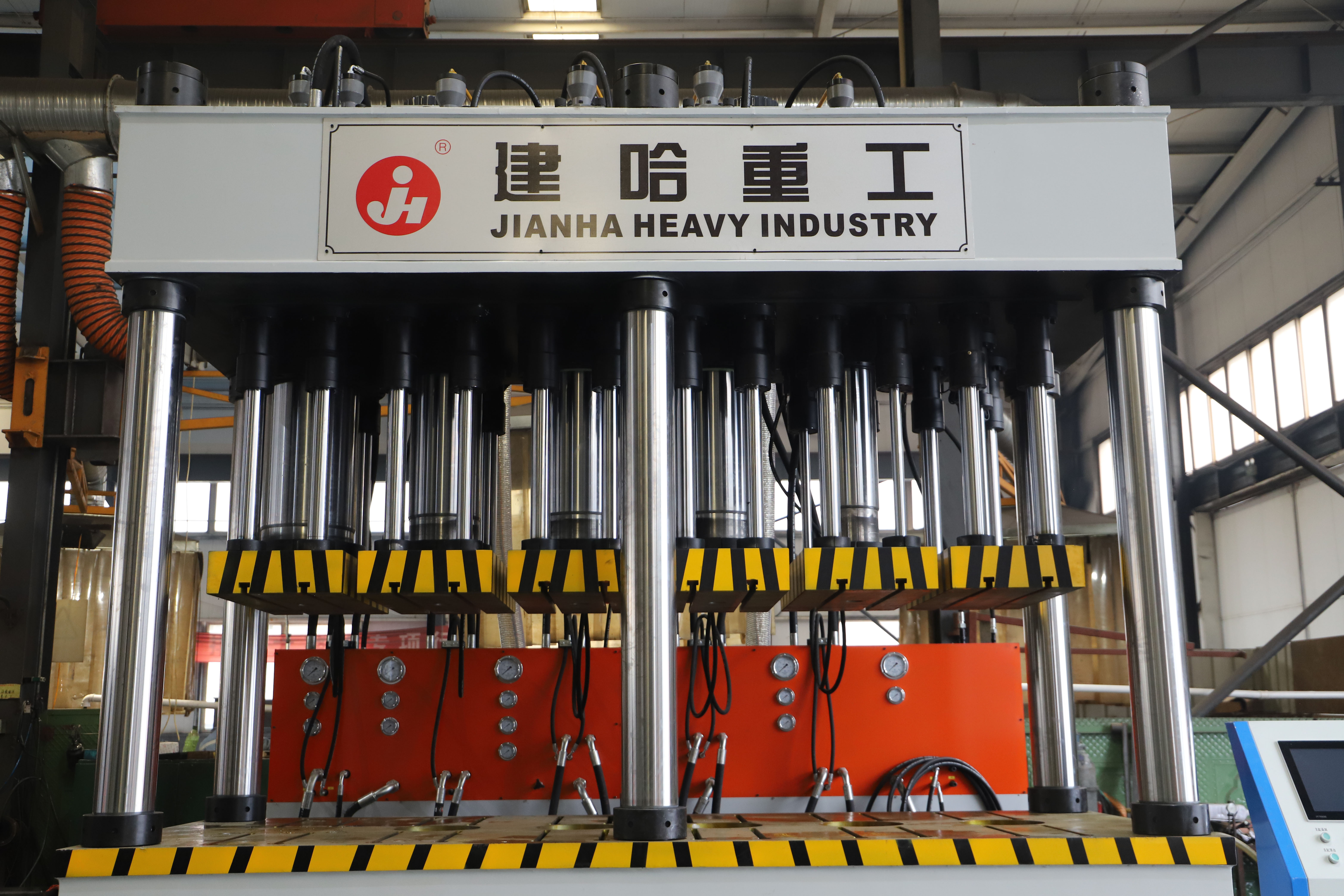

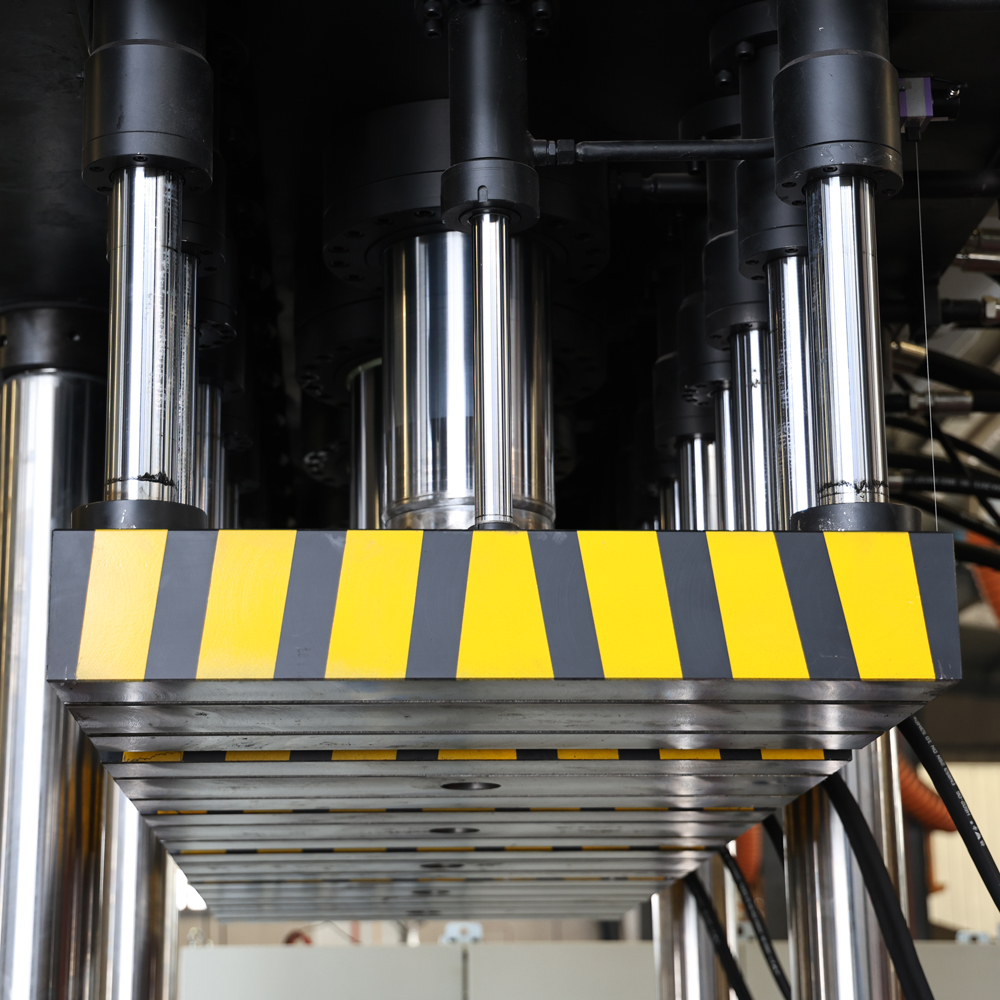

Made of 45# steel with hard chrome plating. Features wear-resistant guide bushes and a centralized lubrication system to minimize friction and prevent surface strains.

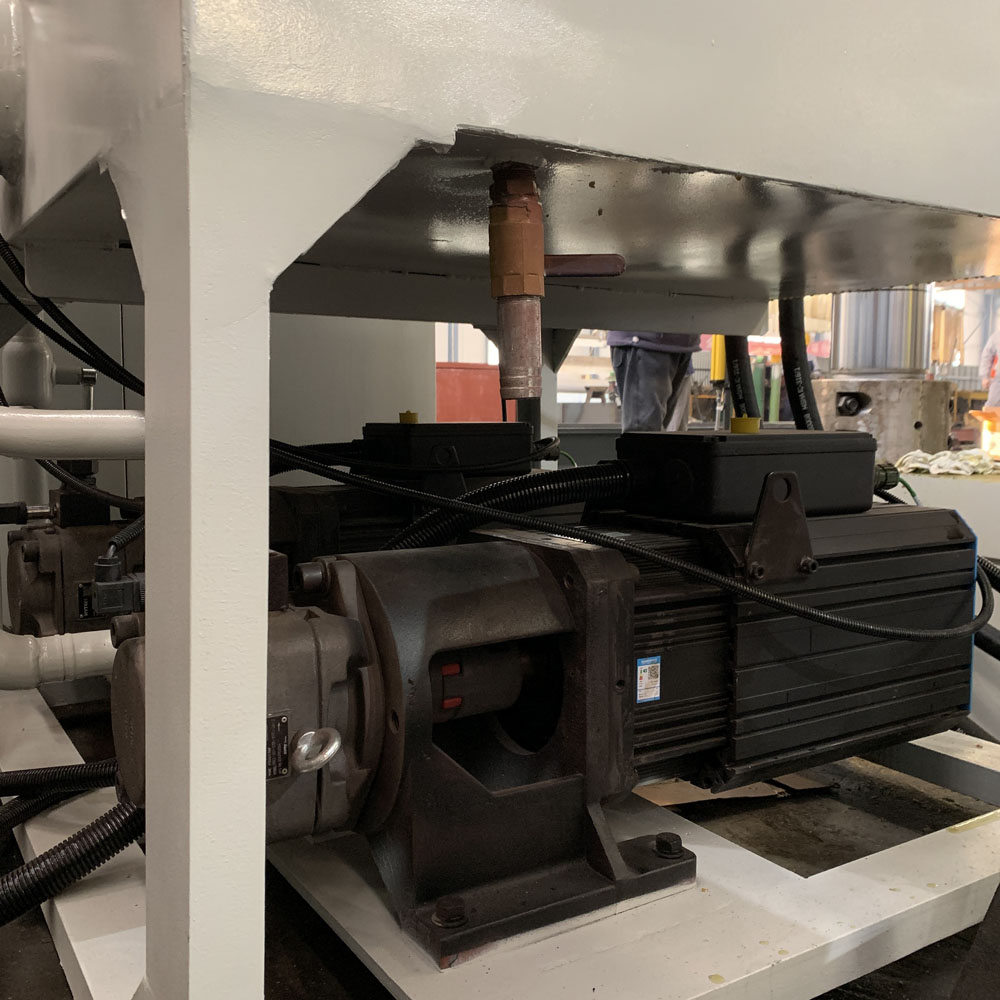

Offers rapid control, high starting torque, and high operating efficiency. Benefits include low operating temperatures, minimal noise, and a long service life.

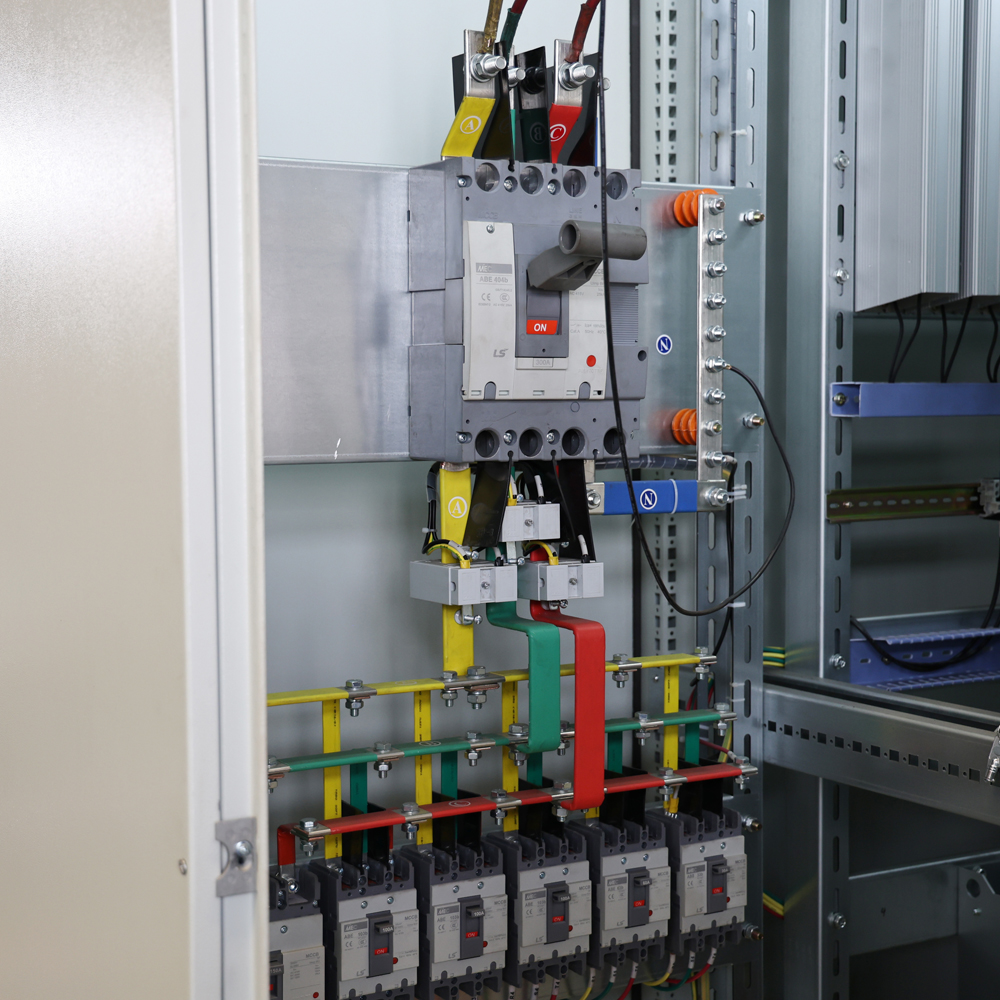

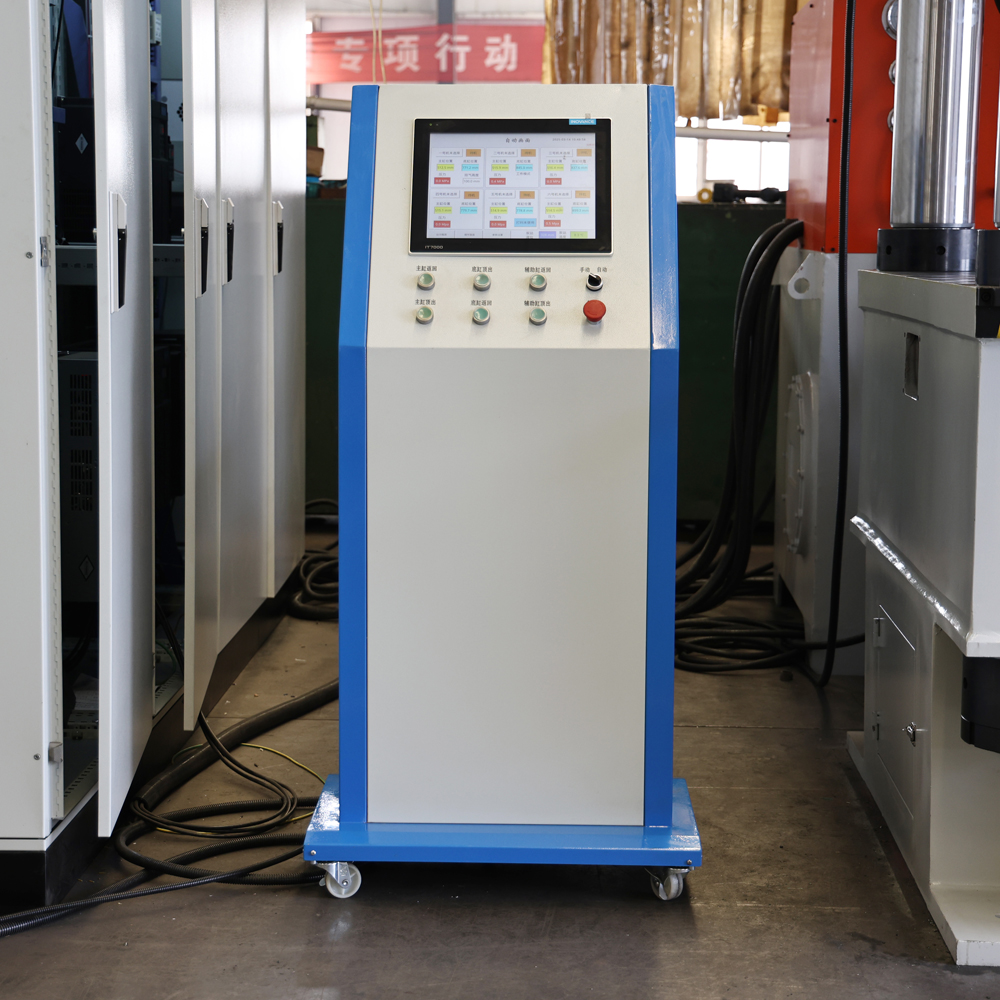

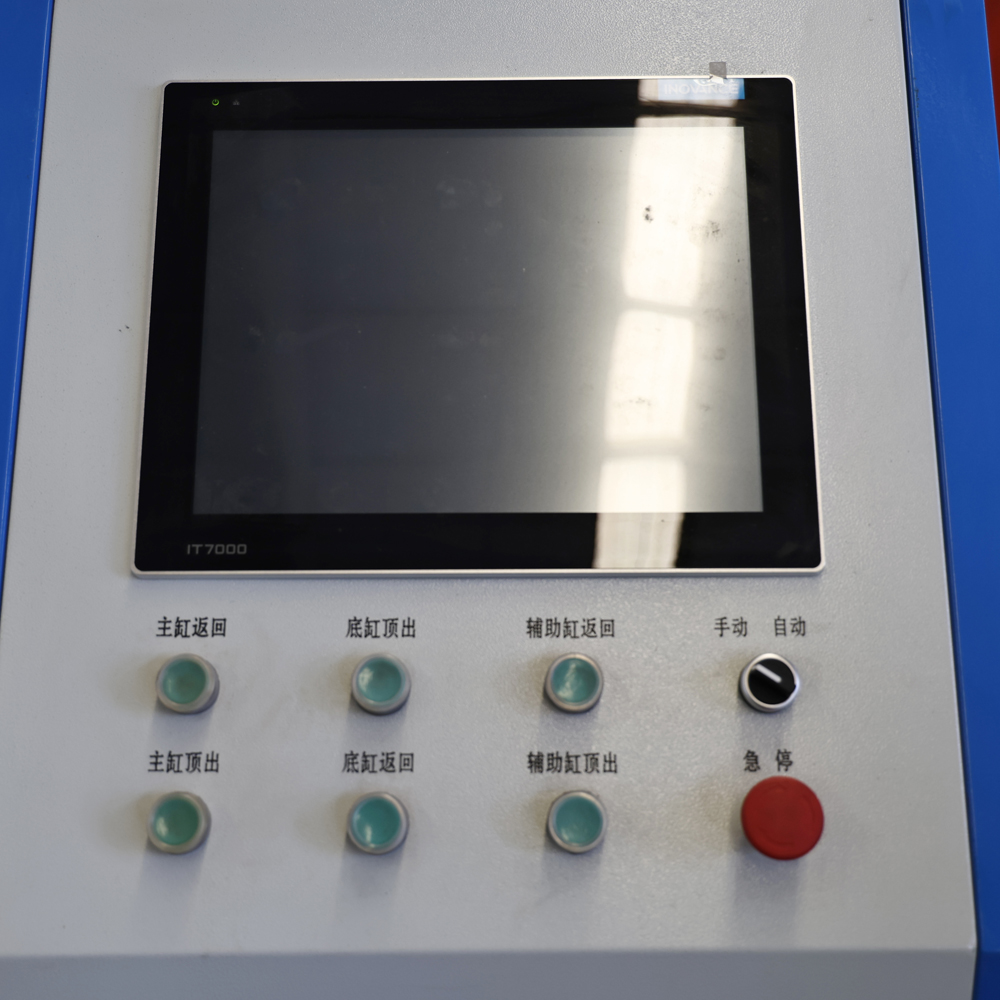

Equipped with Schneider electrical components for maximum reliability. Features clear switchboard wiring and comprehensive schematic documentation.

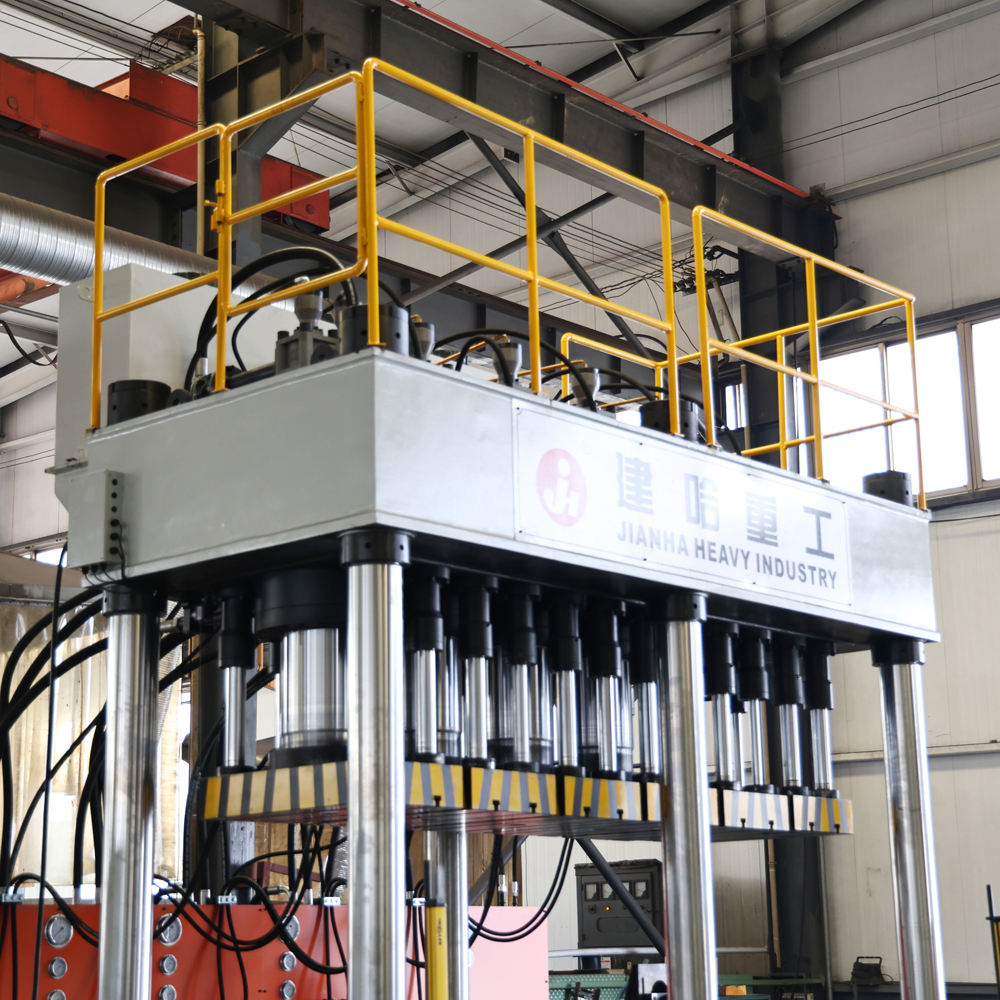

The two-way plug-in valve system ensures precise flow and pressure control, significantly reducing leakage points for stable operation.

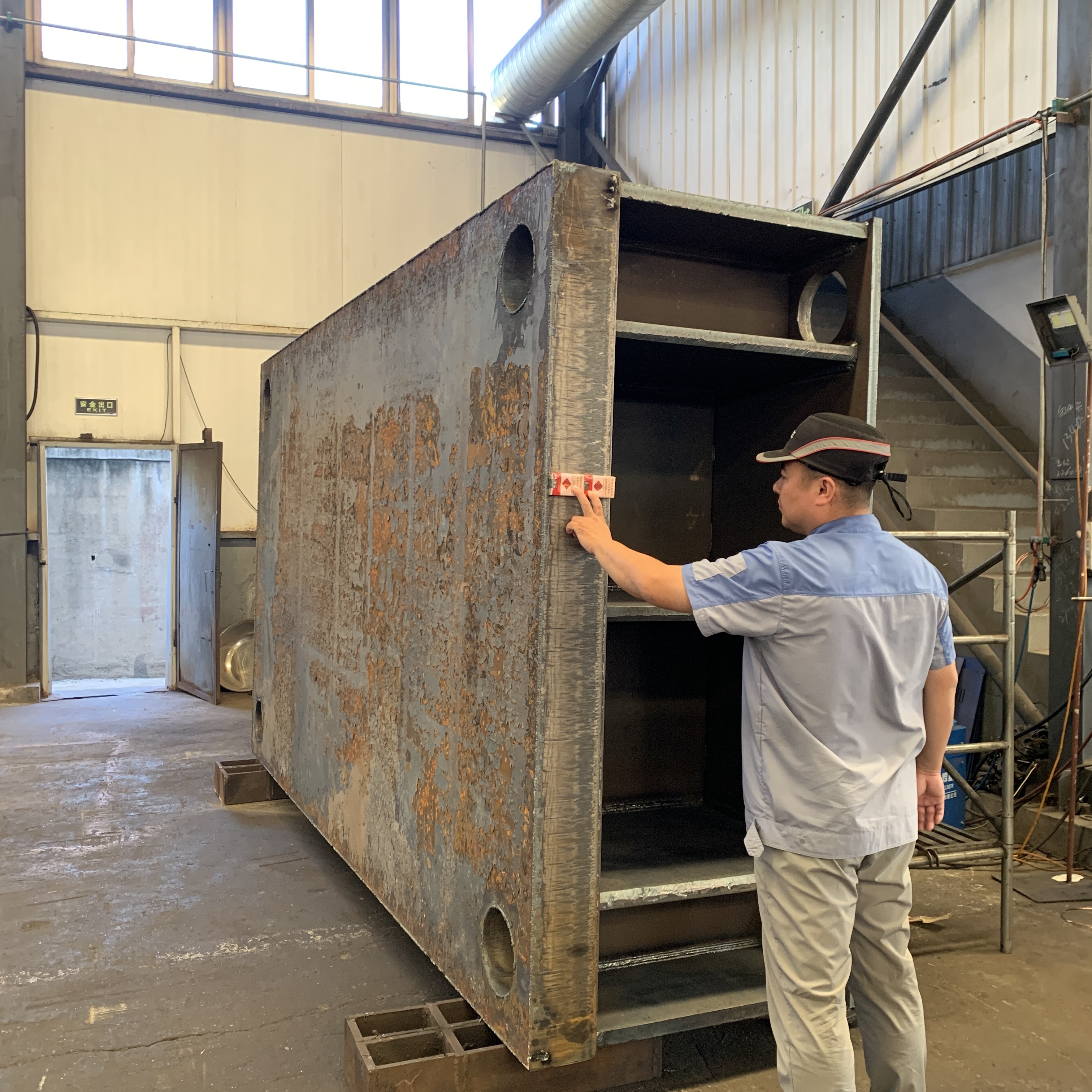

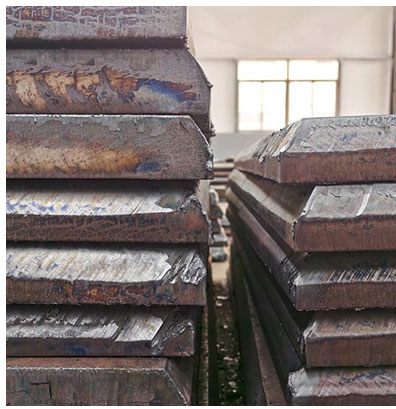

Whole Plate Welding
No splicing strips or scraps used for maximum integrity.

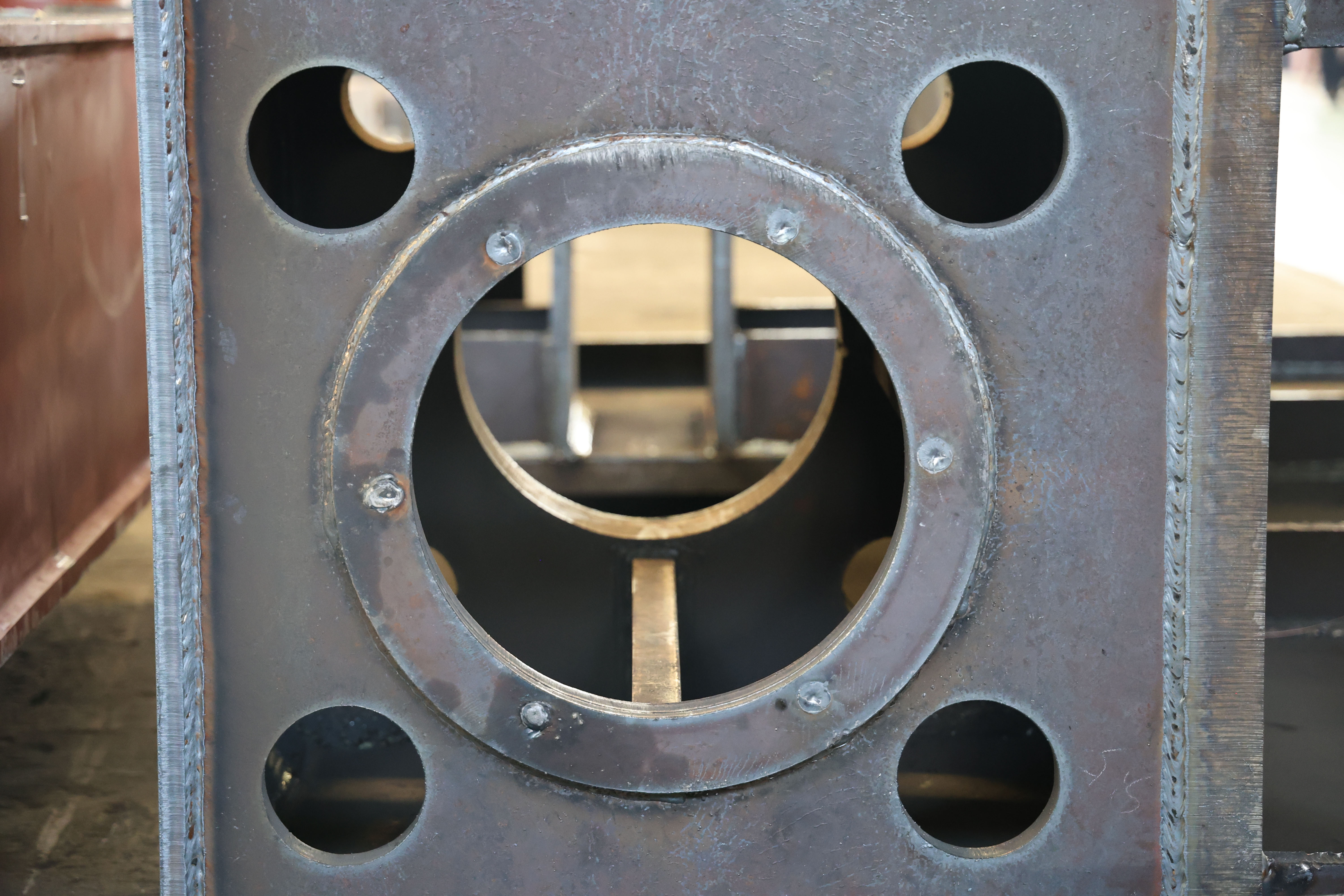

Laser Cutting
20,000-kilowatt laser ensuring precise and reasonable processing sizes.

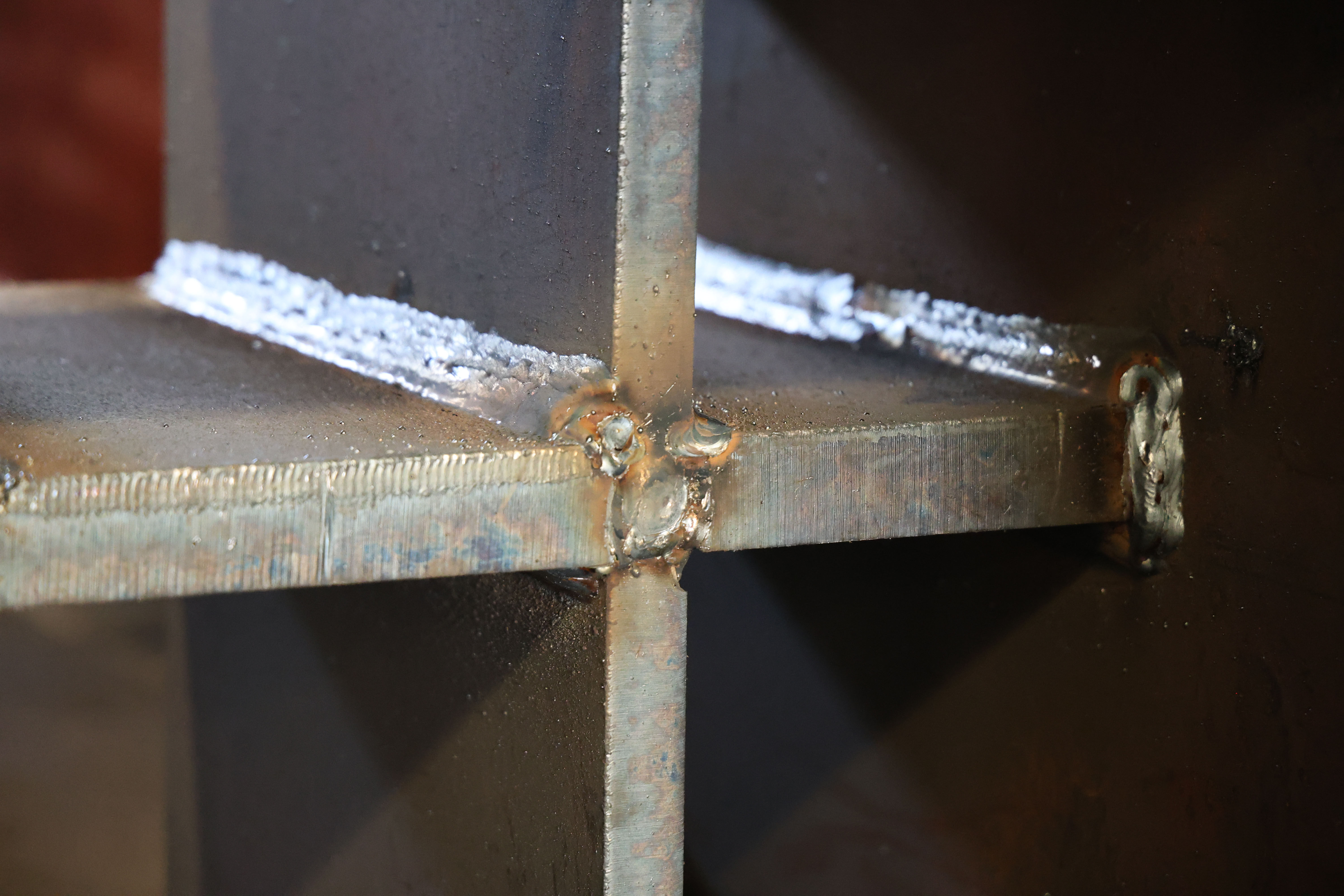

Weld Overlays
Multiple overlays at each bevel for reinforced strength.
Groove Welding
Leaves grooves to make workpieces firmer and reduce deformation.

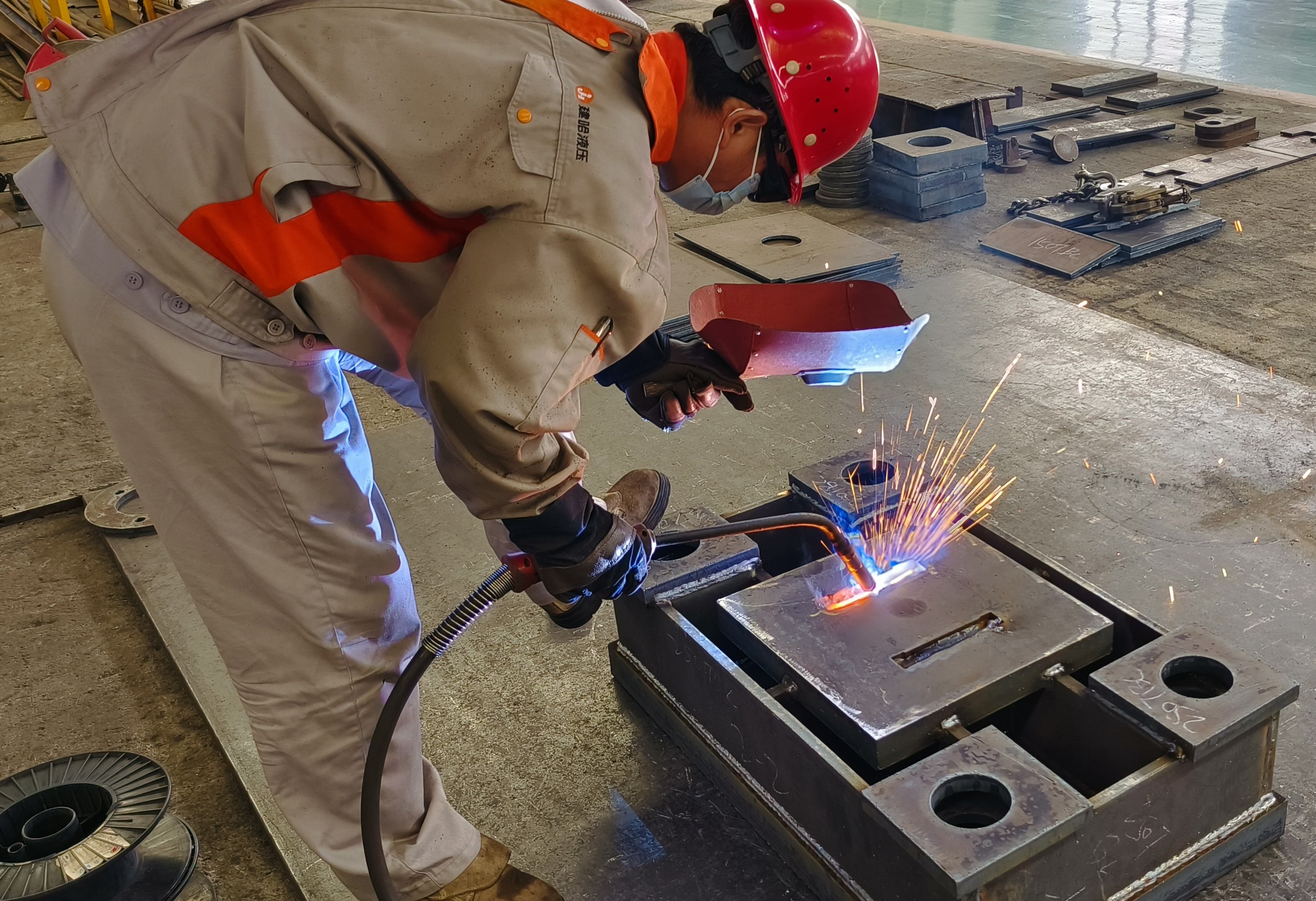

Mortise Filling
High-strength mortise filling welding for structural durability.

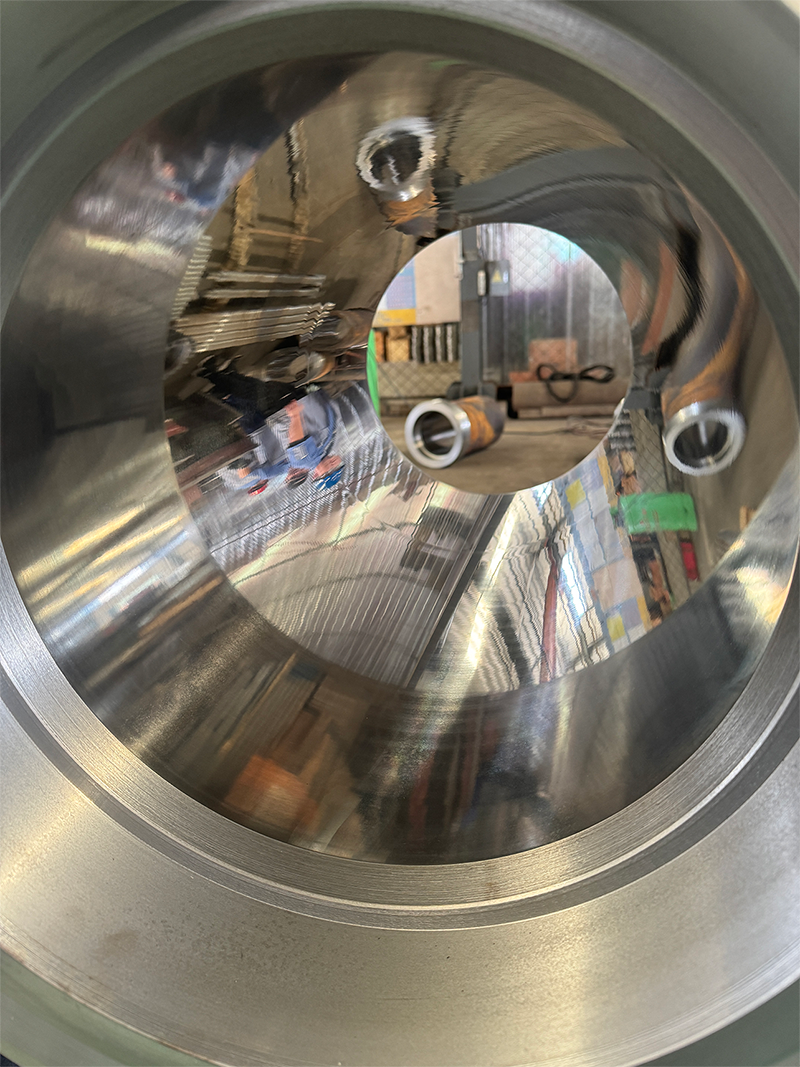

Cylinder Rolling
Inner walls are finished with rolling knives for hardness and longevity.
Our integrated enterprise focuses on R&D, design, and production of high-quality hydraulic presses and assembly equipment. With a factory area exceeding 7,000 square meters and a dedicated team of over 100 employees (including 36 R&D technicians), we prioritize innovation and customer needs.
We provide a range of ODM customized products including Hydraulic Press Machines, Swivel Axis Press Machines, CNC Vertical Lathes, and more. Our products hold international certifications such as CE and AAA, serving clients in over 60 countries globally.
