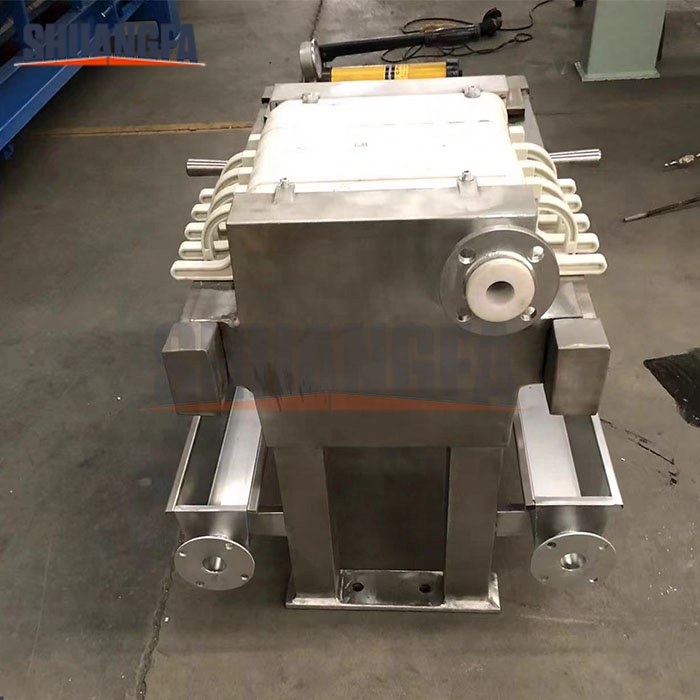

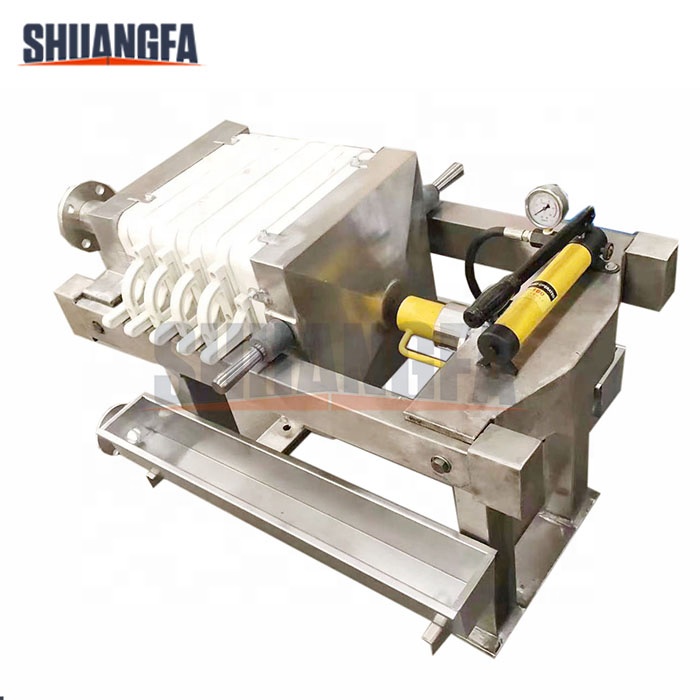

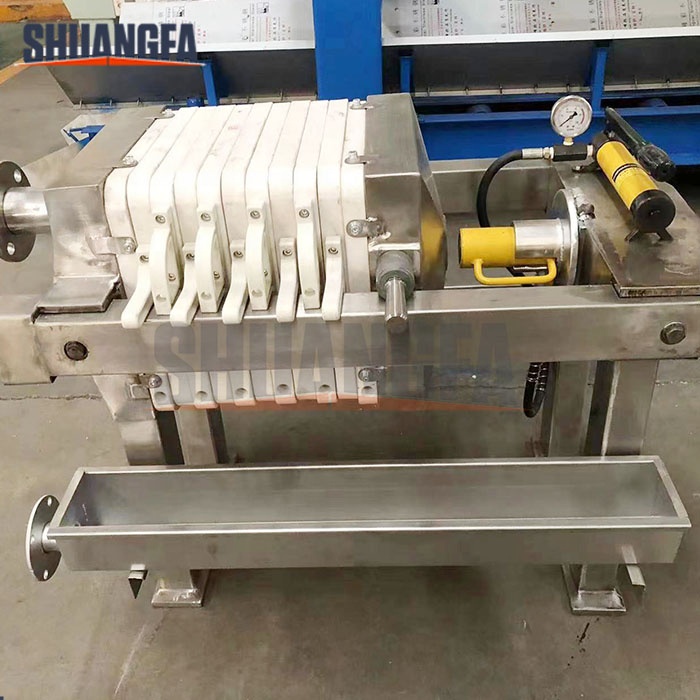

Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use
Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use
Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use
Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use
1 / 4
Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use
Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use
Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use
Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use

Low Price Manual Hydraulic Plate and Frame Filter Press Machine for Lab Use

Send Inquiry

Product Description

Introduction of Manual Hydraulic Plate and Frame Filter Press Machine
Manual hydraulic filter presses are mainly used in small-scale experiments, small sewage tanks, small food factories, and other places. It have the advantages of simple operation, small footprint, durability, and low maintenance rate, making them ideal equipment for solid-liquid separation. Mainly the BMSY380, BMSY500 model.
Key Features
1. Manual hydraulic compression, simple and easy to use, energy saving, low running cost.
2. The main material of frame is carbon steel: Q235, beams with rectangular tube seamless welding, special frame deformation, strong and durable.
3. Filter plates and filter frame is made of pure PP, do not contain other filler, not recycled material, high strength, light weight, corrosion resistance.
4. Various kinds filter cloth which suit for different kinds of material, improving the filtering accuracy.
5. PP water faucet, quick opening type die forming, strong and durable, high temperature resistance, strong acid and alkaline.
Detailed Product Display

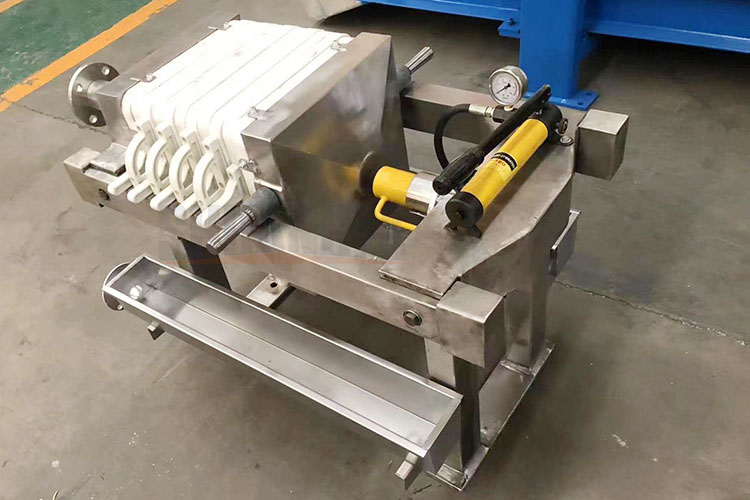

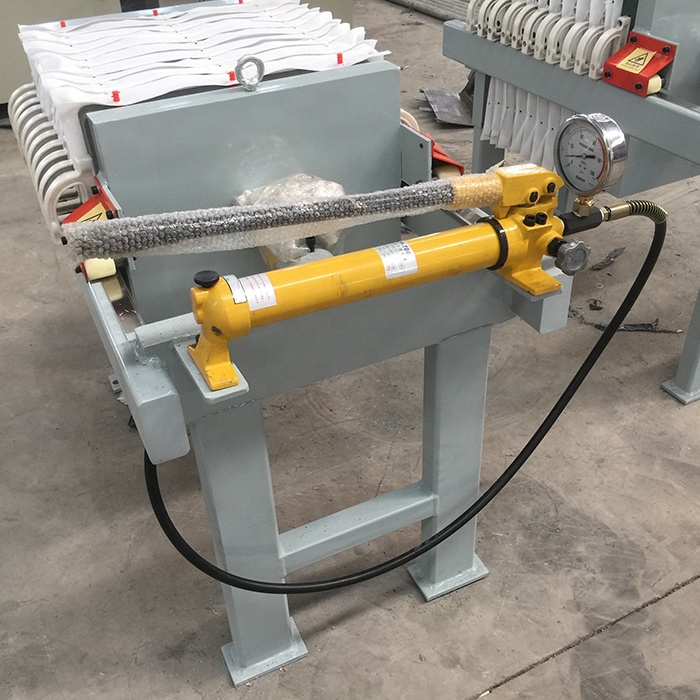

Compression way
Manual Hydraulic Compression
Compact structure, simple operation. Open type outlet with water sink.

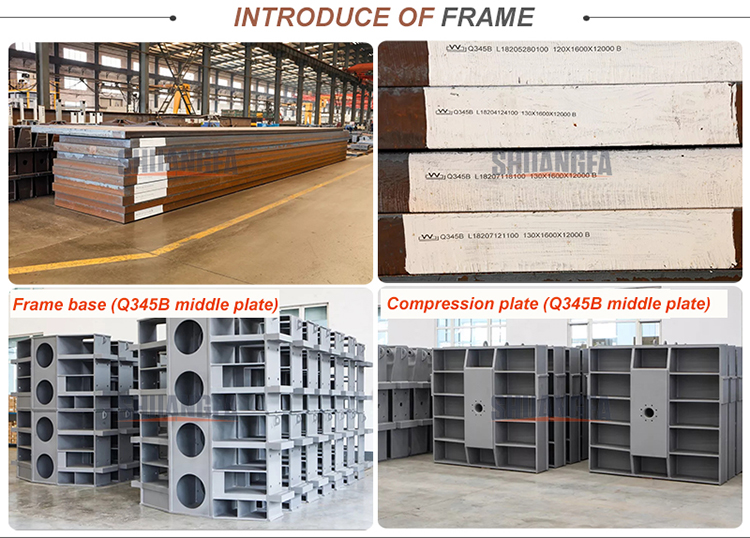

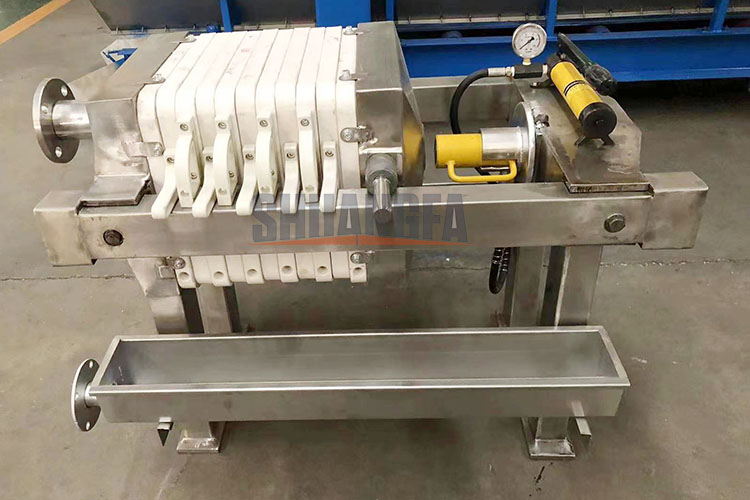

Frame
Durable Frame
Made of carbon steel Q235. Can be outsourced with SS304/SS316L for anti-corrosion.

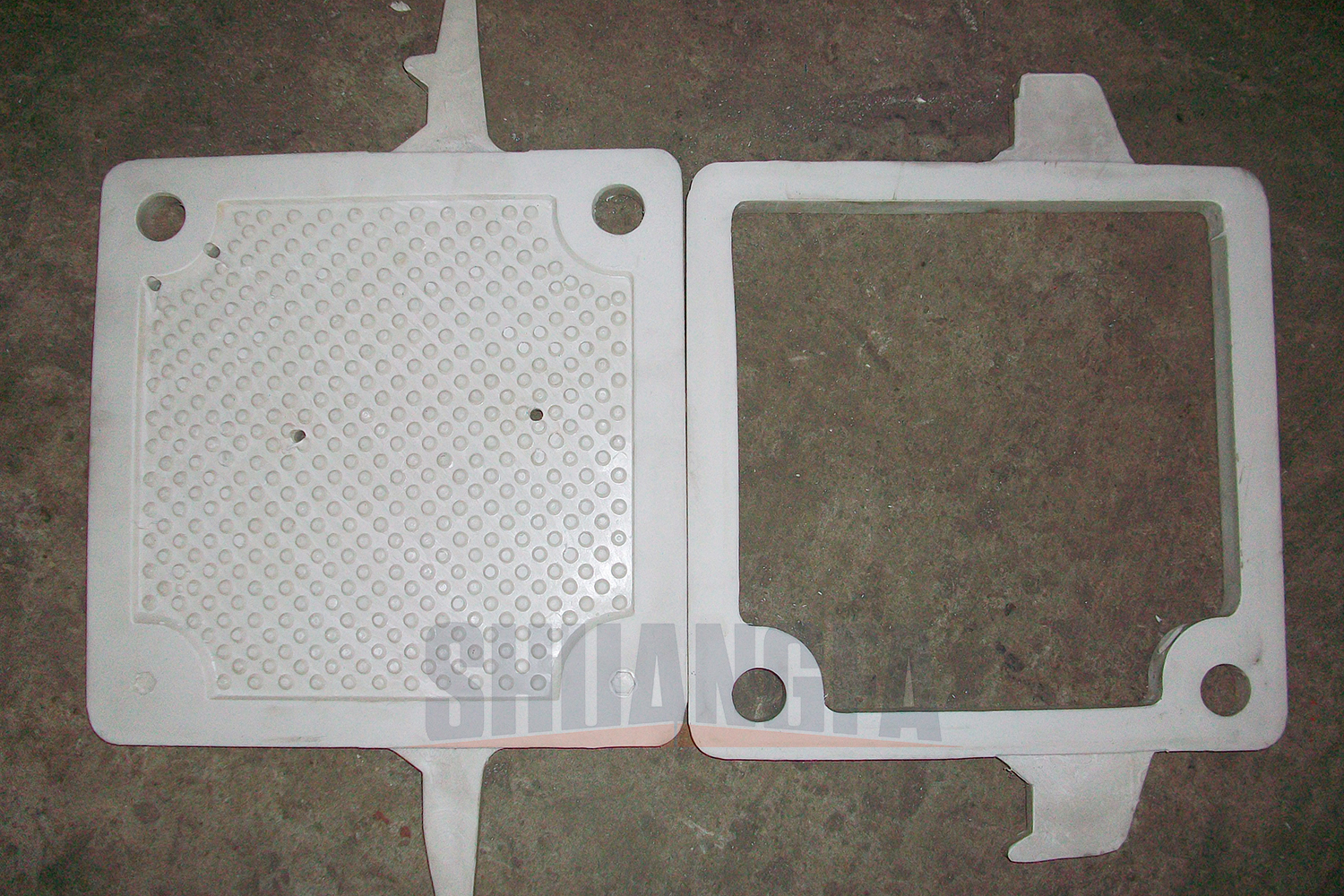

Plates
PP Filter Plates
Pure PP material. Sizes: 380*380mm, 500*500mm. Pressure: <0.6Mpa.

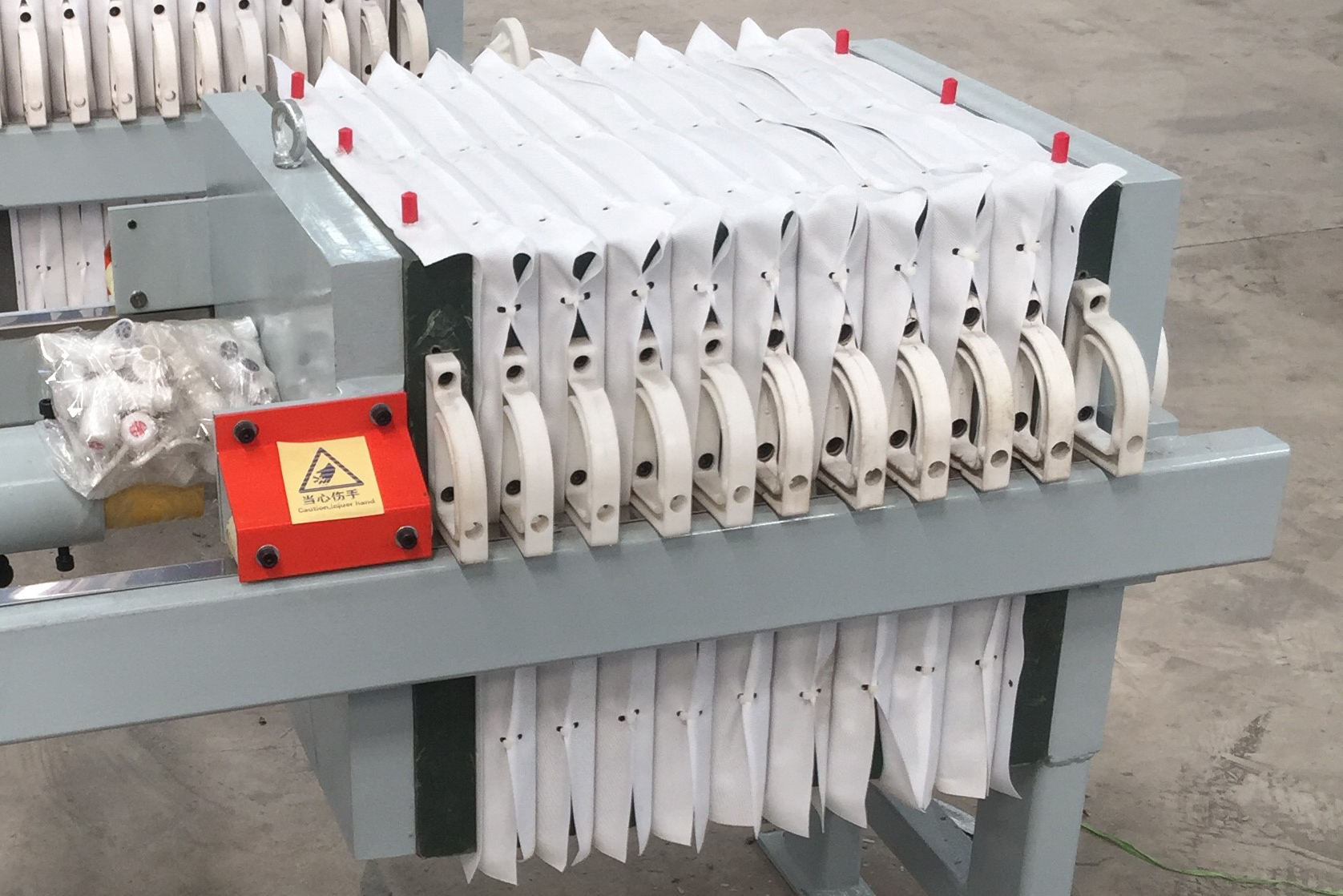

Filter cloth
Filter Cloth
Options include Polypropylene, polyester, or nylon depending on accuracy requirements.

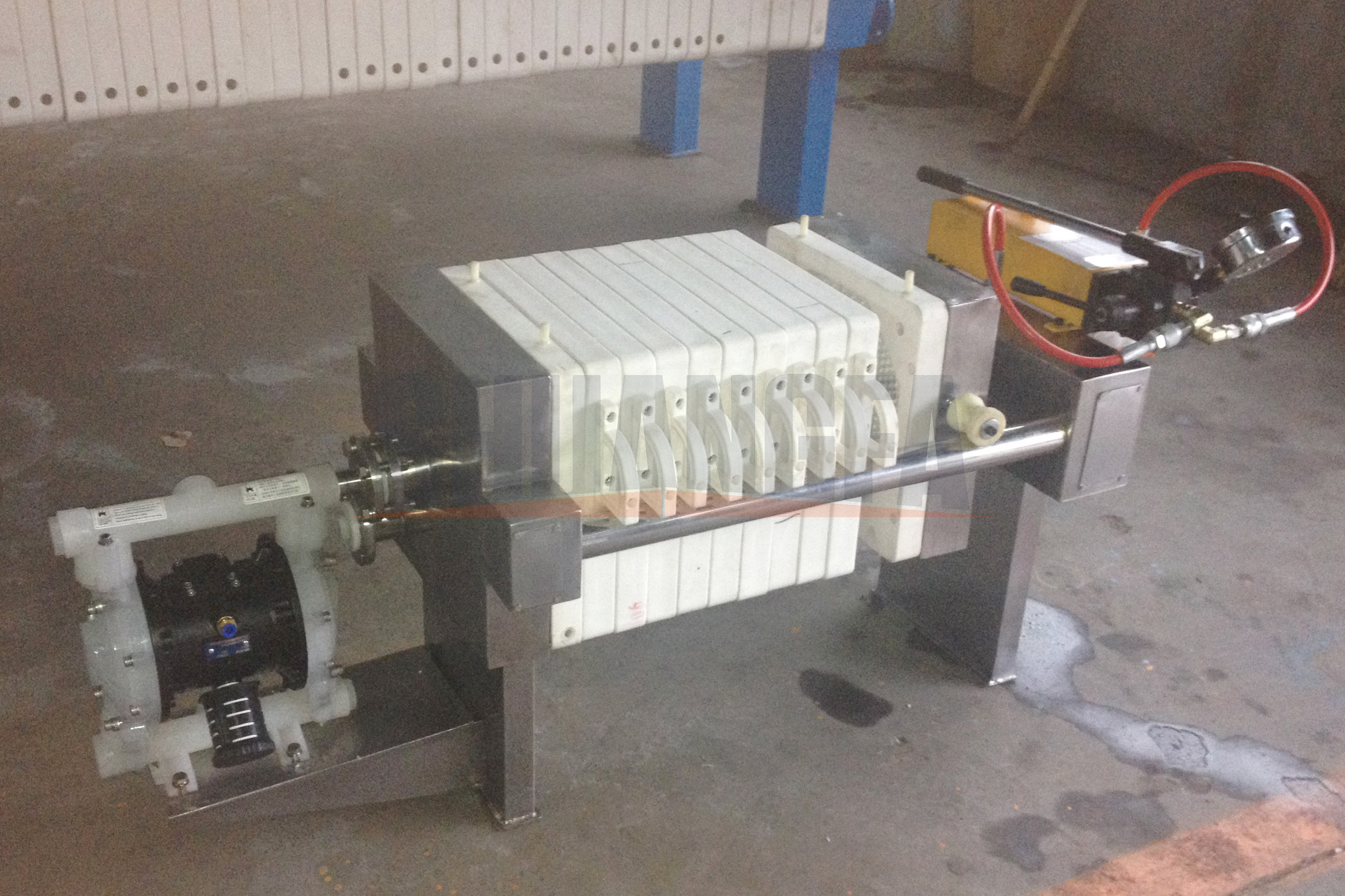

Pump
Feeding Pump
Supports matching with diaphragm pumps or screw pumps for efficient feeding.

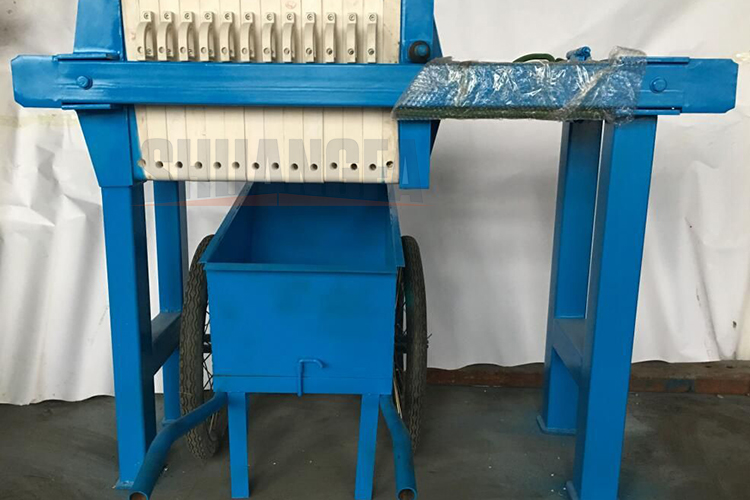

Trolley
Cake Bucket Trolley
Customized service for receiving and delivering filter cakes conveniently.
Wide Range of Applications
  • Chemical: Coating, paint, soda ash, alkali, salt mud.
  • Food: Vegetable oil, beer yeast, fruit juice, plant protein.
  • Pharmacy: Phytic acid, calcium, Chinese medicine.
  • Other: Various solid-liquid separation industries.

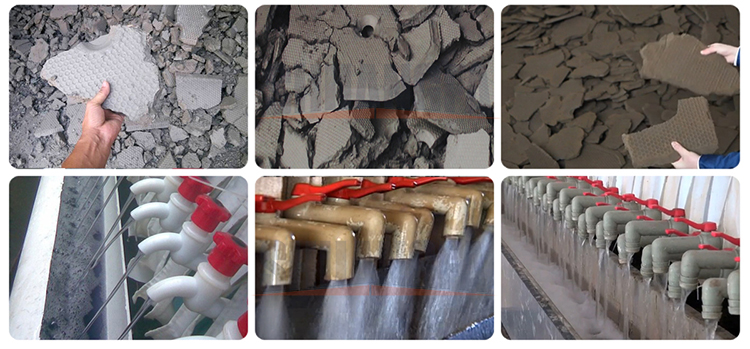

Application sites
Technical Specifications
Model Filter area (m2) Plate Qty (pcs) Frame Qty (pcs) Volume (L) Dimension (mm) Weight (kg)
XMSY380145151230*570*660490
XMSY3802910311455*570*660528
XMSY38031415461680*570*660550
XMSY5004910601630*800*900780
XMSY50061415911880*800*900830
XMSY500819201212130*800*900880
XMSY5001024-1512380*800*900930
XMSY5001229-1822630*800*900980

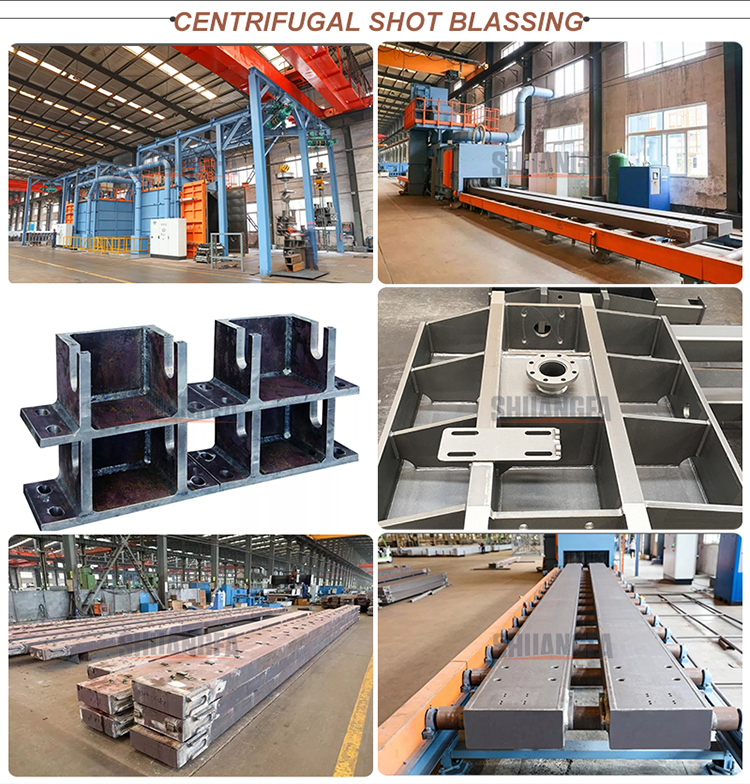

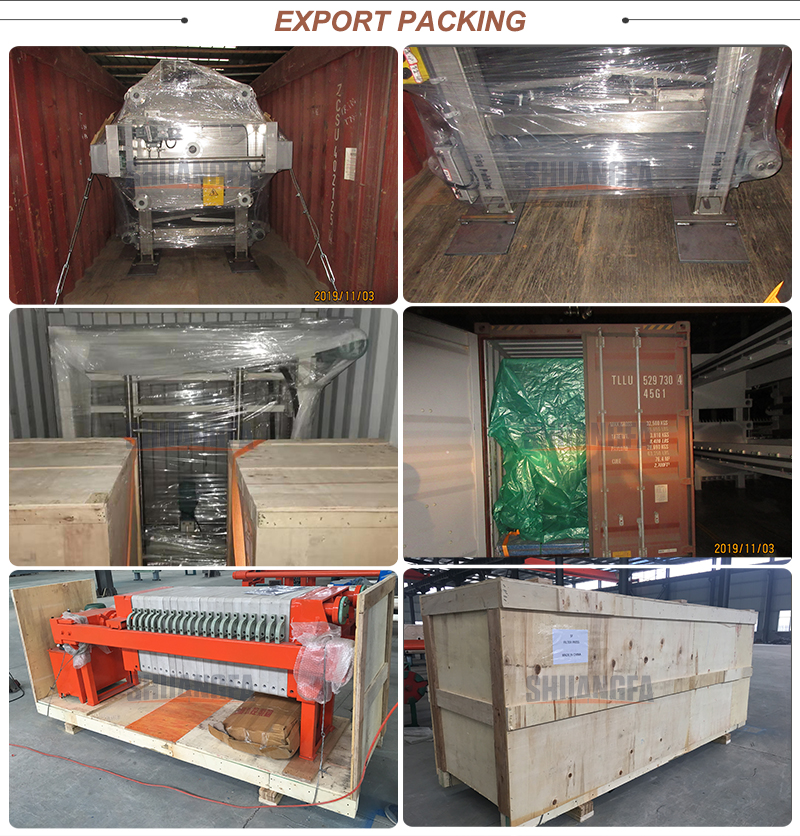

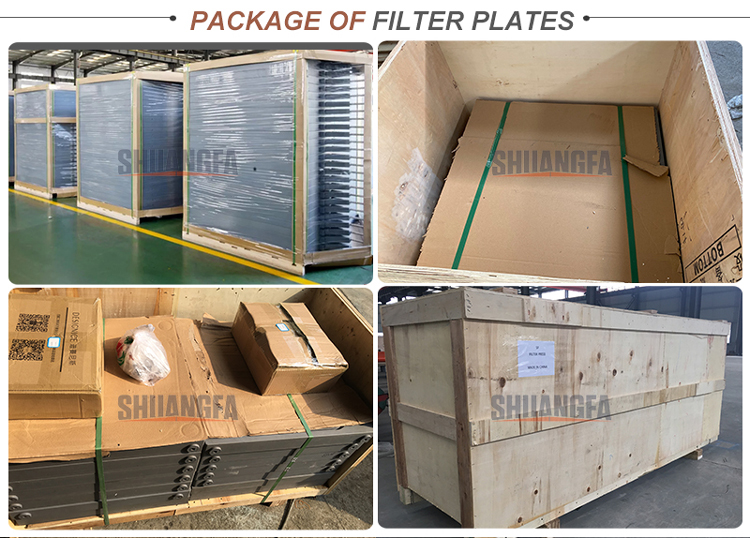

Packing & Factory Overview
Our Professional Services

Pre-sale: We assist you in finding the best product fit for your needs and can design customized solutions and train your technical personnel.

During sale: We adhere to "customer first" principles, addressing all concerns and drafting specific solutions.

After-sale: One-year full guarantee. We provide free repairs for quality problems and immediate technical exchanging or on-site support.

Frequently Asked Questions
What types of filter press machines do you provide?
We offer chamber filter presses, membrane filter presses, plate and frame types, belt filter presses, vacuum belt filters, and specialized stainless steel or cast iron models.
What is the Minimum Order Quantity (MOQ)?
Generally, the MOQ for our equipment is 1 set.
What are the accepted payment terms?
We accept TT and L/C. Usually, a 30% advance payment via T/T is required, with the remaining 70% paid before delivery.
Do you support OEM and site commissioning?
Yes, we accept OEM manufacturing based on your requirements, and we provide on-site installation and commissioning services.
What information is needed for a precise quotation?
Please provide the material type, processing capacity (m3/h), solid content (%), particle size (micron), temperature, and PH value of the material.
How long is the machine warranty?
All machines from our factory come with a standard 1-year warranty.
