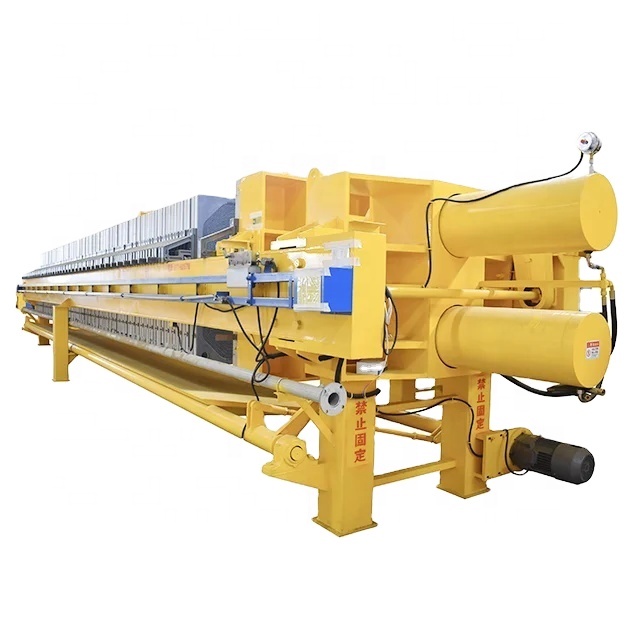

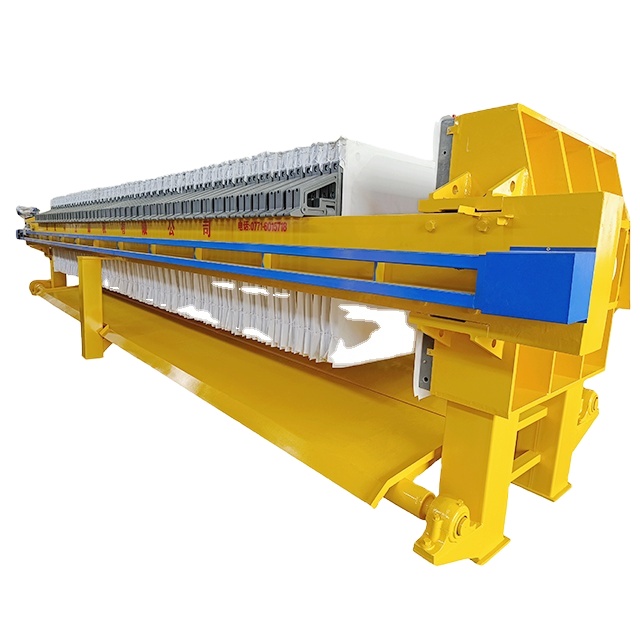

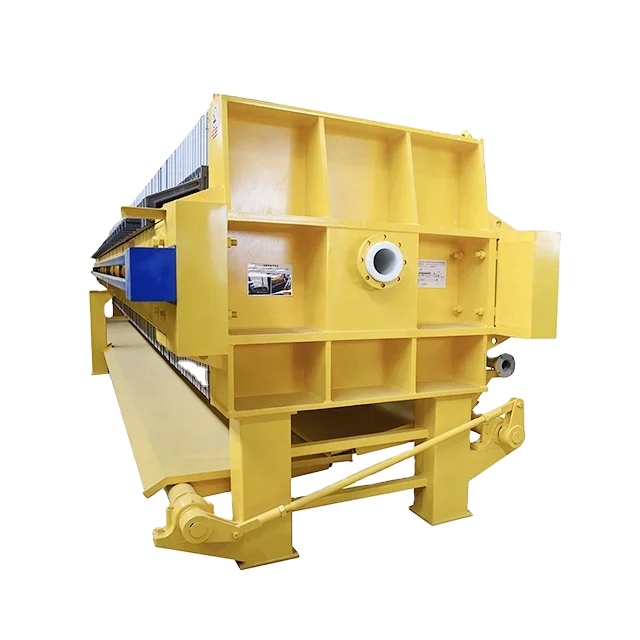

High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
1 / 5
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment
High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment

High Quality Industrial Filter Press Machine, Plate and Frame Filter Press, Hydraulic Filter Press for Waste Water Treatment

Send Inquiry

Product Description

Chamber Pressure Filter
Products Description
Chamber pressure filter Item Name Embedded filter plate and Jack control filter press
Filtering Area 60m2
Total Volume of Filtering Chamber 900 L
Type of Filter Plate PP
Thickness of Filter Plate 60 mm
Number of Filter Chambers 60 pcs
Thickness of Filter Cake 30 mm
Overall Dimensions Length: 5404 mm
Width: 1246 mm
Height: 1628 mm
Unit Weight 3590kg
Application Area
Mining, Tailings Industry
The Chemical Industry
Sewage Sludge IDM
Smelting Industry
Building Material Stone and other Non-metal Industries
Concrete Industry
Paper Industry
Rosin Forest Chemical Industry
Food oil other industries
Electroplating Wastewater Industry
Product Display

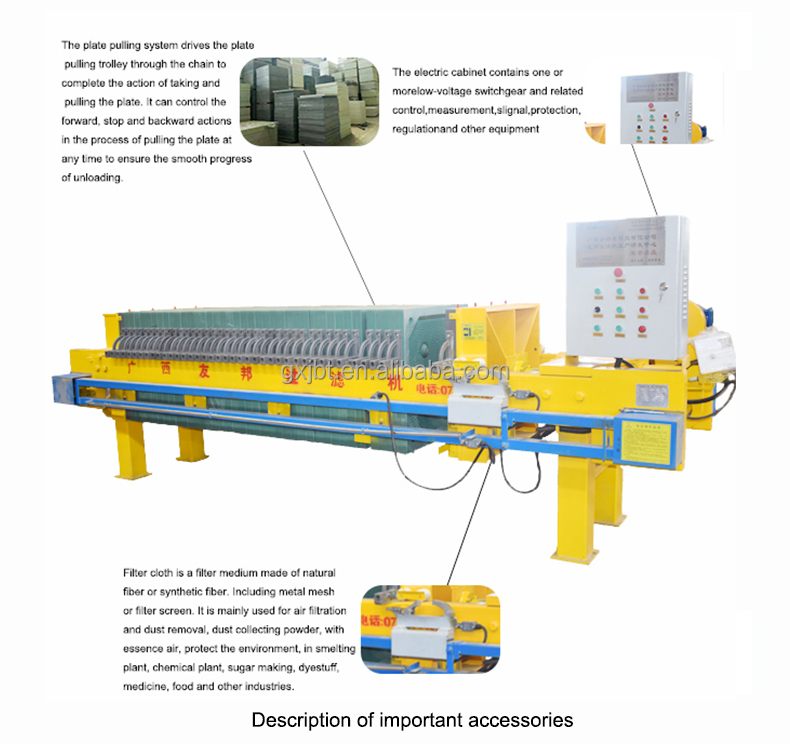

Filter Press View 1

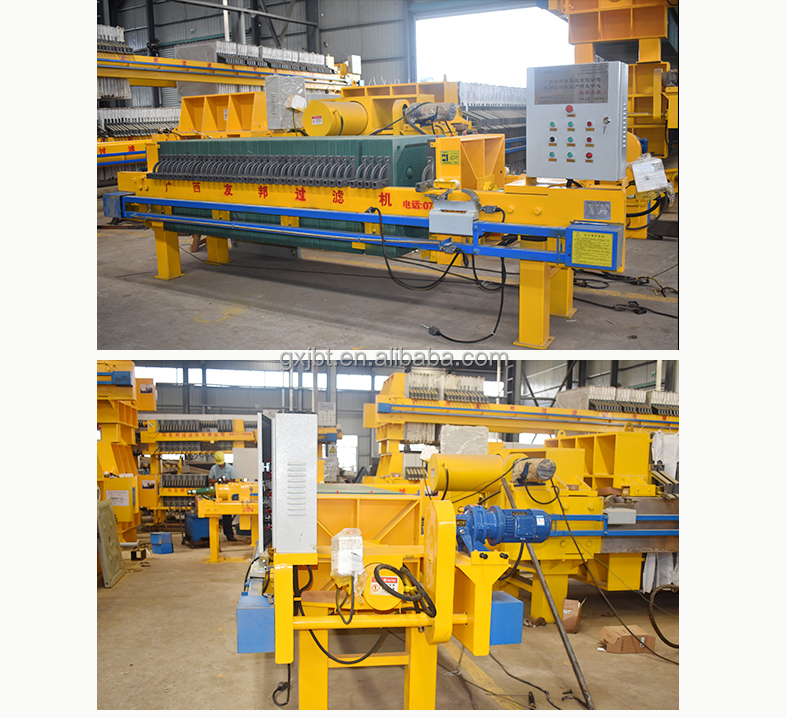

Filter Press View 2

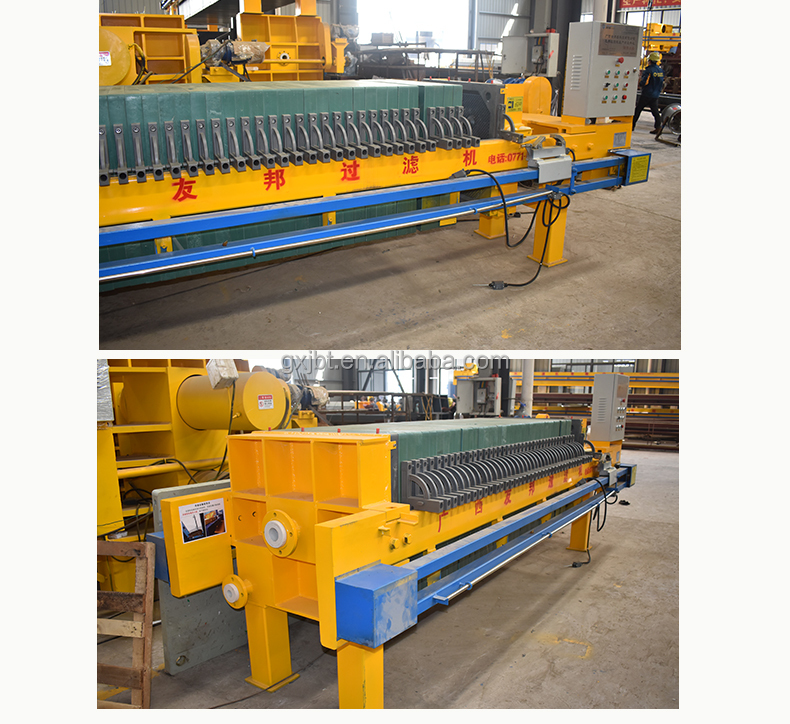

Filter Press View 3
Product Structure
Structure Diagram 1

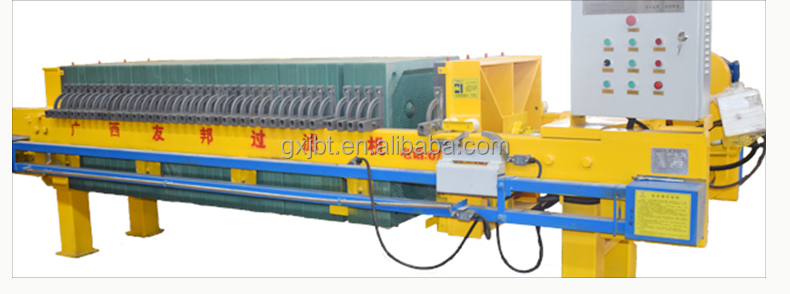

Structure Diagram 2
⚙ GENUINE MATERIAL
Strictly select raw material for products and refuse to cut corners.

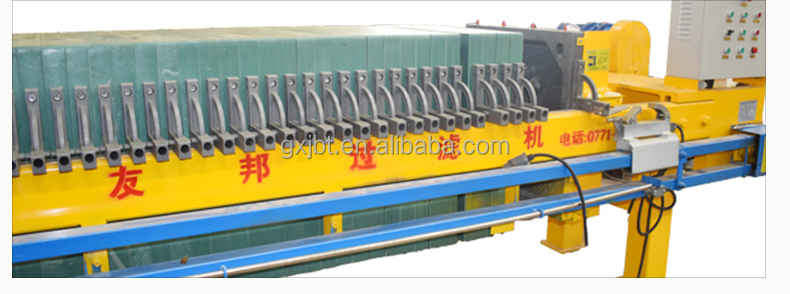

Genuine Material Details
🔧 SIMPLE MAINTENANCE
The disassembly, installation and maintenance are simple, easy to operate and stable in structure.

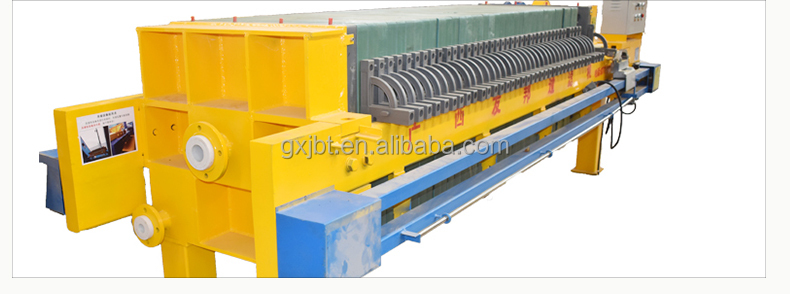

Simple Maintenance Demonstration
✔ Easy to Use
The utility model has the advantages of convenient use, simple operation and wide application range.

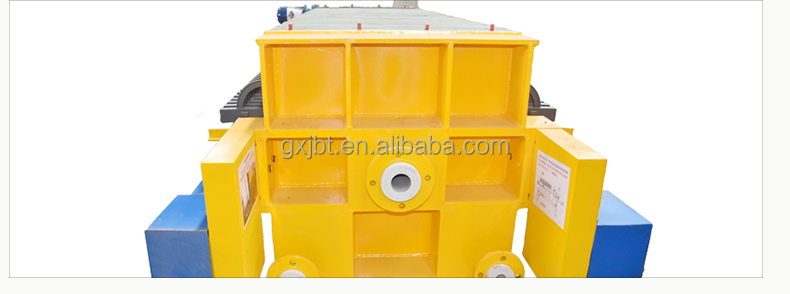

Easy to Use Demonstration
📐 Support Customization
A large number of regular stock, support the processing and customization of drawing and samples.
Details of Series

Type XZ800 automatic recessed plate filter press (Hydraulically controlled, automatically pressure holded, automatically pull plate)

Model Filtering Area (m²) Total volume of filtering Chamber (L) Thickness of Filter plate (mm) Number of Filter chambers (pcs) Thickness of filtering cake (mm) Overall dimensions (mm) Unit weight (kg)
Length Width Height
XAMZ20/800-UBK 20 300 60 20 30 2964 1246 1628 2240
XAMZ30/800-UBK 30 450 60 30 30 3574 1246 1628 2580
XAMZ40/800-UBK 40 600 60 40 30 4184 1246 1628 2922
XAMZ50/800-UBK 50 750 60 50 30 4794 1246 1628 3250
XAMZ60/800-UBK 60 900 60 60 30 5404 1246 1628 3590
XAMZ70/800-UBK 70 1050 60 70 30 6014 1246 1628 4080
XAMZ80/800-UBK 80 1200 60 80 30 6624 1246 1628 4450
Technological Process

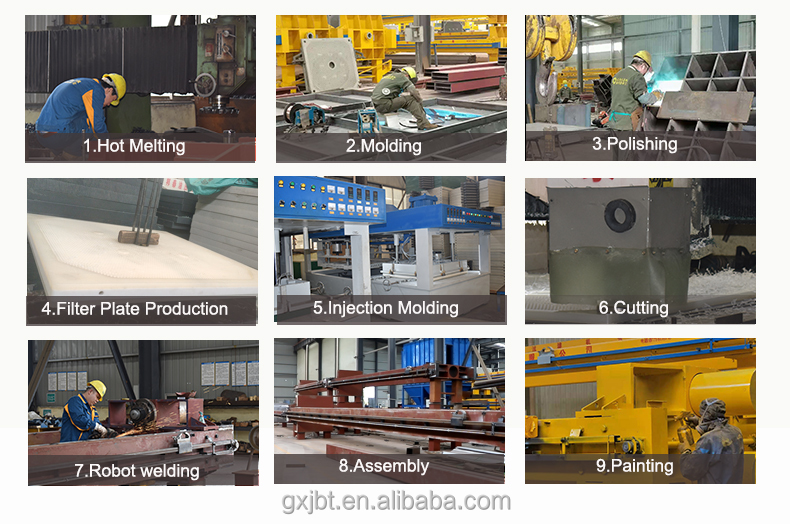

Technological Process Diagram
CASES
Onsite Case Study 1
Onsite Case Study 2
Scope of Application
Application Scope 1
Application Scope 2
Classification
Classification 1
Classification 2
Classification 3
Classification 4
Manufacturing View 1
Manufacturing View 2
Manufacturing View 3

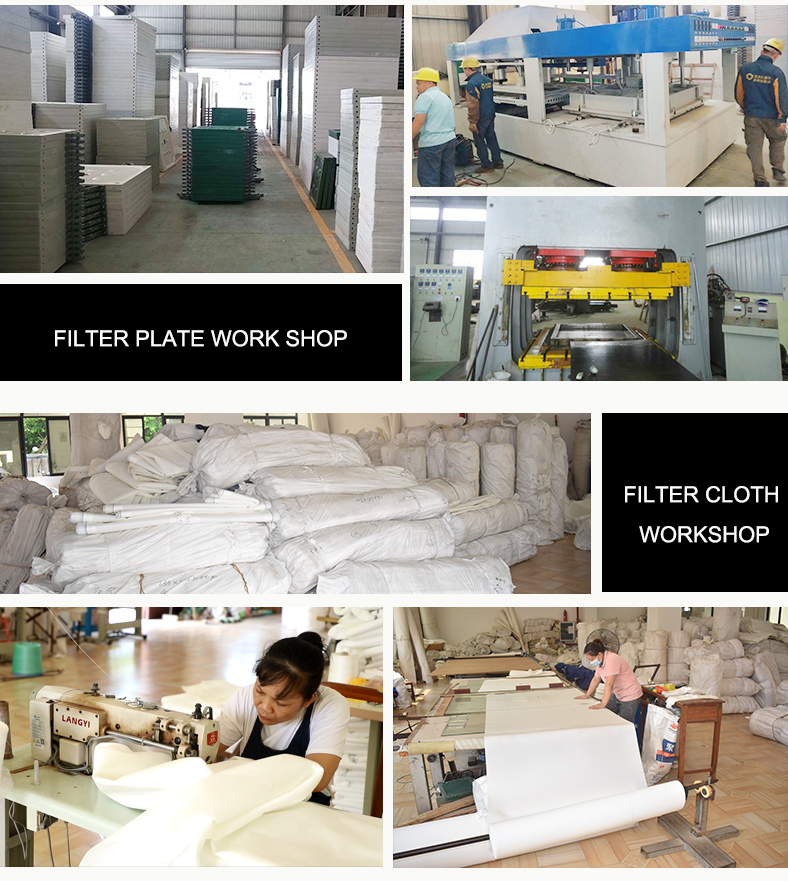

Manufacturing View 4

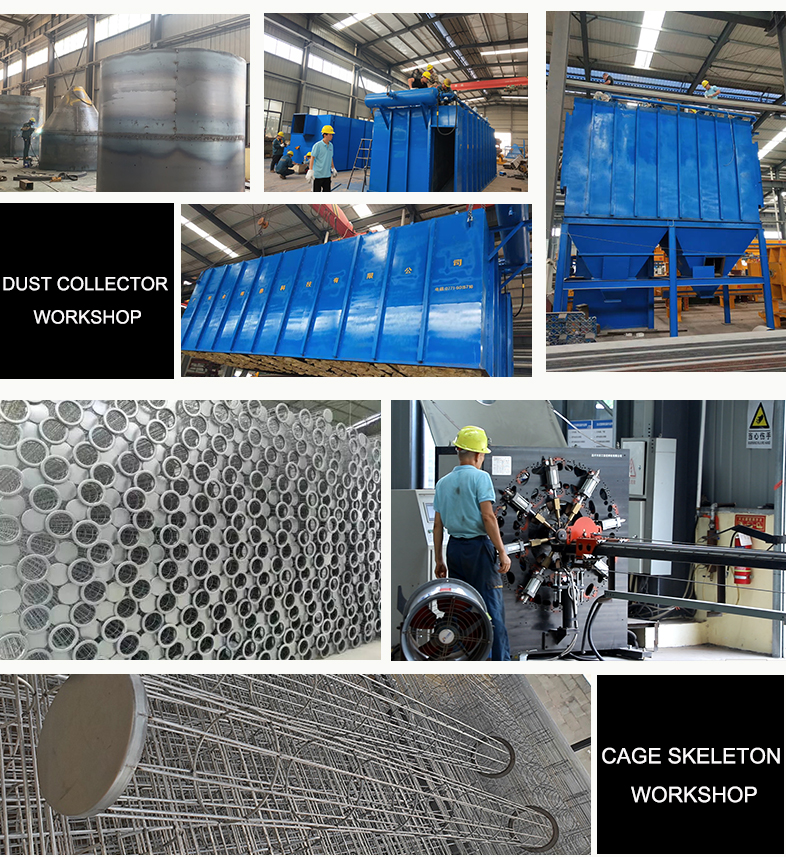

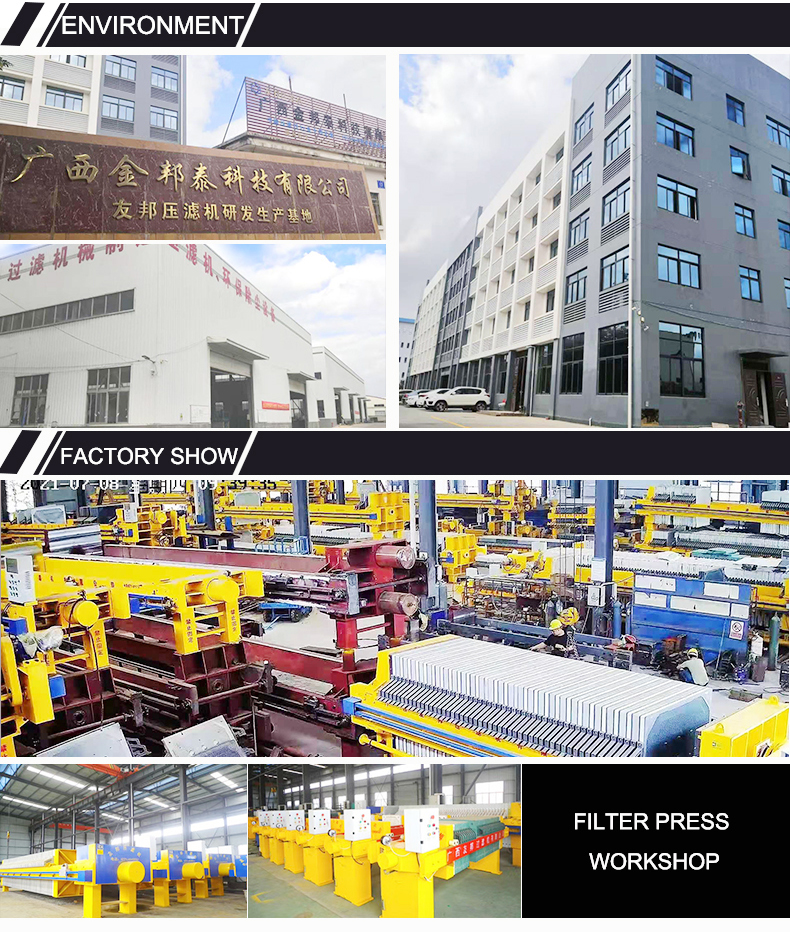

Manufacturing View 5
Manufacturing View 6

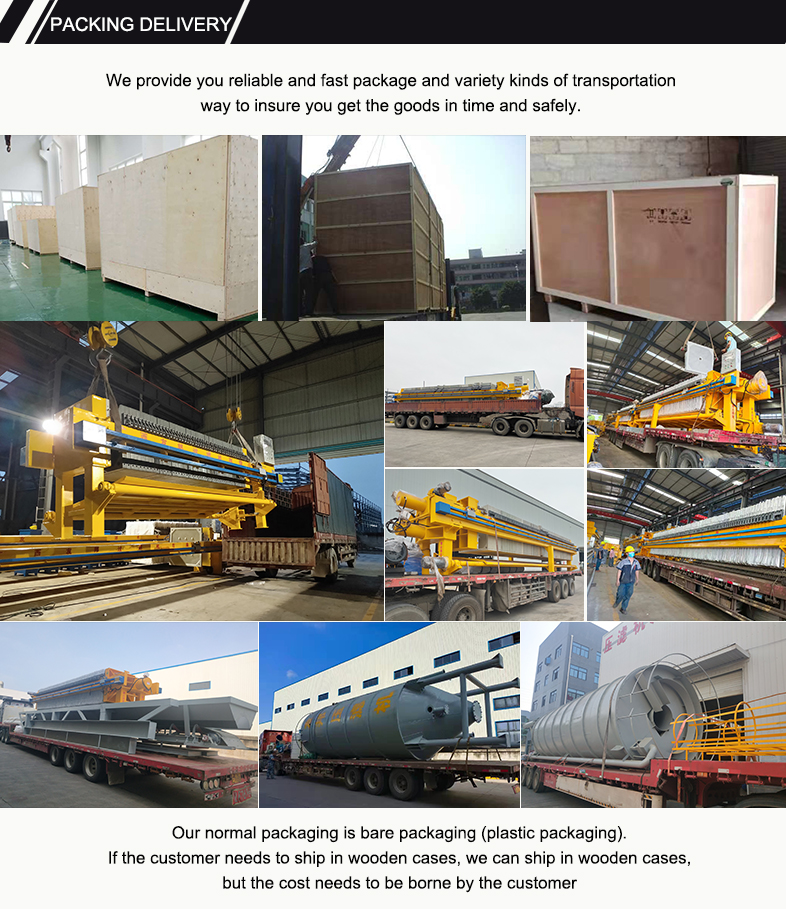

Manufacturing View 7

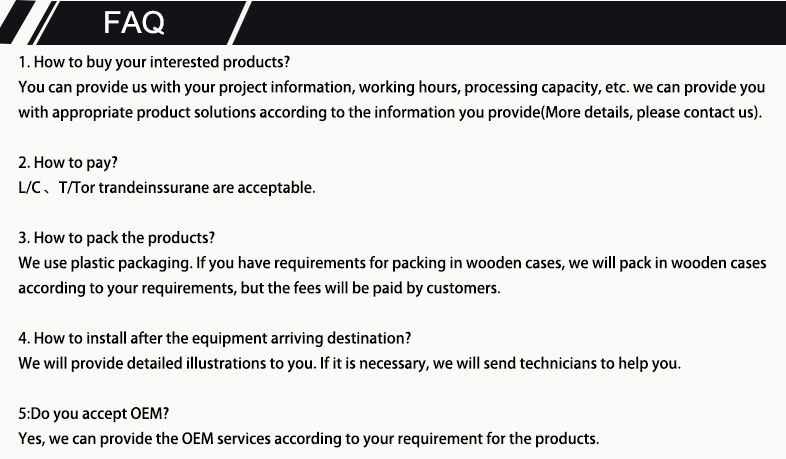

Manufacturing View 8
Frequently Asked Questions
How does a chamber pressure filter press operate?
The chamber pressure filter press uses hydraulic pressure to clamp the filter plates together. Slurry is pumped into the filter chambers, where the solids are retained to form filter cakes, and the clean liquid passes through the filter cloths. Once filtration is complete, the plates are separated to release the cake.
What are the main application areas for this filter press?
Our automatic recessed plate filter presses are widely utilized in mining and tailings, chemical processing, municipal sewage sludge treatment, smelting, concrete wastewater recycling, paper manufacturing, and food oil filtration.
What materials are used for the filter plates?
The filter plates are manufactured from high-grade Polypropylene (PP), which offers exceptional chemical resistance, durability under high operating pressures, and excellent temperature stability.
Is custom sizing and configuration available?
Yes, we support processing and customization based on client-provided engineering drawings and samples. We offer options for plate dimensions, chamber volume, automation controls, and auxiliary systems.
What are the advantages of an automatic recessed plate filter press?
The system features automated hydraulic control, automatic pressure maintenance, and automated plate pulling systems. This significantly reduces manual labor, ensures stable operation, provides consistent cake dryness, and lowers maintenance overhead.
How do I choose the right filter press model?
Selection depends on your required filtration area (ranging from 20m² to 80m² in the XZ800 series), target chamber volume, slurry density, cake thickness (30mm standard), and processing capacity. Please refer to our specifications table or request direct technical configuration assistance.
