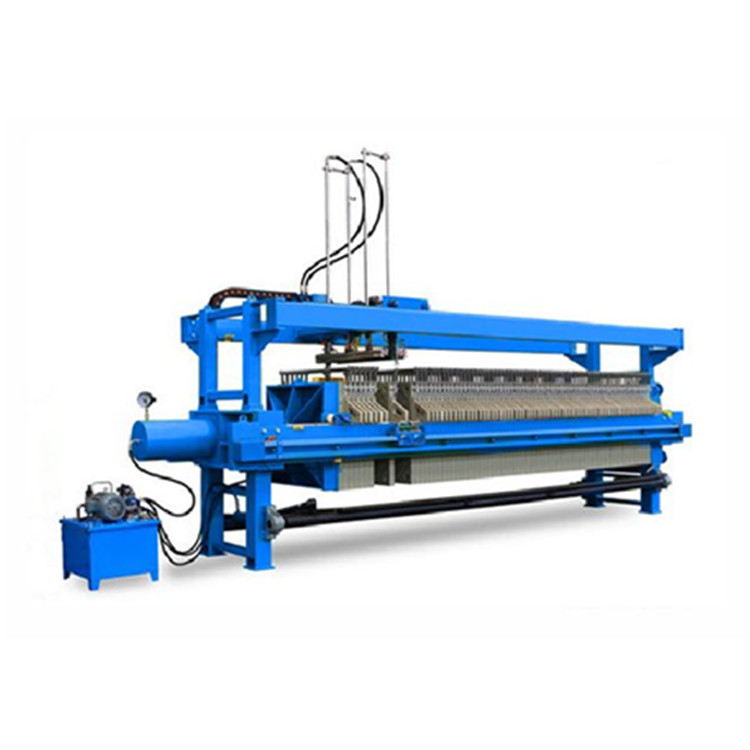

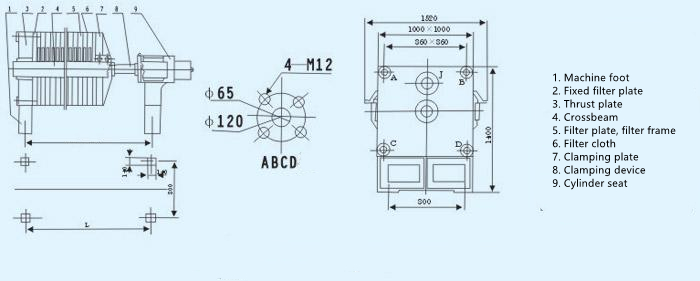

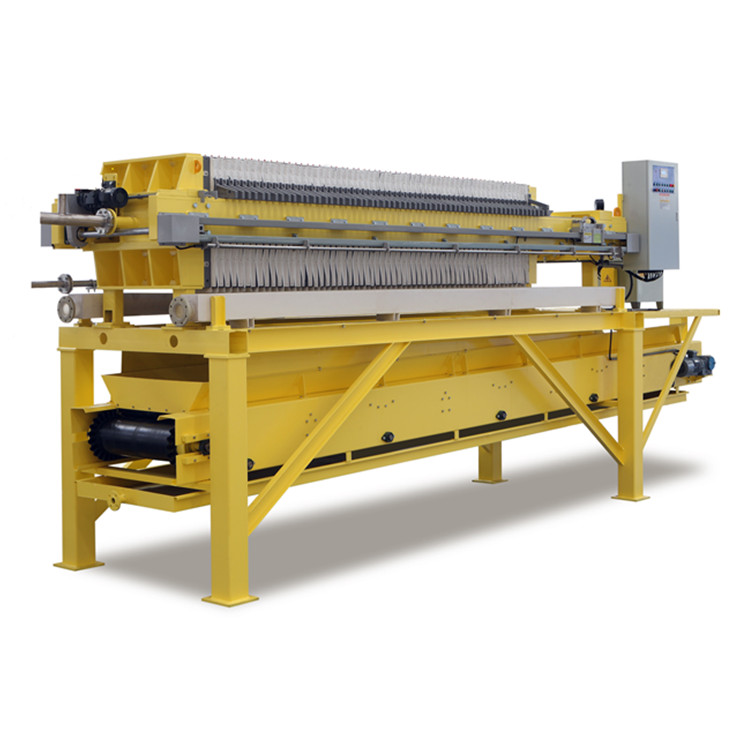

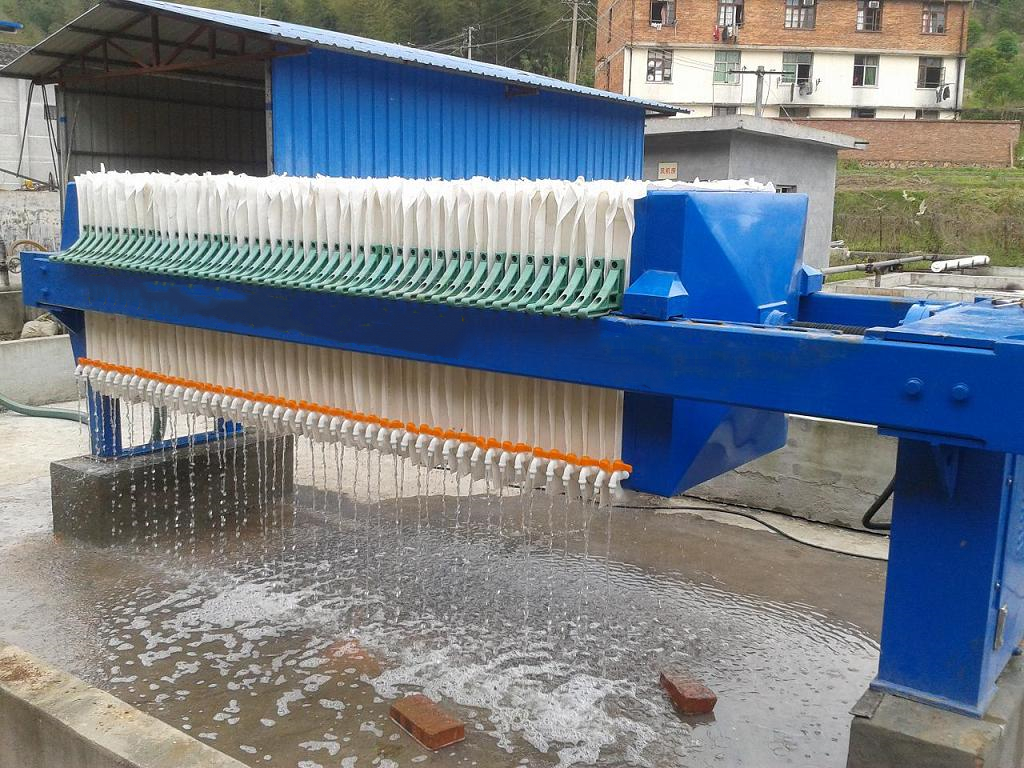

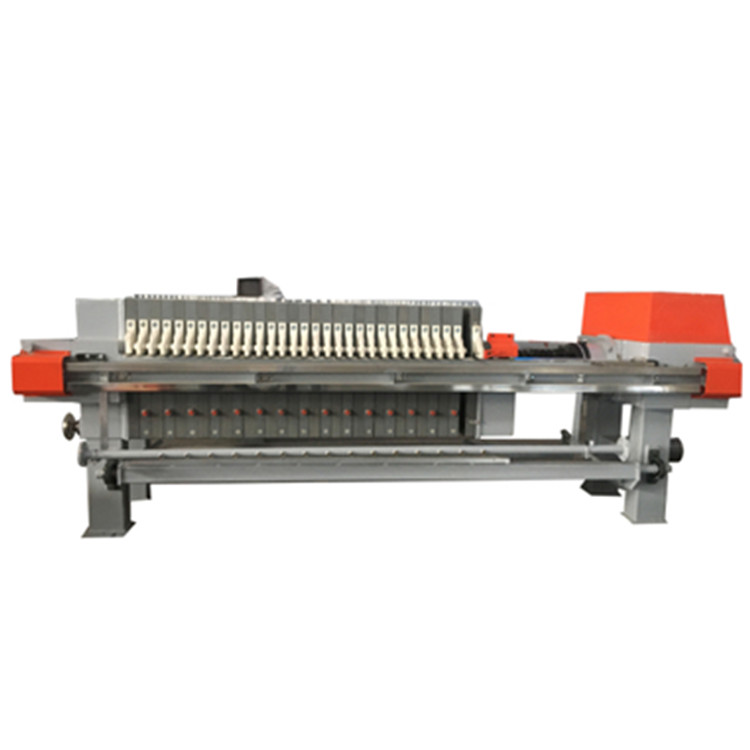

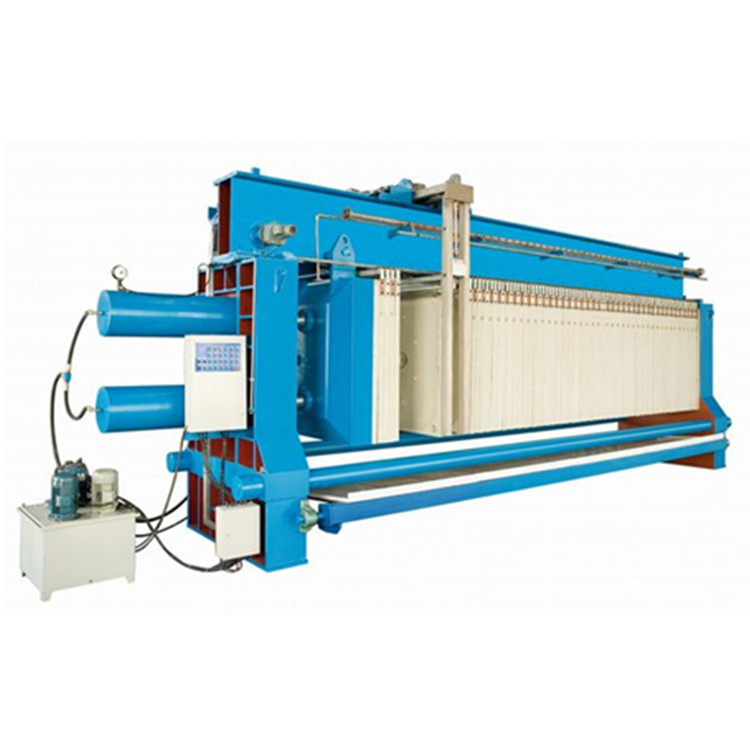

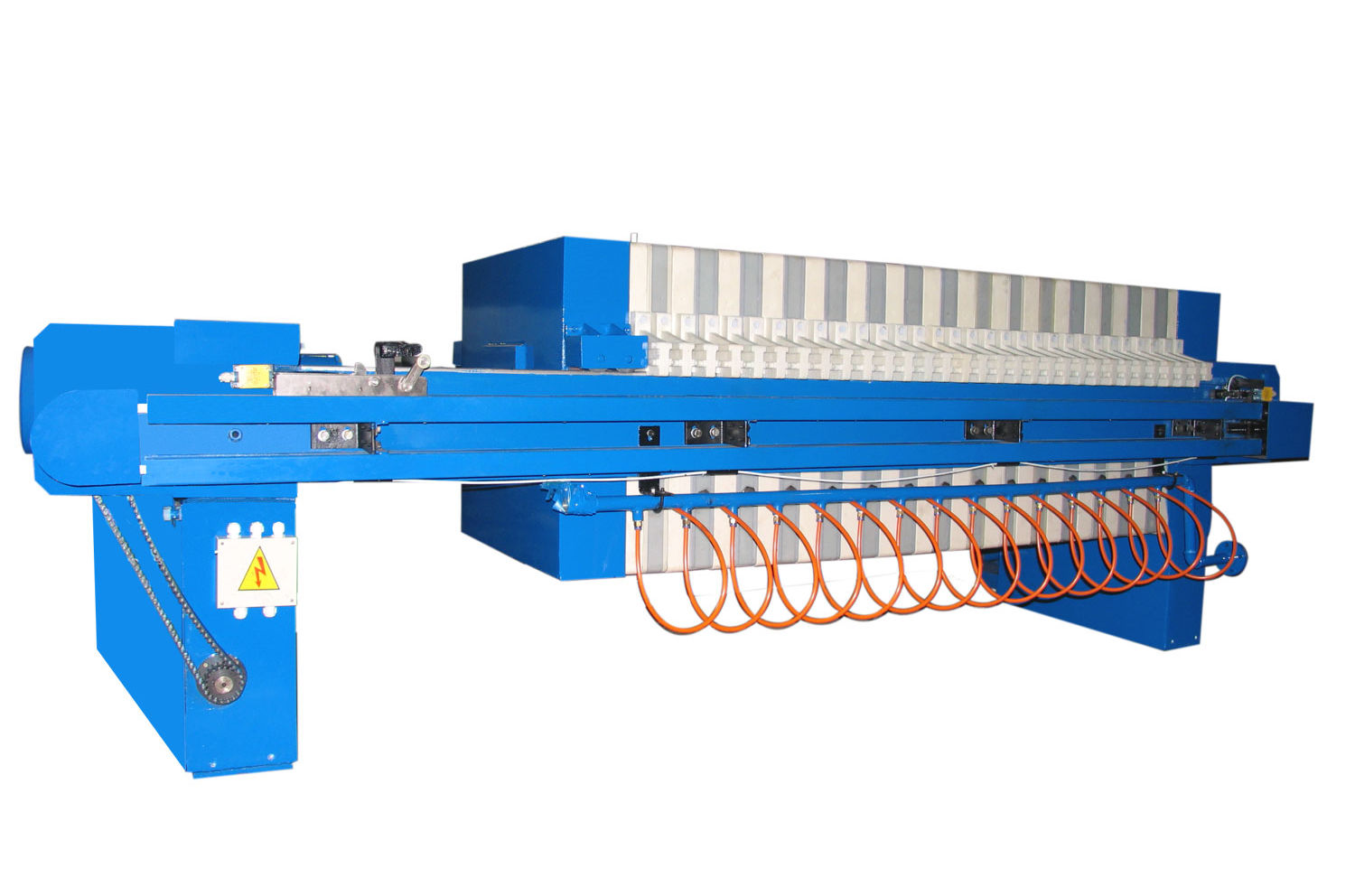

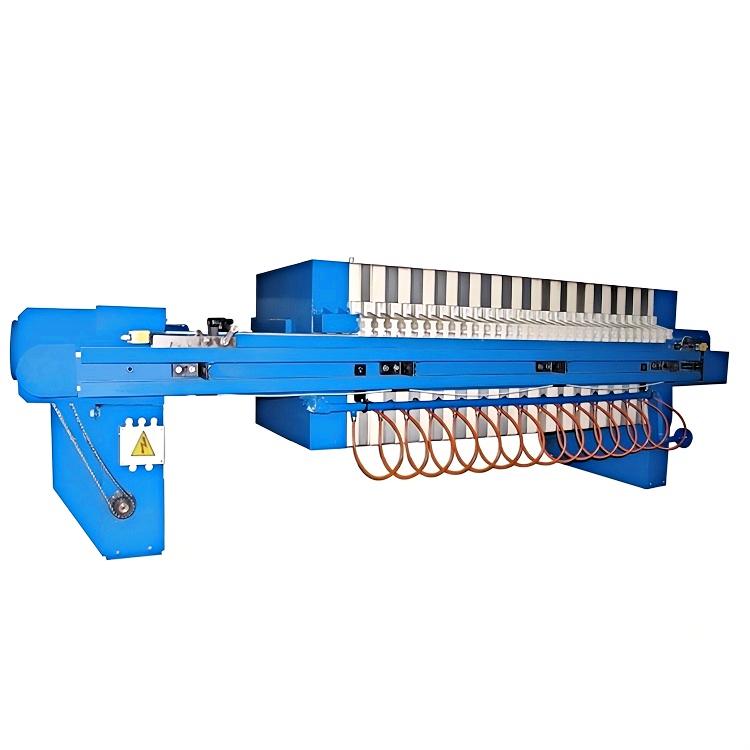

Plate frame filter press is a kind of intermittent solid-liquid separation equipment, which is composed of filter plate and filter frame to form a filter chamber. Under the pressure of the feed pump, the material liquid is sent to each filter chamber and the solid and liquid are separated by the filter medium.

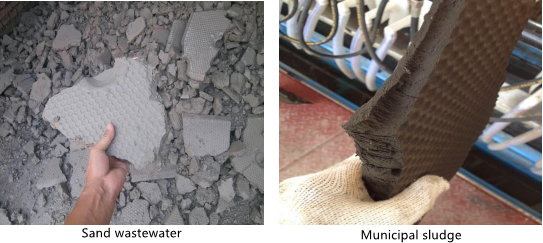

Compared with other solid-liquid separation equipment, the mud cake filtered by the plate and frame filter press has a higher solid content and excellent separation effect.

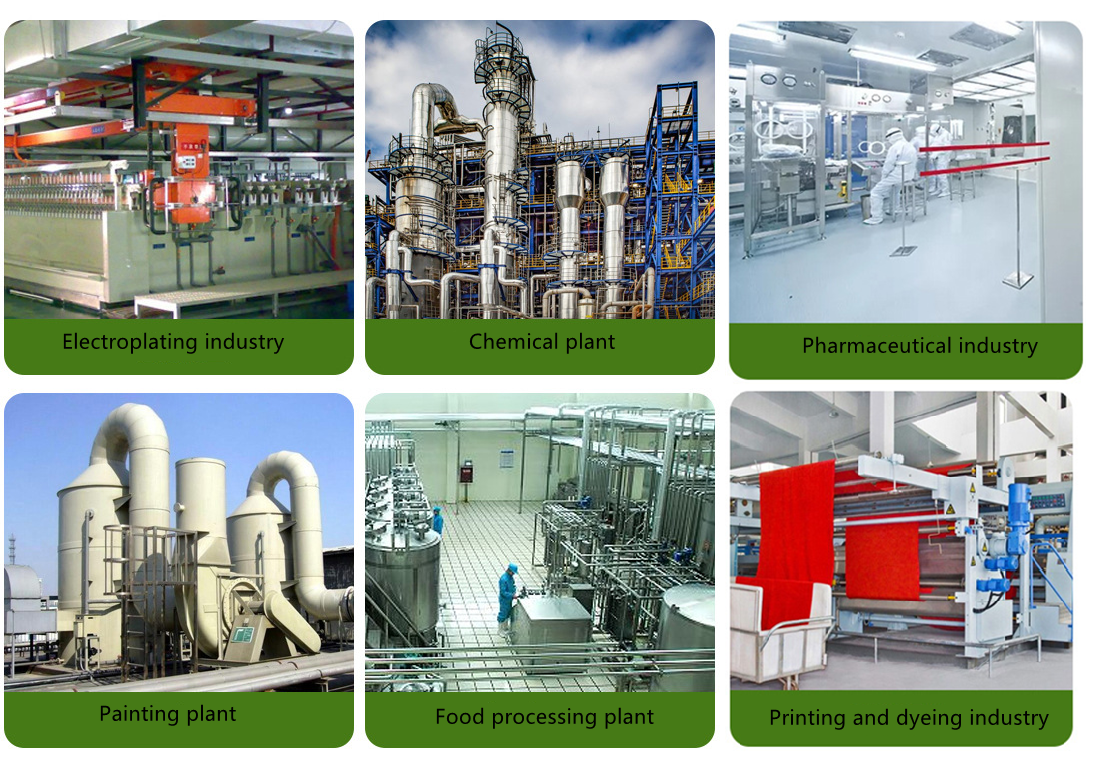

The equipment is widely used in chemical industry, dyestuff, petroleum, ceramics, pharmaceutical, sugar, starch, paint, metallurgy and sewage treatment, etc. It has the advantages of good separation effect, wide application range, simple operation and low investment, etc. In particular, the separation of sticky and fine materials has incomparable advantages.
About Us
We are a professional and experienced industrial machinery engineering company, which has senior technical consultants with over 30 years experience in machinery industry and engineering industry and other professional technical engineers.

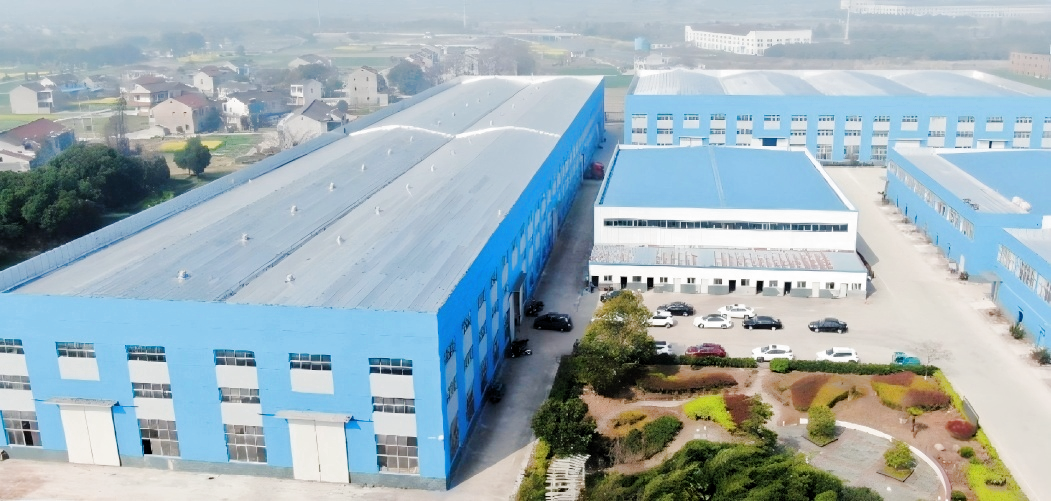

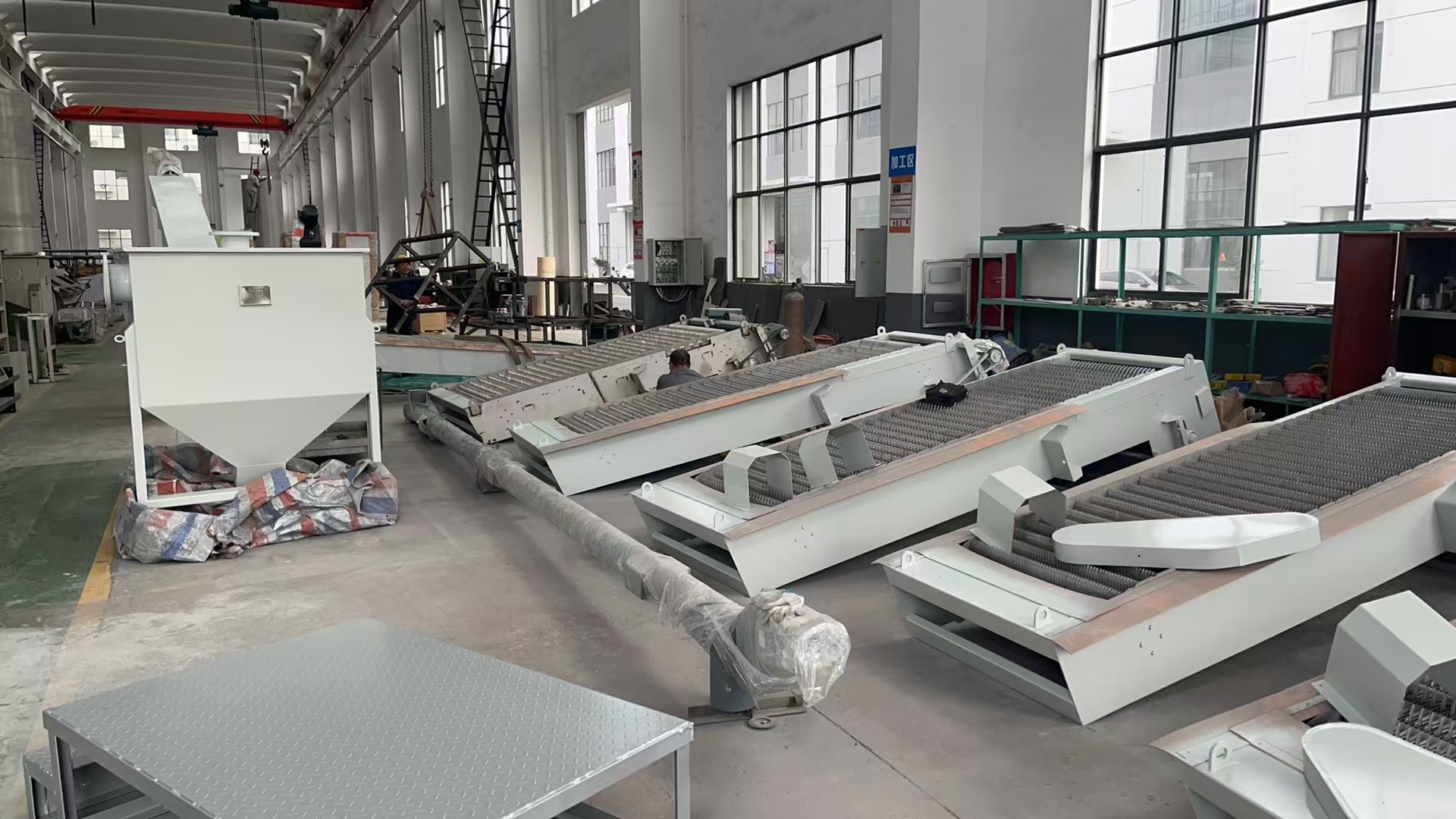

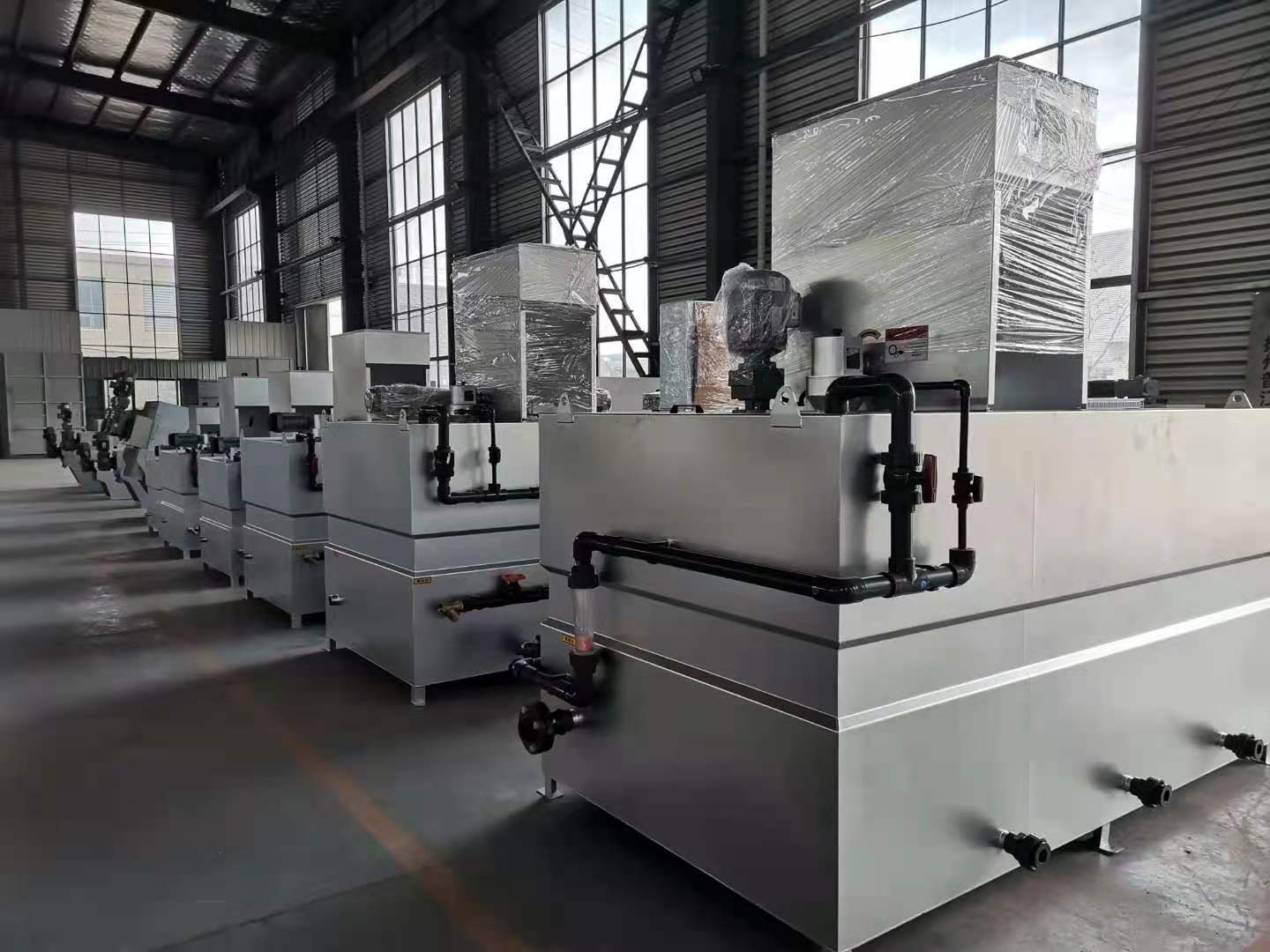

Our enterprise has four business divisions: Water Treatment Equipment Division, Non-woven Machinery Division, Wood-Based Panel Machinery Division, and Packaging Machinery Division, who has production workshops in Hubei, Sichuan, Jiangsu, Zhejiang, Guangdong and Shandong.
The water treatment equipment division focuses on the research and development and manufacturing of various water treatment processes, technologies, equipment and water treatment engineering projects, and provides professional water treatment equipment and services for industries, municipal administration, aquaculture and other fields. The main products include sludge concentration and dehydration series, screen series, scraper suction machine series, screen slag conveyor series, grit chamber and sand-water separation series, dosing and mixing series, upgrading and transformation series, environmental protection equipment series, aeration series, filler series and filter element series.
We are specialized in providing a package of technical services such as project consulting, feasibility analysis, process design, equipment R&D, ODM & OEM manufacturing, installation, training, production and spare parts supply etc..
“Customers are the first ”is our business philosophy. It means “saving money for customers, providing high-quality machinery / products for customers, five star service for customers”.
We have exported above machines and technical services to over 50 countries, such as the United States, Canada, Australia, Brazil, Chile, Peru, Ecuador, the United Arab Emirates, Saudi Arabia, Turkey, Iran, Bahrain, Germany, Romania, Russia, Thailand, Malaysia, Vietnam, India and South Africa etc..
We are sincerely looking forward to have more cooperation with customers who are interested in our products.
Frequently Asked Questions
Q
How does a plate and frame filter press operate?

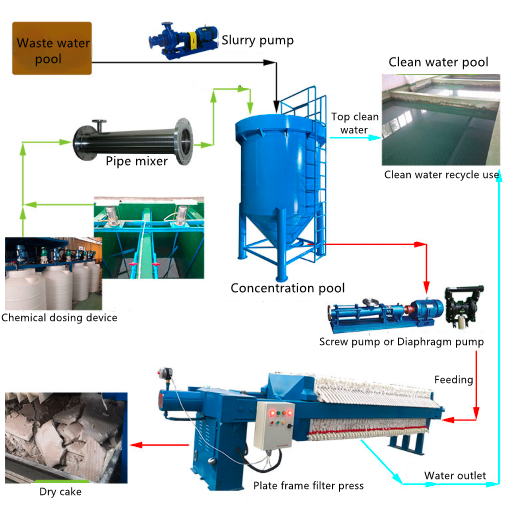

Under the pressure of a feeding pump, the mixed liquid is forced into the filter chambers formed by the filter plates and frames. The solids are captured by the filter medium (filter cloth) to form filter cakes, while the clear liquid passes through as filtrate.
Q
What material is used for the filter plates?

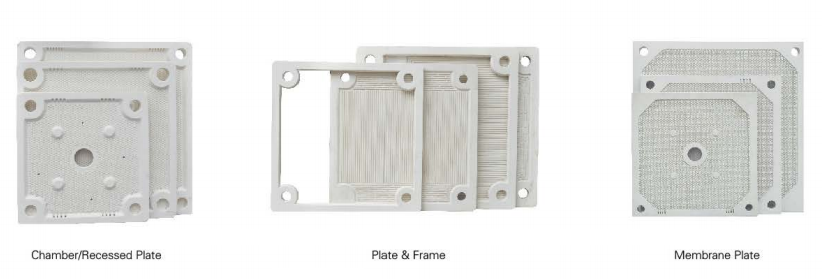

The filter plates and frames are molded from reinforced polypropylene using patented technology. This gives them high strength, low weight, excellent corrosion resistance against acids/alkalis, and makes them non-toxic and odorless.
Q
What is the maximum pressure capability of this machine?
The system utilizes a hydraulic clamping mechanism with a maximum locking pressure of 25MPa. The maximum working filtration pressure is 0.6MPa, which optimalizes the cake formation and separation speed.
Q
Which industries are these filter presses suitable for?
They are highly versatile and widely used in chemical processing, petroleum, ceramics, pharmaceuticals, wastewater treatment, metallurgy, food starch, sugar, paint, and dyestuff manufacturing.
Q
Does the system offer custom sizing configurations?
Yes, our production accommodates different sizing scopes, offering a total filtration area ranging from 0.4 square meters up to 100 square meters depending on the application needs.
Q
Why choose a plate and frame filter press over other solid-liquid separators?
Compared to other solutions, this configuration achieves much higher solid concentration in the filtered cakes. It has significant performance advantages when processing sticky, high-viscosity, and ultra-fine raw materials.
