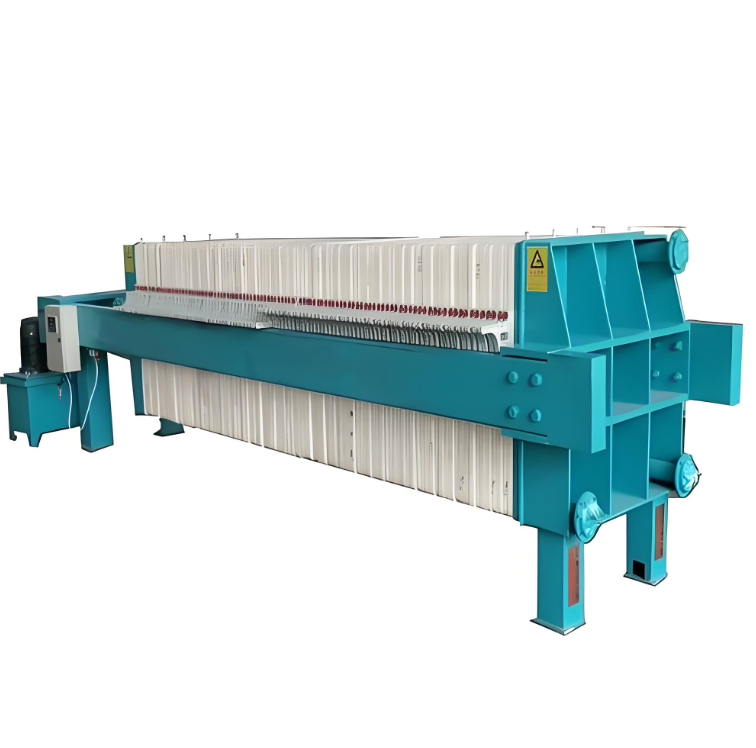

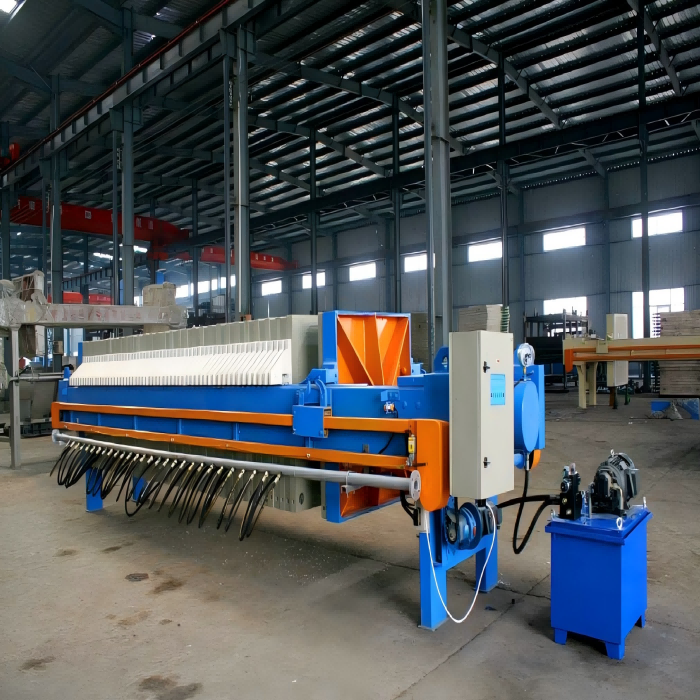

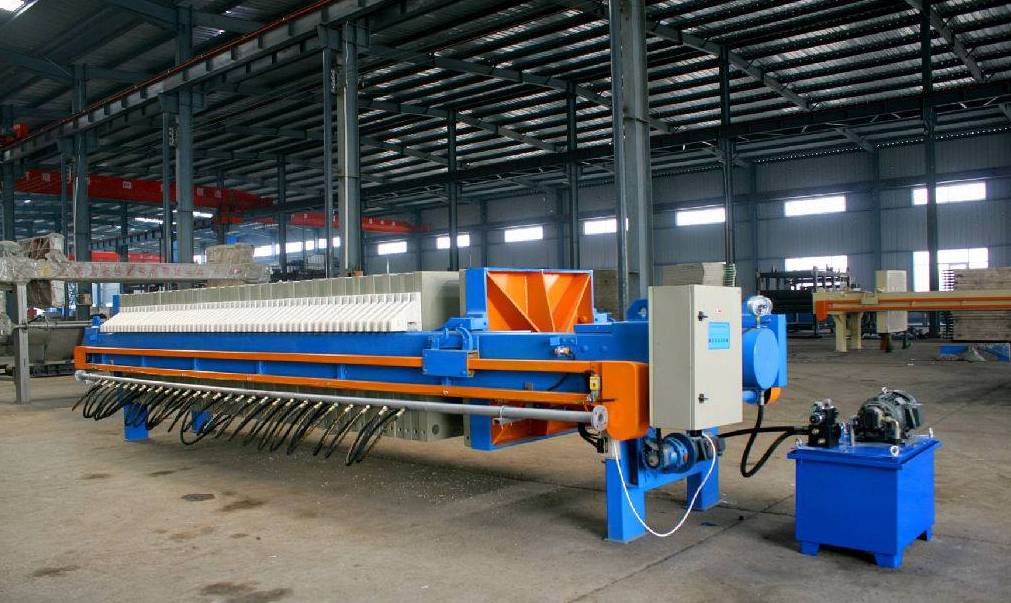

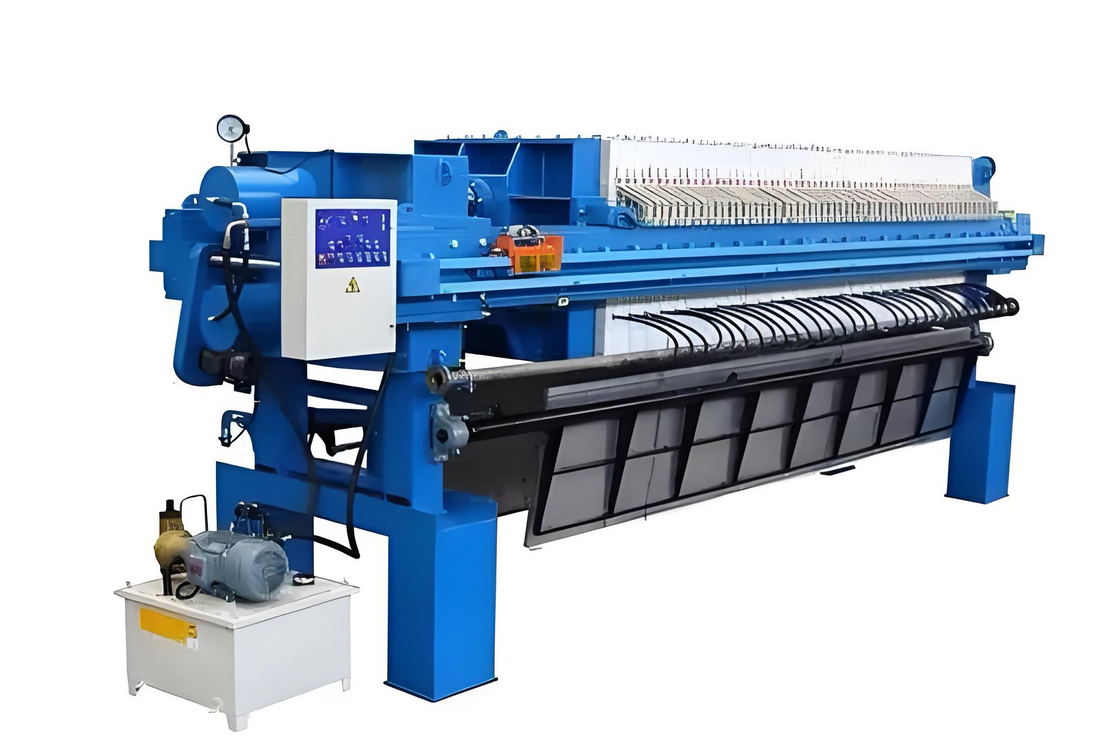

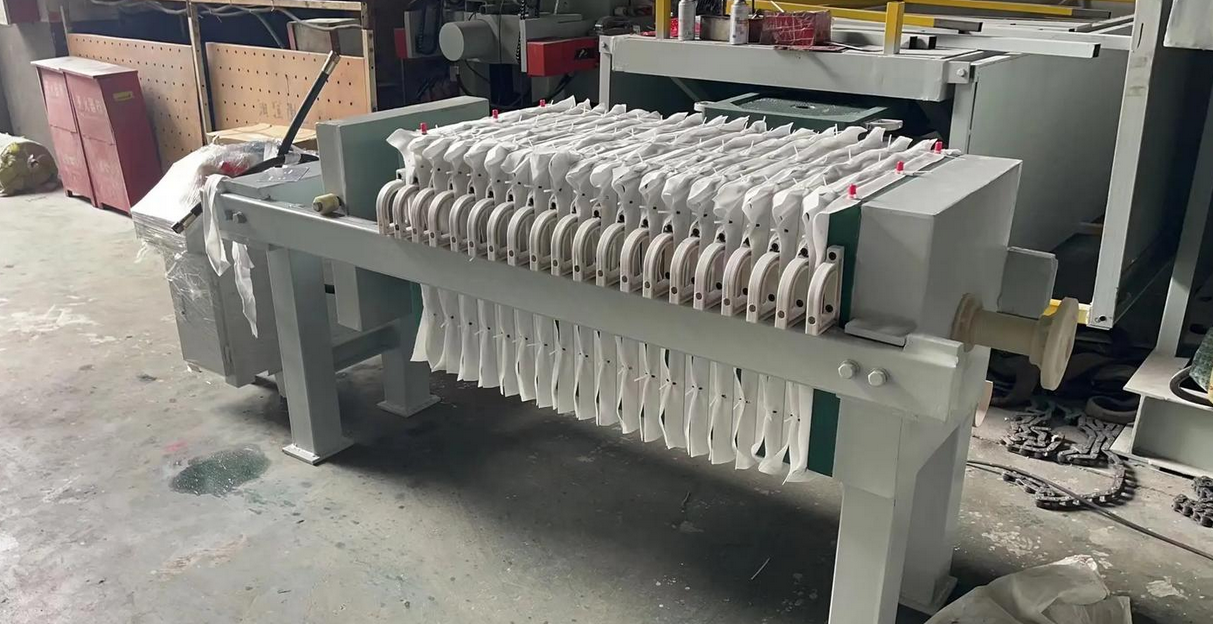

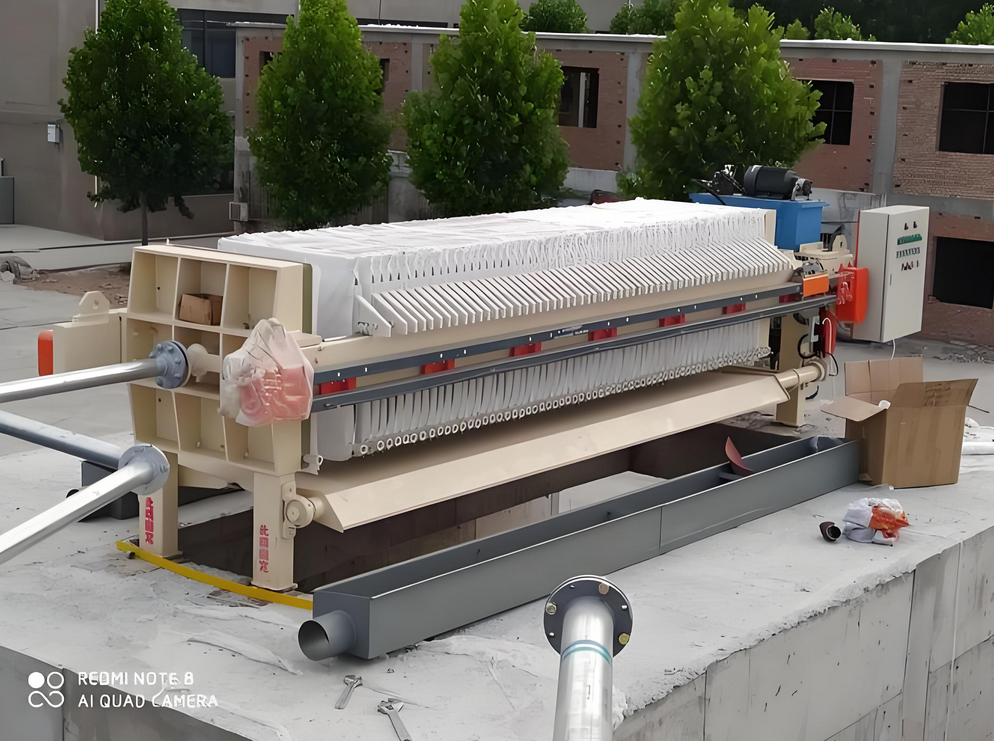

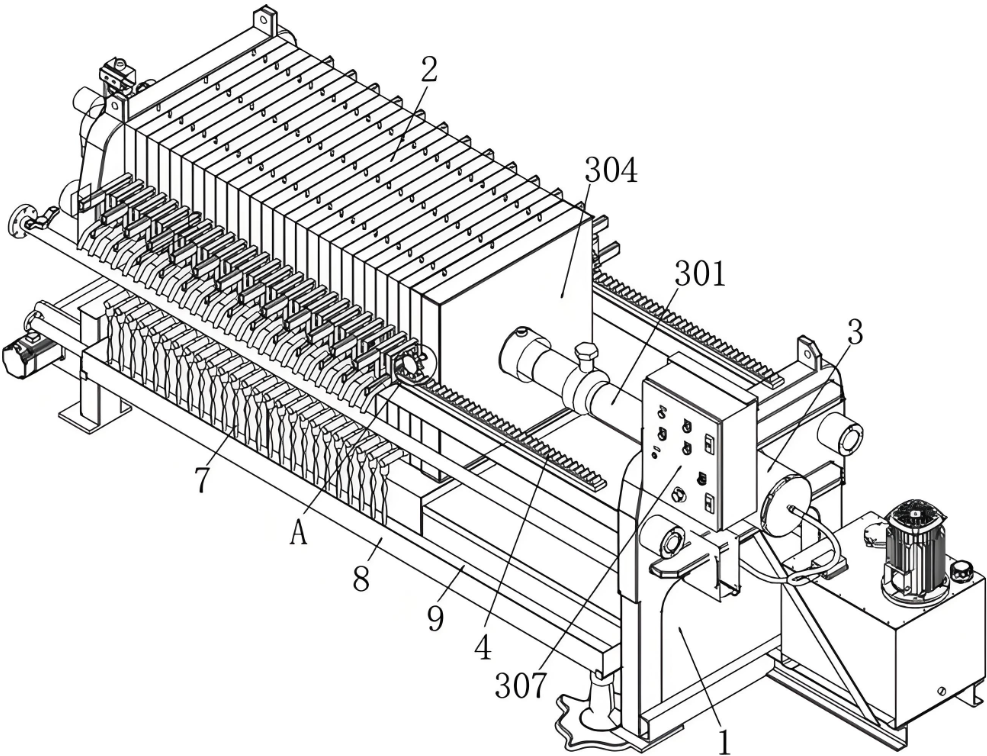

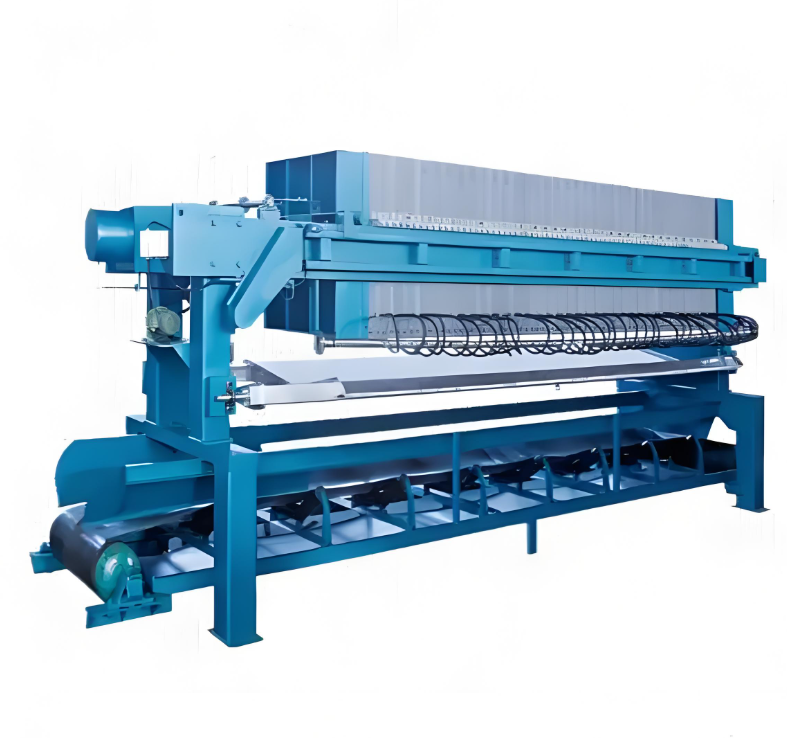

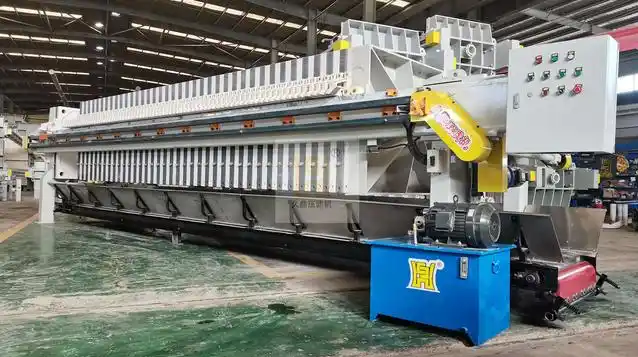

The plate and frame filter press uses pressure difference and filter cloth filtration to separate the solid-liquid mixture. It is mainly composed of a frame, filtration, automatic plate pulling, hydraulic and electrical control parts. It has the advantages of good separation effect, wide application range, high degree of automation, energy saving and environmental protection. It is suitable for sludge dehydration in urban sewage treatment, pharmaceutical, electroplating and other industries. It is an ideal equipment for environmental management and resource recovery.

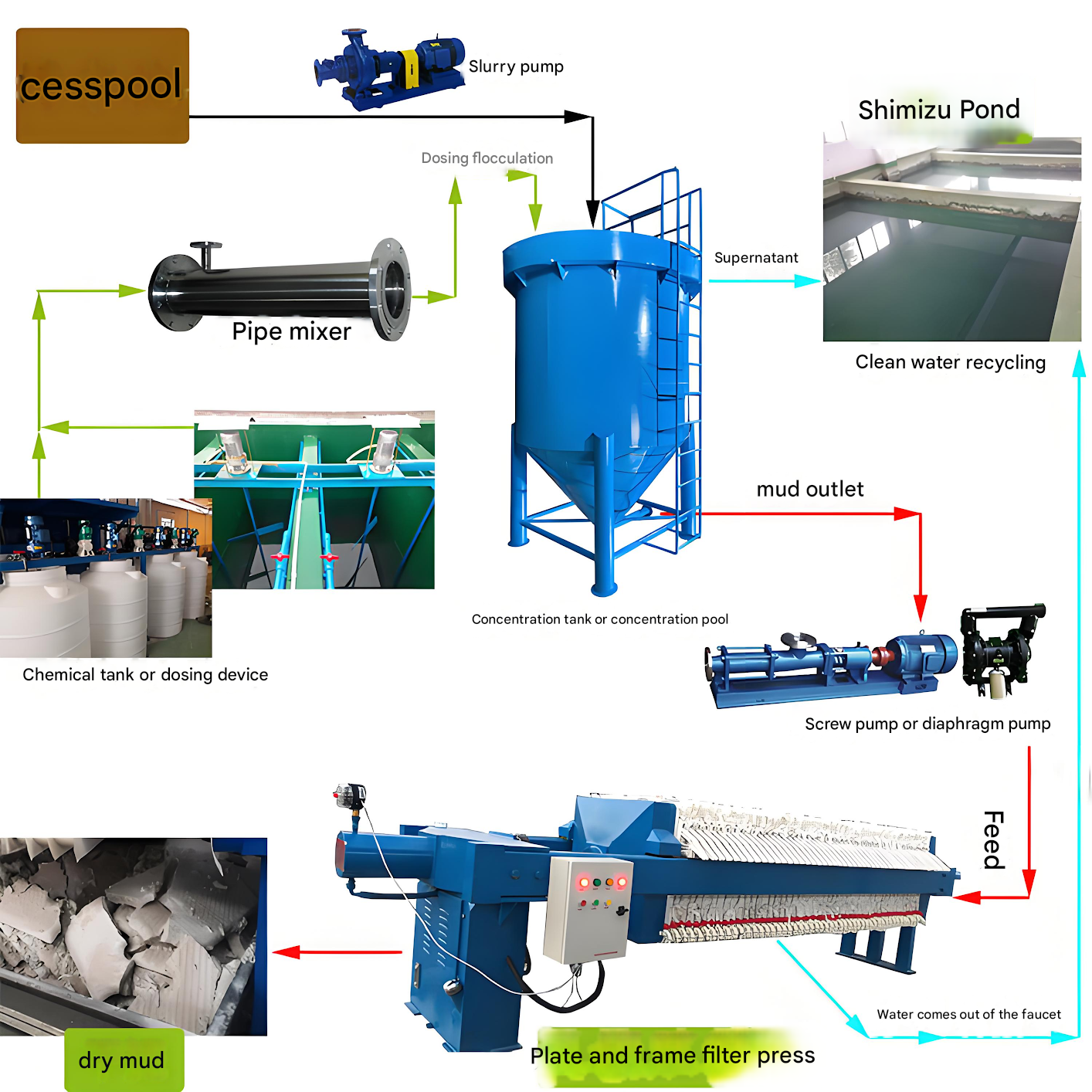

You can understand the entire process route through the layout scheme.
| Model | WZSS |
| Filter plate specifications | 1000mm × 1000mm |
| Number of filter press chambers | 20 (optional: 10/15/20/25, etc.) |
| Filter plate material | PP (polypropylene) or carbon steel coating |
| Maximum working pressure | 0.6 MPa |
| Filter cake thickness | 20-50 mm |
| Filtrate flow | 5-10 m³/h |
| Moisture content | 20%-60% |
| Drive mode | Electrohydraulic drive |
| Feeding method | Roller feed or pump feed |
| Machine weight | About 2000 kg |
| Dimensions | 2500mm × 1300mm × 2000mm |
| Operation | Manual/Automatic |
| Control system | PLC control or manual control |
| Application Areas | Mining, sewage treatment, food industry, chemical industry, etc. |
Our enterprise specializes in environmental engineering and equipment R&D, production, sales, installation, commissioning, and after-sales service, providing clients with comprehensive wastewater treatment solutions. We have obtained ISO9001 quality management system certification, ISO45001 occupational health management system certification, and ISO14001 environmental management system certification.
Market-oriented and driven by high-tech research and development, we have introduced numerous industry-leading technologies, significantly extending equipment lifespan, reducing operating costs, and expanding application possibilities in complex engineering projects.

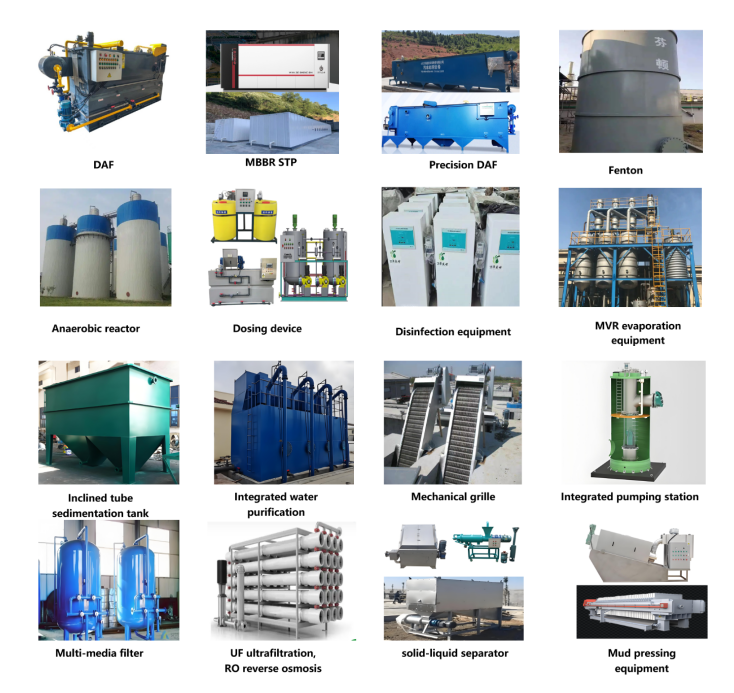

We provide professional water and wastewater treatment services, including wastewater treatment plants (ETPs), sewage treatment plants (STPs), reverse osmosis (RO), ultrafiltration (UF), underground integrated wastewater treatment equipment, dissolved air flotation (DAF), and vertical flow sedimentation tanks. We also offer UASB reactors, IC reactors, belt filter presses, MBRs, MBBRs, AO, and A2O process wastewater treatment equipment.
Sewage plants: MBBR, MBR, AO, SBR, DAF, grille.
Mud pressing equipment: Plate and frame filter press, screw press, solid-liquid separator.
Biogas engineering: UASB, IC anaerobic tower, double membrane gas cabinet, combustion torch, desulfurization tank, dehydration tank, gas boiler, generator set.
Evaporators: MVR, multiple effect evaporation, low temperature evaporation.
No, we do not require a minimum order quantity. You can purchase a single unit, although we are pleased to offer competitive discounts for larger volume orders.
We maintain robust compliance and quality management standards. Our operations and machinery are certified with ISO and SGS certifications, ensuring reliable global performance.
Yes. We house a highly experienced professional engineering and design team. We can provide custom blueprints and technical drawings matched specifically to your target processing standards.
You can supply details regarding the source of waste or water, flow rates, quality metrics, and available installation footprint. Our engineering team will match those to the ideal setup.
We accept T/T and L/C. We standardly require a 30% deposit prior to production with the remaining 70% balance settled before loading. Delivery lead times average between 2 to 4 weeks depending on order volume and system specifications.
We provide complete, easy-to-follow diagrams and manuals. If required, we can deploy professional technicians to coordinate and assist with installation on-site. (Please note visa costs, transit, lodging, and wage adjustments are billed additionally).
