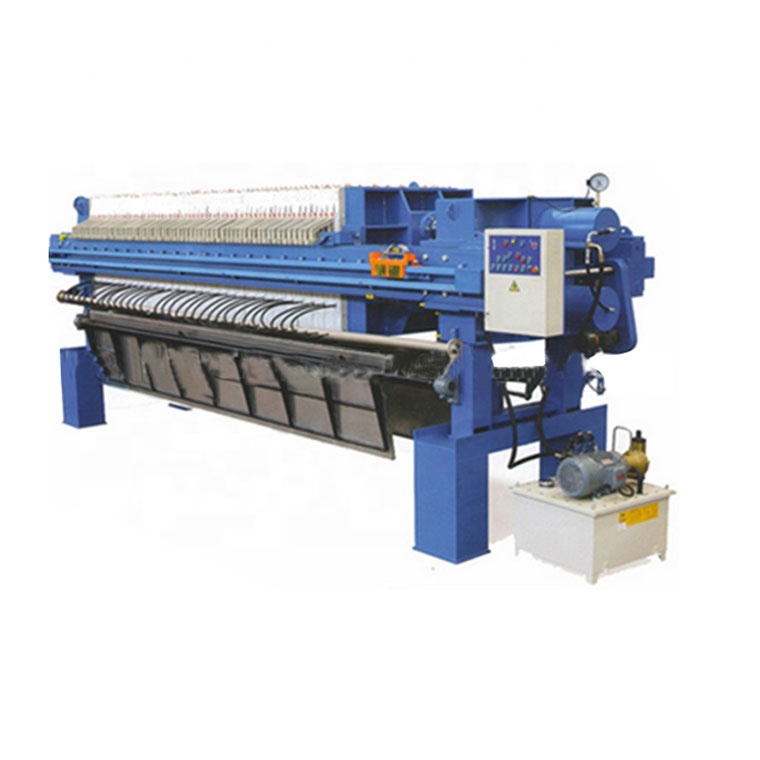

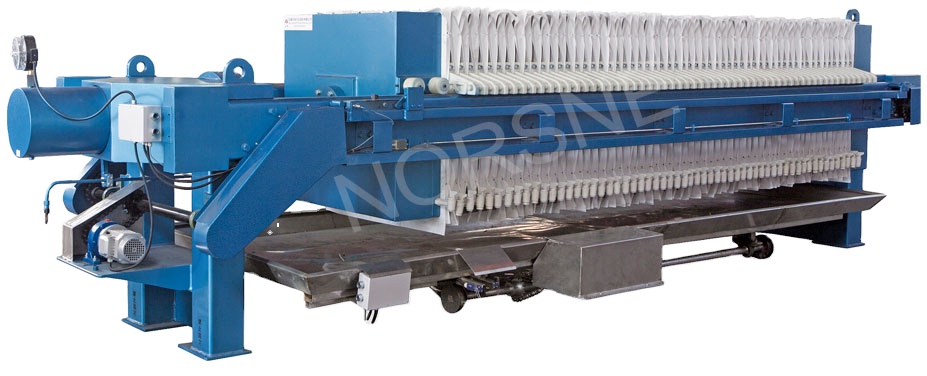

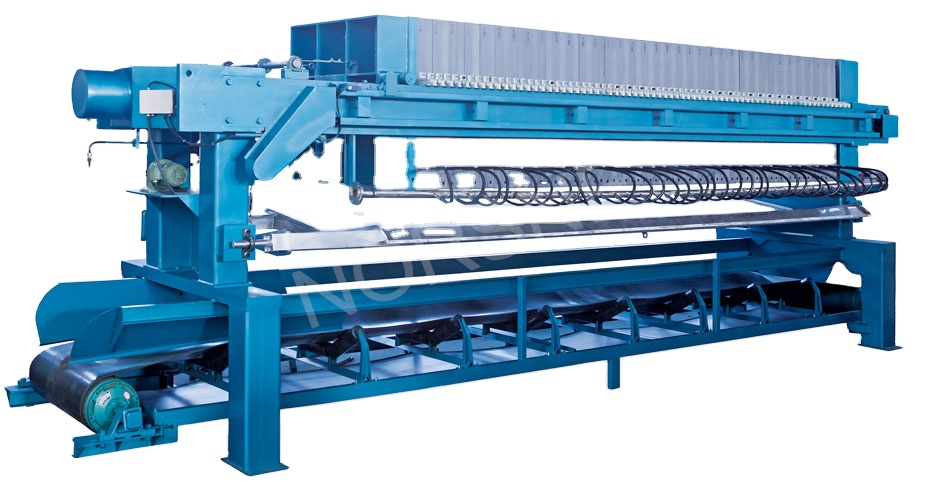

HOT the Automatic Hydraulic Sludge Dewatering Filter Press Machine for Petroleum Industry

Product Description

Filter Press Equipment

Core Features & Advantages

  • This type use automatic pulling plate, center monitoring, high degree of automation and reducing the operator.
  • Automatic collection and drop leaf, separating residue and wastewater in depth. It can improve the quality of products and beautify the environment.
  • Filter plate is made of imported high polymer PE to press molding by special patented technology, ensuring a longer service life.
  • Based on material properties, proportion, and project requirements, it improves solid content by 10% compared to general materials.
  • High standard of production technique and technology ensures every product remains at an advanced level.
  • Equipped with automatic control of electrohydraulic integration and relay control; the operation panel is simple and intuitive.
  • High working pressure, large production volume, and low energy consumption make it a perfect solid-liquid separation equipment.
Process Mechanism

Working Principle

Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake. Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.

Technical Innovations

  • Using high tensile plate of plastic steel through numerical control machining and multilayer surface treatment to reduce loss of fittings.
  • The direct use of the press shortens filtration time, increases capacity, and achieves a high degree of dryness in material dewatering.
  • Utilizes patent technology of proprietary intellectual property rights with automatic discharging and backwash to reduce labor needs.
  • Installation of automatic pulling plate and drop leaf for water gathering ensures high automation and efficient solid-liquid separation.
  • High-gloss filter cloth improves the efficiency of discharging filter cake and reduces moisture content.
  • Achieves deep solid-liquid separation in one step for effective material recycling.
  • Selecting 80 point location (PT) PLC programmable control system for intelligent, full-automatic operation via touch screen.
  • High standard production technology makes the equipment simple to use, safe in operation, and convenient to maintain.

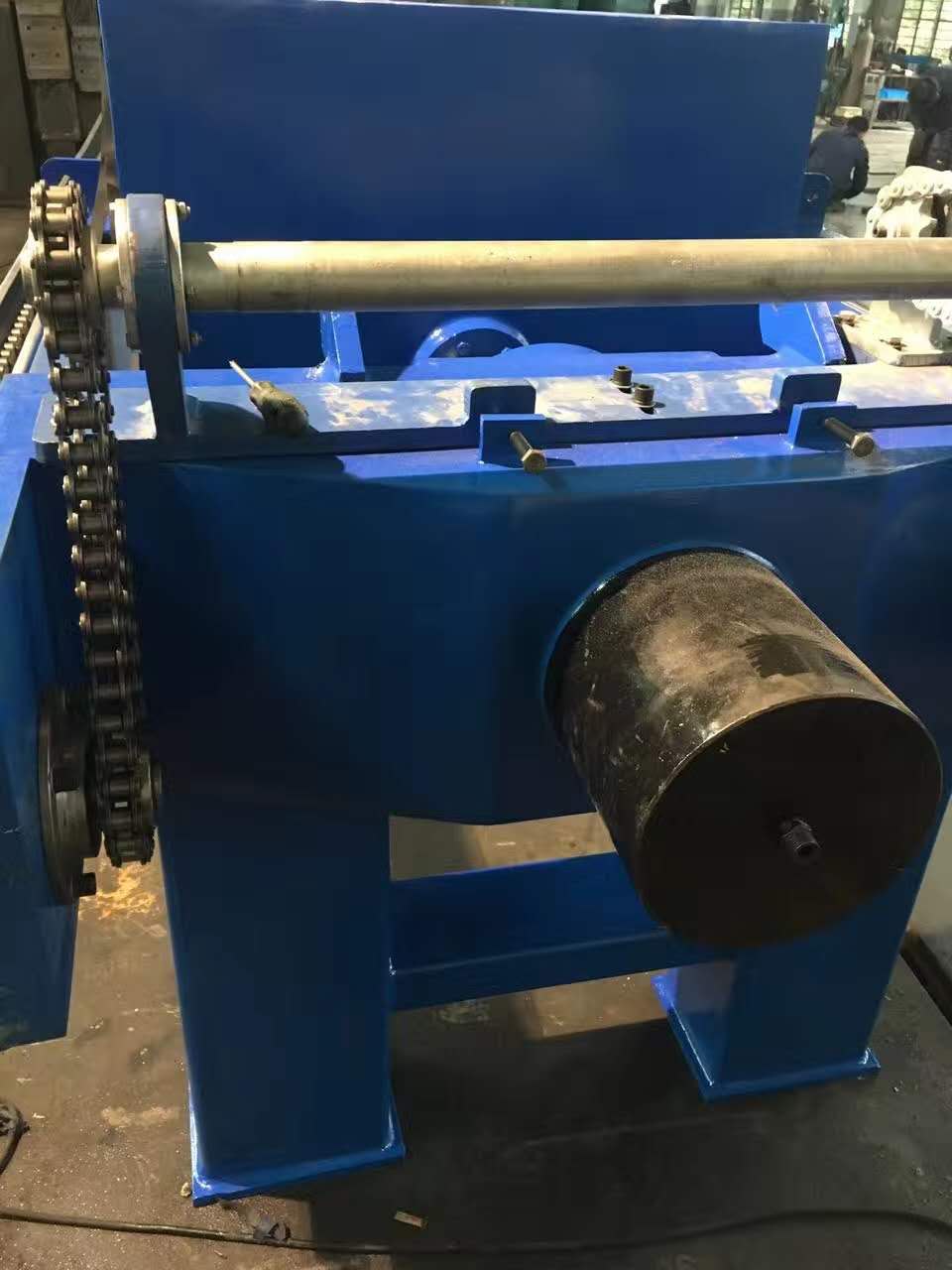

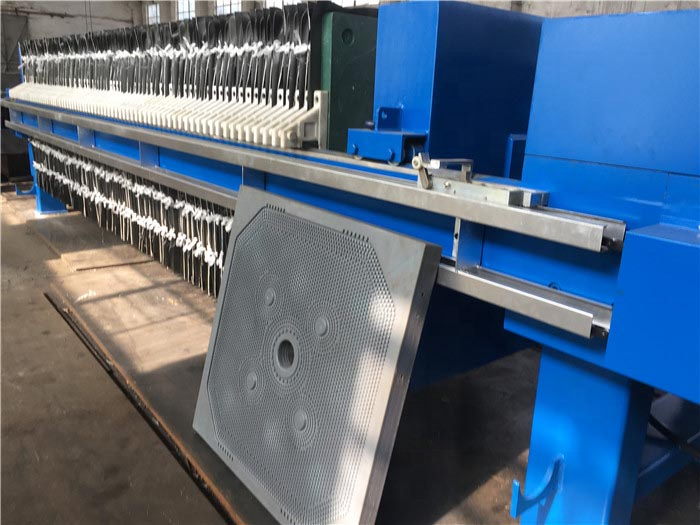

Component 1 Component 2 Component 3
Industrial Application

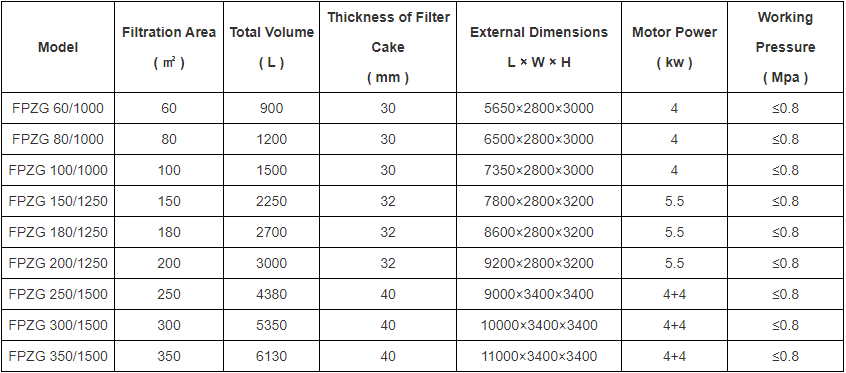

Technical Specifications

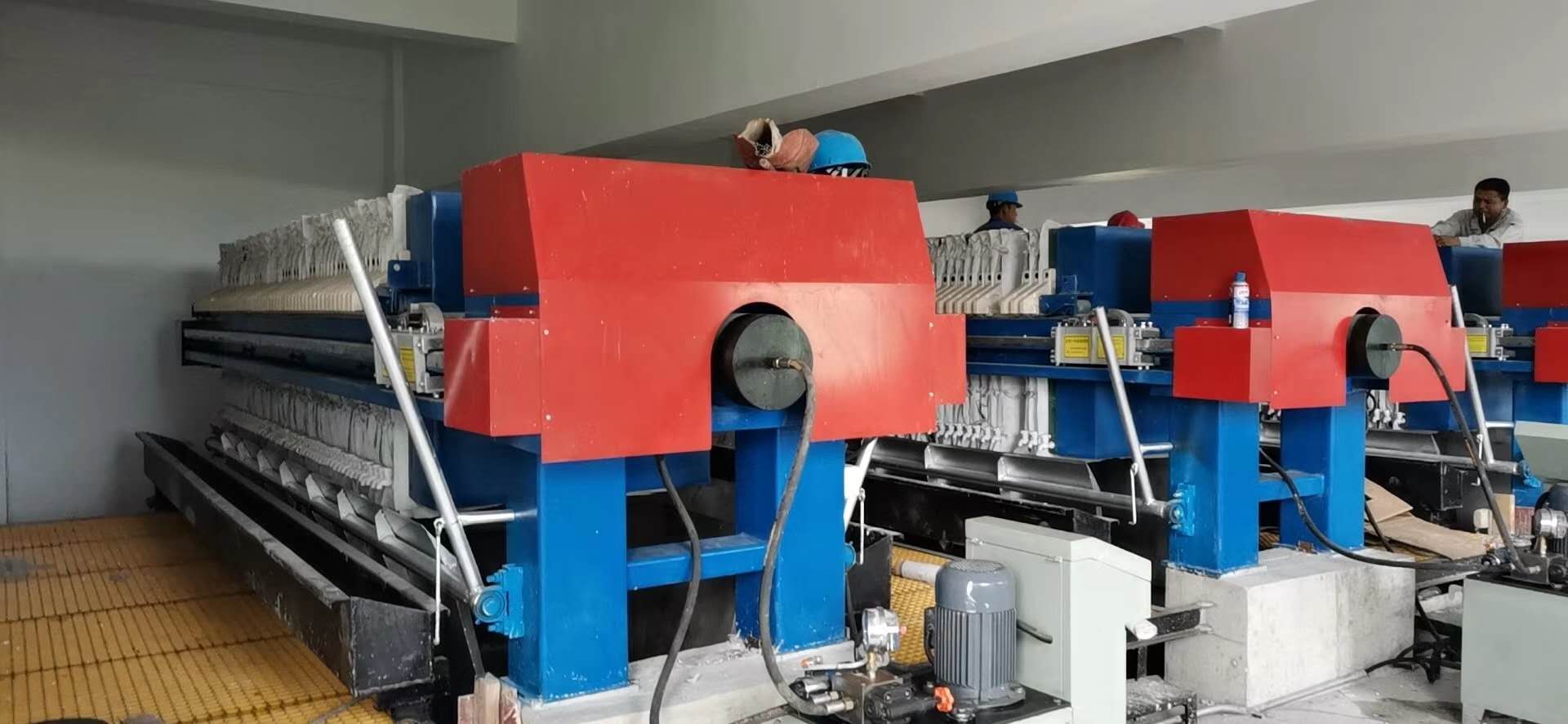

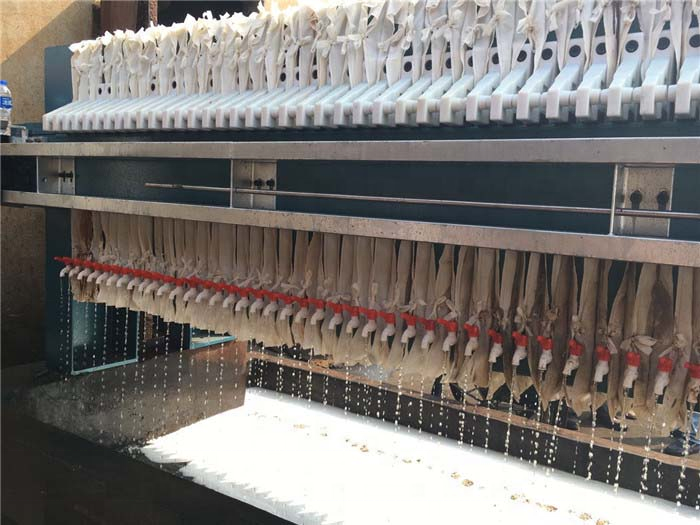

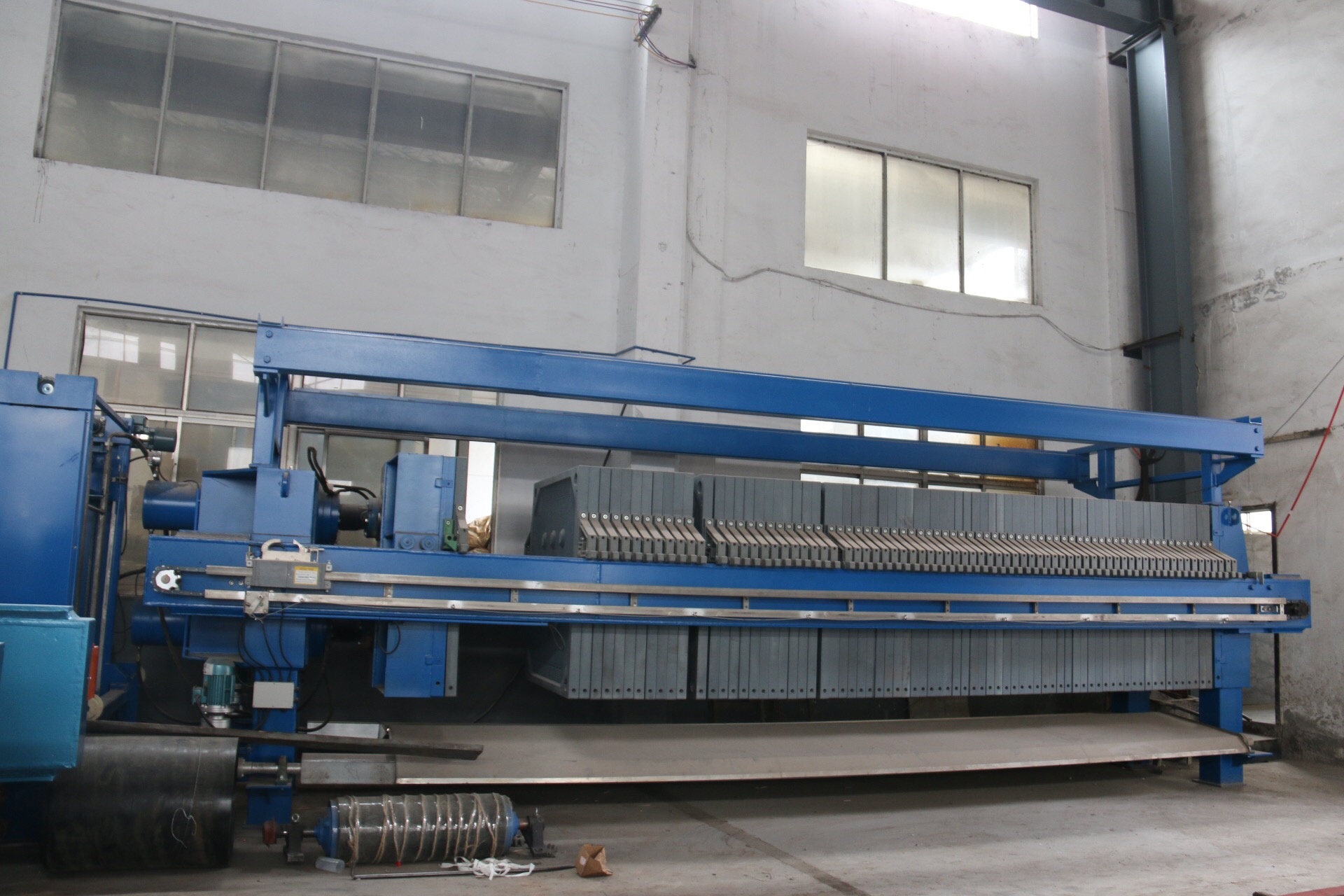

Field Installation Operation Detail Filter Plate Detail

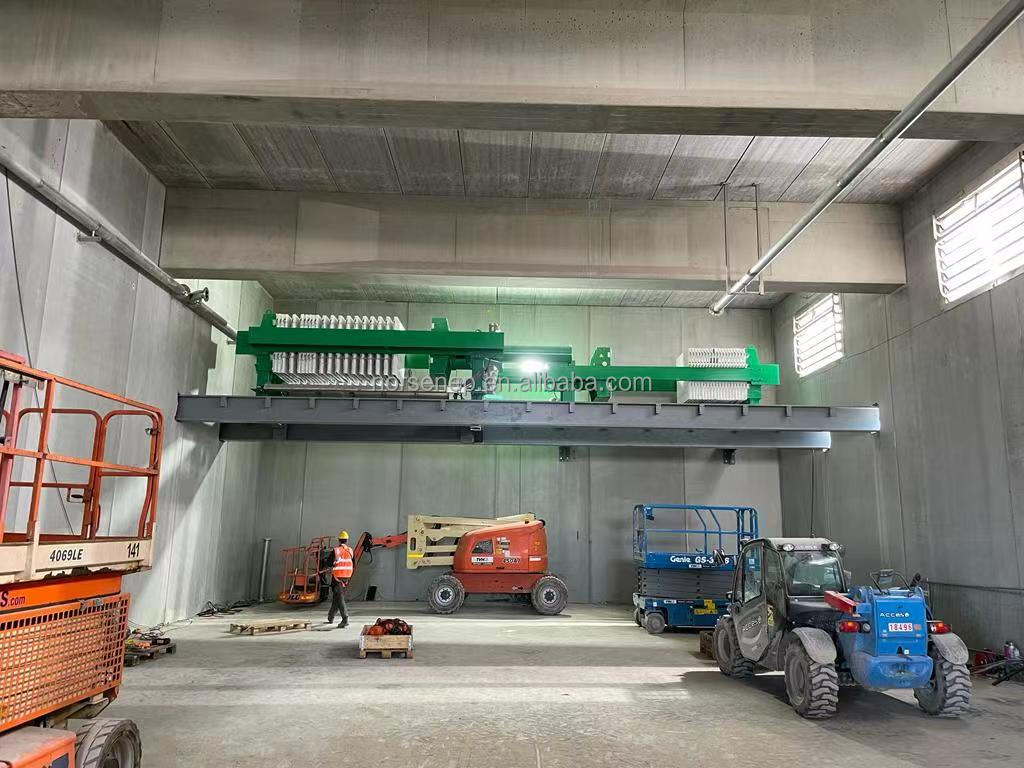

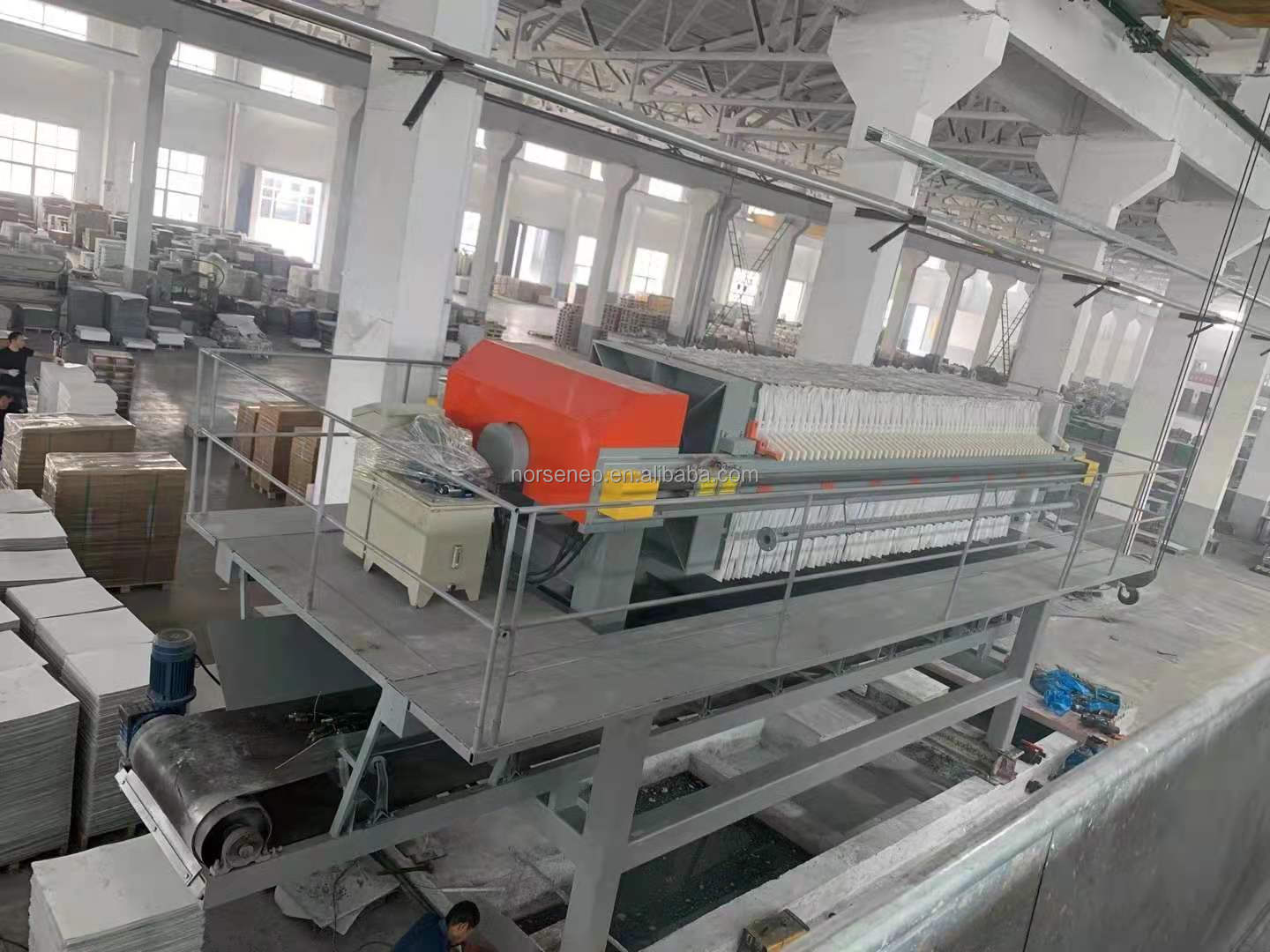

Factory View Control System Final Product

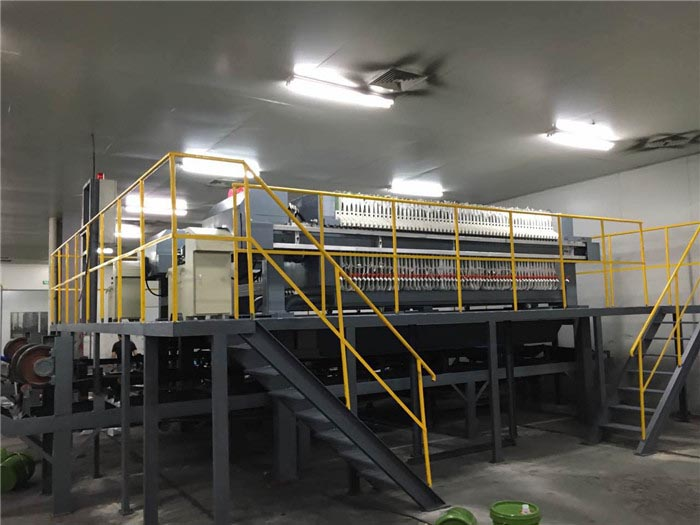

Final Installation

Frequently Asked Questions

1. What are the advantages of using high polymer PE for filter plates?
The imported high polymer PE material is molded using special patented technology, which ensures high pressure resistance, chemical stability, and a significantly longer service life compared to standard materials.
2. How does the automatic pulling plate system improve efficiency?
The automatic pulling plate system increases the degree of automation, allowing for center monitoring and reducing the need for manual operators, which lowers labor costs and improves operation safety.
3. What kind of control system does this equipment use?
It features an 80 point location (PT) PLC programmable control system with an intelligent touch screen platform, enabling full automatic control of the entire filtration cycle.
4. Can this filter press handle different types of slurry?
Yes, it is a versatile solid-liquid separation equipment designed for high working pressure and large production volumes, making it suitable for various industrial and municipal wastewater applications.
5. How does the glossy filter cloth contribute to the process?
The glossy filter cloth is specifically designed to improve the efficiency of discharging filter cakes and significantly lessen the final moisture content of the solids.
6. Is the maintenance of this equipment complicated?
No, the equipment is designed with a high standard of production technology that emphasizes simplicity of use and convenience in maintenance, ensuring long-term stable operation.
