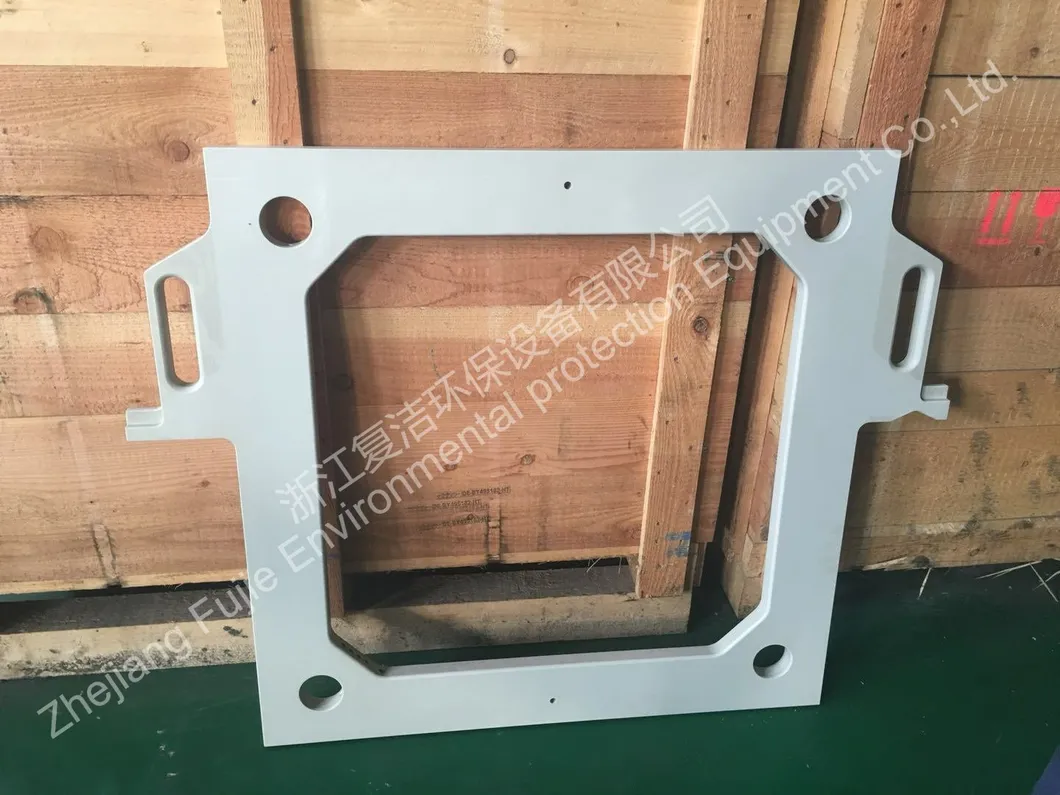

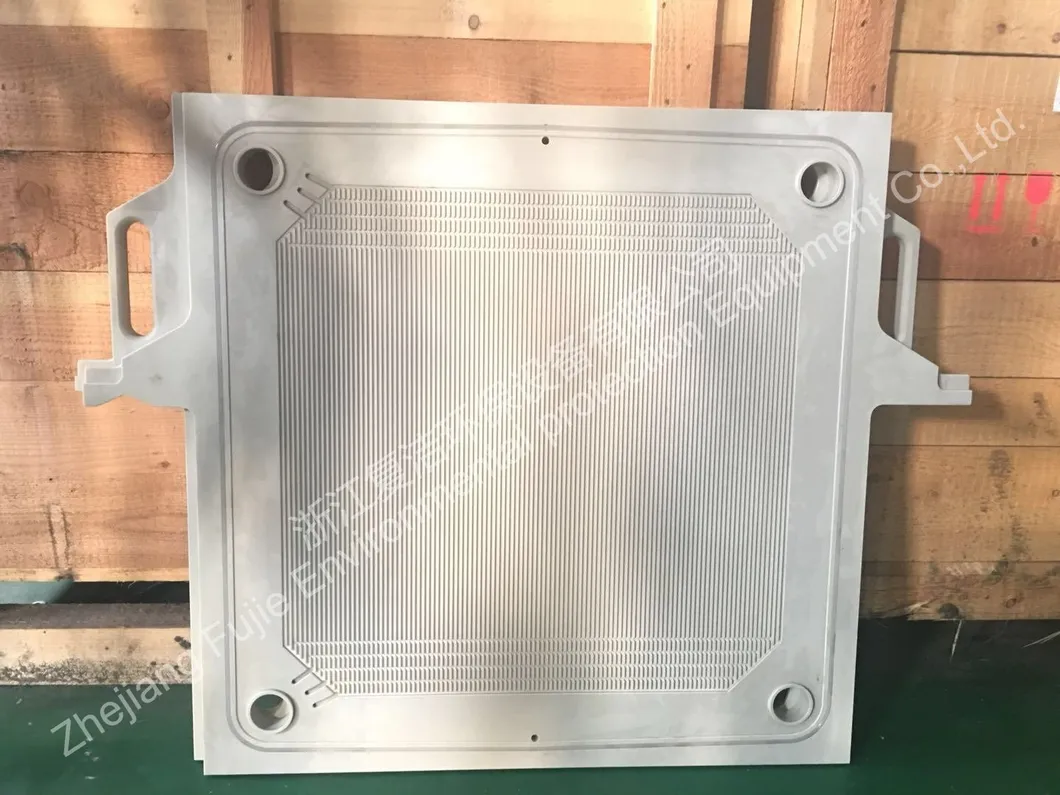

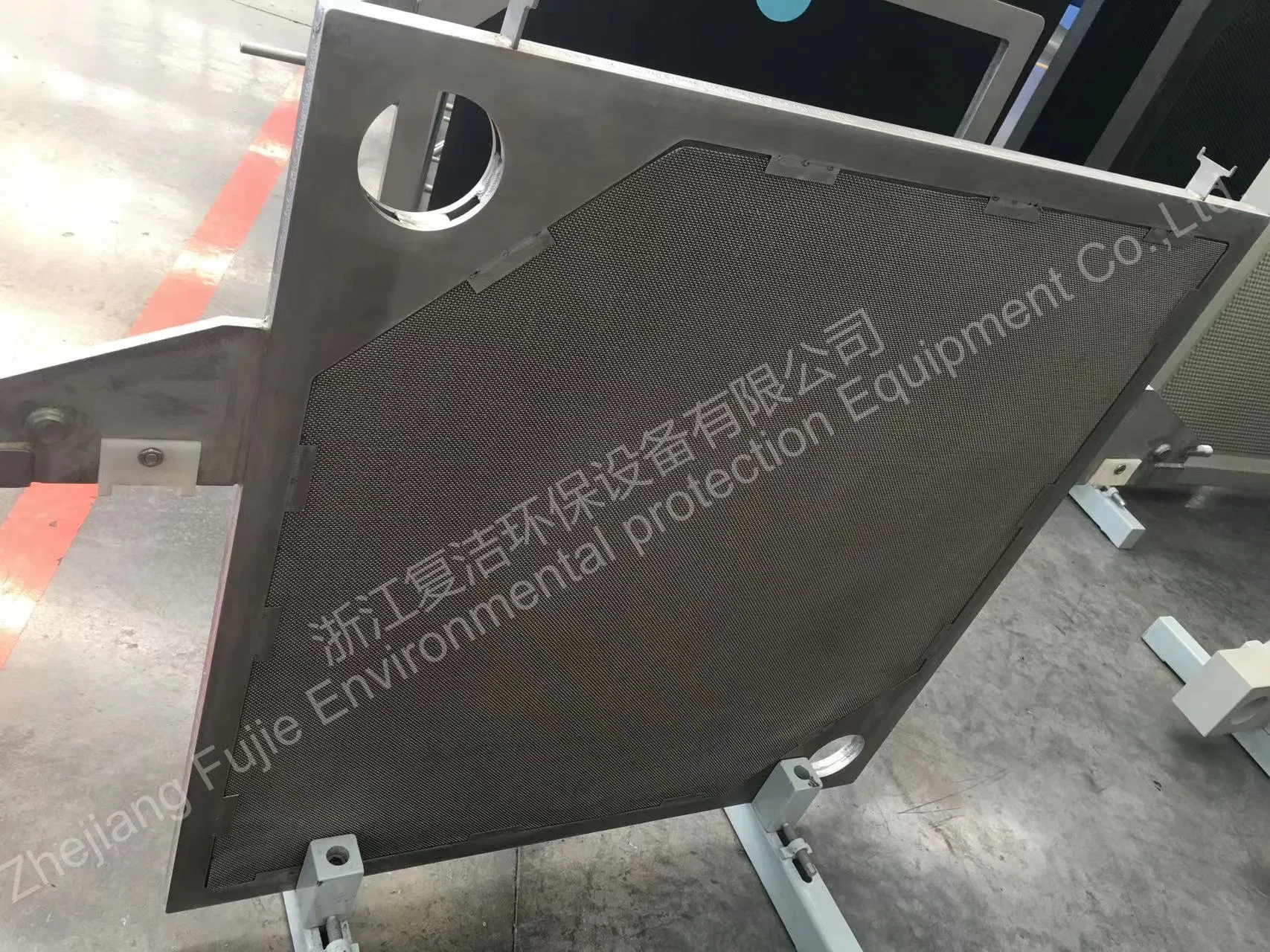

The filter plate of a box type filter press can be understood as a combination of a plate and a frame. Both sides of each box type plate have recesses. There is a large feeding hole in the middle of the plate, which allows faster and more uniform feeding with less clogging. It can also reach higher feed pressure. This is suitable for applications with high feed volume or pressure.
Currently, the chamber plate filter press is gradually becoming the mainstream choice for industrial applications.
| Model | Filtration Pressure (Mpa) | Filter Area (m²) | Feeding Type | Plate Thickness (mm) | Cake Thickness (mm) | Chamber Volume (m³) | Operation | Cylinder Dia (mm) |
|---|---|---|---|---|---|---|---|---|
| B/610-UB | 1.6 | 6-15 | External Corner | - | 6 | 0.043-0.24 | Manual Hydraulic | 200 |
| B/800-UB | 2.0 | 10-60 | External Corner | 35 | 30 | 9-55 | Auto Hydraulic | 250 |
| B/650-U | 0.5 | 10-20 | Corner Feed | 30 | 30 | - | Electro/Manual | 160 |
| B/870-U | 0.5 | 10-80 | Corner Feed | 30 | 30 | 0.13-1.03 | Auto Hydraulic | 200 |
| B/1000-U | 0.5 | 10-80 | Corner Feed | - | 60~120 | - | Auto Hydraulic | 250 |
* Parameters may differ based on specific requirements such as temperature and chemical resistance. Customization is available.

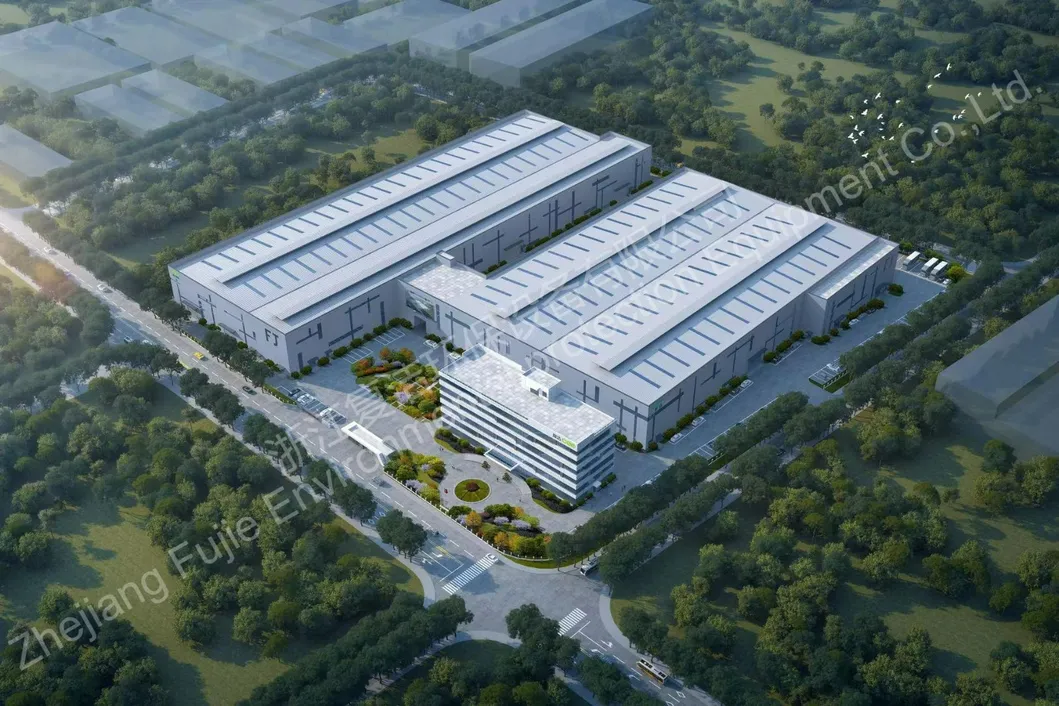

Covers over 2000 m²
Pre-sale Service:
• Inquiries replied within 12 hours.
• Assistance in selecting the most suitable model.
• Custom design according to specific requirements.
After-sale Service:
• 12-month warranty period with lifetime technical support.
• Overseas engineering service available for machinery maintenance.

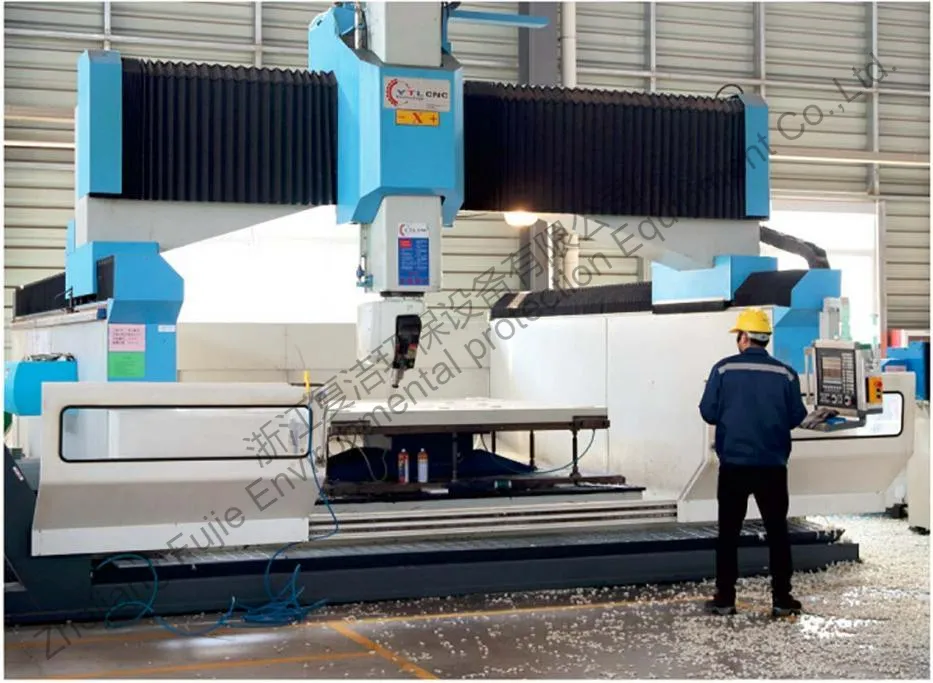

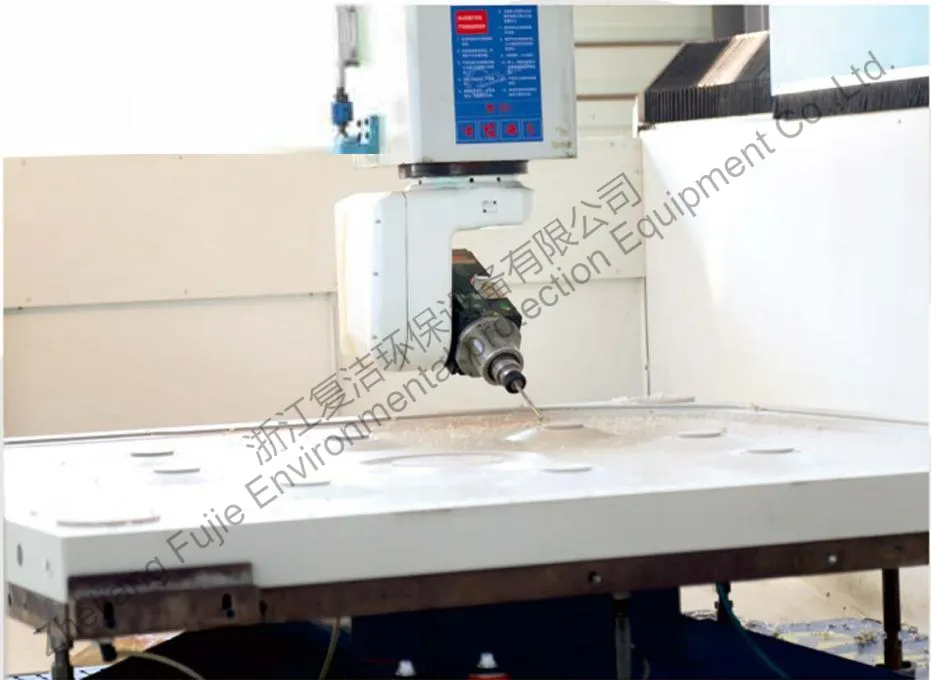

Equipped with 60000KN, 80000KN, and 120000KN ultra-large injection and pressure equipment. We utilize the largest tonnage oil pressure machines in the industry and multiple five-axis machining centers for precision manufacturing.
Our unique raw material formulas ensure superior performance, mechanical strength, and high material density. Certified with ISO9001, ISO14000, and OHSA45001.
