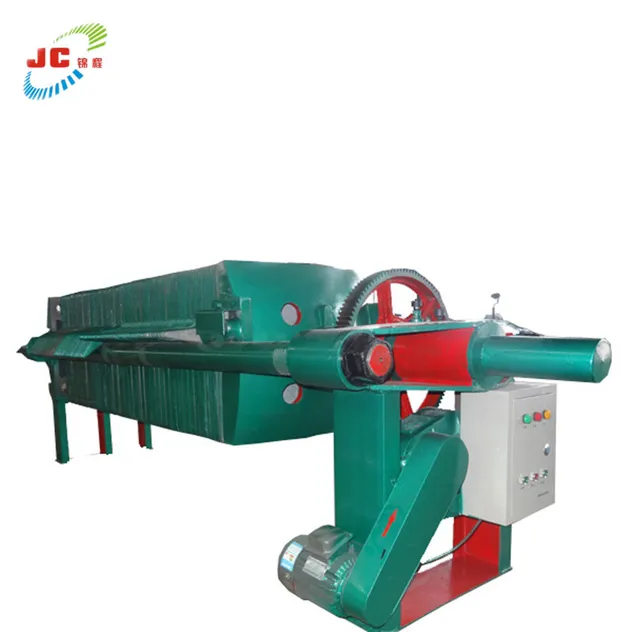

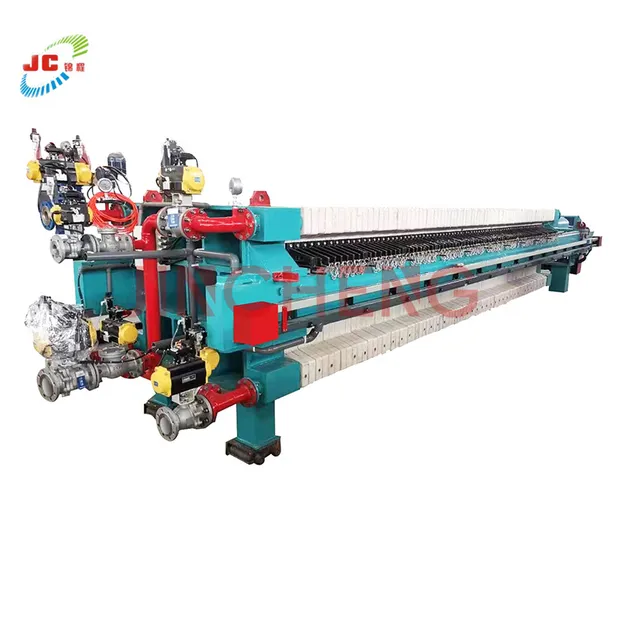

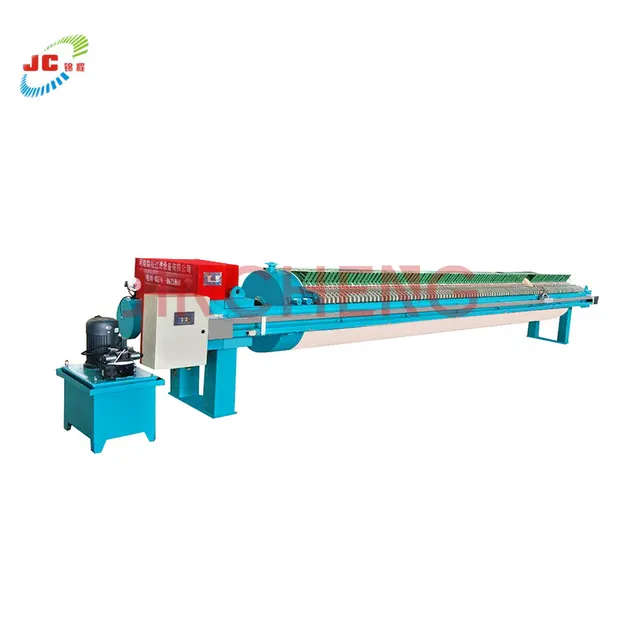

Chamber filter press is one kind of intermittent filter equipment, it is used for solid-liquid separation of various suspending liquid. Filter plates are pressed by pressing devices, and then suspension is pumped into the filter chamber. Solid particles and liquid are separated through filter cloth. This equipment is simple in structure and good in separating effects, easy to operate.

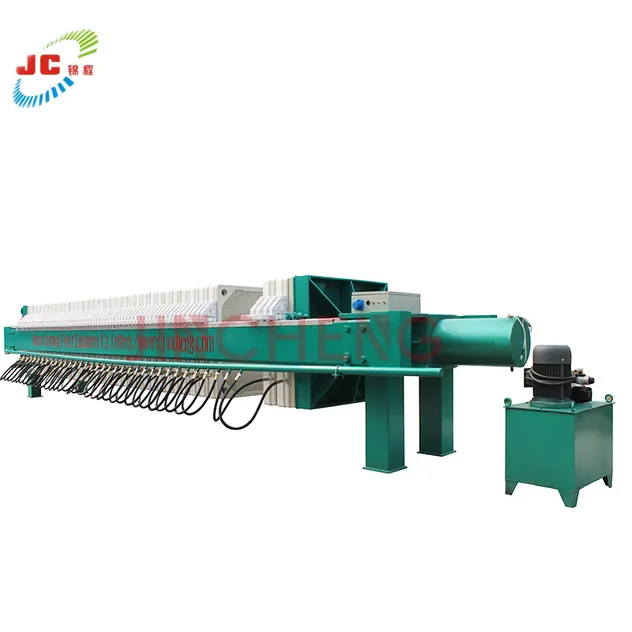

Membrane filter press composed of chamber filter plate and membrane filter plate. The feeding pump press the slurry to enter the filter chamber, then, the solid and liquid are separated through filter cloth. When the slurry has been formed to be a solid cake, air compressor will blow air to membrane filter plate which will give second squeezing to solid and lowering its water content. It can lower more than 10%-40% water content compare with chamber filter press for different kindly of feeding material.

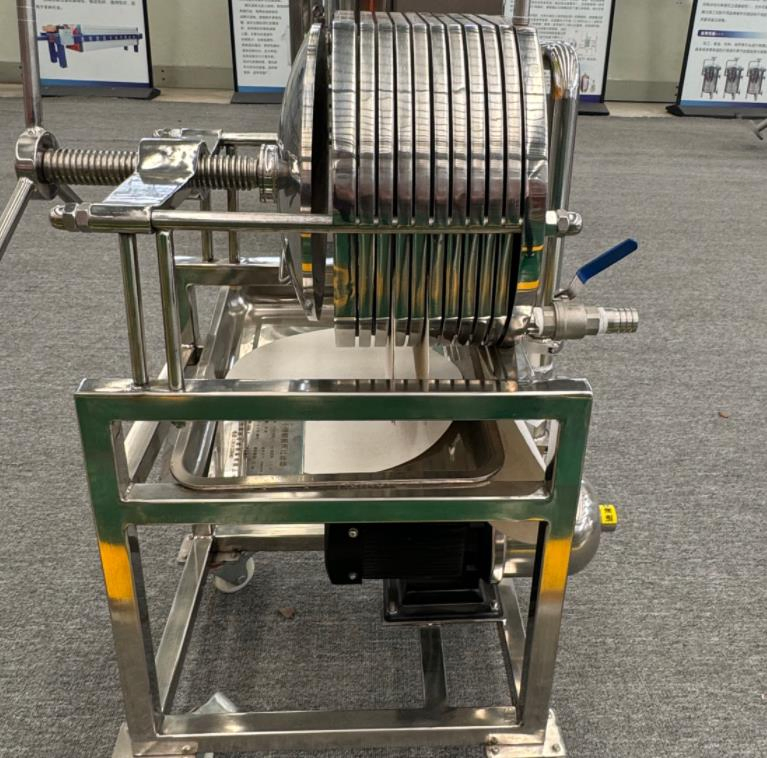

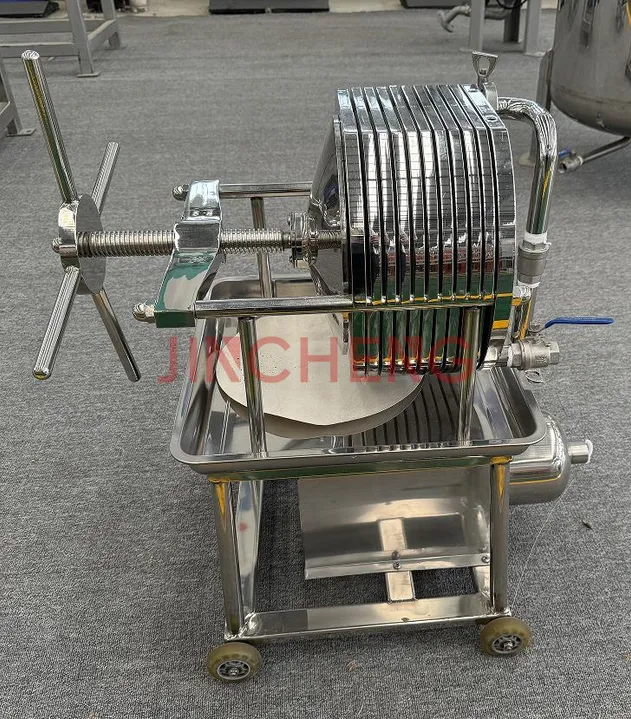

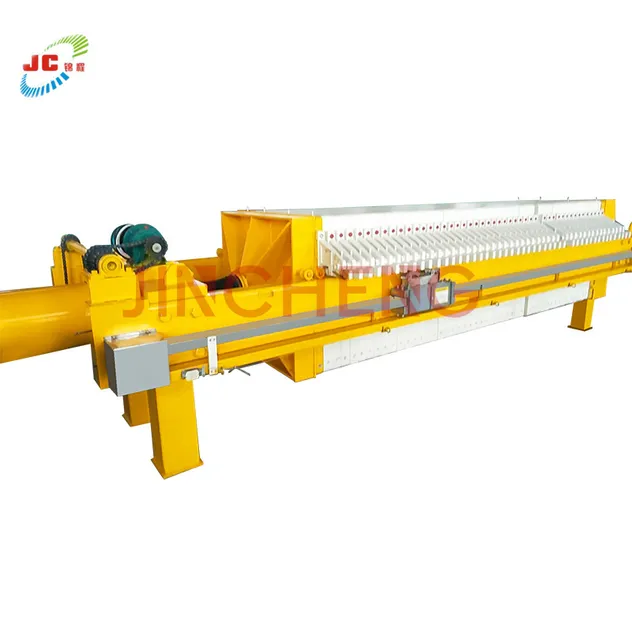

Plate & Frame filter press is an assembly of plates covered with a filter cloth and frames designed to collect the cake, held together in a press that has a head plate and tail plate – the press is closed by a hydraulic pump, or manually in small presses. The plates and frame can be made of many types of materials, polypropylene is popular. Many times the press has "recessed plates" where two plates form a cavity for collecting cake eliminating the frame. Filter presses must be opened and the plates separated to remove the cake.

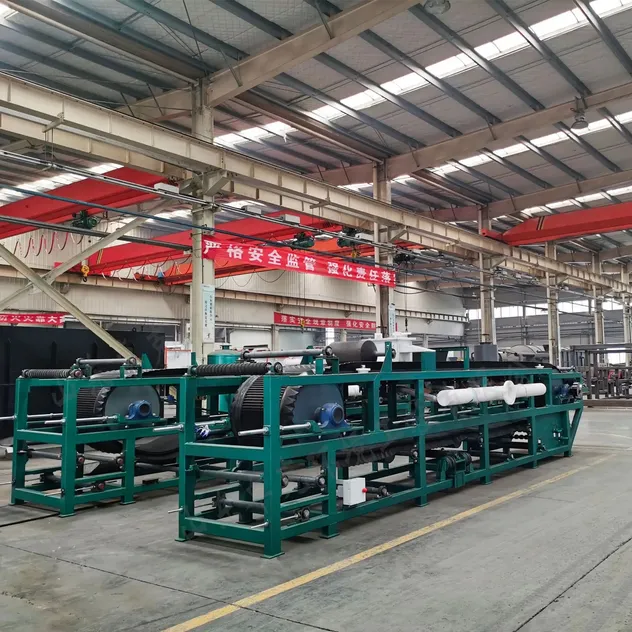

Vacuum belt filter is an efficient separating equipment which uses filter cloth as filter medium, makes full use of the gravity of material and uses vacuum negative pressure as power to realize the solid-liquid separation. This equipment with unique design can be used to filter many kinds of products and can be operated in steps including washing, vibrating, hot air drying and mechanical compressing.

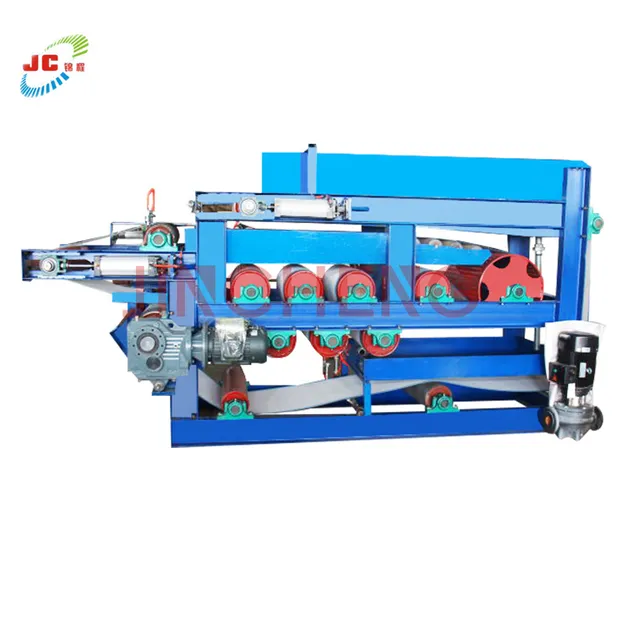

Belt filter press is a high-efficiency equipment for solid-liquid separation. Its main principle is dewatering by use of mechanical extrusion. Belt filter press has many advantages: continuous operation, high degree of automation, easy to manipulate, high efficiency, low consumption, large capacity of disposal. It is an ideal equipment for resource recycle and environmental protection.

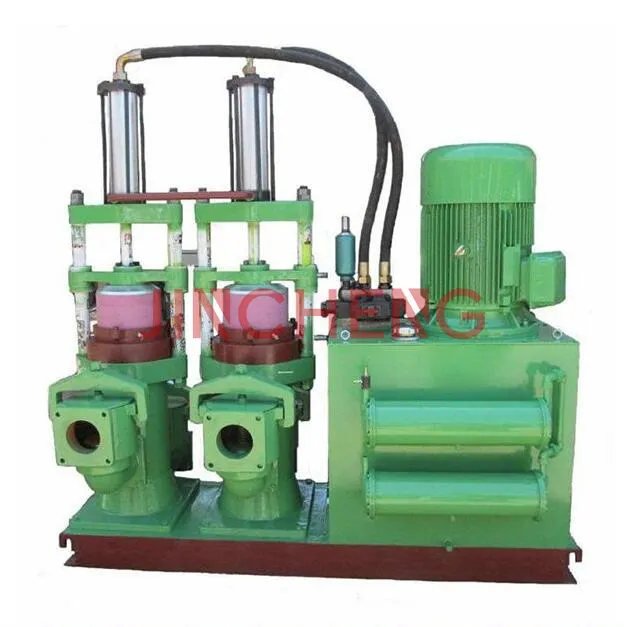

YB plunger pump is mainly used to deliver slurry, coal slurry, porcelain clay slurry, nonmetallic suspension, food liquid, chemical liquid, electronic paste, magnetic material. It may transport the solid content than the characteristics of 70% thick suspension in the spray drying tower, with pressure filter and other drying equipment necessary when using, has the very high work and energy saving efficiency.

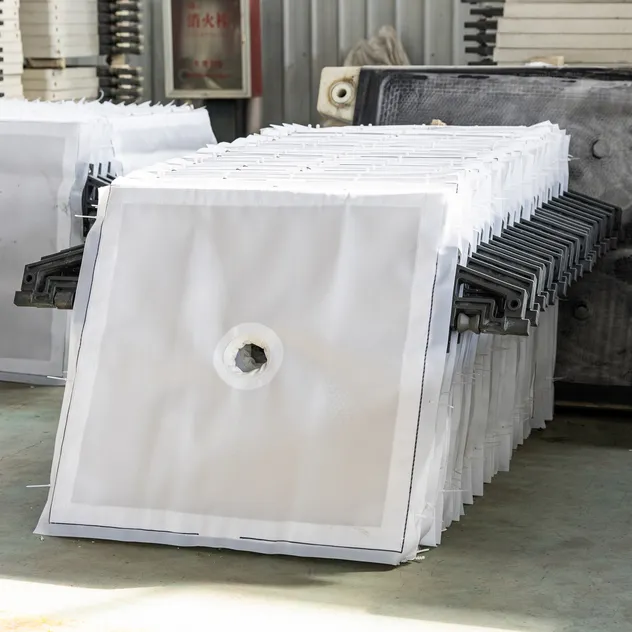

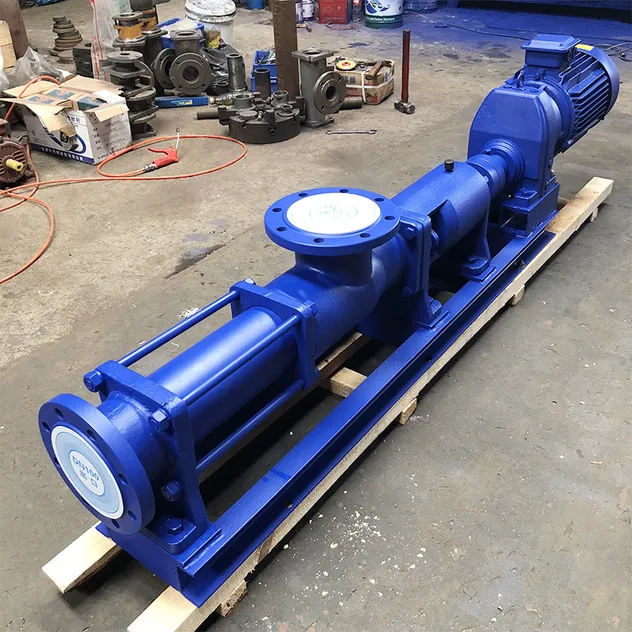

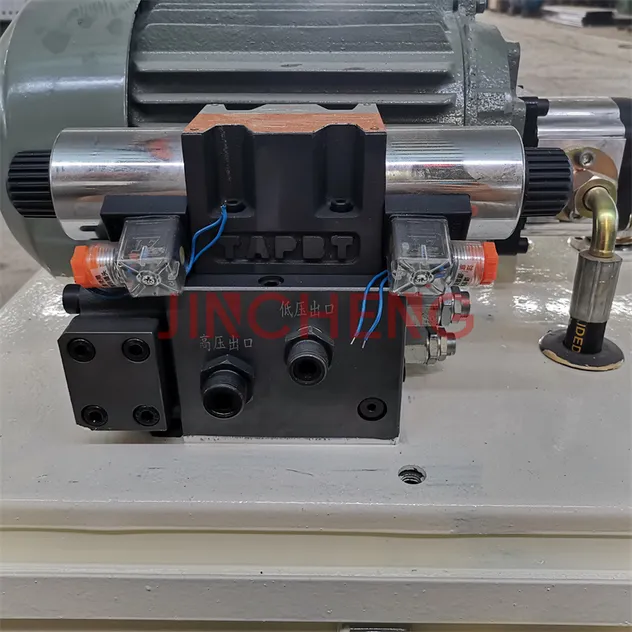

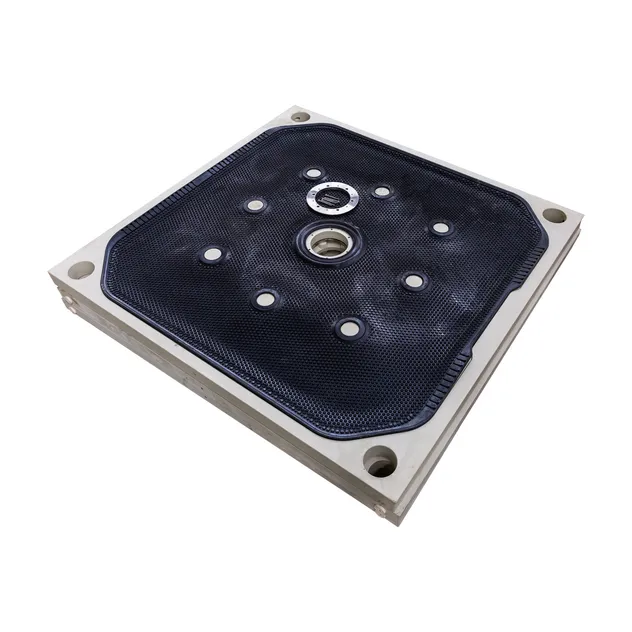

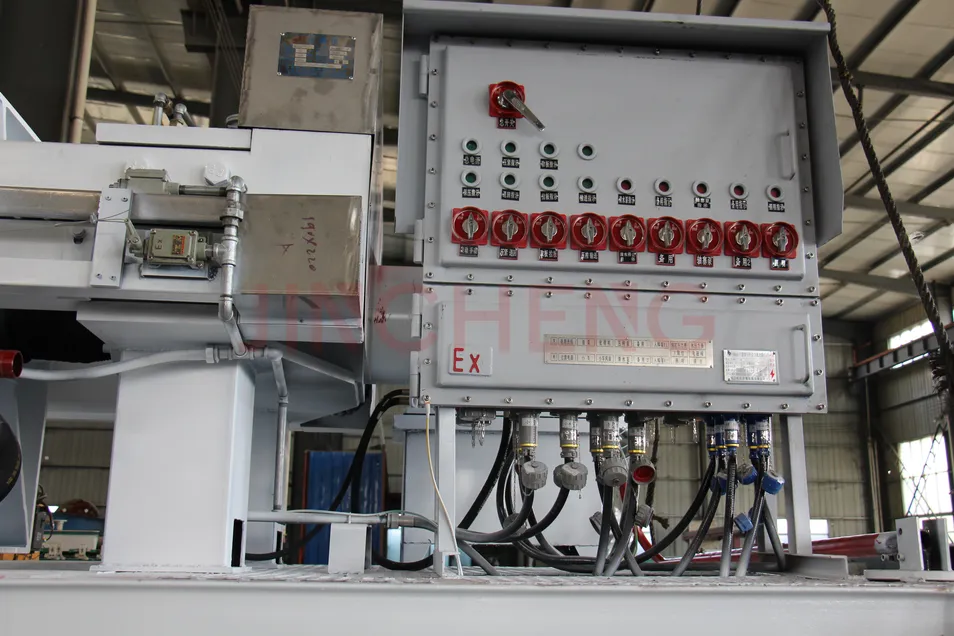

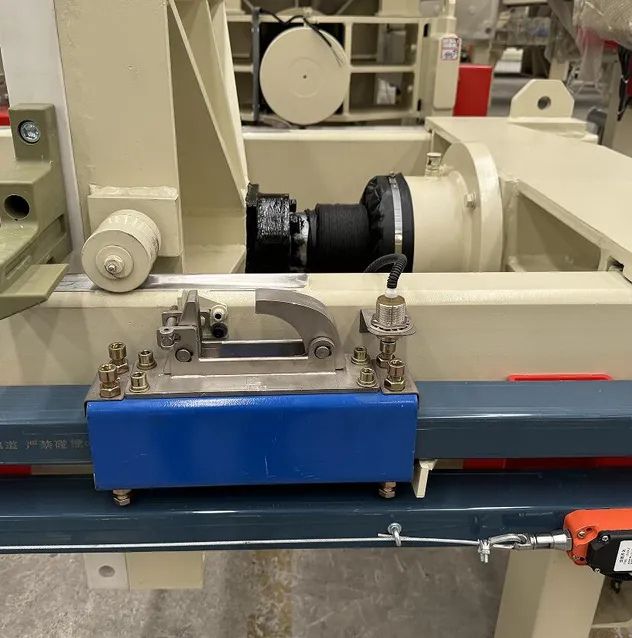

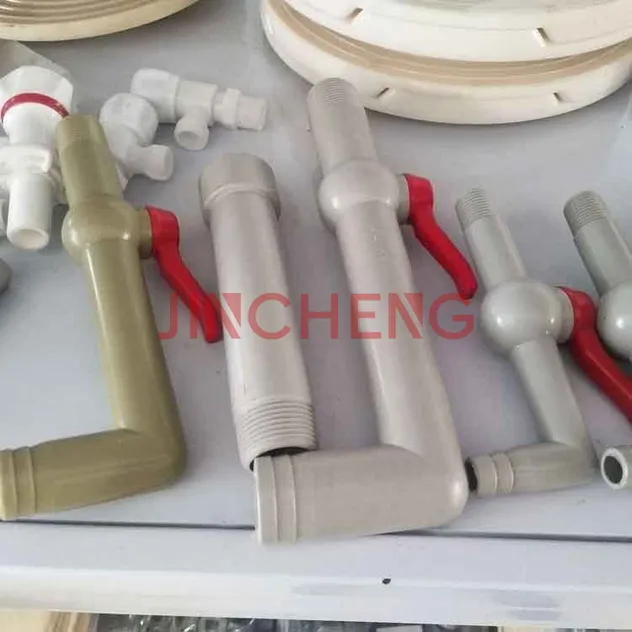

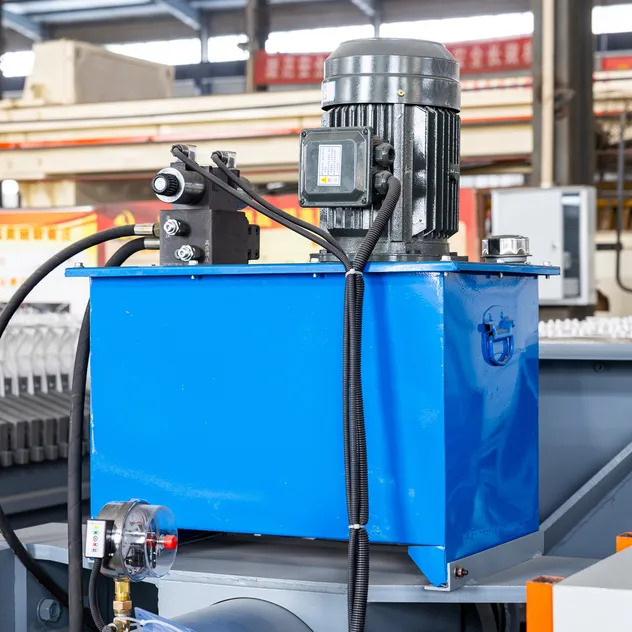

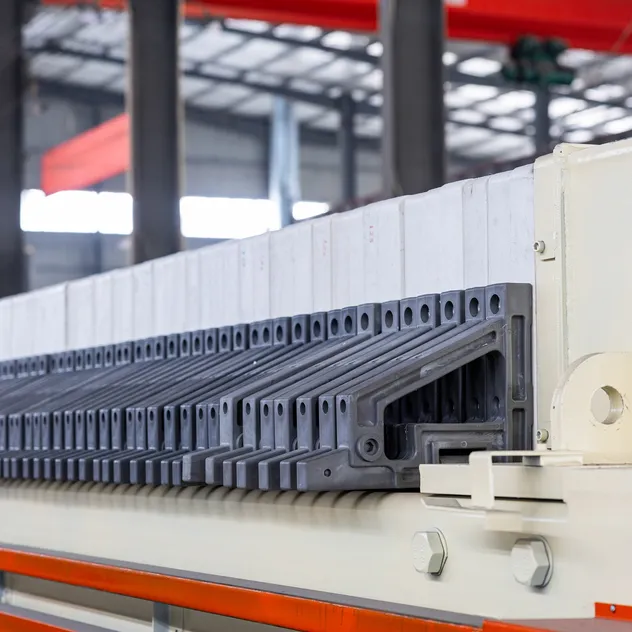

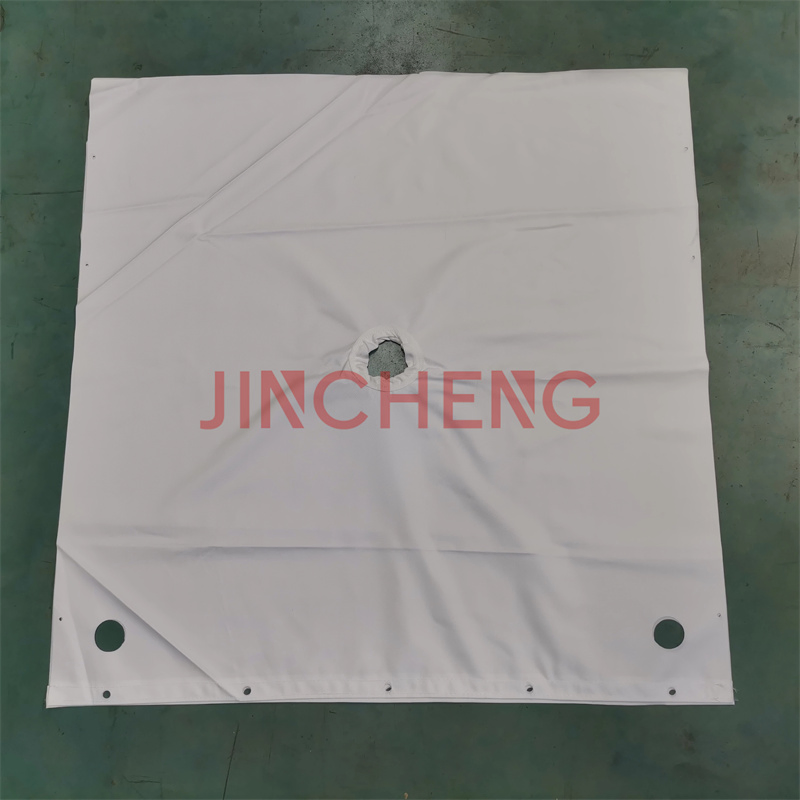

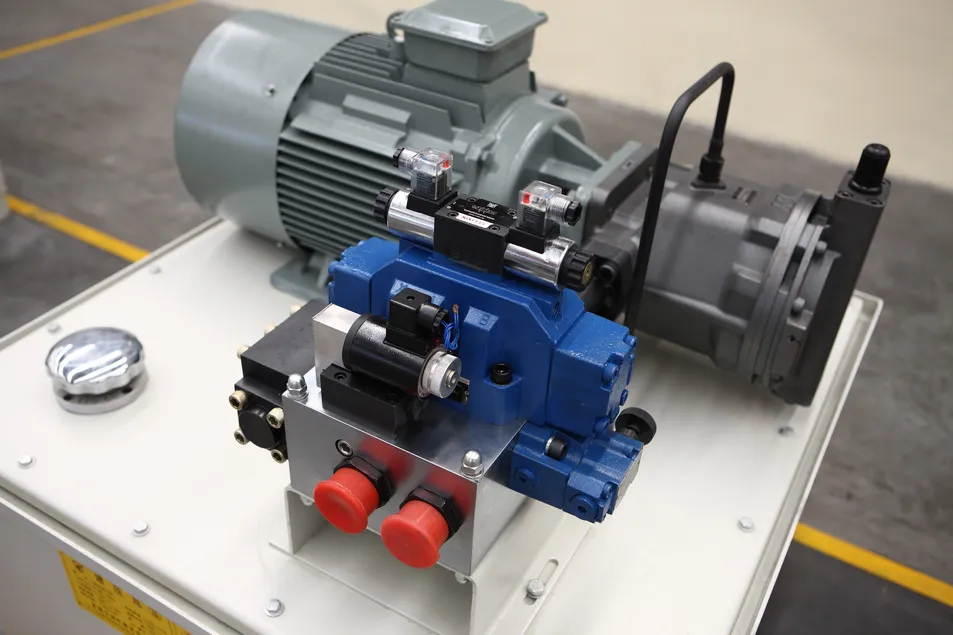

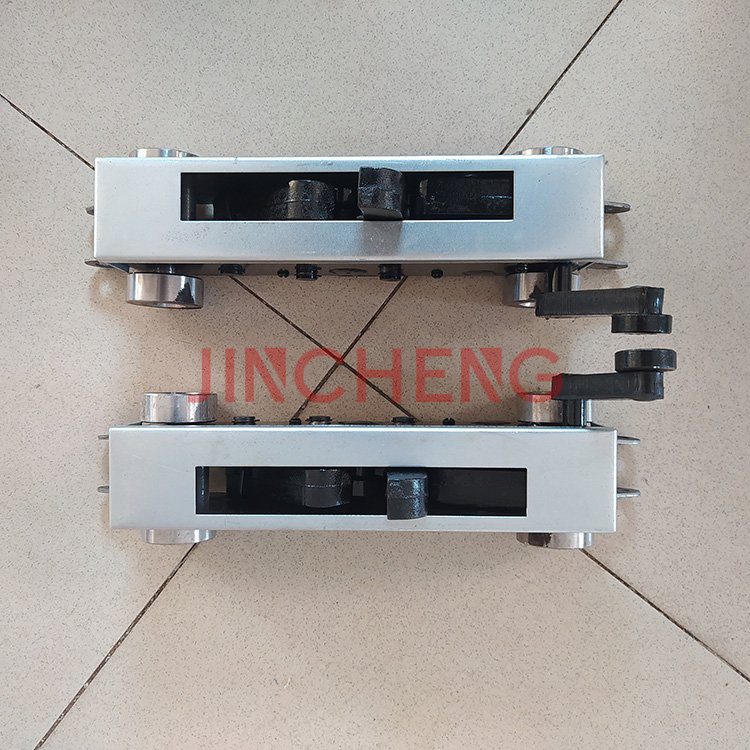

Our Products including spare parts of filter press machine, like filter plate, filter cloth, hydraulic station, PLC control Cabinet, Valve, Pumps, handle, water nozzle, Pipe and so on;
(Custom configurations available upon request. Example for reference only.)
| Type of filter press | Volume | Feeding Pressure | Filter Plate size |
|---|---|---|---|
| Plate & frame filter press | 15-4430L | 0.6-1Mpa | 390-1250 |
| Chamber filter press | 10-20000L | 0.6-1Mpa | 150-2000 |
| Membrane filter press | 745-2000L | 0.8-1.5Mpa | 870-2000 |
| Belt filter press | * | * | * |
| Vacuum belt filter | * | * | * |
| Filter Plate size | 390-2000mm | * | * |

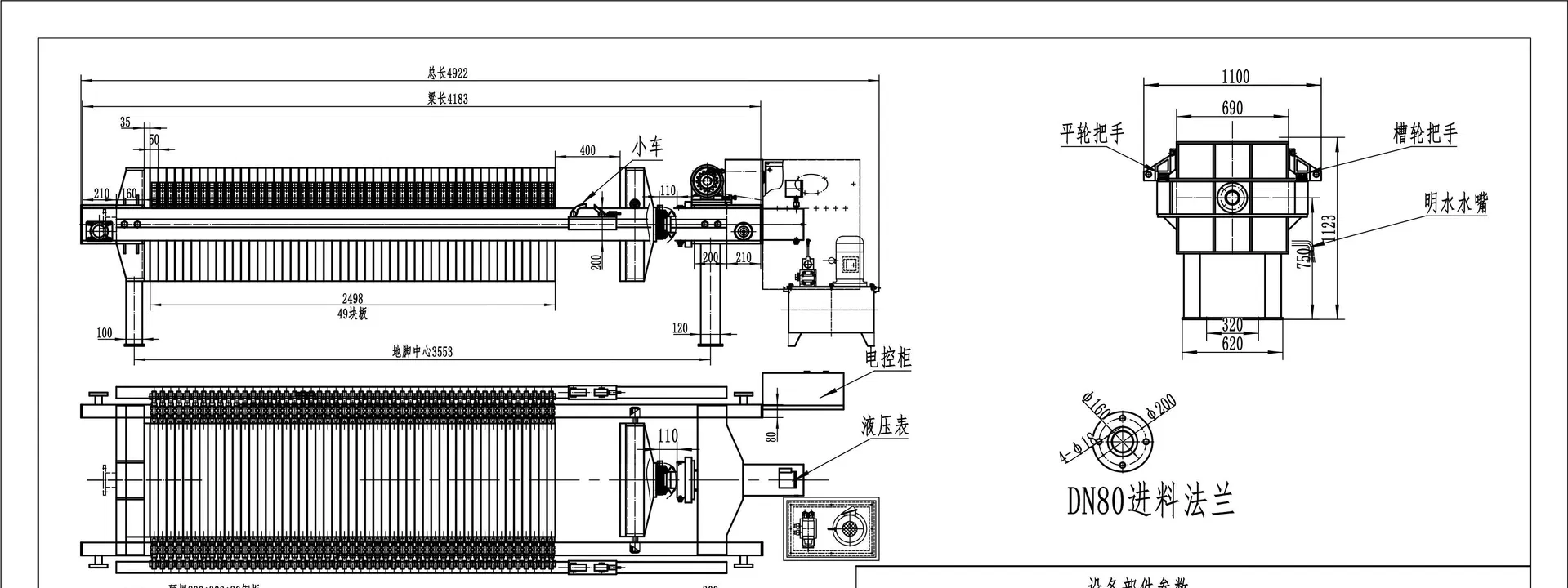

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
