Product Description
1 Raw Materials
Sesame, walnut, pine nut, peanut, sunflower etc.
2 Oil extraction rate of different oil content materials:
| Raw material |
Oil content |
| Camellia | 58-60% |
| Peanut | 44-55% |
| Castor seed | 50-70% |
| Soybean | 18-21% |
| Cottonseed | 33-40% |
| Rapeseed | 33-40% |
| Sesame | 45-50% |
| Sunflower | 45% |
| Safflower | 29-45% |
| Rice bran | 18-20% |
| Corn embryo | 30-40% |
| Walnut | 40-65% |
| Flaxseed/linseed | 29-44% |
| Palm | 50-55% |
| Coconut | 35-45% |
Application & Advantages
Korean Technology Integration
The 6Y-230-I hydraulic oil press with oil filter is improved based on 6Y-230 by introducing Korean technology and has won high praise from users. Equipped with a vacuum filter, the final oil quality is significantly enhanced. The hydraulic castor oil filter press is highly suitable for processing oilseeds such as sesame, walnut, pine nut, and more.
Key Advantages (Lower power consumption and noise)
- Maximum pressing pressure up to 60Mpa
- Advanced and reliable hydraulic systems power the equipment
- The maximum capacity can reach 150KG/H
- Both cold press and hot press processing methods are acceptable
- Continuous intelligent automatic control system for enhanced safety
- Low-power motors save overall energy consumption
- Integrated filtration system yields healthier and cleaner oil
Capacity: The hydraulic oil press with oil filter can be fed with 7-8kg of material every time and completely squeezes in 6-8 minutes.
Function: Both hot press and cold press methods are available.
Edible oil: The final output is high-grade, purified edible oil.
Technical Specifications
Main data about the hydraulic oil press with oil filter
| Model |
6Y-230-I hydraulic castor oil filter press |
| Capacity |
50-80 kg/h for oil seeds |
| Heating collar power |
1.5+1.1 kW (380v/50Hz) |
| Heating collar control temp |
70-100°C |
| Max pressure |
60Mpa |
| Motor model power |
Y901-4, 1.5kw |
| Max Pressure Force |
1900KN |
| Dimensions |
1300 x 900 x 1500 mm |
| Weight |
950kg |
6Y-Series machine main data comparison
| Model |
Capacity (kg/h) |
Power (kw) |
Size (mm) |
Weight (KG) |
Max Pressure |
| 6Y-230-I |
50-80 |
1.5kw+1.1kw |
1300x900x1500 |
950 |
60Mpa |
| 6Y-230 |
50-80 |
2kw |
1000x800x1500 |
800 |
60Mpa |
Product Gallery & Detailed Views

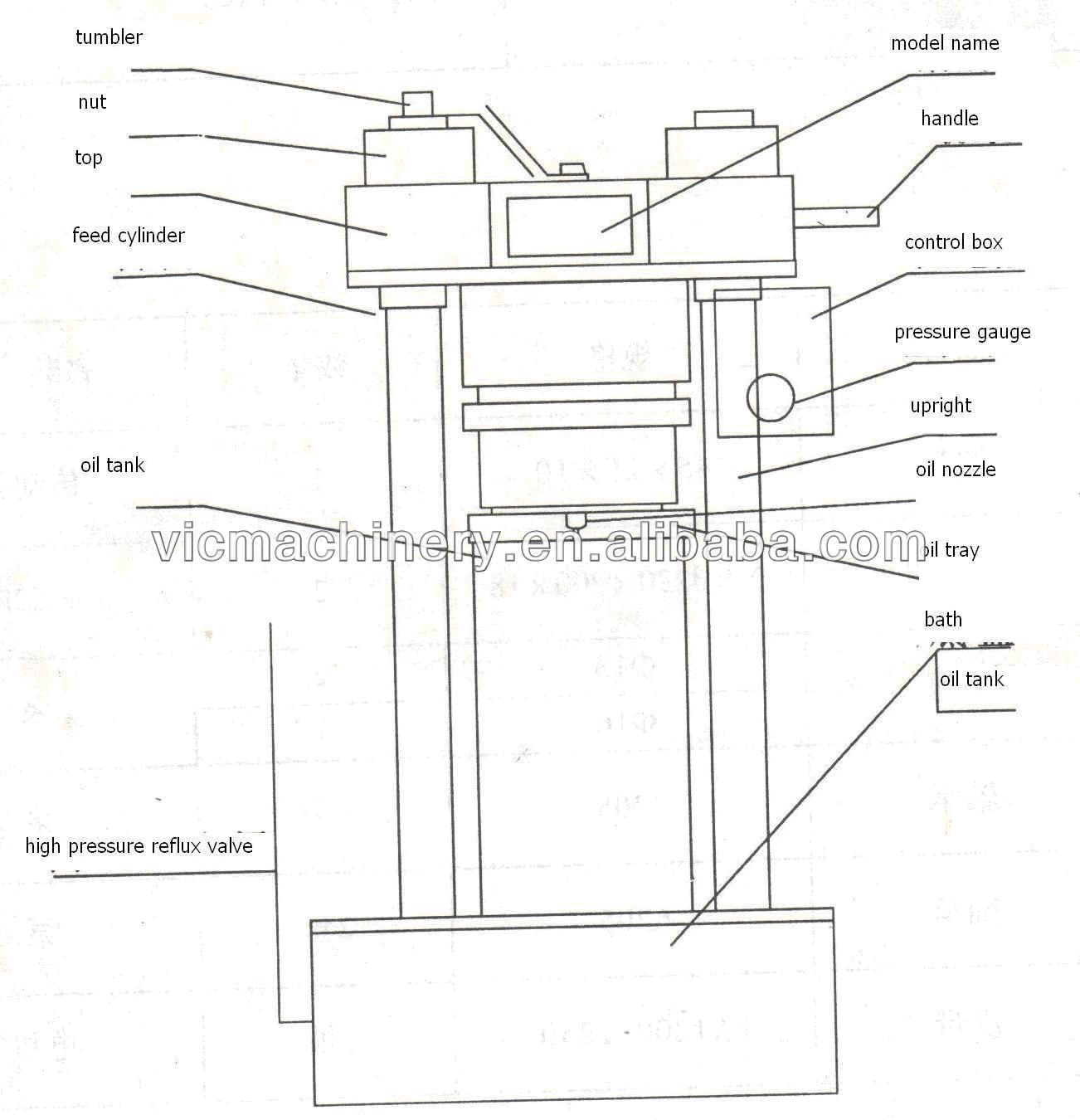

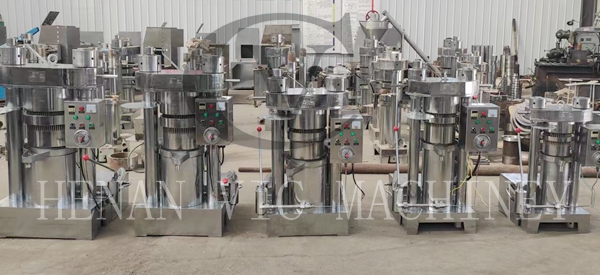

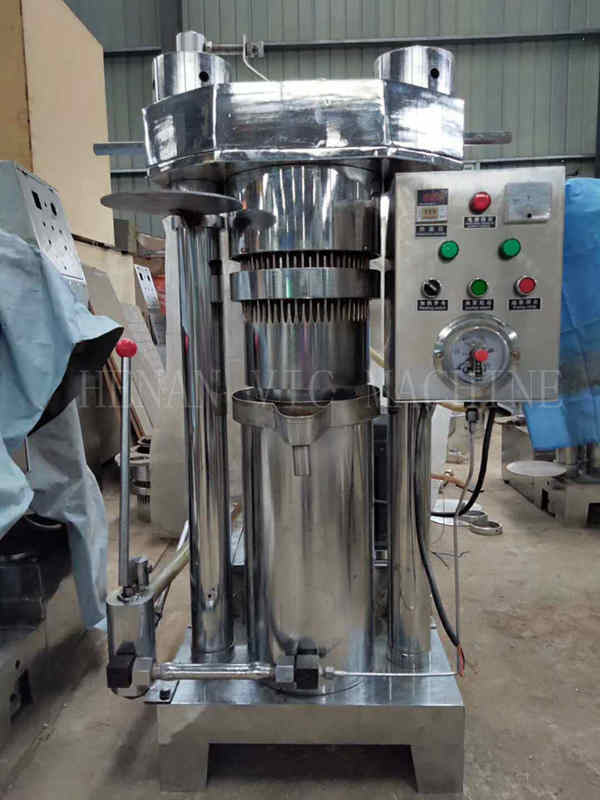

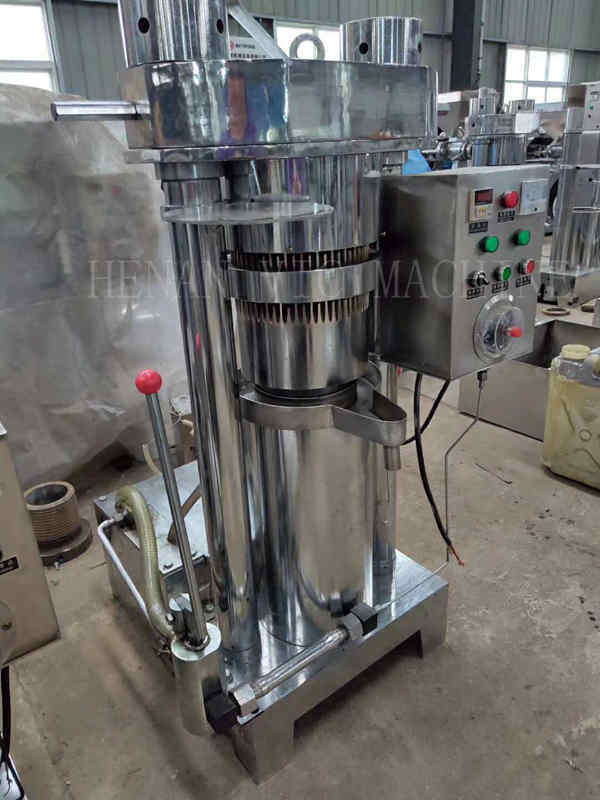

Hydraulic Oil Press (Standard Model without Filter)

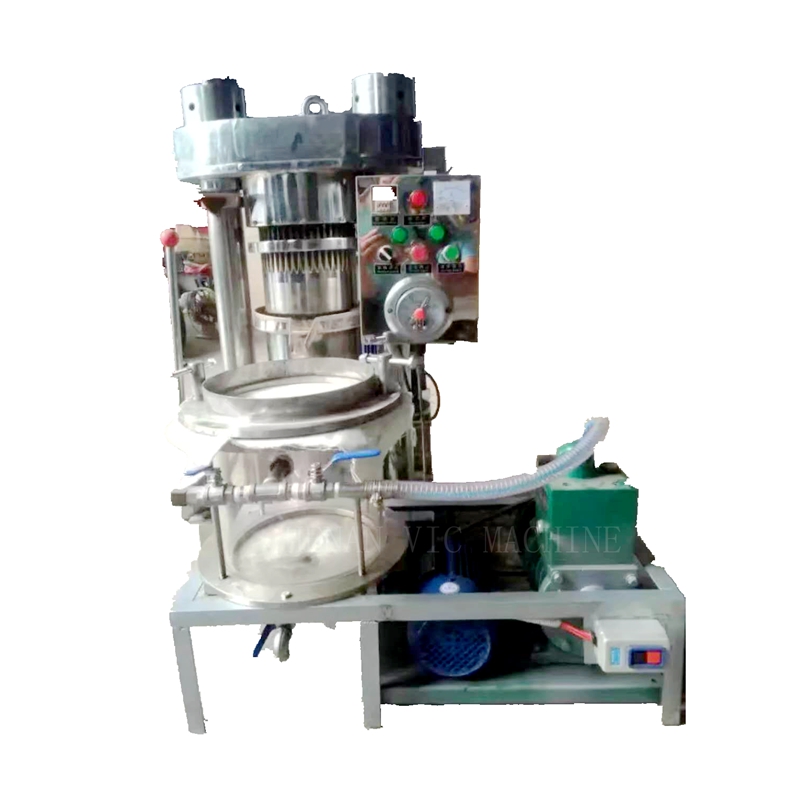

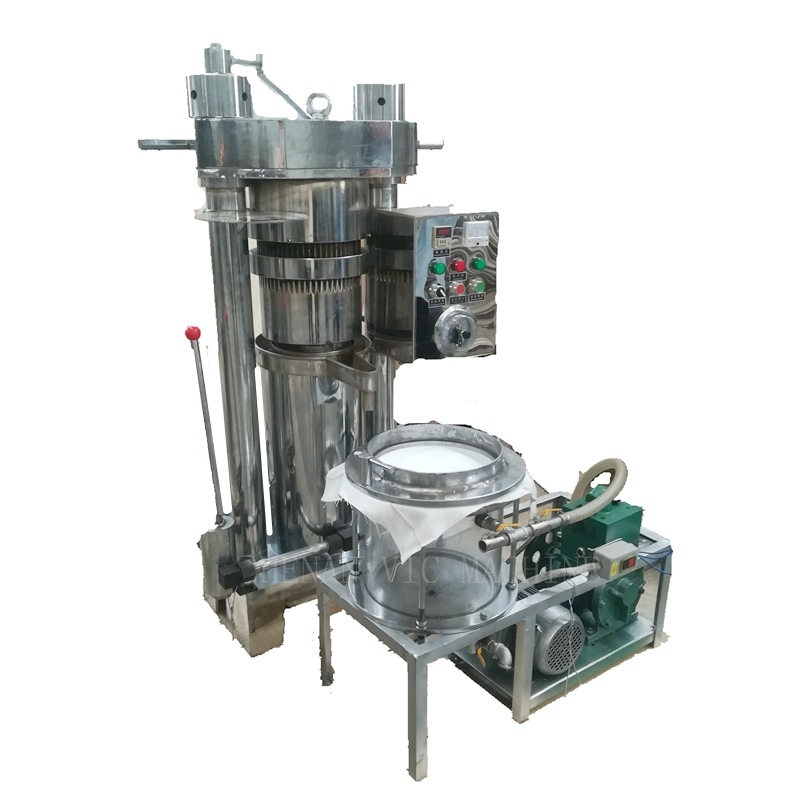

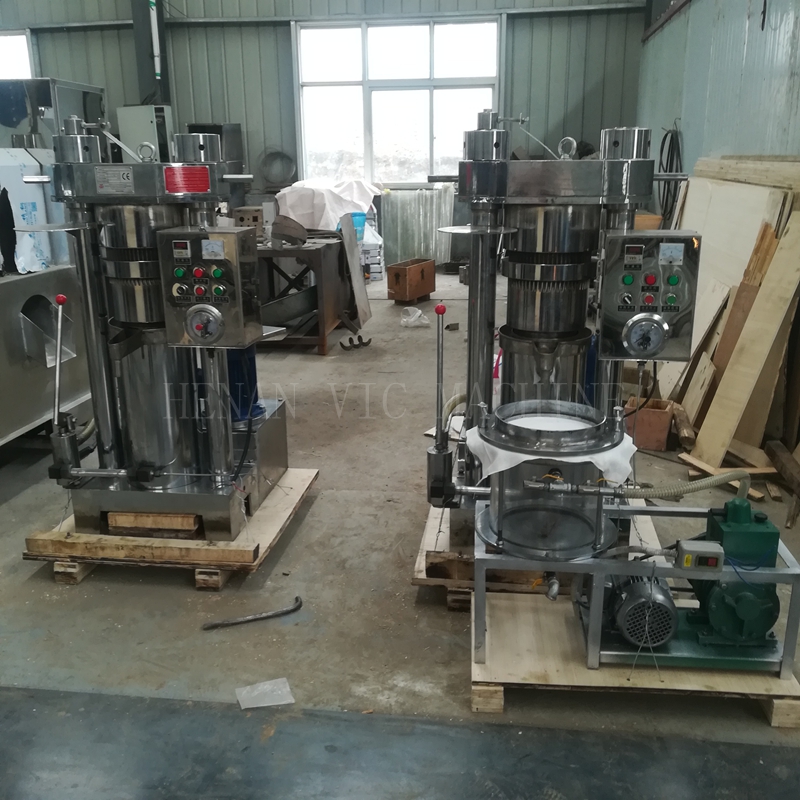

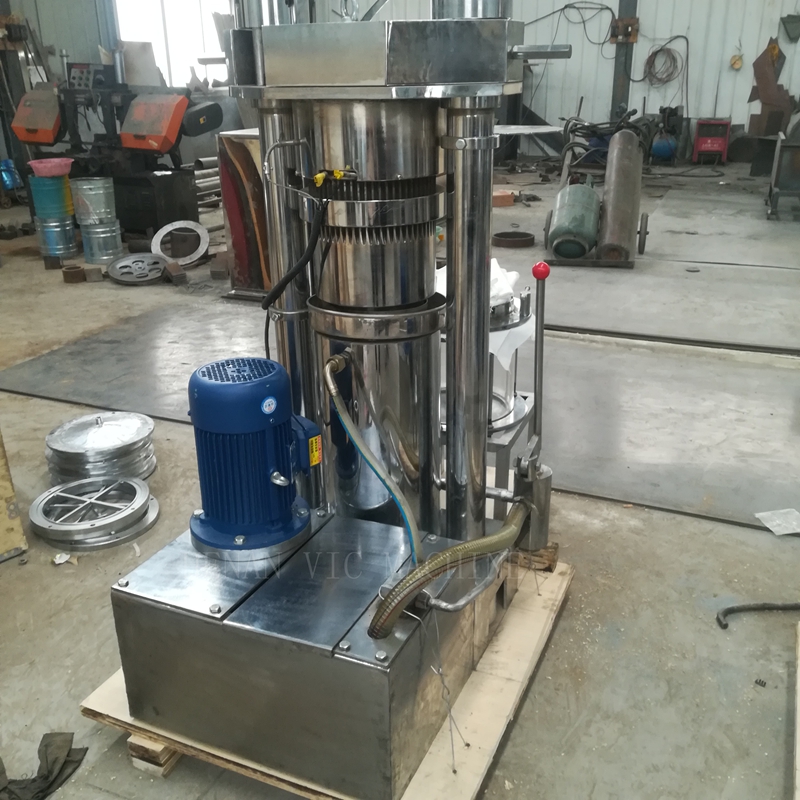

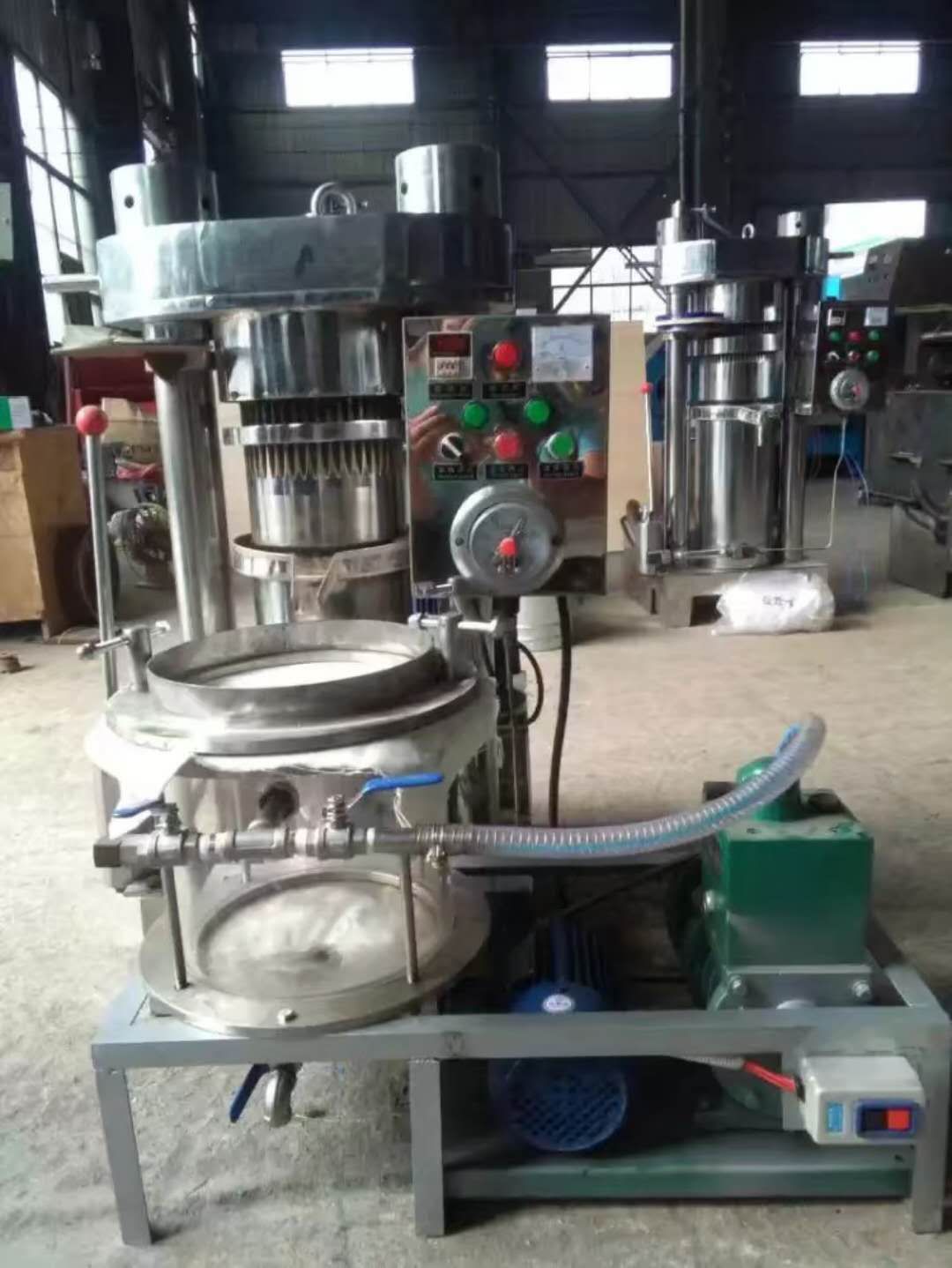

Hydraulic Oil Press (With Integrated Filter System)

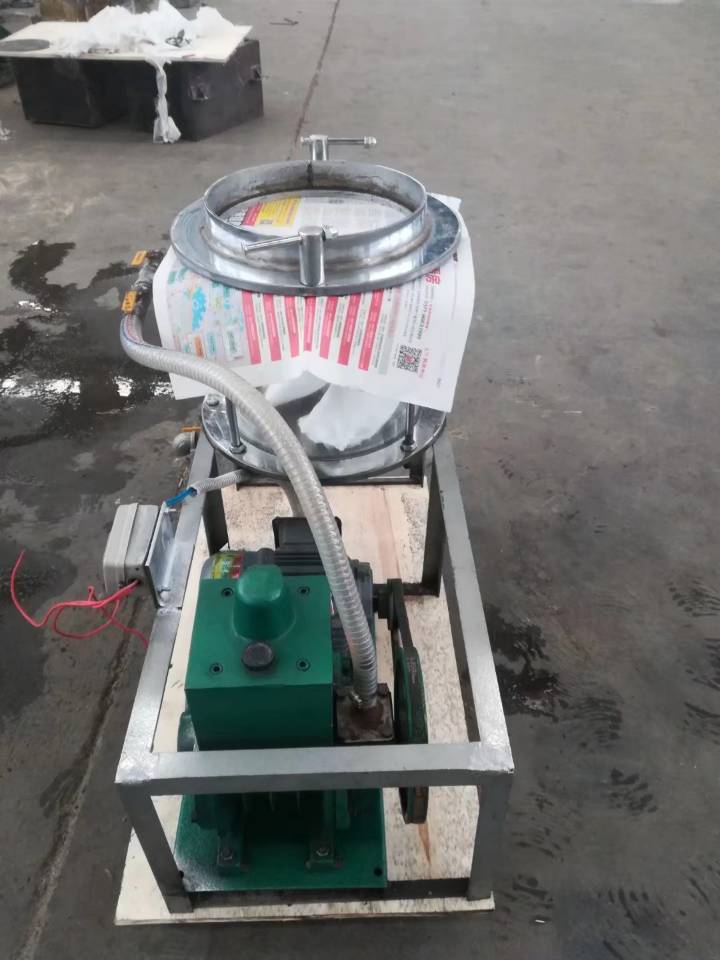

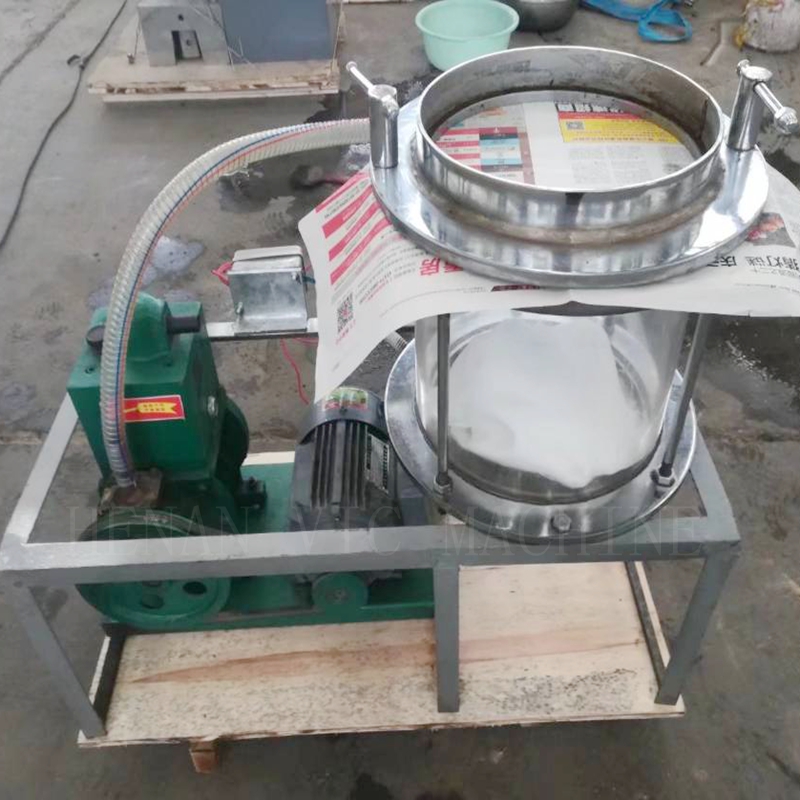

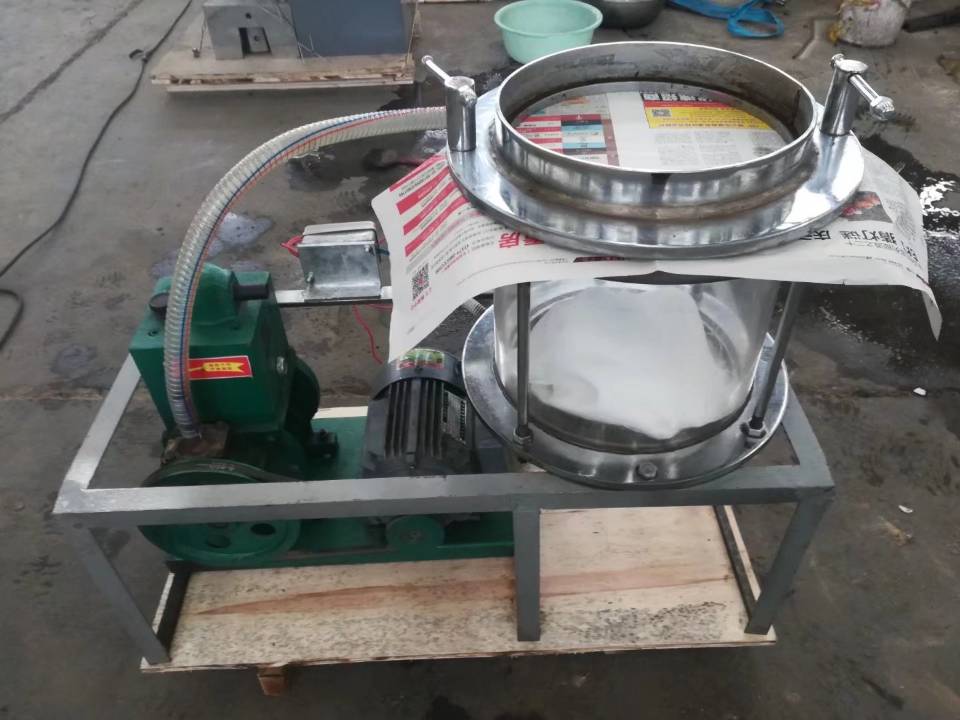

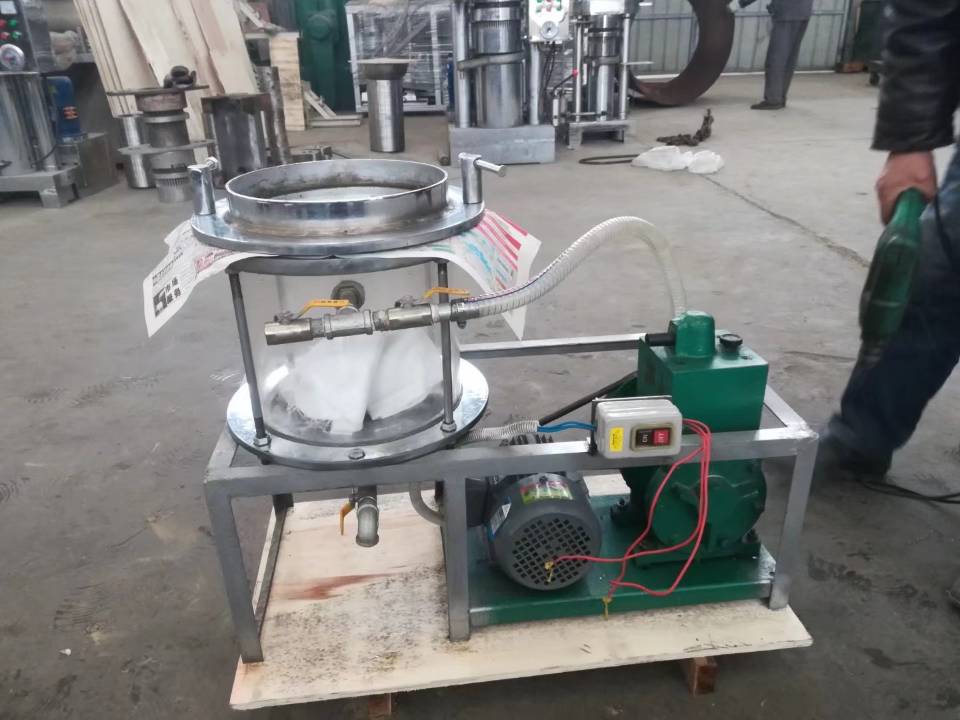

Vacuum Filtration Unit Details

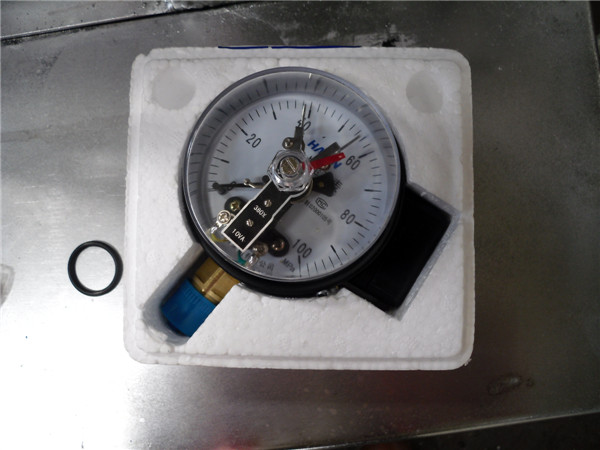

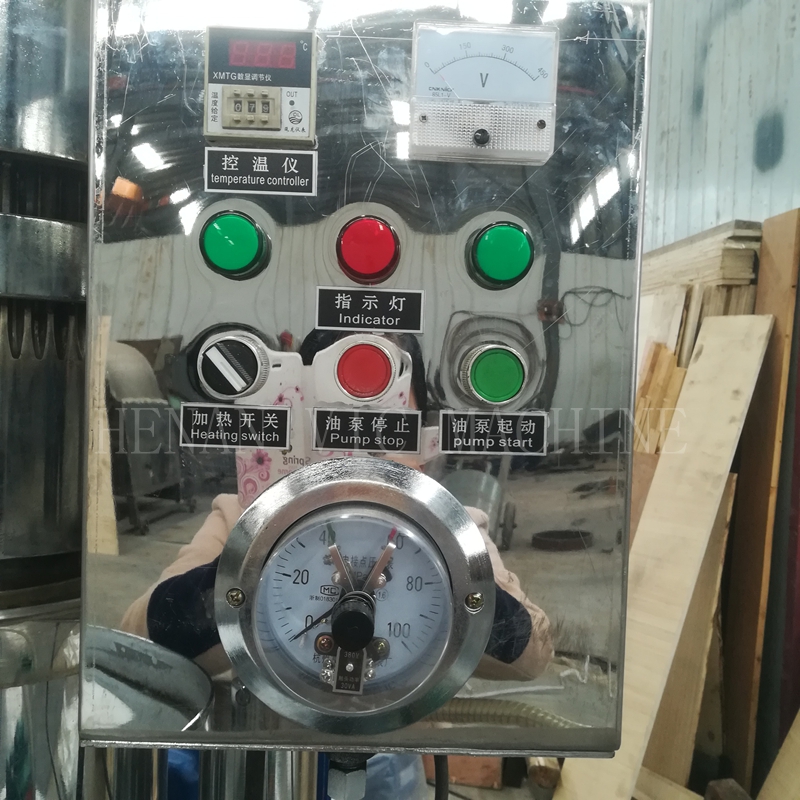

Control System with Pressure Gauge (Working up to 60 MPa)

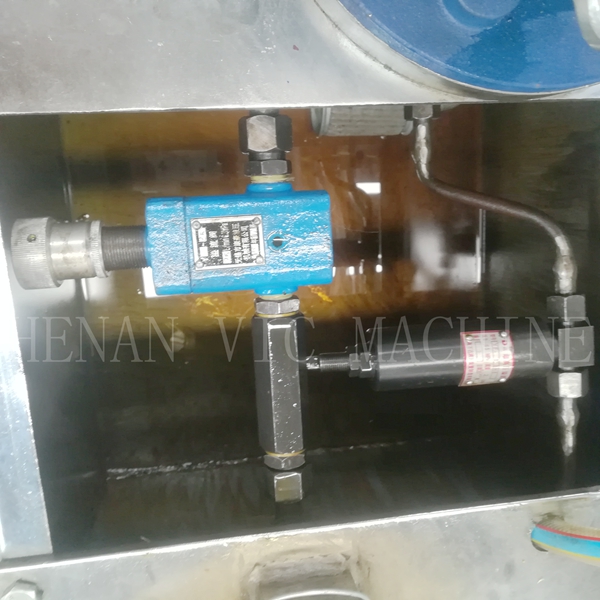

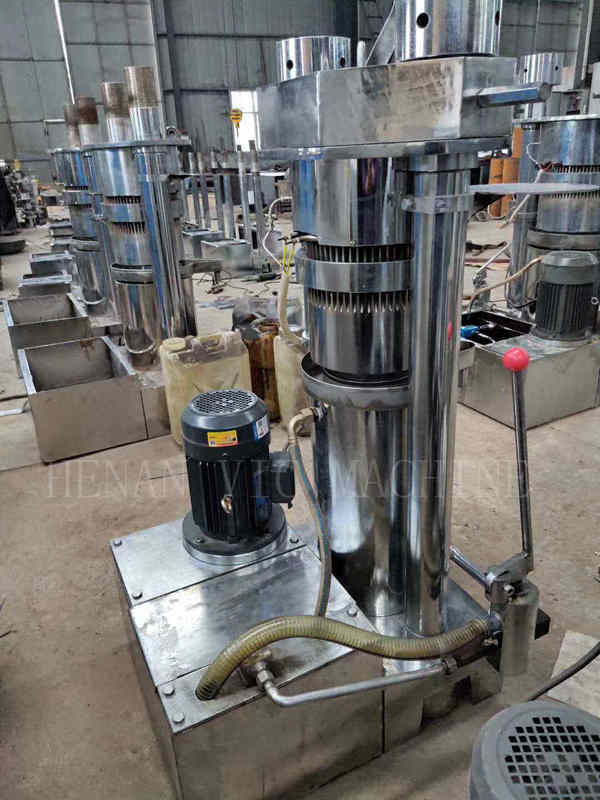

Reliable and Stable Hydraulic Power Pack

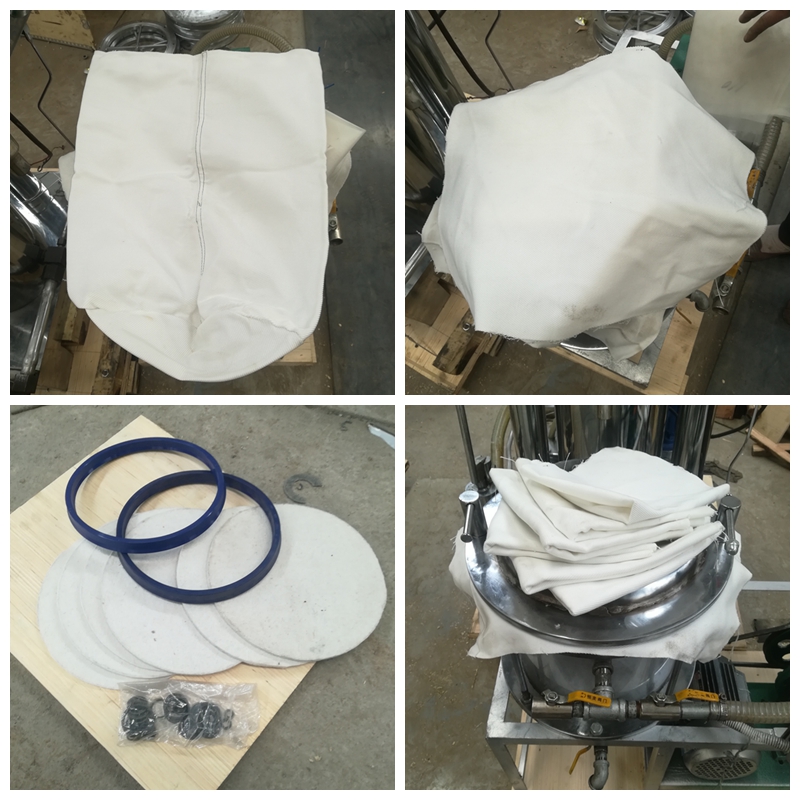

Replacement Parts & Components

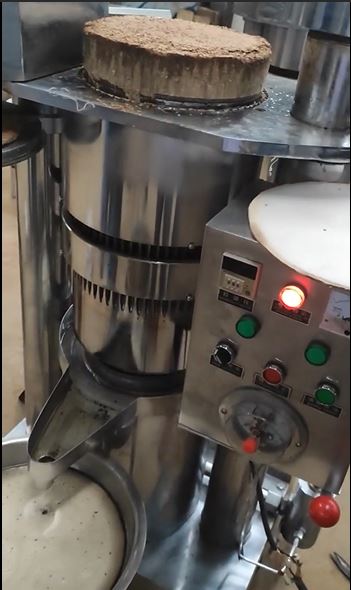

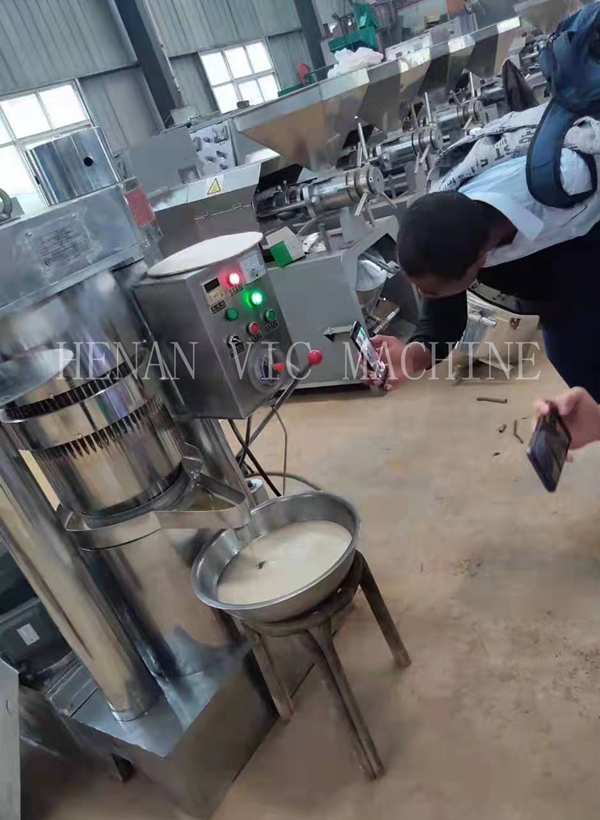

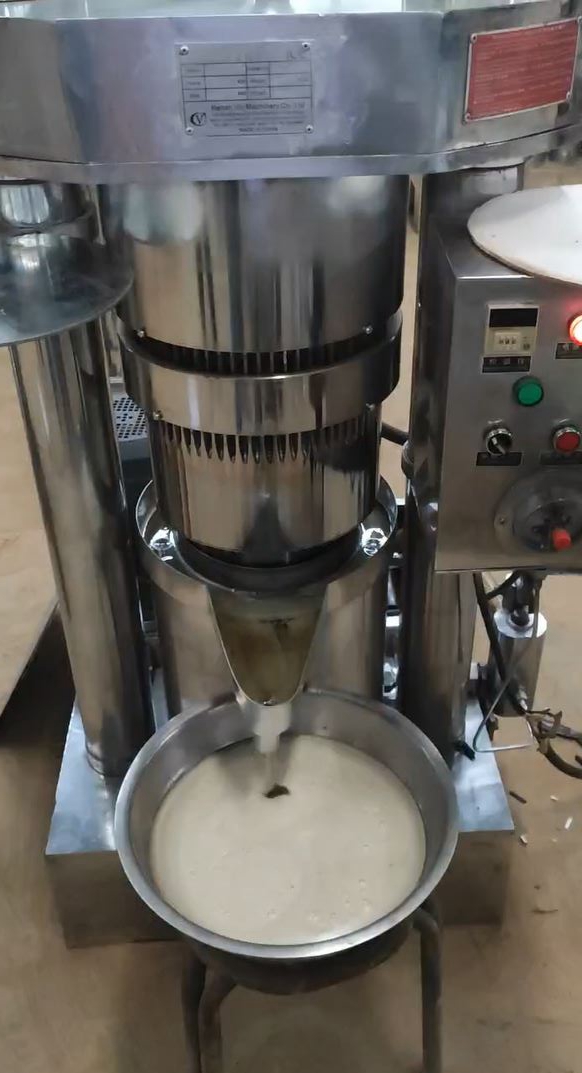

Working Demonstration & Sesame Oil Cake Results

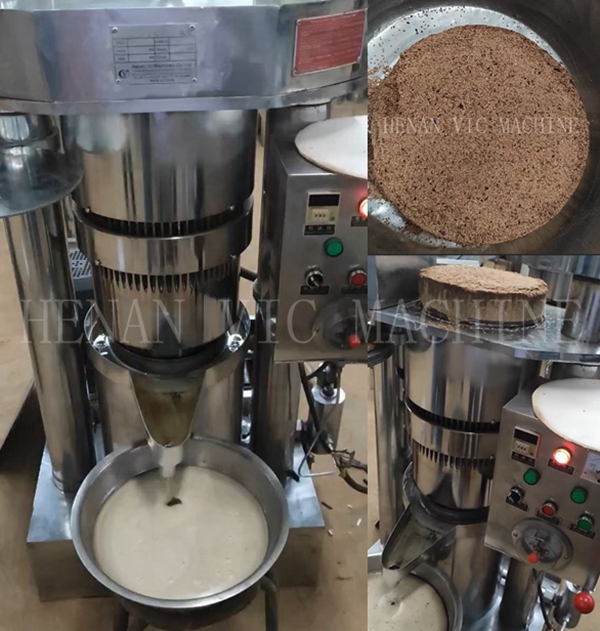

Coconut Oil Pressing Process
Packaging & Shipping

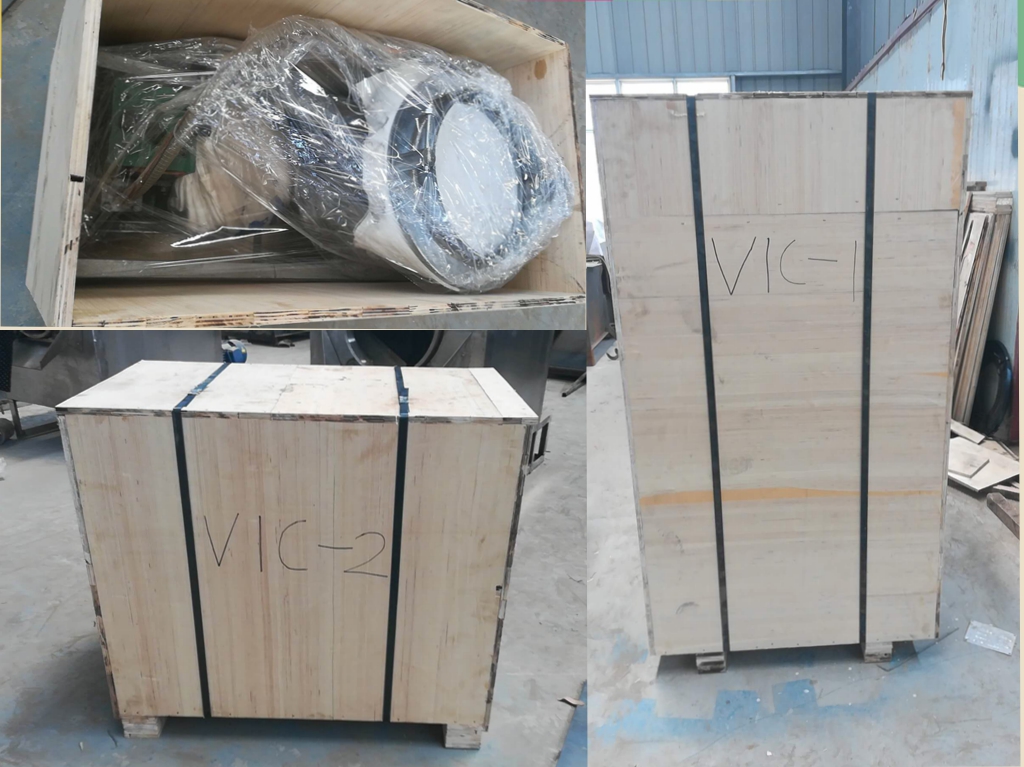

Packaging Picture of 6Y-230-I Hydraulic Oil Press

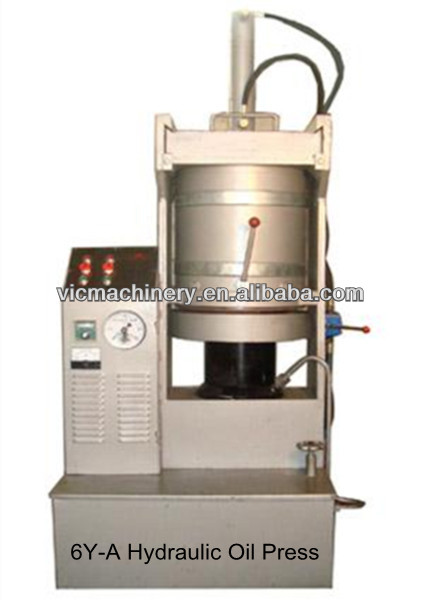

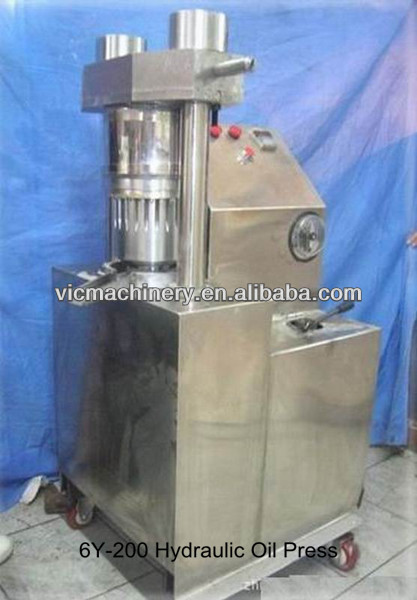

Related Hydraulic Oil Press Systems
Shipping Terms & Conditions:
- Delivery Time: within 15 days after paid deposit.
- Packaging Type: robust wooden case package.
- Partial Shipment: not allowed.
- Transshipment: allowed.

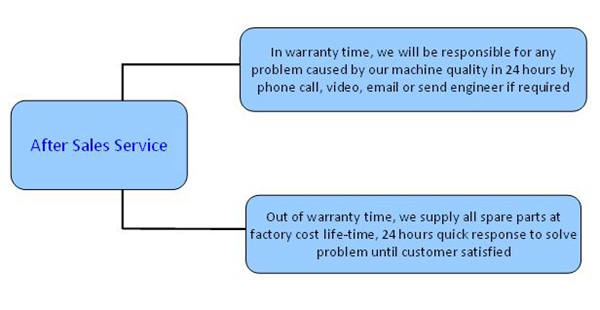

Our Services
Warranty Parts and Service Policies
- 1 year warranty coverage.
- Within the warranty period, all parts exchanges due to manufacturing defects are completely free (buyer handles shipping charges).
- Within the warranty period, all freight costs and accommodation for on-site after-sales technical service will be paid by the buyer.
Frequently Asked Questions
Q: Which oil seeds are suitable for the 6Y-230-I hydraulic oil press?
A: This machine is highly versatile and handles a wide range of raw materials, including sesame, peanut, walnut, pine nut, coconut, camellia, castor seed, soybean, cottonseed, rapeseed, sunflower, safflower, rice bran, corn embryo, and flaxseed.
Q: Does this machine support both cold and hot pressing modes?
A: Yes, this equipment is fully capable of executing both hot press and cold press processing depending on your production requirements.
Q: What is the maximum pressure capability of the hydraulic system?
A: The system features an advanced hydraulic power pack capable of delivering a maximum pressing pressure of up to 60Mpa (equivalent to a maximum pressure force of 1900KN).
Q: What is the cycle capacity and speed of this machine?
A: The machine has a capacity of 50-80 kg/h for oil seeds. It can process 7-8kg of raw material per batch, with a quick and complete squeeze time of only 6 to 8 minutes.
Q: What warranty and maintenance services are provided?
A: We provide a 1-year product warranty. During the warranty period, replacement of defective components is free of charge (with shipping cost covered by the buyer). Technical support and after-sales service arrangements are also available.
