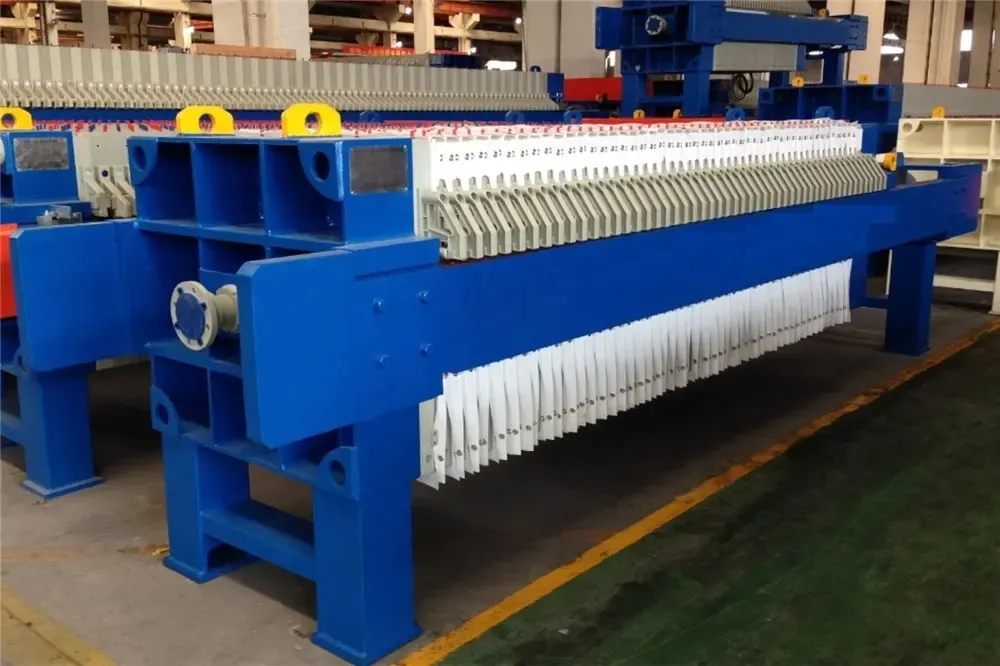

High Quality Plate And Frame Filter Press

Plate and frame filter press is industrial equipment used to achieve the separation of solids and liquids. They are generally operated intermittently, with large investment in infrastructure equipment and low filtration capacity. The filter press equipment currently on the market mainly includes plate and frame filter presses, membrane filter presses, and chamber filter presses. However, because of its advantages such as large filtration driving force, high solid content of filter cake, clear filtrate, high solid recovery, and low consumption of chemicals, filter presses are widely used in chemical, dye, petroleum, ceramics, pharmaceutical, manufacturing sugar, food, starch, paint, metallurgy and sewage treatment or tailings treatment in various industries.

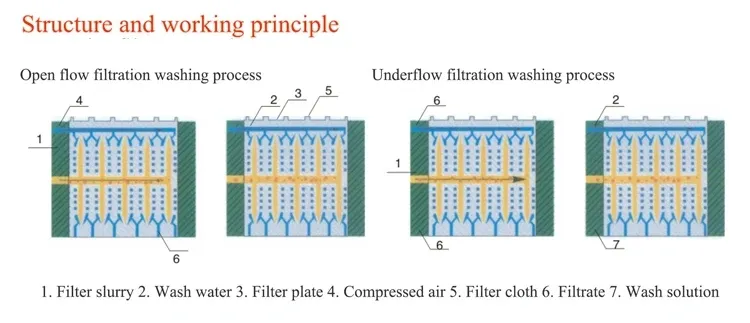

Plate and frame filter press is an intermittent solid-liquid separation equipment. It consists of a frame, a filter and a transmission system. The filter plate and the filter frame are arranged to form a filter chamber. It is sent to each filter room, and the solid and liquid are separated through the filter medium. Filter structure is an important structure of filter press, which includes: filter plate, filter cloth, pull plate system and unloading system. The function of the filter structure is to contact the suspended matter input by the feed pump with the filter cloth, so that the liquid is separated from it and discharged out of the equipment through the circuit designed by the filter plate, and the solid is blocked by the filter cloth in the filter chamber, accumulating into a filter cake.

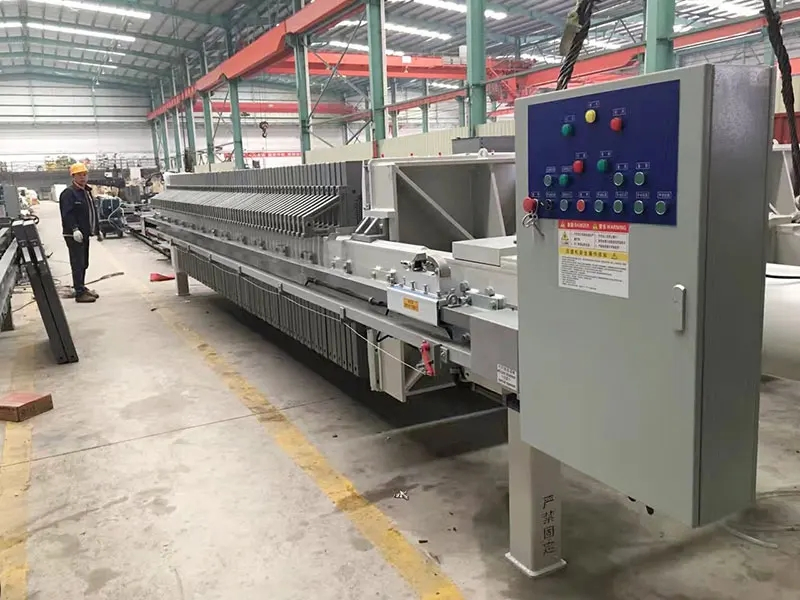

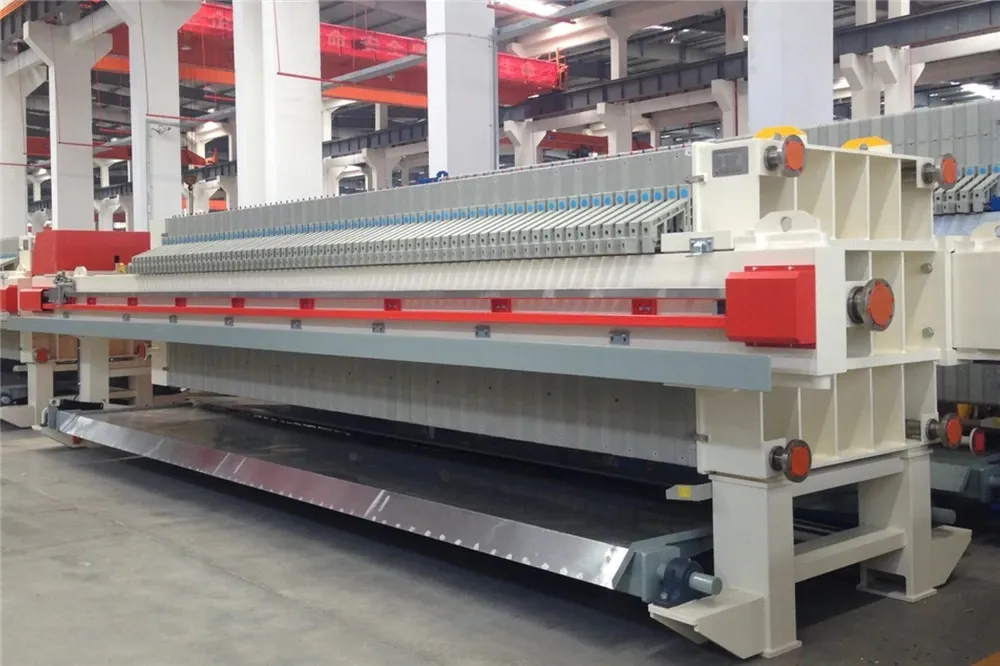

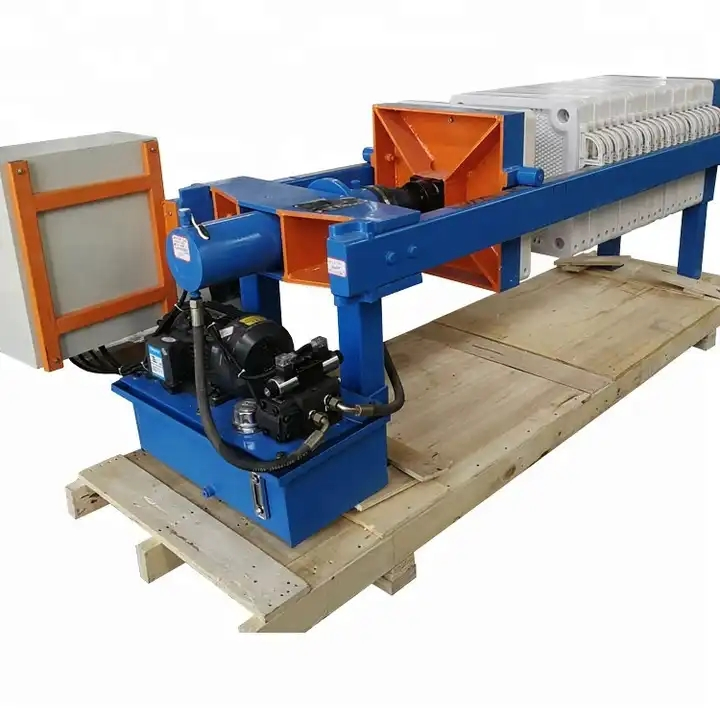

Our series includes various types of mechanical filter presses, hydraulic filter presses, diaphragm filter presses, and automatic filter presses with complete specifications.

• Specifications: Types of 200, 380, 500, 700, 870, 1000, 1250, 1500, 2000, and various special-shaped plates.
• Filtering area: Available up to 2000m².
• Materials: Stainless steel, cast iron, rubber, reinforced polypropylene, high temperature resistant glass fiber, and pp-30 elastomer membrane.
• Liquid flow forms: Open flow, dark flow, washable, non-washable, medium feed, corner feed, and more.
• Compaction methods: Manual screw, electro-mechanical, and hydraulic cylinder compaction.

• Simple linear structure for easy installation and maintenance.
• Advanced world-famous brand components in pneumatic and electric systems.
• High pressure double crank to control die opening and closing.
• High level of automation and intellectualization with zero pollution.
• Direct connection capabilities with air conveyors and filling machines.

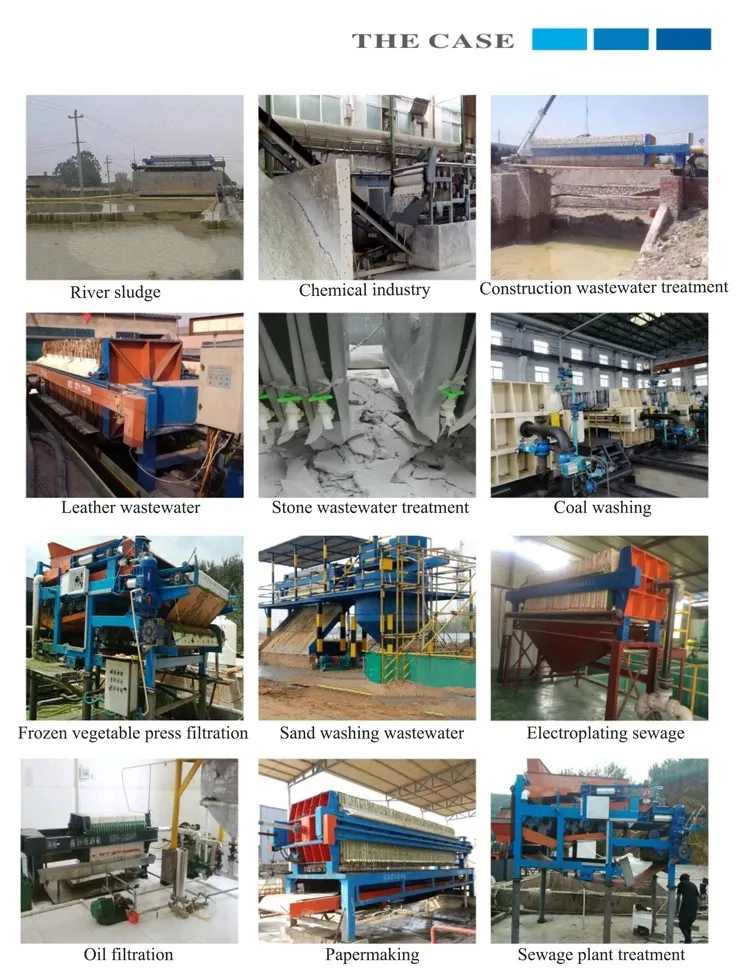

Filter press is suitable for almost all types of slurry, including:

• Ceramics, stone, and glass industries.
• Mining, minerals, coal washing, and sand washing.
• Food, starch, chemical, and pharmacy industries.
• Electroplating, textile dyeing, and leather industry.
• Municipal slurry and sewage treatment.

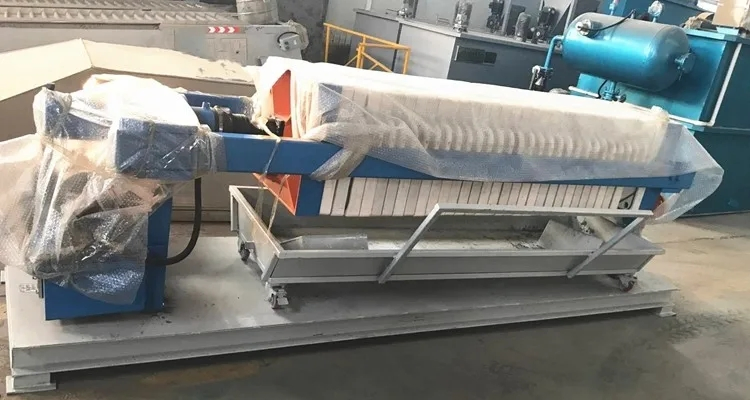

Packing Methods:

1. Sand blasting, coat with high quality paint;
2. Product wrap by PP-Bubble;
3. Load container, spare parts in wooden case.

Transportation: By Sea Freight via major carriers like MSK, MSC, APL, etc.
