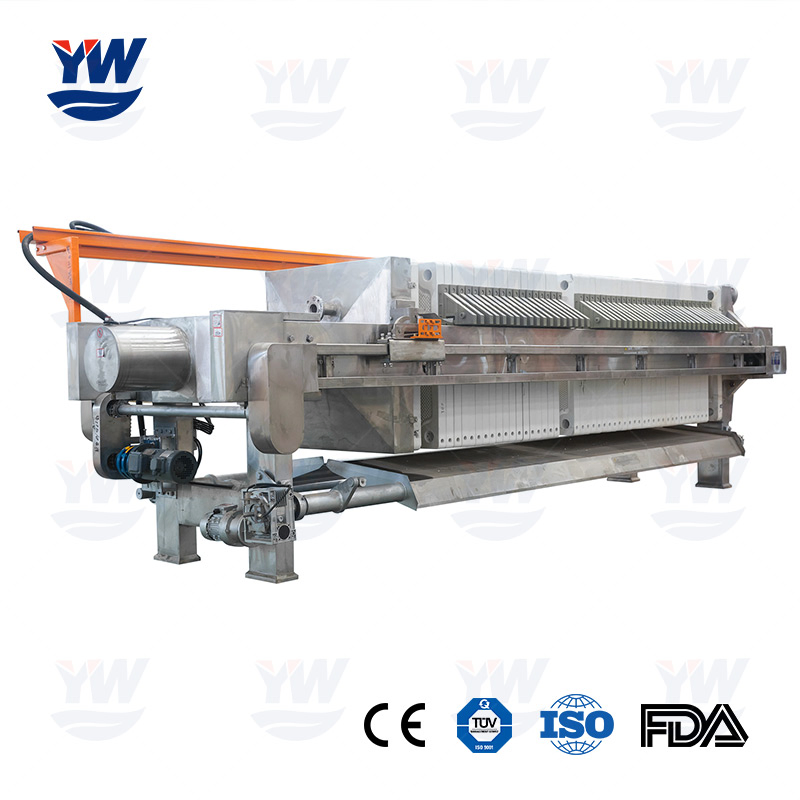

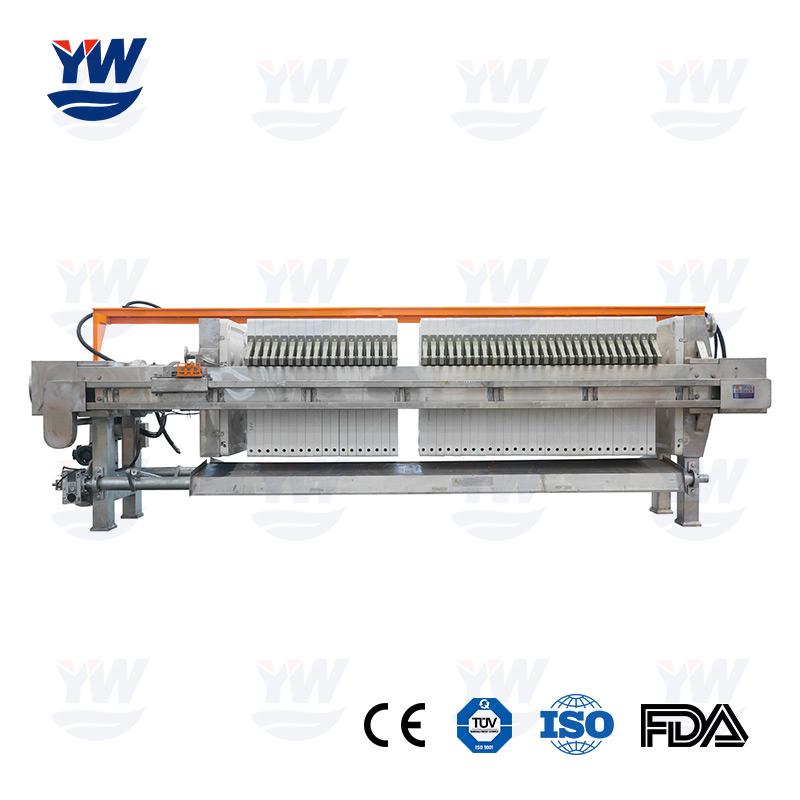

Fully Automatic Stainless Steel Coated Beam Chamber Plate Filter Press for Wastewater Treatment / Industrial Recessed Filter Press / Membrane / Plate and Frame

1 / 5

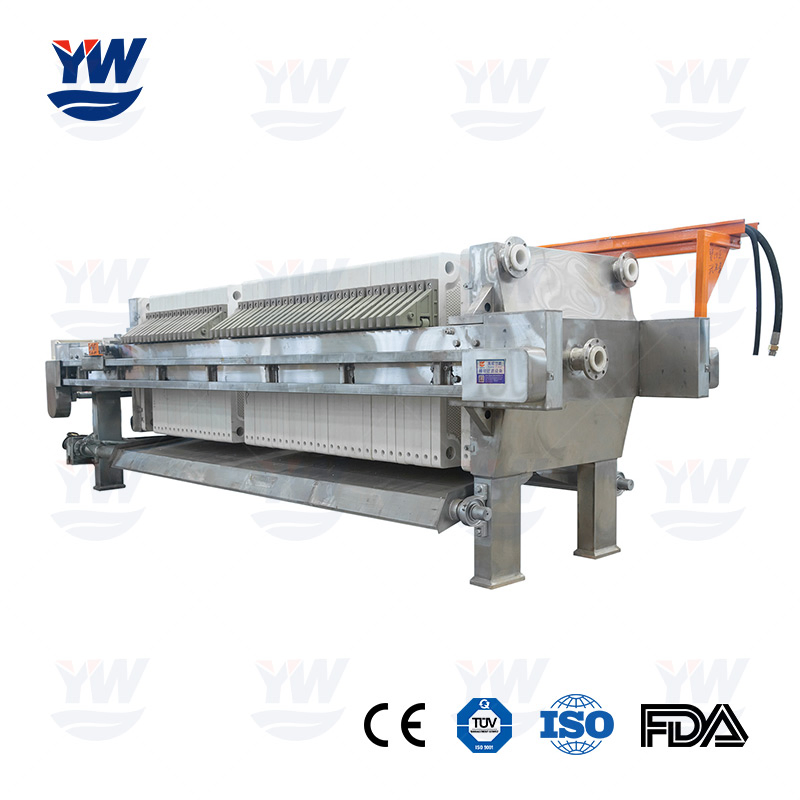

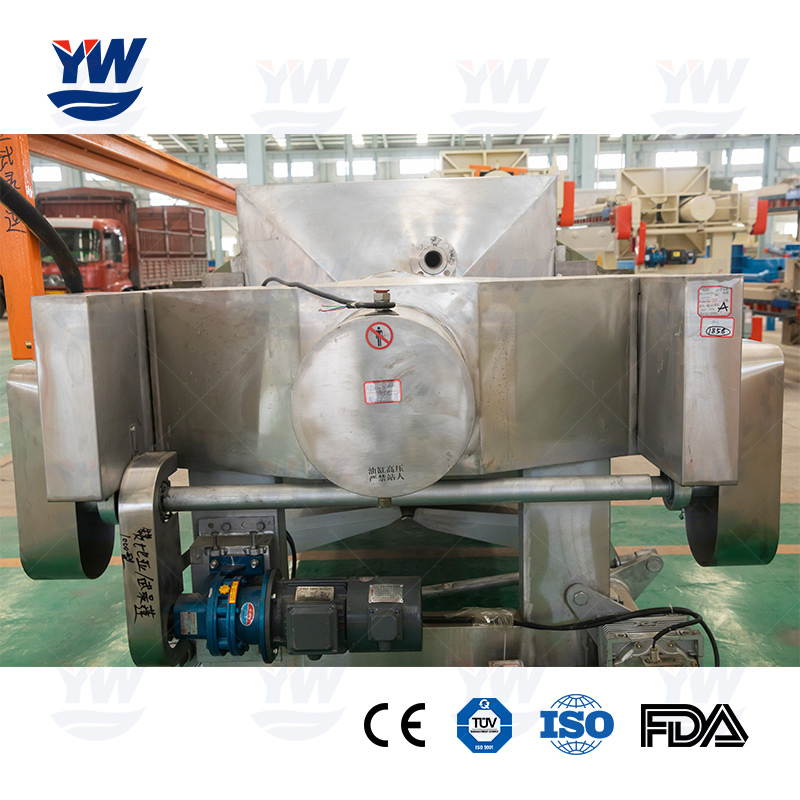

Fully Automatic Stainless Steel Coated Beam Chamber Plate Filter Press for Wastewater Treatment / Industrial Recessed Filter Press / Membrane / Plate and Frame

Customization:	Available
Structure:	Cantilever Beam Type
Filter Material:	PP or Stainless Steel

Send Inquiry

Product Description

⚙️

Basic Specifications

Model NO.:Filter Press

Pressure Type:Mechanical, Manual, Hydraulic

Feed Pressure:0.6-1.6 MPa

Control System:PLC Control

Plate Shift:Auto / Manual

Beam Material:Carbon Steel / PP Coated / Stainless Steel

Main Application:Sewage Treatment & Sludge Dewatering

Origin:China

HS Code:842129109

Capacity:6000 Units /Year

📘

Product Description

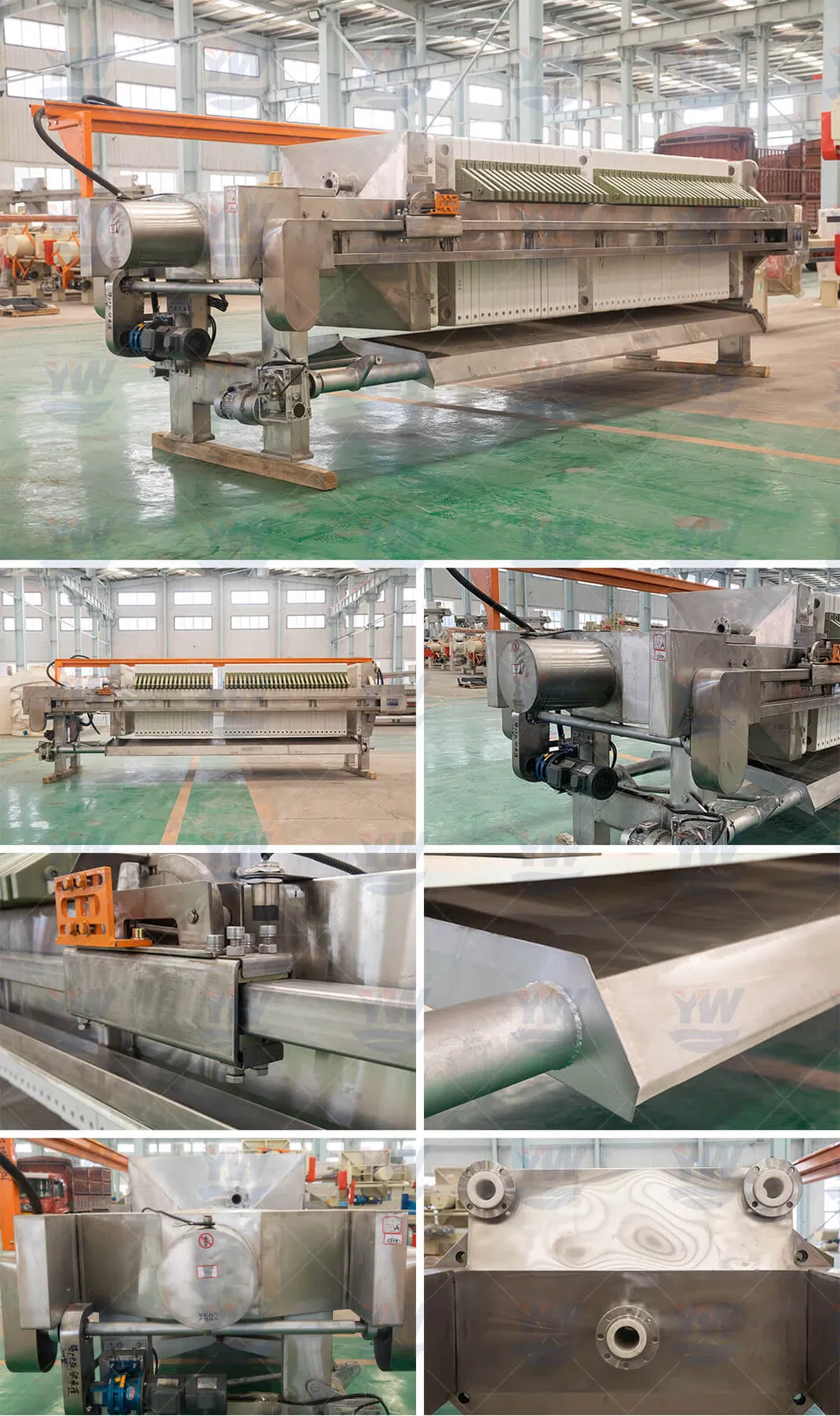

The filter press is suitable for solid-liquid separation of all kinds of suspensions. It is composed of filter plates arranged in a chamber, and under the action of the feed pump, the suspension is pressed into the chamber, and then the solids and liquid are separated by the filter medium (filter cloth).

🖼️

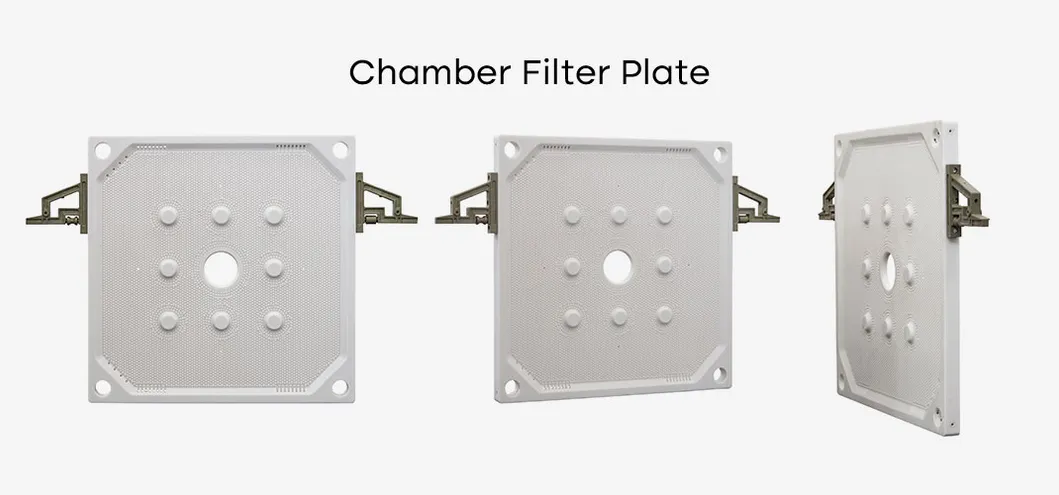

Filter Press Plate Overview

📊

Technical Parameters

Model	Filter Area	Volume	Plate QTY	Pressure	Power	Weight	Dimensions
XM/AZ-30/870	300m²	460L	23pcs	0.6-1.6MPa	2.2Kw	2680Kg	318014001230mm
XM/AZ-50/870	50m²	748L	38pcs			3456Kg	411014001230mm
XM/AZ-80/870	80m²	1210L	62pcs			5082Kg	543014001230mm
XM/AZ-120/1000	120m²	1777L	69pcs			7644Kg	650015001400mm
XM/AZ-250/1250	250m²	3650L	91pcs	0.6-1.6MPa	4Kw	16227Kg	860018001600mm
XM/AZ-500/1500	500m²	7187L	123pcs	0.6-1.6MPa	11Kw	38606Kg	1156022001900mm
XM/AZ-1000/2000	1000m²	19788L	142pcs	0.6-1.6MPa	15Kw	51898Kg	1591528502400mm

✅

Key Advantages

Higher Feeding Pressure: 0.6-1.2MPa support.
Automatic filter cloth washing system, saving labor cost and prolonging service life.
Filter press plates made of reinforced PP material for durability.
High cost-performance ratio compared to other filtration models.
Widely utilized across various industrial sectors.
Automatic discharge of filter cake to minimize manual labor.

🏗️

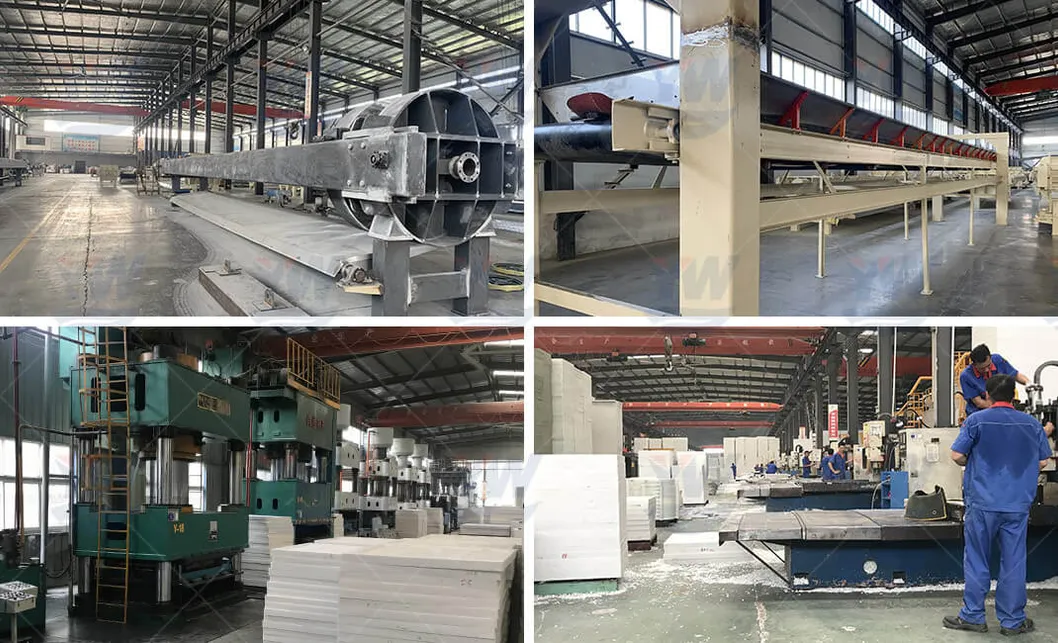

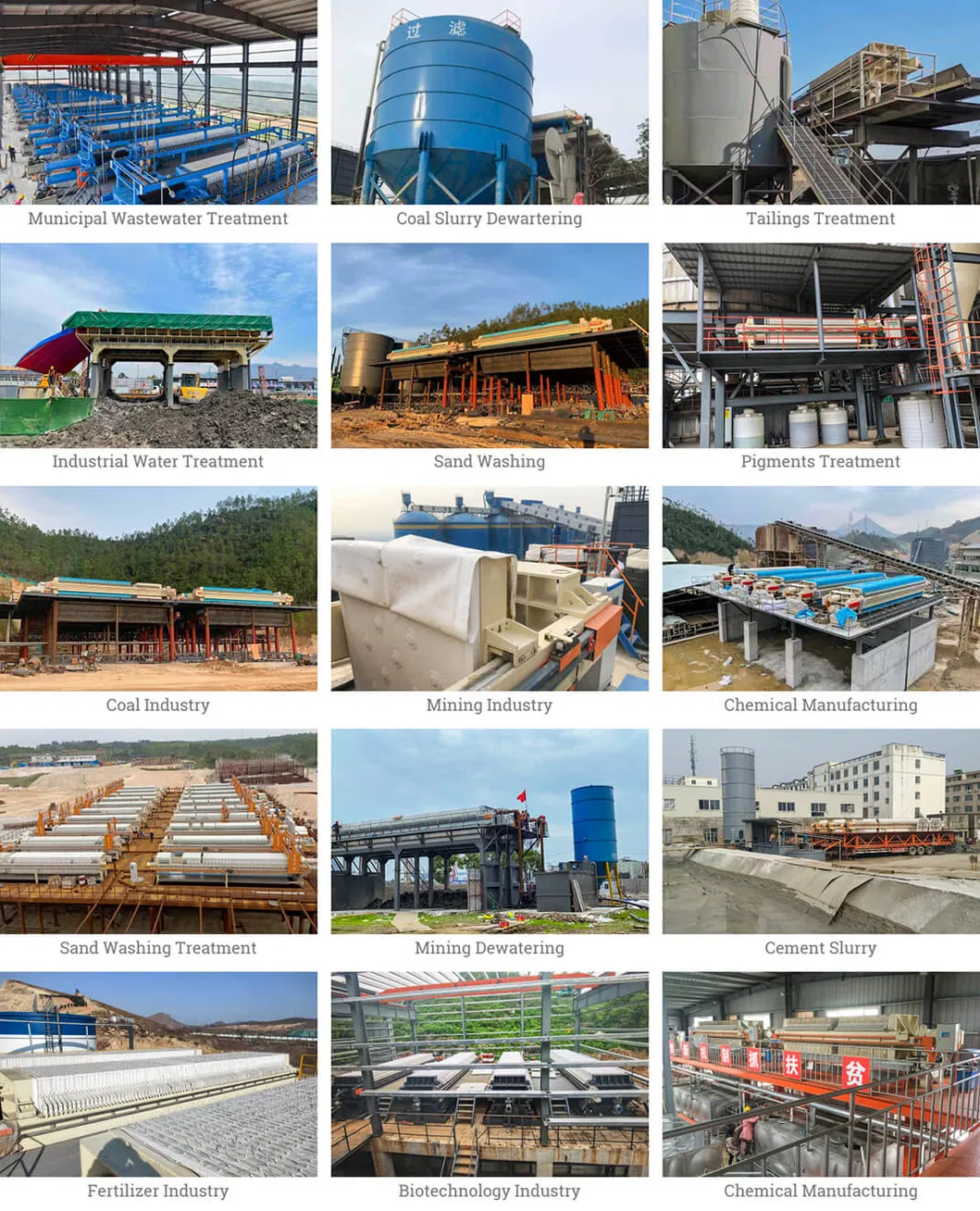

Project Case & Workshop

📦

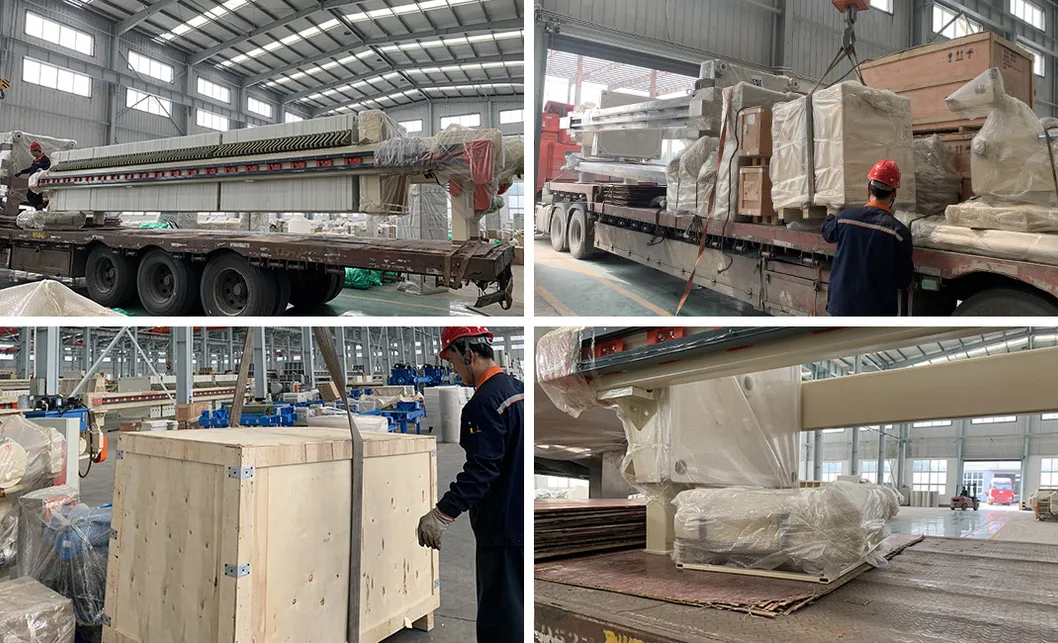

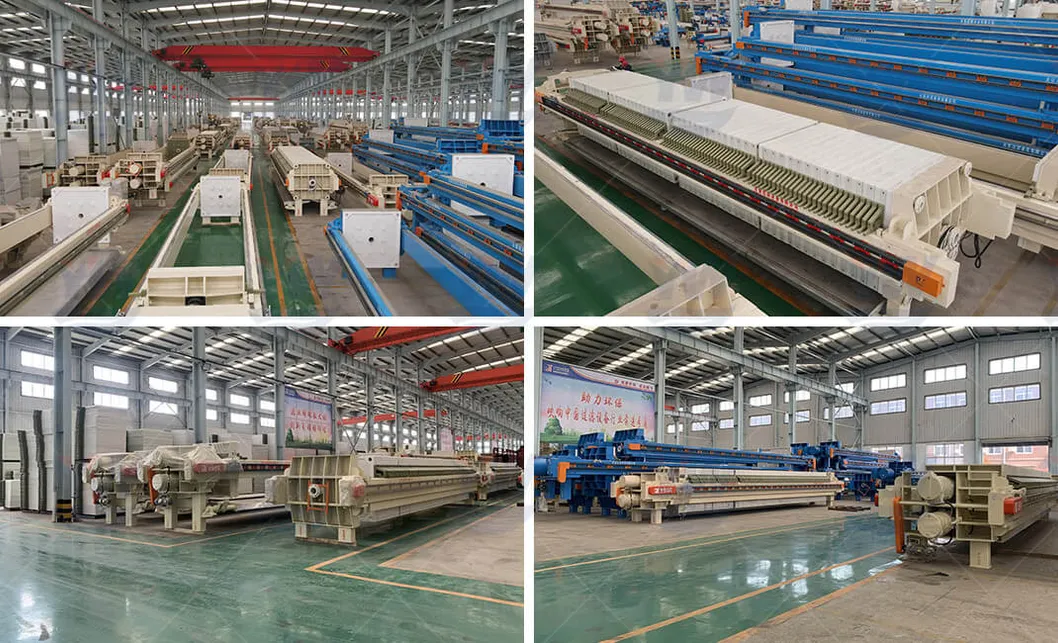

Warehouse & Shipping

❓

Frequently Asked Questions

1. How long is the delivery time for the filter press? The standard delivery time is within 30 working days. For large-scale plants or special custom requirements, the timeline may be extended accordingly.

2. What are the standard payment terms? The primary payment term accepted is T/T (Telegraphic Transfer).

3. How long is the product warranty period? We provide a 1-year warranty period. Please note that wearing parts and issues caused by incorrect operation are excluded from this warranty.

4. What after-sales services do you provide? We provide detailed foundation drawings for installation. Additionally, we offer guidance services for installation and worker operation training.

5. Can you provide replacement wearing parts? Yes, we produce high-quality wearing parts for our clients. If your equipment was manufactured elsewhere, please provide the technical drawings for customization.

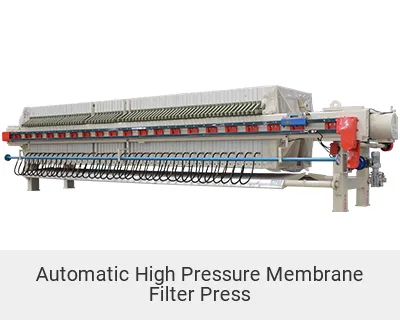

6. Is the equipment suitable for wastewater treatment? Absolutely. Our chamber and membrane filter presses are widely used for municipal wastewater treatment, industrial sludge dewatering, and food/chemical industry filtration.
