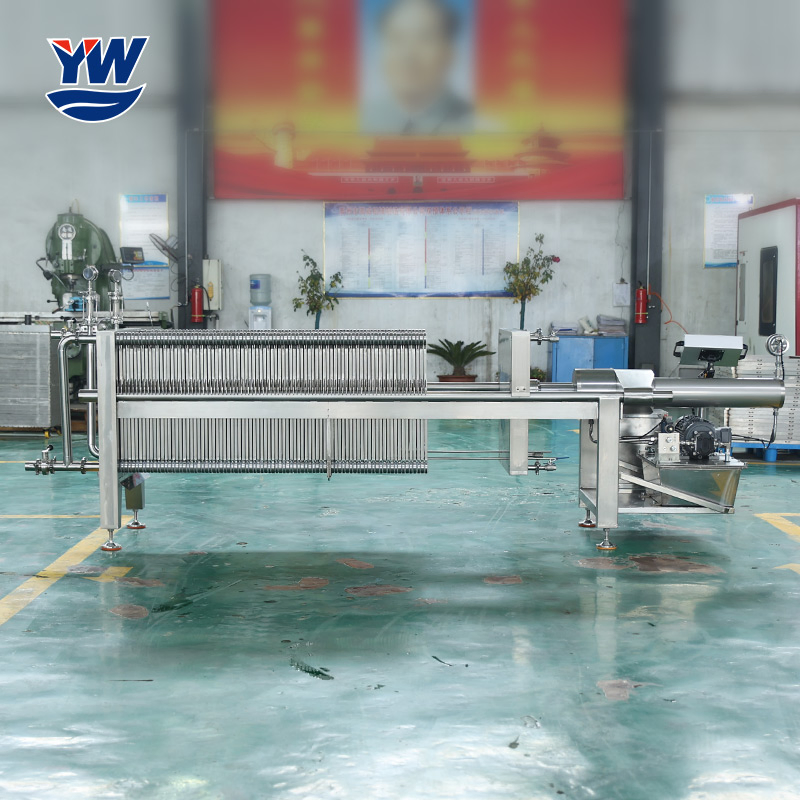

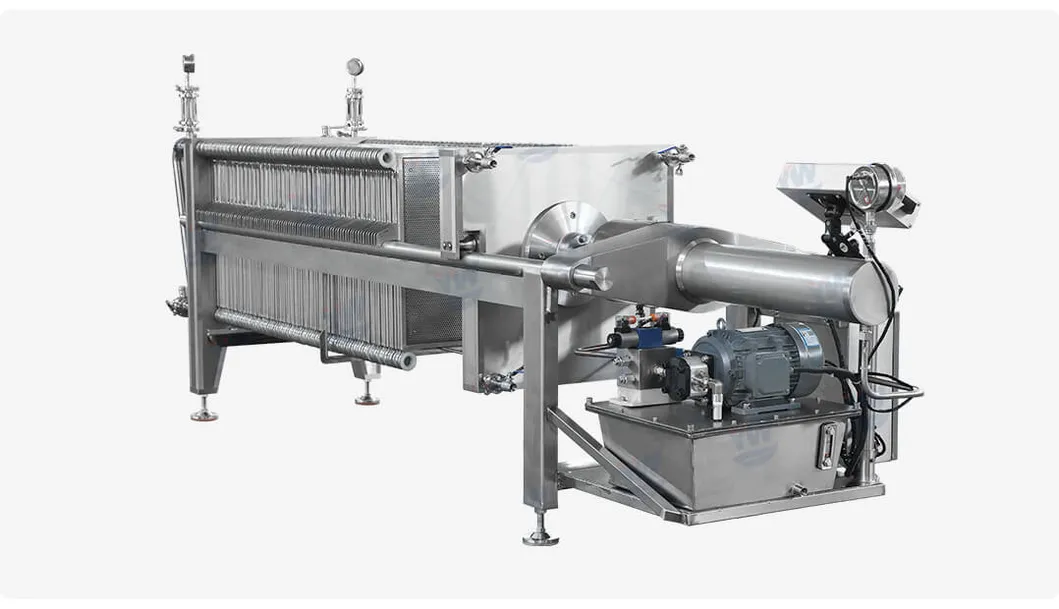

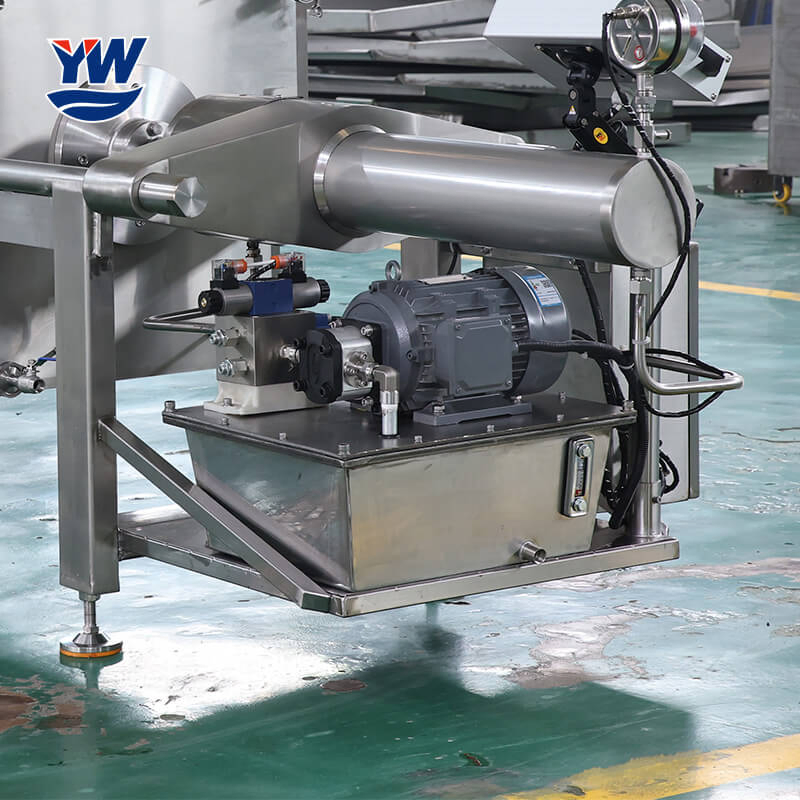

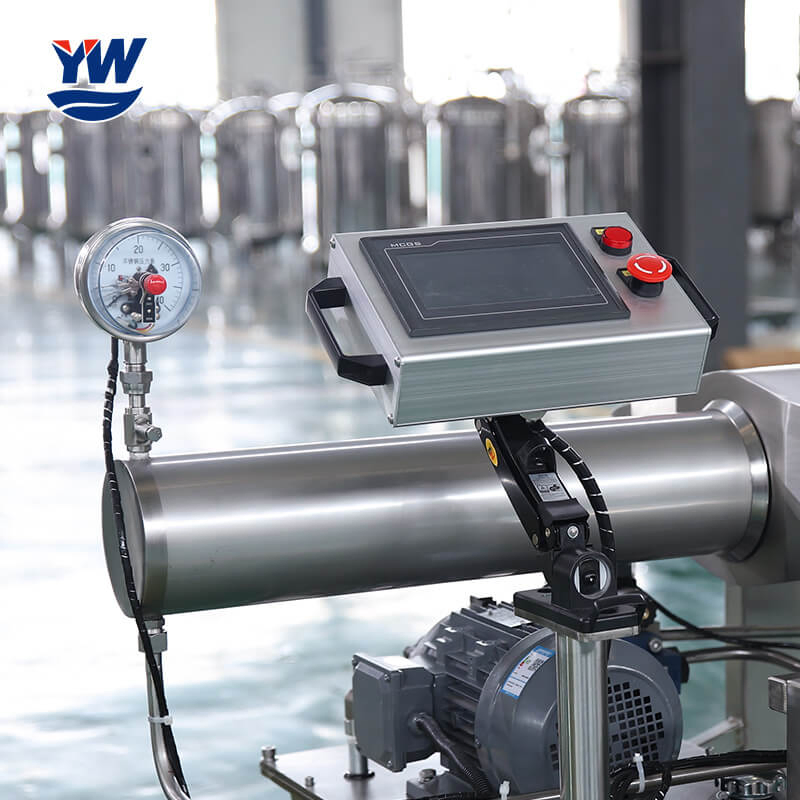

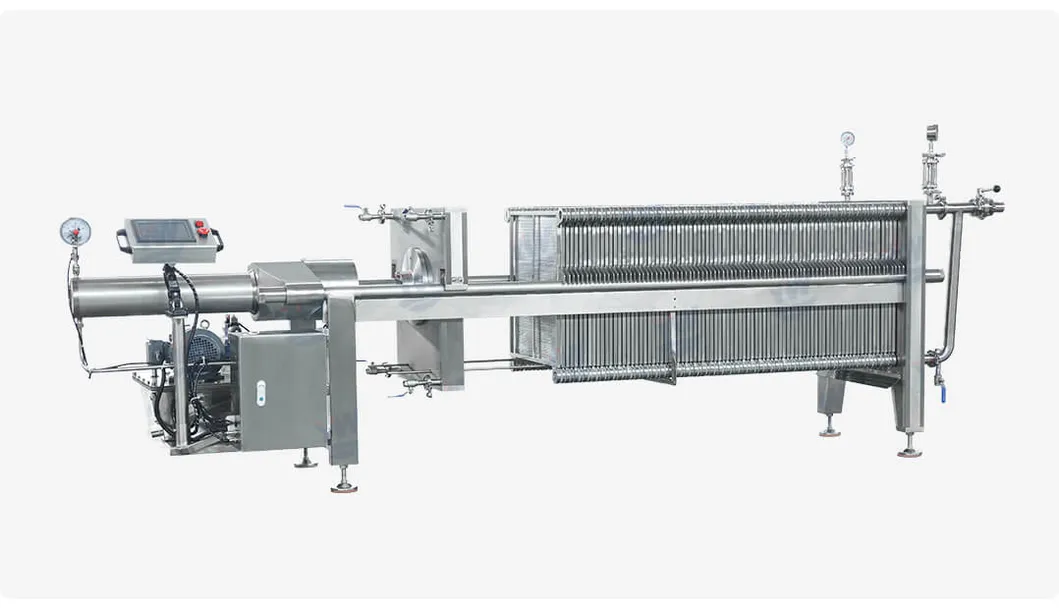

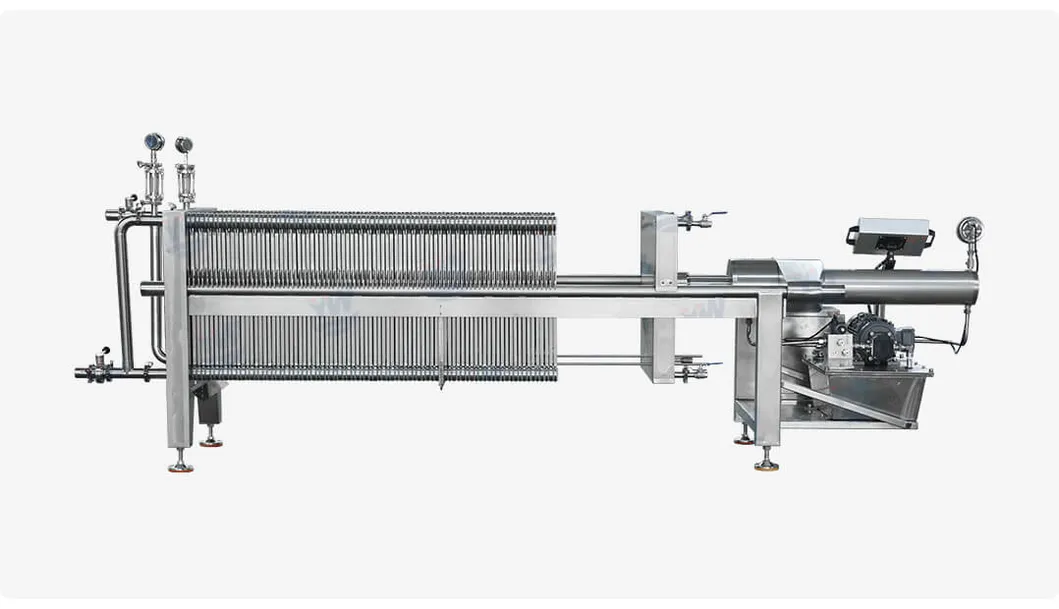

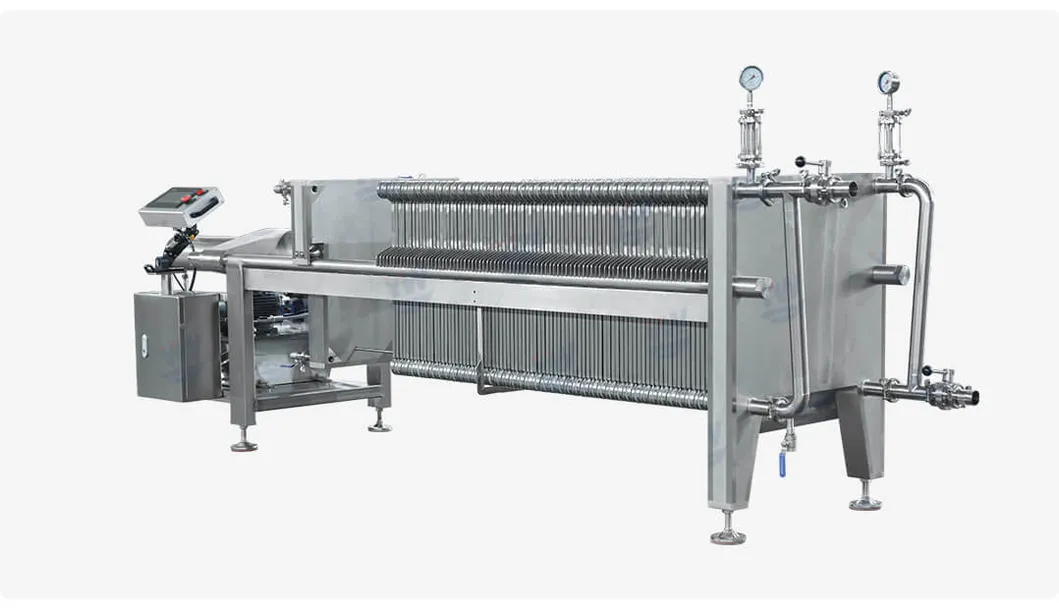

PLC controlled hydraulic stainless steel plate and frame fine filter is made of 1Cr18Ni9Ti or 304 or 306 high-quality stainless steel materials. The filtration temperature can reach 180°C. This machine integrates coarse filtration and fine filtration, and is suitable for solid-liquid separation of various suspensions. Stainless steel filter presses are specially developed to meet the high requirements of hygiene and purity, and are especially suitable for solid-liquid separation in laboratories, fine chemicals, pharmaceuticals, herbal extraction, food, and cosmetics production.
| Model | Layer Qty | Filter area (m²) | Plate Size (mm) | Filtering Precision (um) | Designed Pressure | Water flow (t/h) | Feeding Pump Power | Dimensions |
|---|---|---|---|---|---|---|---|---|
| YWCR-100 | 10 | 0.08 | φ100 | 0.22-100 | 0.3 | 0.2 | 0.37 | 600x300x600 |
| YWCR-150 | 10 | 0.18 | φ150 | 0.22-100 | 0.3 | 0.45 | 0.37 | 650x380x650 |
| YWCR-200 | 10 | 0.31 | φ200 | 0.22-100 | 0.3 | 0.8 | 0.37 | 650x400x700 |
| YWCR-300 | 10 | 0.7 | φ300 | 0.22-100 | 0.3 | 1.8 | 0.55 | 700x500x800 |
| YWCR-400 | 10 | 1.25 | φ400 | 0.22-100 | 0.3 | 3.2 | 0.75 | 900x600x1000 |
| YWCR-400 | 16 | 2 | φ400 | 0.22-100 | 0.3 | 5 | 1.1 | 1000x600x1000 |
| YWCR-400 | 20 | 2.5 | φ400 | 0.22-100 | 0.3 | 6.3 | 1.1 | 1100x600x1000 |
| YWCR-400 | 32 | 4 | φ400 | 0.22-100 | 0.3 | 10 | 1.5 | 1320x600x1000 |
| YWF-200 | 10 | 0.4 | 200*200 | 0.22-100 | 0.3 | 1 | 55 | 650x380x650 |
| YWF-300 | 10 | 0.9 | 300*300 | 0.22-100 | 0.3 | 2.2 | 0.55 | 700x500x800 |
| YWF-400 | 10 | 1.6 | 400*400 | 0.22-100 | 0.3 | 4 | 0.75 | 900x600x1000 |
| YWF-400 | 20 | 3 | 400*400 | 0.22-100 | 0.3 | 8 | 1.5 | 1100x600x1000 |
| YWF-400 | 26 | 4 | 400*400 | 0.22-100 | 0.3 | 10 | 1.5 | 1150x600x1000 |
| YWF-400 | 32 | 5 | 400*400 | 0.22-100 | 0.3 | 12.8 | 2.2 | 1200x600x1000 |
| YWF-400 | 38 | 6 | 400*400 | 0.22-100 | 0.3 | 15.2 | 3 | 1300x600x1000 |
| YWF-400 | 44 | 7 | 400*400 | 0.22-100 | 0.3 | 17.6 | 3 | 1350x600x1000 |
It is widely used in beer, gelatin, seaweed gum, soy sauce, vinegar, fruit wine, wine, health wine, sake, liquor, cooking wine, synthetic plasma, traditional Chinese medicine extract, paraffin, rice wine, fruit and vegetable juice, tea beverage, vegetable oil, beverage syrup, fructose syrup, high-fructose syrup, glucosamine syrup, sucrose, beet sugar, honey, MSG, oral liquid, antibiotics, vitamins, resins, inorganic acids, clarification and filtration of liquid products such as organic acids, alcohols, benzene, aldehydes, and starches.
