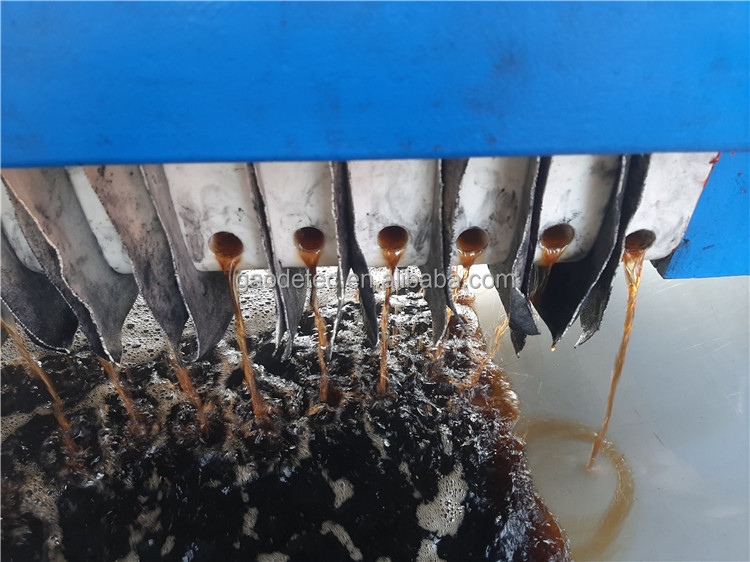

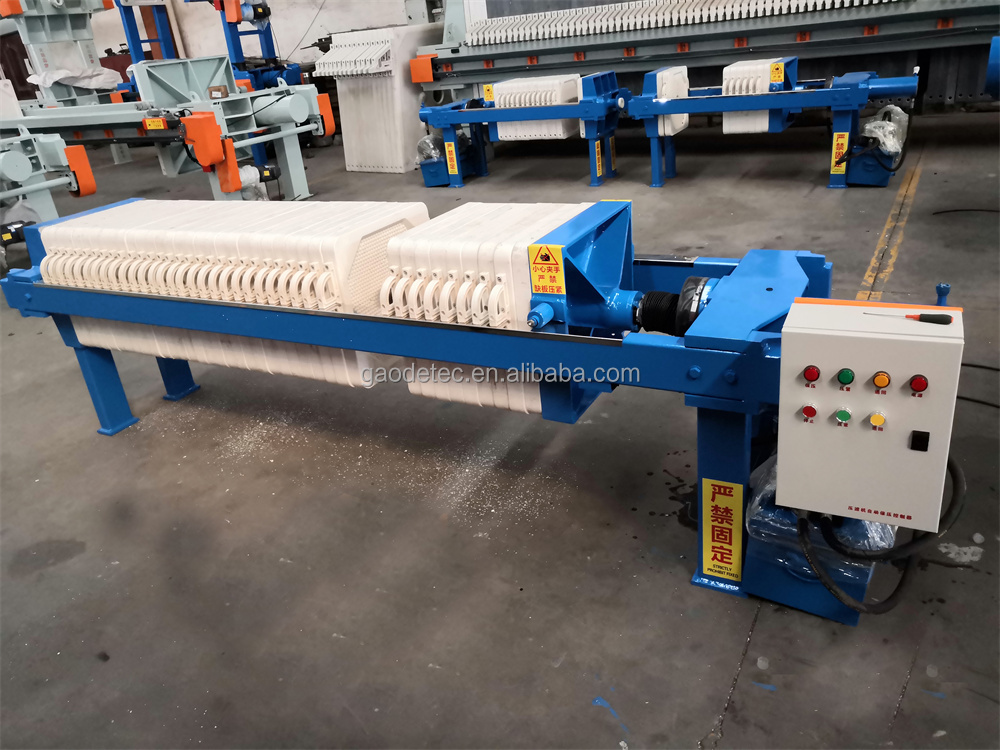

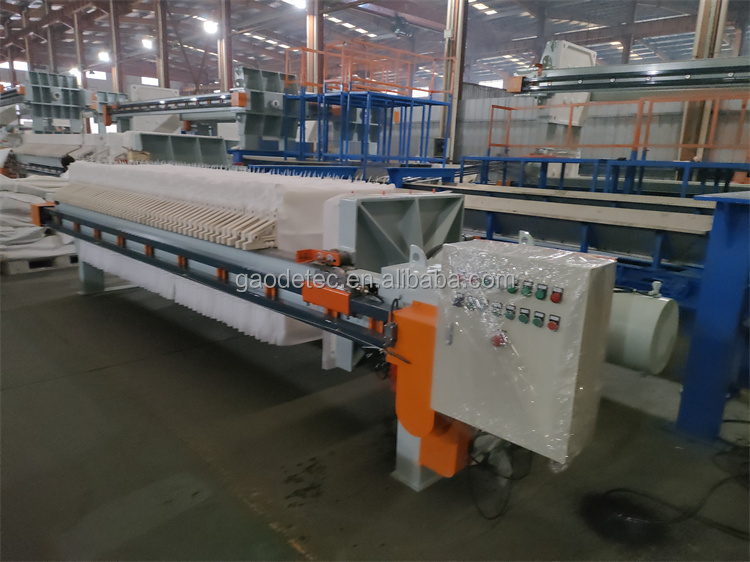

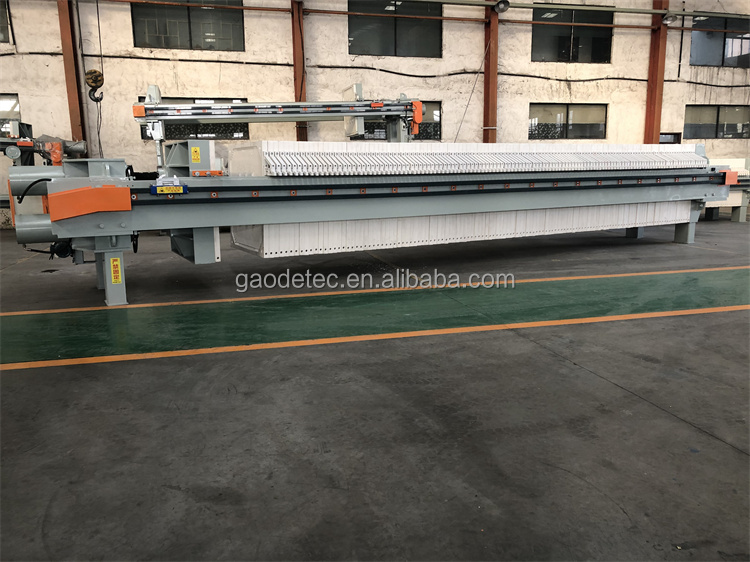

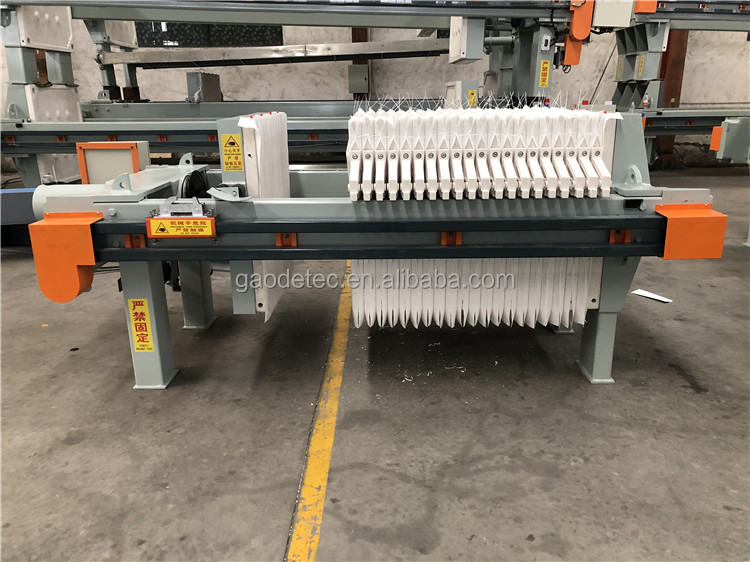

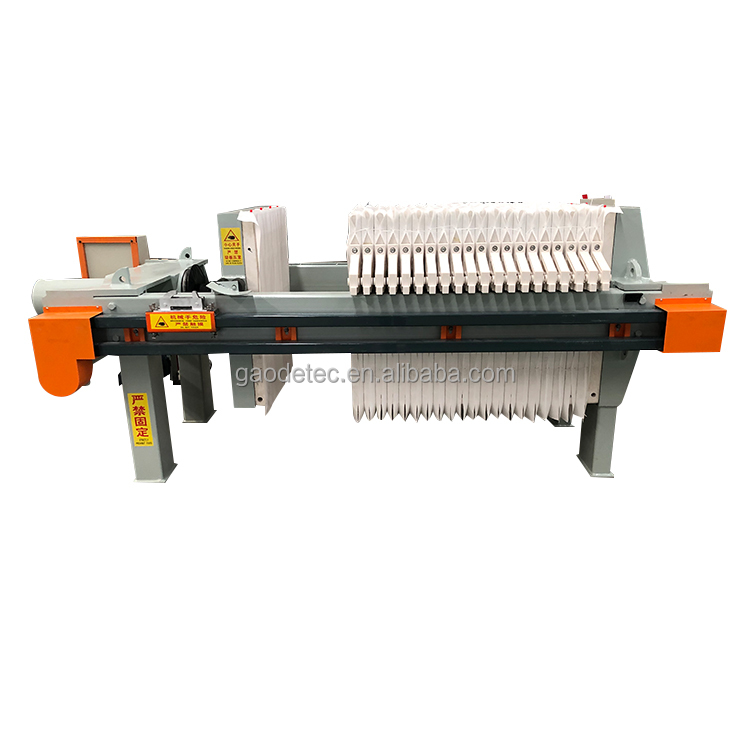

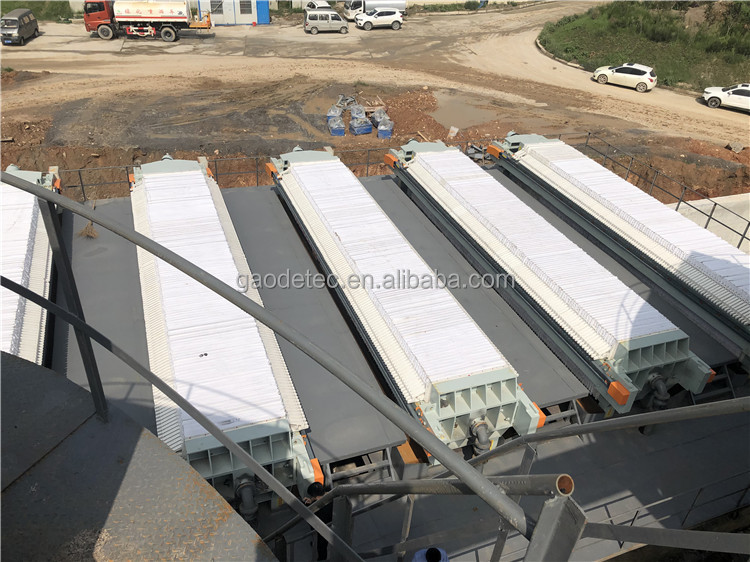

A filter press is a batch operation, fixed volume machine that separates liquids and solids using pressure filtration. A slurry is pumped into the filter press and dewatered under pressure. It is used for water and wastewater treatment in a variety of different applications ranging from industrial to municipal.
| Model | XMY4/450 | XMZ80/1000 |
|---|---|---|
| Filter area (m²) | 4 | 80 |
| Plate size (mm) | 450*450 | 1000*1000 |
| Cake thickness (mm) | 30 | 30 |
| Chamber volume (L) | 60 | 1093 |
| Plate No. (pc) | 9 | 45 |
| Filtration pressure (MPa) | 0.6 | 0.6 |
| Motor Power (KW) | 2.2 | 4 |

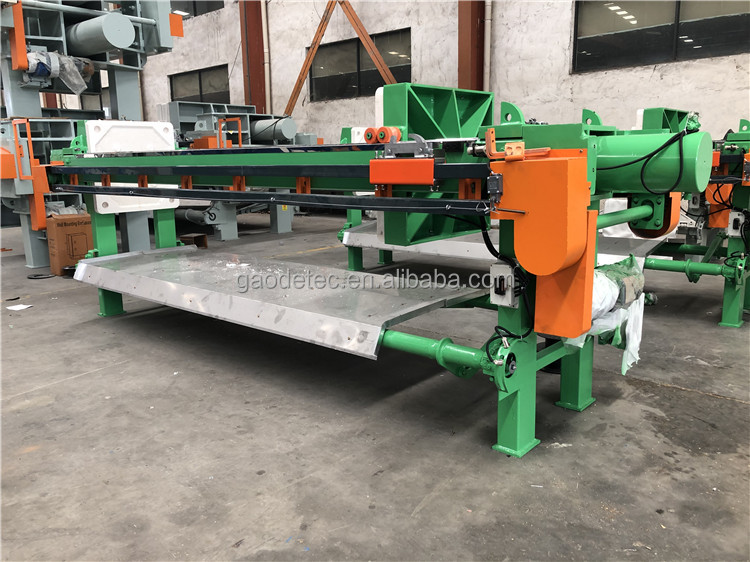

Avoids cake contact with liquid during discharge; opens for discharge and closes for filtration.

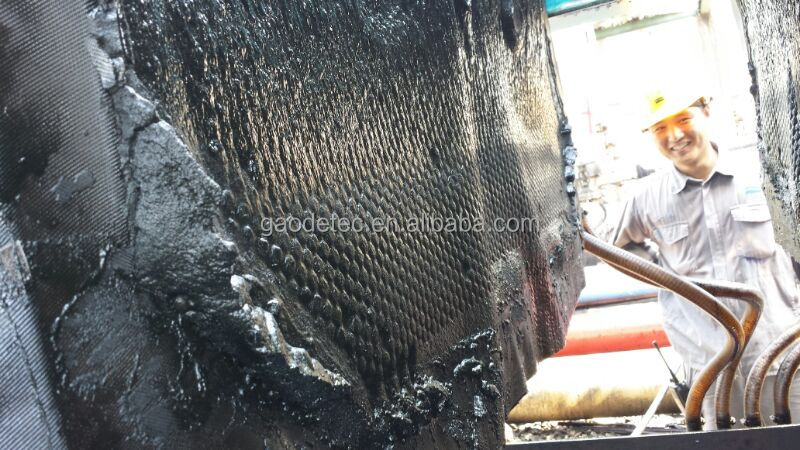

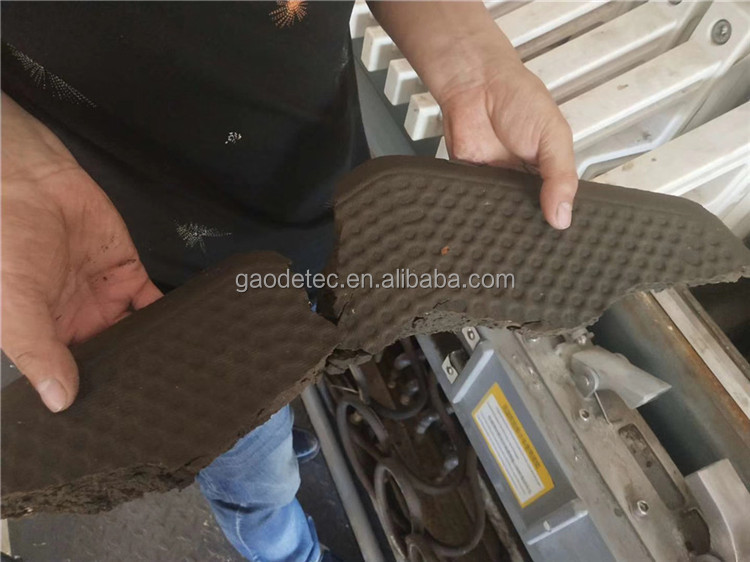

Used to discharge cake automatically. Vibration type available for sticky cakes.

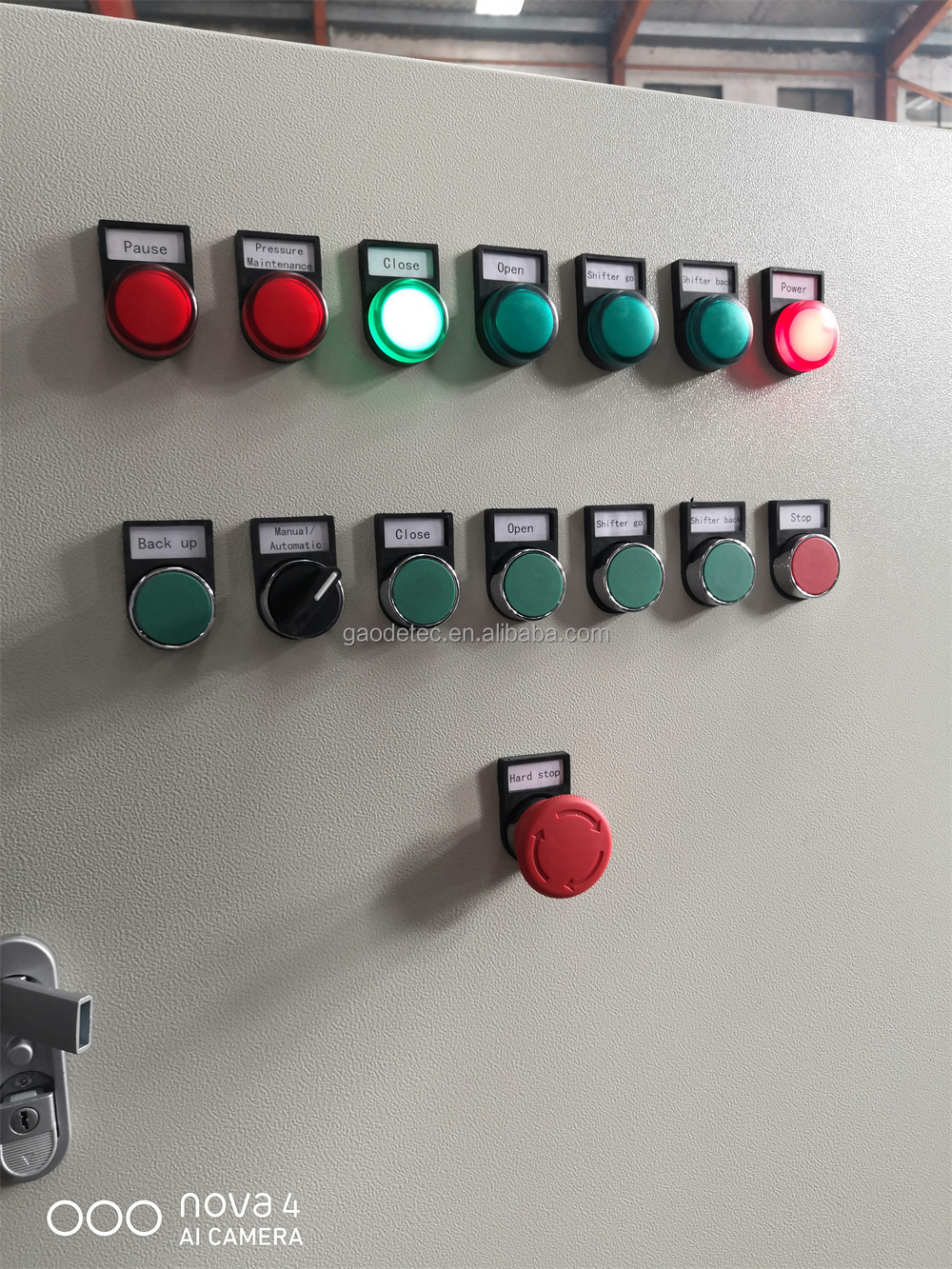

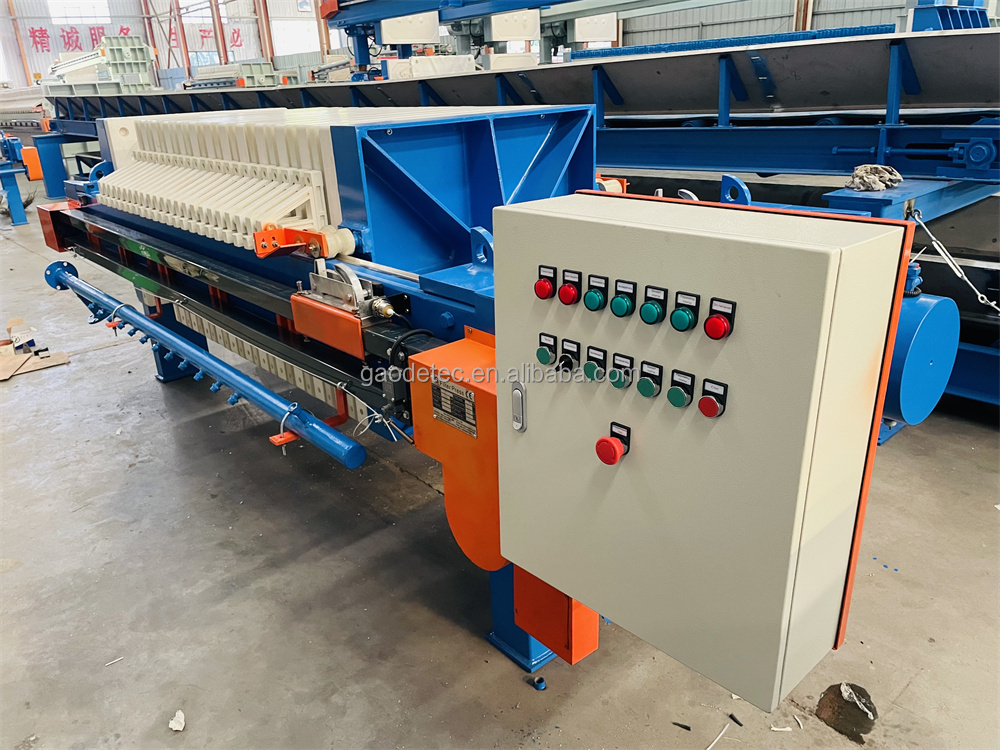

Automatic control center; simple button operation to manage the entire process.

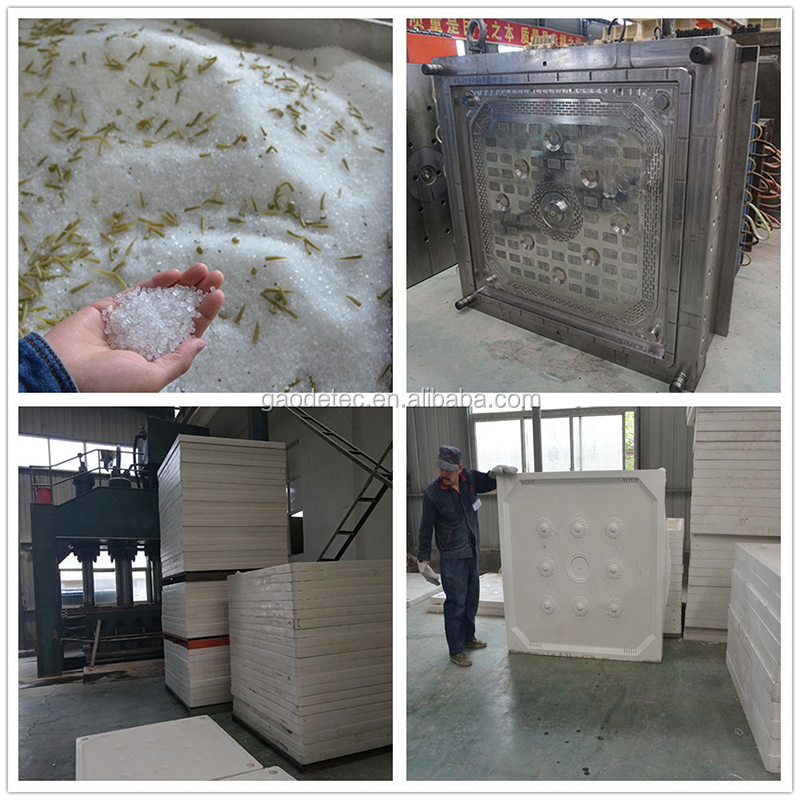

1. Filter plates are made of food grade pure PP material for excellent corrosion and temperature resistance.
2. Processed under CNC presses (up to 3800 tons) to ensure pressure resistance and prevent deformation.
3. Machine-polished surfaces ensure zero gaps when plates are pressed tightly.

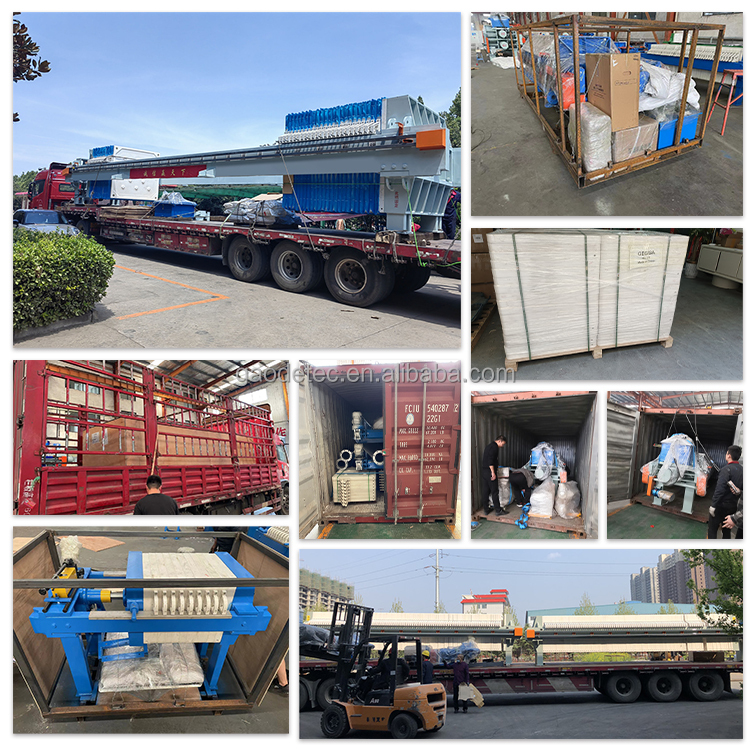

To protect the equipment, our filter presses are wrapped with bubble film and plastic wrap, then fixed with steel bars, and finally shipped in plywood boxes. Large units are packaged directly into containers for maximum safety during transit.
With over 14 years of experience in manufacturing and selling filter presses, we provide a wide range of plates and cloths customized to your needs. To find the right model, please consider:
