| ITEM | 630*630 | 800*800 | 870*870 | 900*900 | 1000*1000 |
|---|---|---|---|---|---|
| Cake thickness/mm | 25/30/35 | 25/30/35 | 25/30/35 | 25/30/35 | 30/35/40 |
| Filter Chamber volume/L | 100 to 470 | 150 to 1300 | 200 to 1400 | 200 to 1500 | 500 to 2700 |
| Max. filtration pressure | 10 bar | 16 bar | 16 bar | 16 bar | 16 bar |
| Max. squeezing pressure | 16 bar | 20 bar | 20 bar | 20 bar | 20 bar |
| Max. filtration temp | 120 ℃ | 120 ℃ | 120 ℃ | 120 ℃ | 120 ℃ |
| Filter inlet | Flange DN65 | Flange DN80 | Flange DN80 | Flange DN100 | Flange DN100 |
| Filter outlet | Flange DN50 | Flange DN50 | Flange DN50 | Flange DN65 | Flange DN65 |
| Plate material | FRPP (Reinforced polypropylene) | ||||
| Filter pressing type | Automatic hydraulic system | ||||
| ITEM | 1200*1200 | 1250*1250 | 1500*1500 | 1600*1600 | 2000*2000 |
|---|---|---|---|---|---|
| Cake thickness/mm | 30/35/40 | 30/35/40 | 30/35/40 | 35/40 | 35/40 |
| Filter Chamber volume/m3 | 1.45 to 5.3 | 1.45 to 5.5 | 2.8 to 9.3 | 2.8 to 9.7 | 5.8 to 18.2 |
| Max. filtration pressure | 16 bar | 16 bar | 16 bar | 16 bar | 16 bar |
| Filter inlet | Flange DN125 | Flange DN125 | Flange DN150 | Flange DN150 | Flange DN200 |
| Motor brand | ABB or Siemens | ||||
| Electrical unit | Schneider or Siemens | ||||
Main Frame:

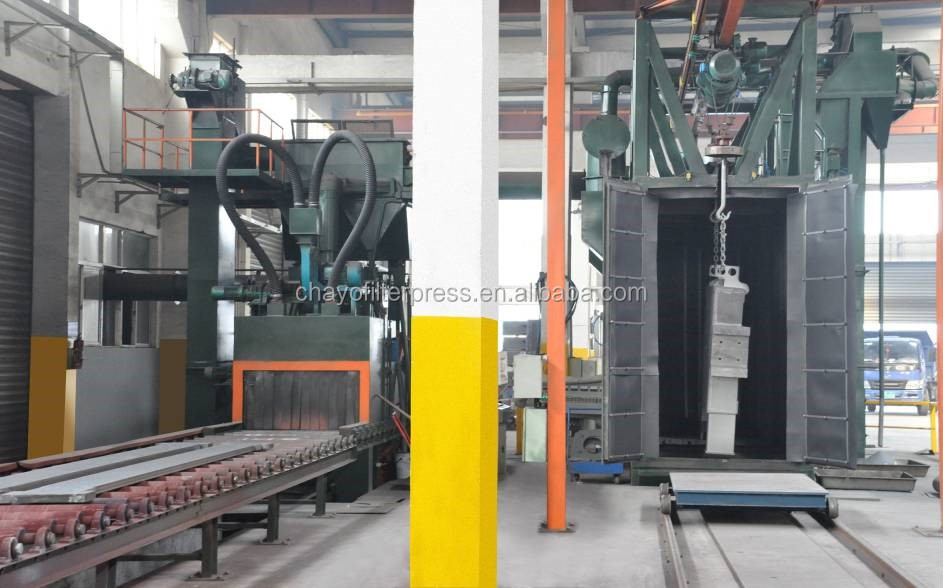

All parts are sandblasted by high-speed air blasting machine for stronger paint adhesion and durability.

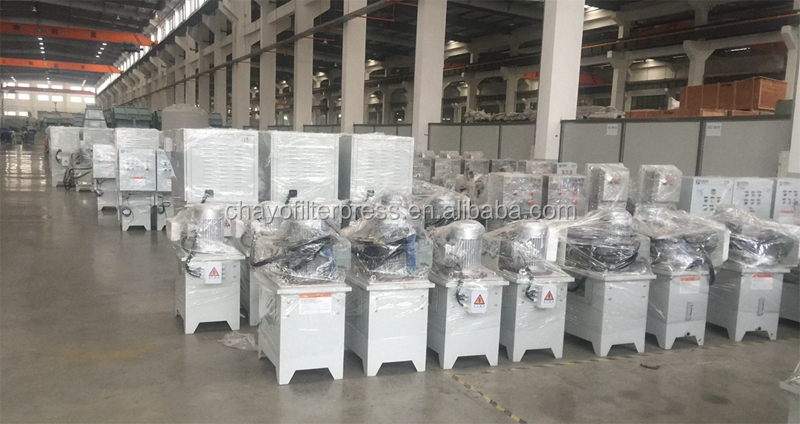

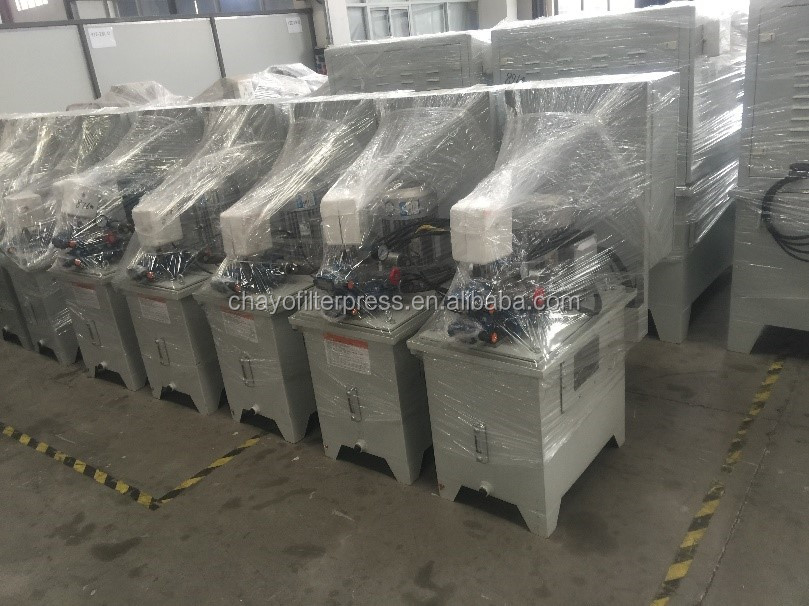

Hydraulic Station:
Processed by pickling, phosphating, and plastic spray treatment. Features a clean, professional design.

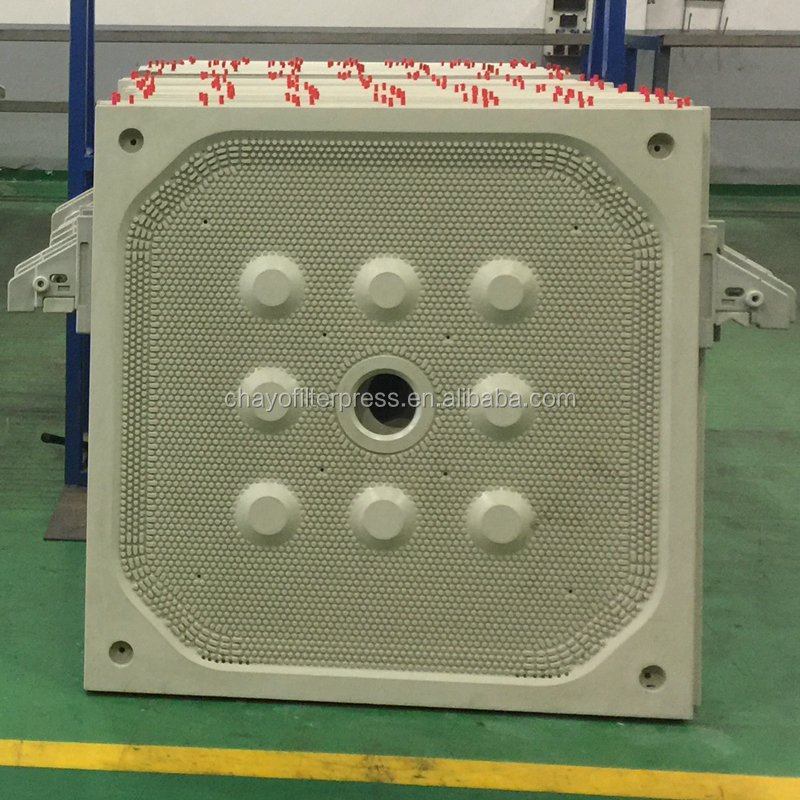

Filter Plate:
Smooth and flat surfaces without cracks. Precision machined within -0.5mm to +1.5mm tolerance.
Automatic Shifting:
Equipped with pause functions and remote control for enhanced safety during the discharge process.

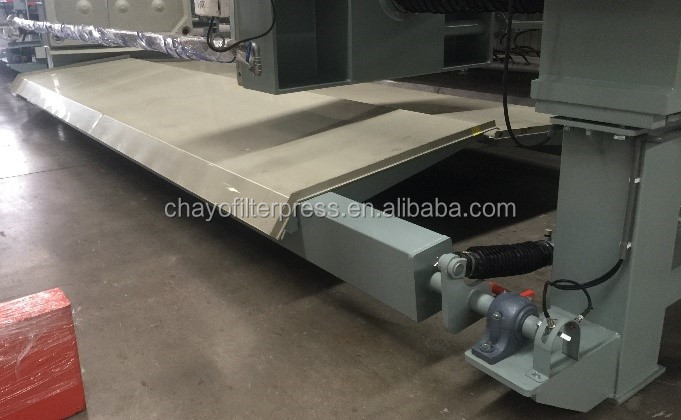

Automatic Drip Tray:
Collects water during cloth washing and filtering to prevent contamination of the mud cake or floor.

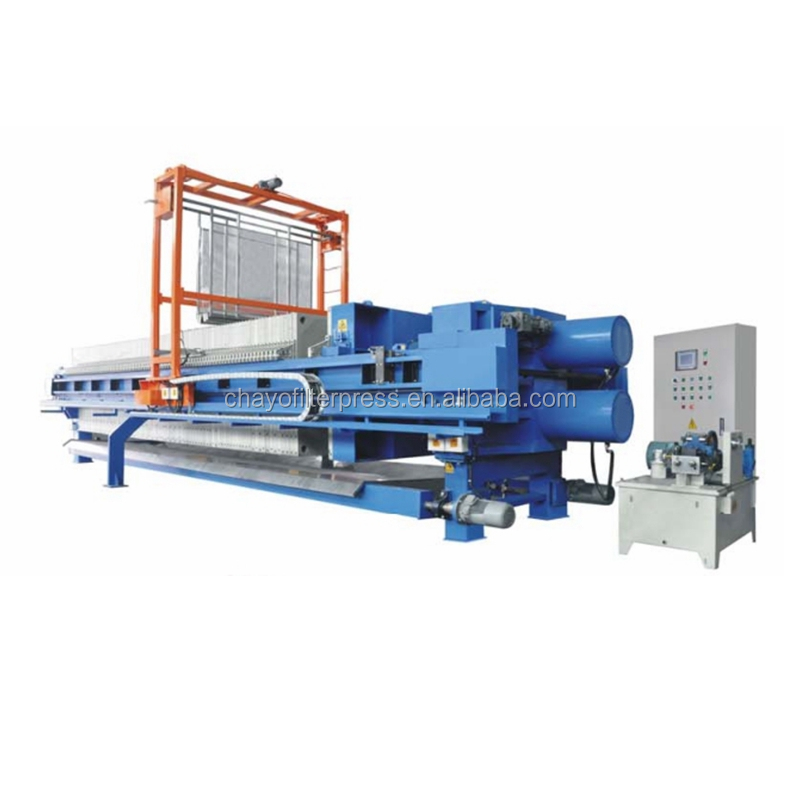

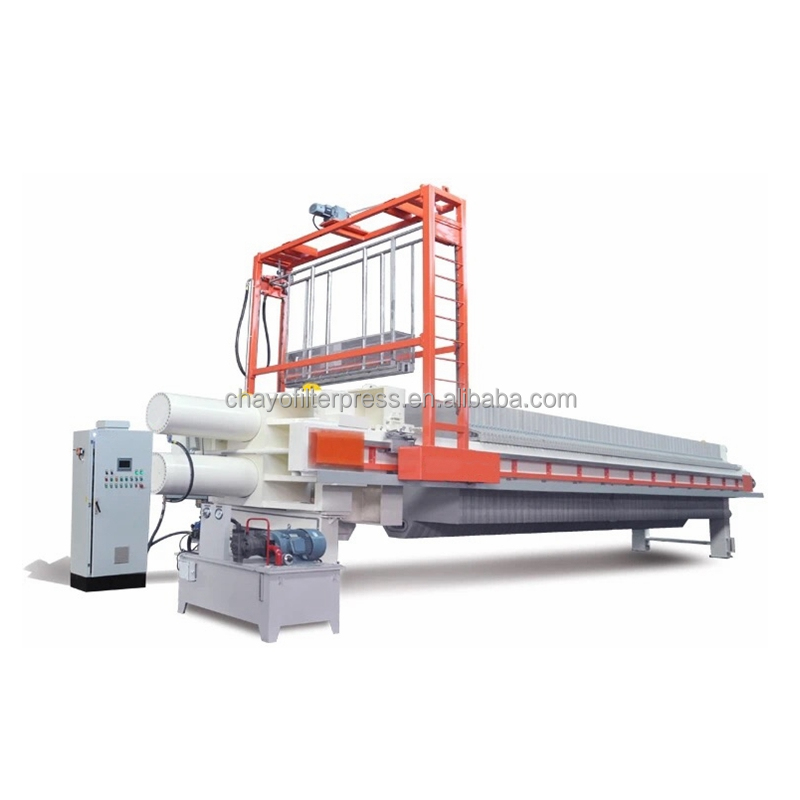

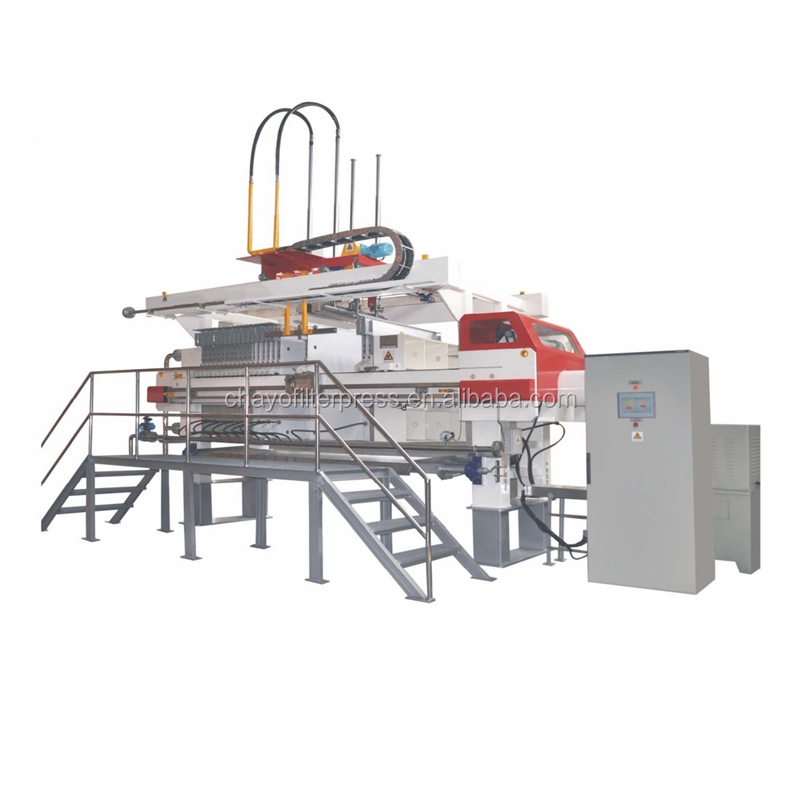

Automatic Cloth Washing:
PLC controlled high-pressure cleaning system including nozzles and walking mechanism.
| Food Industries | Yellow rice wine, fruit juice, beverage, beer, yeast, rice flour, soy milk, seaweed, spices, sauce. |
| Metallurgy | Gold, silver, copper, iron, zinc concentrate/tailings, acid leaching, anode mud. |
| Oil Industries | Sesame oil, palm oil, lubricating oil, vegetable oil, animal oil, glycerin. |
| Non-metallic Ore | Kaolin, bentonite, active soil, porcelain, phosphate rock, calcium carbonate. |

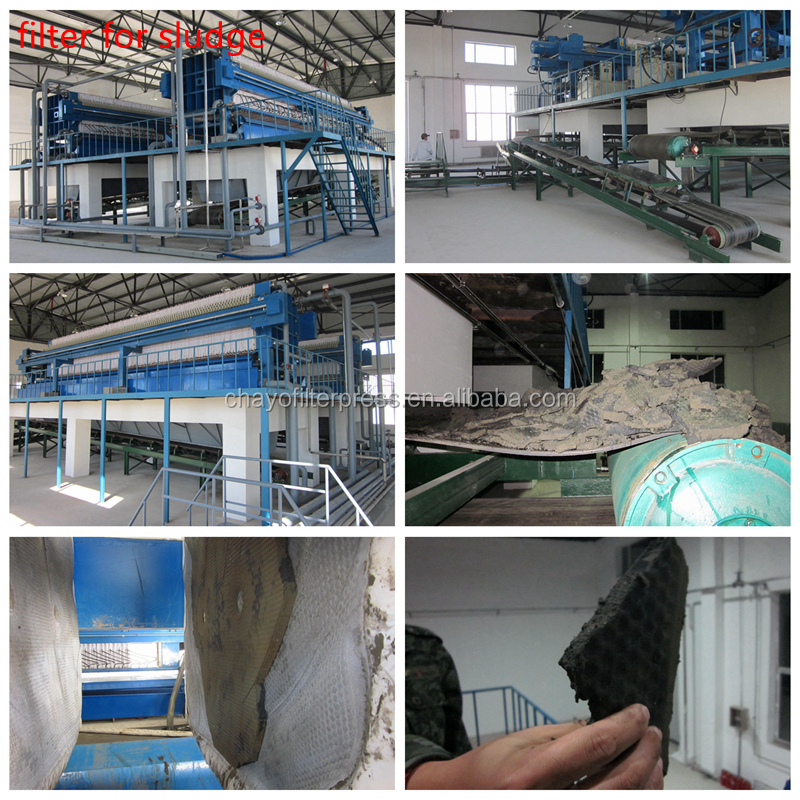

| Sewage Treatment | Chemical, smelting, electroplating, leather, printing and dyeing, brewing sewage. |
We are a comprehensive high-tech enterprise providing a complete set of service for filter presses including design, manufacture, installation, and debugging. With over 10 years of experience in solid and liquid separation technology, we specialize in deep dewatering treatment for sludge and sewage processes.
Our product range includes filter press cloths, chamber filter presses, membrane filter presses, and plate and frame filter presses. We also provide specialized equipment like lime dosing devices, screw conveyors, and automatic systems tailored to different filtration materials.
