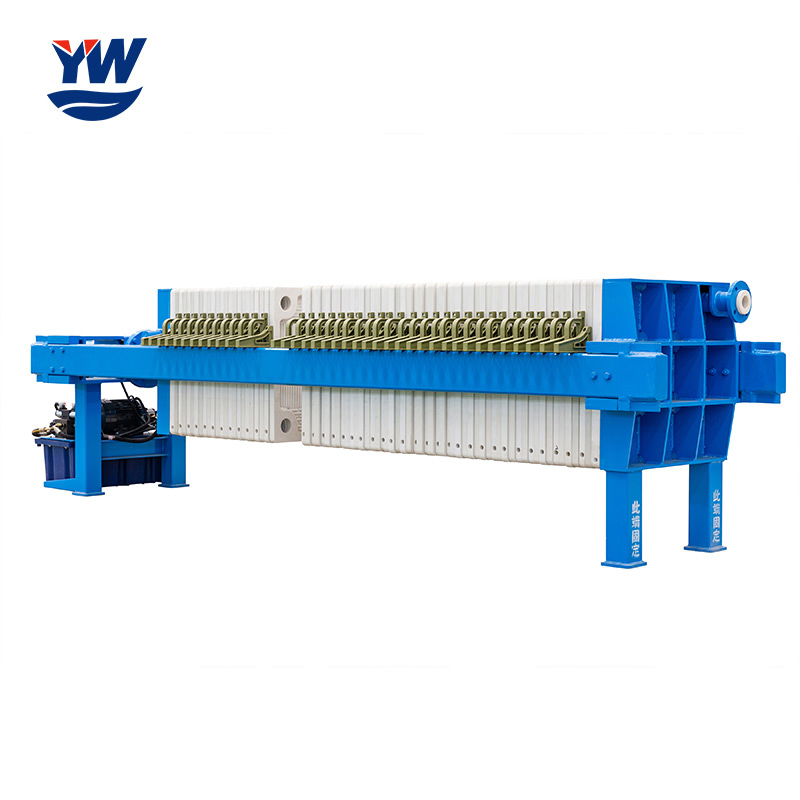

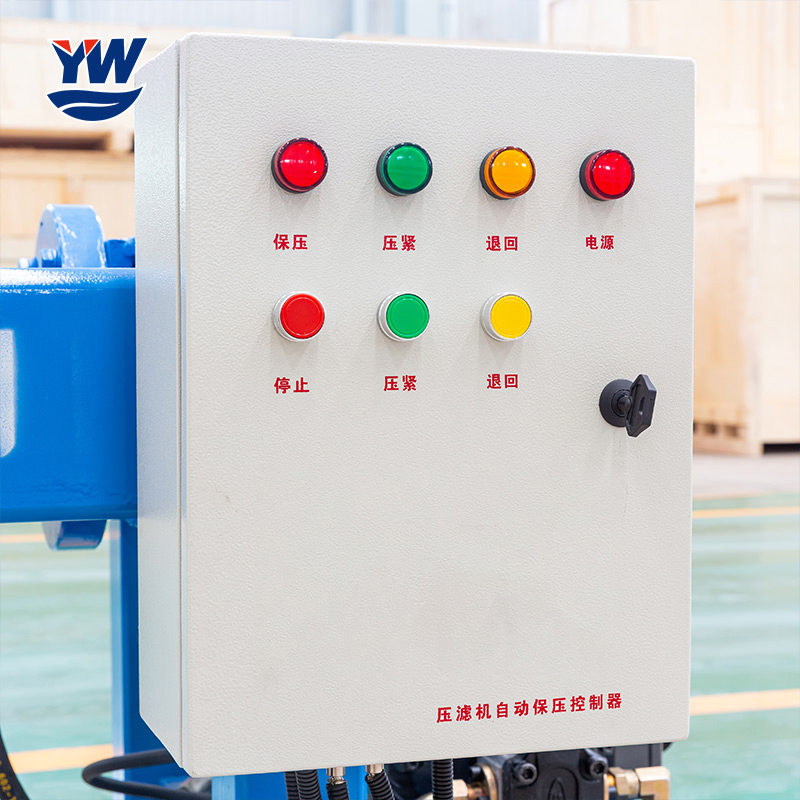

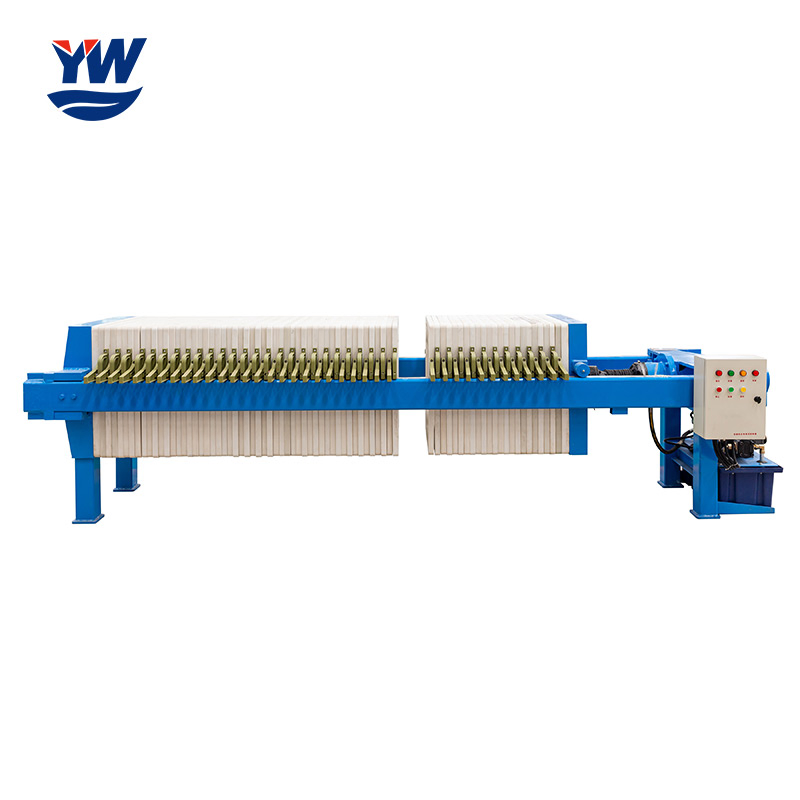

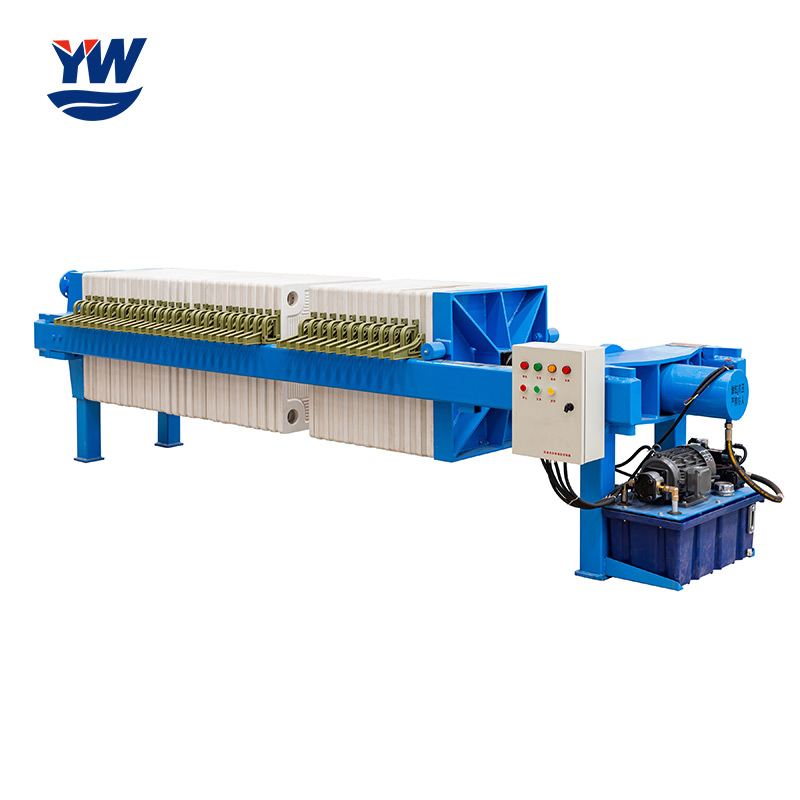

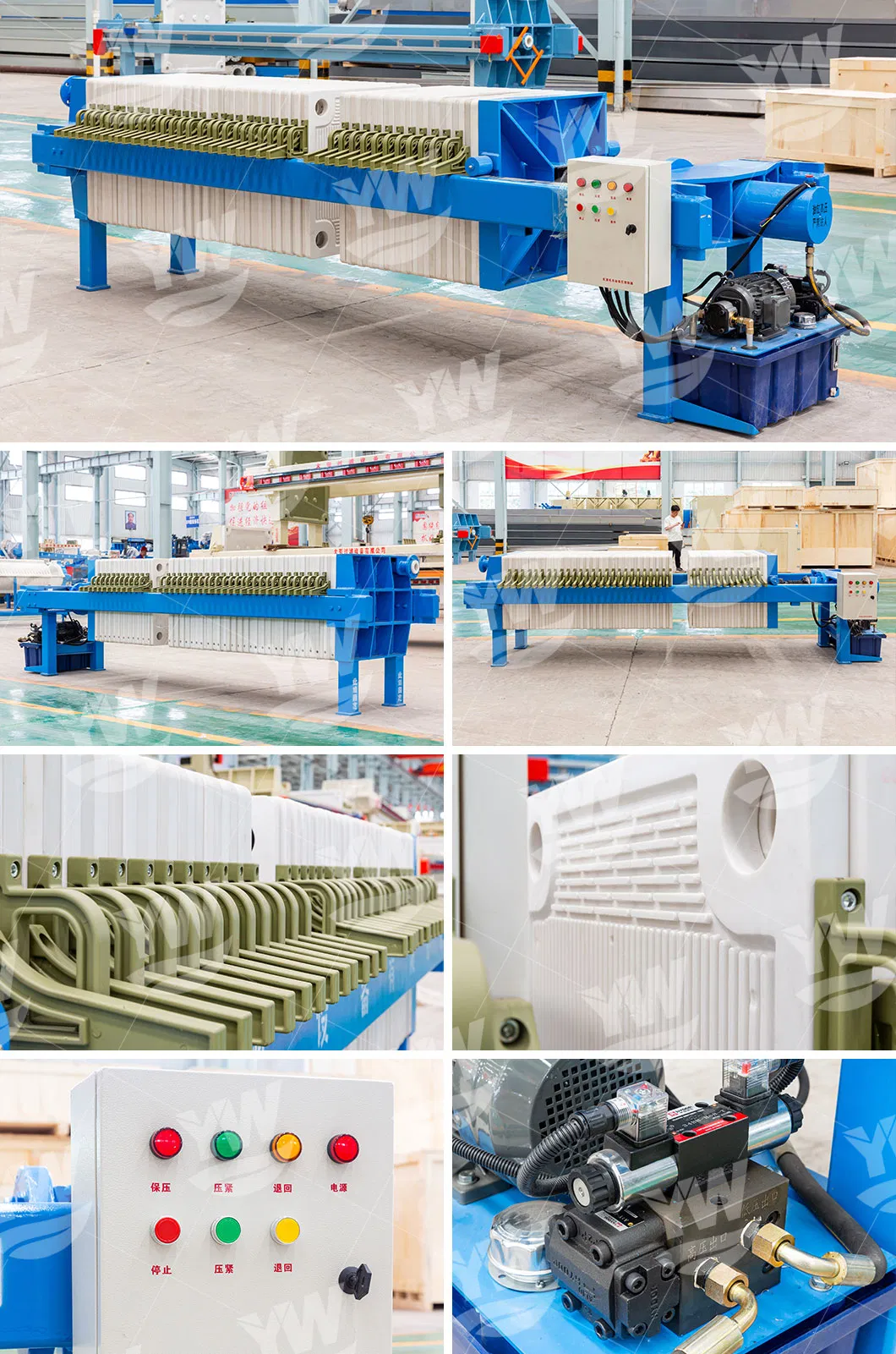

The hydraulic chamber filter press uses an electric contact pressure gauge to automatically maintain the pressure value during the working process. During the pressure filtration process, the pressure of the whole equipment is relatively constant, so as to prevent the leakage of slurry and ensure good filtration effect.
| Model | Filter Area | Plate Size | Volume | Plate QTY | Pressure | Weight | Dimensions |
|---|---|---|---|---|---|---|---|
| BY4/450-30U | 4m² | 500×500mm | 60L | 9pcs | ≤0.5MPa | 860Kg | 208×80×90cm |
| BY16/450-30U | 16m² | 500×500mm | 243L | 39pcs | ≤0.5MPa | 1160Kg | 388×80×90cm |
| BY40/630-30U | 40m² | 700×700mm | 595L | 49pcs | ≤0.5MPa | 2788Kg | 480×100×106cm |
| BY80/890-35U | 80m² | 890×890mm | 1376L | 62pcs | ≤0.5MPa | 4561Kg | 656×138×125cm |

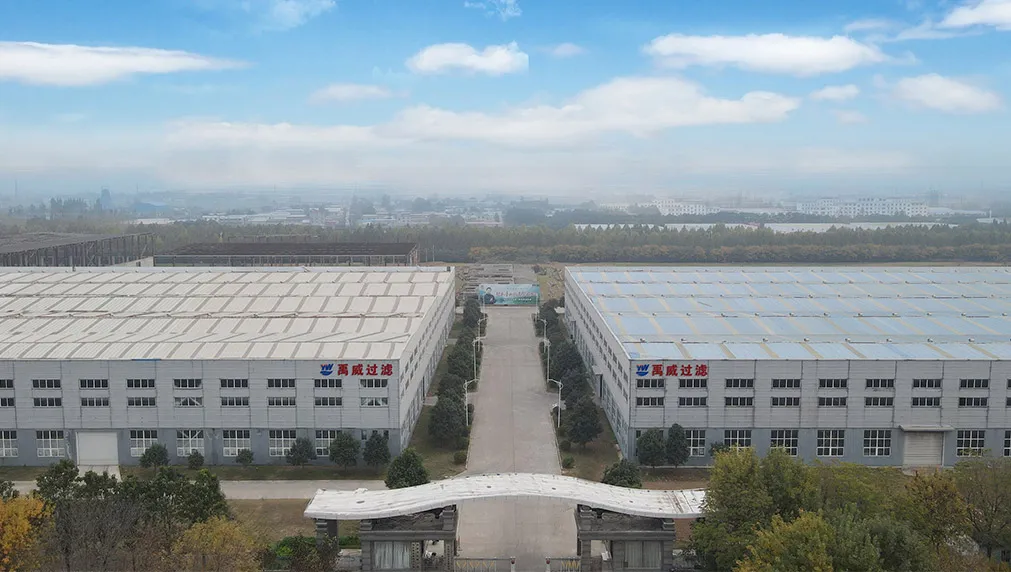

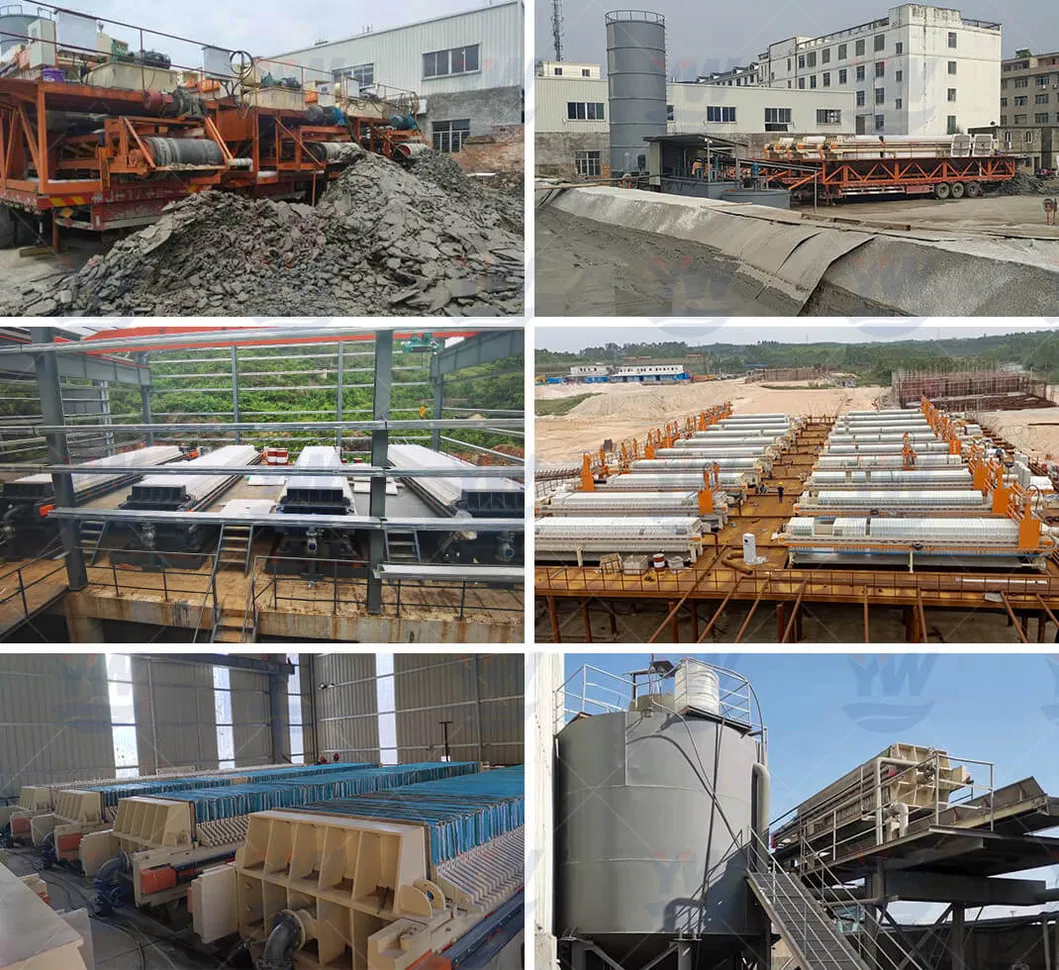

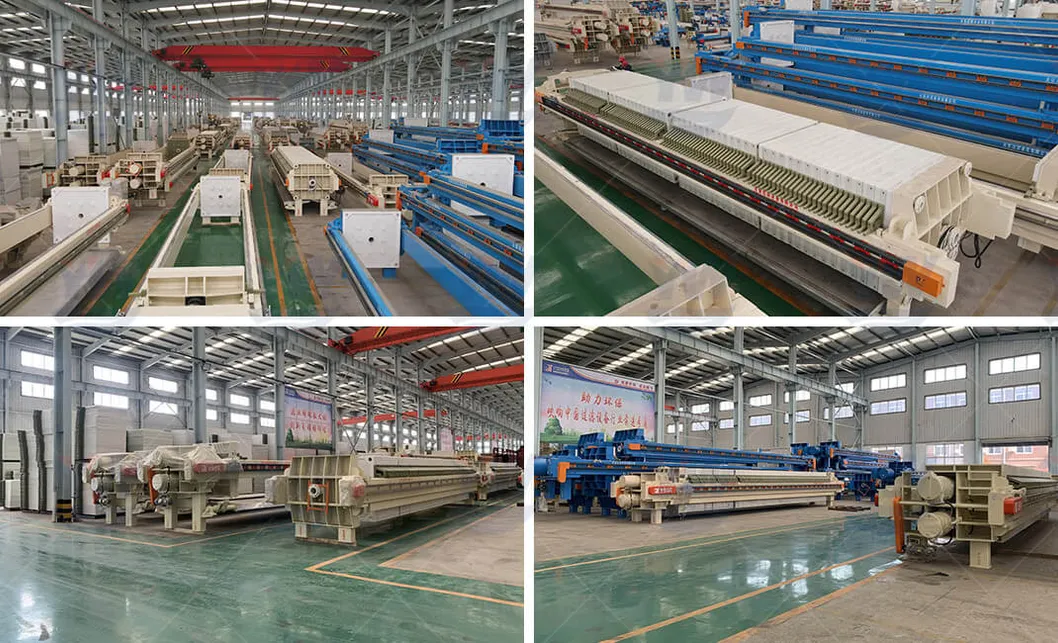

We are a filter supplier and engineering solution service provider integrating design, manufacturing, research and development, sales and international trade. With a wealth of project experience, we provide complete technical guidance and integrated installation services for wastewater treatment and industrial filtration.
