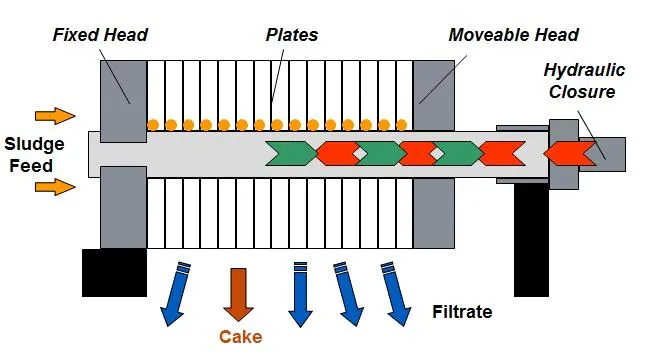

WHAT IS FILTER PRESS MACHINE AND HOW IT WORKS?
Filter Press Machine mainly used is solid-liquids separation process.
Pressing all plate together Open feeding pump Under pressure of feeding pump and cylinder,the mixed liquid flows through the filter medium (filter cloth), and the solid stays on the filter cloth, gradually accumulating on the filter cloth to form a filter cake; (The smallest solid particles can reach 5 microns, even smaller based on the feeding material characteristics,we have different filter cloth ) When liquids flow turns small,stopped feeding pump, open filter plate and discharge cake, then ready for the next working cycle;
WHAT KIND OF PRELIMINARY WORK NEED TO DO BEFORE INSTALL THE FILTER PRESS MACHINE?
Pipe/feeding pump/foundation building/ mixing tank / electric wire There will have details drawing with guidance that offer from our technical department;
NOTED: WE CAN CUSTOMERIZE THE FILTER PLATE BASED ON YOUR DRAWING!!!

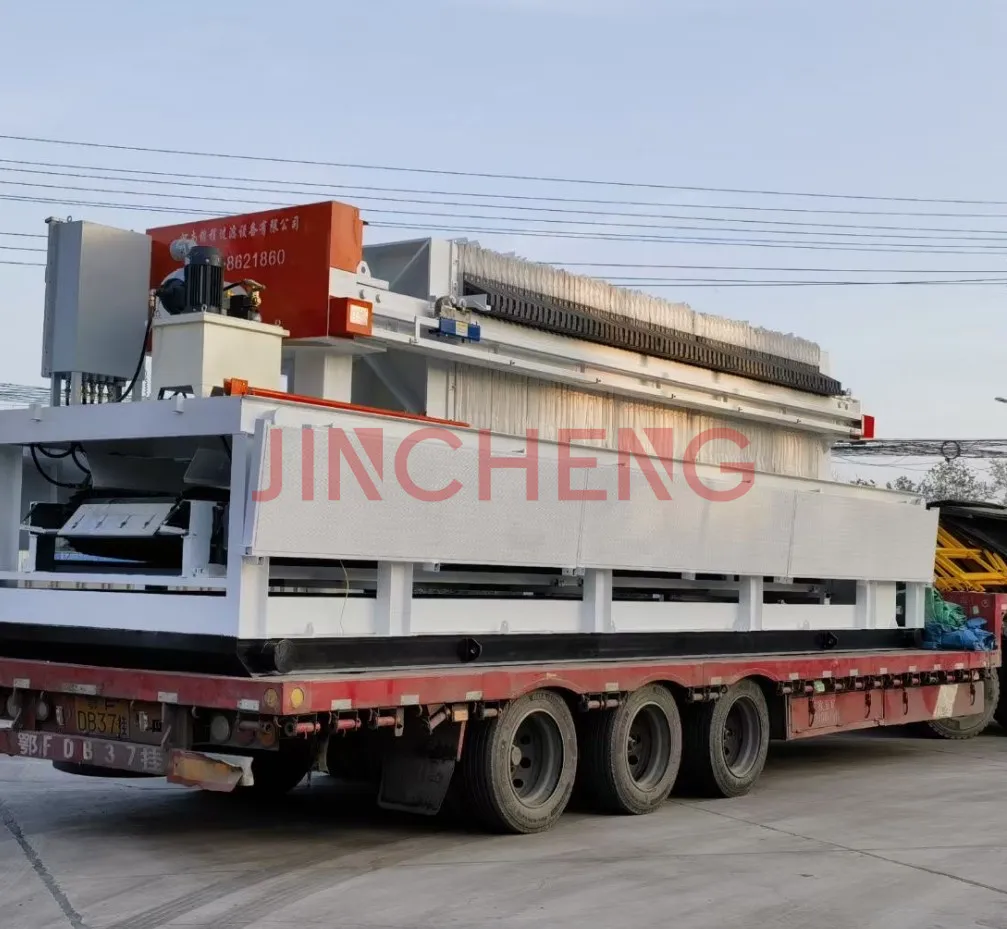

Automatic filter press & belt coveyor & working plateform

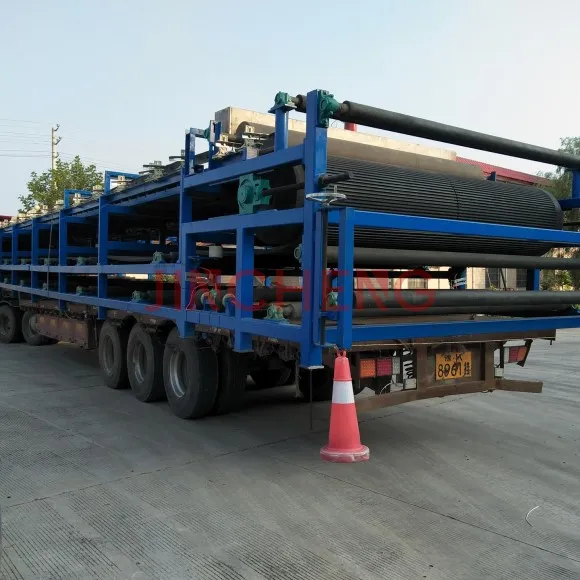

Vacuum belt filter
Specifications
Model
Filtering area
No. of plate
Volume of chamber
Filtering pressure Mpa
XMY30/800-30
30
29
450
0.5-1.6
XMY40/800-30
40
39
600
0.5-1.6
XMY50/800-30
50
19
750
0.5-1.6

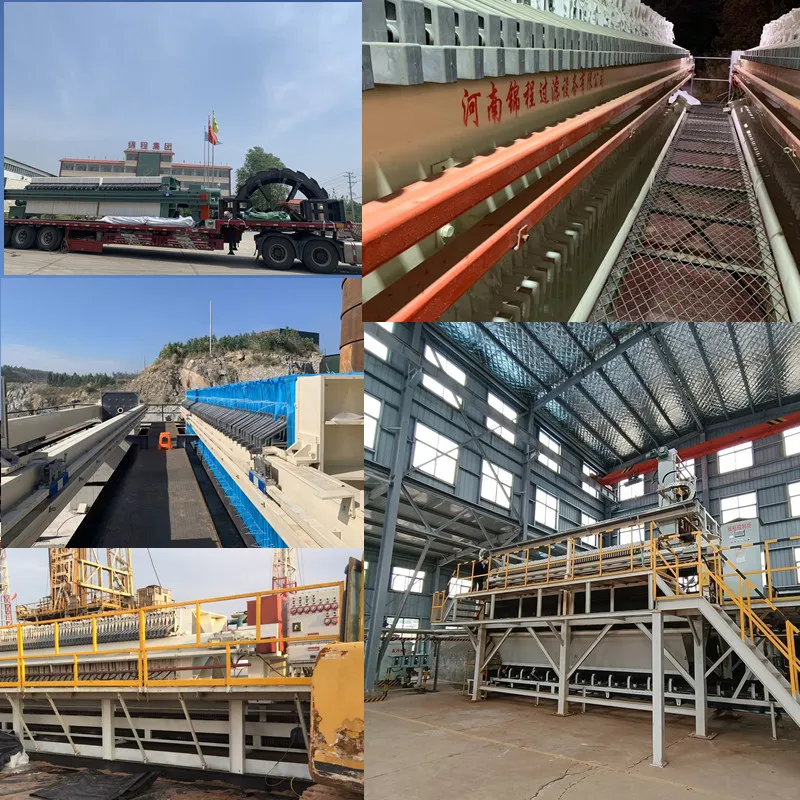

CUSTOMER CASE
We export to many countries around the world, for example, Russia, Canada, Australia, United States, Malaysia, Singapore, India, Indonesia, Pakistan, Iran, Iraq, Saudi Arabia, Bahrain, Philippines, Vietnam, Thailand, Italy, Kazakhstan, Mongolia, etc.
FAQ
1 Warranty Period
12 Month except quick-wear parts like filter cloth. During warranty period, any parts broken caused by quality problem will be replaced free of charge.
2 How to select the model of filter press machine?
There is a professional sales manager following the service and helping advise on the suitable model. Please offer the following information as much as possible: Name of feeding material, capacity, working hours, solids content, solids mesh size, pH figure, and temperature.
3 Does the price include the feeding pump?
Generally speaking, it is not included unless the customer specifically requires us to offer it together.
4 What is the pressure of the filter plate?
It is 0.6-0.8 Mpa. If you need higher pressure, please inform us in advance and we can offer it as well.
5 What is the smallest solid particle that can be dealt with by the filter press machine?
Up to 5 microns or even smaller, depending on the characteristics of the feeding material.
6 Do you provide any technical support?
Of course. In addition to instructions and drawings, our engineers can visit your working site to teach and guide operation procedures.
