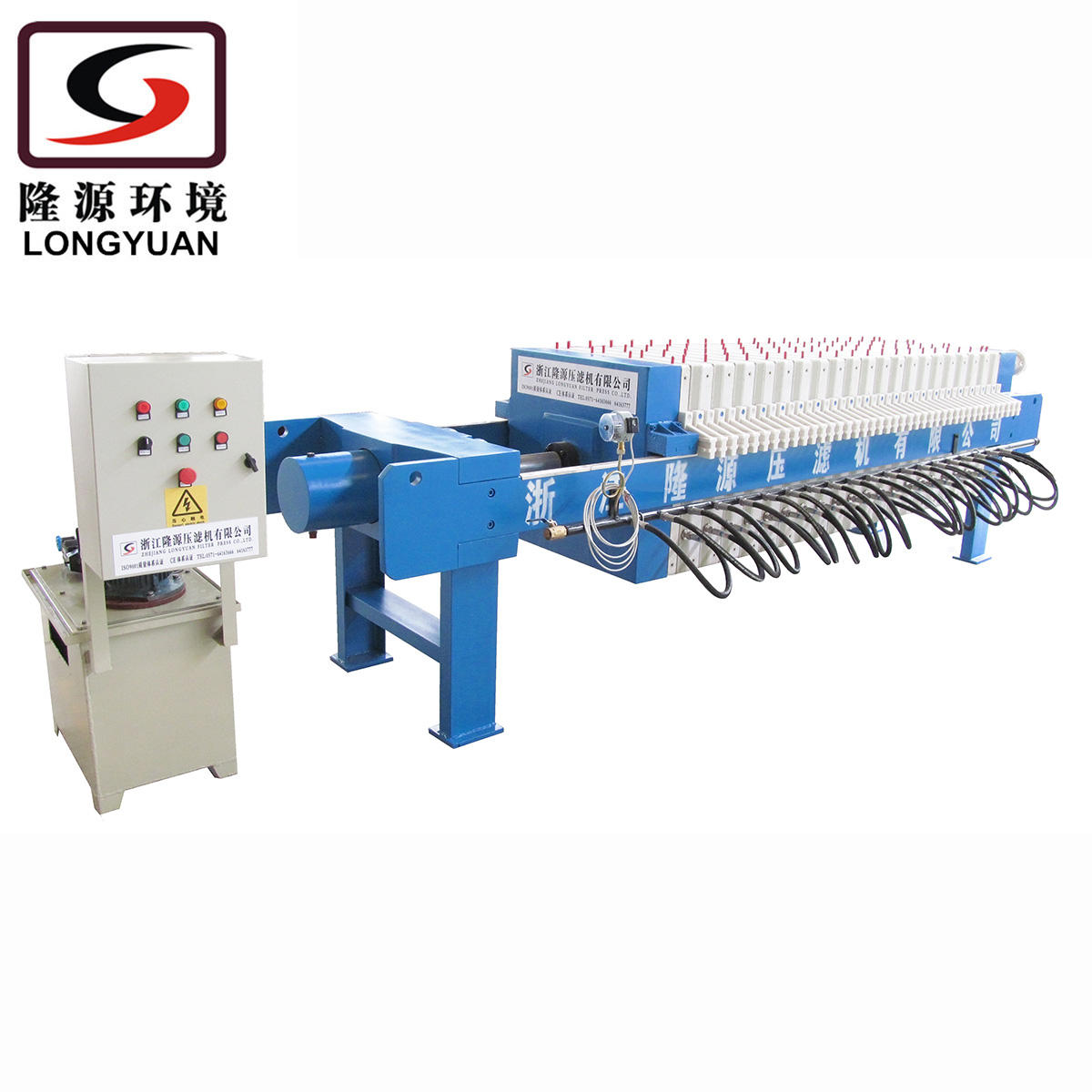

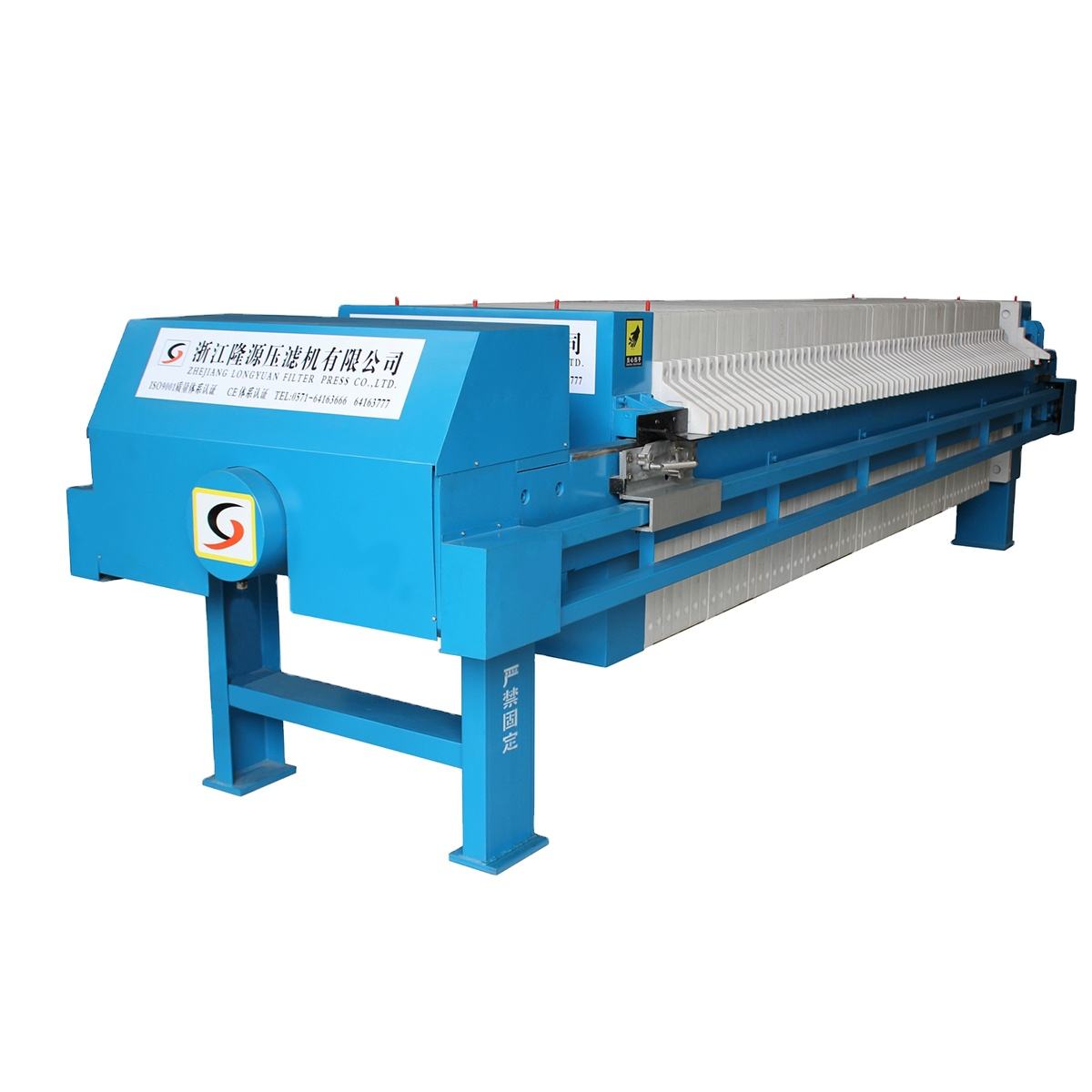

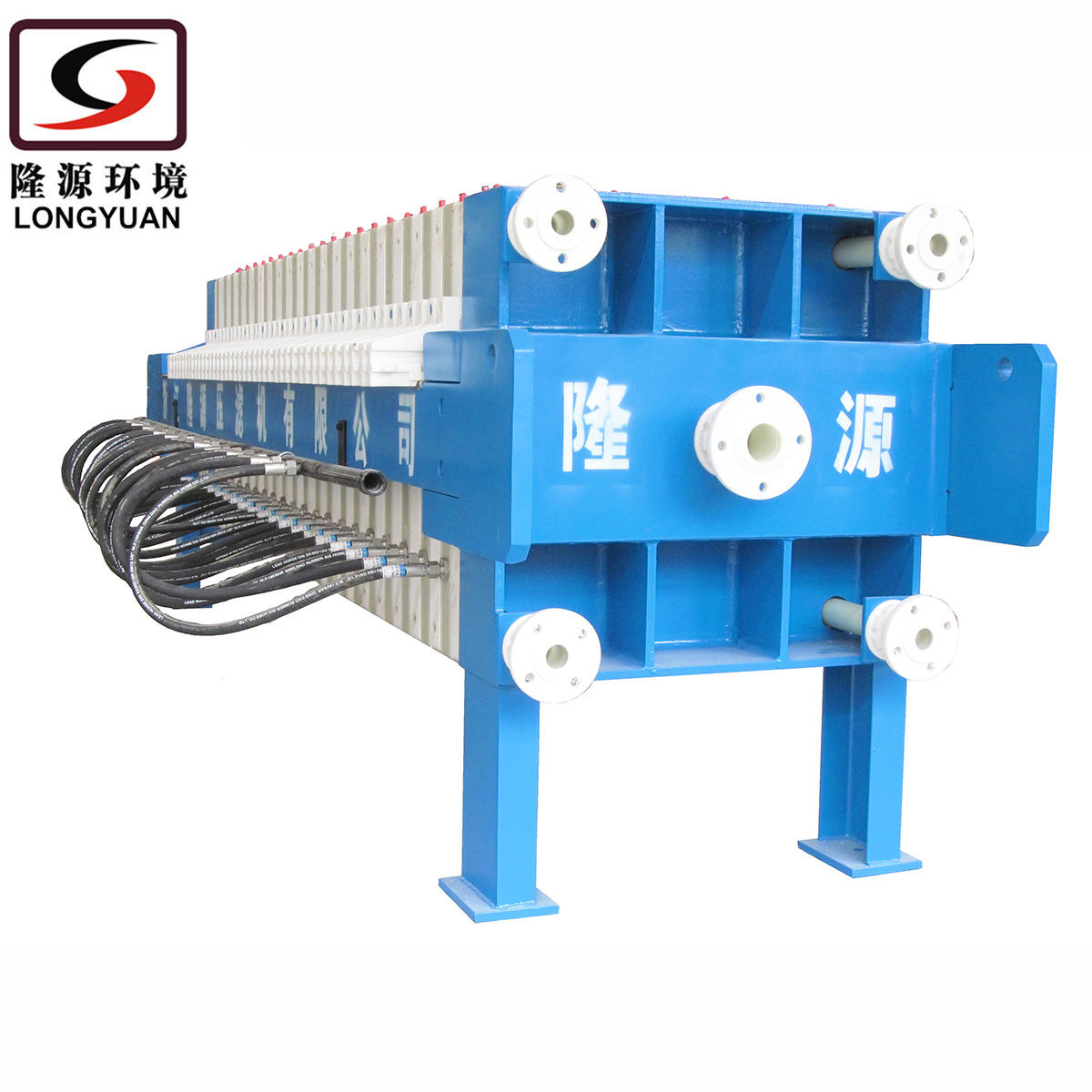

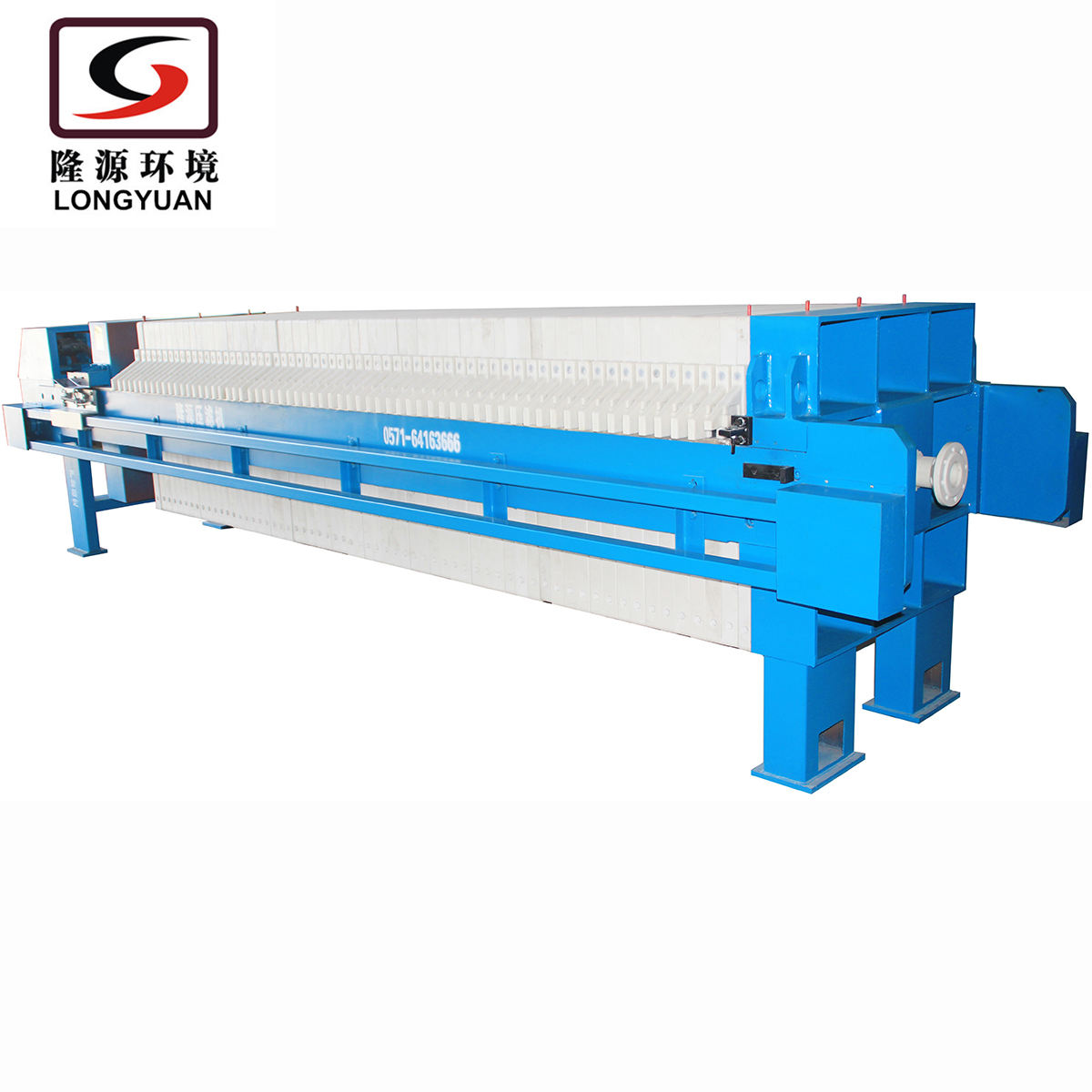

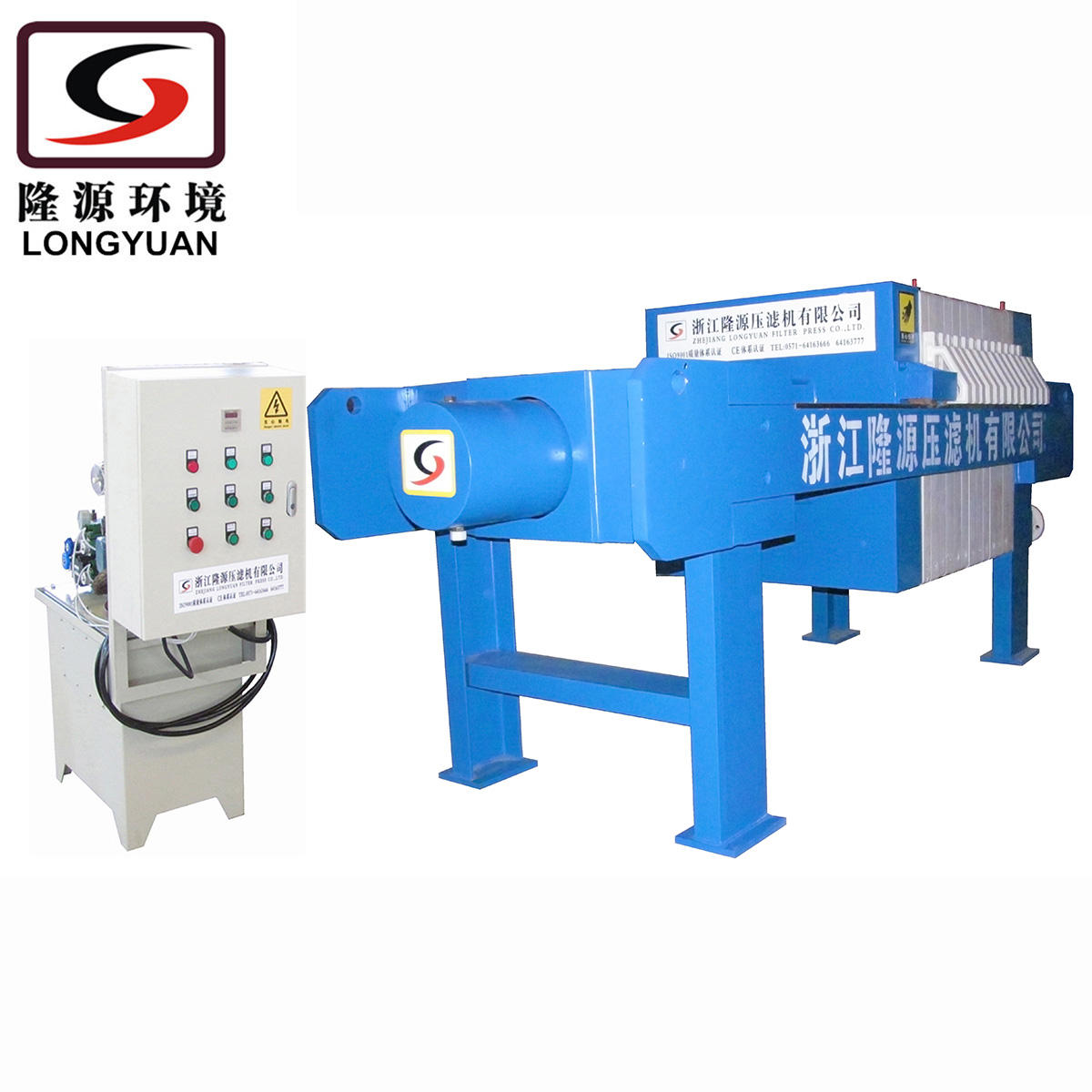

Zhejiang Longyuan 800 Series PP Hydraulic Filter Press of Solid Liquid Separation Equipment

Product Description

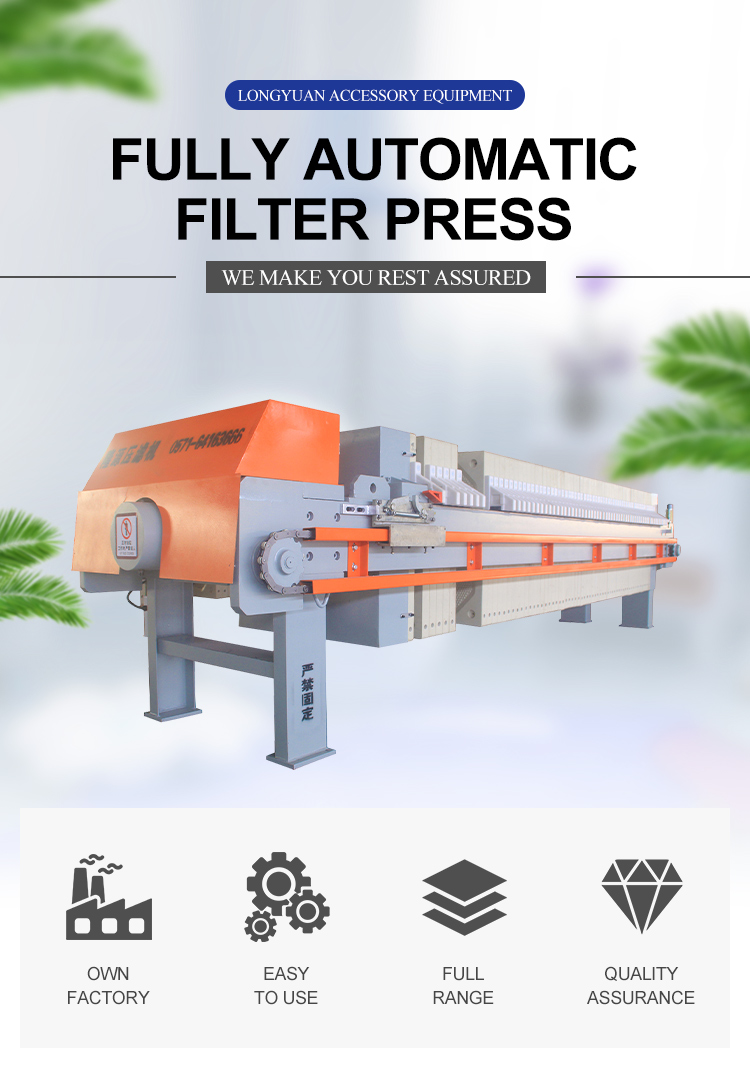

Product Overview 1
Product Overview 2

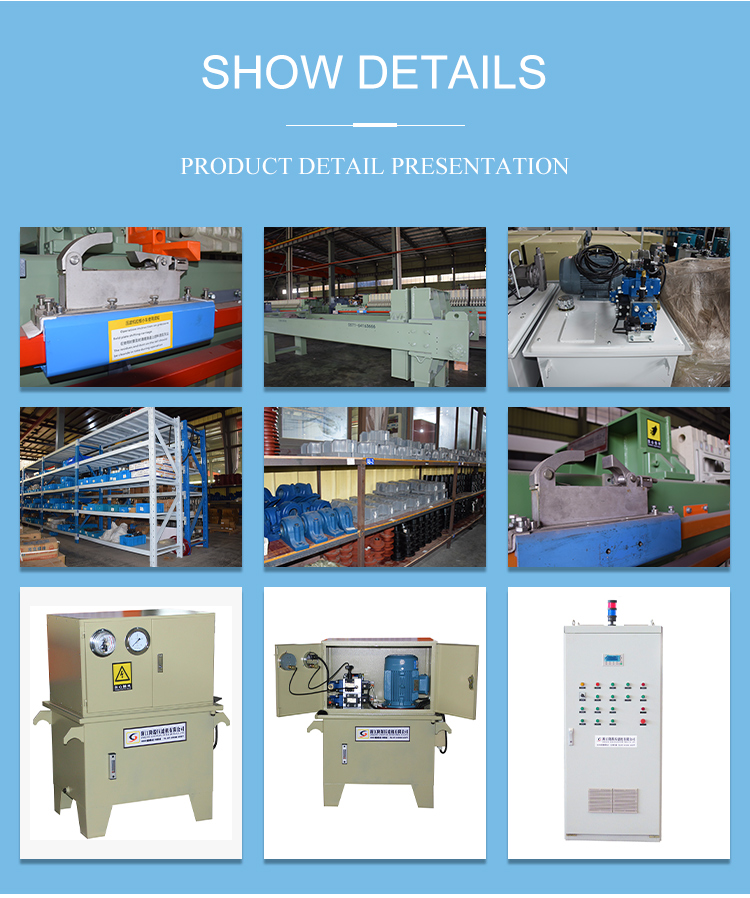

Product Overview 3

Products Description

Product Detail 1

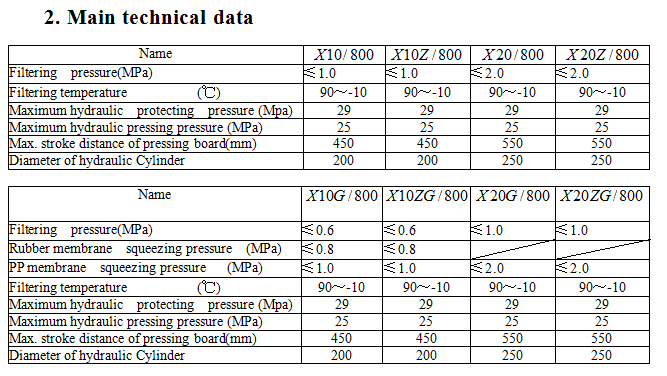

Product Detail 2

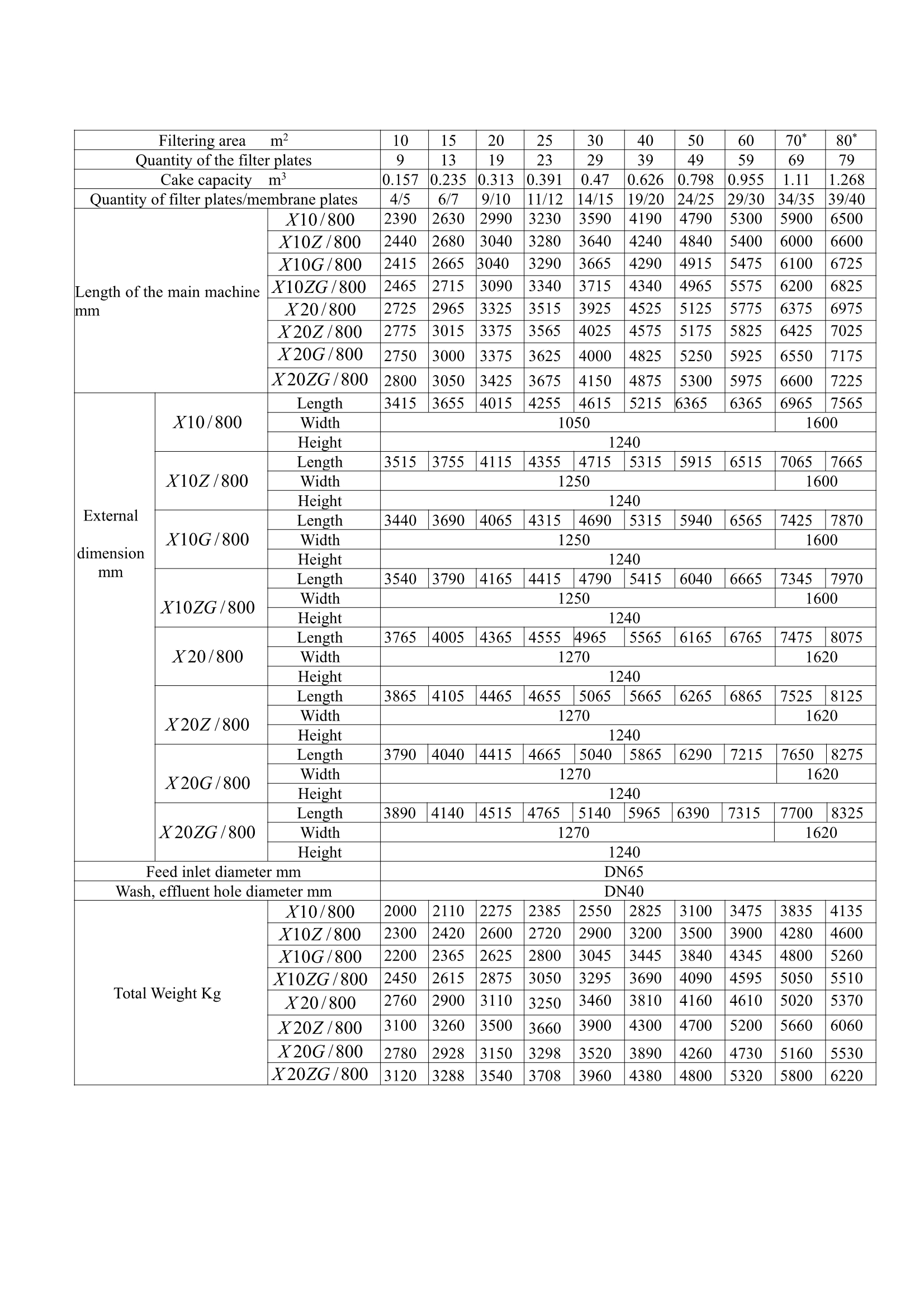

Product Detail 3

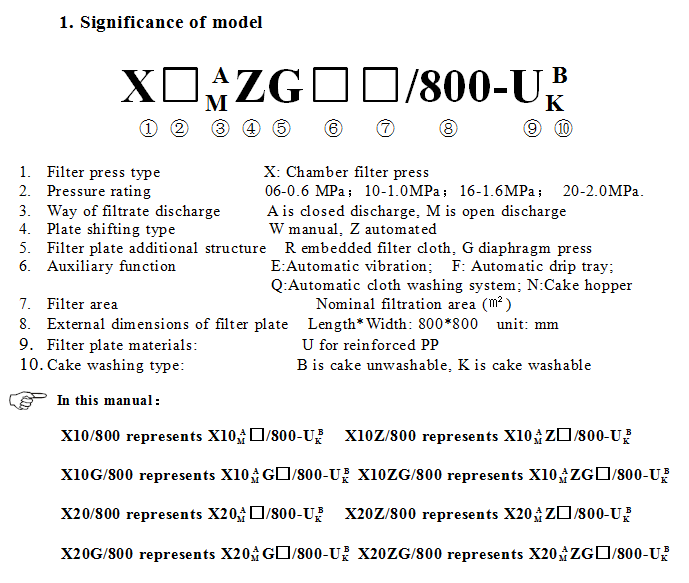

Significance of model
X ▢ AM Z G ▢ ▢ / 800-UB K
  • 1Filter press type X: Chamber filter press
  • 2Pressure rating: 06-0.6 MPa; 10-1.0MPa; 16-1.6MPa
  • 3Way of filtrate discharge: A is closed discharge, M is open discharge
  • 4Way of shifting: W is manual, Z is automatic
  • 5Filter plate additional structure: R embedded filter cloth, G diaphragm press
  • 6Auxiliary function
  • 7Filter area: Nominal filtration area (㎡)
  • 8External dimensions of filter plate: Length * Width: 800 * 800 (unit: mm)
  • 9Filter plate materials: U for reinforced PP
  • 10Cake washing type: B is cake unwashable, K is cake washable
  • COMPACT DIMENSIONS
  • EXTENDING UNDERCARRIAGE
  • SAFETY FRAME
  • SIMPLE CONTROL
  • SEASY MAINTENANCE
  • VERSATILITY
  • EXTENDING UNDERCARRIAGE

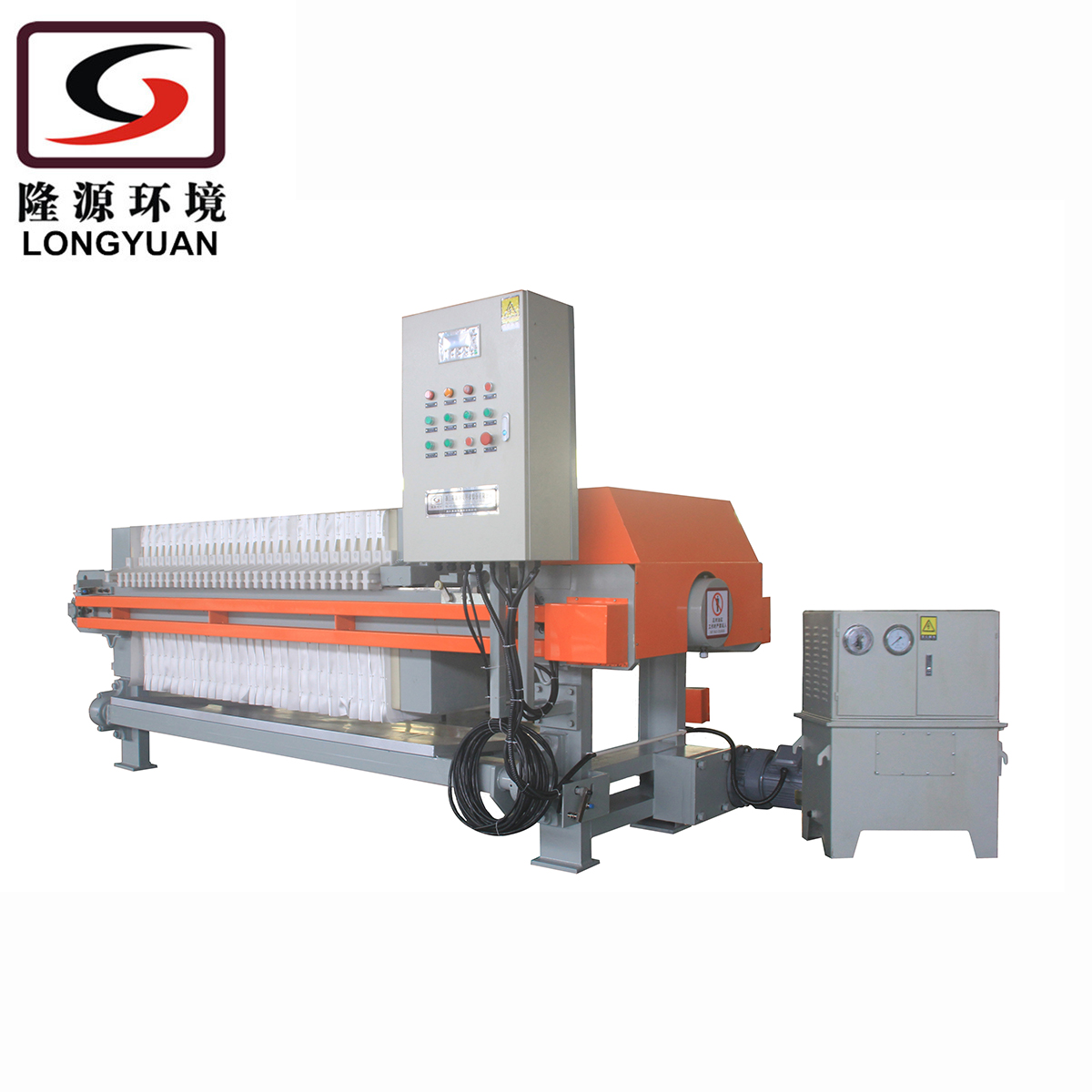

Compact Dimensions Feature

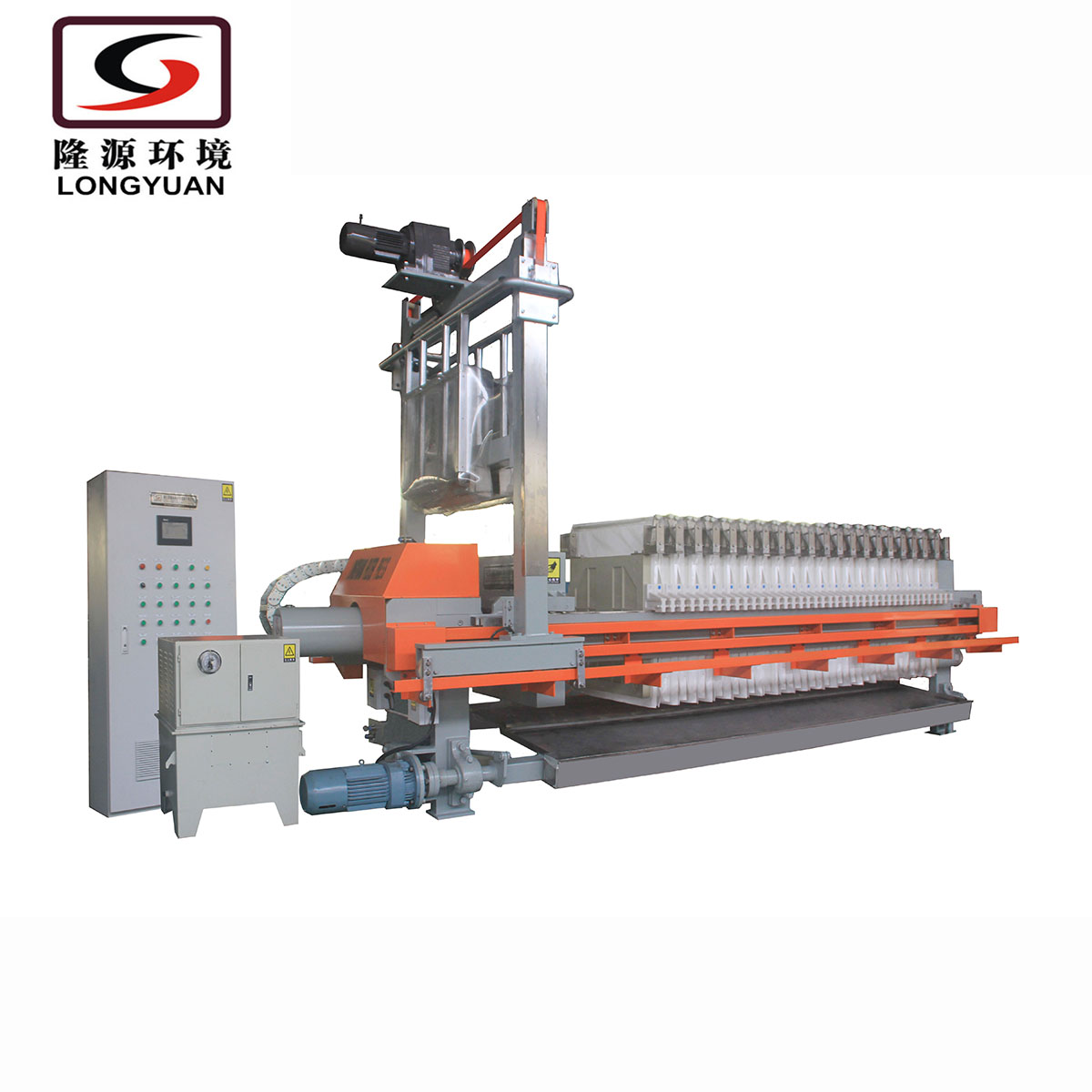

Left elevation
Left elevation
Right elevation
Right elevation

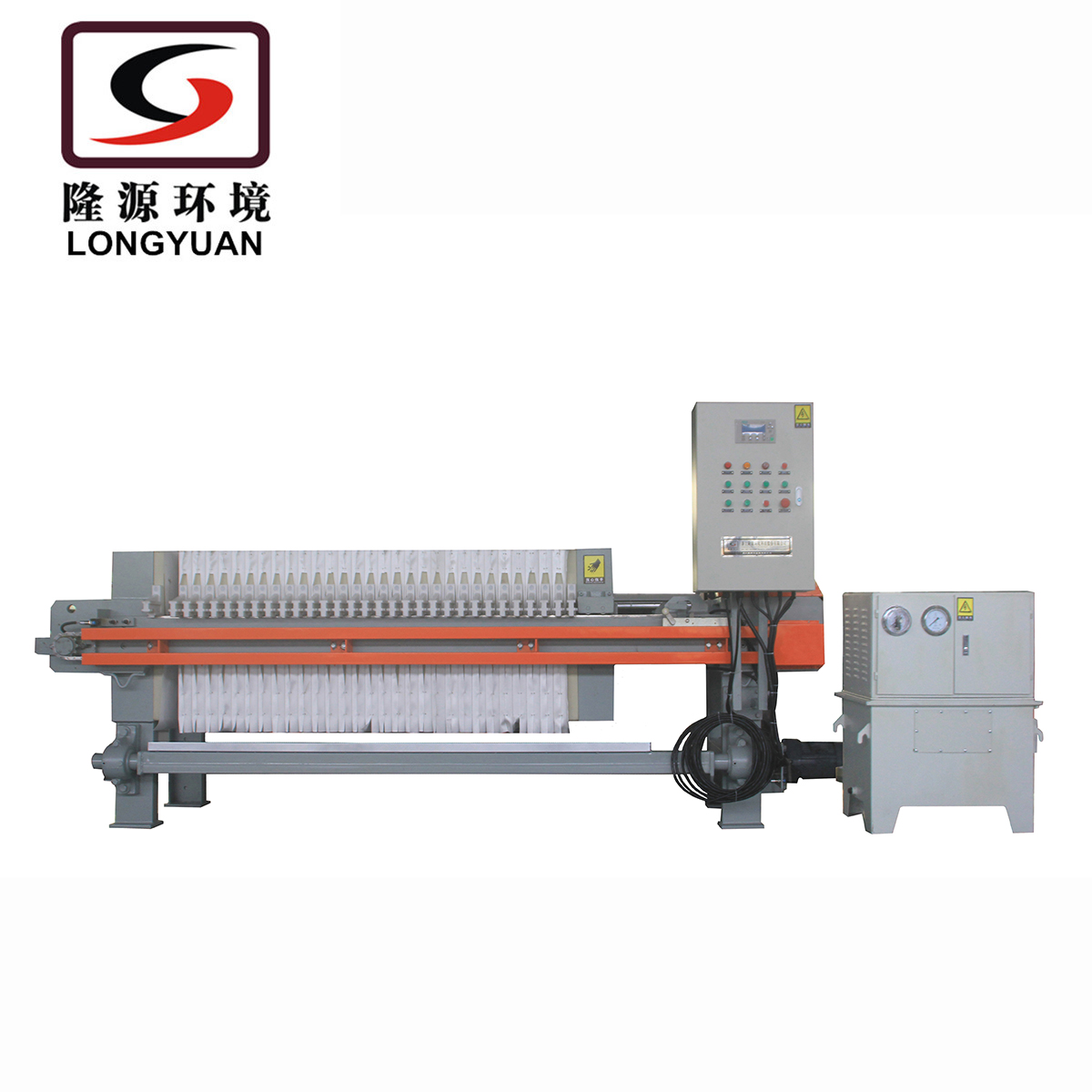

Front elevation
Front elevation

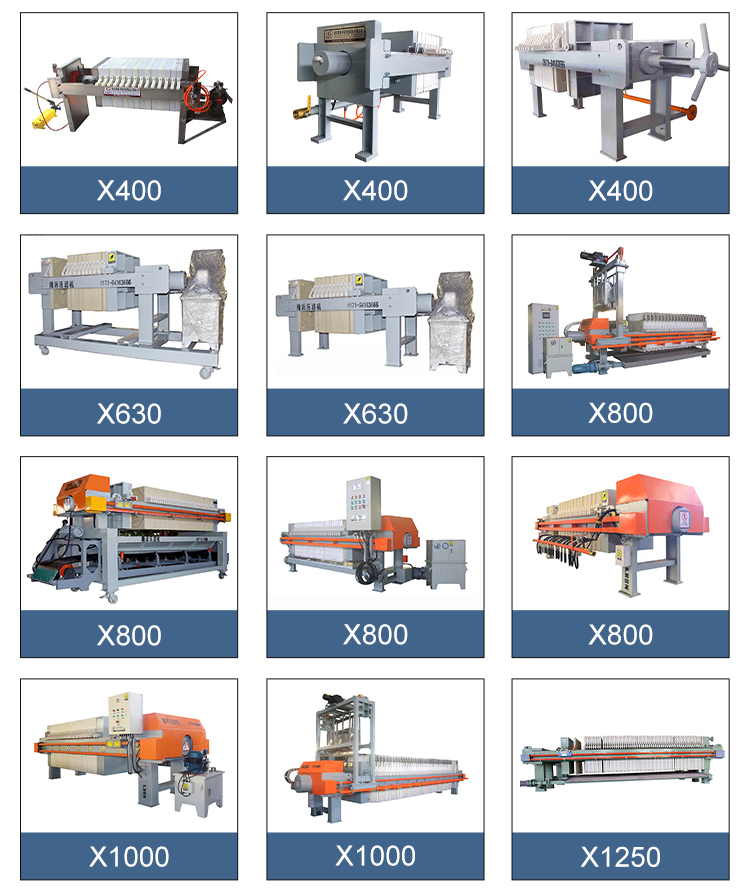

Product View A

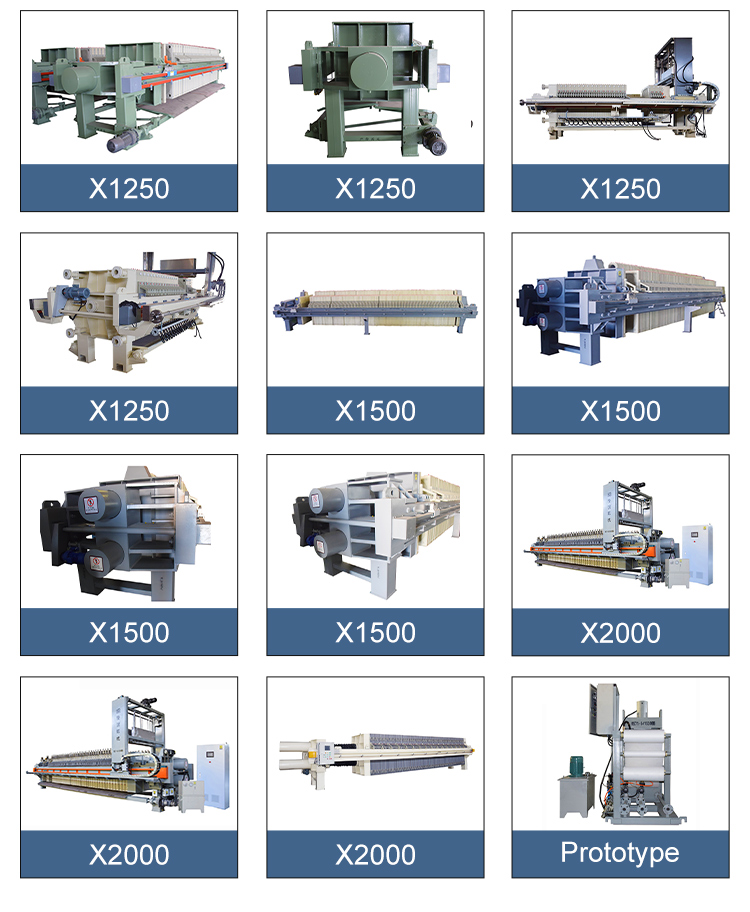

Product View B

Company Profile

Company Facility

Certifications

Certification 1
Certification 2
Certification 3

Packing & Delivery

Packing Process

FAQ

FAQ Support
Q:Which country have your products been exported?
A: Many countries and regions, such as Eastern Europe, East Asia, North America, Russia, South America, etc.
Q:What is the voltage/phase for this machine?
A: Can made as the clients' need.
Q:How long can we get the goods?
A: We usually delivery in 35 days.
Q:What about Payment term?
A: T/T or L/C ---- 30% as prepayment, balance paid before delivery.
Q:What is the material of the filter plates?
A: The standard filter plate material is reinforced PP (U).
Q:What are the available shifting and auxiliary functions?
A: Manual (W) or automatic (Z) shifting options are available, alongside diaphragm press (G) and embedded filter cloth (R) auxiliary structures.
