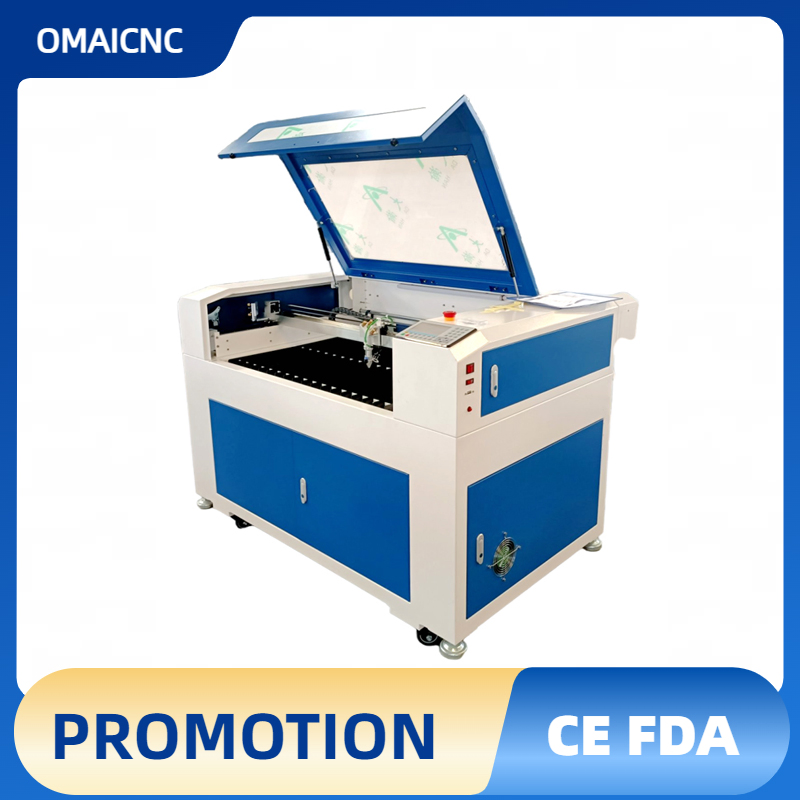

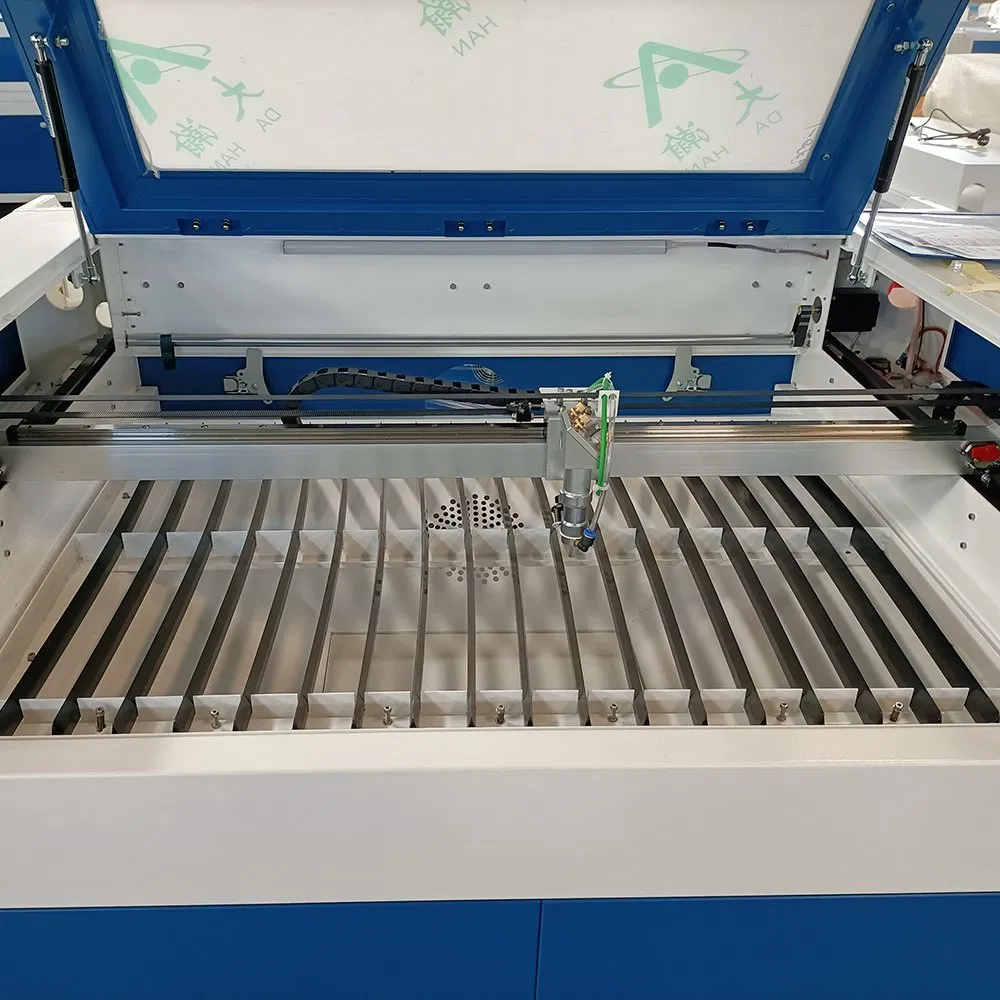

Top Quality 6090 Laser Cutter 100W Ruida M2 Wood Laser Cutting Machine CO2 Laser
📊 Product Parameters
| Model | OM-L960 |
| Cooling method | CW5000 water chiller for RECI W4 (100W-130W) |

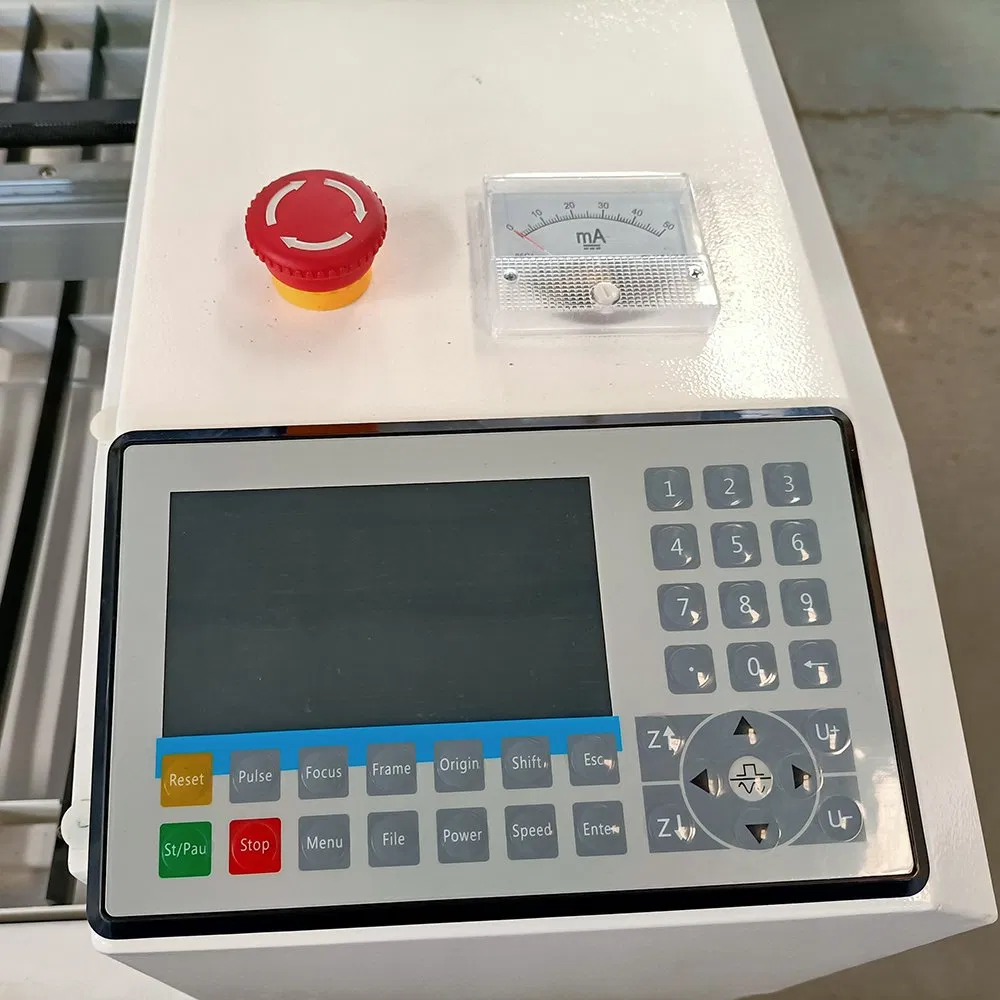

| Control system | Redcam control system |
| Drive system | Yako drivers and motors |
| Lens | Wavelength lens |
| Guide rail | PMI Linear rail guide from Taiwan |
| Transmission | Belts transmission from Shanghai Fulong |
| Control software | Coreldraw, Photoshop, AutoCAD, etc |
| Graphic format support | PLT, DXF, BMP, JPG, AI, ect |
| Min line width | ≤0.15mm |
| Position accuracy | 0.01mm |
| Repetition accuracy | 0.02mm |
| Max engraving or cutting speed | 600mm/s |
| Resolution ratio | ≤ 4500dpi |
| Working environment | 0-45ºC |
| Operating Humidity | 5-95% |
| Exhaust Fan | Including |
| Air pump | Including |
| Power Supply | 220V/50Hz or 110V/60Hz |
🛠️ Optional & Consumable Parts
Optional Parts:
- Rotary Attachment: For cylindrical materials (bottles, pens, bamboo).
- Electric Up and Down Table: For thicker materials and auto-focus.
Consumable Parts:
- Laser Tube: Lifespan typically 6 months to 1 year depending on usage.
- Lens Set: Includes three reflective lenses and one focus mirror.
Important Notes: If you require the rotary attachment or auto-focus function, the electric up and down table is necessary.

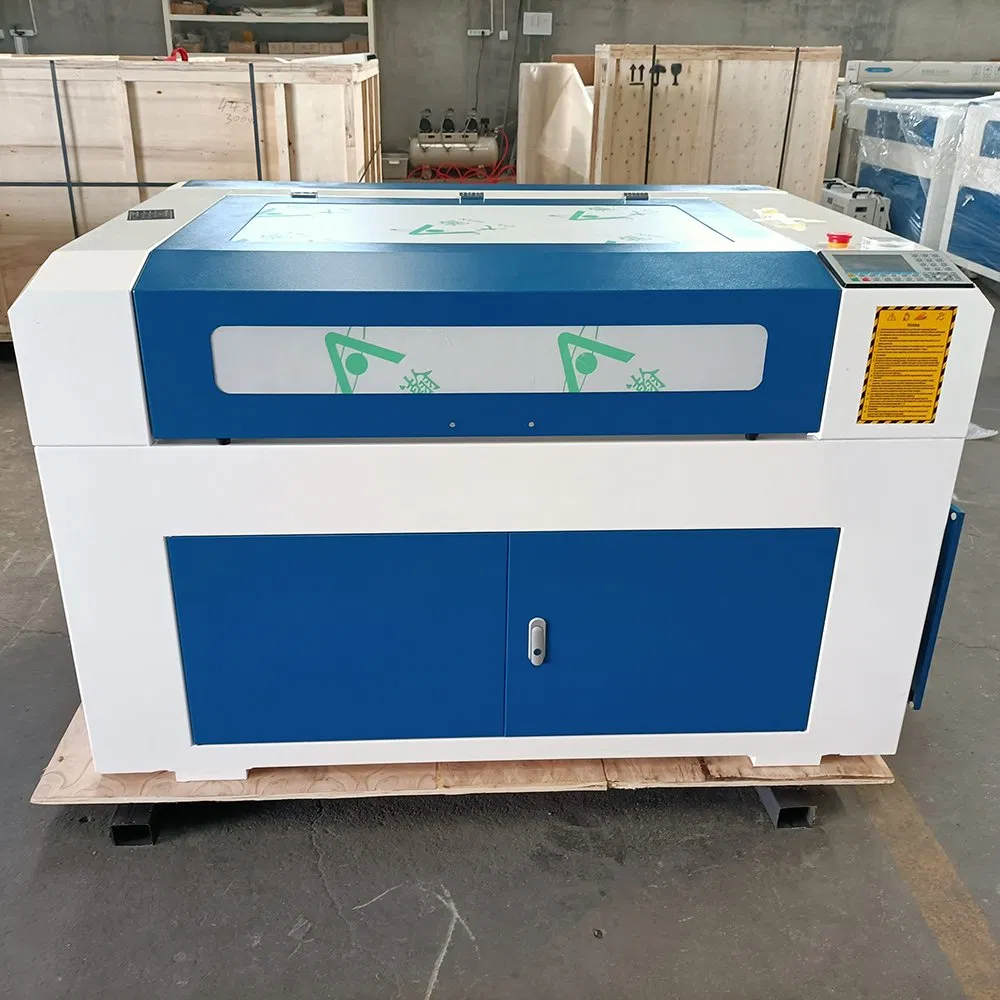

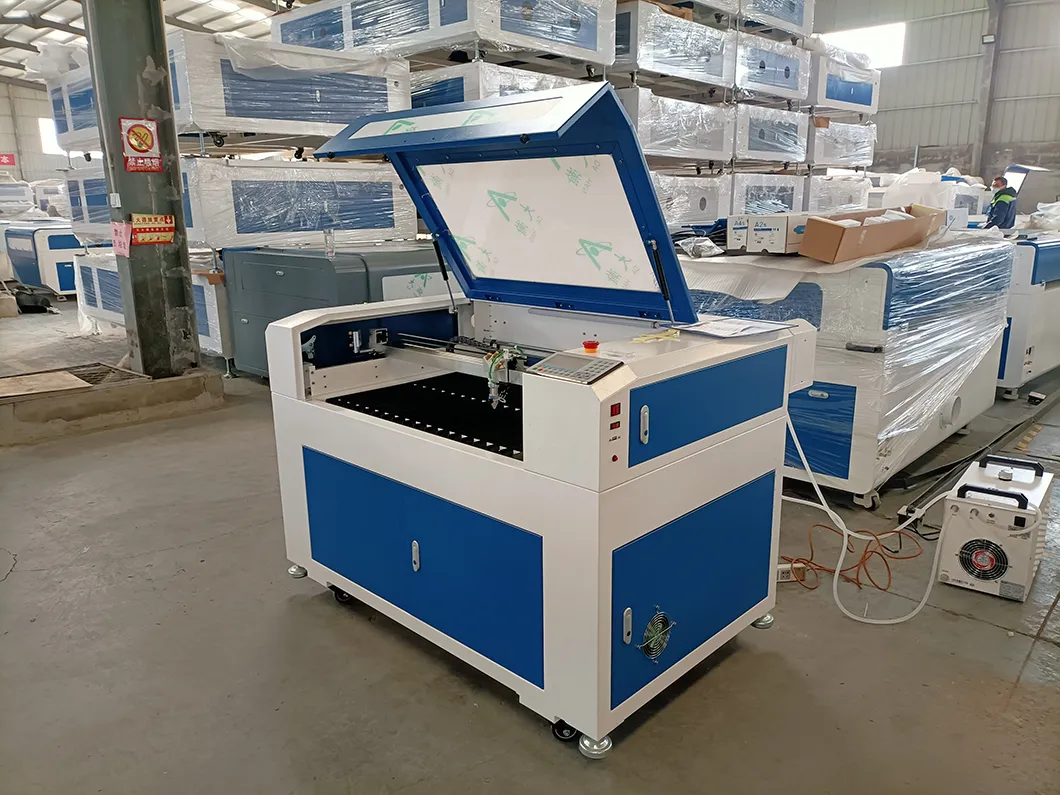

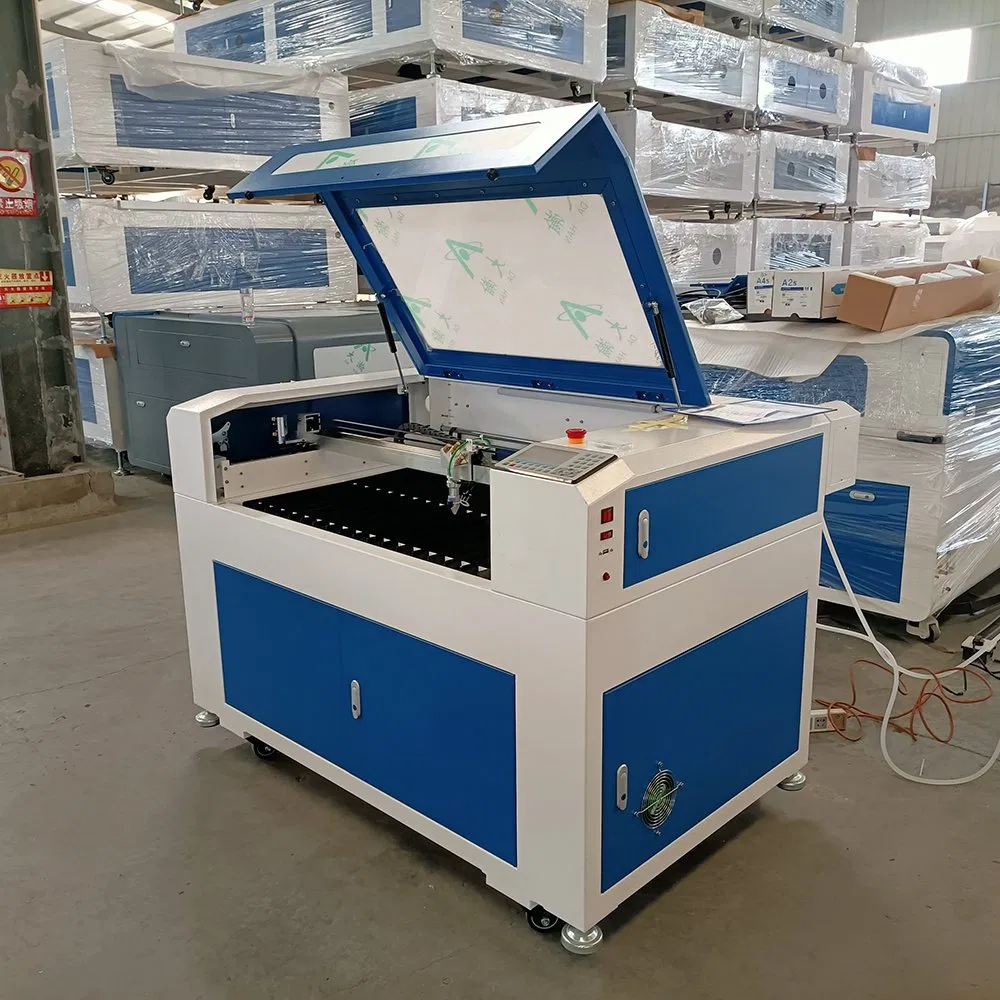

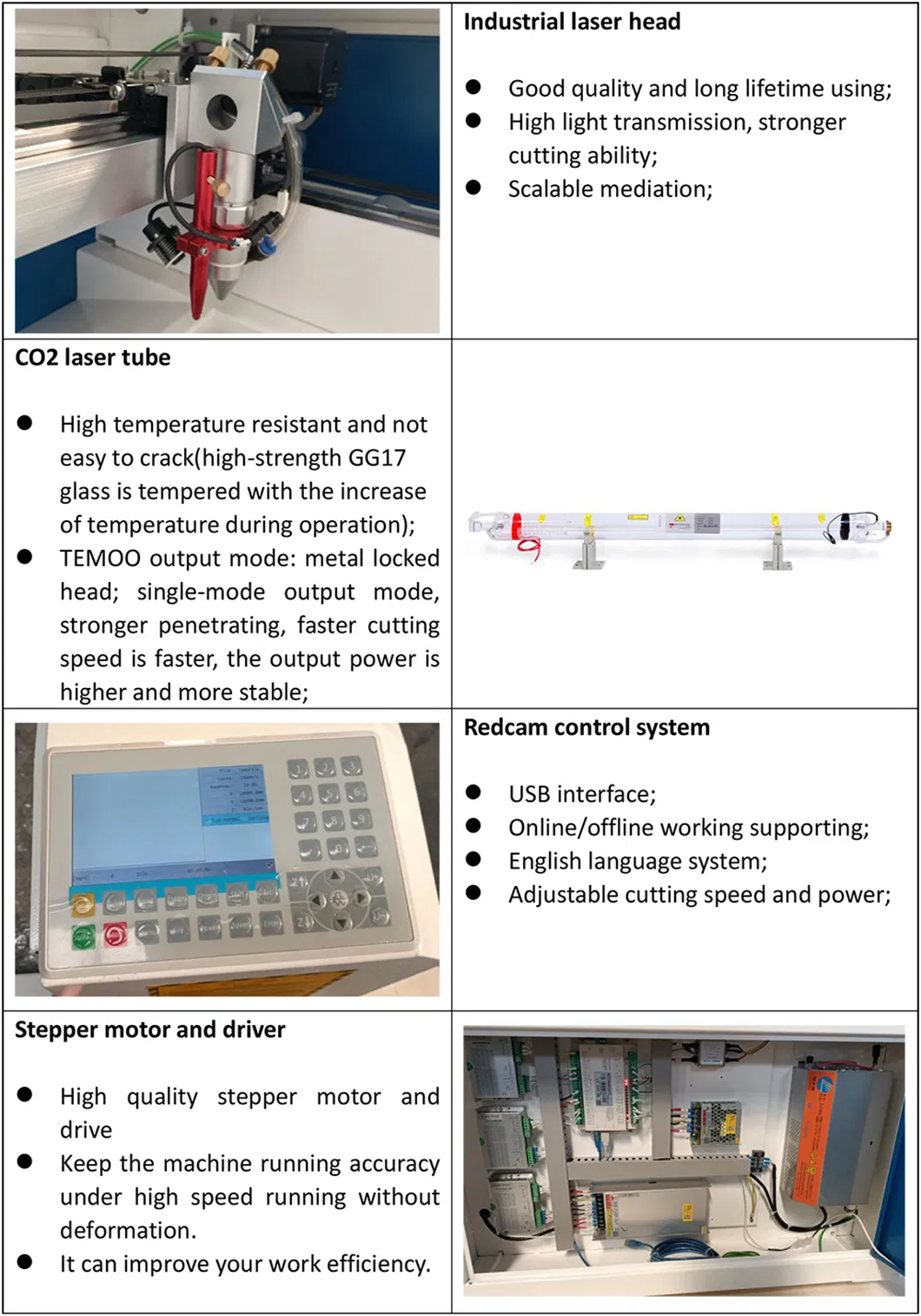

📸 Detailed Machine Photos
🎯 Applications & Materials
This CO2 Laser machine is widely used across Advertising, Arts & Crafts, Leather Goods, Toys, Garments, and Packaging industries.
| Materials |
Cut |
Engrave |
| Acrylic/ Plexiglass/ PMMA/ Persperx | √ | √ |
| Organic board/ Double color board/ ABS | √ | √ |
| Wood/Plywood/Veneer/MDF/Balsa | √ | √ |
| Leather/ PU/ Shoe materials/ Genuine leather | √ | √ |
| Fabric/ Cloth/ Textile/ Jean | √ | √ |
| Carpet/ Mat/ Rug/ Wool felt/ Nylon | √ | √ |
| Paper/ Cardboard/ Press board | √ | √ |
| Ceramic/ Tile/ Marble/ Glass | | √ |
| Plastic/ PVC | √ | √ |
| Fiber glass/ Filter cloth | √ | |

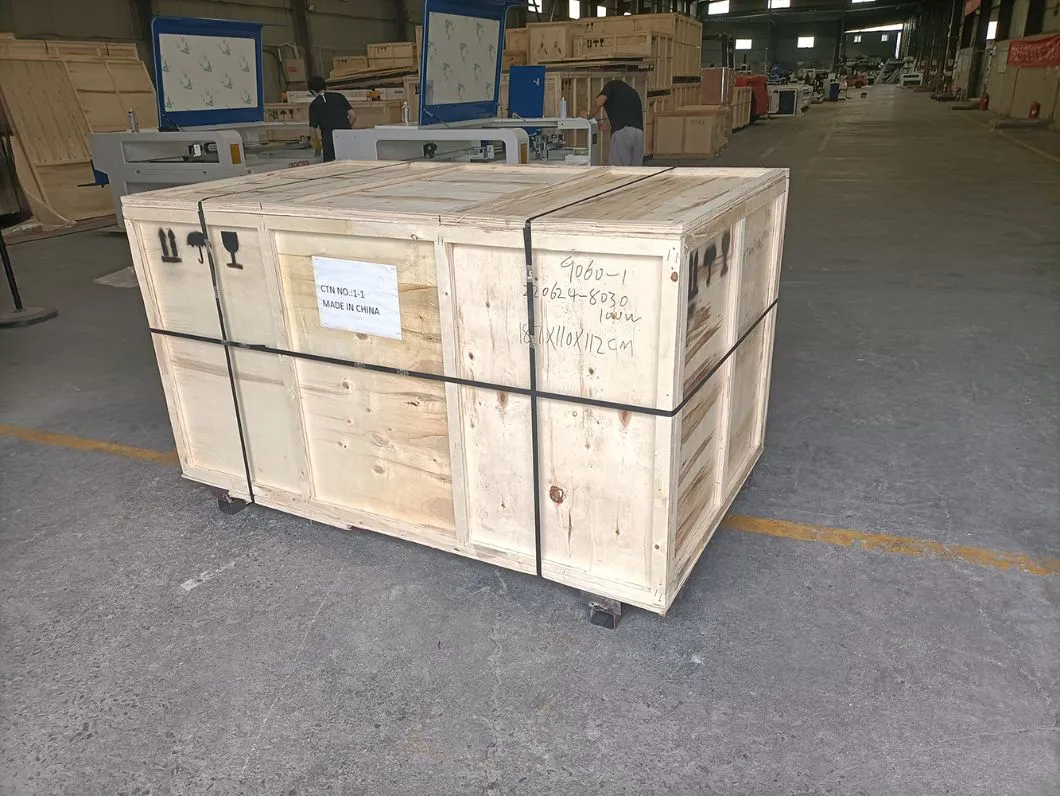

📦 Package and Delivery
- Anti-Collision Protection: Pearl wool protection for all parts.
- Full Film Wrapping: Protects against dust and moisture.
- Fumigated Wooden Box: Meets international shipping standards.
- Reinforced Base: Solid iron socket for stable handling.

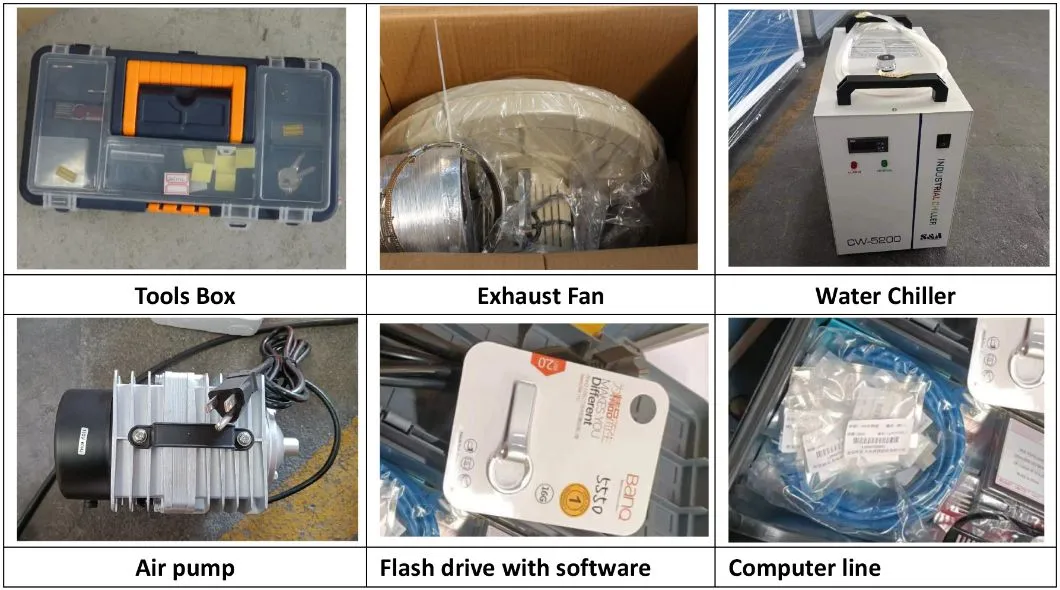

📋 Packing List
- Complete Machine Unit
- Laser Tube
- Exhaust Fan with Pipe
- Water Chiller
- Air Pump
- Toolbox with Essential Tools
- Flash Drive with Software
- Machine Manual
- Focus Ruler
- Power Cable
- Computer Connection Cable
- Additional Accessories & Tapes
🛡️ Warranty and After-Sales Service
- 2-Year Warranty: Covers the entire machine and laser source (non-human error).
- Online After-Sales Support: Available Monday to Sunday, 9 AM to 10 PM.
- Lifetime Maintenance: Services available even after the warranty expires.
- Software Support: Includes free hardware and software upgrades.
- Door-to-Door Service: Local personalized support options available.
⭐ Customer Feedback & Certifications
📝 Order Information
- Lead Time: 3-5 days for stock items; 7-30 days for custom orders.
- MOQ: 1 piece (standard orders).
- Tax Information: Lower value declaration available upon request.
- Samples: Free samples available upon contact.
❓ Frequently Asked Questions
What materials can this 6090 laser cutter process?
The machine is ideal for cutting and engraving non-metal materials such as acrylic, wood, leather, fabric, paper, and plastic. It can also engrave on ceramic, tile, and glass.
What is the lifespan of the laser tube?
The lifespan of the laser tube typically ranges from 6 months to 1 year, depending on the intensity and frequency of usage.
Does the machine come with a warranty?
Yes, we provide a comprehensive 2-year warranty on the entire machine and the laser source, covering any defects not caused by human error.
What software is compatible with this laser cutter?
The machine supports popular design software including CorelDraw, Adobe Photoshop, and AutoCAD, and handles formats like PLT, DXF, BMP, and AI.
Is technical support available after purchase?
Absolutely. We offer lifetime technical support and online after-sales assistance via WhatsApp, Skype, and WeChat from Monday to Sunday.
How is the machine protected during shipping?
The machine undergoes a rigorous multi-stage packing process including pearl wool anti-collision protection, full film wrapping, and is secured in a fumigated wooden crate.
