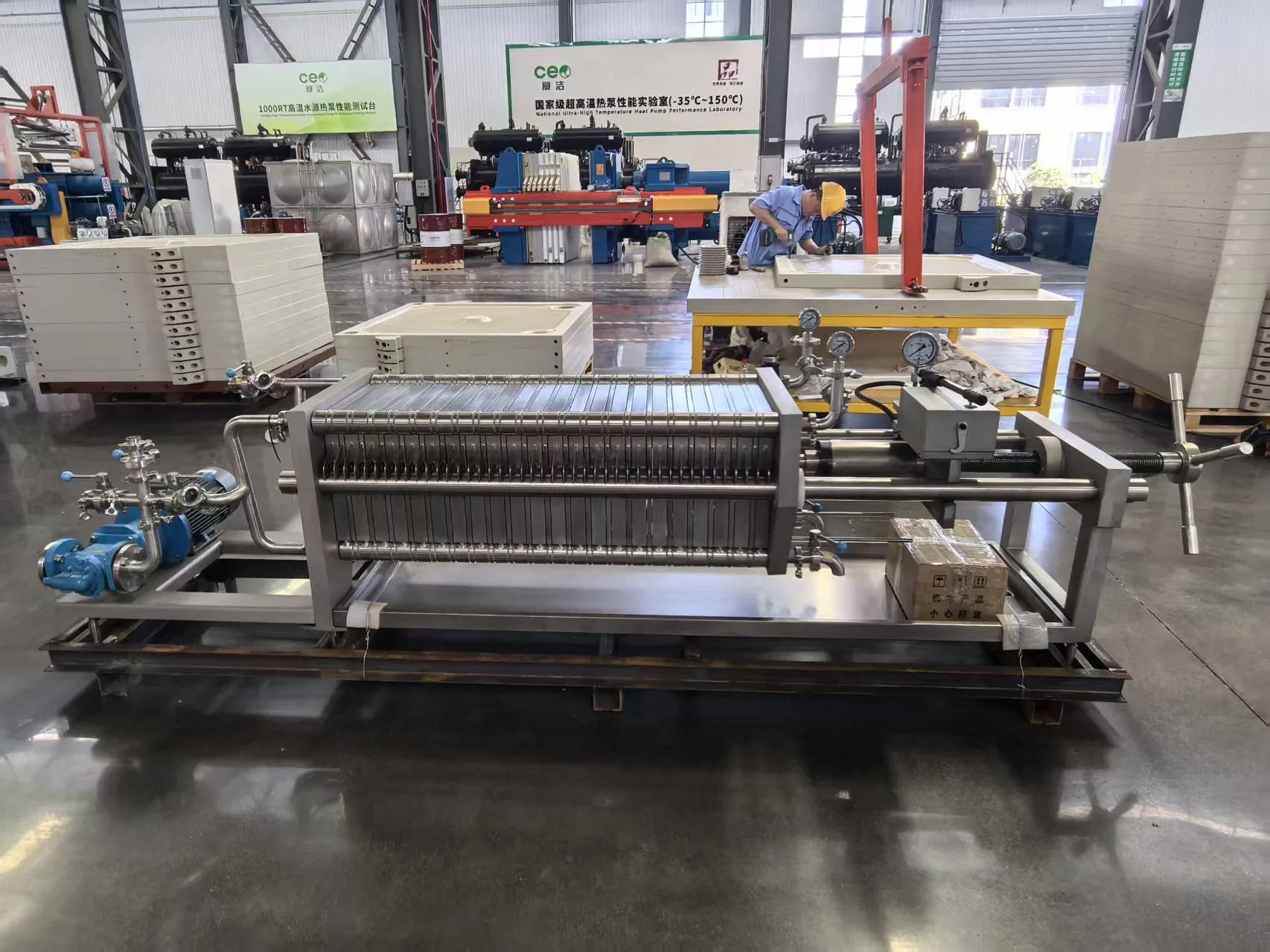

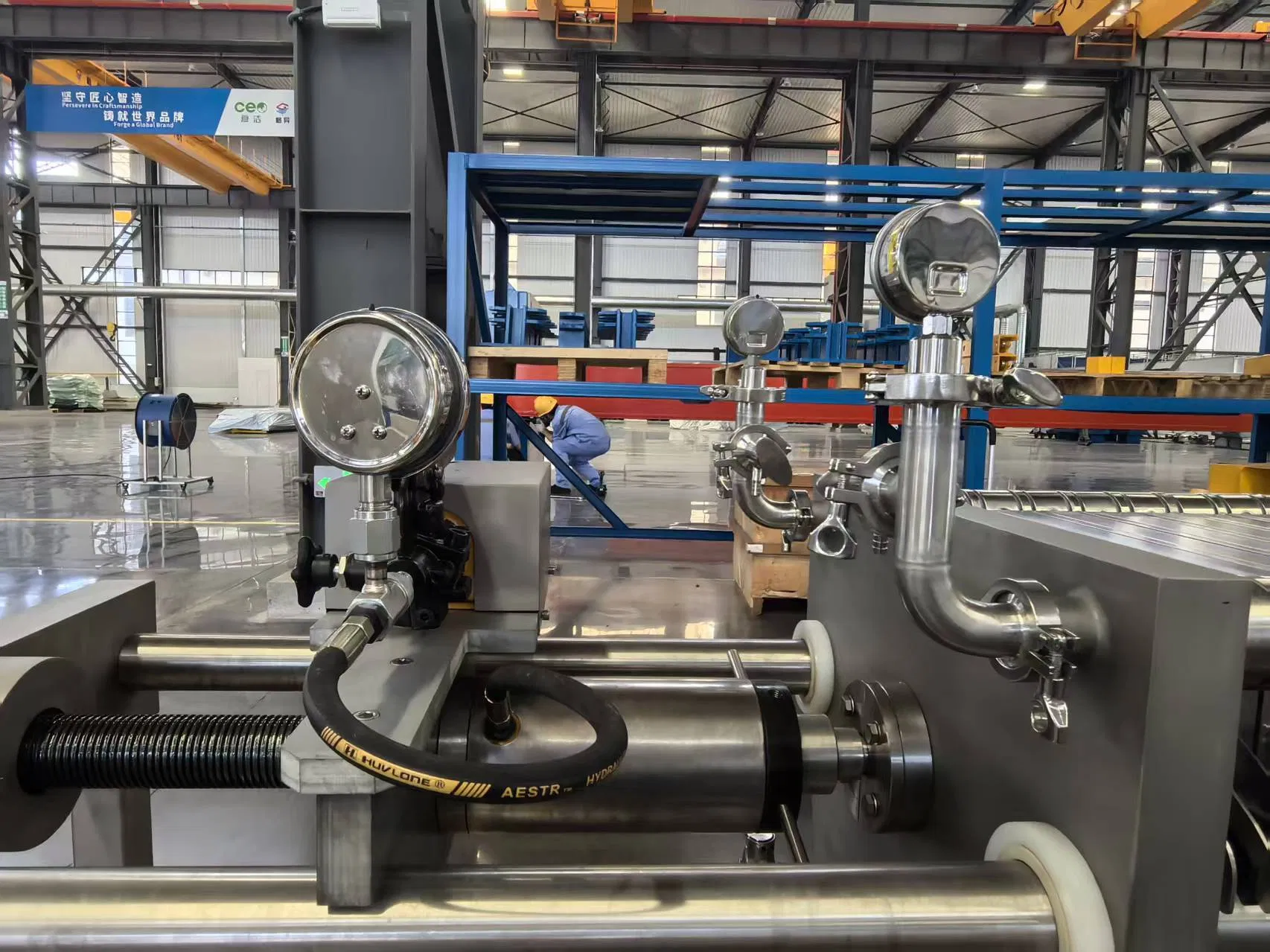

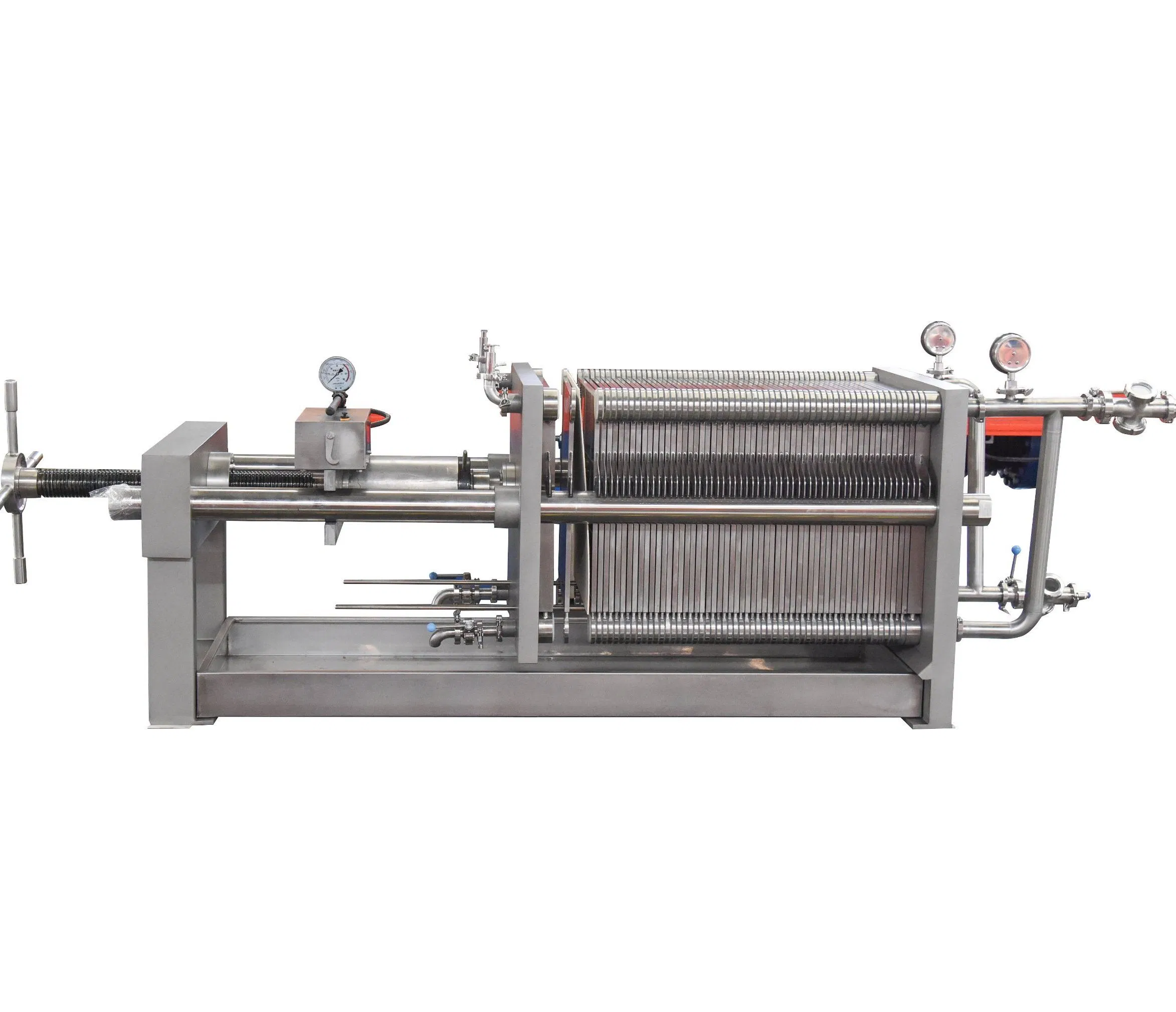

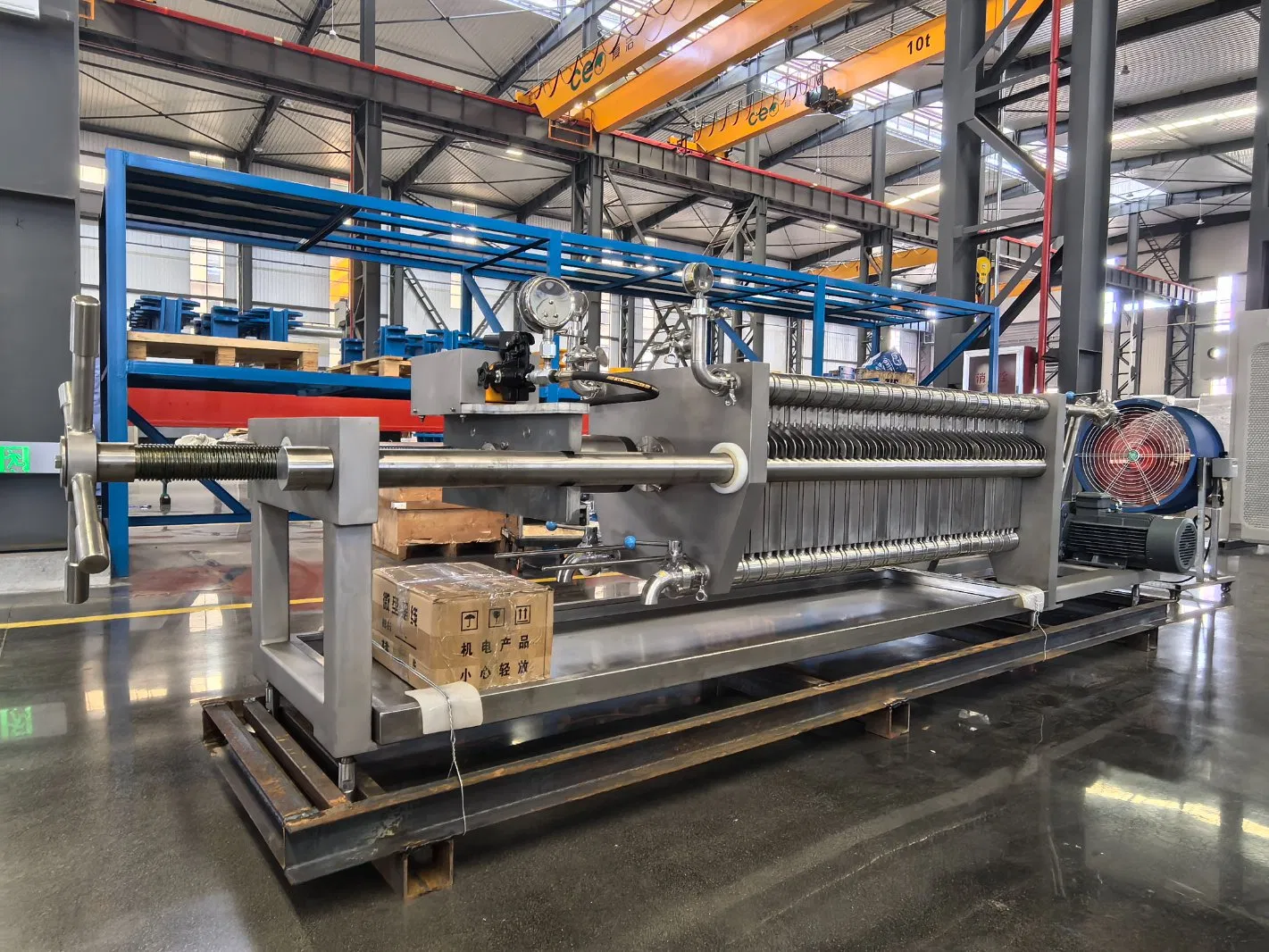

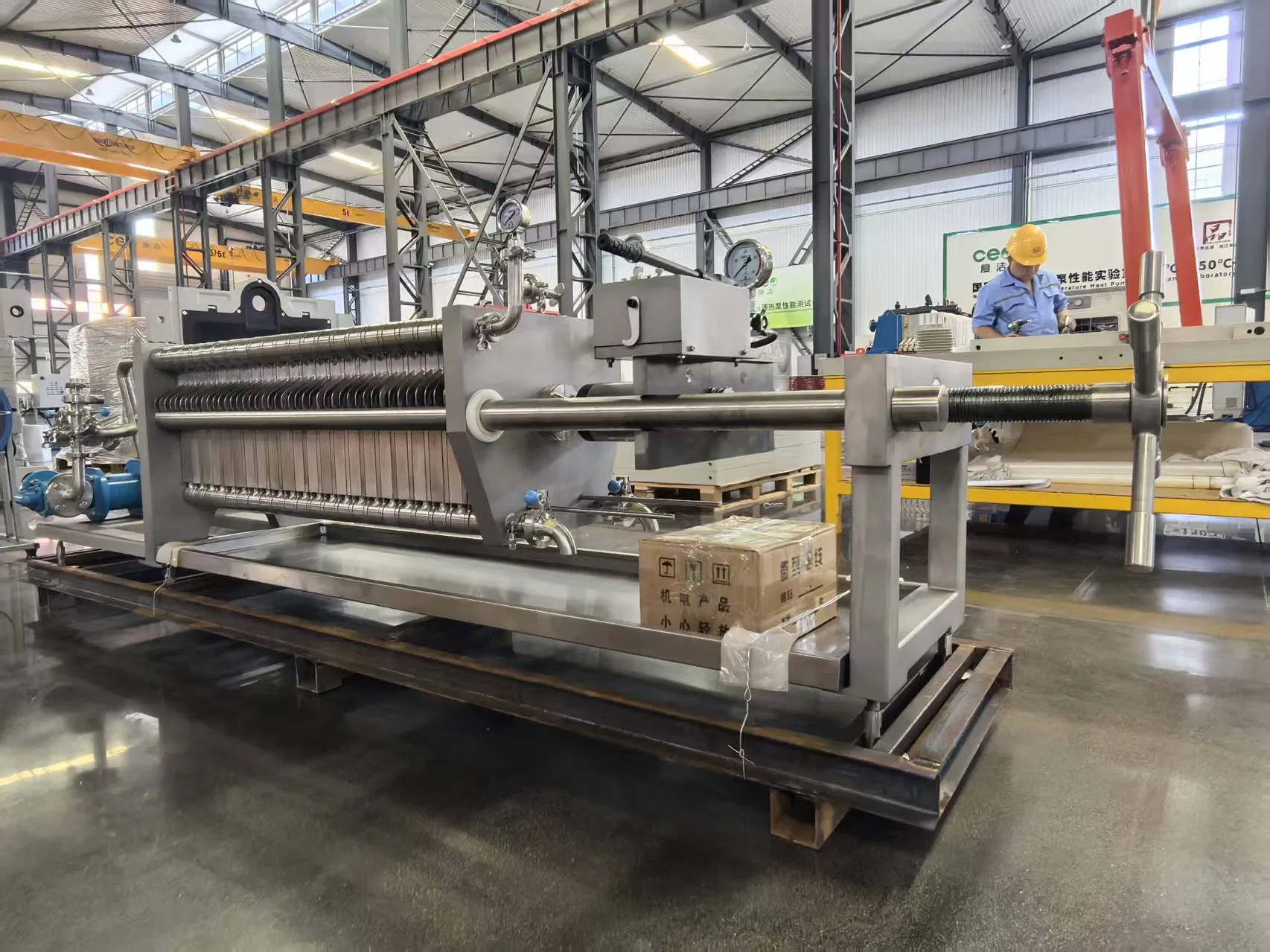

Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
1 / 5
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil

Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Honey and Palm Oil

Customization: Available
Structure: Cantilever Beam Type
Filter Material: PP/ Rubber
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
FJ-SS001
Pressure
Lifting Jack & Manual/Auto Hydraulic
Type
Chamber Filter Press
Cake Thickness
25/30 mm
Filtration Area
0.16-80m²
Chamber Volume
0.02-1.17m³
Filter Pressure
0.5-2.5MPa
Motor Power
15-26kw
📄 Product Description
The filter plate of a box type filter press can be understood as a combination of a plate and a frame. Both sides of each box type plate have recesses. There is a large feeding hole in the middle of the plate, which allows faster and more uniform feeding with less clogging. It can also reach higher feed pressure, making it suitable for applications with high feed volume or pressure.

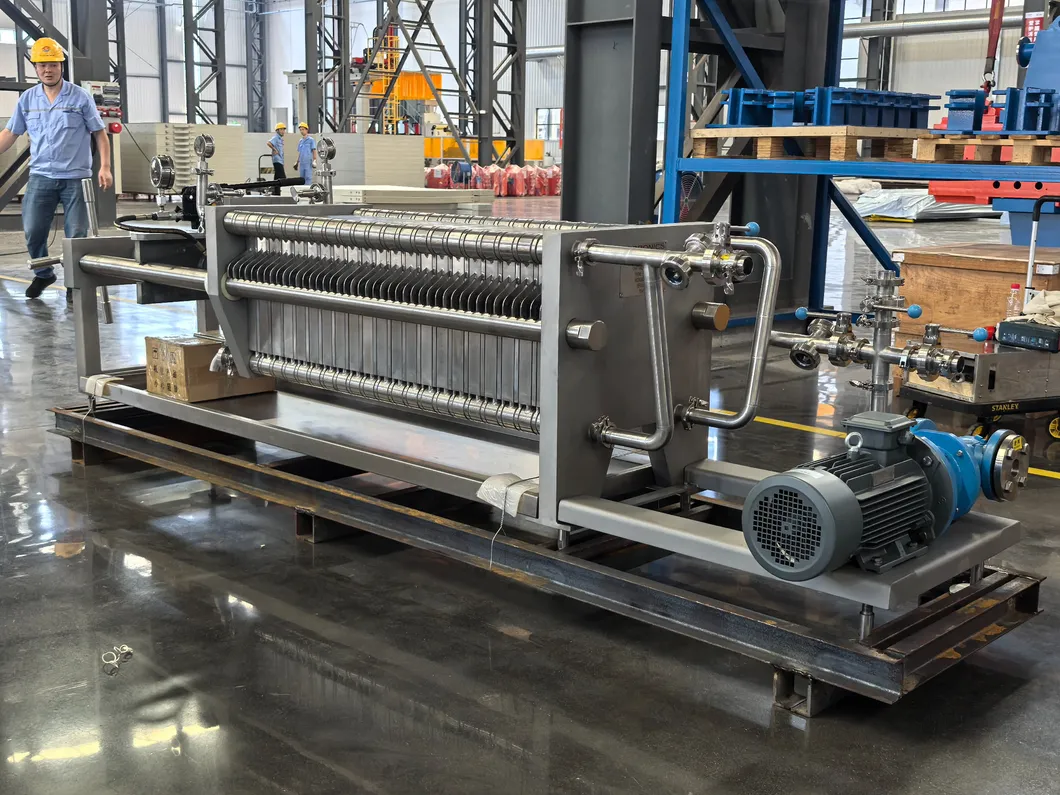

Automatic Hydraulic Chamber Plate Filter Press

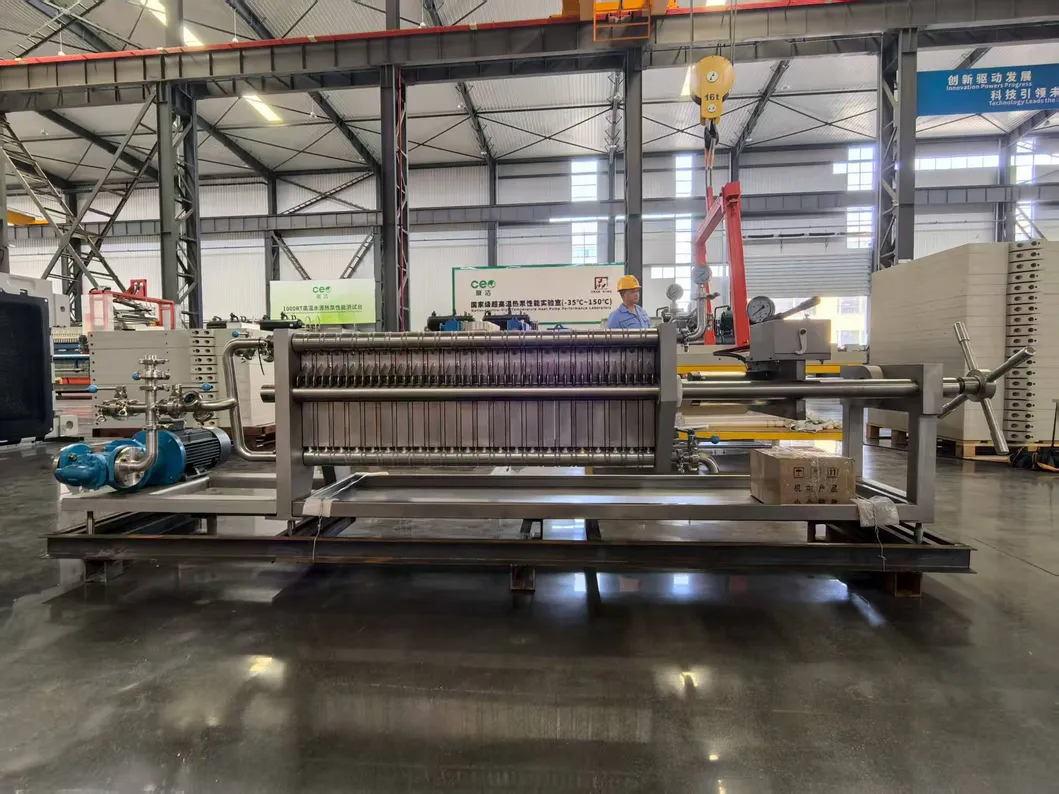

Chamber Plate Filter Press Details
⚙️ Parts & Assembling

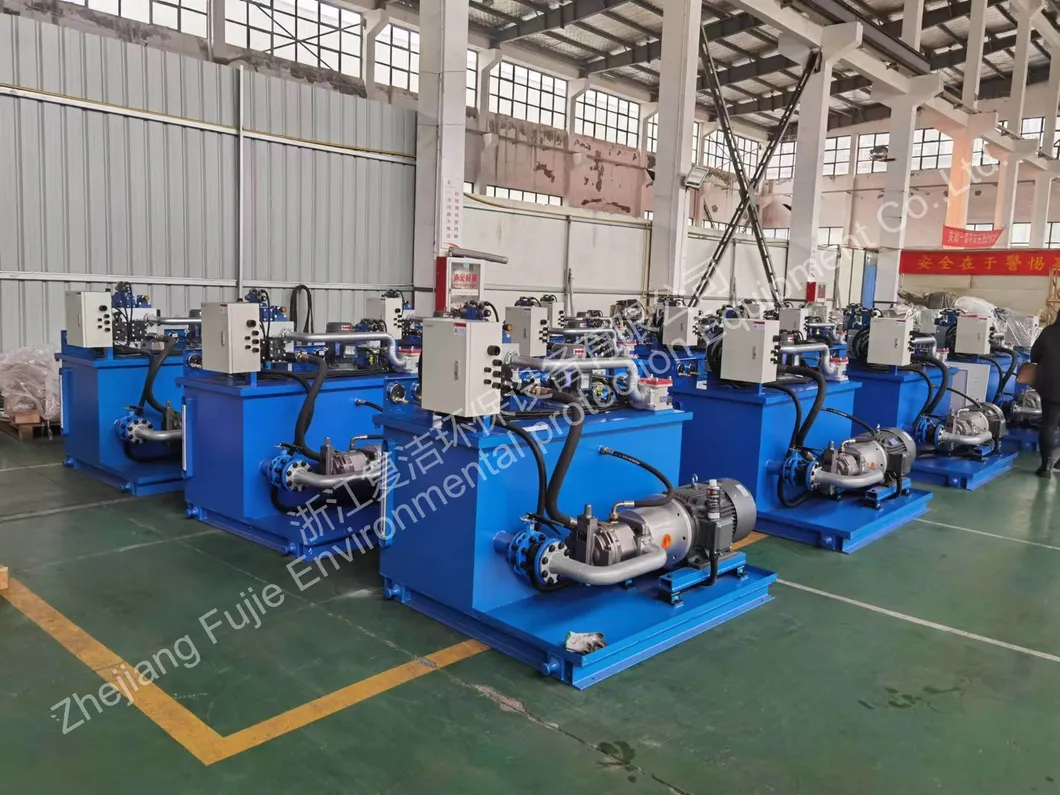

Parts 1

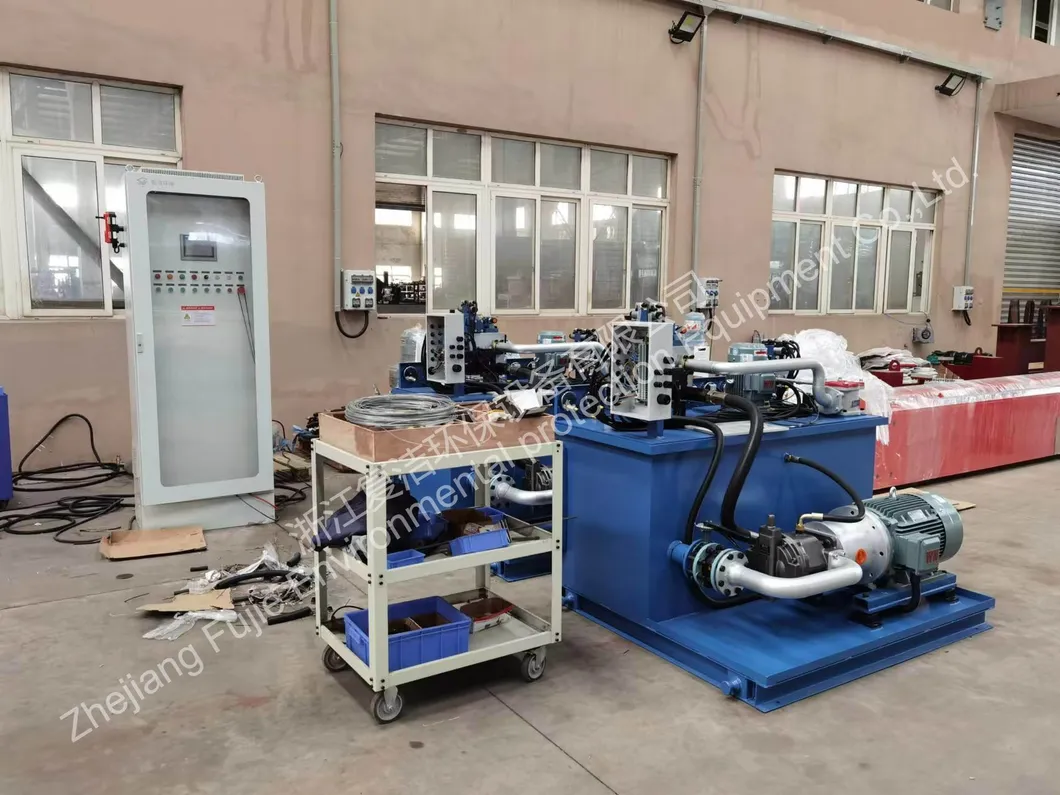

Parts 2

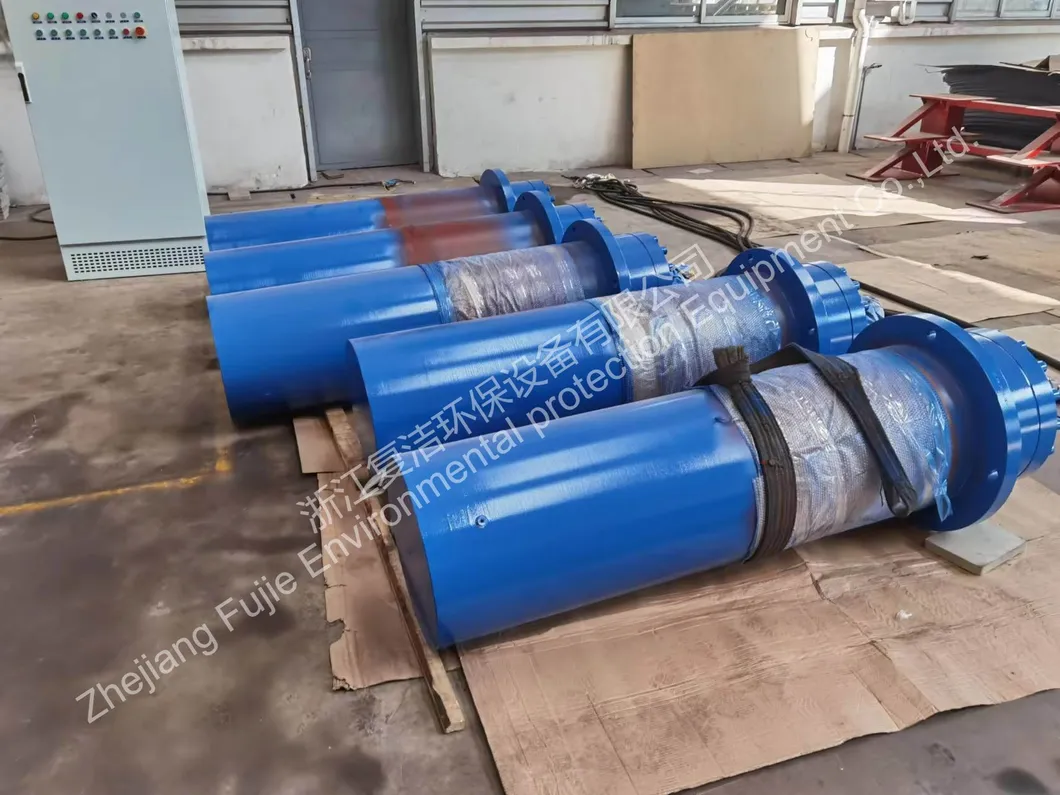

Parts 3

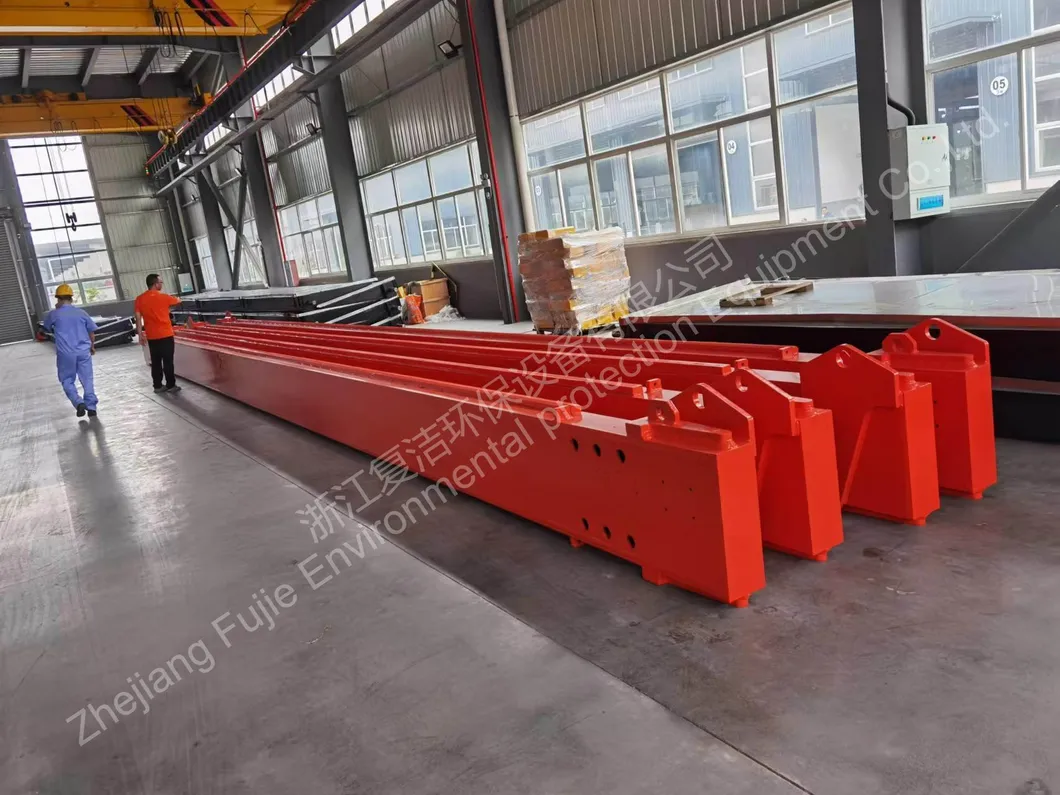

Parts 4

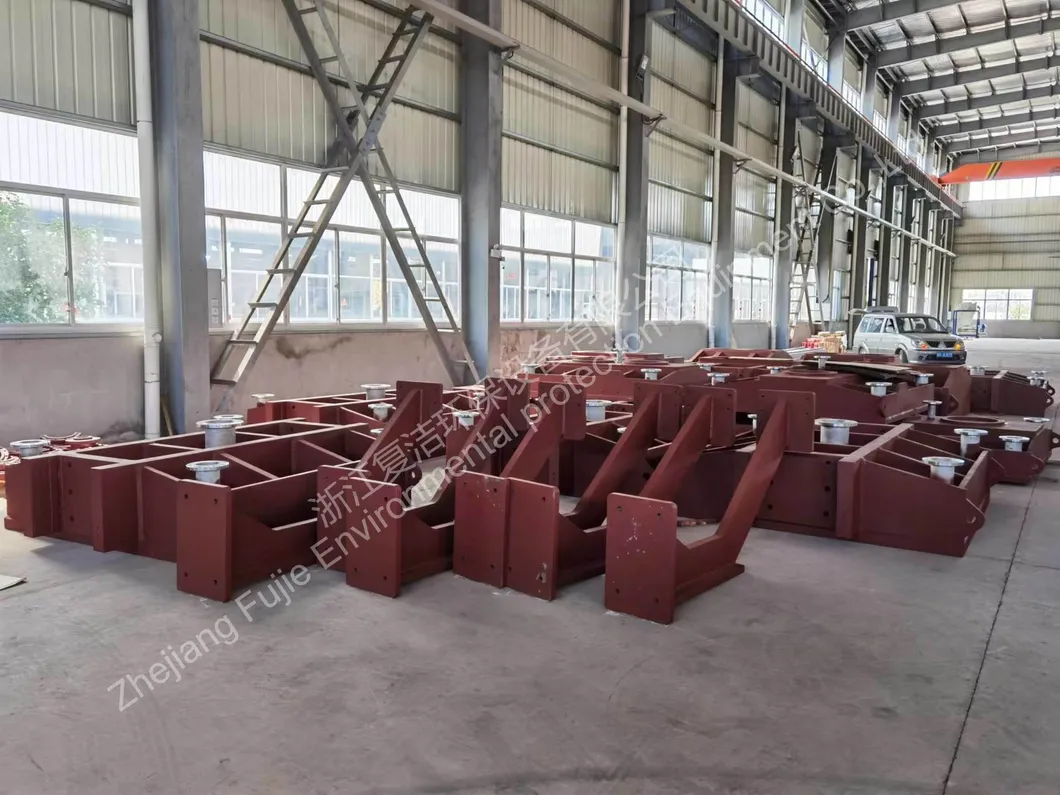

Parts 5

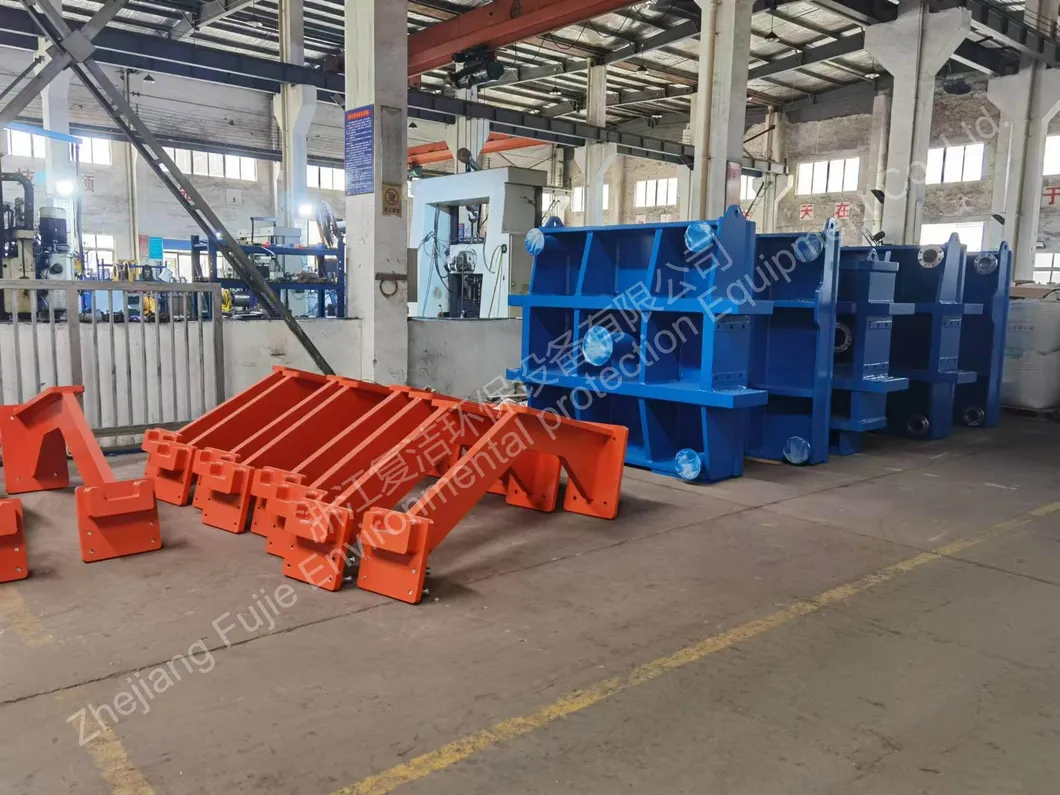

Parts 6
🌟 Key Features
  • Various models for selection, ranging from filter area and pressure to plate size.
  • Multiple options for processing capacity and pressure; automatic hydraulic system adopts high-quality motors for long service life.
  • Plenty of automation configurations optional for specific industrial needs.
  • Full automation capabilities: automatic cloth washing, plate-pulling, and reverse turning plate.
  • Refined design with years of market validation ensuring stable performance and safety.
🏗️ Project Cases

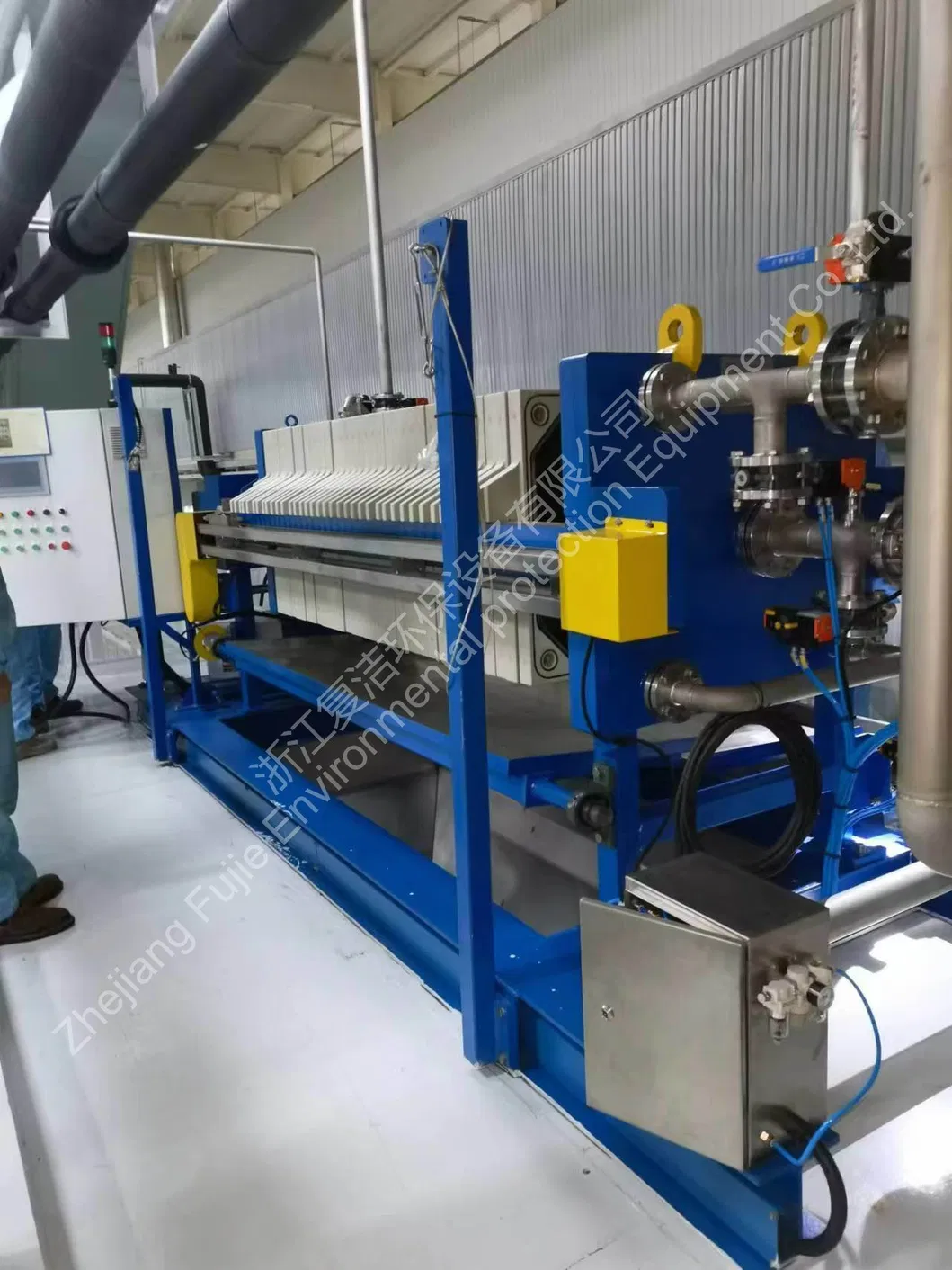

Project Case 1

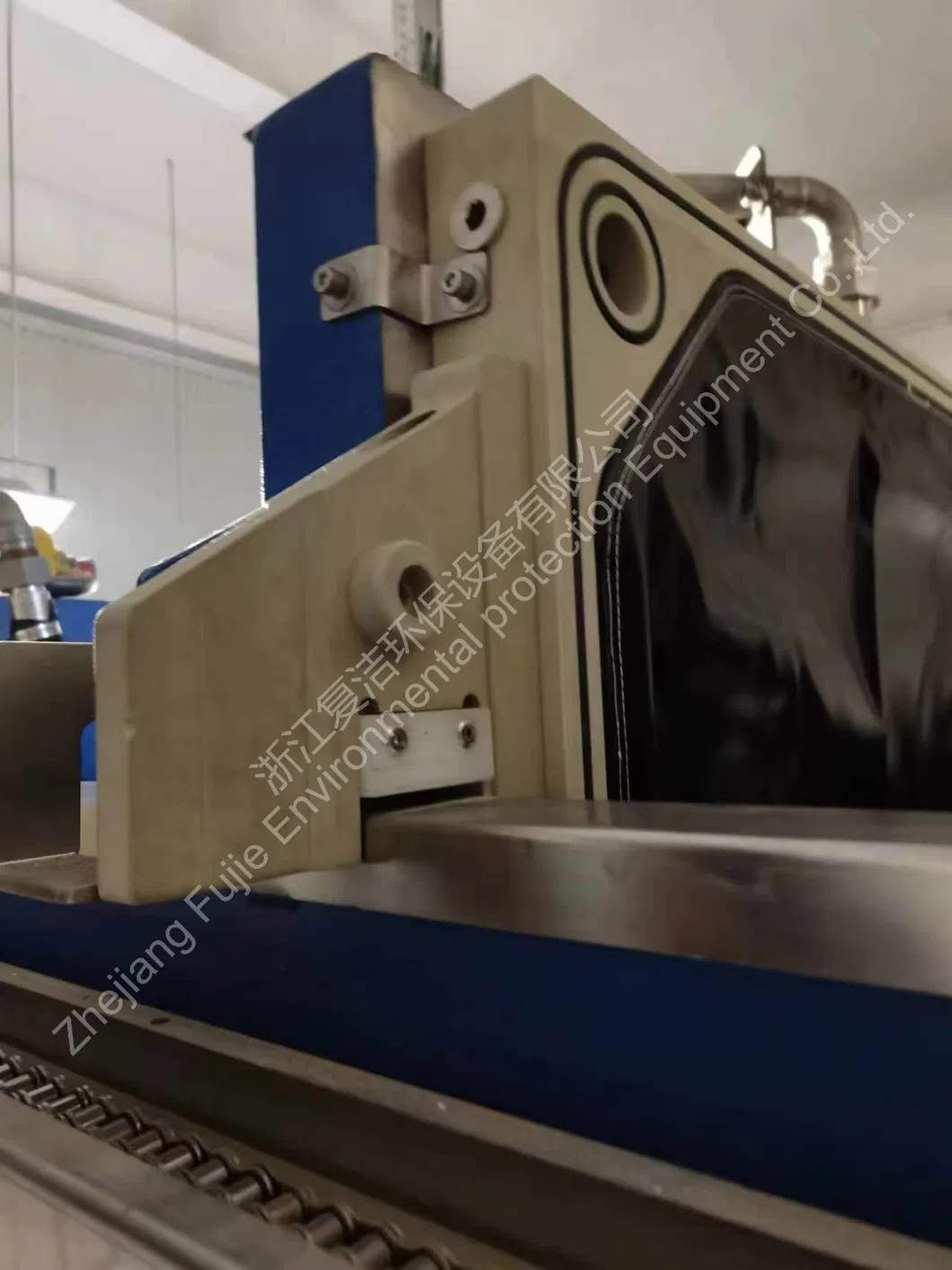

Project Case 2
Industrial Coverage
Facility Covers Over 2000 m²
📊 Technical Specifications
Model Filtration Pressure (Mpa) Filter Area (m²) Feeding Method Cake Thickness (mm) Chamber Volume (m³) Plate QTY Pressure Type Cylinder Diameter (mm)
X2500.5 - 2.00.16-0.6Center feed25--Manual hydraulic125
X4000.5 - 1.61.0-5.0Center feed250.016-0.735-27Lifting jack125
X4701.01.0-5.0Center feed25, (30)0.015-0.0673-17Auto hydraulic125
X8001.05 - 80Center/Upper(25), 300.058-1.1653-79Manual/Auto200
X10001.040-100Center/Upper(25), 300.058-1.1653-79Electro hydraulic250
X15001.0200-500Center feed(25), 30--Auto hydraulic380
📦 Packing & Shipping

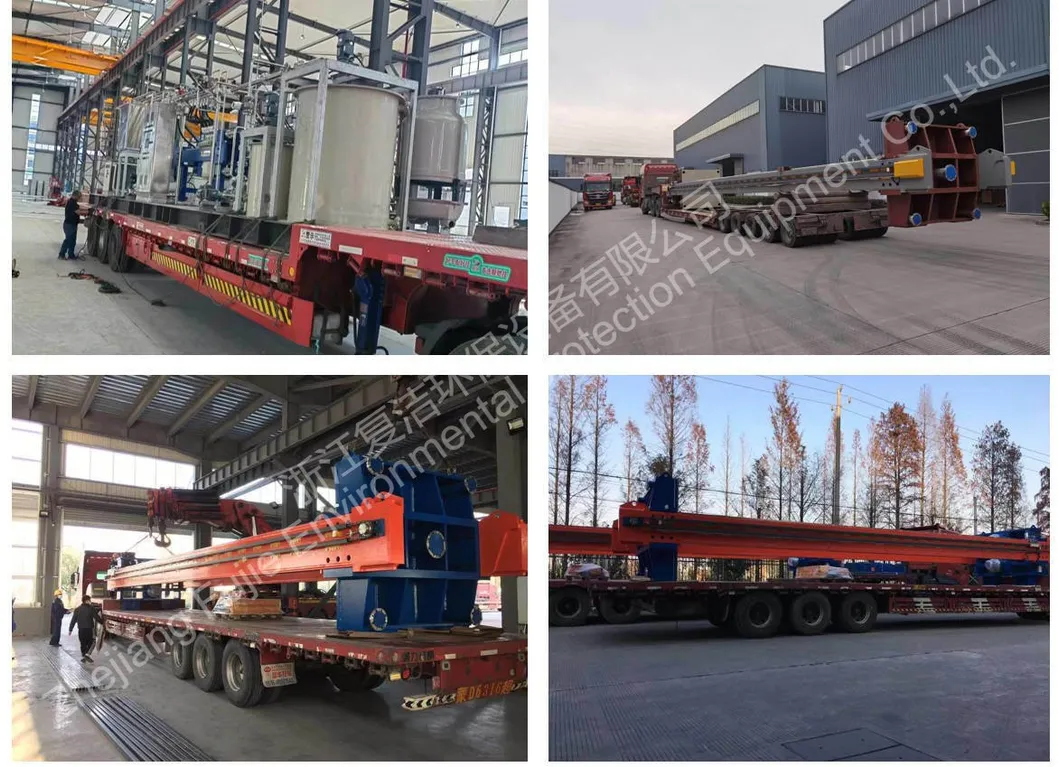

Packaging
Package Type
Wooden Case (Seaworthy Package)
Package Size
3000.00cm * 1000.00cm * 1200.00cm
Gross Weight
2000.000kg
🛠️ Professional Service
Pre-sale Service:
1. Inquiry response within 12 hours.
2. Professional assistance in selecting the suitable model.
3. Custom design according to specific requirements.

After-sale Service:
1. 12-month warranty period with lifetime technical support.
2. Engineering services available for overseas machinery maintenance.
🏭 Manufacturing Capability
Equipped with 60000KN, 80000KN, and 120000KN ultra-large injection and pressure equipment. Featuring the largest tonnage of oil pressure machines in the industry and multiple three-axis and five-axis machining centers.

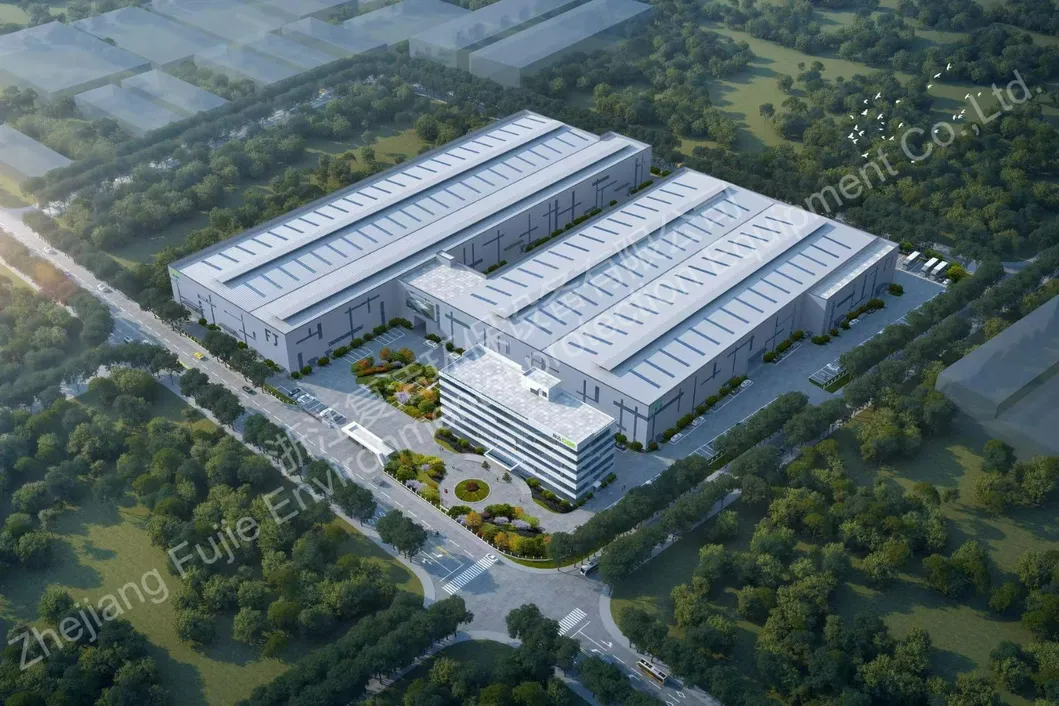

Factory Interior

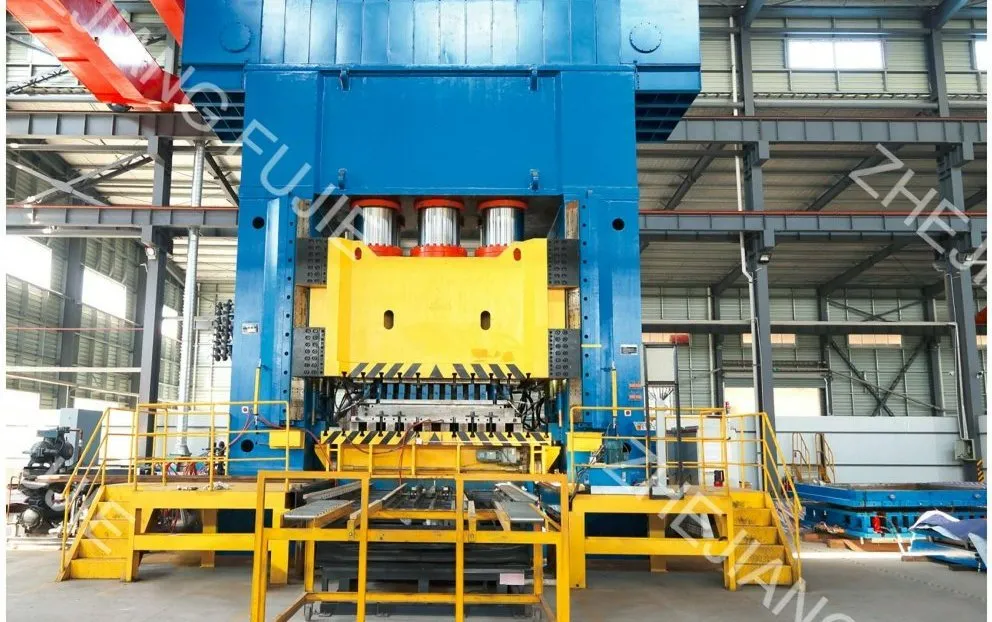

Machining Center
❓ Frequently Asked Questions
Q: Can you provide detailed drawings?
A: Yes, we can provide detailed technical drawings after the prepayment has been made.
Q: Are you a manufacturer or a trader?
A: We are a professional and experienced manufacturer with a factory covering over 20,000m².
Q: Can you accept OEM orders?
A: Yes, we can produce machinery strictly according to your specific design standards and requirements.
Q: What is the typical delivery time?
A: Normally, delivery takes 10-20 working days after prepayment. We strive to deliver as quickly as possible.
Q: What kind of export packaging do you use?
A: We use anti-corrosion wooden cases with internal foam protection to ensure safe sea freight.
Q: What payment methods do you accept?
A: We accept T/T, L/C, Western Union, and MoneyGram.
