Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
1 / 5
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press
Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press

Fully Automatic Sludge Dewatering Machine Better Than Belt Filter Press

Customization: Available
After-sales Service: Engineers Available for Technology Assistence
Warranty: 12 Months
Send Inquiry

Product Description

Industrial Effluent Wastewater Treatment Sludge Dewatering Environmental Services Screw Press Dehydrator Machine
Suitable for sewage treatment plants, water treatment systems, and industrial water purification facilities.
Basic Info.
Model NO. PJXDL
Type Screw Press Sludge Dewatering
Method Physical Treatment
Usage Industrial, Agriculture, Hospital, Sludge & Sewage Treatment
Inlet Sludge Solid Content 98% - 99.75%
Outlet Cake Moisture Content 75% - 85%
Motor Sew / Nord / Customized
Electrical Component Schneider / Omron / Customized
Protection Level IP55f
Material SS304 / SS316
Logistics & Capacity
Delivery Time Normally 35 Days Against Down Payment
Transport Package Wooden Case
Specification According to Customer's Requirements
Trademark PJEP
Origin China
HS Code 8421191000
Production Capacity 3000 Sets / Year
Package Size 2200.00cm * 1500.00cm * 2000.00cm
Package Gross Weight 1200.00kg

Working Principle

The main body of the press filter sludge dewatering machine consists of multiple fixed annular plates and moveable annular plates with a running screw shaft. The front portion functions as the concentration section and the trailing portion acts as the dewatering section, allowing the machine to concentrate and dewater sludge in a unified chamber.
Sludge is transported to the dewatering section after being thickened in the thickening chamber. During the advancing process, continuous pressure is produced due to the gradually decreasing filter spacing and screw pitch with the block of the back platen. Consequently, the volume decreases steadily to achieve high-efficiency dewatering.

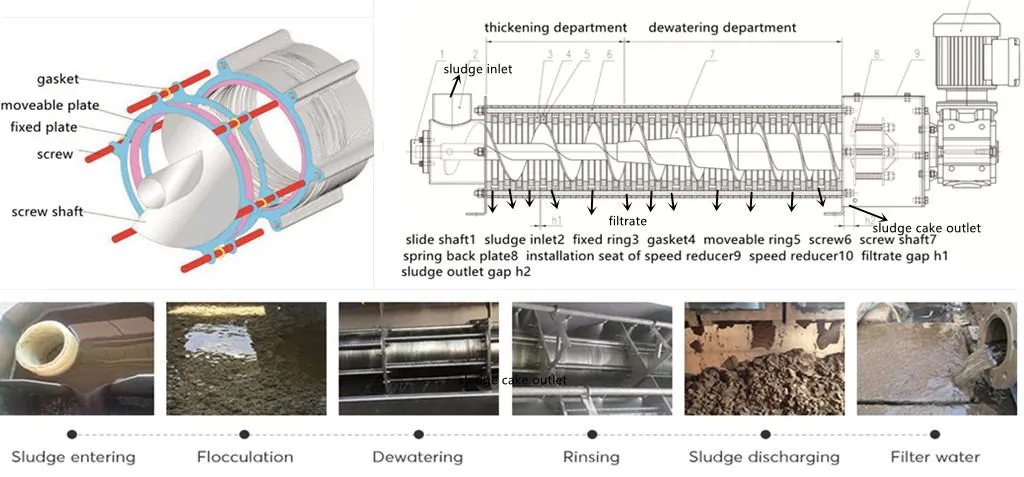

Fully Automatic Sludge Dewatering Machine Working Principle

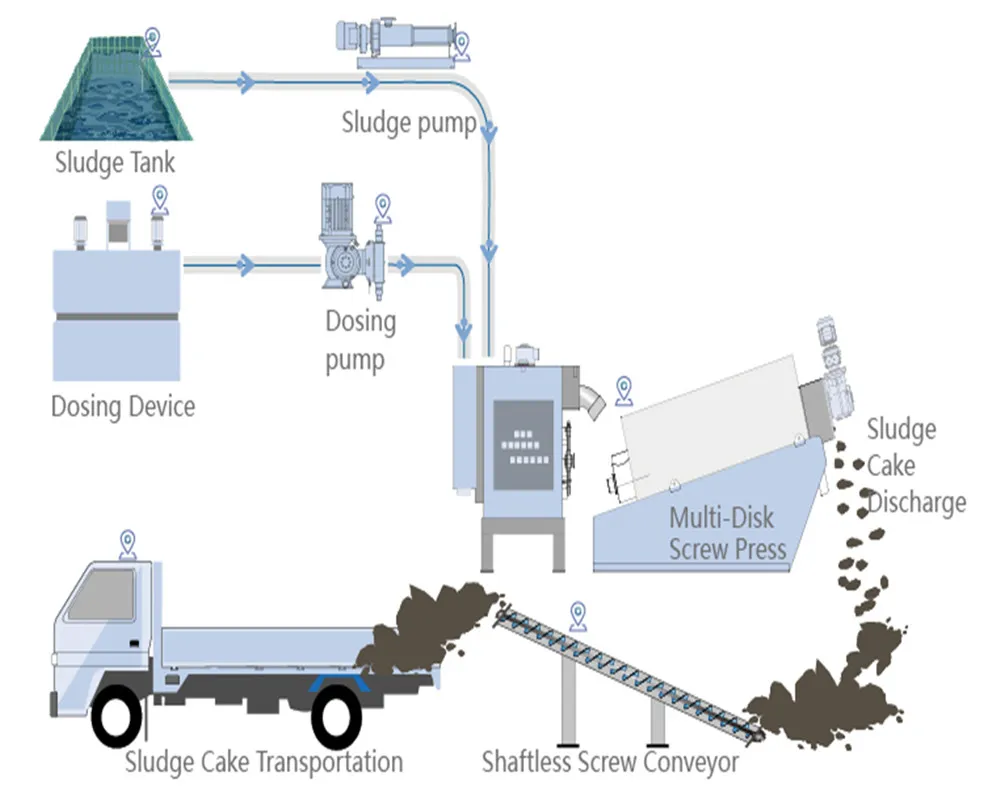

System Flow Chart

Fully Automatic Sludge Dewatering System Flow Chart

Models & Specifications

Model Number DS Handling Capacity (KG/H)
10000mg/L ≤ SS ≤ 20000mg/L		 Outside View

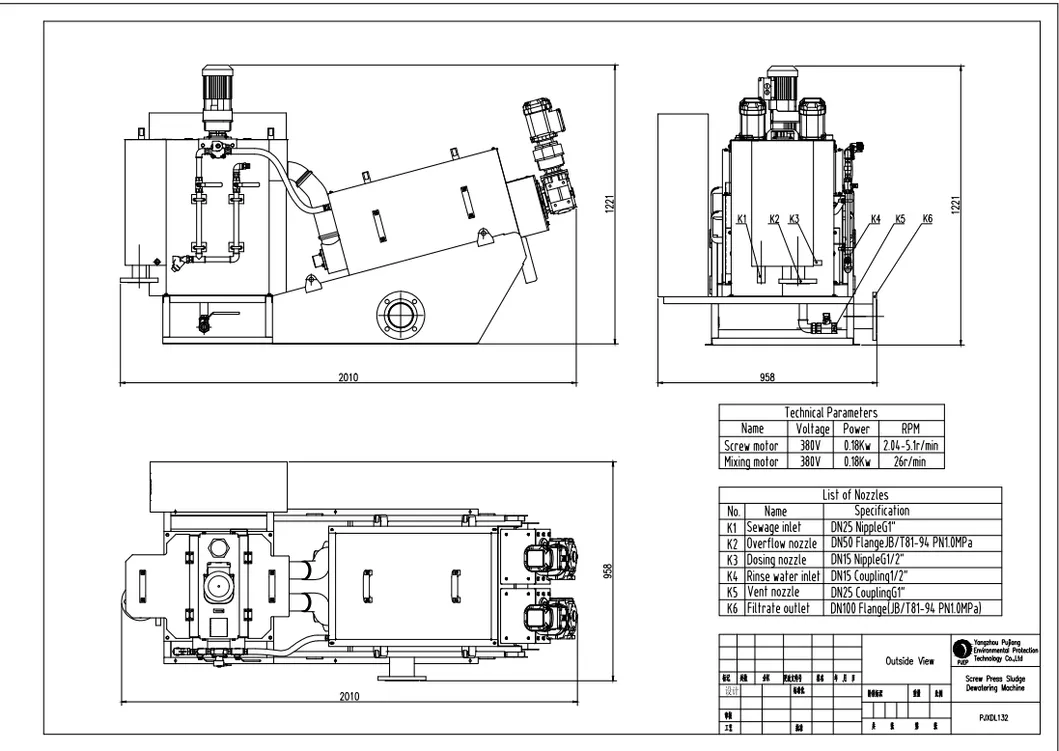

PJXDL131 7-14 PJXDL Series Sludge Dewatering Machine Outside View
PJXDL132 14-28
PJXDL251 15-30
PJXDL252 30-60
PJXDL301 35-70
PJXDL302 70-140
PJXDL303 105-210
PJXDL304 140-280
PJXDL351 60-120
PJXDL352 120-240
PJXDL353 180-360
PJXDL354 240-480
PJXDL401 80-160
PJXDL402 160-320
PJXDL403 240-480
PJXDL404 320-640
Model Number Power of Motor (KW) Cleaning Water Pressure Cleaning Water Consumption (L/h) Daily Maintenance Frequency
Screw Shaft Mixer Total Power
PJXDL131 0.18 × 1 0.18 × 1 0.36 1 - 2 bar 20 10 min / day
PJXDL132 0.18 × 2 0.18 × 1 0.54 40
PJXDL251 0.37 × 1 0.37 × 1 0.74 30
PJXDL252 0.37 × 2 0.37 × 1 1.11 60
PJXDL301 0.75 × 1 0.55 × 1 1.30 45
PJXDL302 0.75 × 2 0.55 × 1 2.05 90
PJXDL303 0.75 × 3 0.75 × 1 3.00 135
PJXDL304 0.75 × 4 0.75 × 1 3.75 180
PJXDL351 1.1 × 1 0.75 × 1 1.85 60
PJXDL352 1.1 × 2 0.75 × 1 2.95 120
PJXDL353 1.1 × 3 1.1 × 1 4.40 180
PJXDL354 1.1 × 4 1.5 × 1 5.90 240
PJXDL401 1.5 × 1 1.5 × 1 3.00 80
PJXDL402 1.5 × 2 1.5 × 1 4.50 160
PJXDL403 1.5 × 3 1.5 × 2 7.50 240
PJXDL404 1.5 × 4 1.5 × 2 9.00 320

Advantages of Our Products

  • Low Energy Consumption: Promotes high efficiency with minimal power requirement.
  • Minimal Water Consumption: Built-in self-cleaning structure requires very little wash water.
  • Minimal Operational Noise: Operates smoothly and silently.
  • Low Polymer Consumption: Saves on chemical chemical treatment costs.
  • Integrated Thickening: No standalone sludge thickening unit required.
  • Versatility: Ideal for all sludge types, including oily and grease-rich sludge.
  • Cost-Effective: Engineered for minimal maintenance and operational costs.
  • Continuous Run: Highly stable components capable of 24/7 automatic running.

Manufacturing & Logistics Showcase

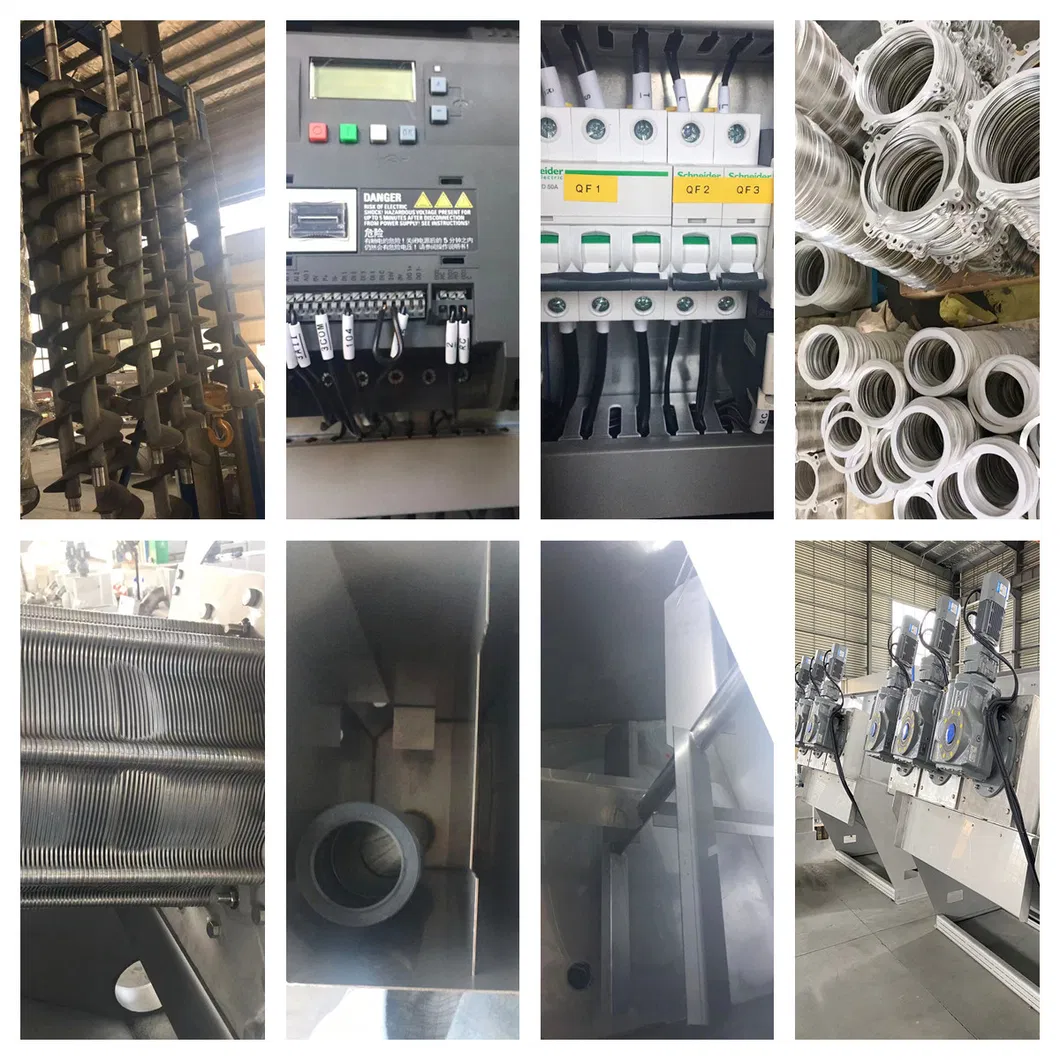

Detailed Screw Press Structure Photo
Detailed Design

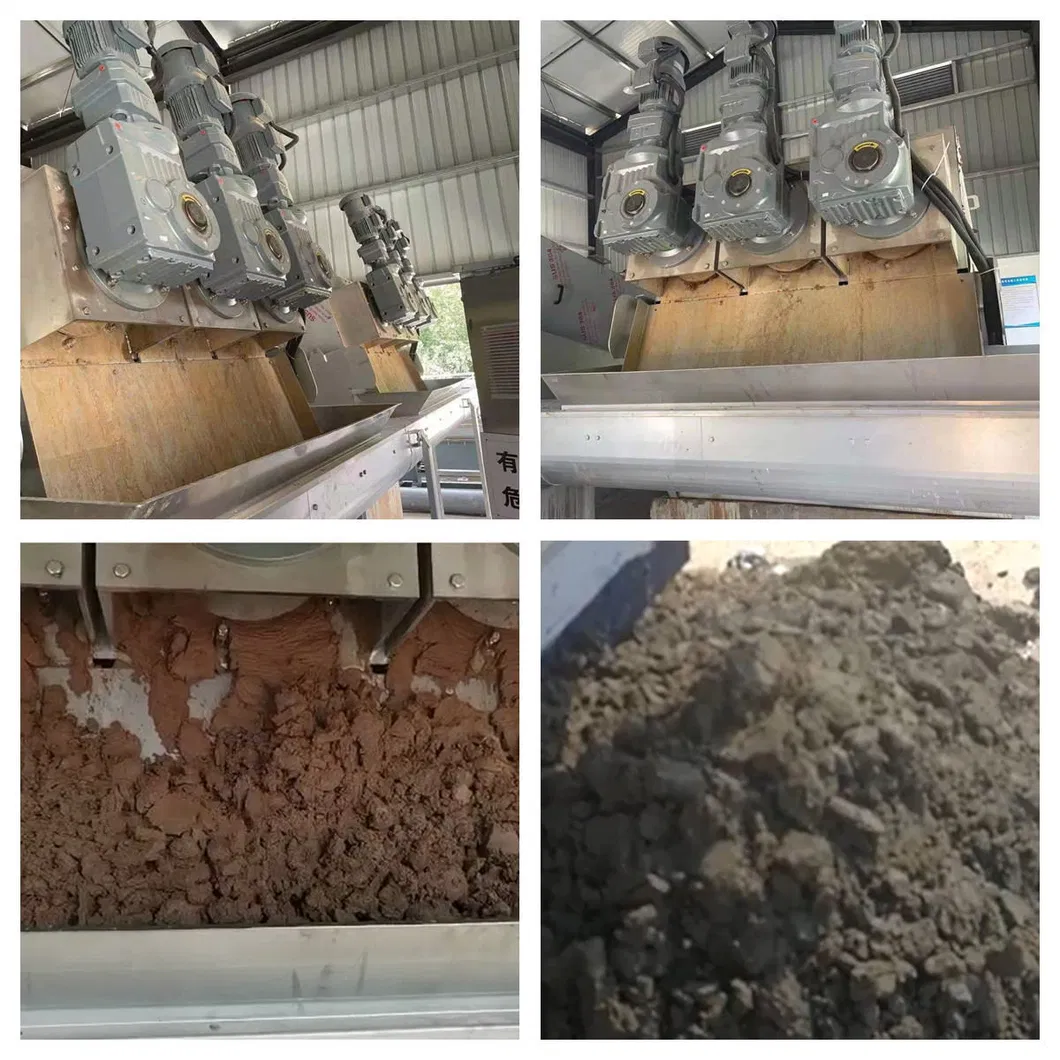

Screw Press Sludge Dewatering Production Site
Production Site

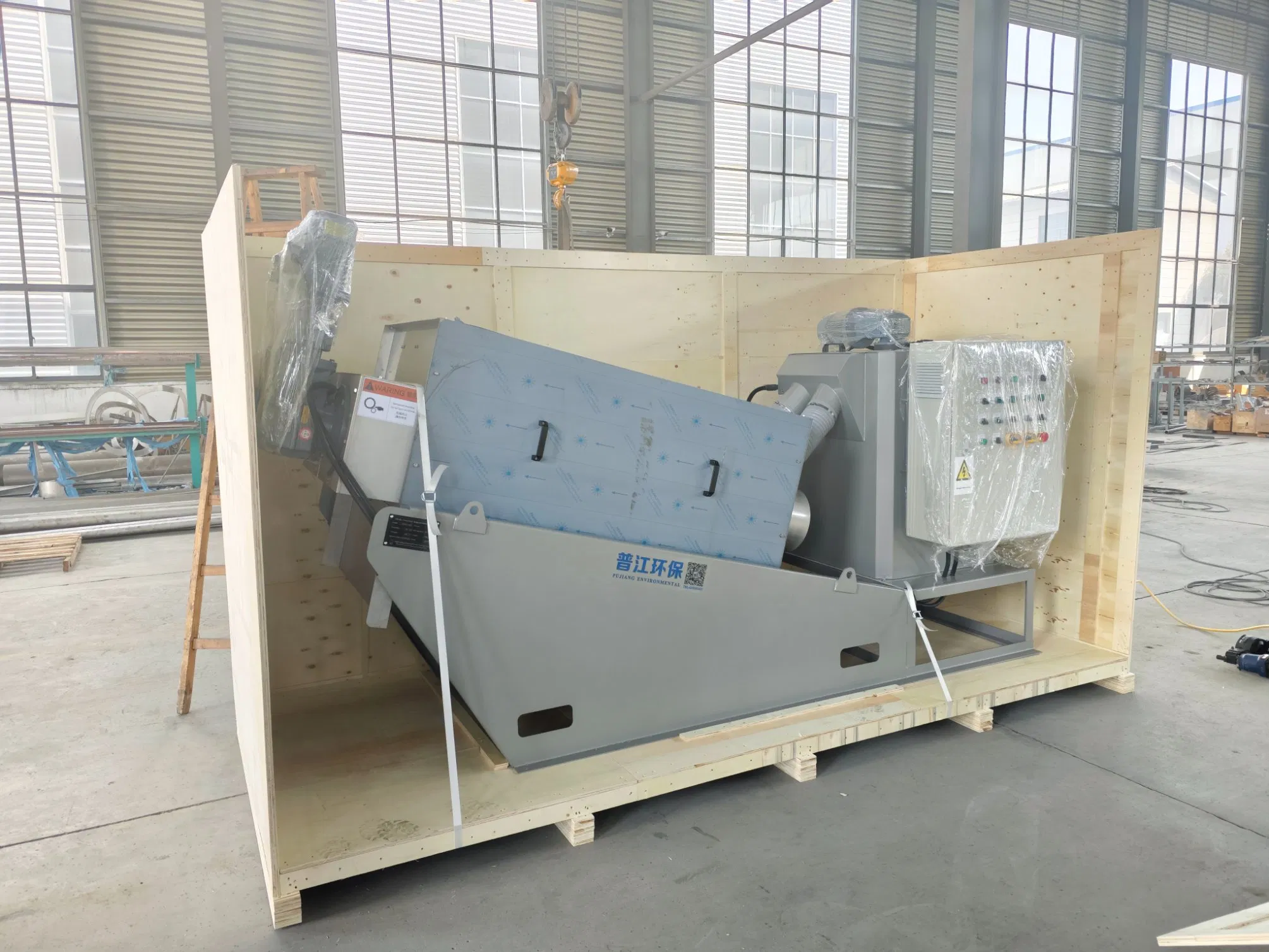

Packing & Shipping Process
Packing & Shipping

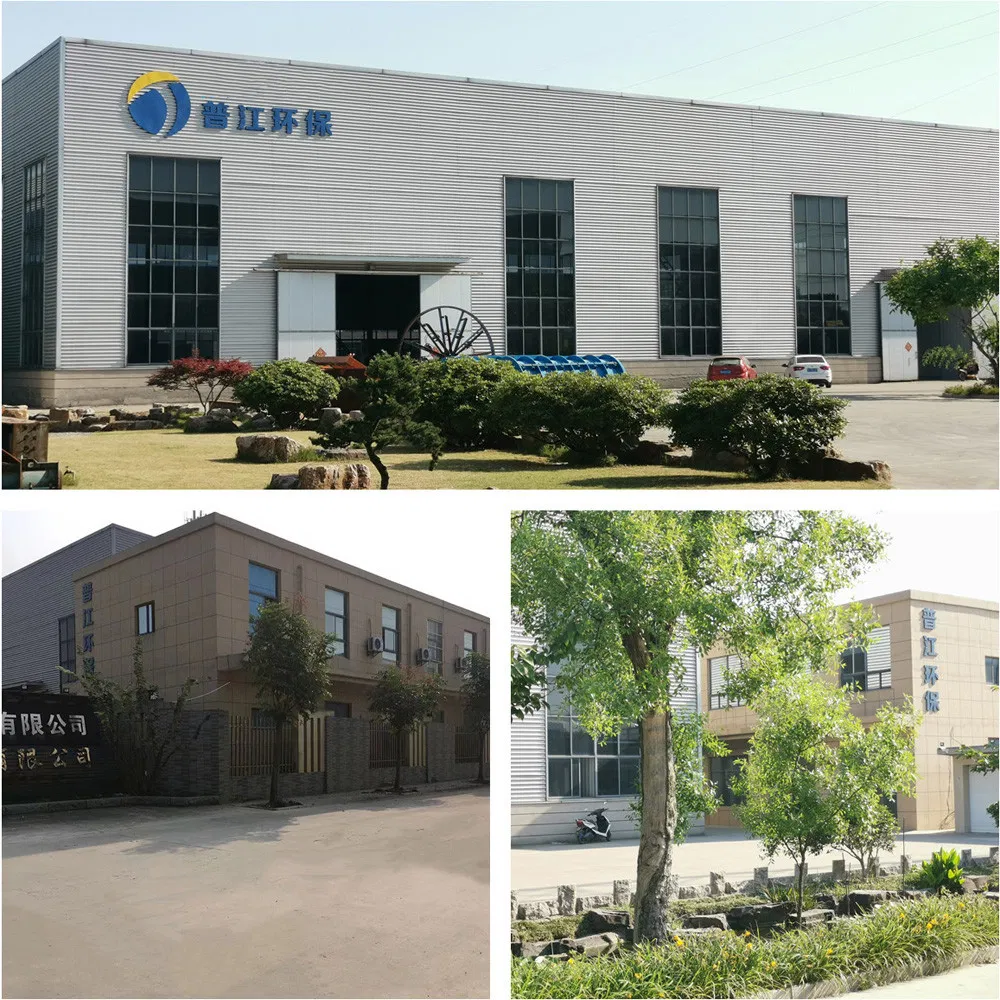

Factory Overview & Workshops
Equipment Workshop
Global Customers & Exhibition
Exhibitions & Customers

Frequently Asked Questions (FAQ)

Q Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in wastewater treatment equipment with decades of factory experience.
Q Do you provide OEM services?
Yes, we offer fully customizable OEM services. Any required brand logos can be processed according to your technical requirements.
Q How long is your product warranty?
We offer a comprehensive one-year warranty starting after the arrival of the goods at your destination port.
Q What is the estimated delivery time?
Our standard delivery timeline is within 45 days upon receipt of the initial down payment.
Q What packaging is used for international export?
We package our products in standard anti-corrosion, robust wooden cases suitable for long-distance maritime transport.
Q What payment methods and transportation terms do you accept?
We normally accept standard T/T and L/C payment methods. Shipping can be managed via Sea, Air, or Express, customized per the client's preference.
