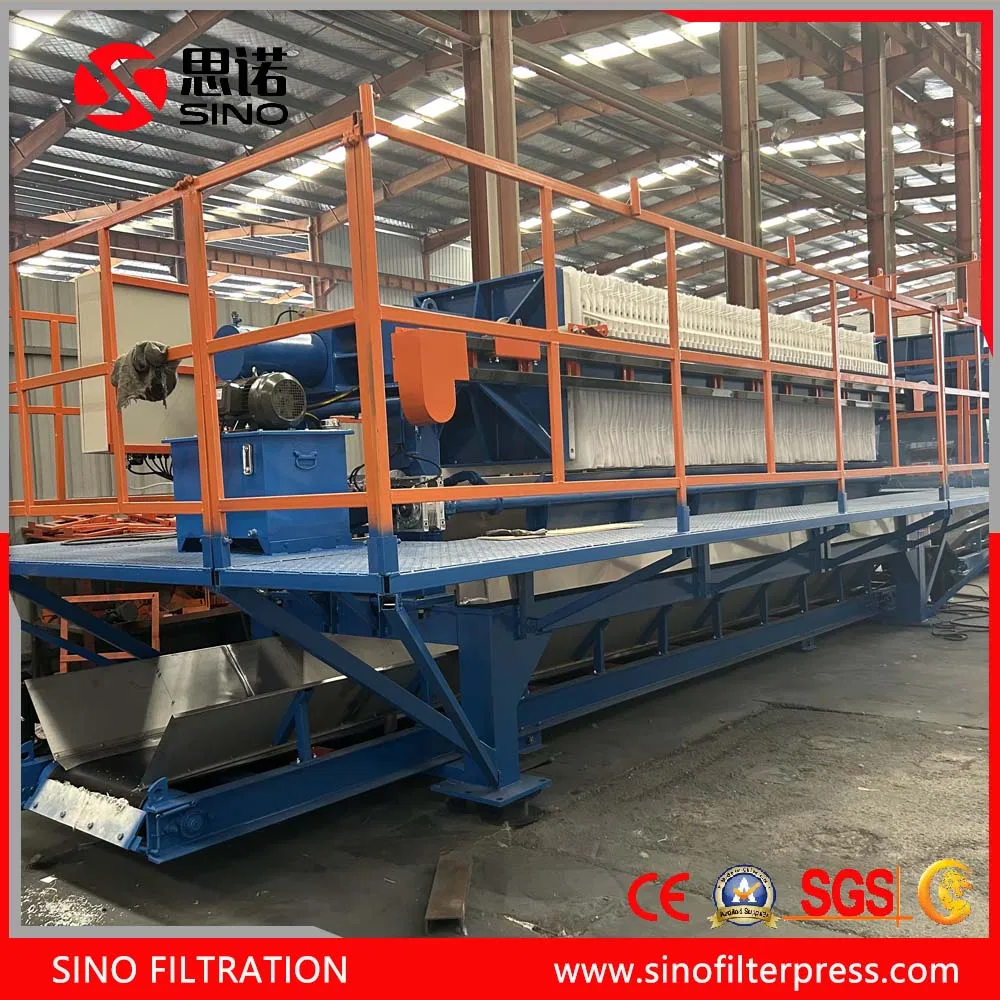

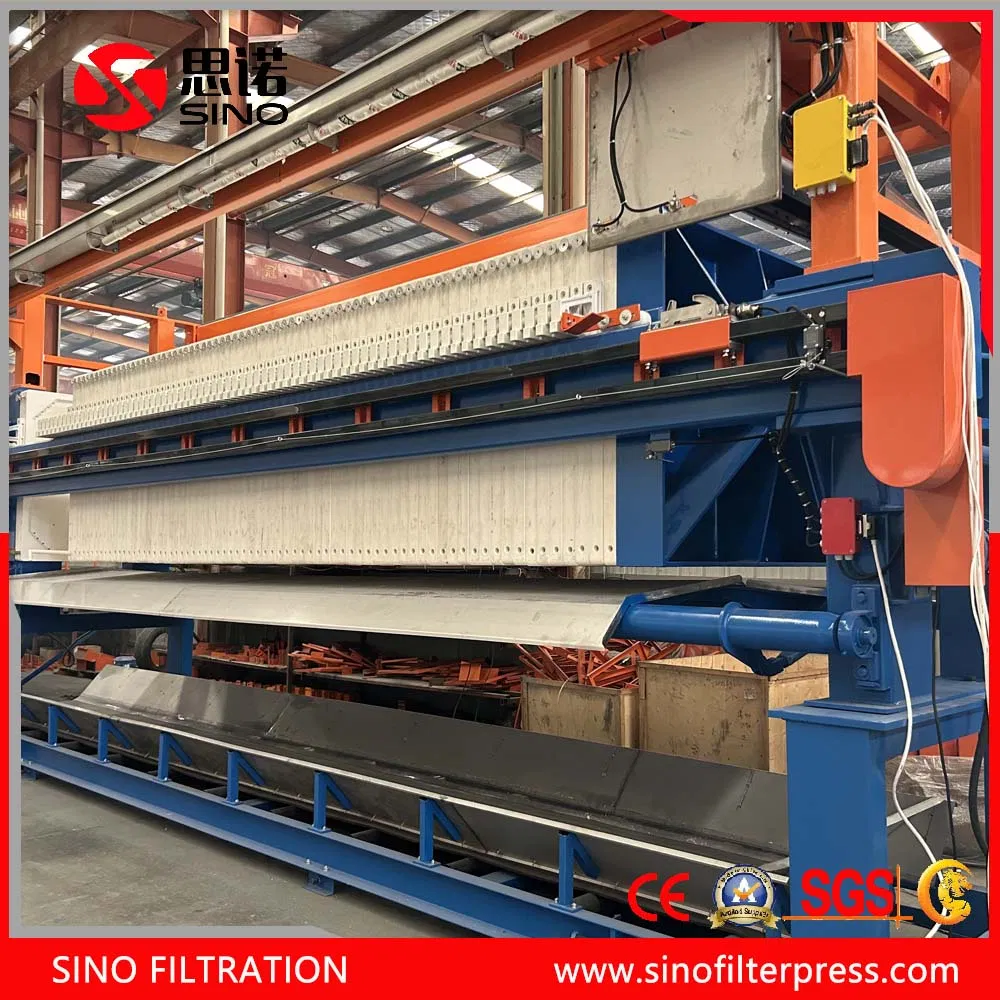

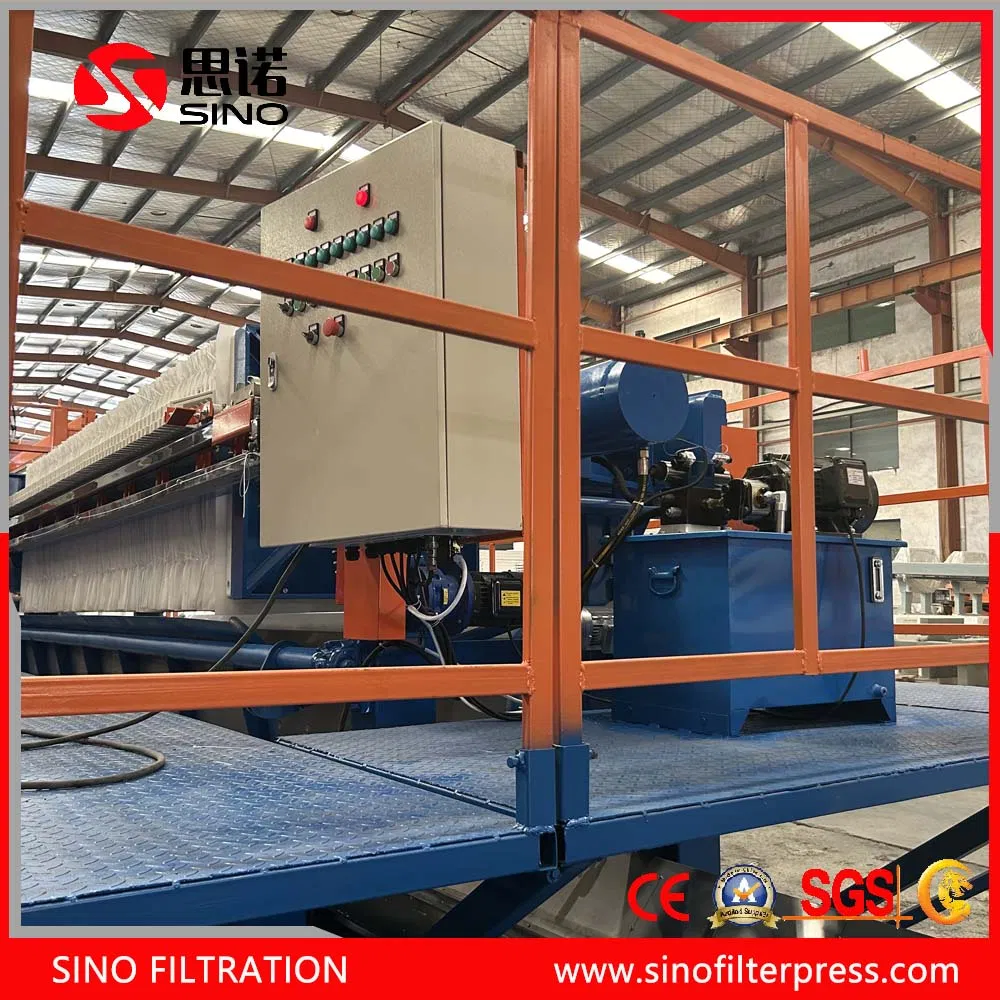

Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
1 / 5
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment
Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment

Fully/Semi Automatic Hydraulic Chamber Plate Filter Press for Wastewater Treatment

Customization: Available
Structure: Cantilever Beam Type
Filter Material: Stainless Steel
Send Inquiry

Product Description

📋 Basic Information
Model NO.
XMZ 60/1000 Automatic Chamber Filter Press
Pressure
Hydraulic Pressure
Type
Plate Filter Press
Plate Material
PP Filter Press
Plate Type
Chamber Filter Press
Voltage
380V Filter Press
Closing Method
Hydraulic Filter Press
Cake Discharging
Automatic Filter Press
Warranty
1 Year
Core Components
PLC
🔍 Product Description
CHAMBER FILTER PRESS
This filter press is designed for wastewater sludge processing. The Chamber filter press can be manual, semi-automatic, or automatic handling. The filter chamber is composed of two adjacent concave filter plates.

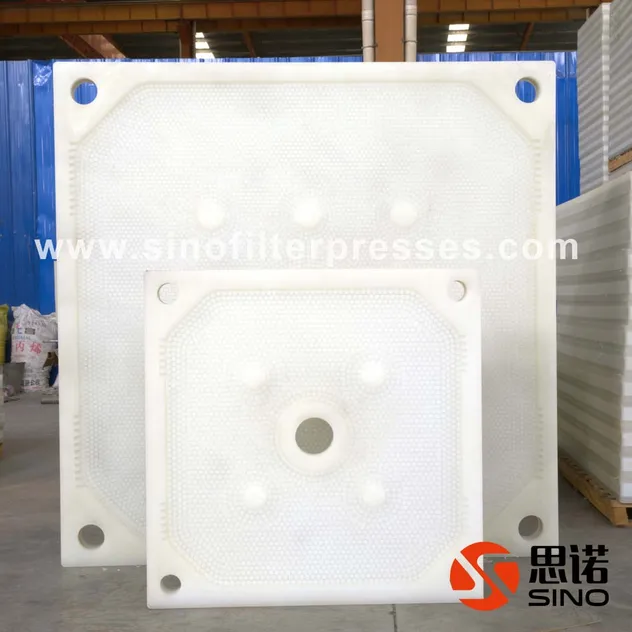

Automatic Hydraulic Chamber Plate Filter Press

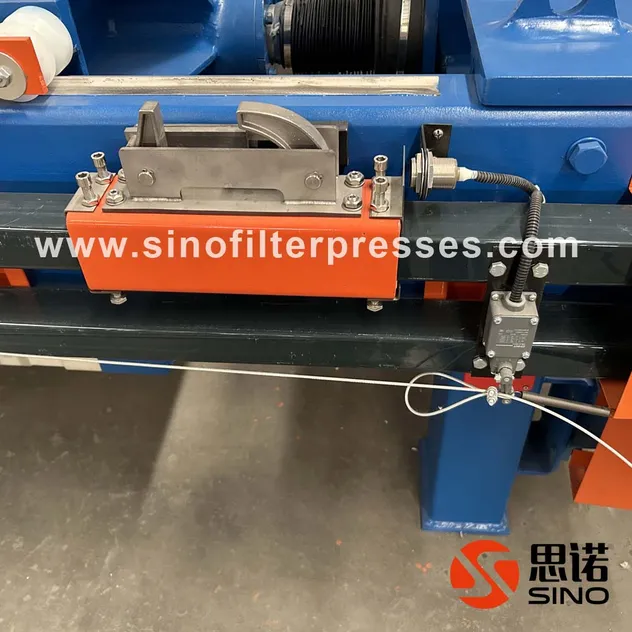

Wastewater Treatment Filter Press

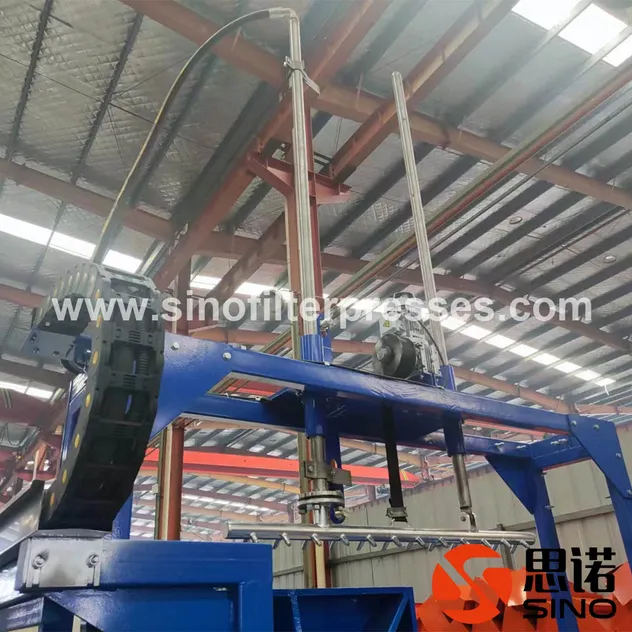

Filter Press Equipment

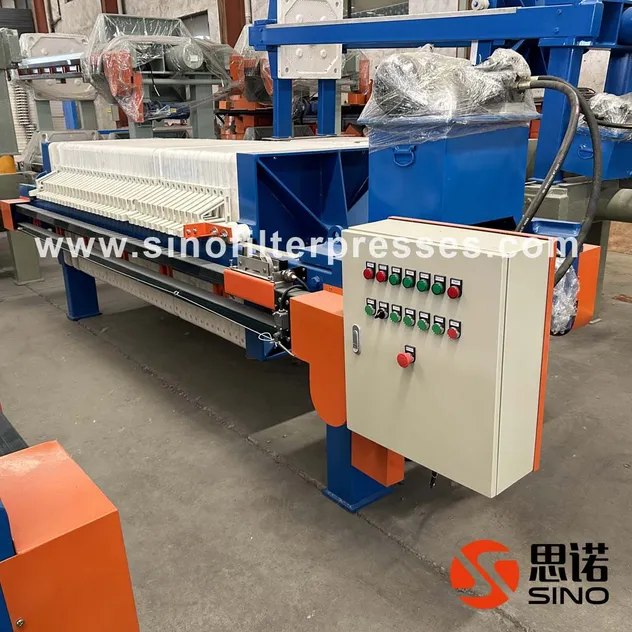

Filter Press Operation

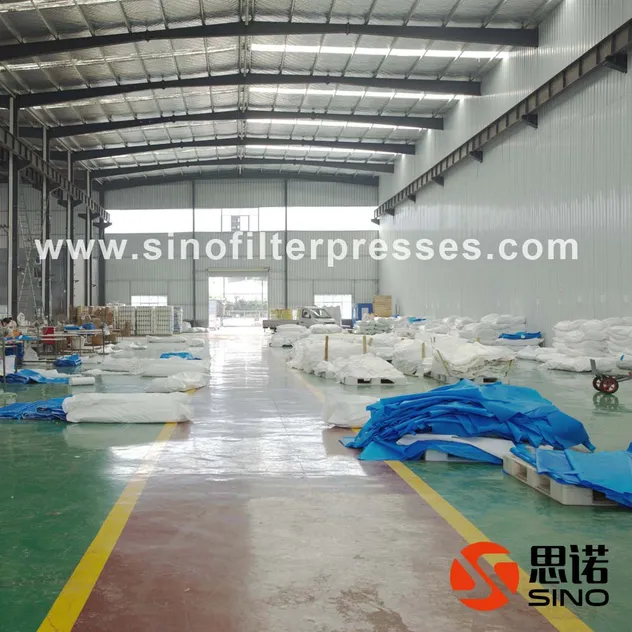

Filter Press Plate

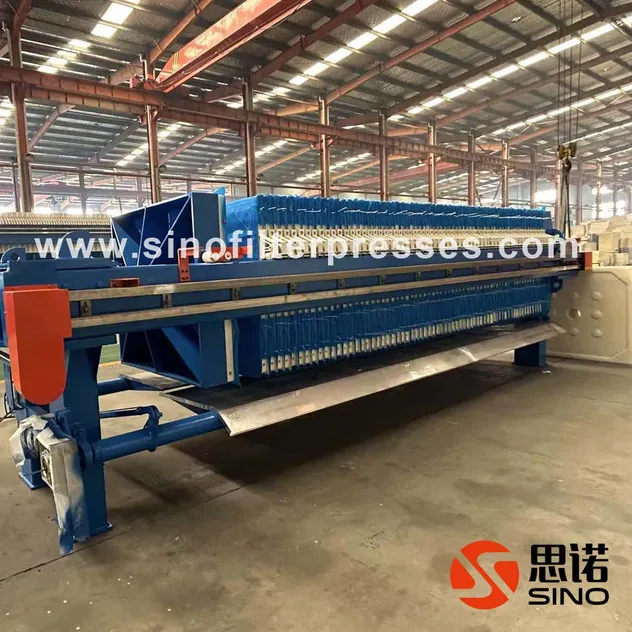

Hydraulic System
⭐ Key Advantages
⚡High Efficiency
Less loss and higher efficiency when feeding; the filtering speed is exceptionally fast.
💪Pressure Resistance
High pressure resistance, resulting in low moisture content and excellent output quality.
💲Cost Effective
Compared to frame and plate filter presses, the operational and initial cost is lower.
💻Automation
Features a high level of automation. Filter cakes can be removed automatically.
🌡Heat Resistant
Can withstand high temperatures up to 100°C.
✅Durability
Uniform pressure in each chamber ensures plates are not easily damaged across wider applications.
📐 Technical Specifications
Model Filter Area (m2) Plate Size (mm) Cake Thickness (mm) Chamber Volume (L) Plate QTY (pcs) Filtering Pressure (MPa) Weight (kg) Dimensions (mm)
XMZ 30/870308703046023≤0.626803180*1400*1230
XMZ 40/870405953030503570*1400*1230
XMZ 50/870507483834564110*1400*1230
XMZ 60/870609024640034550*1400*1230
XMZ 70/8707010565445844990*1400*1230
XMZ 80/8708012106250825430*1400*1230
Model Filter Area (m2) Plate Size (mm) Chamber Volume (L) Plate QTY (pcs) Weight (kg) Dimensions (mm)
XMZ 100/1000100100014755766285780*1500*1400
XMZ 200/12502001250289672135047360*1800*1600
XMZ 300/15003001500434774260268130*2200*1900
XMZ 500/20005002000968669348409965*2850*2400
📜 Certifications
Certification 1

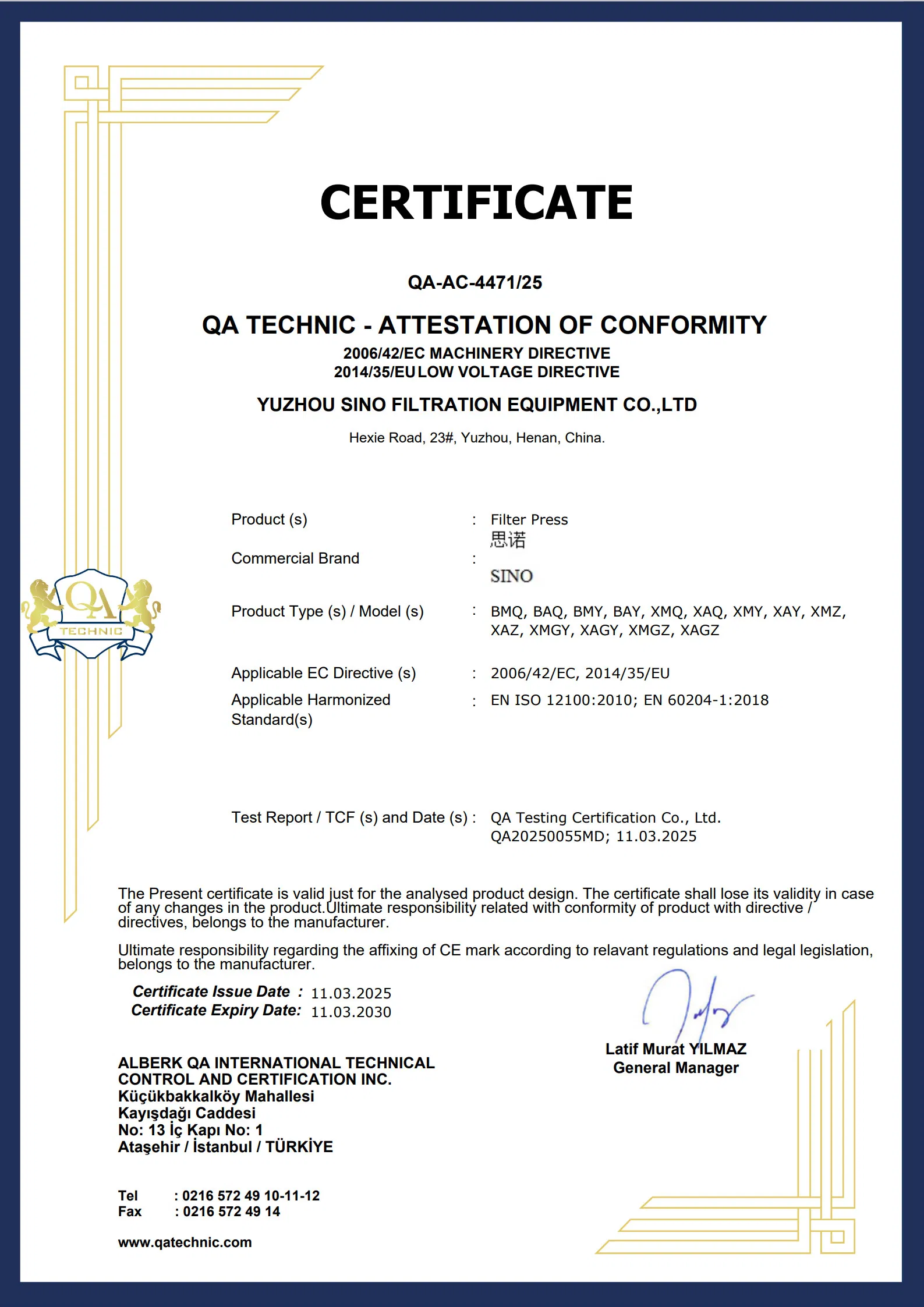

Certification 2

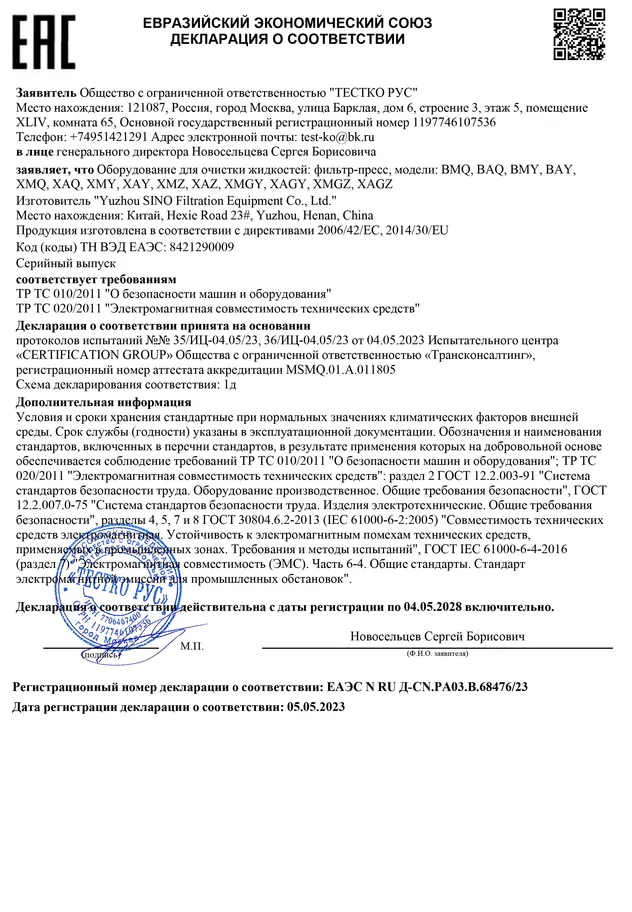

Certification 3
📦 Packaging & Shipping
Shipping and Packaging Process
🏭 Professional Capability

Focusing on top-quality filtration equipment for years, the specialized manufacturing facilities include a dedicated filter press plate plant and a full filter press assembly plant. Filter presses have wide applications in various industries, such as waste water treatment, mining, chemicals, pharmacy, ceramics, metallurgy, and food & beverage.

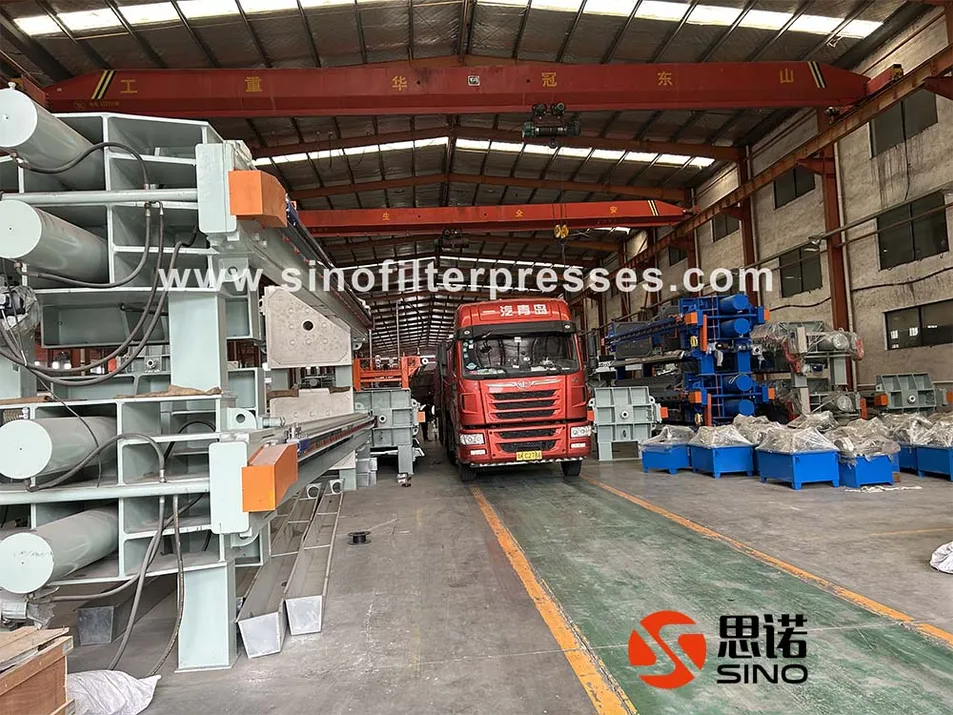

Factory Site

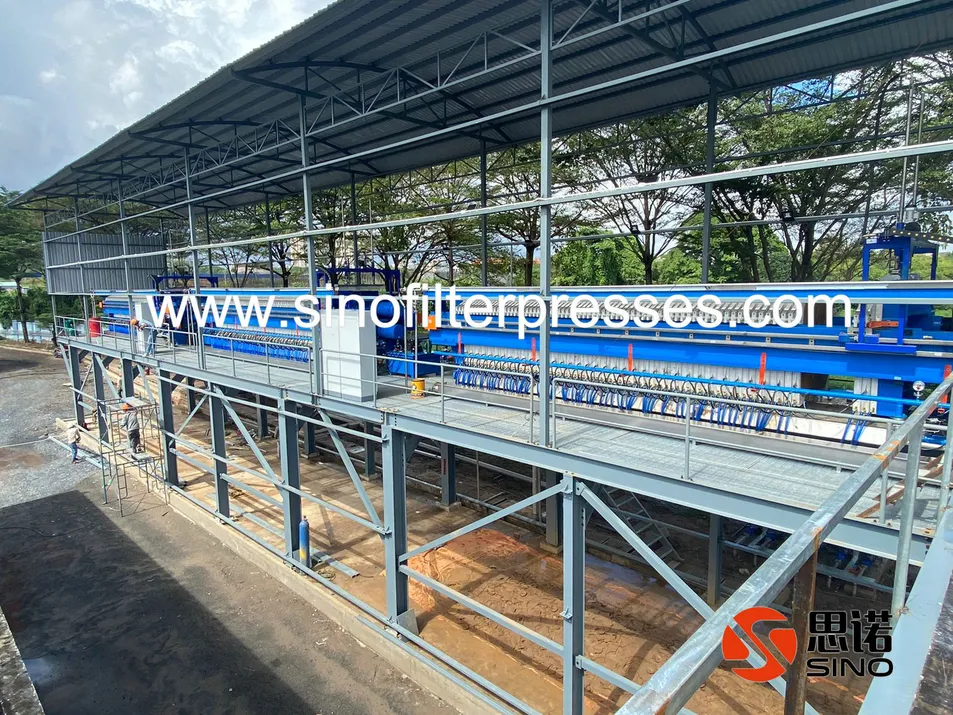

Customer Site 1

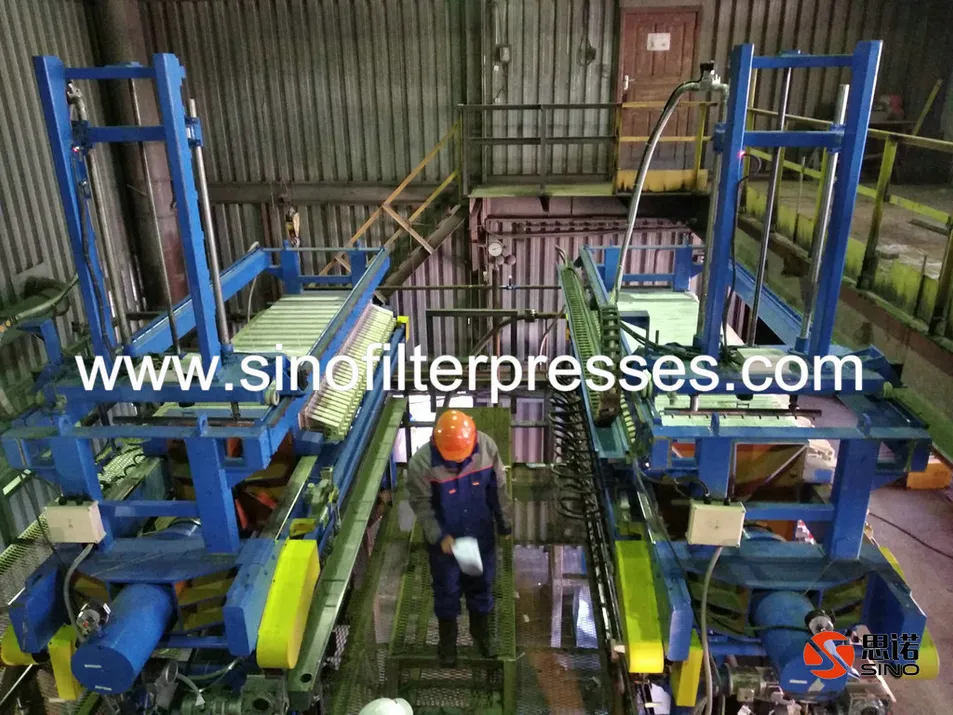

Customer Site 2
❓ Frequently Asked Questions
1. What is a Chamber Filter Press?
It is a filter press utilizing special chamber filter plates. Each chamber is formed by two adjacent concave plates, ideal for high-viscosity materials.
2. What are the typical applications?
Suitable for metallurgy, coal gas, paper making, pharmaceutical, food, brewing, and fine chemical industries.
3. How long is the delivery time?
Delivery time generally depends on order quantities, typically within one month.
4. How is the equipment installed at the site?
Detailed illustrations and video guidance are provided. If necessary, technicians can be dispatched to assist with the installation.
5. What is the warranty period?
The standard warranty validity is 12 months after the installation of the filter press.
6. What payment methods are accepted?
We usually accept L/C or T/T, with 30% payment in advance and 70% before delivery.
