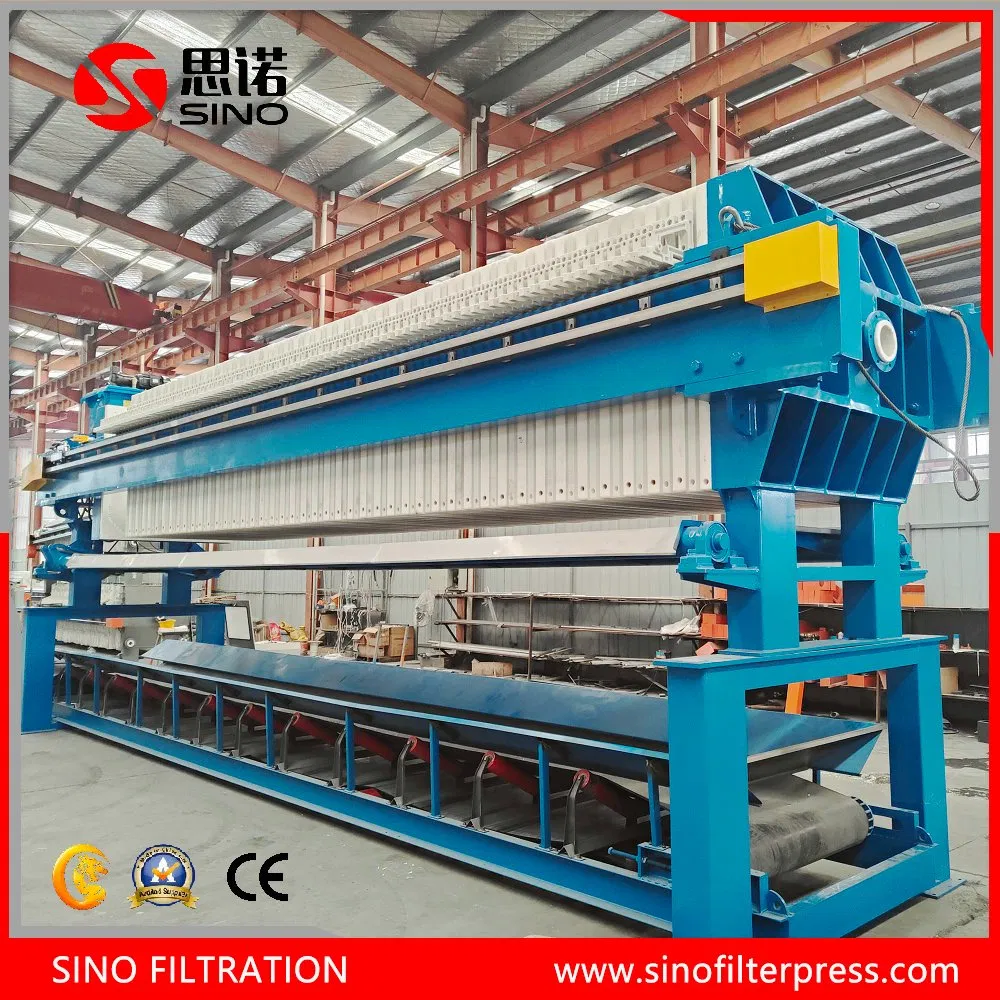

The membrane filter press, normally refers to a chamber membrane filter press. It is a professional solid liquid separation device for industrial usages. It realize filtration by forcing material/slurry through a filter cloth. A membrane filter press takes this concept a step further than a chamber filter press. It consists of a series of recessed chamber plates and membrane filter plates together. The key difference lies in the integration of membrane plates strategically placed within the filter pack. These membrane plates can be inflated with high pressure air or high pressure water after the initial filtration phase, then the high pressure medium will squeeze the filter cakes, to reduce more moisture to get better dewatering performance.
Why odd number plates?
The odd number ensures symmetry and provides volume to store solids. Membrane plates are flat; they work with chamber filter plates on both sides to form cakes. Since the tail and head plates are chamber types, the middle plates are always an odd number.
Squeeze Medium choice?
For smaller models, high pressure air is the first choice. For larger models (like 1500 series), high pressure water is more cost-saving. The choice also depends on your specific industry requirements.
Advantages & Applications
Key Advantages:
✓

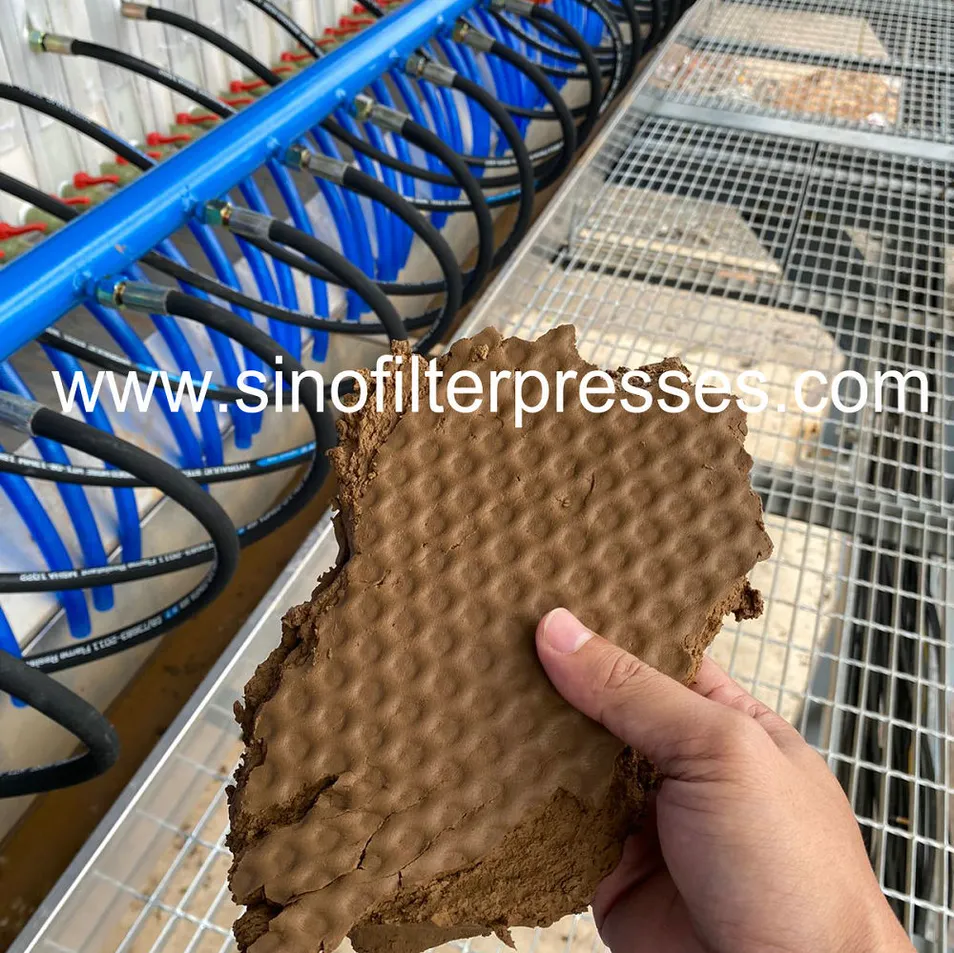

Drier Filter Cake: Lower disposal costs and reduced transportation volume.
✓
Shorter Cycles: Increased throughput and higher production capacity.
✓
More Filtrate: Maximum liquid recovery, especially for rich liquids.
Primary Applications:
●
Mining: Mineral concentrates, coal washery, kaolin.
●
Wastewater: Biological sludge, textile and tannery sludge.

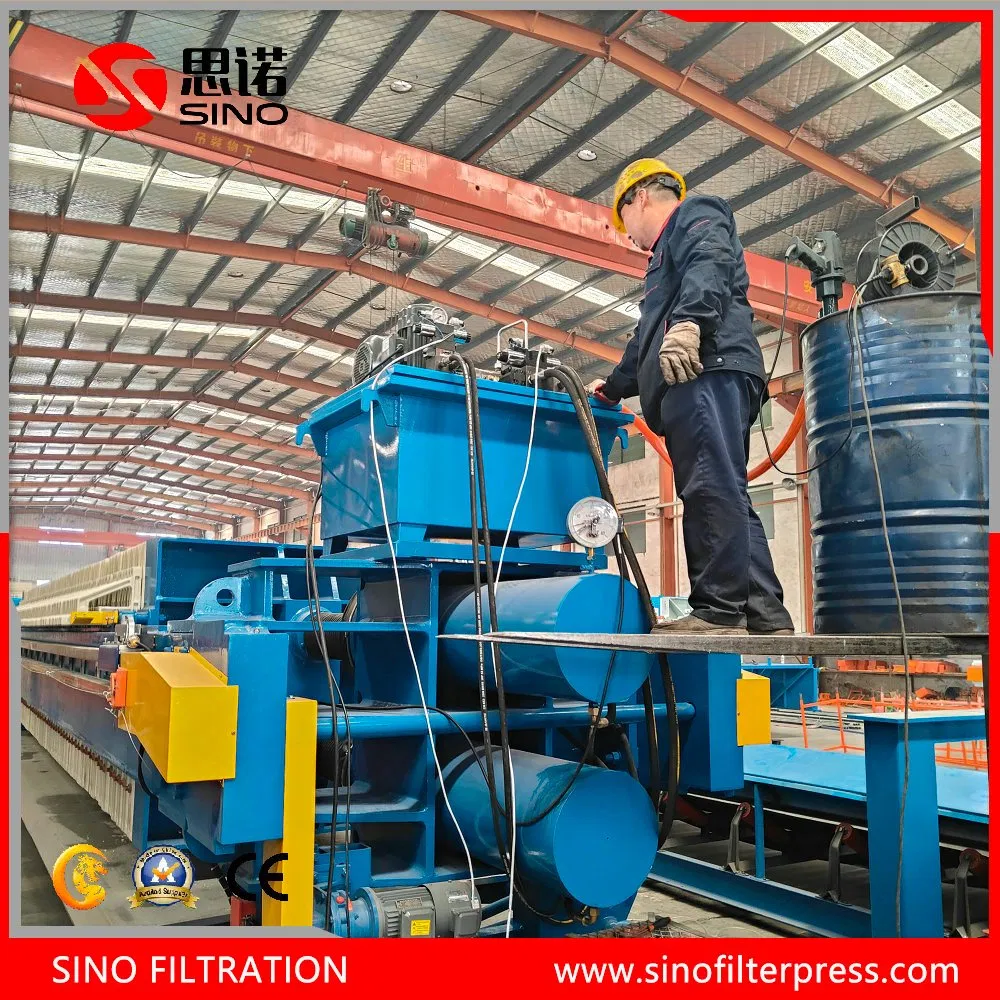

1. Closing: Hydraulic system presses plates to form a sealed chamber.
2. Feeding: Slurry is pumped into chambers under pressure.
3. Filtration: Solids deposit on cloths forming cakes.
4. Membrane Squeezing (Key): High-pressure medium inflates membranes to squeeze cakes.
5. Opening: Plates open and cakes are discharged.

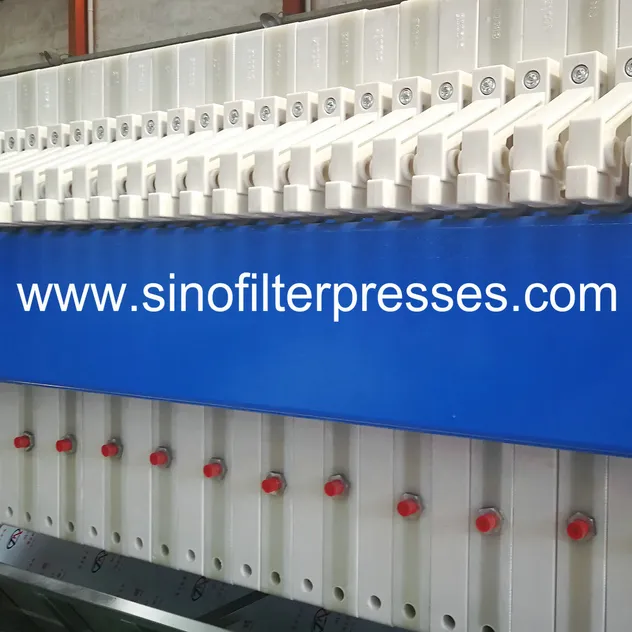

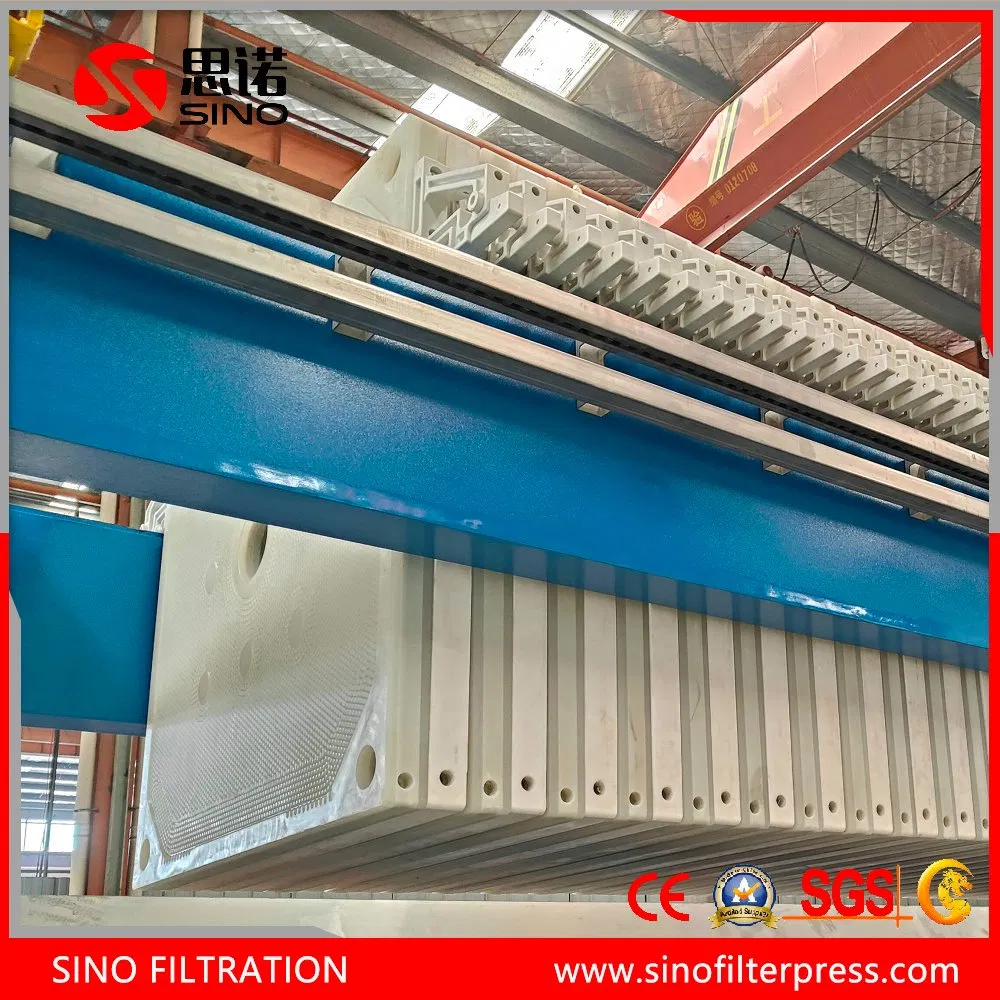

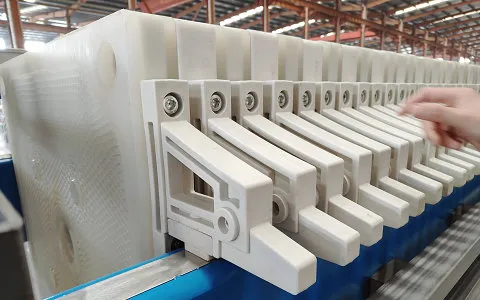

Chamber Membrane Filter Plate Pack

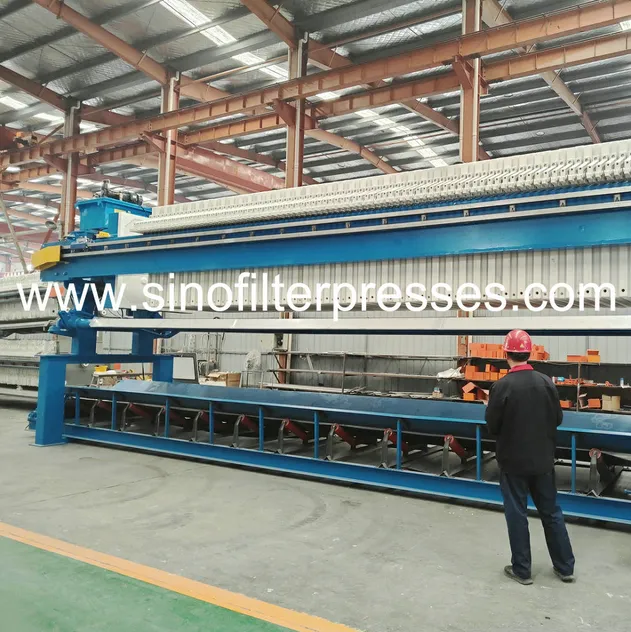

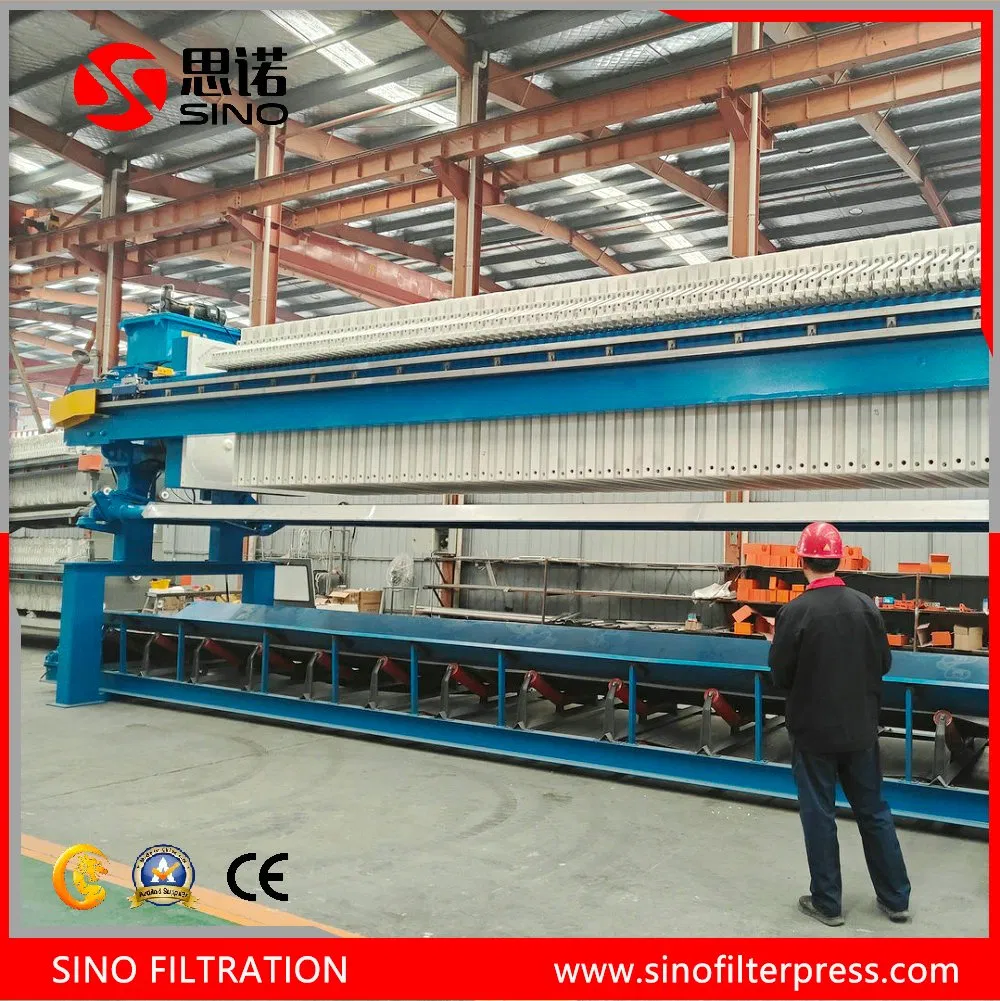

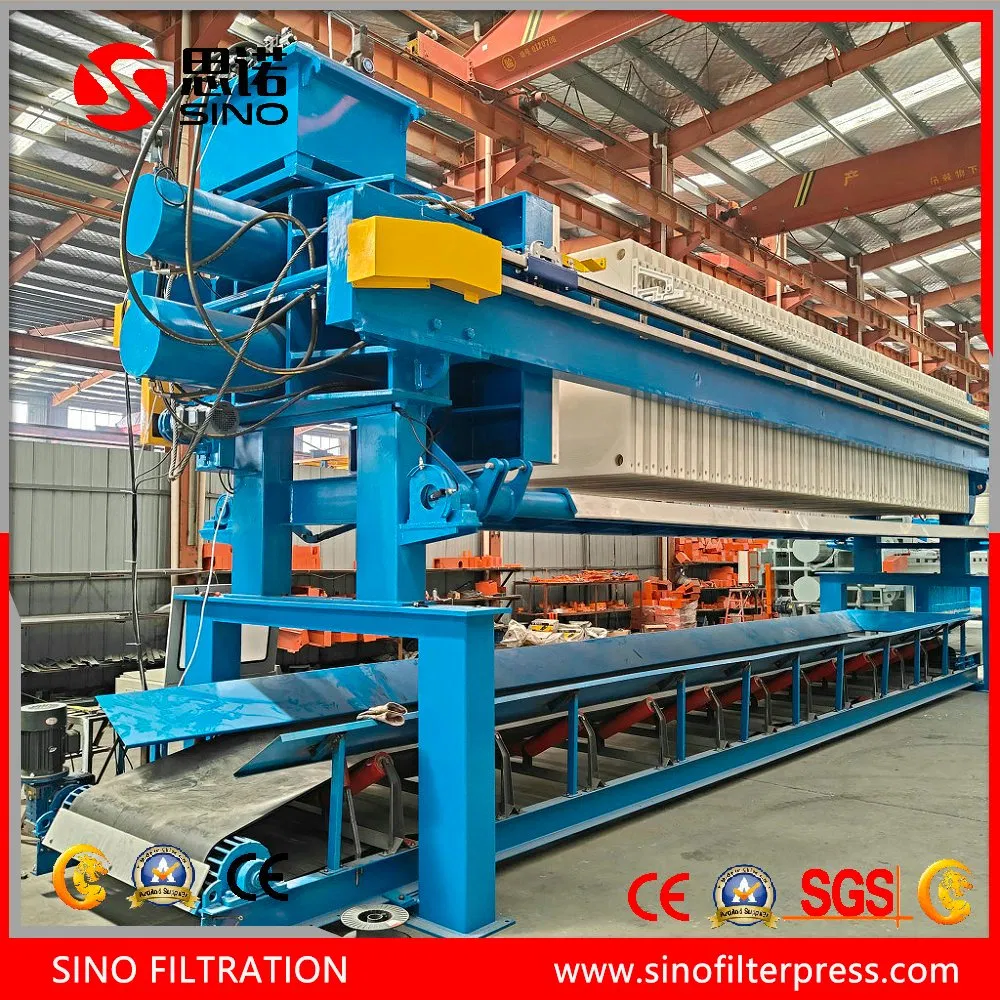

Belt Conveyor with Drip Tray

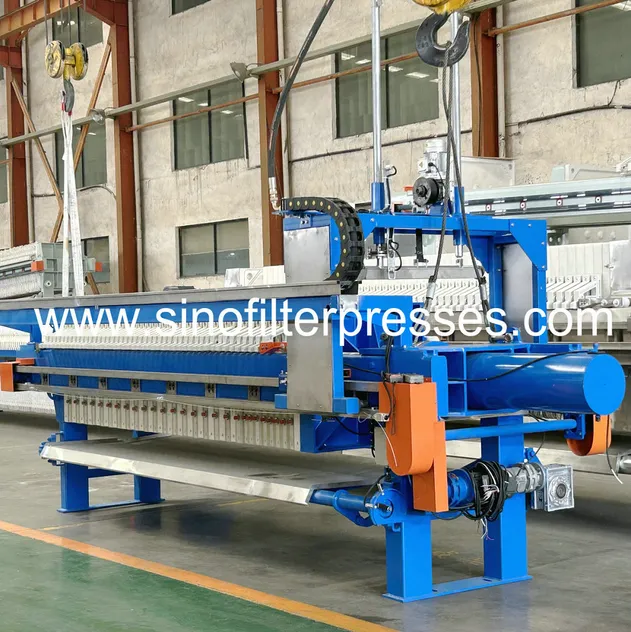

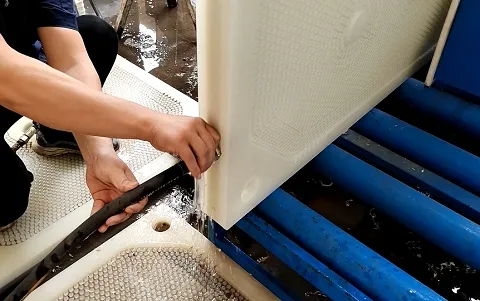

Cloth Washing System

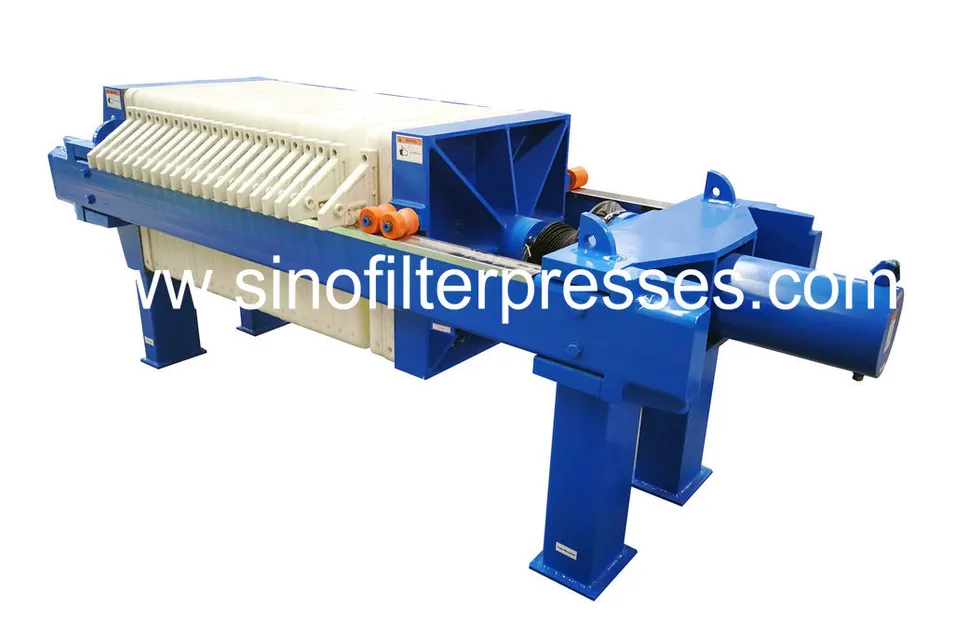

Technical Specifications
Model
XMGY 30/870
XMGZ 100/1000
XAGZ 250/1250
XMGZ 300/1500
Plate QTY (PCS)
23
50
91
73
Filtering Area (m²)
30
100
250
300
Filtering Volume (L)
427
1378
4186
4932
Cake Discharging
Manual
Automatic
Automatic
Automatic
Plate Size (mm)
870
1000
1250
1500
Hydraulic Power (kw)
4
4
5.5
7.5

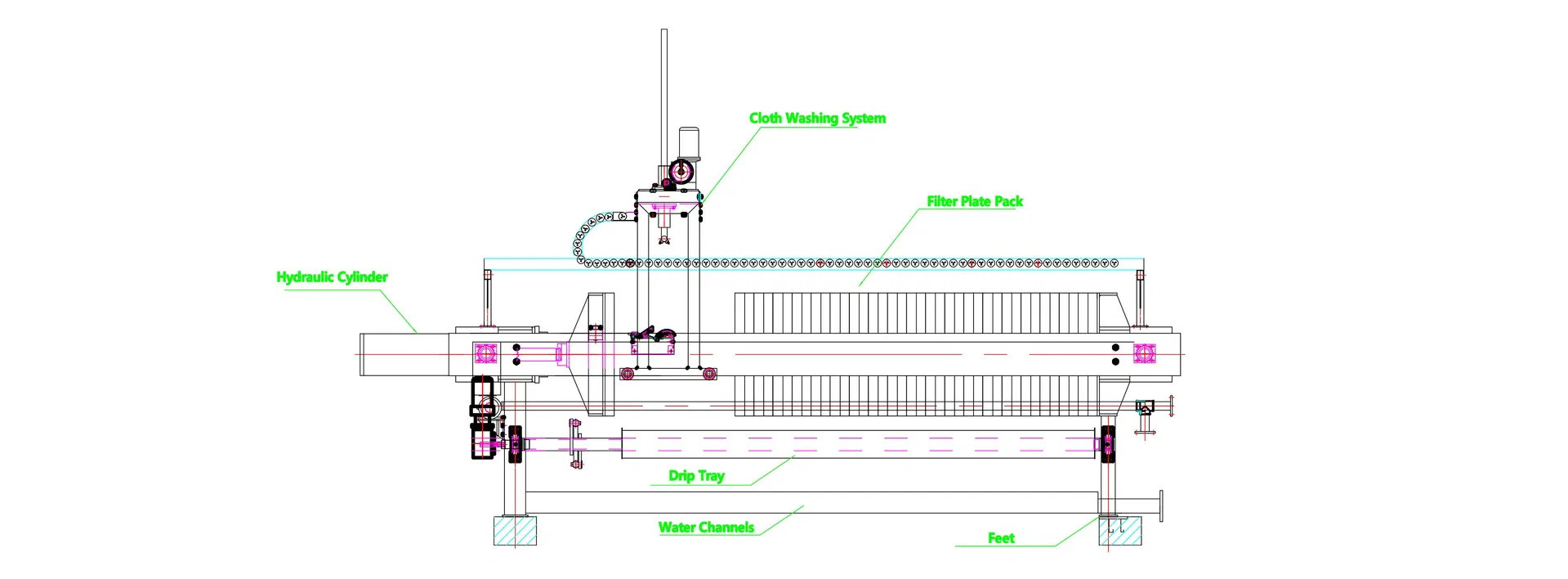

Drawings & Dimensions

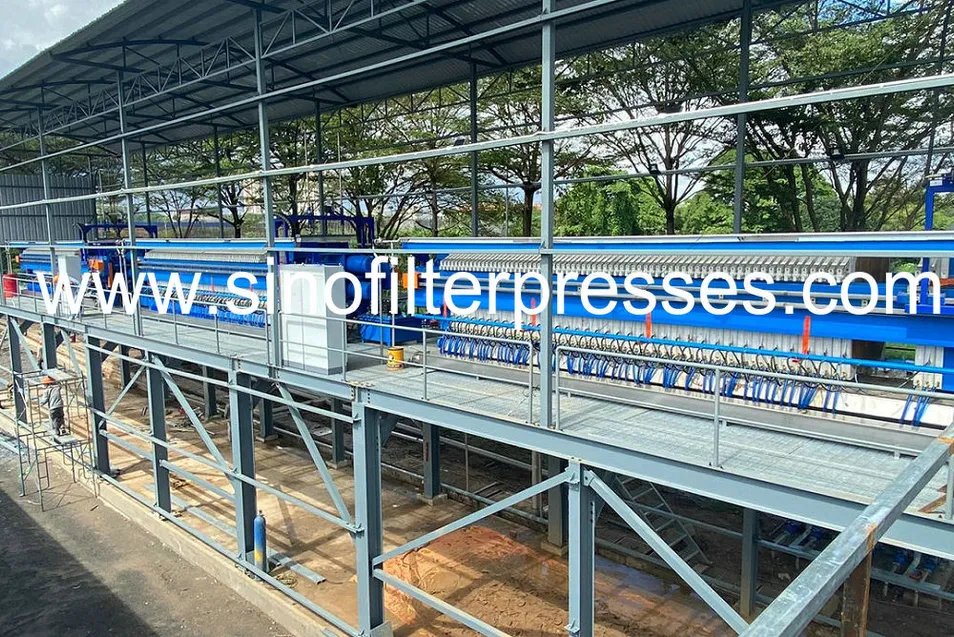

Professional Manufacturer
As a leading Chinese filter press manufacturer with nearly 20 years of expertise, we are certified with ISO 9001, CE, and EAC. We export to over 30 countries, offering reliable filter presses backed by R&D innovation and strict quality control. Our series includes PP, cast iron, stainless steel, hydraulic, and automatic membrane filter presses with plate sizes ranging from 250mm to 2000mm.
Frequently Asked Questions
Q: What's the typical lead time for orders?
A: Standard models usually ship in about 3 weeks, while customized units require 3-4 weeks.
Q: What are the main benefits of a membrane filter press?
A: The primary benefit is producing significantly drier filter cakes and shorter filtration cycles compared to standard chamber presses.
Q: Do you offer customized sizes and configurations?
A: Yes, we provide tailored designs and attachments to meet specific project and industrial requirements.
Q: What documentation is provided for international shipping?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Origin.
Q: Is after-sales technical support available?
A: Yes, we provide 24/7 technical assistance, spare parts supply, and site service options.
Q: How can I select the right squeeze medium?
A: Generally, high-pressure air is better for smaller models, while high-pressure water is more efficient for larger systems like the 1500 series.
