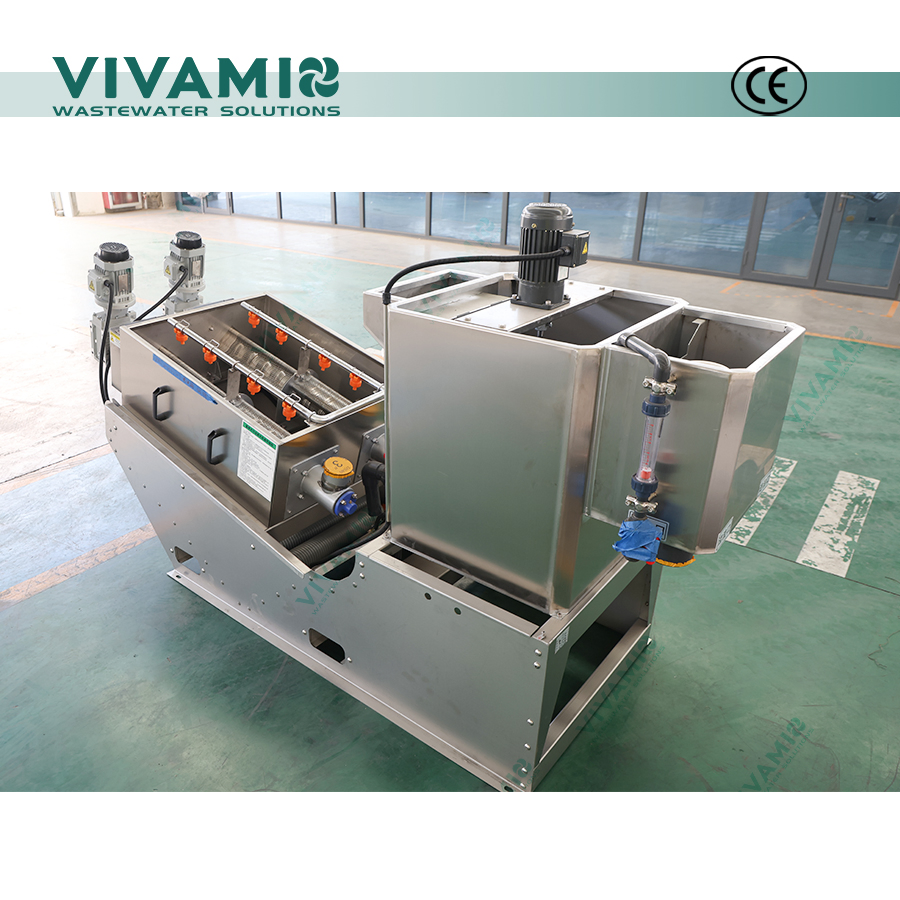

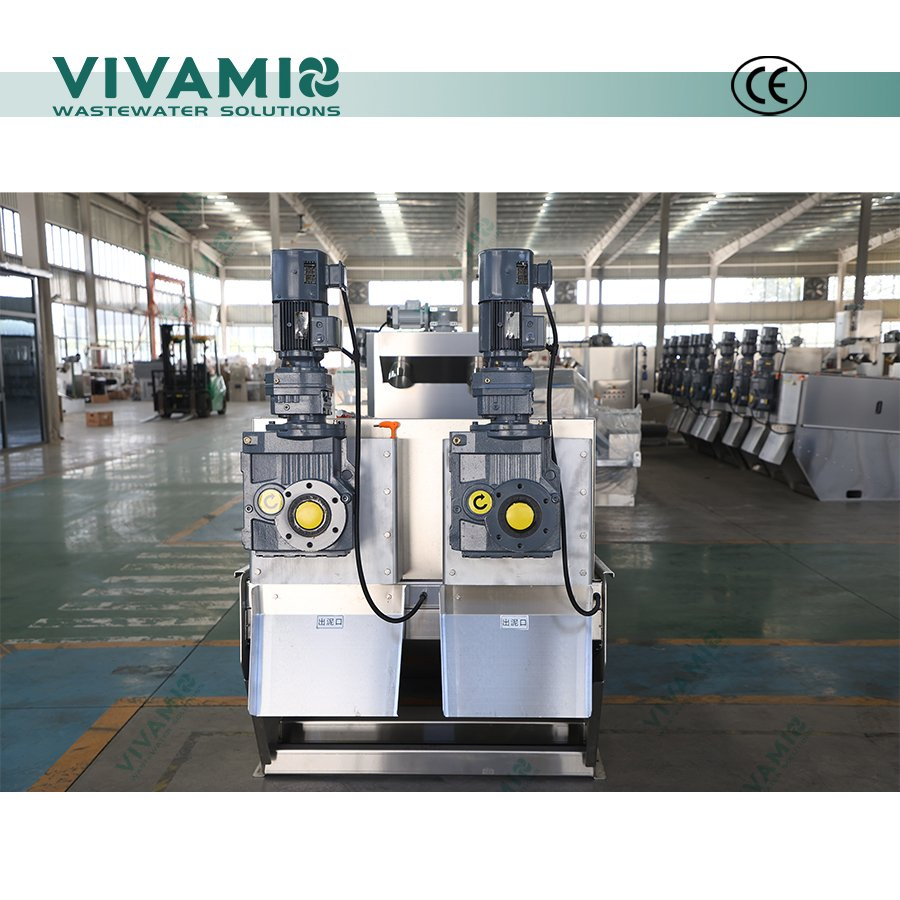

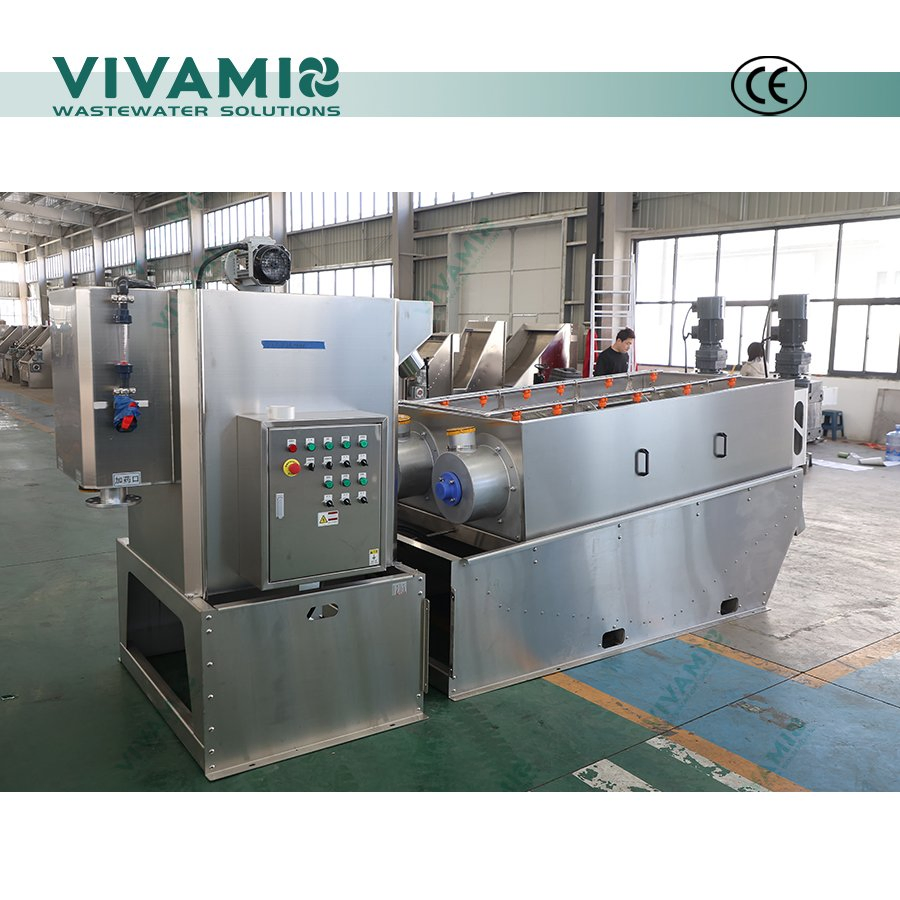

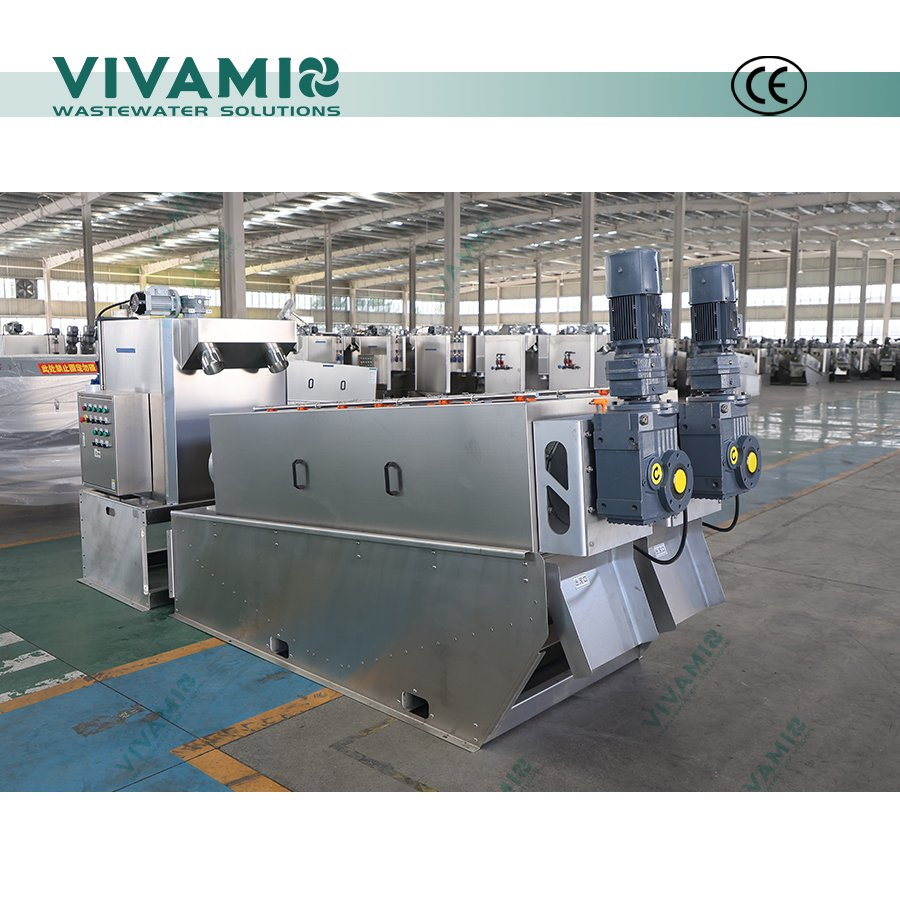

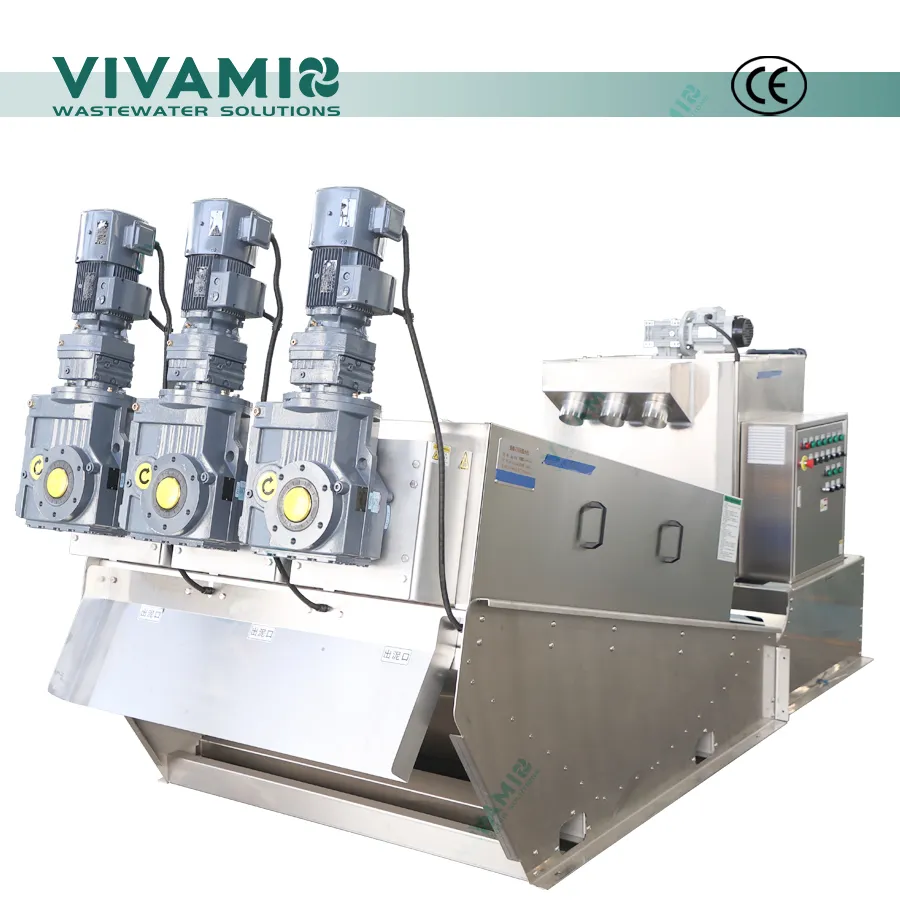

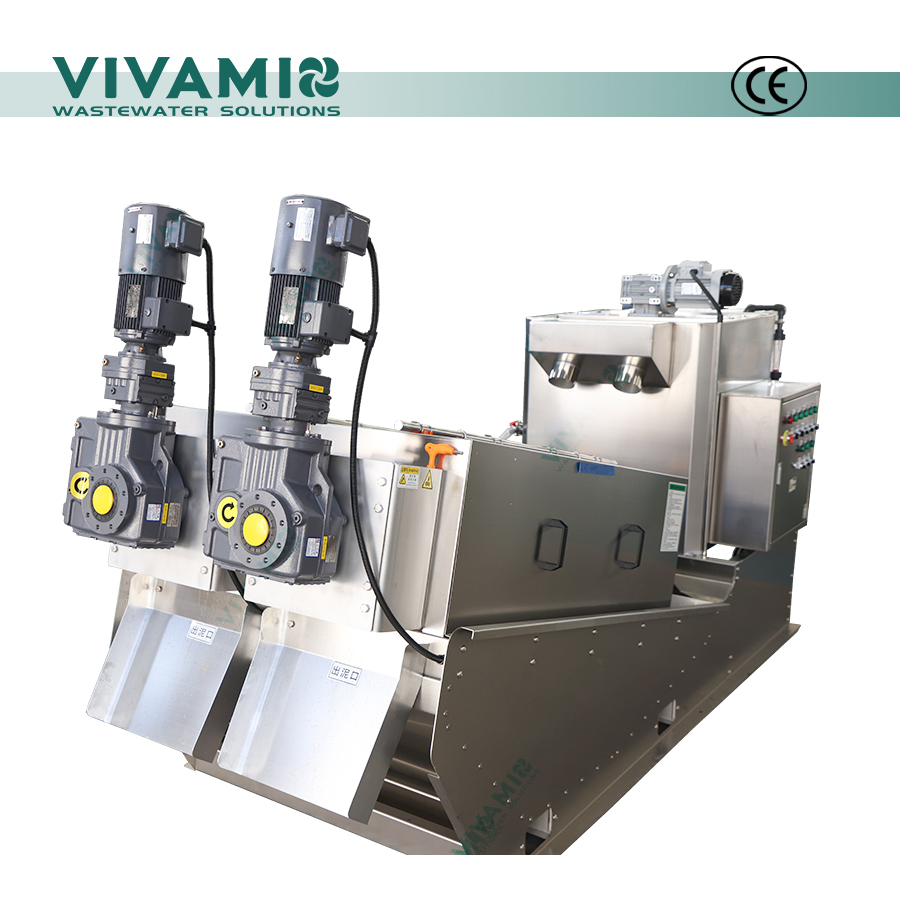

Energy Saving Spiral Filter Press Dehydrator Automatic Screw Press for Dewatering Applications
The Energy-Saving Spiral Filter Press Dehydrator is an automatic screw press designed for efficient and continuous dewatering across municipal, industrial, and agricultural applications. Its advanced spiral screw and self-cleaning filter structure deliver stable, clog-free performance while significantly reducing energy consumption.
The automated control system ensures smooth operation from sludge feeding to discharge, minimizing labor and maintenance requirements. With a compact design, low noise, and excellent adaptability to oily, fibrous, and low-concentration sludge, this dehydrator produces consistently dry output and helps lower disposal costs.

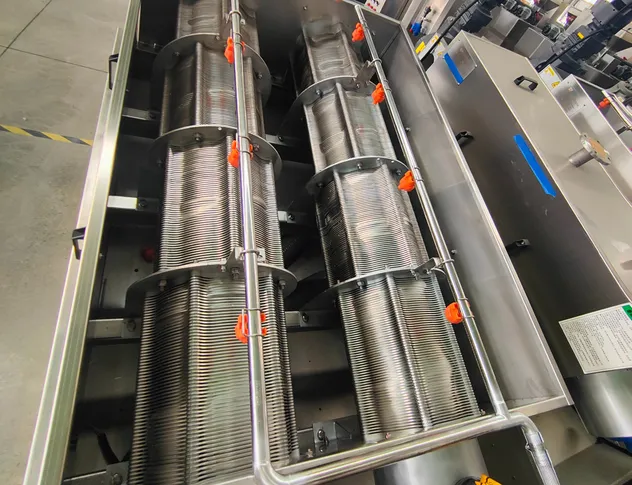

No Clogging & Low Water Consumption
Self-cleaning structure prevents blockage and reduces flushing water usage.

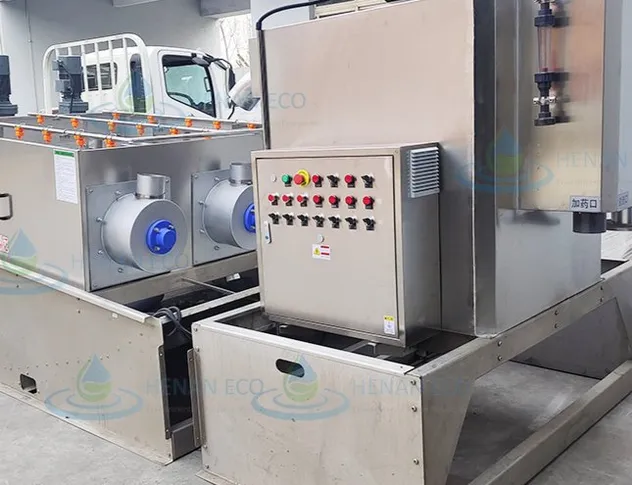

Fully Automatic & Low Energy
Supports 24-hour continuous automatic dewatering with low power consumption.

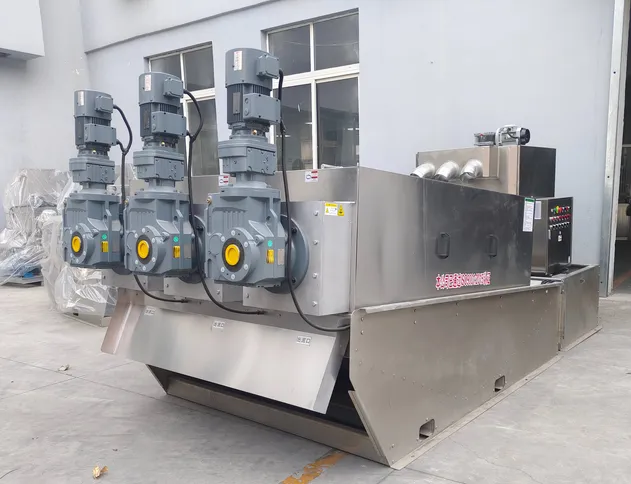

Durable Stainless Steel
Made of stainless steel for long service life and minimal replacement needs.
Metering Tank
The sludge is delivered to the metering tank through the sludge transfer pump, and the surplus part flows back to the sludge storage tank.
Flocculation Mixing Tank
The metered sludge is fully stirred and mixes with injected polymer coagulant to form a good alum flower.

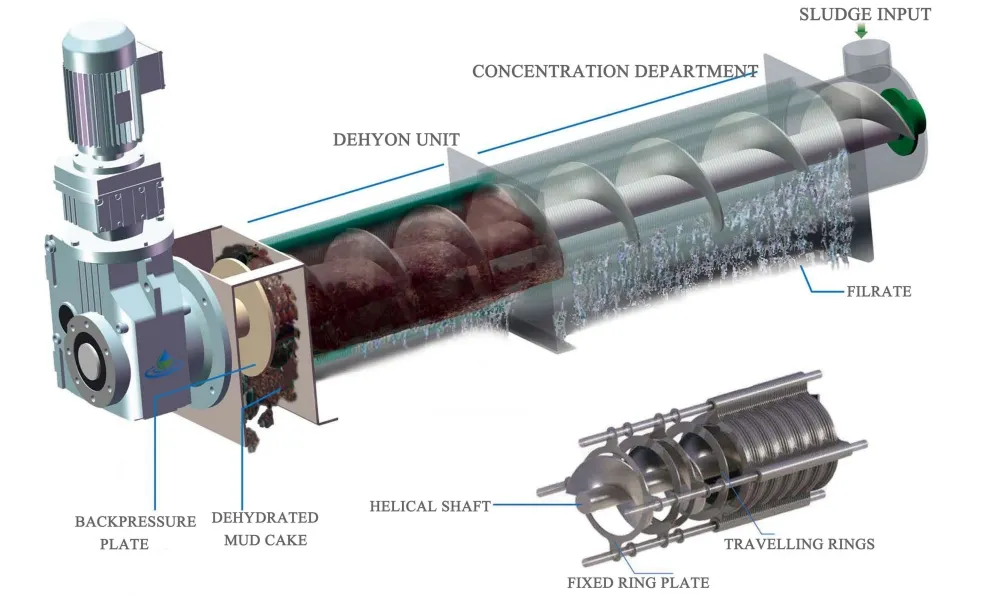

Dehydration Unit
Gravity concentration occurs in the front section. Sludge is fully dehydrated due to continuous pressure rise in the inner cavity.
Sludge Outlet
The back pressure plate increases pressure to make the sludge more fully dehydrated and discharged as mud cake.
| Model | Feeding (m3/h) | DS (kg/h) | Power (kW) | Disc (mm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| DL-131 | 0.2-0.5 | 5-10 | 0.36 | DN130*1180 | 1870*730*1170 | 250 |
| DL-132 | 0.4-1.0 | 10-20 | 0.54 | DN130*1180 | 2000*960*1230 | 350 |
| DL-133 | 0.6-1.5 | 15-30 | 0.91 | DN130*1180 | 2000*1190*1230 | 450 |
| DL-251 | 0.6-1.5 | 15-30 | 0.92 | DN250*1760 | 2690*880* 1600 | 500 |
| DL-252 | 1.2-3.0 | 30-60 | 1.47 | DN250*1760 | 2810*1120*1600 | 800 |
| DL-253 | 1.8-4.5 | 45-90 | 2.2 | DN250*1760 | 2810*1360*1600 | 1100 |
| DL-301 | 1.2-3.0 | 30-60 | 1.3 | DN300*2220 | 3310*1000*1700 | 750 |
| DL-302 | 2.4-6.0 | 60-120 | 2.05 | DN300*2220 | 3500*1300*1700 | 1340 |
| DL-303 | 3.6-9.0 | 90-180 | 3 | DN300*2220 | 3700*1650*1700 | 1750 |
| DL-351 | 2.0-5.0 | 50-100 | 1.85 | DN350*2480 | 3610*1100*1850 | 1150 |
| DL-401 | 3.2-8.0 | 80-160 | 3 | DN400*3100 | 4550*1180*2250 | 2050 |
| DL-404 | 12.8-32.0 | 320-640 | 9 | DN400*3100 | 4840*3140*2250 | 7000 |
Fast Response: Solutions within 24 hours.
Warranty: One-year remote warranty for stable performance.
Technical Support: Professional online guidance and troubleshooting.
Custom Service: OEM/ODM support for project needs.

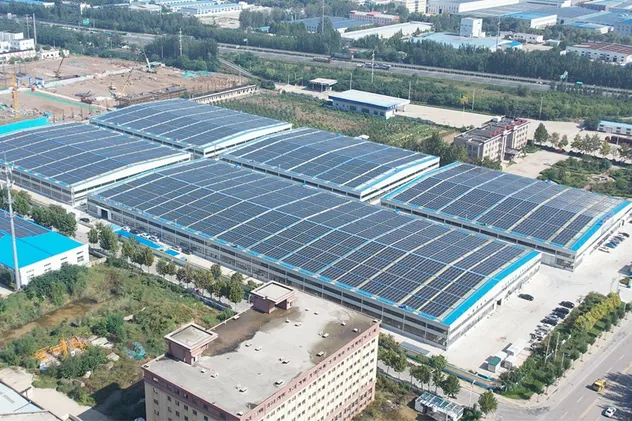

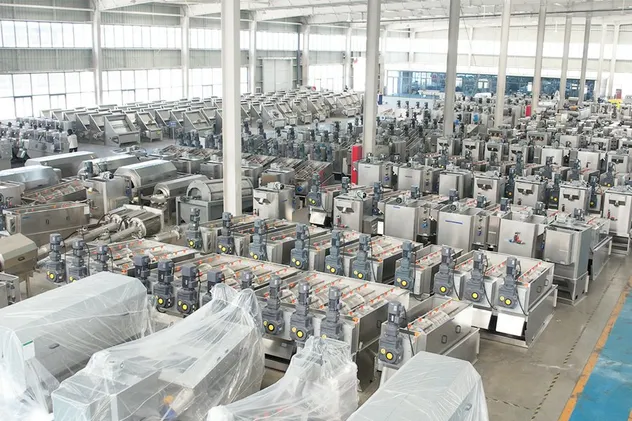

We are a professional manufacturer specializing in wastewater treatment equipment. Our main products include DAF systems, submersible mixers, aerators, bar screens, and screw press dewatering machines. We provide customized solutions and full technical support for municipal and industrial projects worldwide.
We actively participate in international environmental exhibitions to showcase our latest technologies. We warmly welcome customers to visit our facilities to learn more about our production process and quality control.
It is highly adaptable to various types of sludge, including municipal, industrial, agricultural, and particularly effective for oily or fibrous sludge that often clogs traditional filters.
The equipment uses a unique self-cleaning structure consisting of fixed and traveling rings. The rotation of the screw shaft continuously cleans the filter gaps, preventing blockages without requiring high-pressure backwashing.
Yes, the system is designed for 24-hour continuous automatic operation, covering everything from sludge feeding and chemical dosing to dewatering and cake discharge.
The screw shaft rotates at a very low speed (typically 2-4 rpm), which results in extremely low power consumption and minimal noise compared to high-speed centrifuges or belt presses.
Thanks to the durable stainless steel construction, maintenance is minimal. Periodic checks of the screw shaft and traveling rings are recommended, but the self-cleaning design significantly reduces daily upkeep.
Absolutely. we offer professional online technical guidance, troubleshooting assistance, and a one-year remote warranty to ensure stable equipment performance globally.
