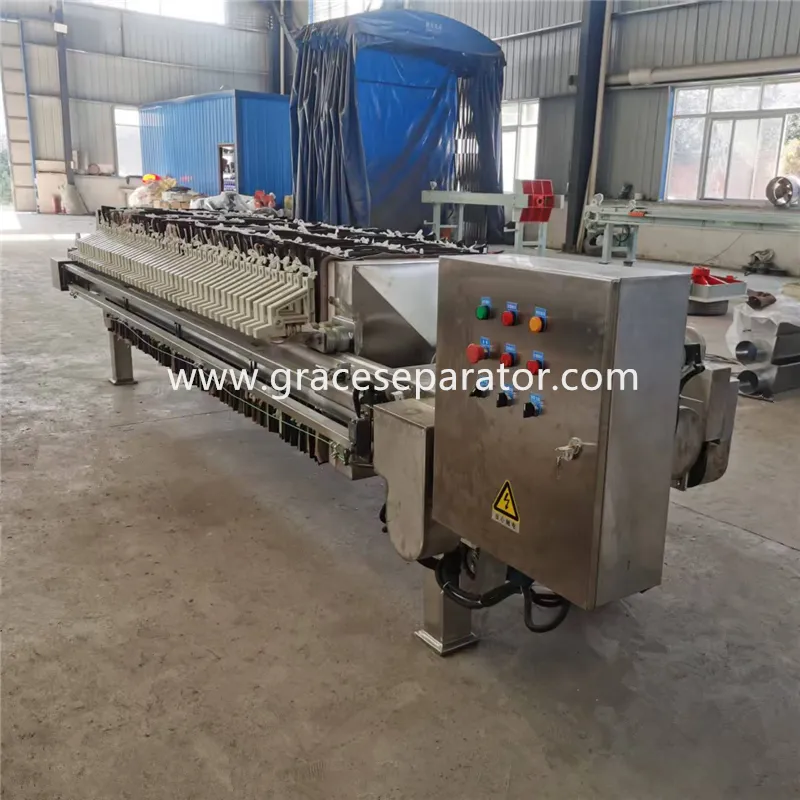

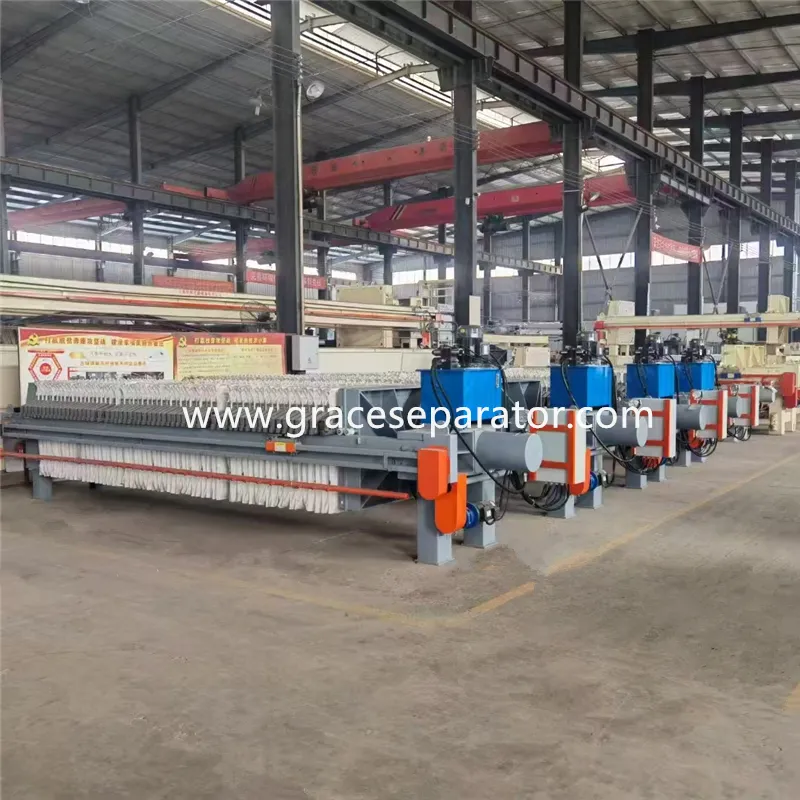

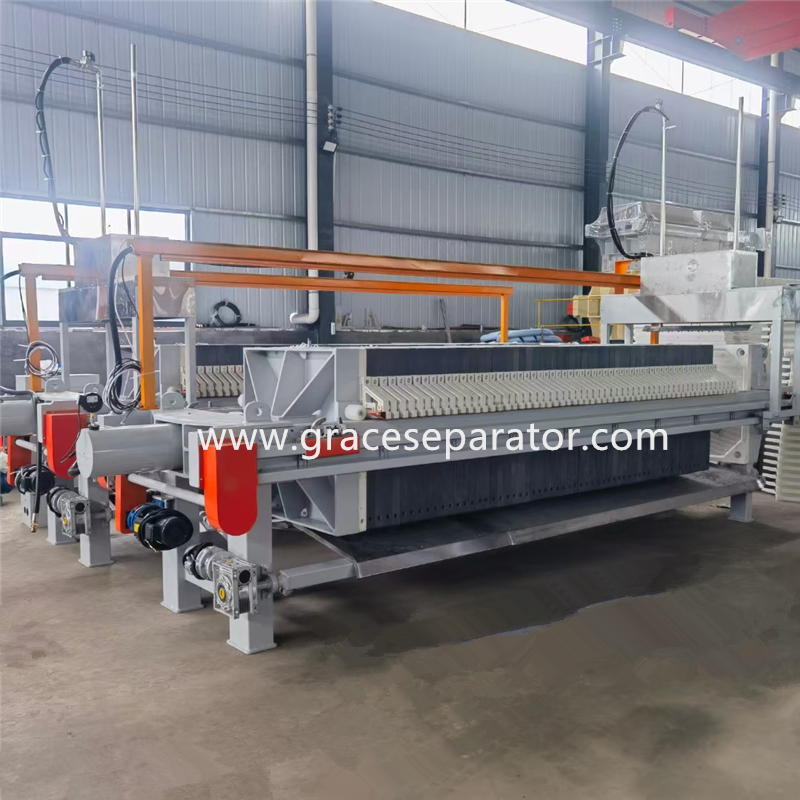

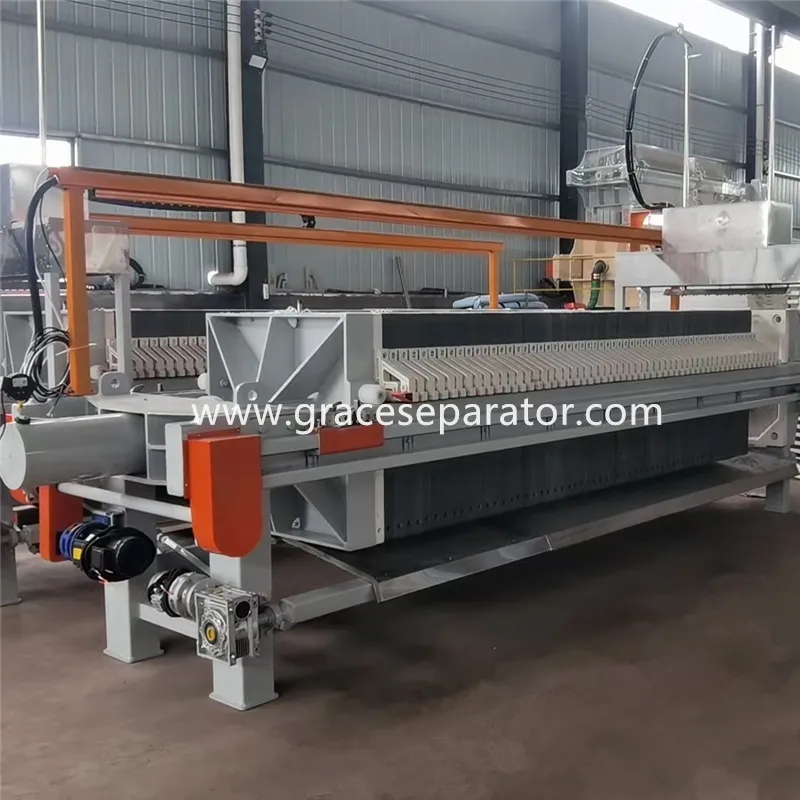

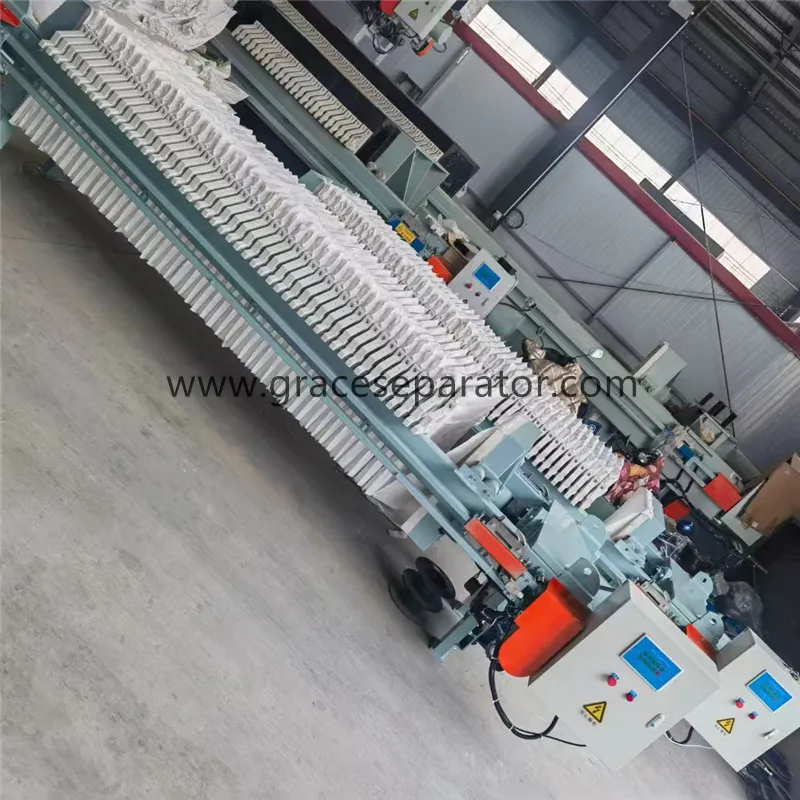

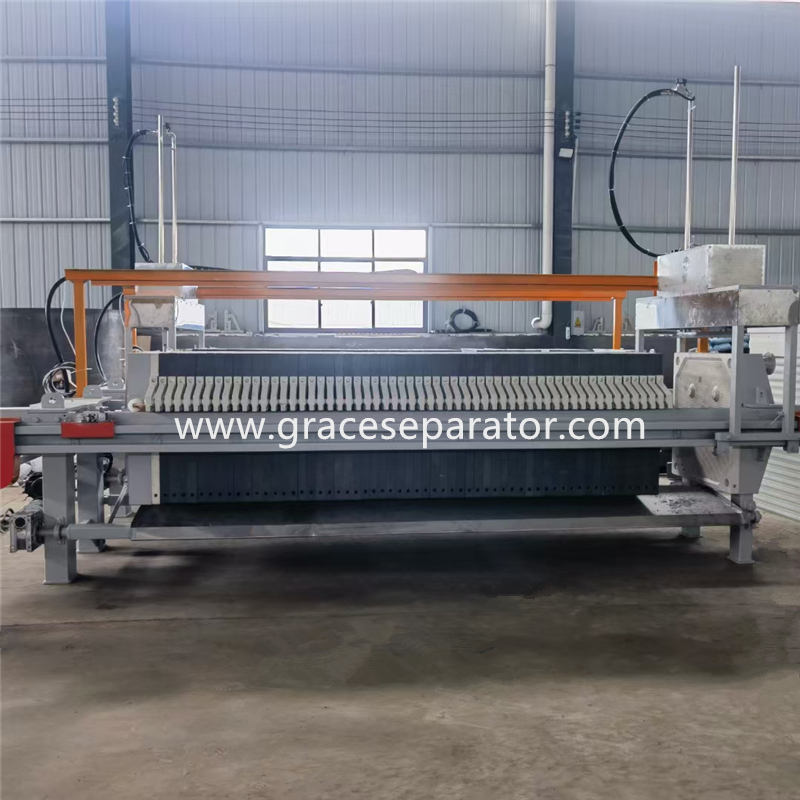

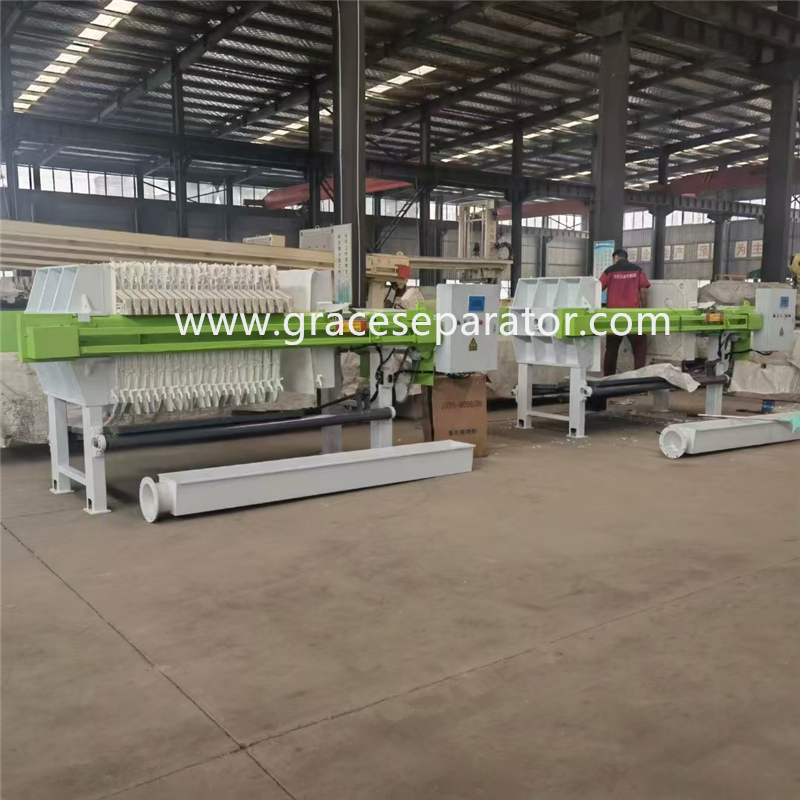

The chamber type automatic pull plate filter press is mainly used in the production of syrup for decolorization filtration and impurity removal. Its core advantage lies in efficient separation and automated operation.
1. Apple Syrup Refining: Removes pectin effectively. Filtrate transmittance increases from 75% to 95%, significantly reducing activated carbon costs. (Parameters: 65ºC, 0.6 MPa, 3x circulation).

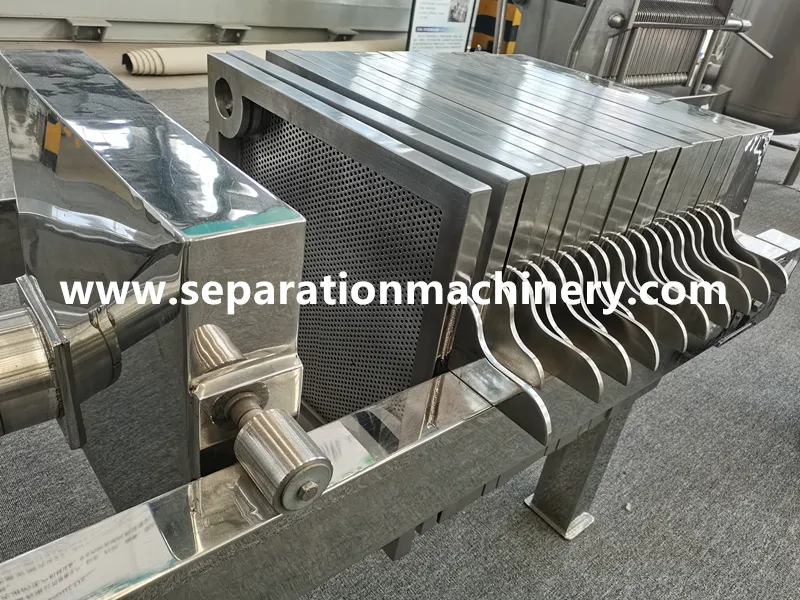

2. Sugar Syrup Impurity Removal: Processes crude syrup with 2% suspended solids. Quick-opening plates (10s per plate) ensure filter cake sugar content is under 1.5%.

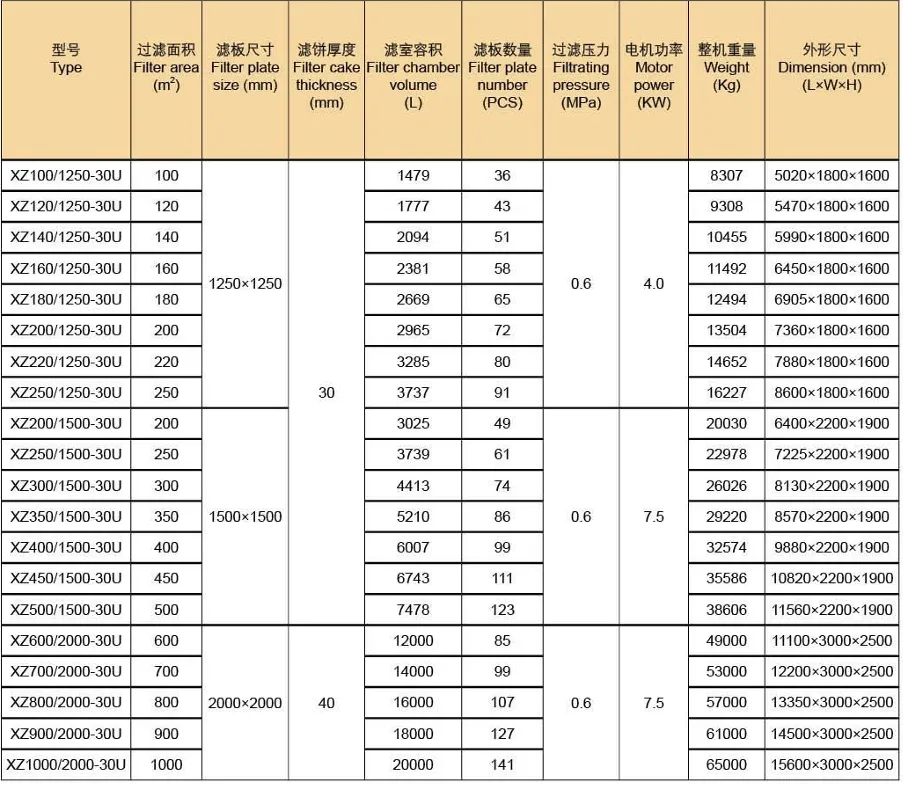

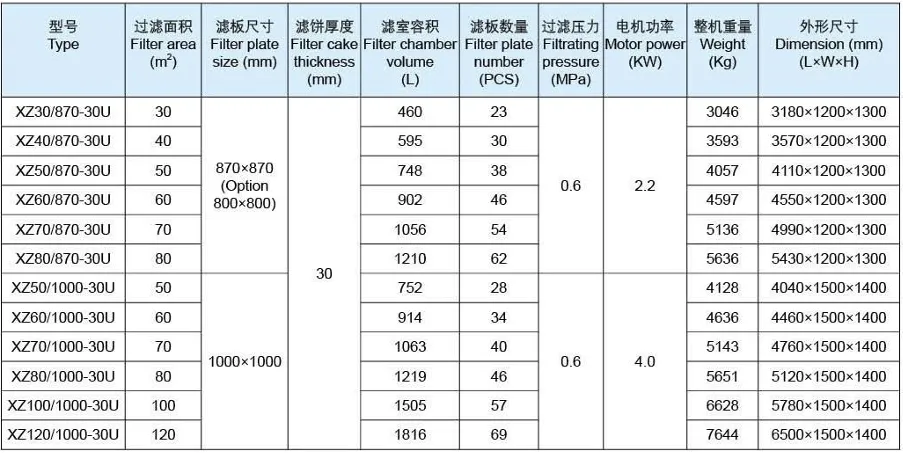

| Model | Filter area (m2) | Plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (pcs) | Pressure (Mpa) | Power (kw) | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XZ30/870 | 30 | 870*870 | 30 | 460 | 23 | 0.6 | 2.2 | 3000 | 3180*1200*1300 |
| XZ40/870 | 40 | 870*870 | 30 | 590 | 30 | 0.6 | 2.2 | 3500 | 3600*1200*1300 |
| XZ50/870 | 50 | 870*870 | 30 | 740 | 38 | 0.6 | 2.2 | 4000 | 4100*1200*1300 |
| XZ60/870 | 60 | 870*870 | 30 | 900 | 46 | 0.6 | 2.2 | 4500 | 4550*1200*1300 |
