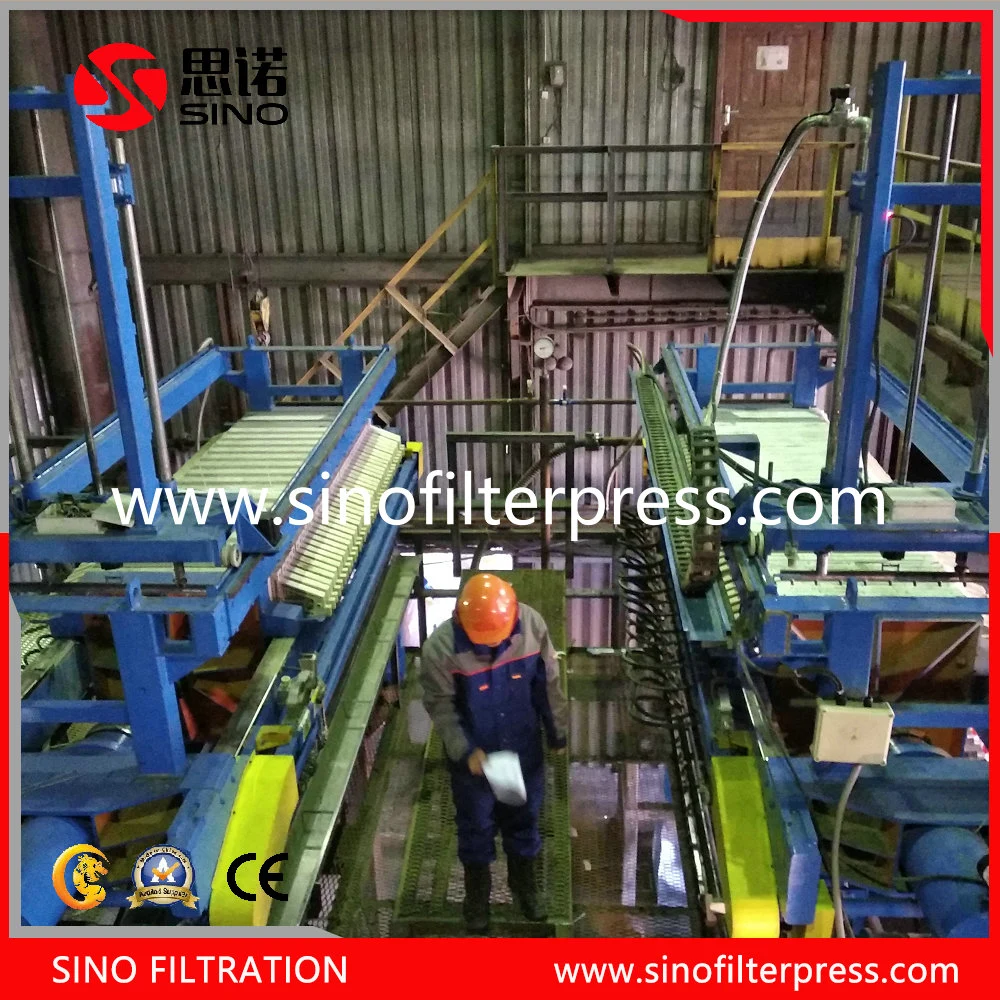

China Automatic Hydraulic PP Membrane Plate Filter Press
China Automatic Hydraulic PP Membrane Plate Filter Press
China Automatic Hydraulic PP Membrane Plate Filter Press
China Automatic Hydraulic PP Membrane Plate Filter Press
China Automatic Hydraulic PP Membrane Plate Filter Press
1 / 5
China Automatic Hydraulic PP Membrane Plate Filter Press
China Automatic Hydraulic PP Membrane Plate Filter Press
China Automatic Hydraulic PP Membrane Plate Filter Press
China Automatic Hydraulic PP Membrane Plate Filter Press
China Automatic Hydraulic PP Membrane Plate Filter Press

China Automatic Hydraulic PP Membrane Plate Filter Press

Customization: Available
Structure: Cantilever Beam Type
Filter Material: FRPP
Send Inquiry

Product Description

Basic Info.
Model NO. XMGZ filter press
Pressure Hydraulic Pressure
Type Diaphragm Filter Press
Filter Press Type Membrane Filter Press
Other Name Chamber Membrane Filter Press
Plate Material PP Filter Press
Plate Type 1 Membrane Plate Filter Press
Plate Type 2 Chamber Plate Filter Press
Close Method Hydraulic Membrane Filter Press
Cake Discharging Automatic Membrane Filter Press
Plate Size 870, 1000, 1250, 1500, 2000 Filter Press
Squeezing Method 1 Water Squeezing Filter Press
Squeezing Method 2 Compacted Air Squeezing Filter Press
Voltage Customized Plate Filter Press
Squeezing Pressure High Pressure Filter Press
Transport Package Seaworthy Membrane Filter Press
Specification 870, 1250, 1500, 2000 Membrane Filter Press
HS Code 8421291090
Production Capacity 2000 Sets Membrane Filter Press Per Year
Packaging & Delivery Spec
Package Size 490.00cm * 150.00cm * 180.00cm
Package Gross Weight 3000.000kg
Product Description

What is a Membrane Filter Press?
A membrane filter press is a very effective tool intended to separate solids and liquids using pressure driven by feed pumps. After the cake is formed, the membrane plate will be injected with compressed air or high-pressure water, thus the membrane filter plate will be swelled to squeeze the filter cakes again, thus to additionally decreasing the cake moisture.

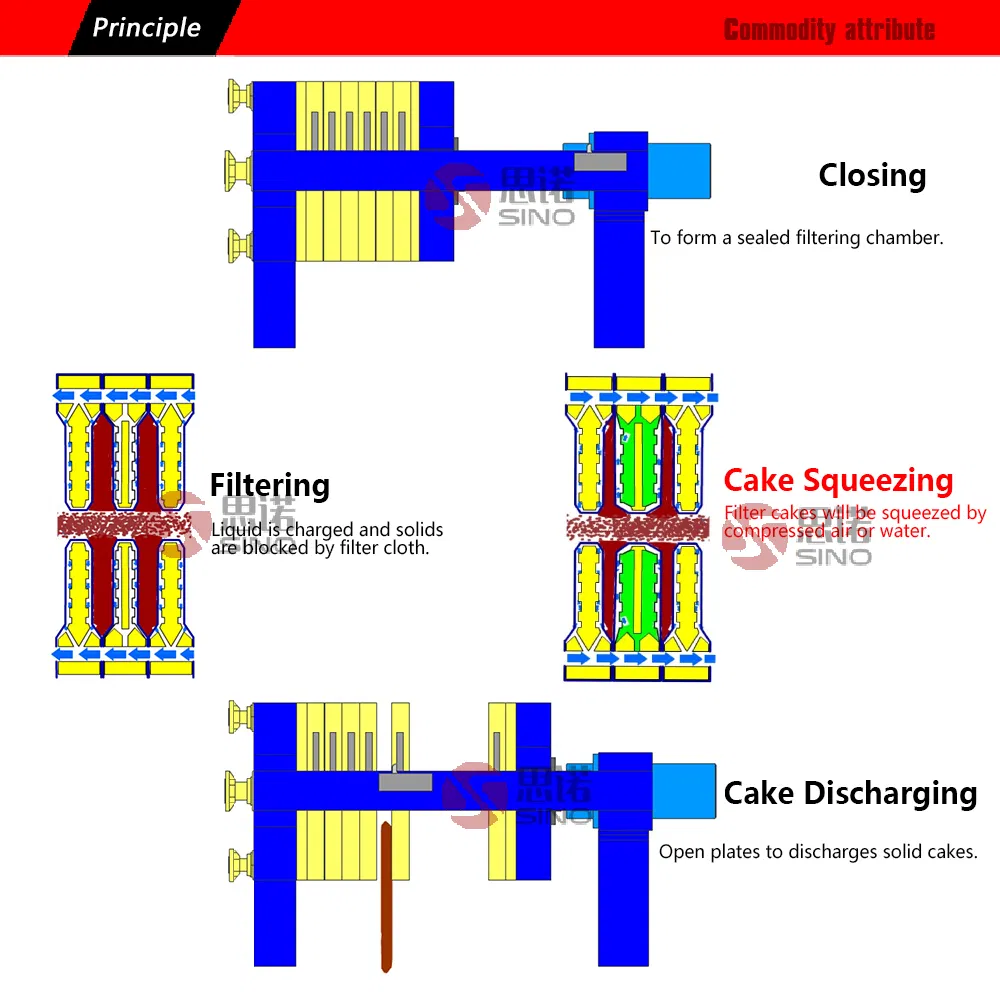

Working Principle
Working Principle Image 1

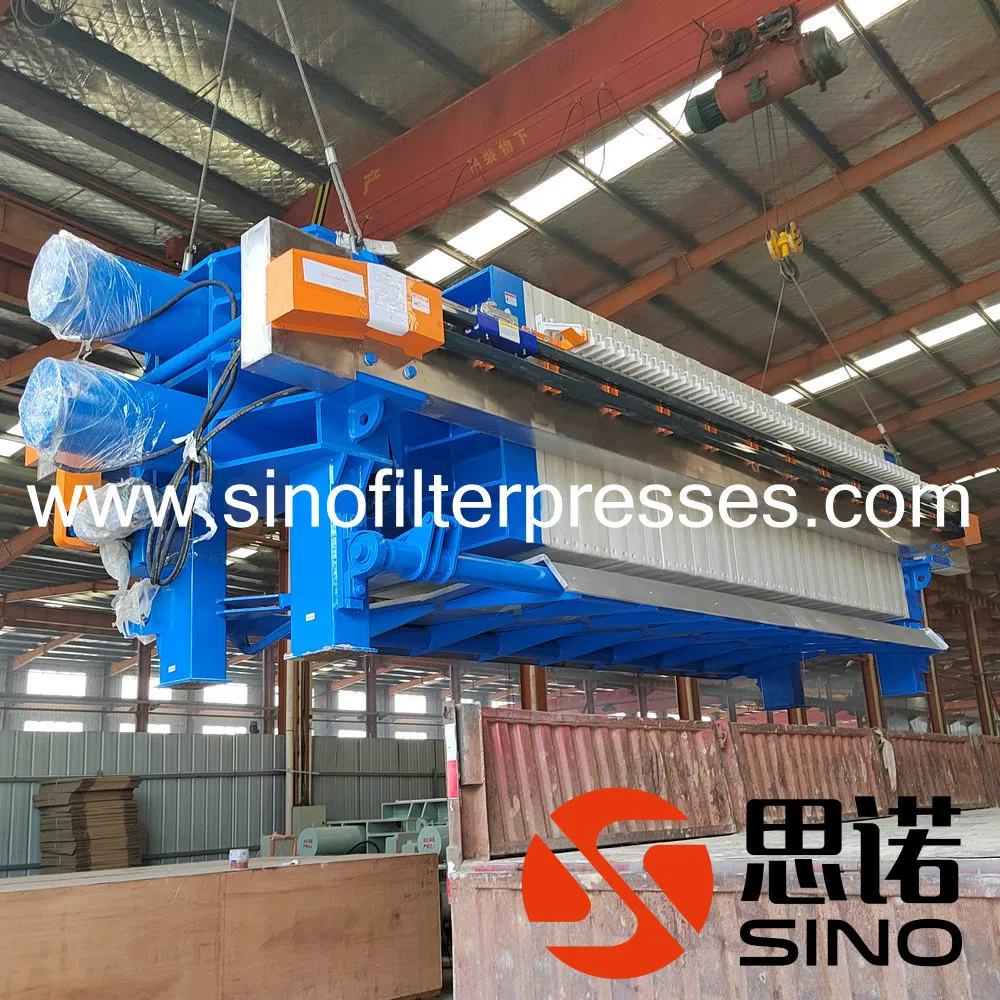

Working Principle Image 2

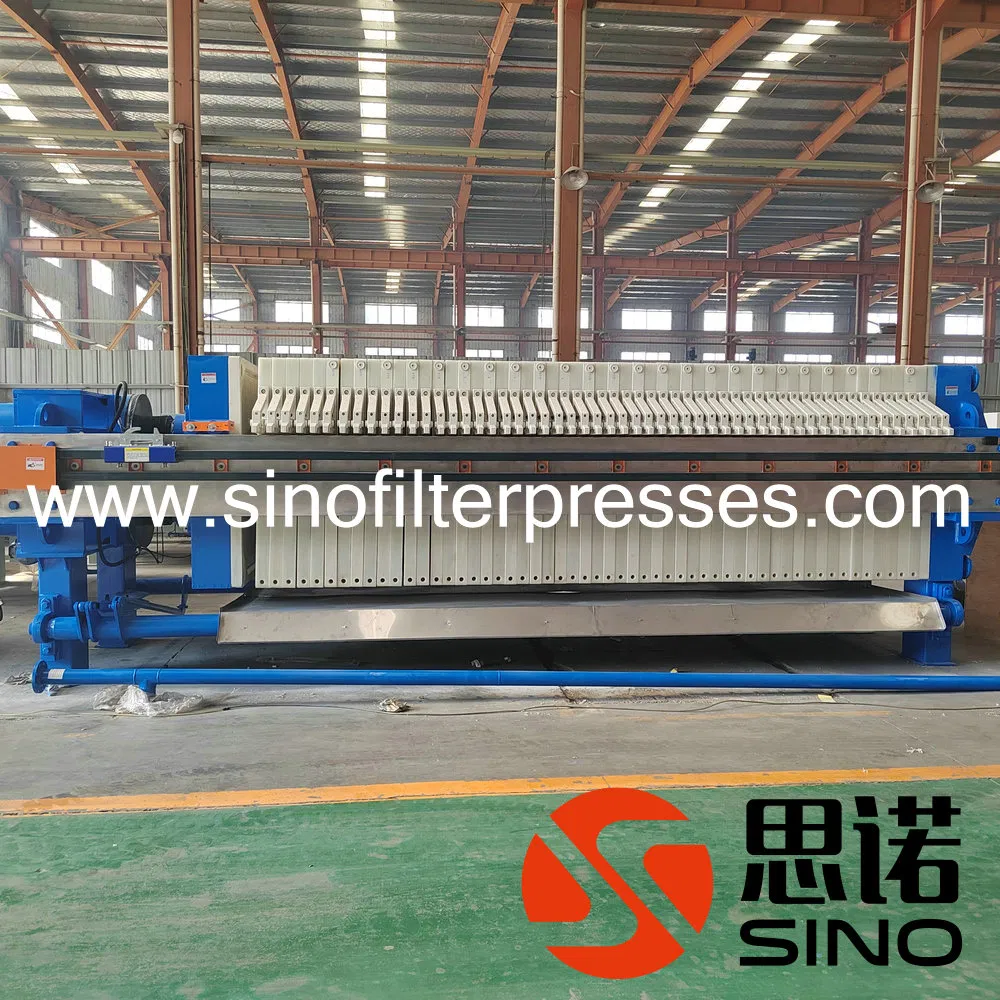

Working Principle Image 3

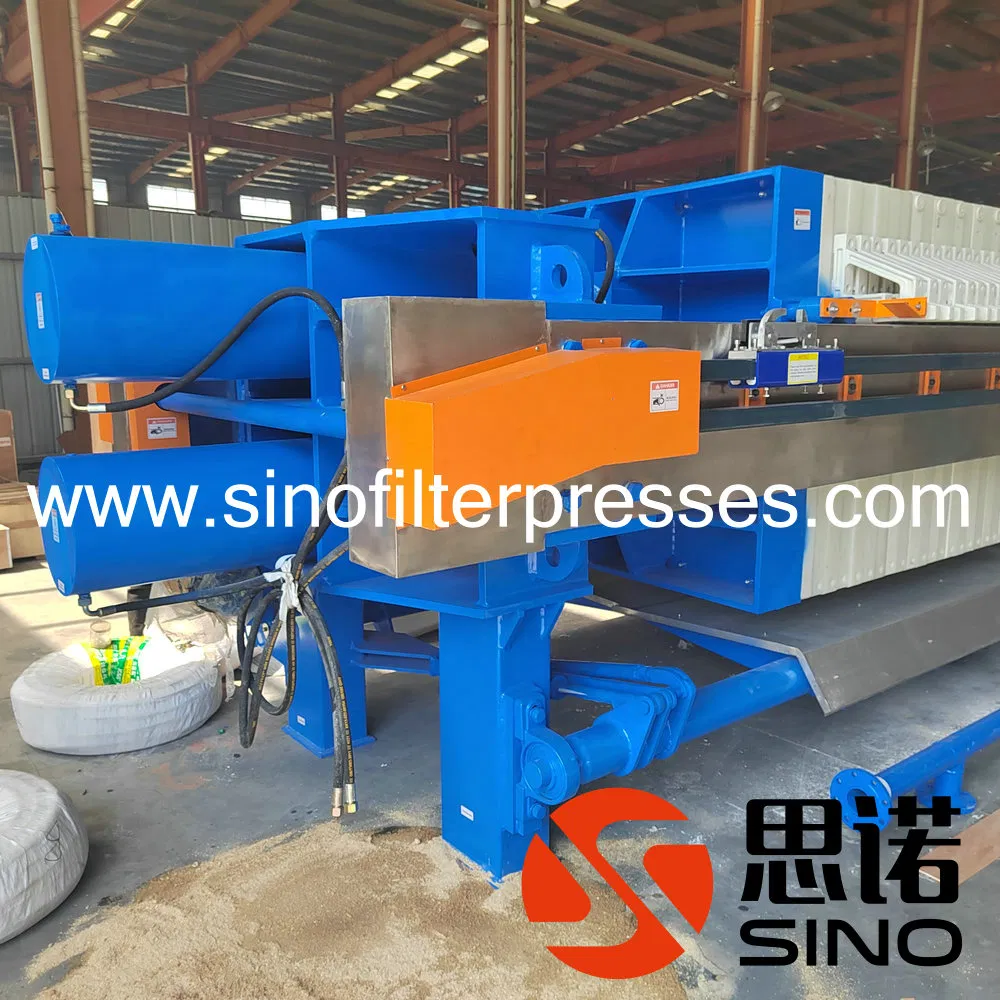

Working Principle Image 4

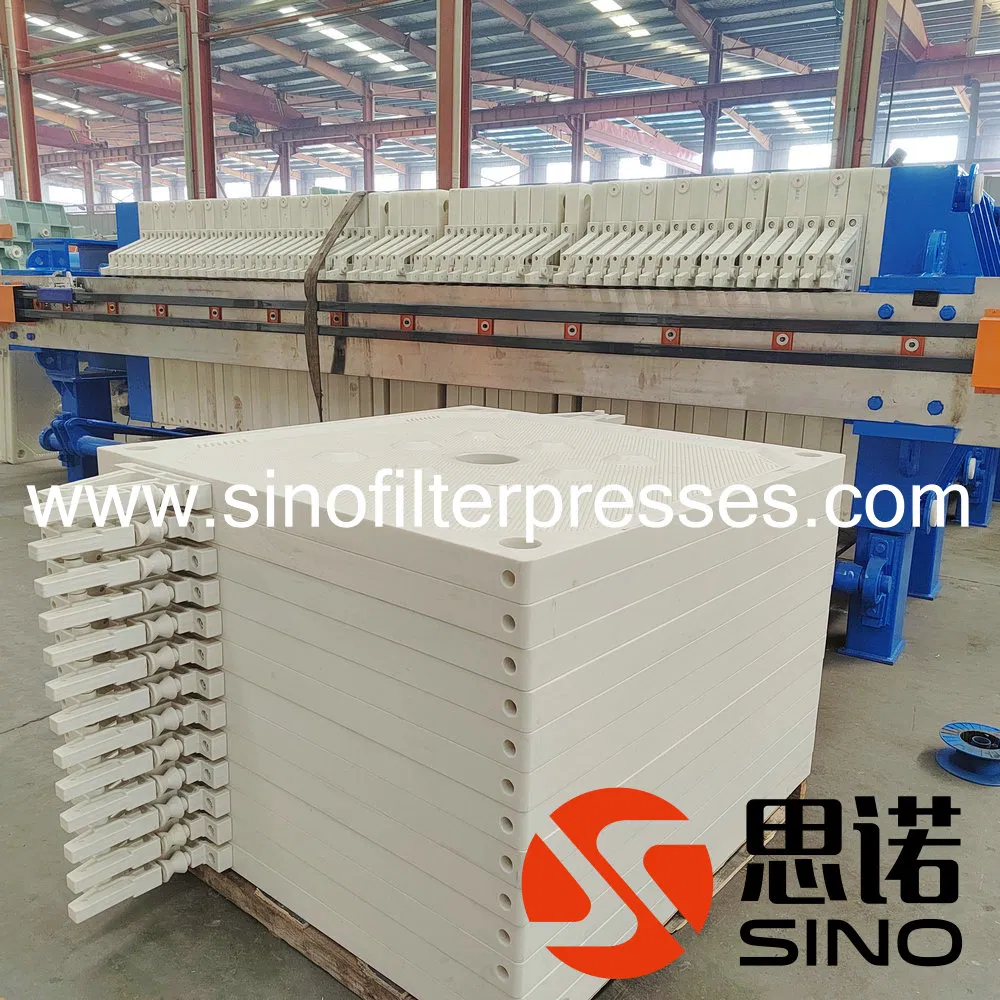

Working Principle Image 5
Product Parameters

Specifications of Membrane Filter Press:

Model Filter Area (m²) Plate Size (mm) Volume (L) Plate QTY (pcs) Pressure (MPa) Power (Kw) Dimensions (mm)
XMGZ 30/870 30 870*870 427 23 Feeding pressure: ≤1 MPa, Squeezing pressure: ≤1.5 MPa 4 3880*1250*1300
XMGZ 40/870 40 534 29 4270*1250*1300
XMGZ 50/870 50 676 37 4790*1250*1300
XMGZ 60/870 60 818 45 5310*1250*1300
XMGZ 70/870 70 960 53 5830*1250*1300
XMGZ 80/870 80 1103 61 6350*1250*1300
XMGZ 50/1000 50 1000*1000 665 27 4 4270*1500*1400
XMGZ 60/1000 60 808 33 4700*1500*1400
XMGZ 70/1000 70 950 39 5130*1500*1400
XMGZ 80/1000 80 1093 45 5560*1500*1400
XMGZ 100/1000 100 1378 57 6410*1500*1400
XMGZ 120/1000 120 1663 69 7260*1500*1400
XMGZ 80/1250 80 1250*1250 1364 29 5.5 4830*1800*1600
XMGZ 100/1250 100 1680 37 5440*1800*1600
XMGZ 120/1250 120 2092 45 6060*1800*1600
XMGZ 140/1250 150 2547 55 6820*1800*1600
XMGZ 160/1250 160 2729 59 7130*1800*1600
XMGZ 180/1250 200 3457 73 8200*1800*1600
XMGZ 200/1250 240 4093 89 9420*1800*1600
XMGZ 250/1250 250 4276 91 9570*1800*1600
XMGZ 200/1500 200 1500*1500 3866 49 11 7140*2200*1820
XMGZ 250/1500 250 4399 61 7730*2200*1820
XMGZ 300/1500 300 5199 73 8720*2200*1820
XMGZ 350/1500 350 6132 85 10110*2200*1820
XMGZ 400/1500 400 6932 99 11260*2200*1820
XMGZ 450/1500 450 7731 111 12250*2200*1820
XMGZ 500/1500 500 8665 123 13240*2200*1820
XMGZ 500/1999 500 2000*2000 9686 69 15 10310*2850*2400
XMGZ 600/2000 600 11900 85 11580*2850*2400
XMGZ 700/2000 700 13838 99 12740*2850*2400
XMGZ 800/2000 800 15775 113 14100*2850*2400
XMGZ 900/2000 900 17851 128 15365*2850*2400
XMGZ 1000/2000 1000 19788 141 16625*2850*2400

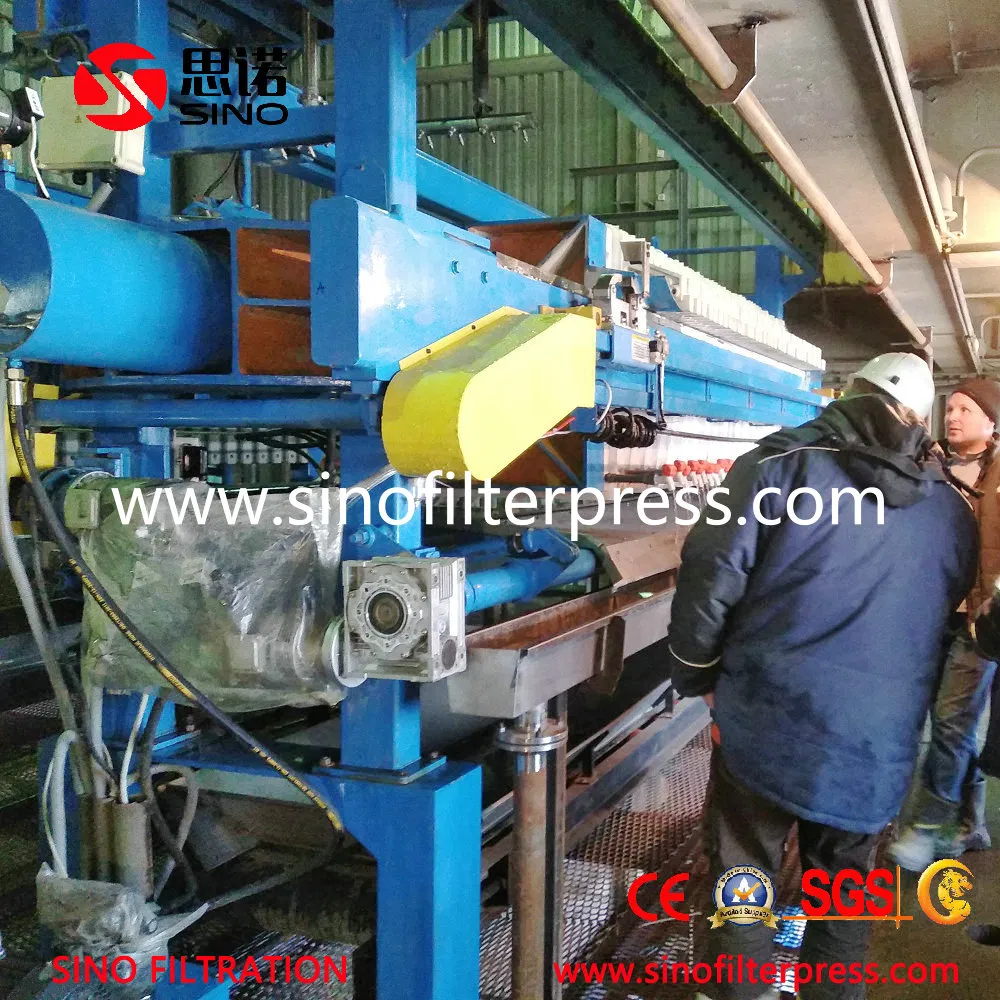

Filter Press Details 1

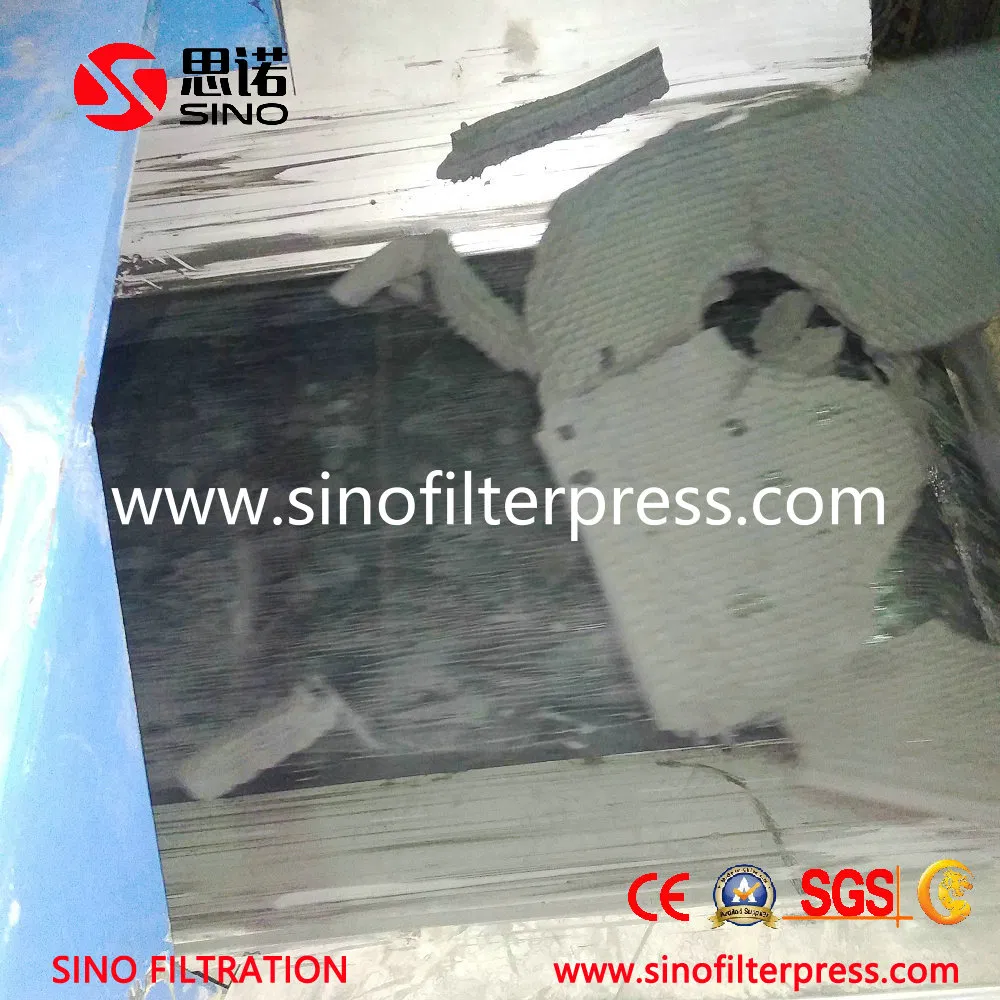

Filter Press Details 2
Packaging & Delivery Detail

Packaging & Delivery of Filter Press Machine:

  • Delivery: around 3 weeks.
  • Packing: Seaworthy packing. The filter press will be packed with the plastic film to avoid water. The hydraulic station and cabinet will be packed in a wooden case.

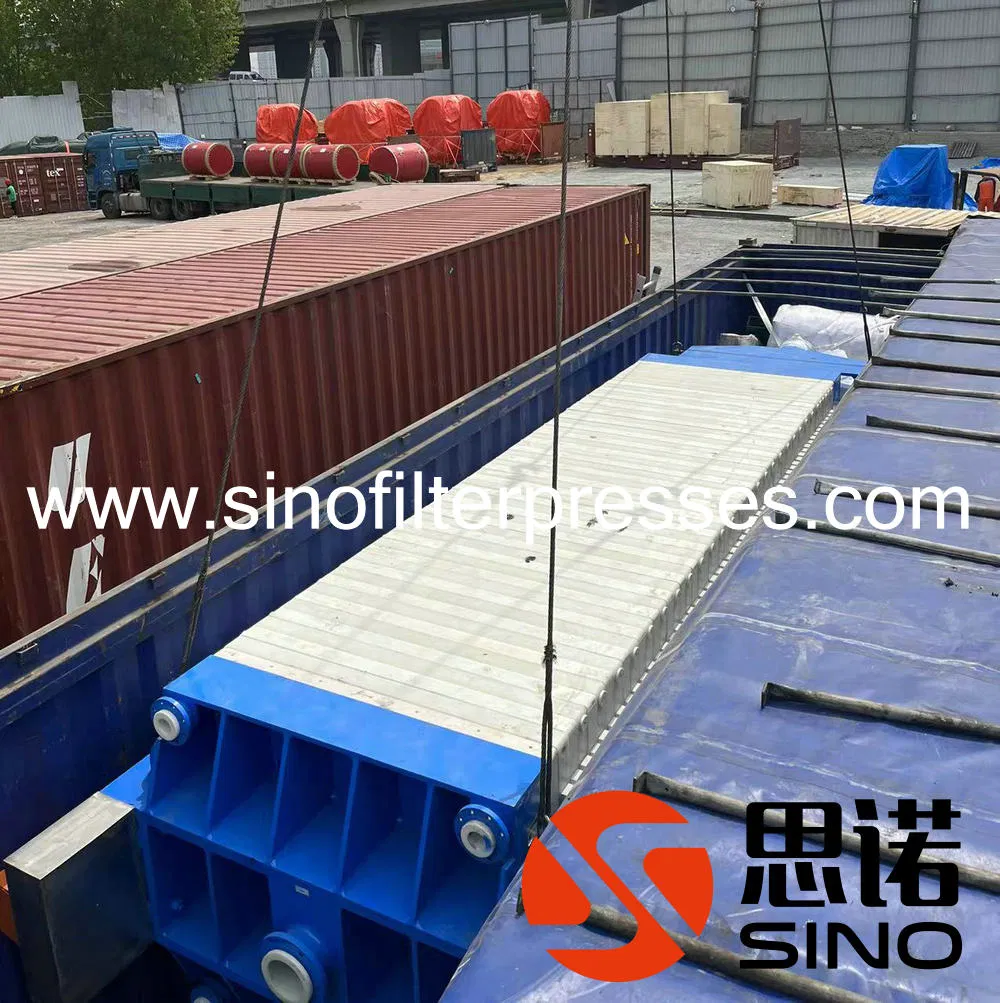

Packaging Image 1

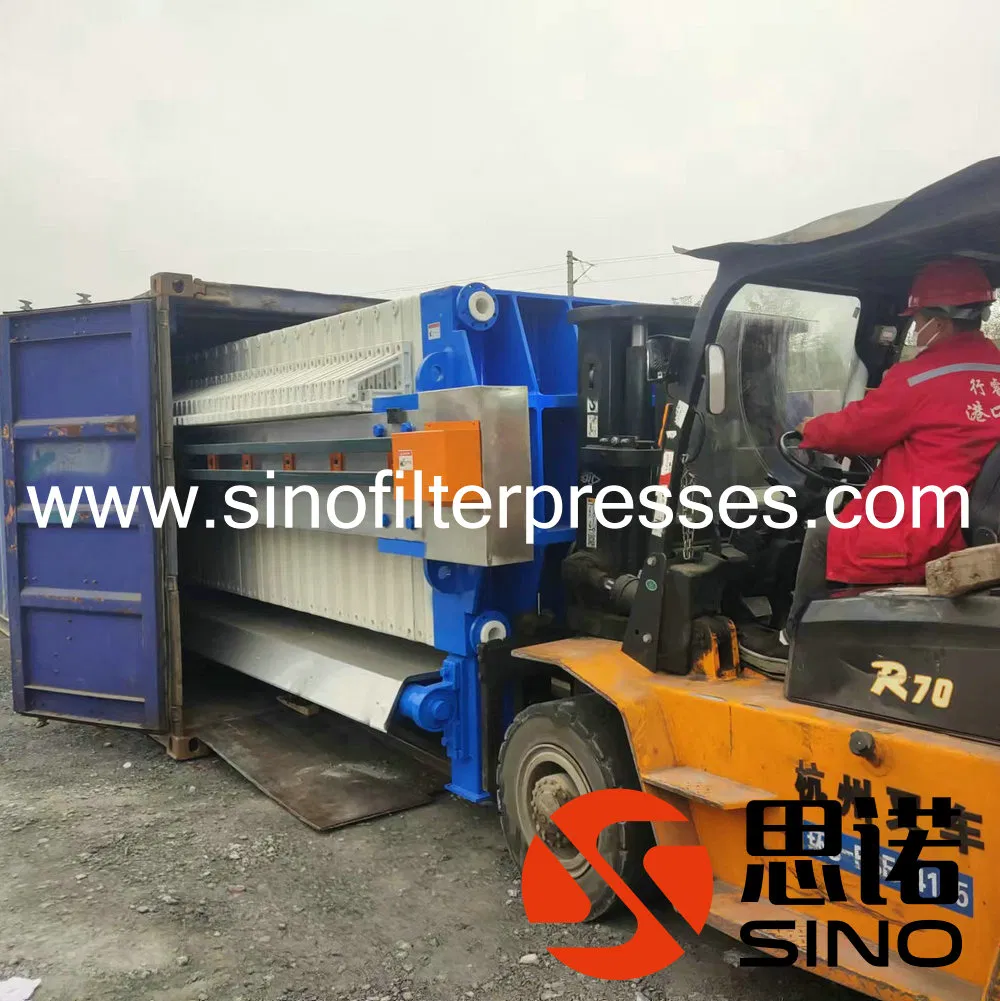

Packaging Image 2

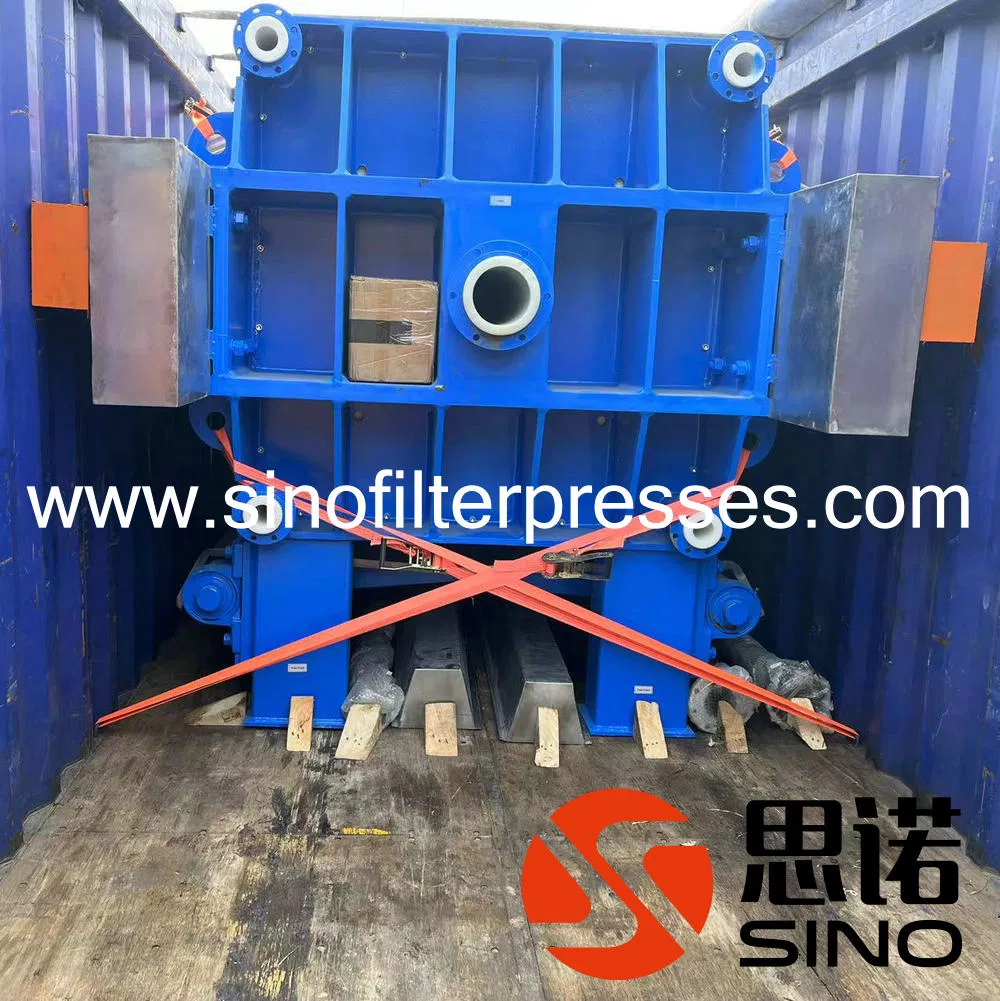

Packaging Image 3
After Sales Service

After-sales Service of Filter Press Machine:

  • Documents supplied: Foundation/Circuit Diagram/Filter Cloth (or Filter Plate).
  • Site commissioning, installation, and training services are valid.
  • Warranty: 13 months after B/L date.

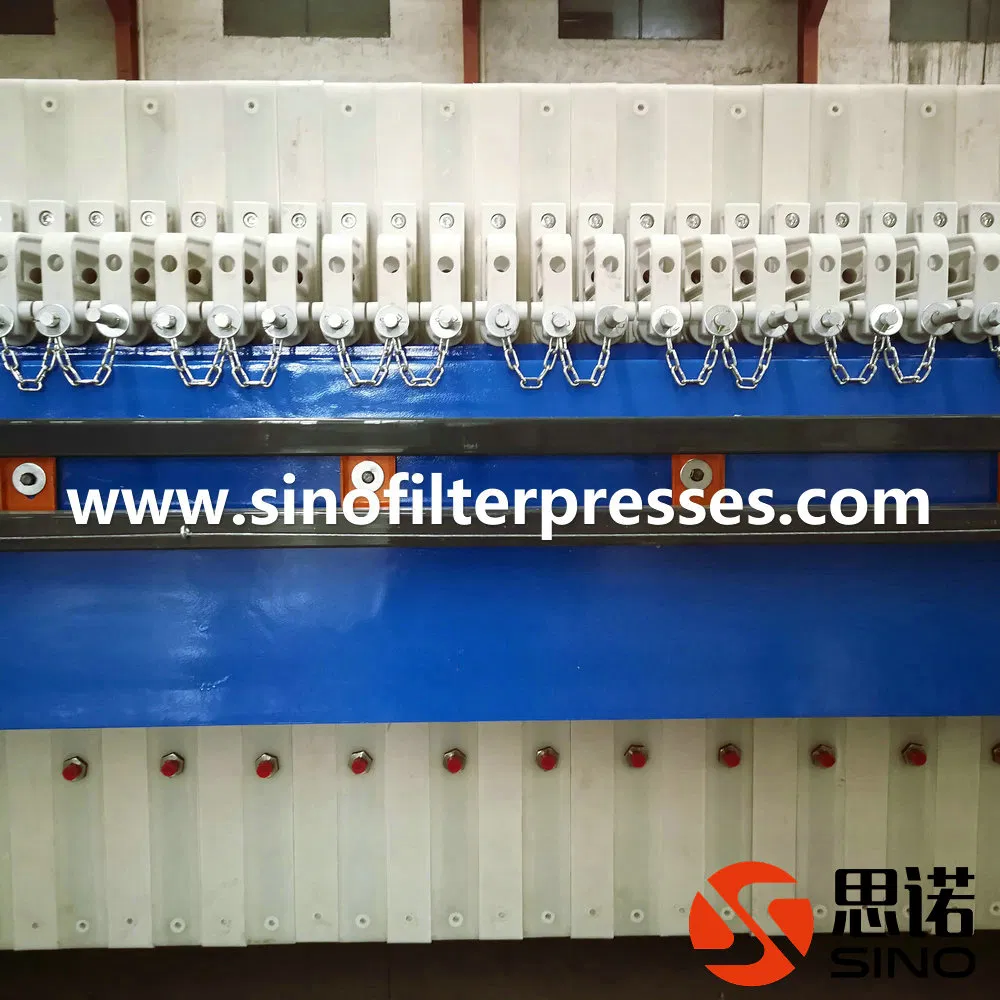

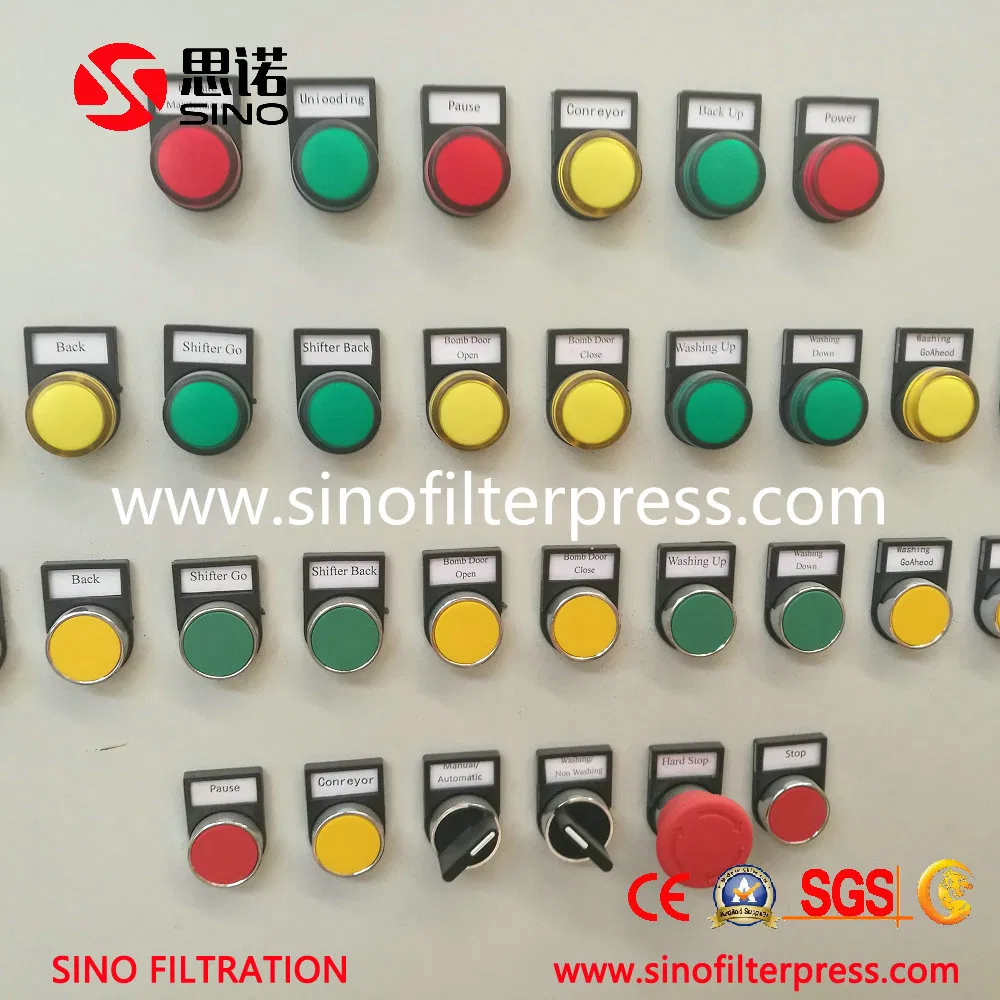

After Sales Image 1
After Sales Image 2
Frequently Asked Questions (FAQ)
Q1: What is the primary function of a membrane filter press?
A1: It is designed to separate solids and liquids using pump-driven feeding pressure. Compressed air or high-pressure water is later injected to swell the membranes, squeezing the filter cakes to reduce moisture content.
Q2: What squeezing methods does the equipment support?
A2: The equipment supports two squeezing methods: water squeezing and compacted air squeezing, enabling flexibility according to different project requirements.
Q3: How long is the standard delivery time?
A3: The standard delivery time is around 3 weeks.
Q4: How is the machine packaged for transport?
A4: The machine uses seaworthy packaging. The filter press is wrapped in plastic film to prevent water damage, while the hydraulic station and electric cabinet are packed in secure wooden cases.
Q5: What is the warranty period offered?
A5: We provide a 13-month warranty starting from the B/L date.
Q6: Do you supply on-site installation and documentation?
A6: Yes, site commissioning, installation, and operator training services are valid. Standard documentation supplied includes the Foundation Diagram, Circuit Diagram, and Filter Cloth/Plate specifications.
