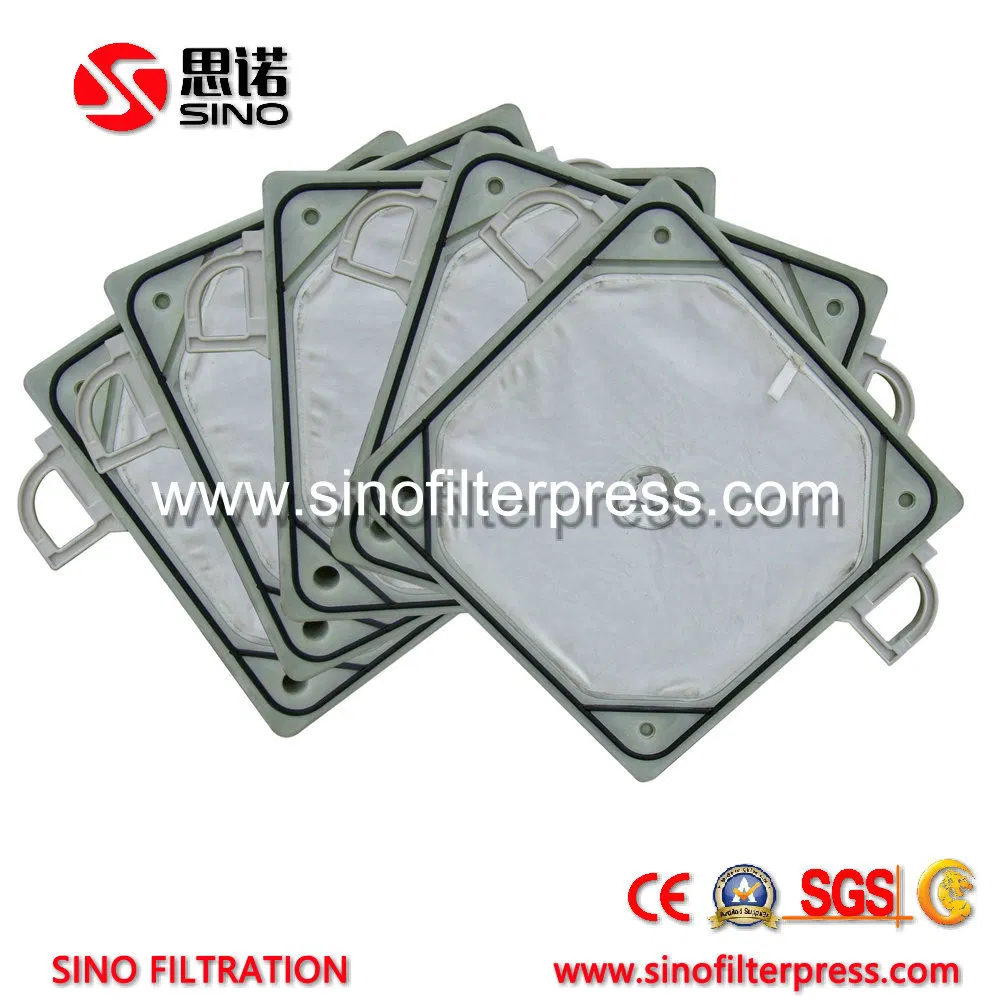

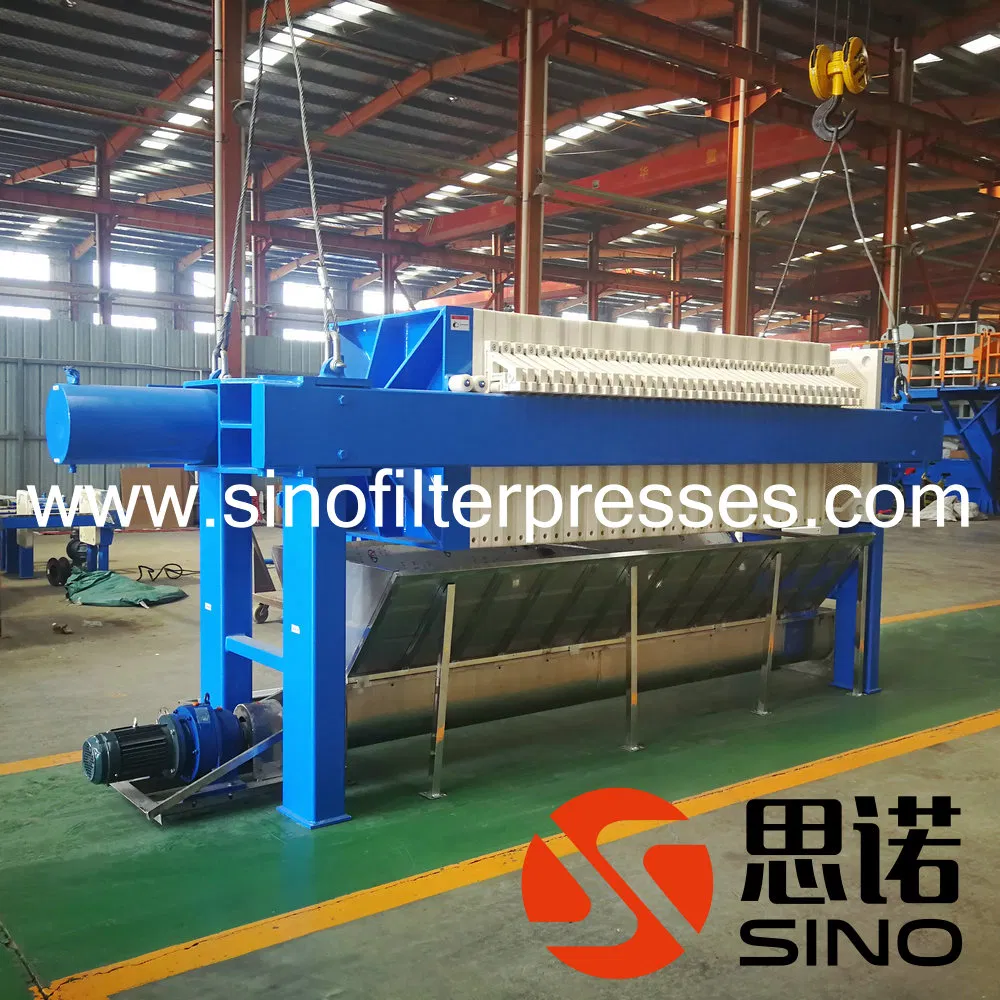

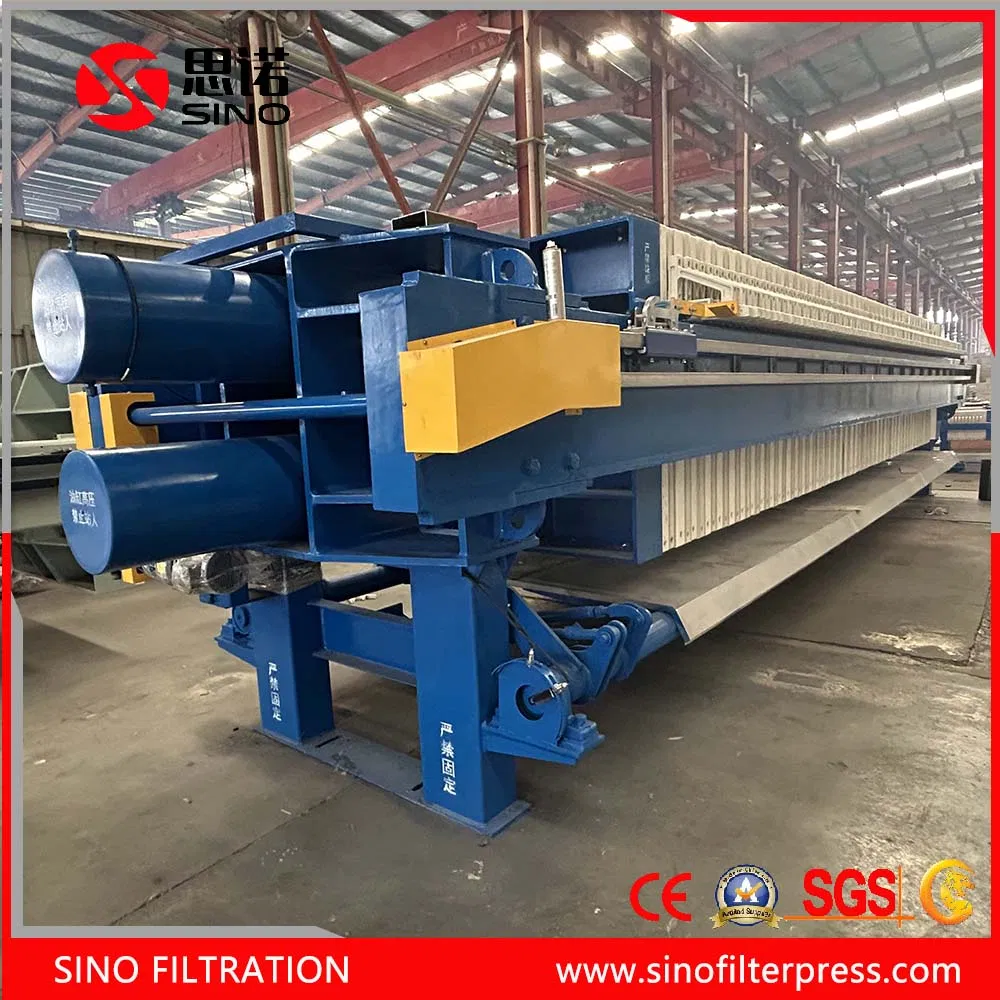

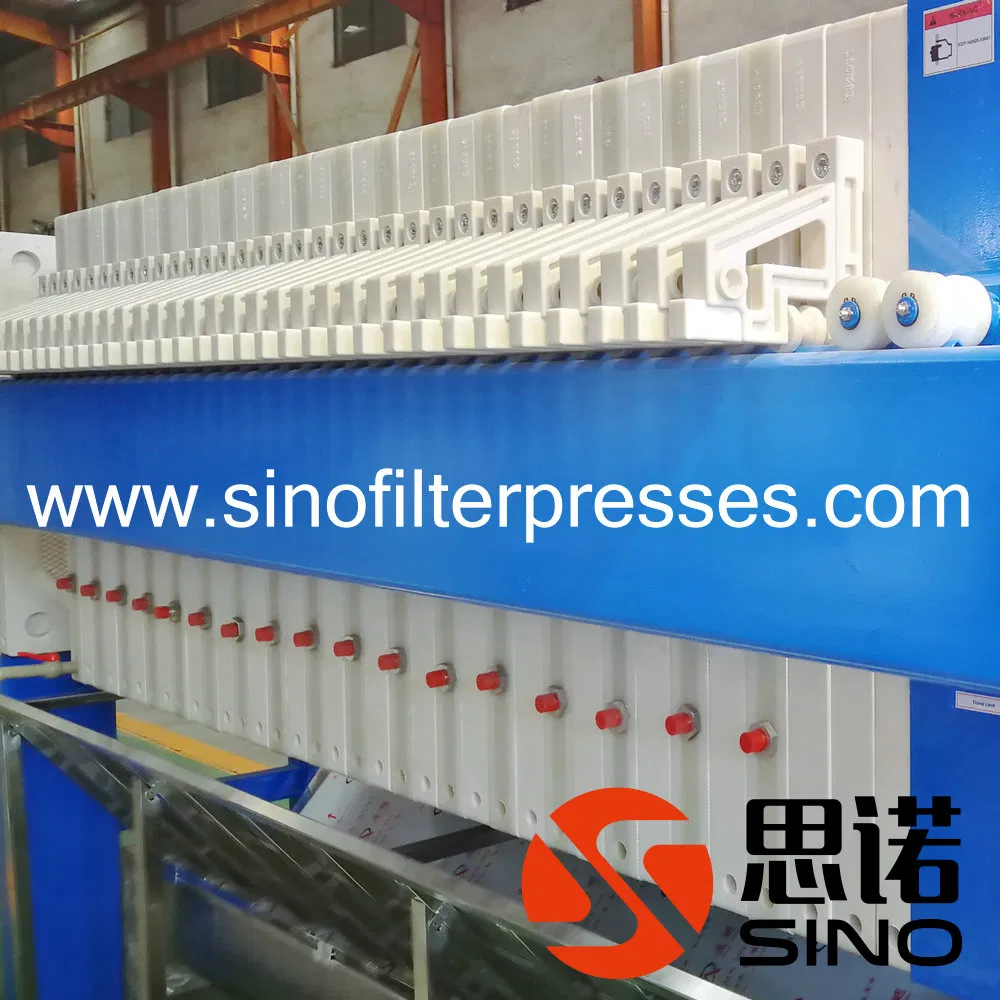

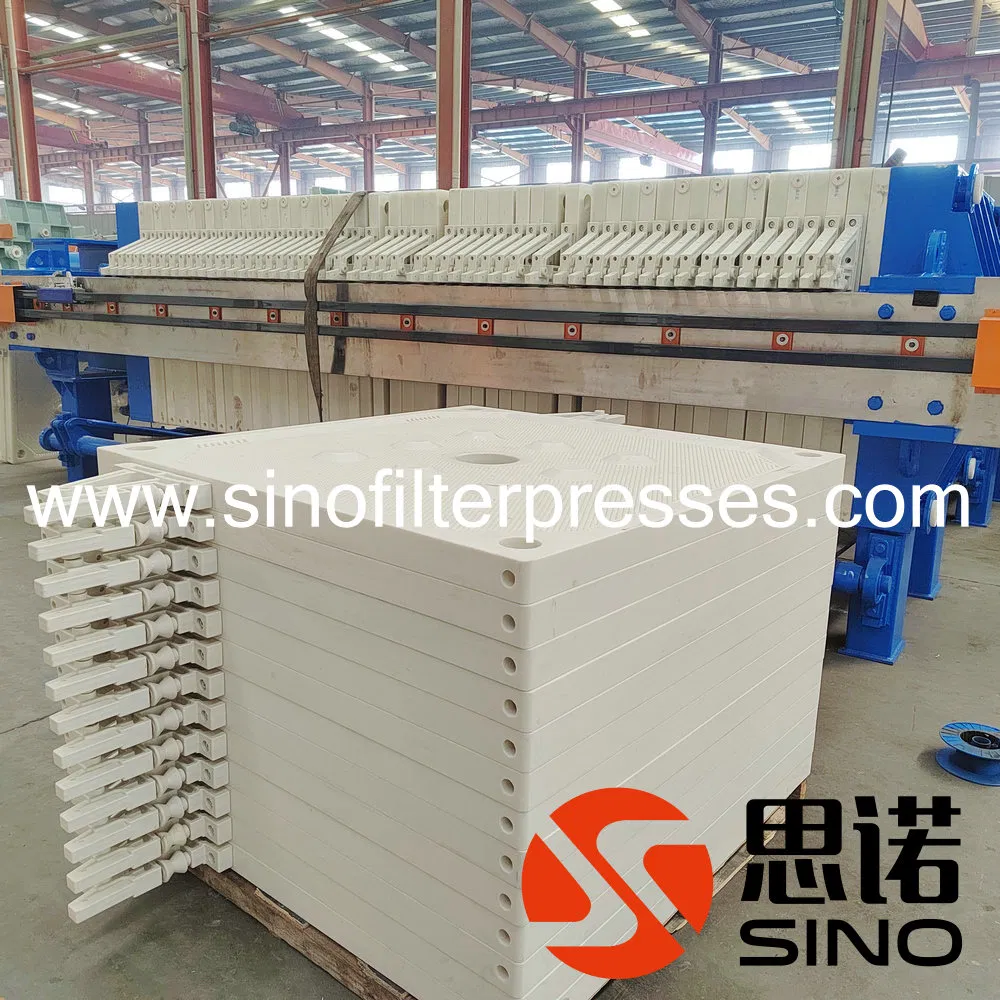

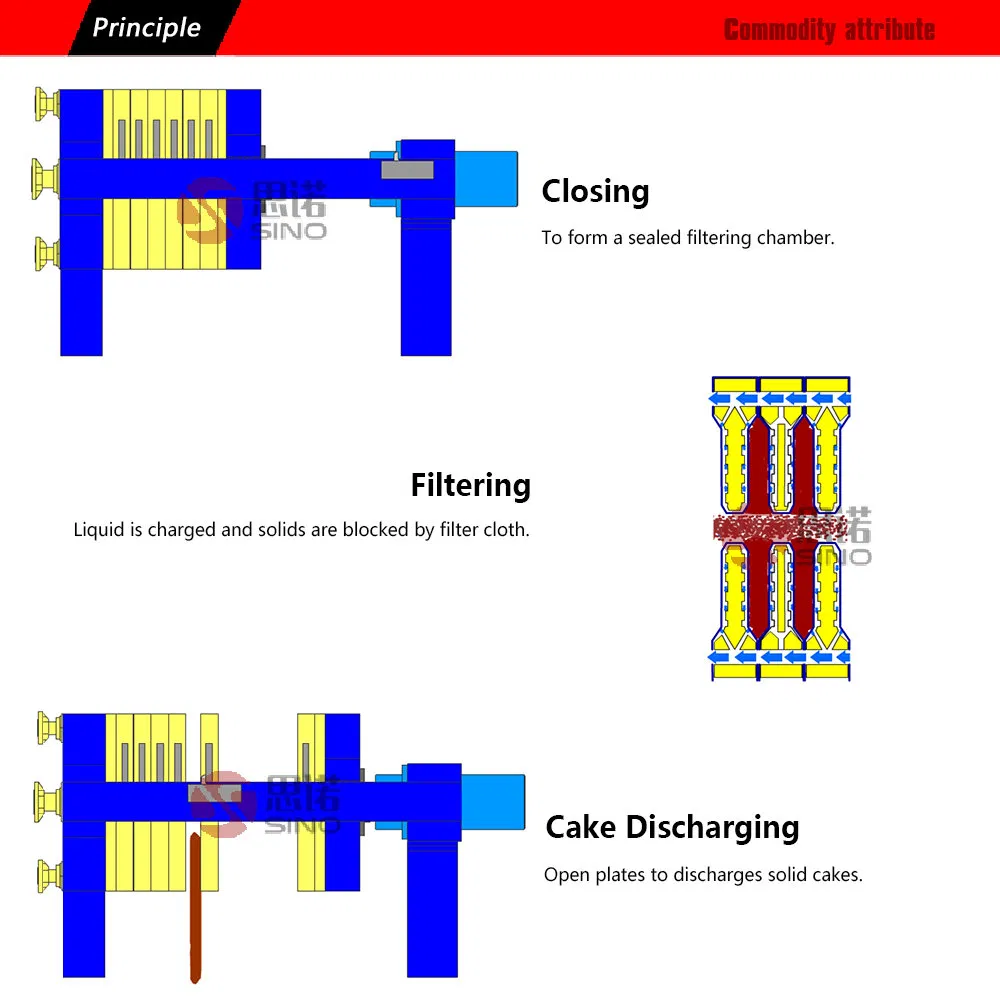

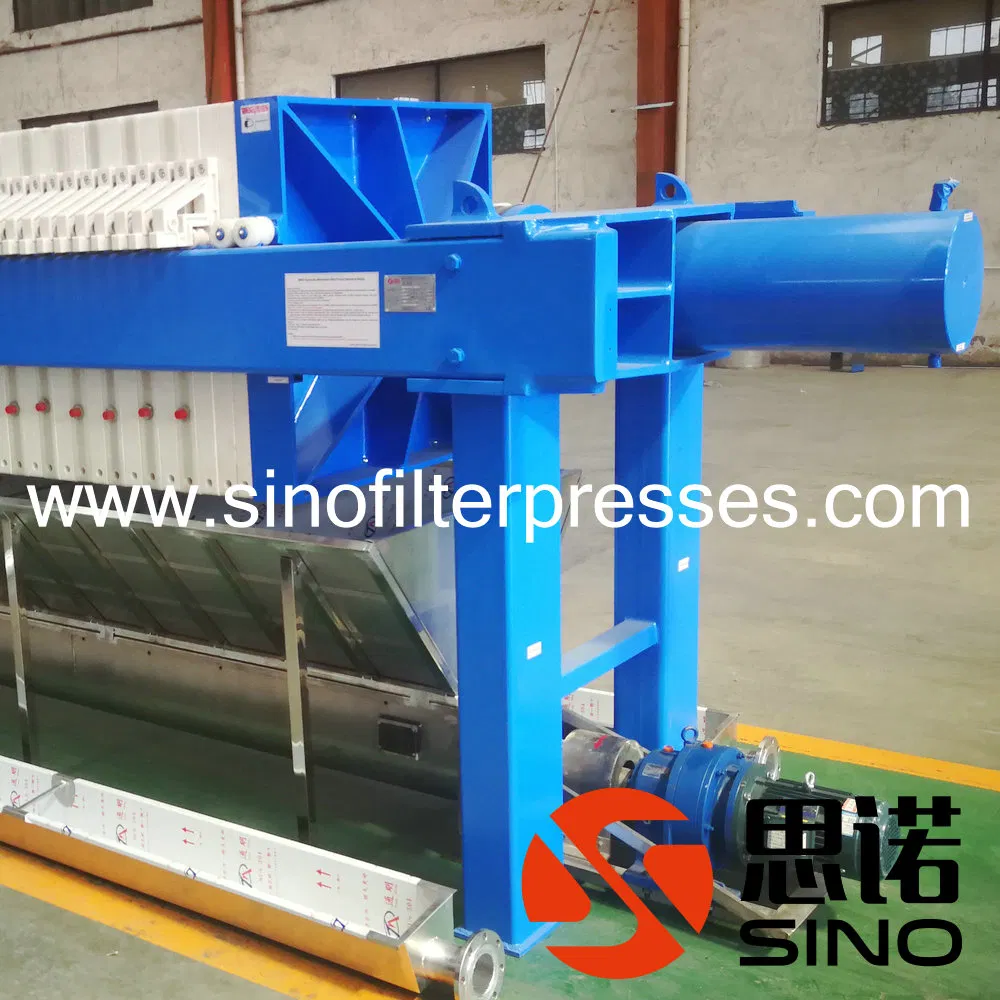

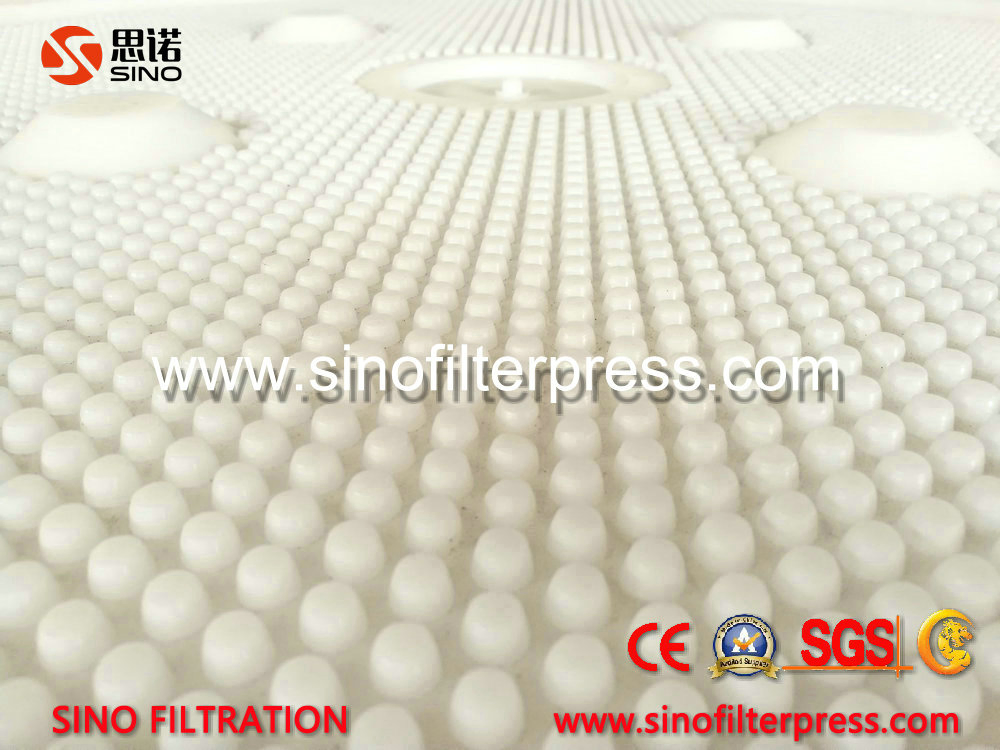

A recessed filter press, namely called chamber filter press, is very effect tool intended to separate solids and liquids using pressure driven by feed pumps. The filter presses consist of the framework, the filter pack, cabinet and driven system. The base framework is composed of a fixed head, a moving head, a closure system, sidebars (or overhead beam). The filter pack consists of the filter plates stacked in order that create a hollowed chamber for solids collection.
| Model | Filter Area (m2) | Volume (L) | Plate QTY (pcs) | Pressure (MPa) | Power (Kw) | Weight (Kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| XMZ 30/870 | 30 | 460 | 23 | 0.6 | 2.2 | 2680 | 3180*1400*1230 |
| XMZ 50/870 | 50 | 748 | 38 | 0.6 | 2.2 | 3456 | 4110*1400*1230 |
| XMZ 80/870 | 80 | 1210 | 62 | 0.6 | 2.2 | 5082 | 5430*1400*1230 |
| XMZ 100/1000 | 100 | 1475 | 57 | 0.6 | 4 | 6628 | 5780*1500*1400 |
| XMZ 200/1250 | 200 | 2896 | 72 | 0.6 | 4 | 13504 | 7360*1800*1600 |
| XMZ 500/1500 | 500 | 7187 | 123 | 0.6 | 11 | 38606 | 11560*2200*1900 |
| XMZ 1000/2000 | 1000 | 19788 | 142 | 0.6 | 15 | 51898 | 15915*2850*2400 |
Delivery: Approximately 3 weeks.

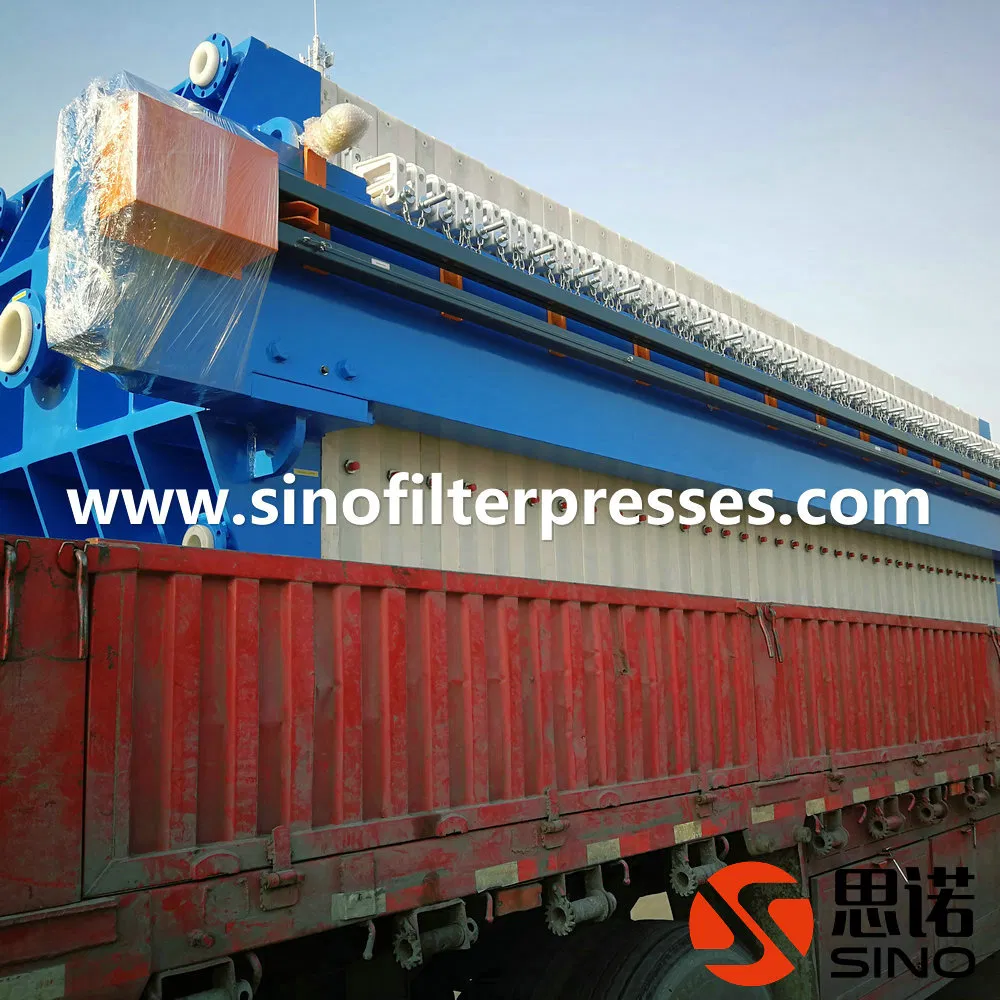

Packing: Seaworthy packing. The filter press is wrapped in plastic film; hydraulic stations and cabinets are packed in wooden cases.
Service: Site commissioning, installation, and training services are available. Warranty is valid for 13 months after B/L date.
