CO2 Laser Engraving Cutting Machine Laser Power 60W 80W 100W 130W

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.GD-6090, 1290, 1325, 1825

Technical ClassContinuous Wave Laser

Applicable MaterialNonmetal

Structure TypeDesktop

Laser TechGaseous Laser / Flame Cutting

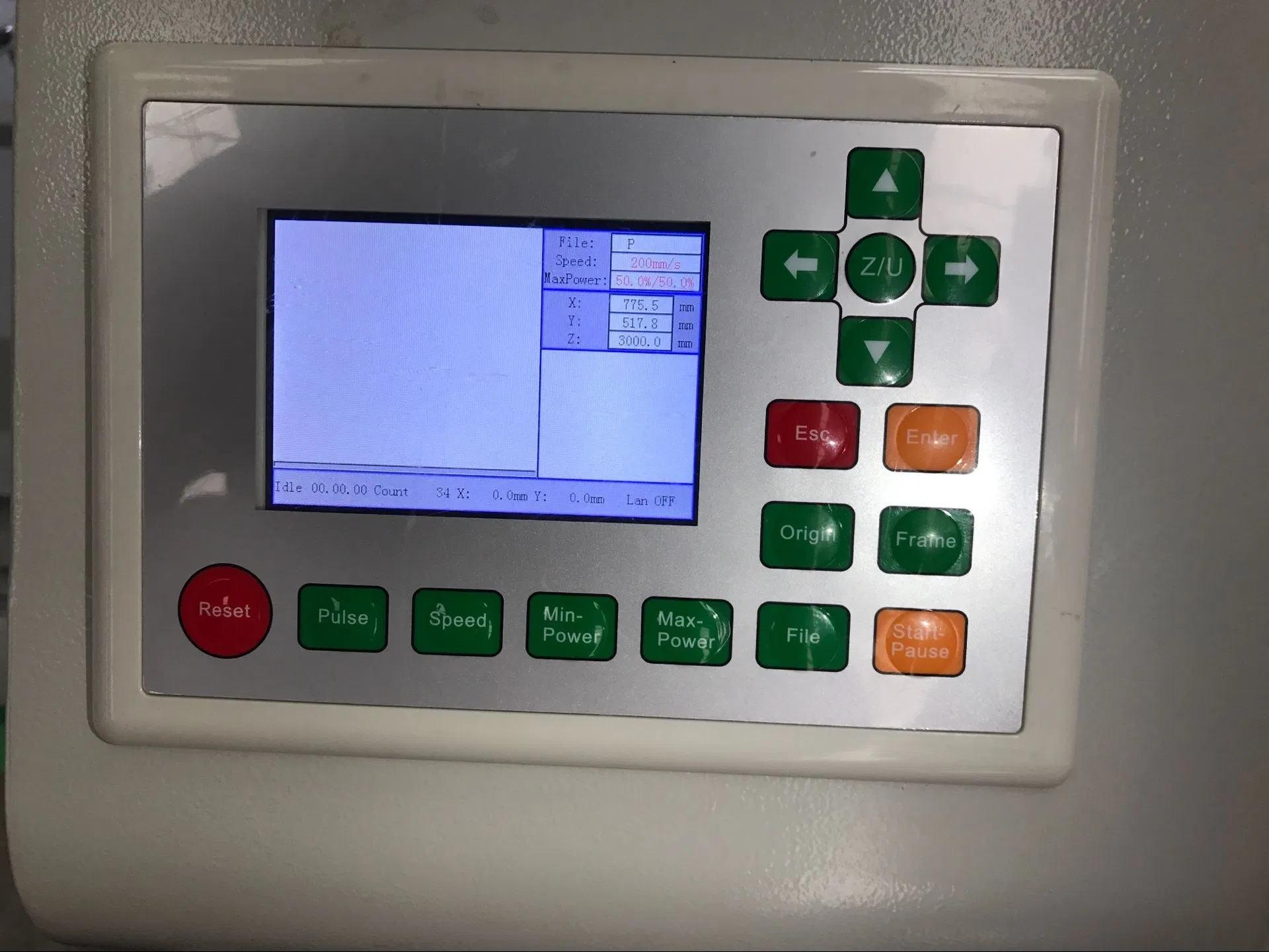

Control SystemLasercut/Ruida

Laser Power80W/100W/130W/150W

Engraving Speed0-20000mm/Min

Cooling ModeWater Cooling

Voltage380/220V

Warranty1 Year

HS Code8465990000

Product Overview

Application Materials Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

Applicable Industries Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

Product Specifications

Model	GD6090	GD1290	GD1325	GD1825
Working size(mm)	600*900	1200*900	1300*2500	1800*2500
Laser power	80w / 100w / 130w / 150w sealed CO2 laser tube
Engraving speed	0-60000mm/min
Cutting speed	0-30000mm/min
Reposition Accuracy	≤ ±0.01mm
Driving system	stepper or servo motor(optional)
Cooling mode	water-cooling (CW3000/5000/5200)
Control system	Lasercut or Ruida

Standard Accessories

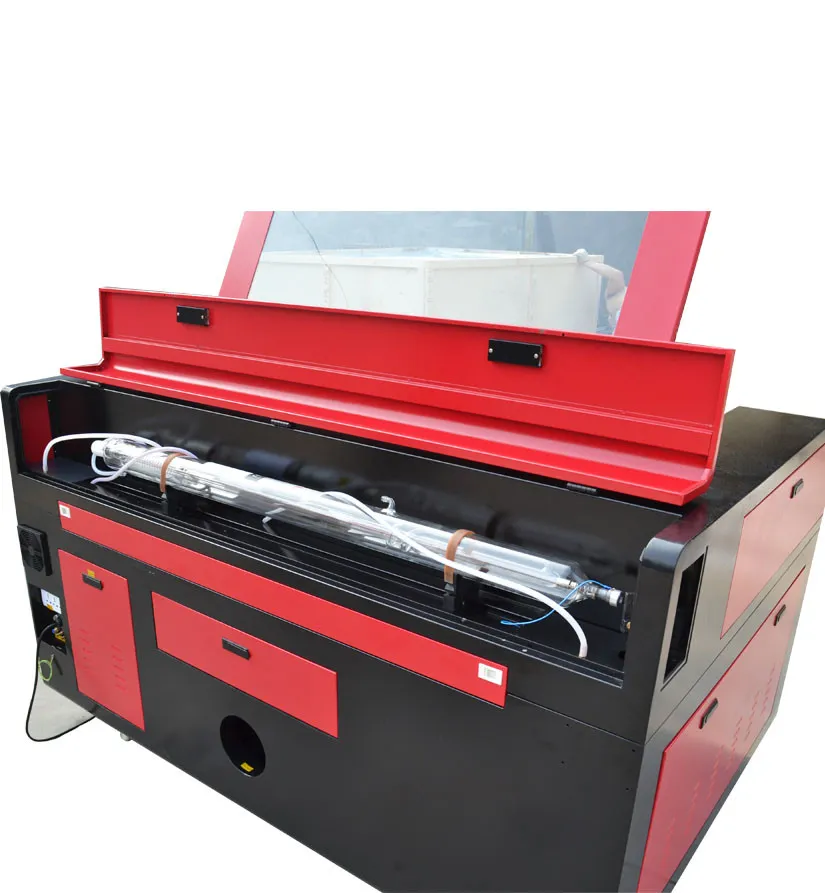

Laser tube (Installed)
One focus lens (Installed)
Water chiller (CW3000/5200)
English manual & Software
Three reflecting mirrors (Installed)

Optional Features

Rotary clamp for 3D engraving
Red light contraposition system
Up-down platform
CCD camera for scanning
German ball screw transmission

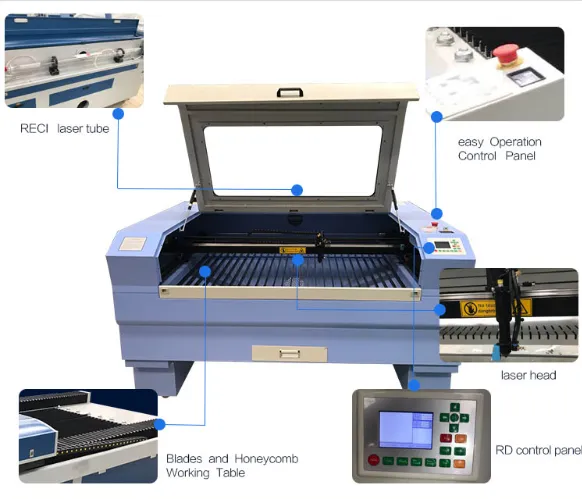

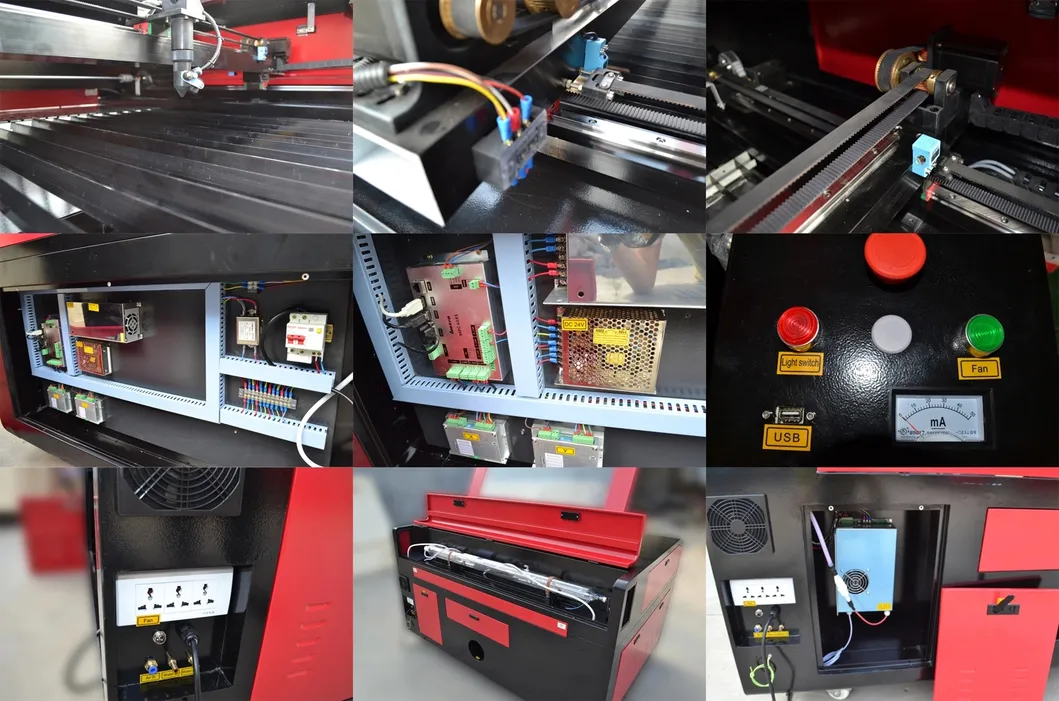

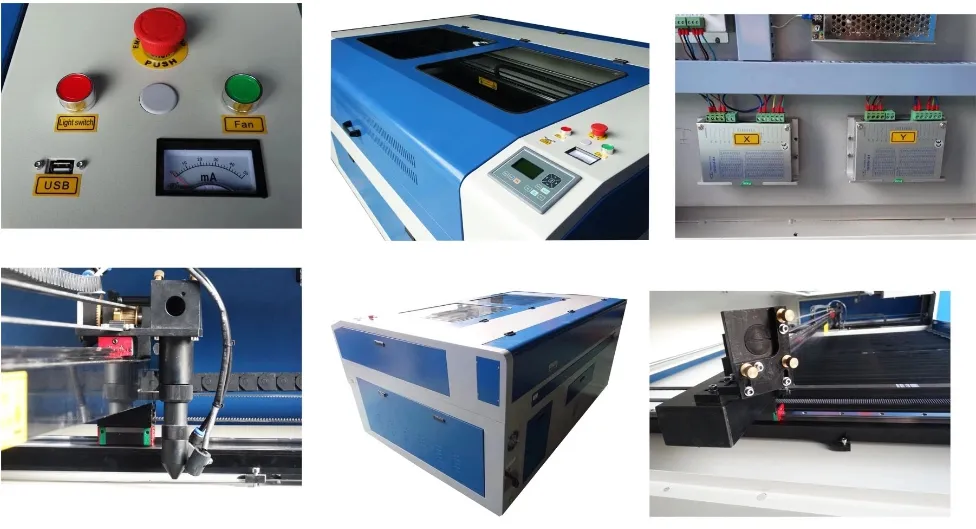

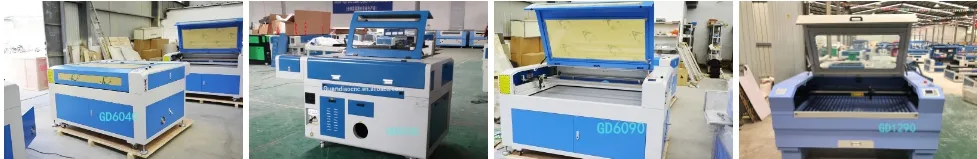

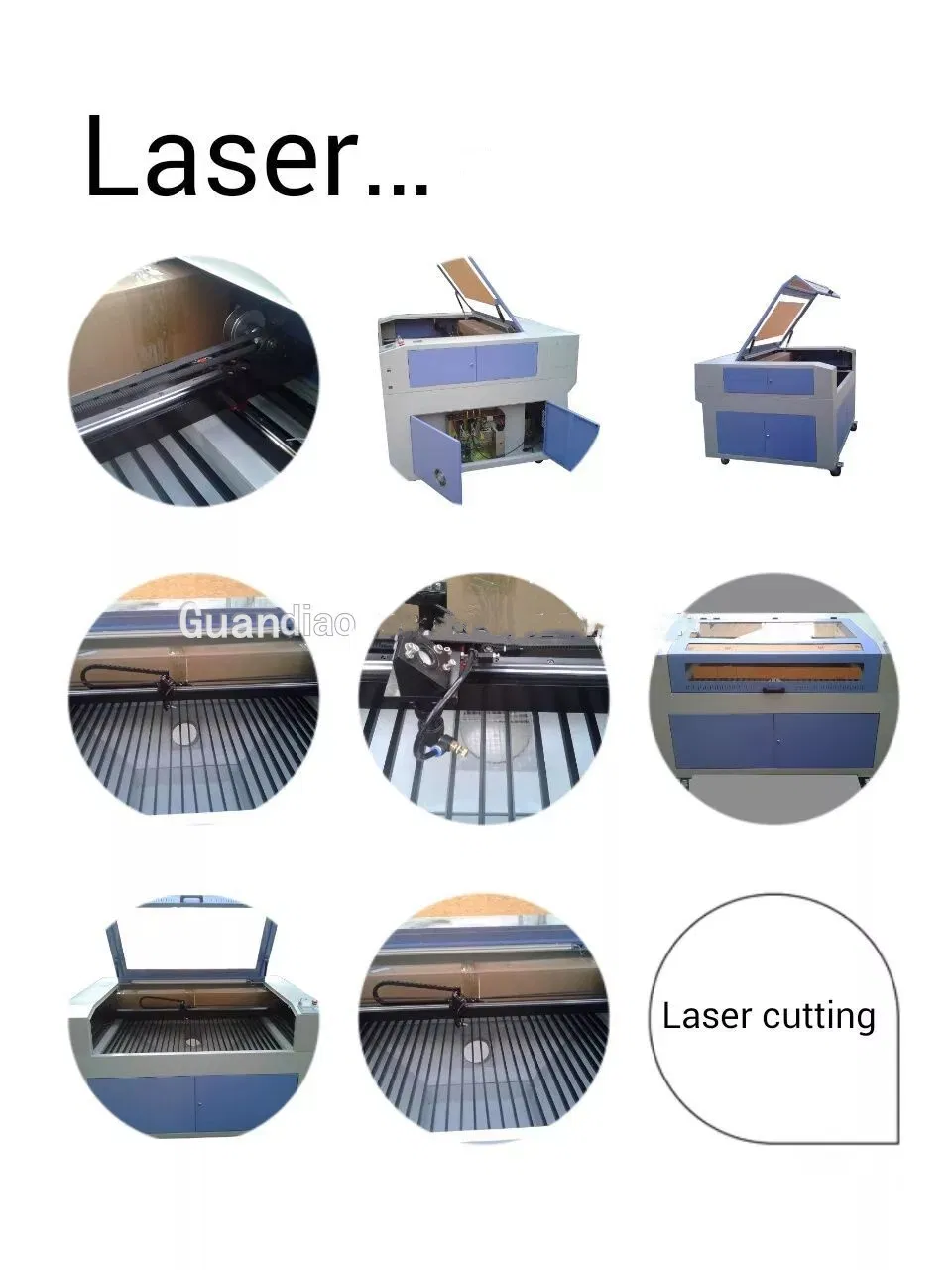

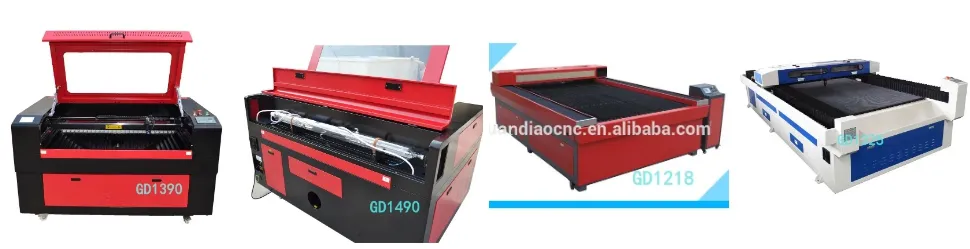

System Component Visualization:

Working Samples Capability

Material	Cut	Engrave
Acrylic \| Plexiglass \| PMMA	√	√
Wood \| Plywood \| MDF \| Balsa	√	√
Leather \| PU \| Synthetic Leather	√	√
Fabric \| Cloth \| Textile	√	√
Ceramic \| Stone \| Marble \| Glass		√
Plastic \| Fiber Glass	√	√

Premium Services

1 years quality guaranty; main parts (excluding consumables) changed free during warranty.
Lifetime maintenance free of charge.
Free training course at our facility.
Consumable parts provided at cost price when needed.
24 hours online service and free technical support.
Machine adjusted and tested before delivery.

Frequently Asked Questions

Q1: What materials can this CO2 laser machine process?

A: It is designed for non-metal materials including wood, acrylic, leather, fabric, paper, rubber, and can engrave on stone, ceramic, and glass.

Q2: How do I choose the right laser power (80W to 150W)?

A: Higher power (130W/150W) is better for cutting thicker materials quickly, while lower power (80W/100W) is excellent for high-detail engraving and thinner cutting.

Q3: Is the software compatible with common design files?

A: Yes, the Ruida/Lasercut systems support various formats such as AI, DXF, PLT, BMP, and JPG, making it compatible with CorelDraw and AutoCAD.

Q4: What kind of maintenance does the machine require?

A: Basic maintenance includes keeping the mirrors and focus lens clean, ensuring the water cooling system is running correctly, and lubricating the guide rails regularly.

Q5: Can the machine engrave on curved or cylindrical objects?

A: Yes, by adding an optional rotary clamp attachment, the machine can easily engrave on wine bottles, tubes, and other cylindrical items.

Q6: How is the machine delivered and set up?

A: The machine is shipped in a protective wooden case. It is pre-adjusted before delivery, and an English manual is provided to guide you through the initial setup and software installation.
