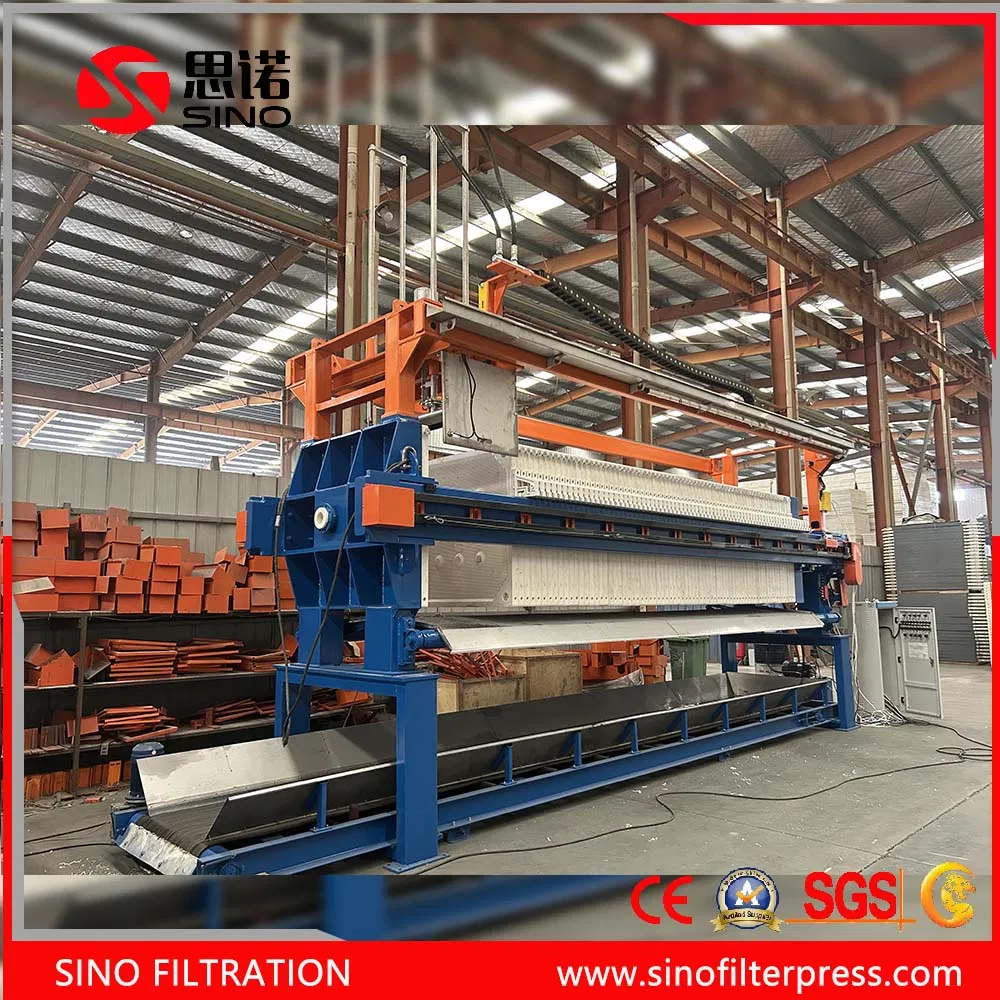

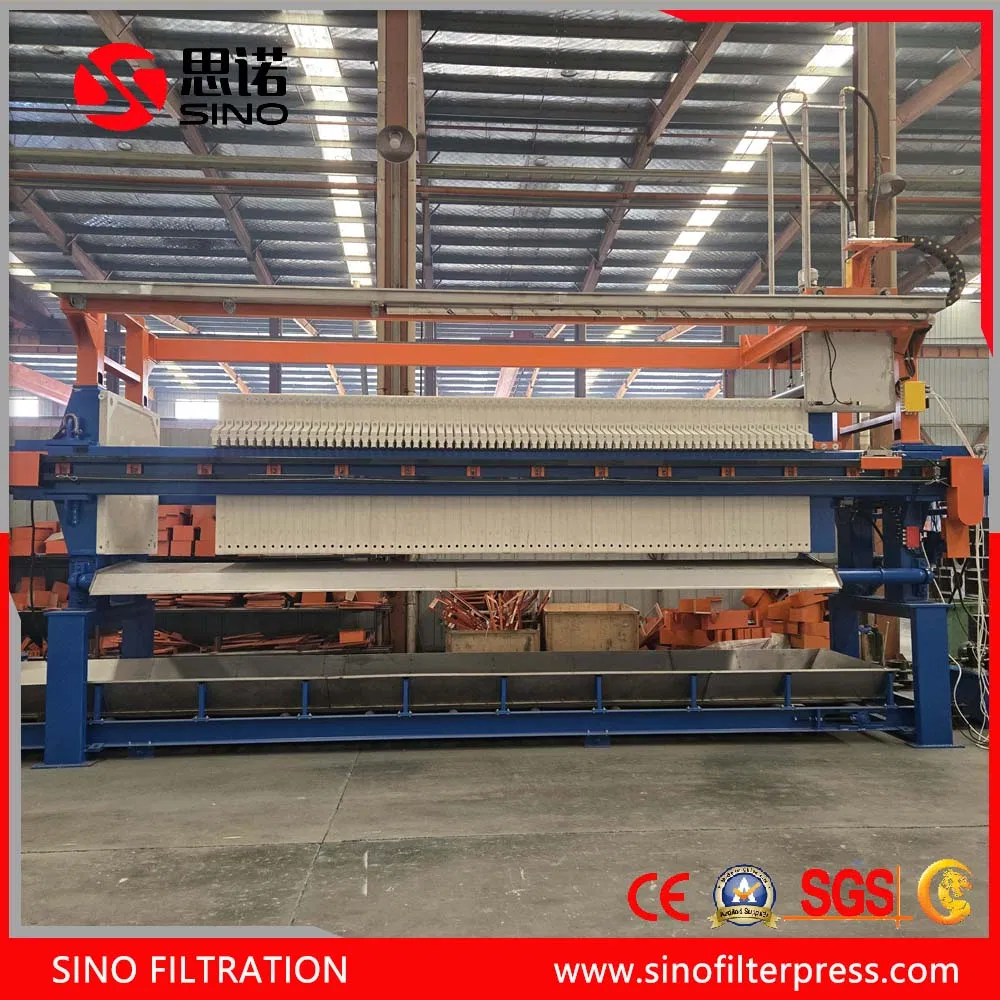

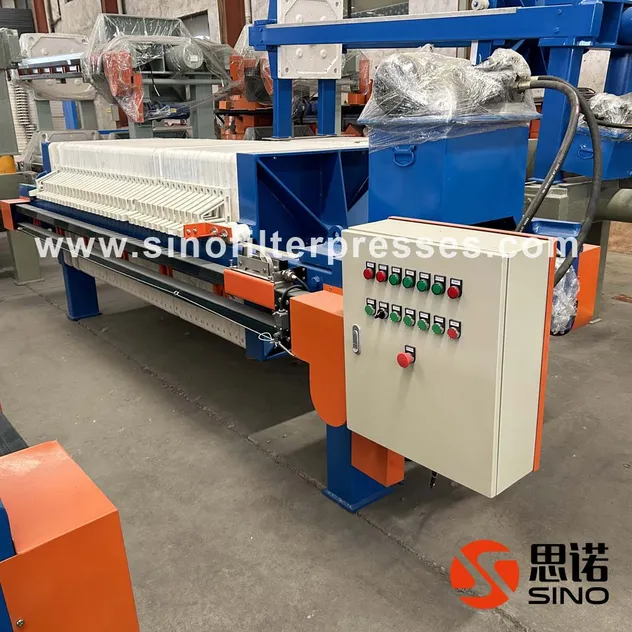

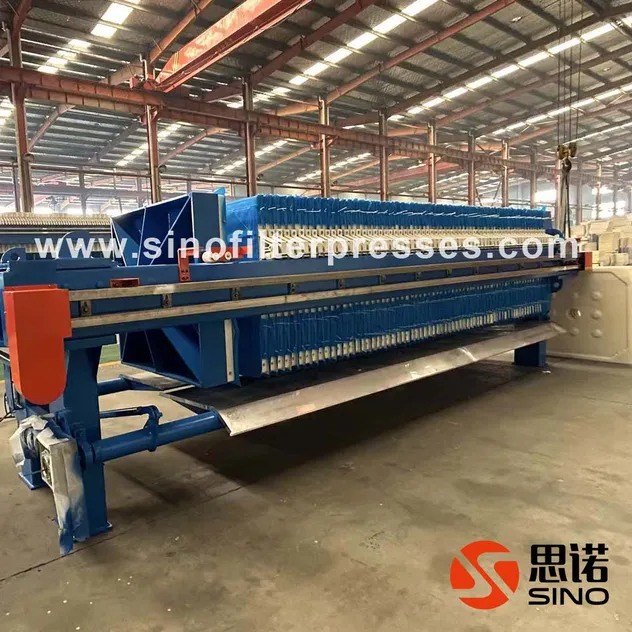

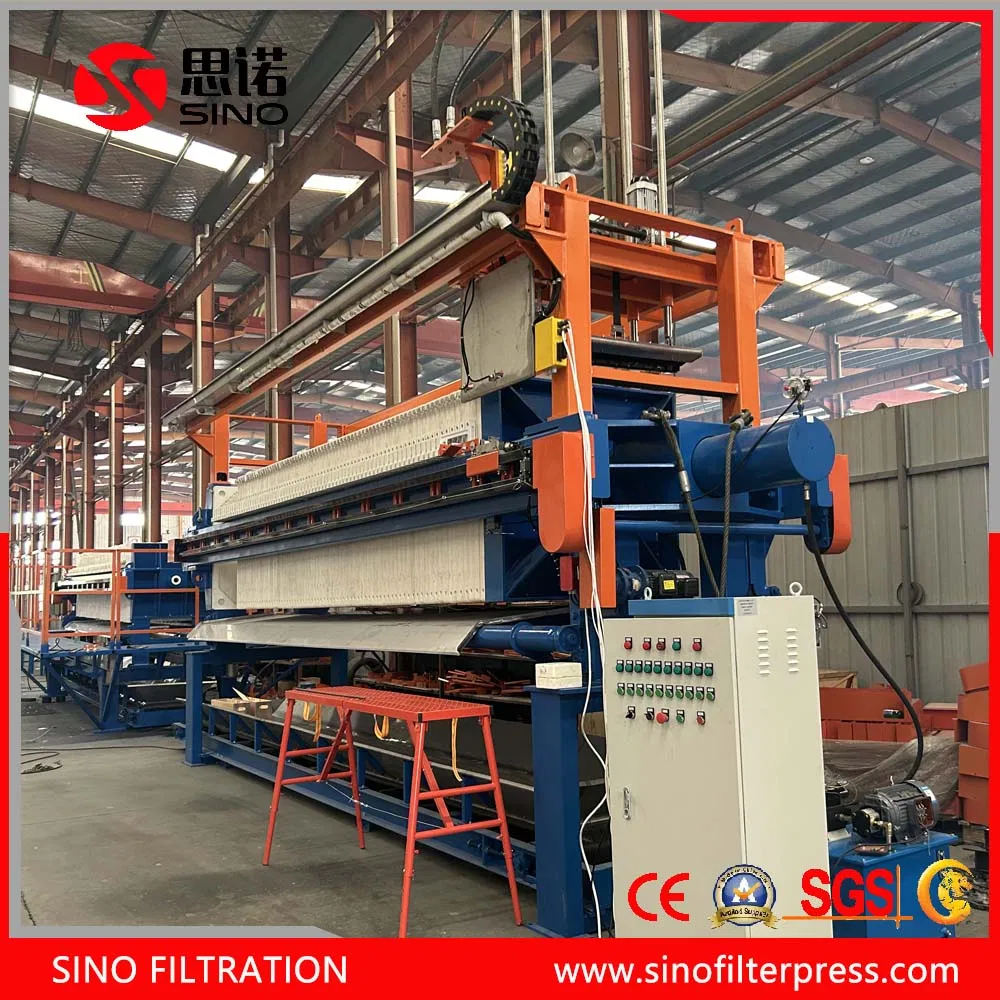

CHAMBER FILTER PRESS SYSTEM

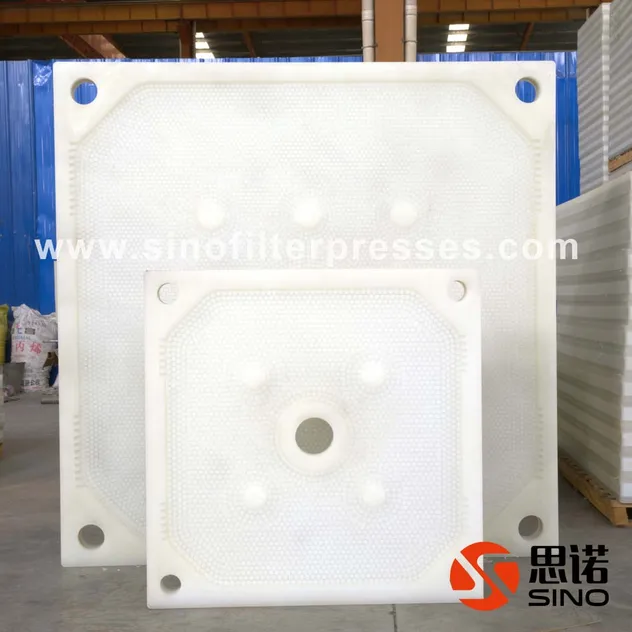

This filter press is designed for professional wastewater sludge pressing. The Chamber filter press can be configured for manual, semi-automatic, or fully automatic handling. The filter chamber is engineered with two adjacent concave filter plates to ensure maximum efficiency.
| Model | Filter Area (m2) | Plate Size (mm) | Cake Thickness (mm) | Chamber Volume (L) | Plate QTY (pcs) | Pressure (MPa) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| XMZ 30/870 | 30 | 870 | 30 | 460 | 23 | ≤0.6 | 2680 | 3180*1400*1230 |
| XMZ 50/870 | 50 | 748 | 38 | 3456 | 4110*1400*1230 | |||
| XMZ 80/870 | 80 | 1210 | 62 | 5082 | 5430*1400*1230 | |||
| XMZ 100/1000 | 100 | 1000 | 30 | 1475 | 57 | 6628 | 5780*1500*1400 | |
| XMZ 120/1000 | 120 | 1777 | 69 | 7644 | 6500*1500*1400 | |||
| XMZ 100/1250 | 100 | 1468 | 36 | 8307 | 5020*1800*1600 | |||
| XMZ 200/1500 | 200 | 1500 | 35 | 2998 | 49 | ≤0.6 | 20030 | 6400*2200*1900 |
| XMZ 500/2000 | 500 | 2000 | 40 | 9686 | 69 | ≤0.6 | 34840 | 9965*2850*2400 |
Our filtration equipment is widely utilized across various sectors, including waste water treatment, mining (concentrate & tailings), chemical processing, pharmaceuticals, ceramics, metallurgy, and food & beverage production. We offer a diverse range of solutions such as PP filter presses, stainless steel units, and membrane presses to meet specific client requirements.
